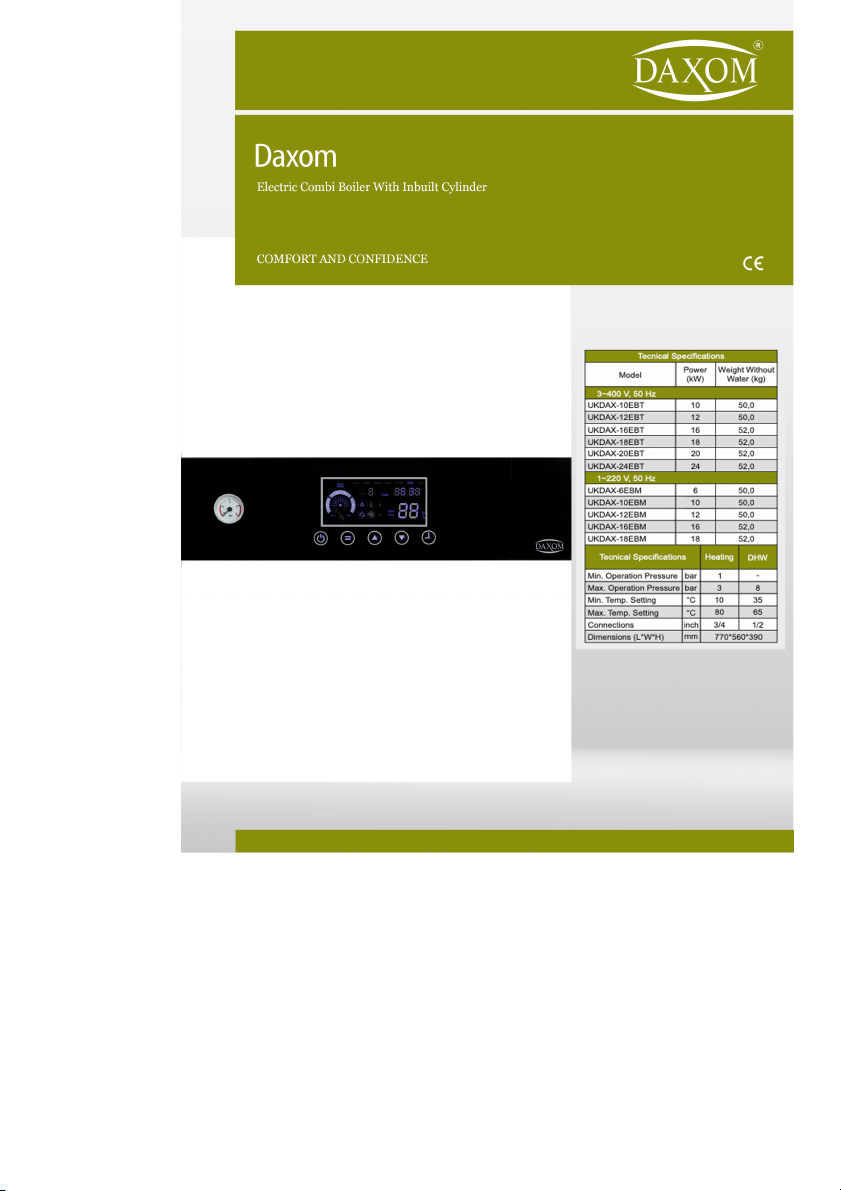

DAXOM UKDAX-10EBT User manual

1

Dear Daxom User, For correct operation and safety of this
device, follow the instructions in this manual during installation
and use. Unauthorised assembly or maintenance of this
device will void the warranty, and our company will not be
responsible for any defects or accidents that may occur with
the product. Please keep this instruction manual in good
condition for future reference.
1. The boiler must be installed by qualified tradespeople
(electrician/plumber) according to the instructions in this
manual.
2. The boiler must initially be started up by a qualified
technician , do not attempt to start the device yourself.
3. The boiler must be safely and securely connected to the
water and heating system .
4. Ensure that the mains voltage is correct. (Please note:
Depending on the model, the voltage specified may differ)
5. If using an external electricity source ( (such as a generator)
safe operation of the boiler must be ensured.
6. Install the appliance with the appropriate diameter cable
specified in this manual. The boiler needs to be connected via
a MCB/RCD as outlined in this instruction manual and secure
earth grounding needs to be in place for safe operation.
7. This appliance should not be installed in humid or external
environments.
8. Do not store flammable or explosive substances or articles
near the appliance.
1. SAFETY WARNINGS
2

9. This installation and operating manual is part of the product.
Keep it for reference.
10. This boiler should only be used for its intended purpose.
The manufacturer rejects all contractual or non-contractual
obligations in advance for damage to property or injury to
persons or animals resulting from misuse, installation,
adjustment and maintenance.
11.After removing the packaging, make sure all parts are
included and in good condition. If parts are missing or
damaged, contact the retailer where you purchased your
boiler.
12. The safety valve outlet must be connected to the
appropriate drain and ventilation system. The manufacturer
disclaims all liability in the event of damage caused by any
intervention to the safety valve.
13. Carefully dispose of all packaging.
14. In case of water leakage, the water supply must be
switched off and the manufacturer needs to be immediately
informed.
15. The operating pressure of the hydraulic system must be
between 1 and 2 bars and therefore must not exceed 3 bars. If
necessary, the pressure may be reset as shown in the
paragraph "Filling the System".
3

16. The Mg-Anode rod inside the enamel coated cylinder
provides corrosion resistance. Check the Mg-Anode rod every
three years and replace it if necessary.
17. The domestic water network pressure can be up to 6 bar. If
the mains pressure exceeds 6 bar, water is automatically
discharged from the safety valve. If the mains pressure is
above 6 bar, a pressure reducer must be installed at the device
or incoming water supply.
18. The anti-Legionella function increases the Cylinders
temperature to 65 °C once a day to provide hygienic water.
19. If the boiler is not going to be used for a long time, it is
recommended to perform the following steps:
•Turn off the power switch
•Drain the water in both the heating and hot water circuits,
and close off the taps to prevent freezing.
20. The boiler should not be used by children without
supervision.
21.In case of a smoke or burn smell originating from the
device, turn off the power switch and contact the manufacturer.
22. Do not touch the device with wet hands or when the
outside of the device is wet.
23.Do not use chemicals such as detergents or thinners for
cleaning the boiler. Turn off power to the appliance, and then
clean the exterior of the appliance with a slightly damp cloth.
24. The first time you turn on the hot water tap, the water
coming out may be of a very high temperature. Please take
care and check the water temperature.
4

1.Adjust the indoor temperature settings to your needs.
2. Having the heating operation set according to your intended use
will increase energy savings.
3. Savings can be made by adjusting the required temperature
value for each section (of the property with thermostatic
radiator valves), However, simultaneous use of a room
thermostat and thermostatic valves may cause problems.
4. It is important to position the room thermostat away from
objects, such as curtains, articles, etc., which could disrupt the
ambient airflow.. This will ensure that the device can correctly
detect the temperature.
5. The room thermostat should be located at a suitable height
and away from the Boiler and other devices that would affect
detection of the actual ambient temperature.
6. Long-term ventilation of the heated environments will
increases energy loss. Short-term ventilation should be
provided. If long-term ventilation is required, closing the
radiator valves or reducing the device temperature setting
saves energy.
7. Setting the boiler to a lower temperature overnight or when
not at home will save energy while maintaining the ambient
temperature.
8. Setting the operating temperature of the device according to
the outside temperature saves energy.
9. Setting domestic water temperature to a moderate level
saves energy.
2. RECOMMENDATIONS FOR ECONOMICAL USE
5

Your device has a 50 litre integrated enamelled cylinder. From
start up to 65º C DHW will take 10 minutes. During the use of
DHW the cylinder continuous heating, providing continuous hot
water even at very low water pressure and flows.
3. CONFIGURATION OF YOUR DEVICE
4. TECHNICAL INFORMATION
6

Technical Specifications
Model
Power (kW)
Weight
Without
Water (Kg)
Boiler
Volume (l)
3~400 V 50 Hz Electrical Boiler With Cylinder
UKDAX-10EBT
10
50
50
UKDAX-12EBT
12
50
UKDAX-16EBT
16
52
UKDAX-18EBT
18
52
UKDAX-20EBT
20
52
UKDAX-24EBT
24
52
1~220 V 50 Hz Electrical Boiler With Cylinder
UKDAX-6EDM
6
50
50
UKDAX-10EDM
10
50
UKDAX-12EDM
12
50
UKDAX-16EDM
16
52
UKDAX-18EDM
18
52
Technical Specifications
Heating
Tap Water
Min. Operation
Pressure
bar
1
-
Max Operation
Pressure
bar
3
6
Min. Setting
Temperature
oC
35
30
Max. Setting
Temperature
oC
80
65
Connections
inc
h
3/4
1/2

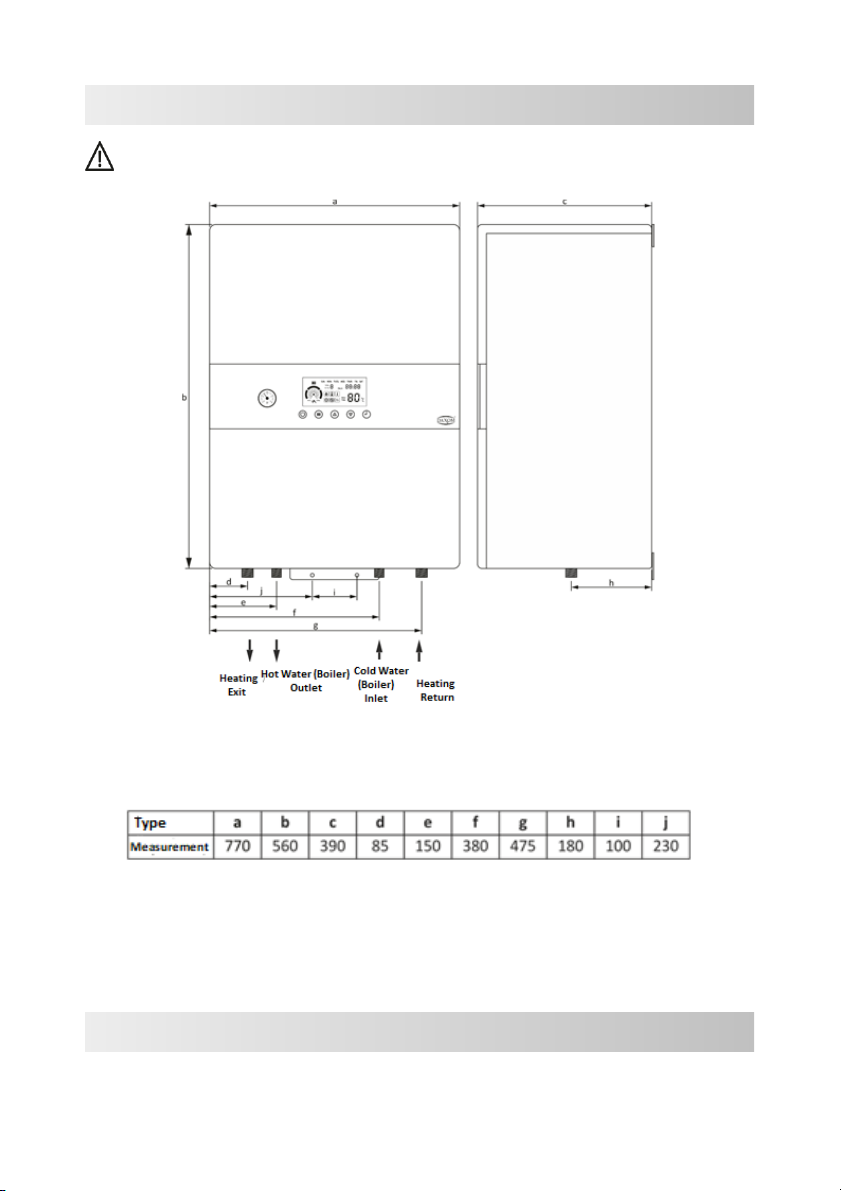

Dimensions
m
m
770*560*390
7

The boiler must be installed by a qualified technician.
5. BOILER ASSEMBLY
5.1 Installation requirements and safety instructions
8

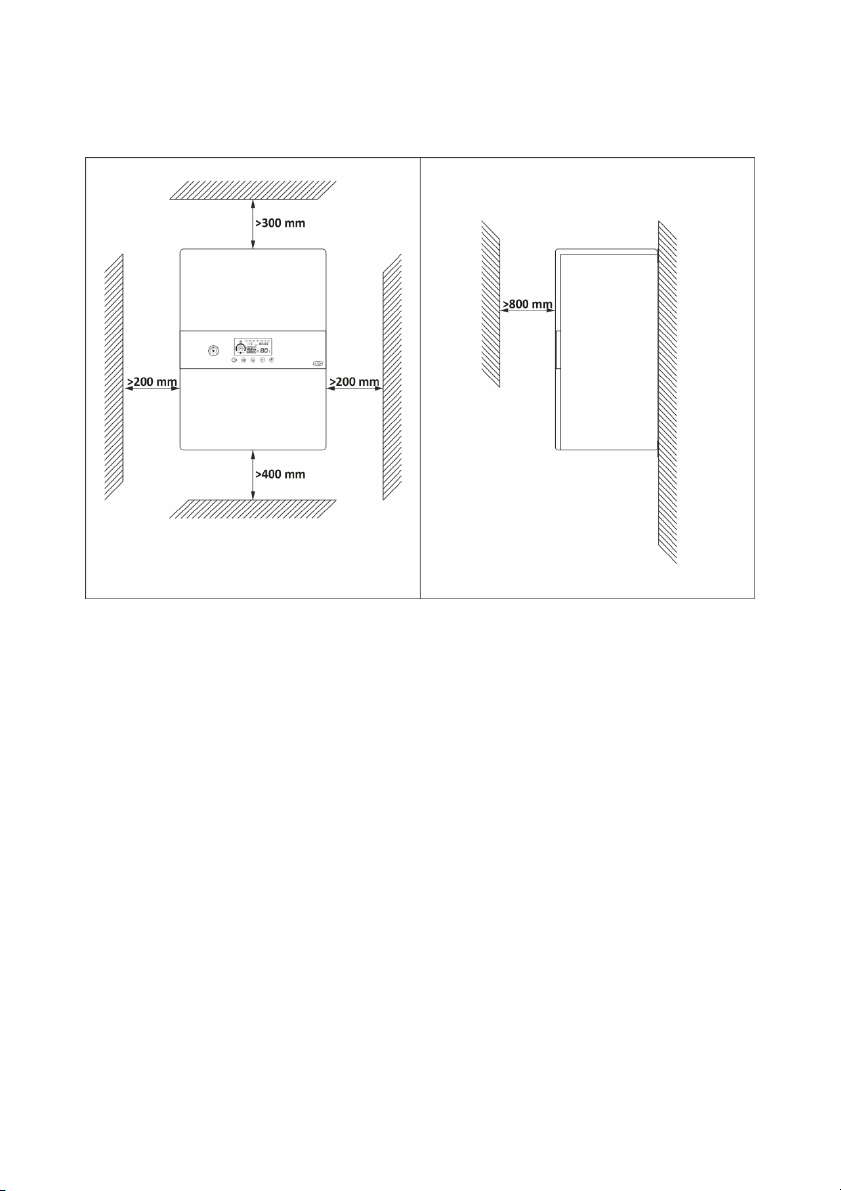

For ease of maintenance, observe the minimum distances
specified in the installation in order to access the boiler.
For correct device positioning:
•Do not place above a stove hob or similar cooking
appliances.
•Do not leave flammable products in the room where the
boiler is installed
•Heat-sensitive walls (eg wooden walls) need proper
insulation. Insulation must be installed between the wall and
boiler.
• Before installation, carefully flush all system piping to remove
any debris that may interfere with the operation of the boiler. In
case of leakage due to overpressure of the heating system,
place a water collection funnel with a suitable drain pipe under
the safety valve. There is no need for a safety valve in the
9

mains hot water circuit, but make sure that the water system
does not exceed 6 bars. If in doubt, have a pressure reducer
installed.
•The area where the boiler is installed must be free of
obstructions and protrusions during repair or maintenance.
•The electrical connection of the boiler must be made with
suitable cables, MCB/RCD and grounding must be installed.
• The wall on which your device is mounted must be strong enough
to bear the weight of the device.
The appliance must be installed exclusively on a vertical and solid
wall that can support the weight of the boiler. M8 screws with
appropriate anchors conforming to the type of the wall itself are
recommended.
Pipe of appropriate diameter to ensure adequate circulation of
the heating water must be used during installation. If the
correct diameter heating pipes are not used, constriction or
blockages in the installation may result in insufficient heating
circulation. Connections to the boiler should be easily
detachable if necessary. Non return Valves should be used
with the inlet pipes. Separate shut-off valves should be used at
the inlet and outlet of the heating circuit. A reducer valve
should be used at the boiler cold water inlet.
5.2. Wall Mounting of the Boiler
5.2.1. Heating and Plumbing Connections
10

After installation, the boiler must be filled first. This should be
done following the instructions below.
Open the cold water inlet tap.
Open any tap (preferably the closest tap) connected to the hot
water outlet of the appliance. The air in the boiler will be
discharged from this tap.
Close the tap after the air has been discharged from the tap
and water has started to flow continuously.
Water leakage should be checked carefully.
The filling is done with the blue filling tap under the device.
This should be done following the instructions below.
Make sure the cold water inlet tap is open.
Open the filling tap until the water pressure gauge is between
1 and 1.5 bar.
When the filling is complete, close the filling tap.
Discharge air accumulated in the radiators.
•Heating water pressure should be checked to make sure that
it is between 1 and 1.5 bar after discharging the air in the
radiators .
•Check to ensure there is no water leakage.
5.2.1.1. Filling the Boiler
5.2.1.2. Filling the Heating System
5.2.2. The Electrical Connections
11

The electrical installation must be carried out by a qualified
electrician using suitable diameter cable determined according
to the boiler capacity and cable length. The MCB and RCD
with appropriate characteristics and amperage which can cut
the boiler electricity completely should be located separately
and be close to the device. If there is no earthing installation in
the structure where the boiler is installed, the grounding line for
the boiler should be installed by a qualified electrician. The
Isolator switch must be located near the boiler, and after the
Isolator switch there must be enough cable to connect to the
boiler. The connection of the cables to the boiler must be done
by a qualified installer. Cable diameters calculated according to
boiler capacity and cable lengths, and MCB and RCD
amperage values can be seen in the table below.
Model
Pow
er
(kW)
Phase &
Voltage
(V)
Current
(A)
Fuse &
Residual
Current Device
(A)
Cable
Section
(mm)
UKDAX-10EBT
10
3~400
3*15,2
3*20
5*2,5
UKDAX-12EBT
12
3~400
3*18,2
3*20
5*2,5
UKDAX-16EBT
16
3~400
3*24,3
3*25
5*4
UKDAX-18EBT
18
3~400
3*27,3
3*32
5*4
UKDAX-20EBT
20
3~400
3*30,4
3*40
5*6
UKDAX-24EBT
24
3~400
3*36,4
3*50
5*6
UKDAX-6EBM
6
1~220
27,3
32
3*4
UKDAX-10EBM
10
1~220
45,6
50
3*6
UKDAX-12EBM
12
1~220
54,6
63
3*10
UKDAX-16EBM
16
1~220
72,8
80
3*16
UKDAX-18EBM
18
1~220
81,9
100
3*16
12

Cable cross sections are calculated for a maximum of 10 m.
For cable lengths of more than 10 m, consult your electrician.
The operating status of the device can be viewed on the
control panel.
6. STARTING AND USING THE BOILER

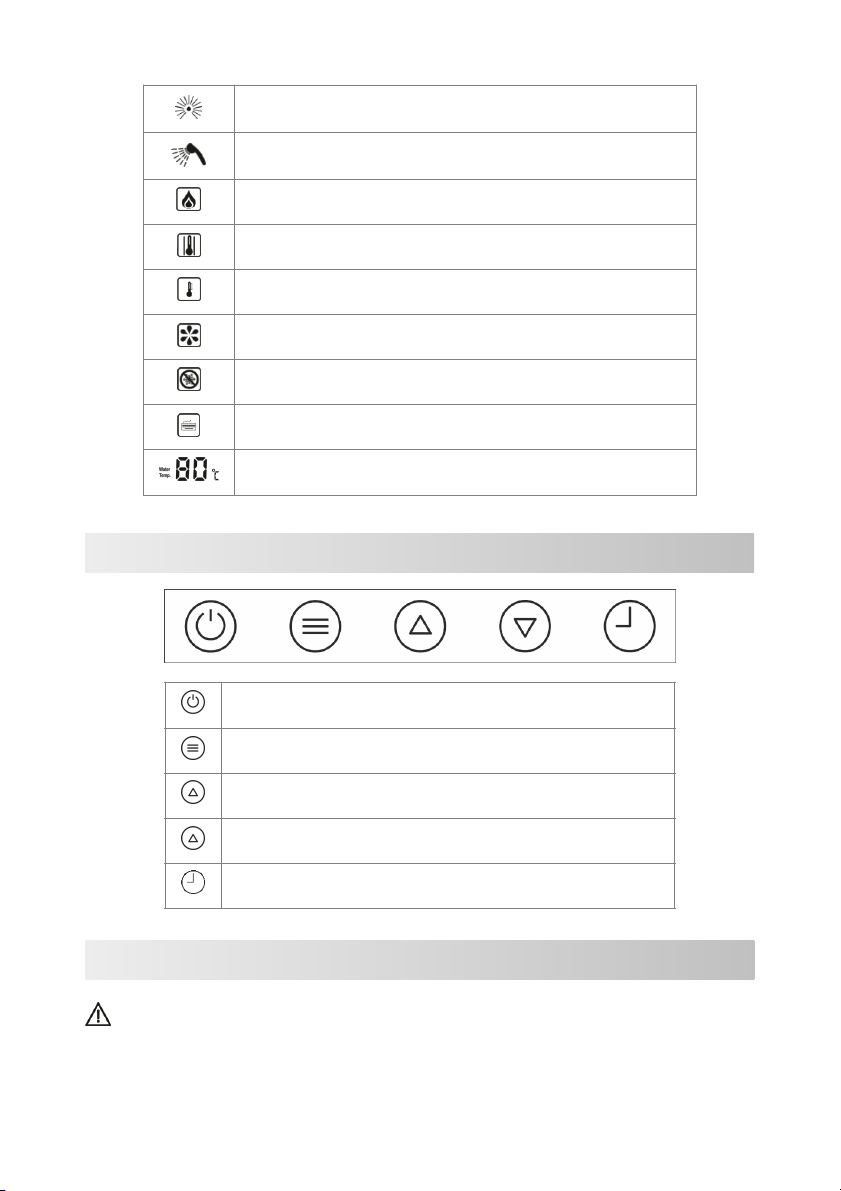

6.1. Control Screen
Radiator / floor heating indicator
Days of the Week
Time Programs for seven days
Hour
Capacity Indicator
13

The boiler installation must be carried out by qualified
tradespeople.
Ready To Operation Indicator
Tap Water (cylinder) heating indicator
Heating indicator
No need to for heating indicator
Exit / Return temperature difference indicator.
Pump operation indicator
Freezing Prevention Indicator
Room Thermostad indicator
Temperature Indicator
6.2. Control Keys
ON / OFF
Menu exit / Changing
Temperature increase / Hour and days setting
Temperature Decrease
Timer ON /OFF
6.3. Operating the Device
14

Our company is not responsible for the damages and
accidents that may occur due to installation by unauthorised
tradespeople. Before starting the boiler, all mechanical and
electrical connections must be checked. During installation, the
Combi boiler should be filled with water at a pressure between
1 to 2 bar. Our company is not responsible for damages and
accidents that may occur due to incorrect connection. To start
the boiler: Make sure that the water and heating valves are
open.
Open the residual current relay and then the fuse.

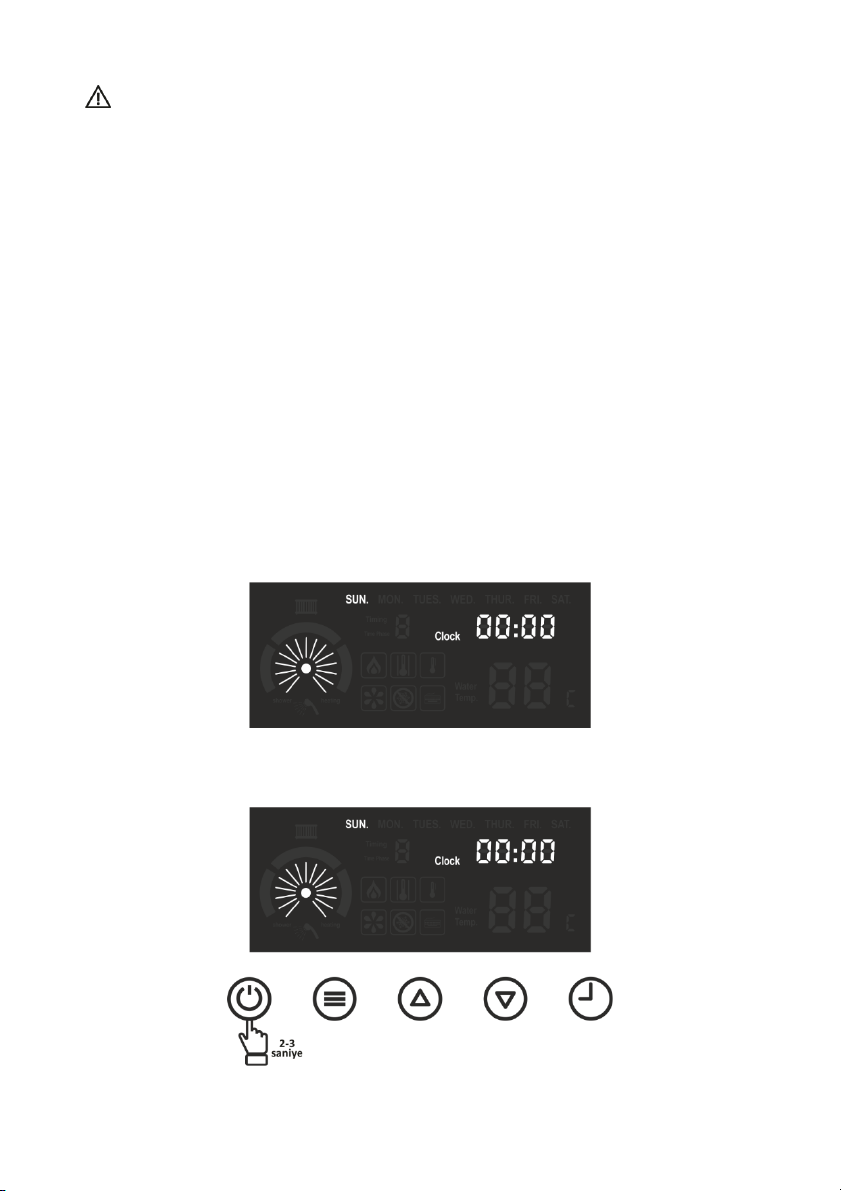

After all the icons appear on the screen for a few seconds, the
screen will look like this.
Press and hold for 2-3 seconds to switch on the device.
15

If the operating mode before the device was switched off was
set to domestic water (DHW) and heating, the DHW cylinder
will operate if the DHW temperature is below the set
temperature. The symbols “heating” and “shower” appear, and
the symbols are flashing. If the DHW temperature is equal to or
above the set temperature, the appliance starts to operate for
heating, and the icon appears.
If the operating mode before the device was switched off is set
to domestic water (DHW) heating, the DHW cylinder will
operate if the DHW temperature is below the set temperature.
The “shower” icons appears and flashes. If the DHW
temperature is equal to or above the set temperature, the unit
switches to standby.
If the operating mode before the appliance was switched off
was set to heating, the appliance operates for heating. The
“Heating” icons appears.
16

A warning tone sounds each time you press a key. If the button
is pressed for a long time (eg 2-3 seconds), the button can not
be pressed again until you hear a beep.
The device is switched off.

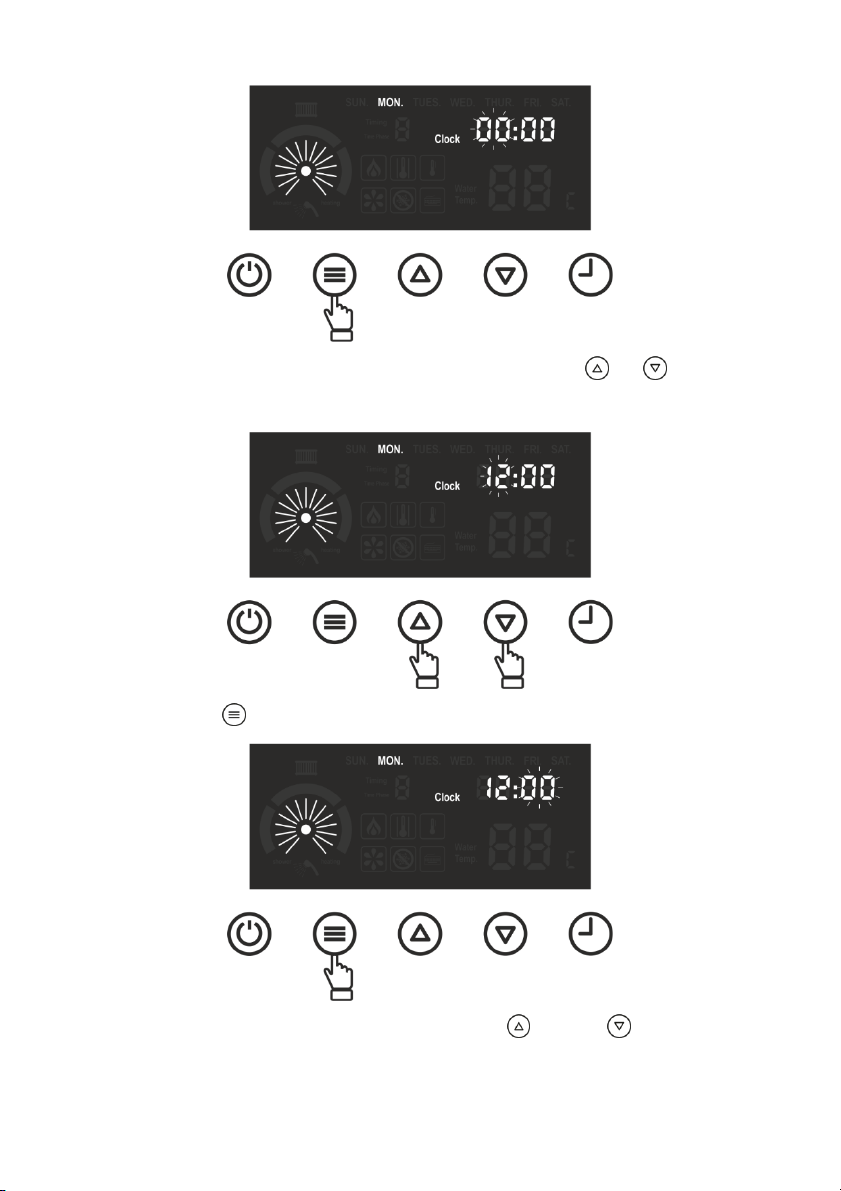

The key is held for 5-6 seconds, the days starts flashing
The day is set by pressing the or key a second apart.
The key is pressed, the hour digits start to flash.
6.4. Setting Operating Parameters
6.4.1. Setting the Day and Time
17

Set the time between 0 and 23 by pressing the or key one
second apart.
The is pressed, the minute digits start flashing.
Set to 0 to 60 minutes by pressing the or key one second
apart.
18

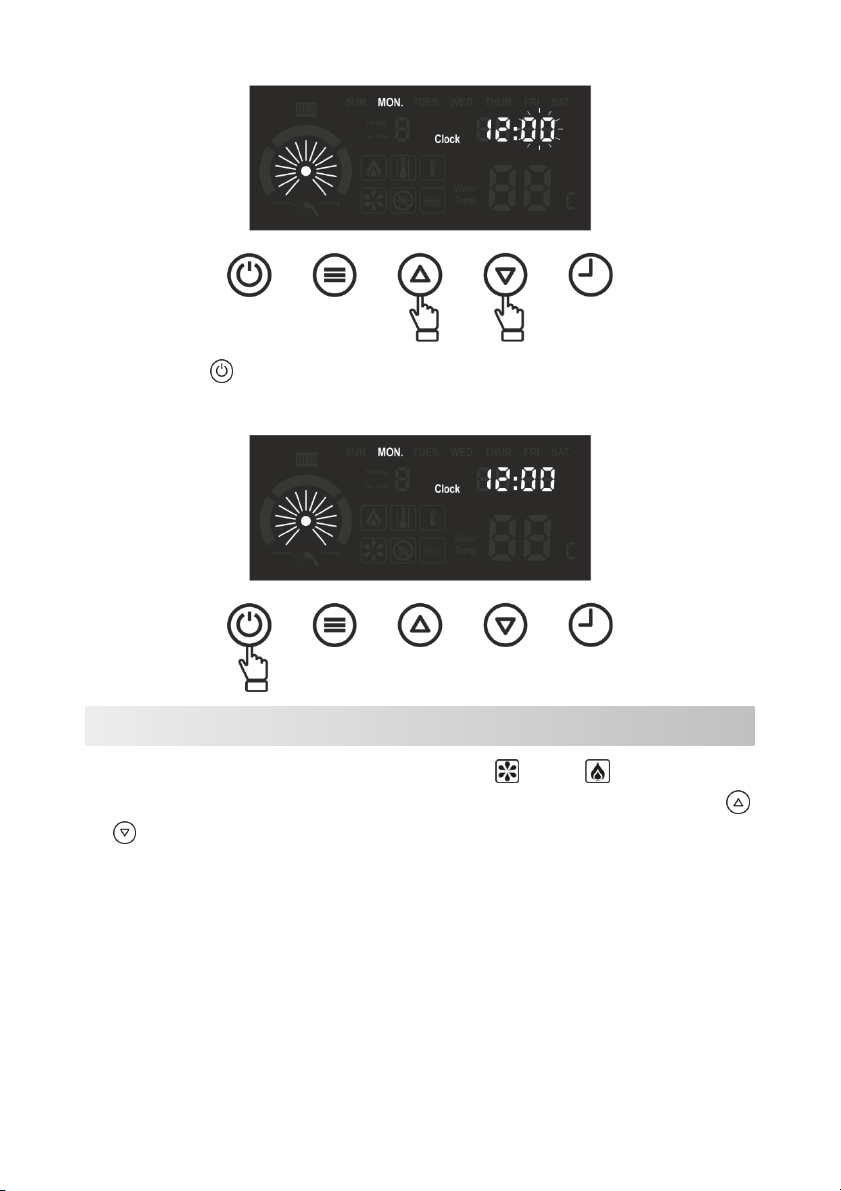

Press the key to save the settings. If no key is pressed for 10
seconds the device does exit the setup menu.

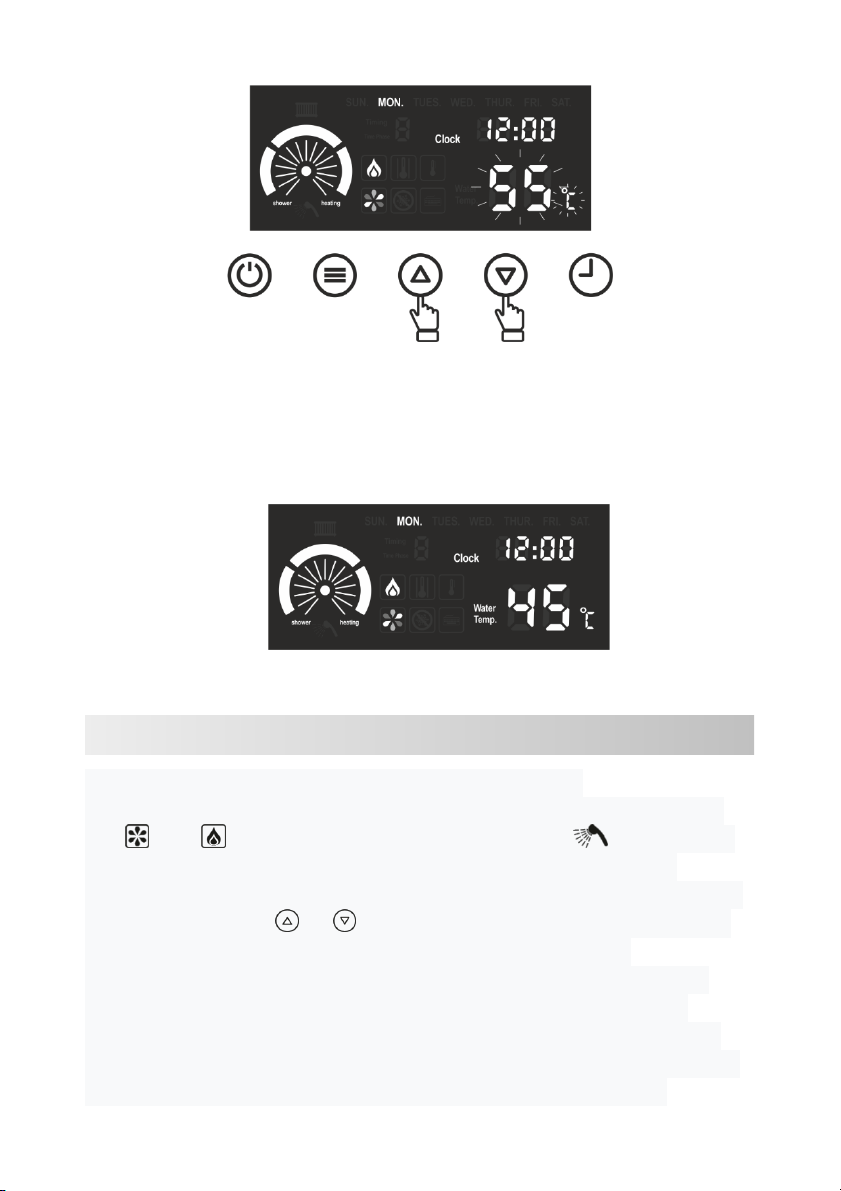

Heating temperature adjustment; The and icons are
displayed while the appliance is operating for heating, press
or to set the temperature between 35º C and 80º C. Water
Temp is not displayed while the heating temperature setting is
made. The set temperature starts to flash. In order to set the
heating temperature when the boiler is operating for domestic
water , the operating mode of the device must be changed to
heating. At the end of the operation, the device must be
returned to the previous operating position. (See 6.4.8)
6.4.2. Heating Temperature Adjustment
19

The display shows first the set operating temperature, then the
actual temperature 20 seconds after the setting is completed. It may
take time for the device to reach the set temperature. The heating
does not start until the cylinder heating (DHW) is completed.
Domestic water (cylinder) temperature setting;
The temperature can be set between 30º C and 65º C while
the and icons are displayed, the symbol is flashing.
When the appliance is operating for domestic hot water
(DHW). If the operating mode is set to domestic water (DHW)
heating press the or key to adjust the temperature. It is
also possible to change the domestic water (DHW)
temperature during standby. To set the domestic hot water
(DHW) temperature when operating for heating only, the
operating mode of the device must be changed to domestic
water (DHW). At the end of the operation, the device must be
returned to the previous operating position. (See 6.4.8)
6.4.3. Adjusting the Domestic Water (Cylinder) Temperature
20
