Dbworth XT-009S User manual

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
GSM / GPRS / GPS
MOTORBIKE /VEHICLE
SMART TRACKER
XT-009S

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
1.Overview
A.features:
 FIFO
 FOAT
 Tlimit
 Relay cut off
 2Cpus Control
 Waterproof /IP68
 Voice monitoring
 Blind Area data log
 Intelligent Power Saving
 GPS+AGPS+LBS Tracking
 ACC alarm
 SOS alarm
 Move alarm
 Park alarm
 Angle alarm
 Speed alarm
 Shake alarm
 Geo-fence alarm
 Low battery alarm
 Main power missing alarm
B. Advantages:
◆SOS
◆LED
◆Relay
◆Shaking sensor
◆Microphone for voice monitor
◆Built-in battery (3.7v 850mah)
◆Smart Size: 73.5*46*24mm and 44g
◆GPS Module: U-BLOX( -165 dB )+AGPS
◆Built in storage space (GSM/GPRS blind zone data)
◆GSM/GPRS :SIM800C（850/900/1800/1900MHZ）
◆6-36V ( can be modified according to clients requests)
◆No need to add password when send command by gprs
◆2 CPUs: ARM+MCU one is for operation, the other is for stability
◆ADC input :(can be customized for oil sensor ,temperature sensor ,Voltage
measuring ....)
◆EMC circuit (Lightning protection, over voltage, over current protection and
electromagnetic interference)
◆The tracker will be in ultra-power-saving mode when the tracker is in standby mode and
no external power. The whole tracker is less than 5MA
◆ADC(Analog Digital Signal Converting) INPUT: （Optional : Oil sensor , temperature
sensor , DC voltage measuring ....）

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
2.Application
 Vehicle/Boat/motorcycle / rental / fleet management
 Assets safety
 Vehicle management
 Tracking an offense
3.XT009S and accessories

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
4. Wires connection
Red: Connect to constant DC+ Car Battery(6-36V)
Black: Connect to Earth (Chassis) Car battery(-)
Green: Connect to ACC
Yellow: Connect to SOS button
Orange:Connect to SOS button
White: Connect to Relay terminal (85 or 86Pin)
Note: Relay is optional for fuel / ignition cut off.

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
5. Specifications
Item
Specifications
Dimension
73.5(L)*46(W)*24(H)mm
Frequency bands
GSM: 850/900/1800/1900Mhz
Weight
44g
DC Input Voltage
6V-36V
Backup battery
850mAh/3.7v
Power consumption
10mA standby current standby time 3-5days
Working temperature
-20°C to 70°C
GPS Chip
U-BLOX7
GPS Sensitivity
-159dBm
Positioning Accuracy
5-10m
Standby time
3-5days
Channel
56 Channel
Hot start
1s on average
Warm start
15s on average
Cold start
30s on average
Humidity
5%~95% non-concretion
Antennas
Internal GSM & GPS antennas
LED Light
Red for DC power and Working ,Green for working status
SIM Card interface
Nano Size SIM

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
6. Installation
I. Open XT009S
II.Install :
A.Prepare a Nano sim-card

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]

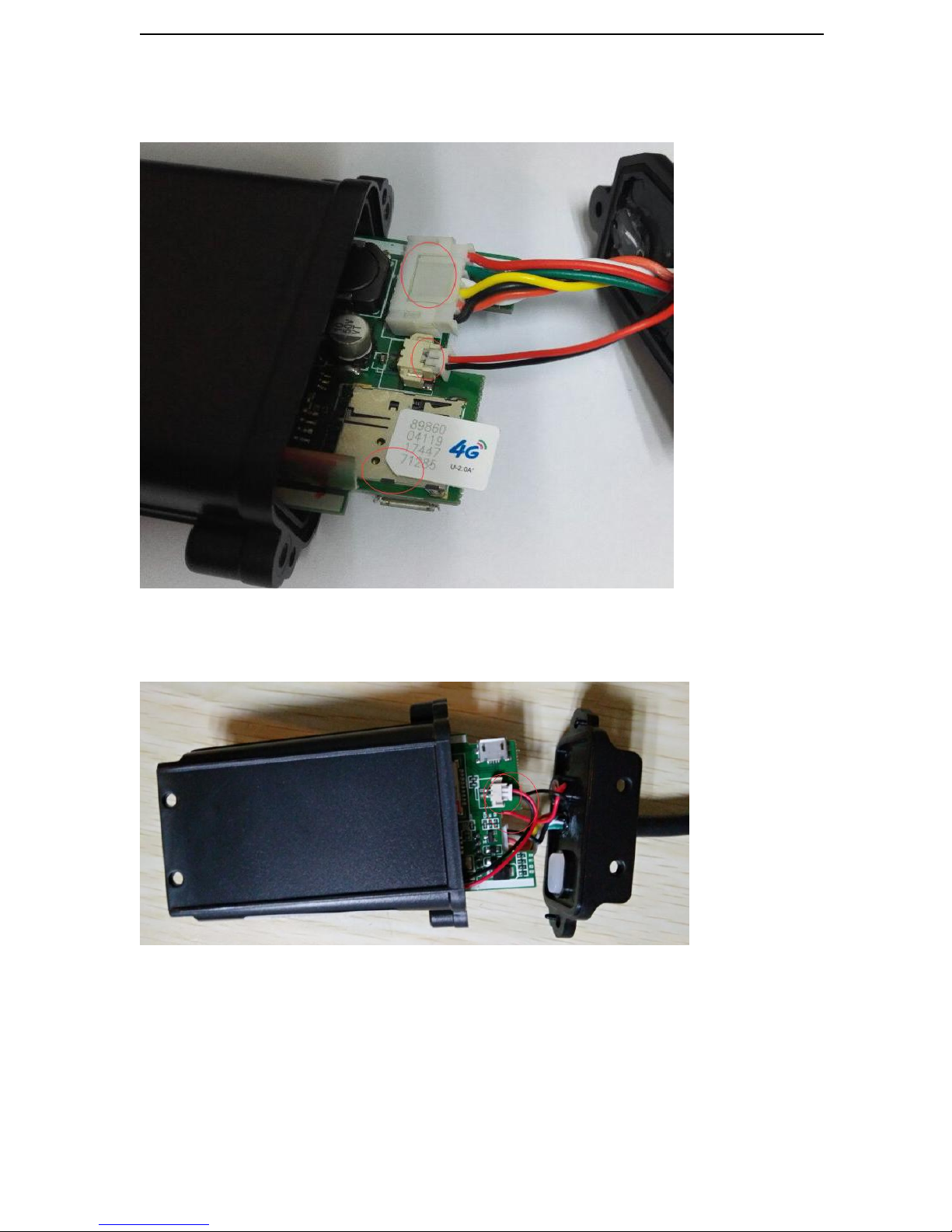

B. Install Nano size Sim-card and Microphone
C.Connect the Backup battery

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
III.Locations for XT009S Installation
Below are the recommended areas available within a vehicle for TM009 installation. These are
suggestions only, as depending on the vehicle type, there may be many possible locations to hide/install
the unit.
7.Startup
Make sure : SIM card in right place,backup battery connected and DC 6-36V
connected . Tracker will turn on automatically.
The green light will blink 2 times per second after start up. after 10-20
seconds, the light will on 1 seconds, off 3 seconds, GSM signal working
normal.
It takes 20~50 seconds to receive the GPS signals, in order to get good GPS
signals, please put the tracker outdoor.
8. LED Indications
Power indicator (RED)
Status
Description
Constant ON
DC+ Connected /Charging the Backup Battery
OFF
DC+ Disconnected

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
System indicator (Green)
Status
Description
Constant ON
Backup Battery no enough power
Quick flash
Searching signals
Flash slowly
Normal Working Mode
OFF
In sleep mode
9. Commands Function:
All commands are not case sensitive ,123456 is the default password.GPRS
commands (no password required).
A. For connecting Server/Mobile Apps via GPRS:
T030S***N123456
Adminip123456 122.10.36.11 2020
Apn123456 cmnet
Apnuser123456 username
ApnPasswd123456 password
B. User gets the sms on mobile :
1.Call to tracker :
Get: 18682286009 lat:22.566629 long:114.039810 speed:1.85 170728093318 Batt:3.72v,0, Signal:F 24
imei:864811037009987
2. smsone123456
Get:18682286009 lat:22.566629 long:114.039810 speed:1.85 170728093318 Batt:3.72v,0, Signal:F 24
imei:864811037009987
3.Admin123456 18682286009
Get: SOS,MOVE,GEOFENCE,Low battery etc alerts .
C.User Self Checking
Check123456

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
Get:
imei=864811037009987
admin=18682286009,,,,
gprs=122.10.36.11,2020,cmnet,,
tz=8.0h
tsn=40s
22.564871,114.032768
0km/h
,ok!
10. Commands List
1. Password123456 667788
Password changed to 667788
2. Adminip 123456 122.10.36.11 2020
Set Sever’s IP (or DNS) ,port
3.Apn123456 cmnet
Set Sim card Apn
4.Apnuser 123456 username
Set Apn user name
5.Apnpasswd123456 password
Set Apn password
6.T030S***N123456
Set interval as 30s to upload a data to platform,Unit: H(h),M(m),S(s)
7.Move 123456 50
Unit:m
8. Admin123456 18682286001 18682286002 18682286003 18682286004 18682286005
Set Authorization numbers (Max: 5)
9. Time Zone123456 -8.5
Range: -15H to +15H
10. Monitor123456
Voice Monitor when phone call in
11. Tracker123456
Hang up when phone call in and reply a sms with location
12. Smsone123456
Position Once
13. Tlimit123456 1000
Upload the data by real Distance
14. Speed123456 66
Over speed alarm Unit:KM/H
15. IMEI123456
Get device IMEI number (15 digits)
16.Powercar123456 1
Cut off the oil/power by relay
17. 123456FOTA,HTTP,SERVER=http://www.xxxx.com/Down/Fota.bin
Upgrade the firmware remotely
18. Begin123456
Default user parameter

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
19.
Geofence123456,01=11402.6460/2233.9750/500,02=11302.6460/3333.9750/600,03=11502.6460/4233.
9750/700,04=11602.6460/5233.9750/800,05=11502.6460/4233.9750/900,en=1
En=1 ,enable the Geofence En=0, disable
500 600 700 800 900 are the radius of each geo-fence Unit: M (meter)
IN/OUT of each fence , will generate an alert “ Geofnout/Geofnin” (nrange 1`5)
20
Smslink123456 -------tracker reply sms with google map link
Smstext123456 ------ tracker reply sms with coordinate
11.GPRS data protocol
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,113
57.2742,E,0.00,0.00,270717,,,A*6E,F,,imei:864811037009987,11,27,F:
3.98V,0,133,39982,460,0,2495,12e1..
170728061315 === 2017,28th,July,06:13:15 GMT+8 time ,can be changed by
timezone command
18682286009==The last phone number operated on tracker
GPRMC === Protocol header
221315.000 === 22:13:15.000 GMT 0 time
A=== GPS valid V: GPS Invalid
2234.1622,N=== latitude / North
11357.2742=== longitude / East
0.00 === speed
0.00 === course
270717 === 2017,27th,July (GMT 0) date
A*6E === CRC16 correction for GPRMC it is standard GPRS format,hexadecimal
number, it is the correction for the GPRMS format
F=== valid GPS signal
imei:864811037009987 == Tracker 15 IMEI numbers
11 === can get signal for 6 satellites
27=== altitude
F:3.98V === Voltage of the backup battery
0=== no charging state. If the USB connector on the tracker is connected with power, it
is 1, otherwise 0
133 === the byte in this data
39982=== CRC16 correction for the whole gprs data, decimal system
460 === MCC (mobile country code)
0=== MNC (mobile network code)

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [email protected]
2495=== LAC (location area code)
12e1=== cell ID
460,0,2495,12e1 is GSM ID, please ask your GSM network for this information. Generally
speaking, the gsm operator will not give this information to others.When the tracker is lost,
you can offer this data to the police and they can ask GSM operator to help by this data.

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [e-mail]
14
12 . Data string
Power connected
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,
Poweron,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
SOS
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,
help,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
To admin number
Firmware FOTA successfully
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,fota
success,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
To admin number
Main DC+ missing
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,
MainBattery,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
To admin number
ACC ON
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,
ACCStart,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
ACC OFF
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,
ACCStop,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
Over speed Alert
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,speed,imei:864
811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
To admin number
Shake Alert
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,shake,imei:864
811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
Low battery Alert
170801152818,18682286009,GPRMC,072818.000,A,2233.9750,N,11402.6460,E,0.00,0.00,010817,,,A
*6C,F,LowBattery,imei:864811037009987,9,42,L:3.69V,0,142,64286,460,0,2480,116f..
To admin number
Park (Car stops and in sleep )
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,Park,imei:8648

Shenzhen Dbworth Co.,Ltd
6F,Building 1,Shenhua Technology Park,Futian District,Shenzhen ,China [e-mail]
15
11037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
Geo-fence
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,stockade,imei:8
64811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
To admin number
Move out
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,
Move out,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
To admin number
Move in
170728061315,18682286009,GPRMC,221315.000,A,2234.1622,N,11357.2742,E,0.00,0.00,270717,,,A*6E,F,
Move in,imei:864811037009987,11,27,L:3.76V,0,133,39982,460,0,2495,12e1..
To admin number
