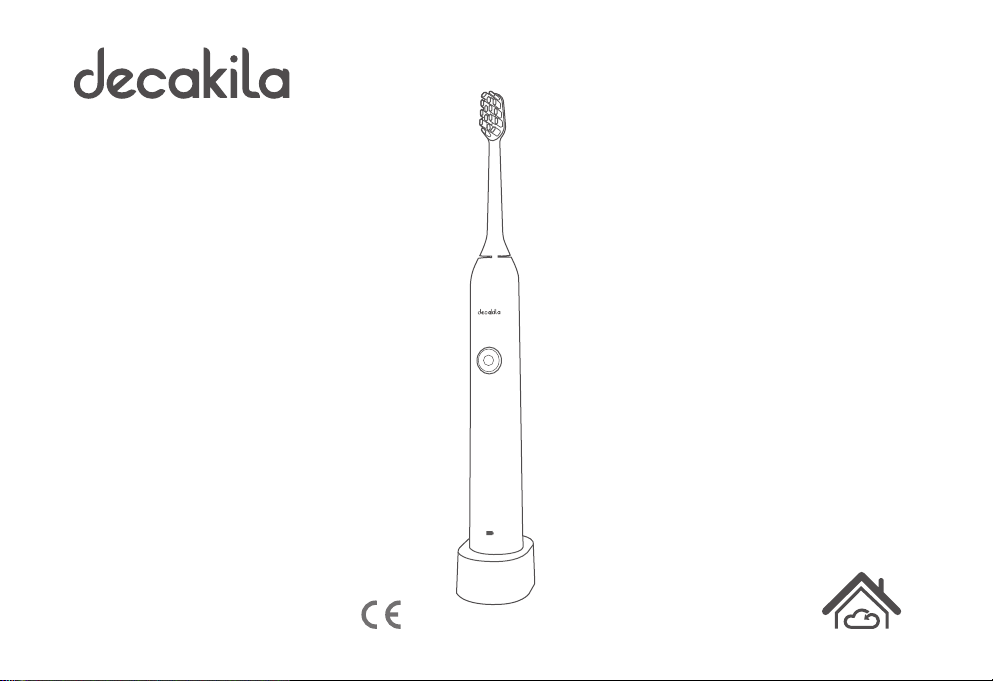

KMTB002W
SONIC TOOTHBRUSH
S
e
ns
itiv
e
P
o
lis
h
Whit
e
C
l
ea
n
M
assage
IMPORTANT SAFETY INSTRUCTIONS
KNOW YOUR SONIC TOOTHBRUSH
CHARGING YOUR SONIC TOOTHBRUSH
OPERATING YOUR SONIC TOOTHBRUSH
CLEANING AND MAINTENANCE
ENVIROMENT FRIENDLY DISPOSAL
01
03
04
05
07
07
CONTENTS
01
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, especially when children are present, basic precautions should always be followed, including the
following:
Read all instructions.
• Make sure that your outlet voltage corresponds to the voltage stated on the rating label.The charger can be only operated with the
adapter with a specication of DC5V/≥0.5A.
• To protect against fire, electric shock and injury to persons do not use the adapter and charger in the bathroom and do not
immerse cord, plug, adapter, or charger in water or other liquid. And do not rinse the adapter and charger with water.
• To reduce the risk of electrocution, do not place or store product where it can fall or be pulled into a tub or sink.
• Do not use the appliance if the USB cable of charger, plug or adapter shows visible damage.
• Grasp the plug to pull out the power cord when unplug the USB plug of charger or the plug of adapter, do not drag the cord. And do
not touch the plug with wet hand.
• If the charger is dropped into the water, do not reach for it, cut o the power and then remove it from the water.
• Do not detach or modify the toothbrush before throw it away.
• Do not immerse the toothbrush into hot water.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not press the tooth or gum by the toothbrush with excessive force. Or do not brush the same position for long time to avoid any
damage.
• Warning: Make sure that there shall be no appearance damage before each use. And do not use the toothbrush with damage.
• Warning: Please consult the doctor whether you can use the toothbrush If you have had dentistry surgical operation in past two
02
02
months or are under being subject to dental treatment.
• Warning: Oral hemorrhage may occur when use the toothbrush at the rst time. If the oral hemorrhage lasts for more than a
week, please consult the doctor for suggestion.
• Warning: Please consult the doctor for suggestion before use the toothbrush if your body is equipped with heart pacemaker or
other electronic devices.
• Warning: Do not put any metal articles such as coils or rings on the charger to avoid re.
• Warning: This product is only intended to be used in cleaning teeth, gums and tongue. Do not use the appliance for other than
intended use.
• Warning: The battery equipped in the appliance contains materials that are harmful to the environment, so please follow the
operation as below to remove and dispose the battery:
- The battery must be removed from the appliance before it is discarded.
- The appliance must be powered o when the battery is removed.
- The battery must be disposed of safely.
• Hazard: Do not heat the toothbrush or throw it into the re, or store, charge or use at a high-temperature environment to avoid
overheating, re or explosion as it is equipped with a built-in rechargeable battery.
• NOTE: Stop using a brush head with crushed or bent bristles. Replace the brush head every 3 months or sooner if signs of wear
appear.
• The toothbrush is only for personal use, do not share it with other persons.
• When using this product for the rst time, some people may feel tooth irritation or numbness due to the high-speed vibration of
the bristles. This is a normal phenomenon. If this condition still occurs aer two weeks of continuous use, stop using this product
and consult a dentist.
• The USB cable of charger cannot be replaced, if it is damaged, the charger should be scrapped.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order
to avoid a hazard.
• Save these instructions.
03
KNOW YOUR SONIC TOOTHBRUSH
Brush head
Handle
Switch/ Mode button
Charging indicator
Charger
Mode indicator
Motor sha
04
Install the
toothbrush
onto the
charger
Fig.1
CHARGING YOUR SONIC
TOOTHBRUSH
NOTE: The toothbrush must be turned off before being
charged.
Caution: The toothbrush needs to be charged at a specied
ambient temperature. Temperatures that are too low (such
as below 0°) or temperatures that are too high (such as
above 45°C) can cause serious battery safety problems.
• Put the charger on a at and rm table or other surface, then
insert the USB into the socket of adapter, after it, connect
the adapter with power source.
NOTE: Before charge, make sure that the adapter used must
be of a specication of DC5V/≥0.5A.

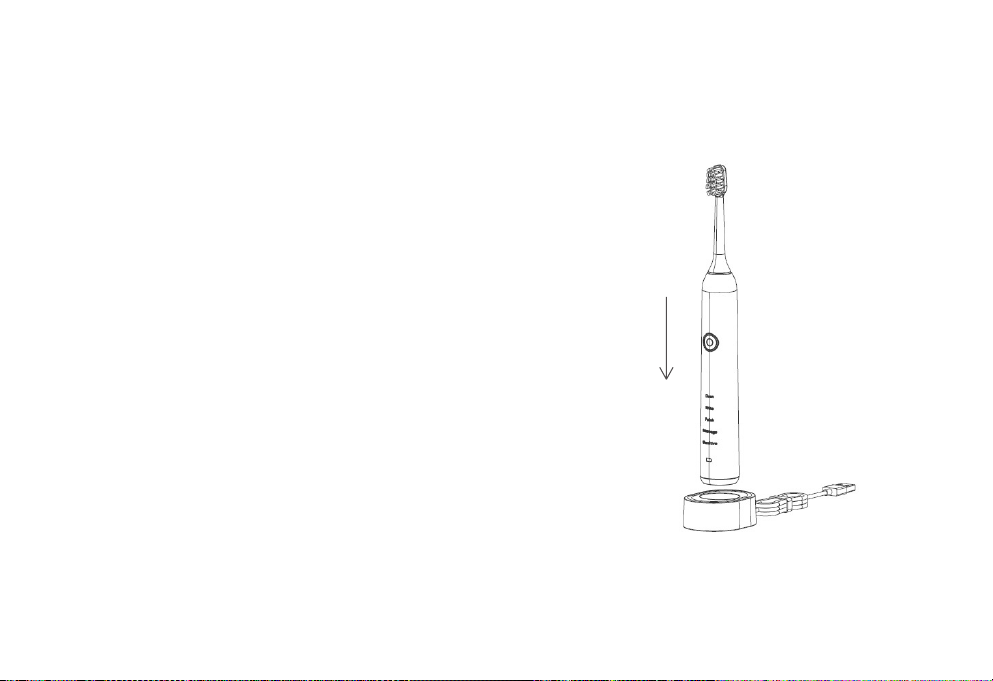

• Put the toothbrush vertically on the charger, make sure the
post on the charger aligns with the the bottom of handle (see
Fig.1). When charging, the charging indicator illuminates in
red and the mode indicators illuminate in white alternately,
and the charging indicator will illuminate in blue solidly
when the sonic toothbrush is fully charged.
05
OPERATING YOUR SONICTOOTHBRUSH
1.Vertically insert the brush head down into the motor sha, make sure the brush head shall be inserted well into place (see Fig.2,
Fig.3 ).
Insert the
brush head
downwards well
in place
Fig.2 Fig.3
06
2. Rinse the brush head with water and then put the toothpaste
on the brush head (see Fig.4).
3. Put the brush head into mouth and make the brush head be
between tooth and gum (see Fig.5).
4. Press down the Switch/Function button to turn on the
toothbrush and then you can use it to brush your teeth.
When the appliance is operated under “Clean” mode after
power on, it will run in the following way if there is any button
operation within 5 seconds: Clean White Polish Massage
Sensitive Turn off. And the appliance will turn off if the
button is pressed under any working mode after power on
for 5 seconds. The appliance is of memory function, which
means that the settings of last operation will be saved and the
appliance will work basing on the saved settings after being
powered on again.
Fig.4
Fig.5
07
5. Aer select your desired mode, make the toothbrush keep
running for 2 minutes, then the toothbrush will turn off
automatically and the current working mode will be saved,
and the toothbrush will work under the saved working mode
aer being activated next time.
6. The toothbrush will pause for a short while about every 30
seconds to remind you to brush other sections of your mouth,
and it will shut o automatically aer continuously running
for 2 minutes.
7. Make the toothbrush slowly move back and forth to clean
the teeth when brushing teeth.
8. Aer nish cleaning teeth, rinse the brush head with running
water, then clean and dry it, and wipe the handle with a
towel.
• NOTE: If the charging indicator blinks in red continuously
during operating, it means the toothbrush is lack of power,
and you need to recharge the toothbrush.
CLEANING AND MAINTENANCE
Before cleaning, disconnect the adapter from the power source
and detach the USB from the adapter. Never immerse the
charger into water.
• Rinse the brush head with running water.
• Wipe the charger and handle with a so cloth, then dry them
well. Never use poisonous cleaner.
• Please periodically clean the gap between handle and brush
head as well as the bottom cover of toothbrush to remove the
dirt.
• Caution: Do not use chemical, steel, wooden or abrasive
cleaners to clean the outside.Do not clean brush head or
handle in the dishwasher.
• Caution: The toothbrush needs to be charged at a specied
ambient temperature. Temperatures that are too low (such
as below 0°) or temperatures that are too high (such as above
45°C) can cause serious battery safety problems.
ENVIROMENT FRIENDLY DISPOSAL
You can help protect the environment!Please remember
to respect the local regulations: hand in the non-
working electrical equipments to an appropriate waste
disposal center.
Made in China Jiangsu China. 2021.D02
