Deco Style PRG500J User manual

IMPORTANT:
Read carefully before use
Keep for future reference
MODEL NUMBER PRG500J
Version number: 003
500W PAINT SPRAYER
WITH SPRAY SHELTER

2
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
CONTENTS
1. APPLICATION ………………………………………………………………………............…....................... 3
2. PARTS DESCRIPTION ………………………………………………………………..............................….. 4
3. PACKAGE CONTENT LIST ……………………………………………………………................................ 5
4. SYMBOLS ……………………………………………………………………………............……..................… 6
5. GENERAL SAFETY WARNING …………........................…………………..............................…..6
6. IMPORTANT INFORMATION – PRODUCT CARE ……………………....................................….8
7. ASSEMBLY..………………………………………………………………………………...............................… 9
8. OPERATION ……………………………..…………………………..............................…................... 13
9. MAINTENANCE AND CLEANING………………….................……………................................ 14
10. WARRANTY………………..……………………………….………………………..……............................16
11. ENVIRONMENTAL PROTECTION ………….………………………………..……............................17
12. ACCESSORIES AND AFTER SALES PARTS ………………………………….................................17
13. FAQ/TROUBLESHOOTING…………………......................................................................18
14. TECHNICAL SPECIFICATION………...............................................................................19

3
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
1.APPLICATION
First me users or inexperienced operators pay parcular aenon to the operaon of the
500W Paint Sprayer + Spray Shelter in Carry Bag, including details of starng and stopping
and correct use of the 500W Paint Sprayer + Spray Shelter in Carry Bag on pages 9-14, as
well as the maintenance instrucons on pages 14-15.
Intended use of 500W Paint Sprayer + Spray Shelter in Carry Bag
NOTE: This product is for private domesc DIY use only. It is not suitable for commercial or
trade use.
This 500W Spray gun is used for spraying non-ammable and non-hazardous paints and
varnishes and is suitable for small to medium projects including walls, ceilings, cabinets,
fences etc.
NOTE:
•This tool is suitable for solvent-based and water-based paints, nishes, primers, two-
component paints, varnishes, automove topcoats, stains and wood preservaves.
•It is not suitable for alkali, acidic paints and the paints of which ash point is under 21OC.
WARNING: The tool cannot be used for spraying of ammable liquids.
Do not use the tool for the food, pharmacy or other purposes that are not
menoned in the manual.

4
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
1
2
5
7
9
8
3
14
4
6
10
11
12
15
13

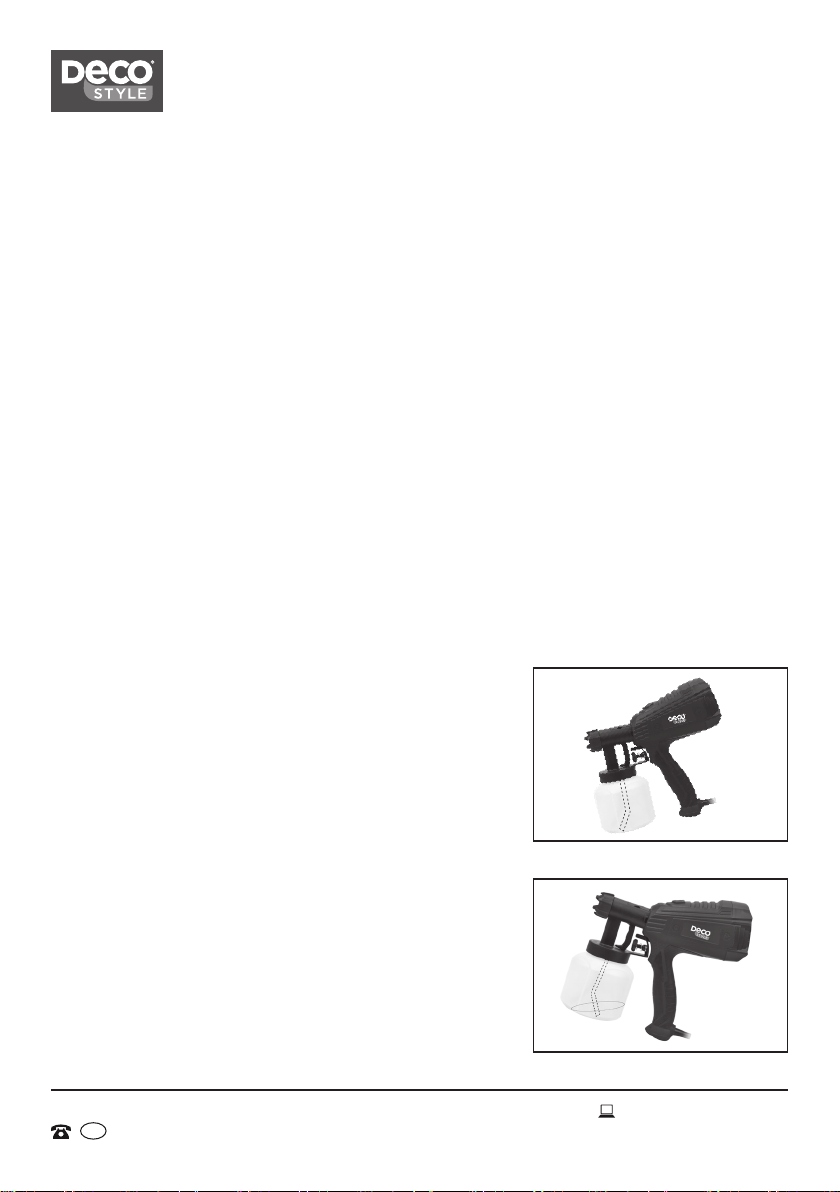

2. PARTS DESCRIPTION
13-7 13-6
13-313-213-1 13-4 13-5

5
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
1. Unlock buon
2. Motor housing
3. Trigger switch
4. Flow rate adjusng knob
5. 800ml paint container
6. Power cable
7. Nozzle
8. Air cap
9. Cap nut
10. Sucon pipe
11. Viscosity cup
12. Nozzle cleaning needle
13. Spray shelter
13-1: Carry bag for spray shelter
13-2: Spray shelter cloth
13-3: Small bag for pegs and wind ropes
13-4: Middle bag for poles
13-5: 2 x connecng poles
13-6: Wind ropes
13-7: 4 x Pegs
14. Gun head
15. Filter
3. PACKAGE CONTENT LIST
1 x 500W Paint Sprayer
1 x Viscosity cup/ ller
1 x Nozzle cleaning needle
1 x Spray shelter in carry bag
1 x 800ml paint container
1 x Instrucon manual
1 x Warranty Card
• Remove all packing materials
• Ensure all parts on the contents list are present
• Check the appliance, and all accessories for transportaon damages
WARNING: Please read and understand this instrucon manual before
use and keep it for your future reference. Your paint sprayer should only be
passed on together with this instrucon manual.

6
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
4. SYMBOLS
5. GENERAL SAFETY WARNING
PRODUCT SAFETY
General Power Tool Safety Warnings
WARNING: Read all safety warnings and all instrucons. Failure to follow the warnings
and instrucons may result in electric shock, re and/or serious injury.
Save all warnings and instrucons for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
baery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operang a power tool. Distracons can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets
To reduce the risk of injury,
user must read instrucon
manual
Wear eye protecon
Wear ear protecon
Wear breathing protecon
WARNING! Unlock
Warning: Do not direct the
jet at persons, animals and
electrical equipment
36 60 Months Warranty
RCM marking Double insulaon

7
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet condions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operang a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operang a power tool in a damp locaon is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operang a power
tool. Do not use a power tool while you are red or under the inuence of drugs, alcohol
or medicaon. A moment of inaenon while operang power tools may result in serious
personal injury.
b) Use personal protecve equipment. Always wear eye protecon. Protecve equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protecon used for appropriate
condions will reduce personal injuries.
c) Prevent unintenonal starng. Ensure the switch is in the o-posion before connecng to
power source and/or baery pack, picking up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusng key or wrench before turning the power tool on. A wrench or a key
le aached to a rotang part of the power tool may result in personal injury.
e) Do not overreach. Keep proper foong and balance at all mes. This enables beer control
of the power tool in unexpected situaons.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connecon of dust extracon and collecon facilies, ensure
these are connected and properly used. Use of these devices can reduce dust-related
hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your applicaon. The correct
power tool will do the job beer and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and o. Any power tool that

8
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the baery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
prevenve safety measures reduce the risk of starng the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instrucons to operate the power tool. Power tools are dangerous
in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condion that may aect the power tool’s operaon. If damaged, have
the power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
f) Keep cung tools sharp and clean. Properly maintained cung tools with sharp cung
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instrucons,
taking into account the working condions and the work to be performed. Use of the
power tool for operaons dierent from those intended could result in a hazardous situaon.
5) Service
a) Have your power tool serviced by a qualied repair person using only idencal replacement
parts. This will ensure that the safety of the power tool is maintained.
Addional safety instrucons for your spray gun
1. Beware of high pressure at the nozzle and toxic sprays, it can cause severe skin damage.
Never allow any part of the body to come in contact with the spray.
2. It is recommended that the tool always be used via a residual current device with a rated
residual current of 30mA or less.
3. Do not use guns for spraying ammable materials.
4. Do not clean guns with ammable solvents.
5. WARNING! Be aware of any hazard presented by the material being sprayed
and consult the markings on the container or the informaon supplied by the
manufacturer of the material to be sprayed.
6. Do not spray any material where the hazard is not known.
7. Use appropriate personal protecve equipment, such as dust mask, protecve clothing.
8. Do not clean guns with ammable solvents.
6. IMPORTANT INFORMATION – PRODUCT CARE
Care MUST be taken to ensure both the safety and life of the product is maintained. Ensure you
have read all of the safety notes in the previous pages before using the 500W Paint Sprayer+
Spray Shelter in Carry Bag.

9
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
7. ASSEMBLY
NOTE: Before using the tool, read the instrucon
book carefully.
PREPARATION
To obtain the best results, it is important that you prepare
the paint to be sprayed and thin the paint to the correct
viscosity. Before operang, always ensure that the paints to
be sprayed are free from dust, dirt and grease. The paint or
uid to be sprayed should be thoroughly mixed and free from
lumps or other parcles. Many substances can be sprayed
with your spray gun, but always check the manufacturer’s
recommendaons before purchasing your paint.

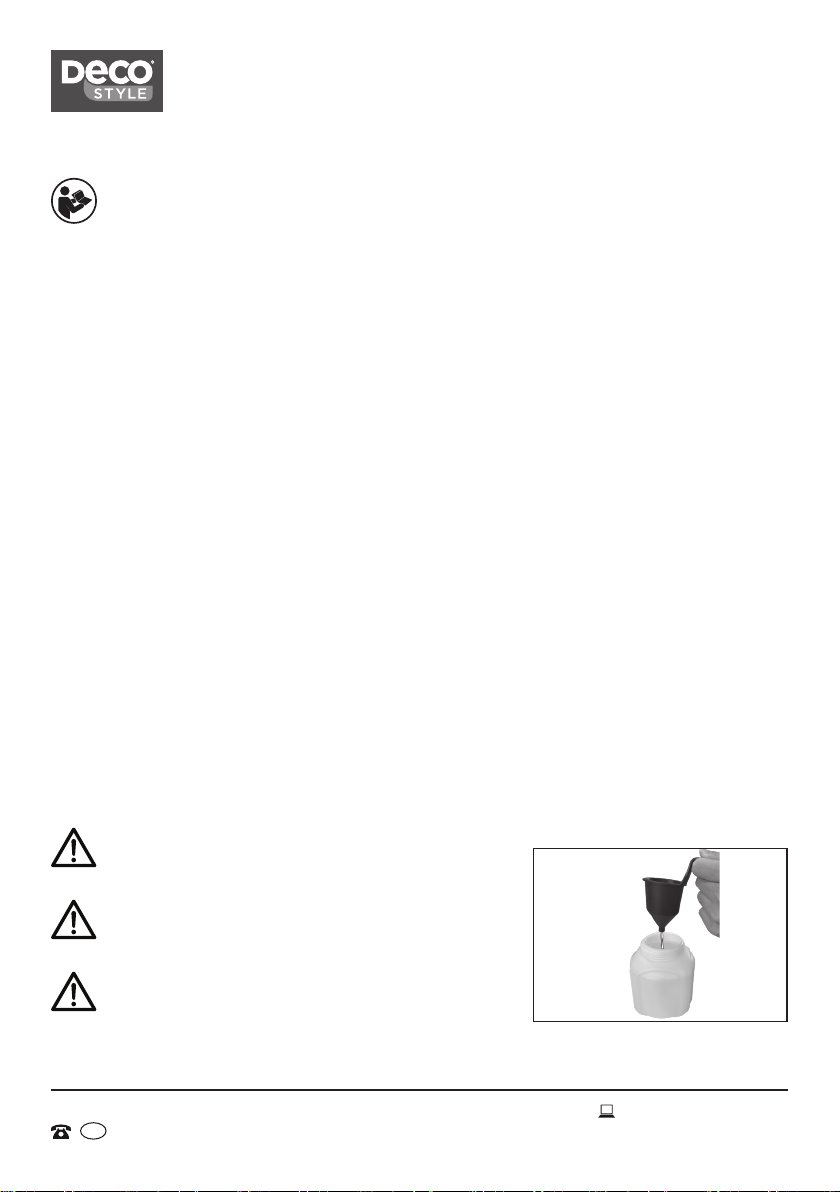

7.1 Viscosity measurement
Most paints are supplied ready for brush applicaon and
will need to be thinned before they are suitable to be
sprayed. Follow the manufacturer’s advice on thinning
the paint when used with a spray gun. The viscosity cup
(11) will help you to determine the correct viscosity of
paint to be used.
To determine the correct viscosity (See Fig. 1)
1) Sr the paint well before starng to measure.
2) Fill the viscosity cup (11) to the brim with paint.
3) Measure the me in seconds of the liquid dripping
from the cup into the can unl the cup is empty. The
measured me is called run-DIN-seconds (DIN-s).
WARNING! Dilute the paint before use. Get the
informaon of diluon and viscosity of the paint
from the store that sold the paint.
WARNING! This viscosity cup is only used for
measuring paint viscosity. It is not a funnel, paint
storage or paint transporter.
WARNING! When spraying paint, use the
recommended viscosity. Spray the paint slowly and
evenly. Spraying too fast or too large ow may result in
paint dropped or spilt.
Fig.1

10
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
The table below shows recommended run-DIN-seconds
diluons for dierent types of liquids.
NOTE:
•This tool is suitable for solvent-based and water-
based paints, nishes, primers, two-component
paints, varnishes, automove topcoats, stains and
wood preservaves.
•It is not suitable for alkali, acidic paints and the
paints of which ash point is under 21OC.
Solvent-based paints.............................................15-50
Primers..................................................................25-50
Pickling .............................................. no need to dilute
2 Component paints ........................................... 20-50
Varnishes ............................................................. 15-40
Waterborne paints ...............................................20-40
Automove topcoats .......................................... 20-40
Wood preservaves .......................... no need to dilute
If the paint takes longer than the recommended me to
empty, then further thinning is required. Mix in a small
quanty of the appropriate thinner and use the viscosity
test unl the correct thickness is achieved.
7.2 Assembling the paint container (5)
1) Remove the paint container (5) by unscrewing it in
clockwise direcon from the spray gun.
2) Fill the paint container (5) with paint of the correct
viscosity.
3) Adjust the sucon pipe (10) direcon correctly
according to dierent operang condions to deplete
the material in the paint container (5) as much as
possible. Details refer to 7.3.
4) Fill the paint container (5) with prepared paint. Do not
overll. The maximum capacity is 900ml.
5) Assemble the paint container (5) back to the paint
sprayer by screwing it ghtly in an an-clockwise
direcon.
Fig.2-1
Fig.2-2

11
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
7.3 Spraying with a lng angle:
Note: Don’t lt too much.
Spraying in a downward direcon
- turn the sucon pipe (10) forwards. (See Fig. 2-1)
Spraying in an upward direcon
- turn the sucon pipe (10) backwards. (See Fig. 2-2)

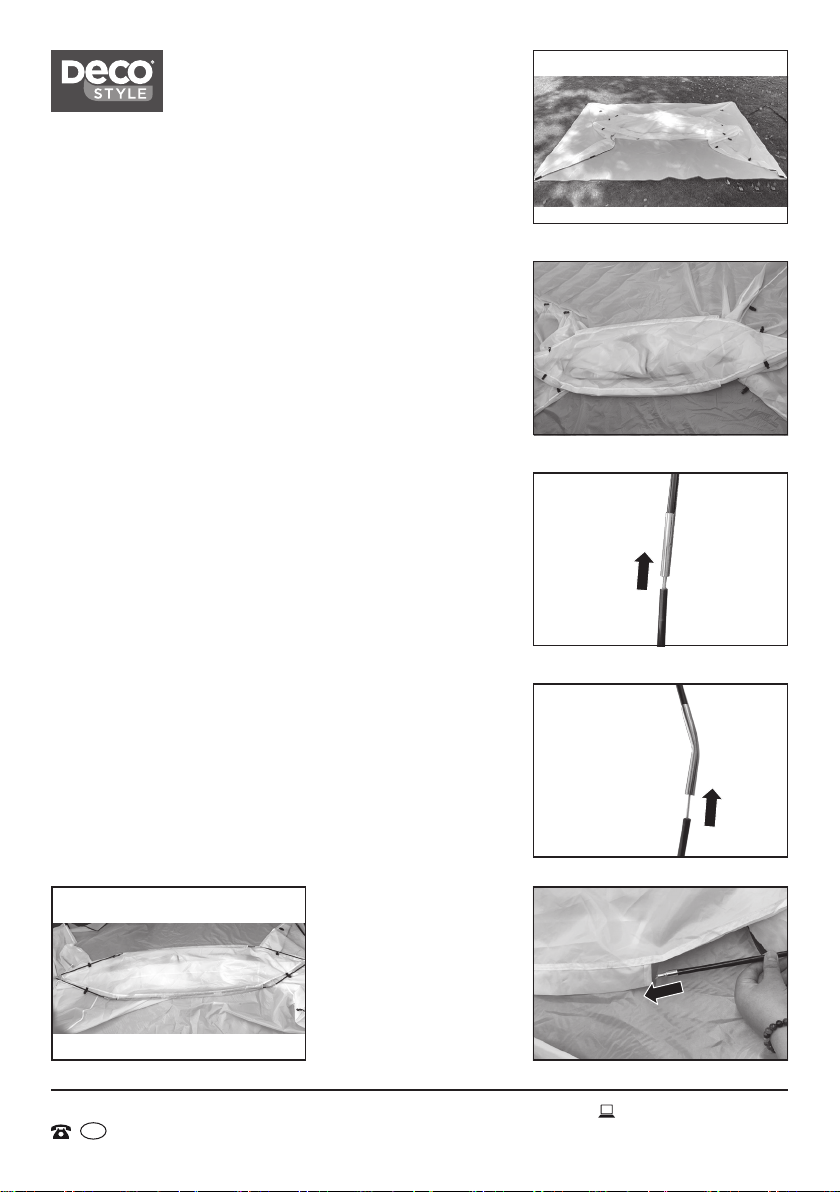

7.4 To Set up the spray shelter (13)
7.4.1 Layout & Posioning of Spray shelter cloth (13-2).
Select a dry, level site and clear the ground of any sharp
objects. Remove the spray shelter (13) from its carry bag
(13-1). Unroll and unfold the spray shelter cloth (13-2)
and lay it on the ground. Layout and posion the spray
shelter cloth (13-2) with door facing desired direcon.
(See Fig. 3-1)
NOTE: It is important to unfold both sleeves in the middle
part of the spray shelter cloth (13-2). (See Fig. 3-2)
7.4.2 Connect and insert the two long poles (13-5) into
the sleeves
Interconnect the individual connecng pole secons of
the connecng pole (13-5) into one long pole. Repeat for
the other connecng pole. (See Fig. 3-3, 3-4)
Insert one of the connecng poles (13-5) into a sleeve
(See Fig. 3-5). Repeat with the other connecng pole (13-
5) on the opposite side. One pole runs from le front to
right front. And the other pole runs from the le rear to
right rear (See Fig. 3-6).
There are two cross points (See Fig 3-7)
Fig. 3-1
Fig. 3-2
Fig. 3-3
Fig. 3-4
Fig. 3-5
Fig. 3-6

12
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
7.4.3 Fix the spray shelter (13) on the ground.
Insert the end of connecng pole (13-5) into the middle
hole on corner of the spray shelter cloth (13-2). And
then insert the peg (13-7) through the side hole on the
corner of the spray shelter cloth (13-2). Feed the pole up,
bending it evenly along its length to create a arc. Press the
peg (13-7) into ground fully.(See Fig 3-8, 3-9). Repeat the
steps for the other end of the pole.
Repeat the steps for the other pole. Fix the spray shelter
(13) on the ground.
7.4.4 Aach the spray shelter cloth (13-2) on the two
long poles (13-5).
Aach all the clips along the long poles (13-5). (See Fig 3-10)
Tie up the cross points with the ropes on the spray shelter
cloth (13-2). (See Fig 3-11)
7.4.5 The spray shelter (13) is ready.
Aach the door by using the hook and loop system. The
spray shelter (13) is ready with closed door. (See Fig 3-12)
Hang the rolled door by using the two buckles. The spray
shelter (13) is ready with open door. (See Fig 3-13)
Fig. 3-8
Fig. 3-9
Fig. 3-11
Fig. 3-10
Fig. 3-13
Fig. 3-12
Fig. 3-7

13
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
7.4.6 Wind ropes (13-6)
Tie one side of the wind rope (13-6) up to the spray
shelter, and x the other side on the ground.
Repeat the other side. (See Fig 3-14)
8. OPERATION
8.1 Unlock buon (1) (See Fig. 4)
You will need to remove the gun head for cleaning
or replacement. Depress the unlock buon (1) to
disassemble the gun head. Pull the gun head (14) away
from the sprayer body.
To re-assemble, just push the gun head to the motor
housing with sucient force.
8.2 Trigger switch(3) (See Fig. 5)
Plug in the power plug to the mains power socket and
turn the power on.
Squeeze the trigger switch (3) to start the sprayer.
Release pressure from the trigger switch (3) to stop the sprayer.
8.3 Selecng the spray paerns (See Fig. 6)
Unscrew the cap nut (9), and turn the air cap(8) to
desired posion to t the dierent operang condions.
Then re-ghten the cap nut (9).
Following gure (See Fig.6) shows the air cap (8) posion
with their corresponding spraying paerns:
A: Air cap is in horizontal posion = the spraying shape is
vercal: for vercal surface;
B: Air cap is in vercal posion = the spraying shape is
horizontal: for horizontal surface;
C: Air cap is in diagonal posion =the spraying shape is
circular: for corners, edges and others.
WARNING: Never turn the air cap(8) when trigger
switch (3) is depressed.
Fig. 5
Fig. 6
A
B
C
Fig. 3-14
Fig. 4

14
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028

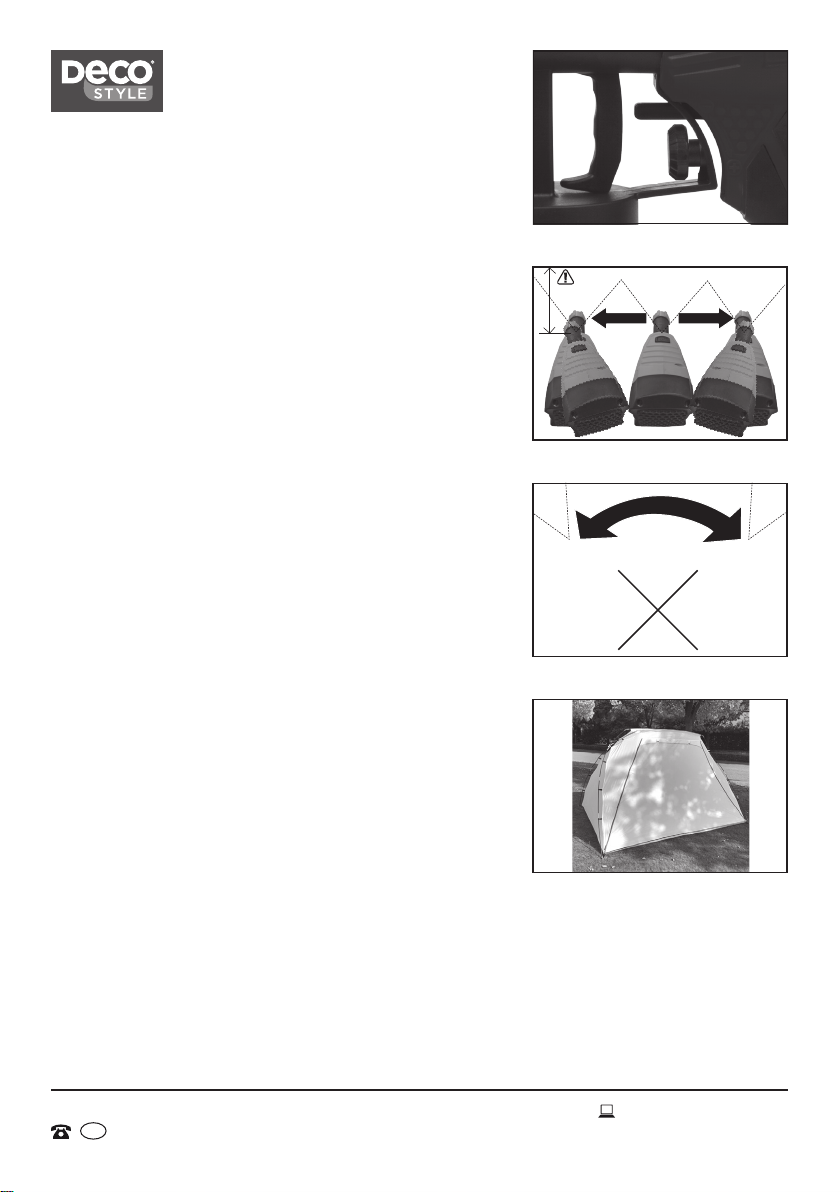

8.4 Adjusng the rate of ow (See Fig. 7)
The spraying capacity can be adjusted by using the ow
rate adjusng knob (4). Adjust the adjusng knob(4) unl
the best spray paern is reached. Turn the adjusng
knob clockwise (+) to increase the ow rate and turn it
an-clockwise (-) to decrease the ow rate. A poor spray
paern will concentrate the paint in the centre of the
spray and give a blotchy nish. A good spray paern will
give even distribuon of paint throughout the paern.
8.5 Spraying techniques
To obtain the best results, keep your spray gun level and
parallel to the surface at all mes. Keep the nozzle(7)
5-15cm from the surface and spray evenly from side to
side or up and down, using smooth and even strokes (See
Fig. 8-1).
NOTE:
• Make sure that you have masked the areas that should
not be sprayed by a good quality masking tape.
• The intended area to be sprayed should be pretreated
to be smooth and clean, free from dust.
• Before operang, aim the spray gun at a piece of scrap
material and start spraying to nd the best paern and
ow rate.
Do not spray as shown in Fig. 8-2.
8.6 Using the spray shelter (See Fig. 9)
The supplied spray shelter helps to provide a protecve
spraying working environment.
NOTE:
• Wear chemical protecon mask when working.
• Close the door of spray shelter when spray working.
Open the door of spray shelter aer spray working.
Fig. 8-1
Fig. 8-2
Fig. 9
5-15cm
Fig. 7

15
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
9. MAINTENANCE AND CLEANING
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
If the supply cord is damaged, a special cord or assembly available from the manufacturer or its
service agent must replace it.
Always remember to disconnect the plug from the socket before cleaning the paint sprayer or paint container.
It is essential that the paint sprayer is cleaned thoroughly after every use. Failure to clean it will almost
certainly result in blockages and it may not operate when you next come to use it.
WARNING: Do not clean the parts by holding the machine in owing water. Never
clean the parts by submerging the machine in water or thinner.
The following acon must be taken aer every use:
1) Aer switching o the power to the sprayer at the mains power socket, and removing the
plug, depress the trigger switch (3) again to return the paint remaining in the paint sprayer
back to the paint container (5).
2) Remove the paint container (5) and pour the remaining liquid back into the can.
3) Clean the paint container (5) thoroughly using paint thinner.
4) Put some suitable thinner into the paint container (5) to be sprayed through the paint
sprayer unl only clean thinner comes out of the nozzle (7).
5) Detach the gun head (14), by pressing on the unlock buon (1), and pulling the gun head away
from the unit.Remove the paint container (5), the sucon tube (10) and the lter, and thoroughly
clean them with alcohol, vehicle or banana oil.
6) Loosen and remove the cap nut (9) by rotang in an an-
clockwise direcon, and then remove the air cap (8).
7) Clean the cap nut (9) and air cap (8) with alcohol, vehicle
or banana oil.
8) Use the Nozzle cleaning needle (12) to clear the nozzle (7) .
9) Reassemble the paint sprayer.
10) Clean the outside of the machine with a moist cloth.

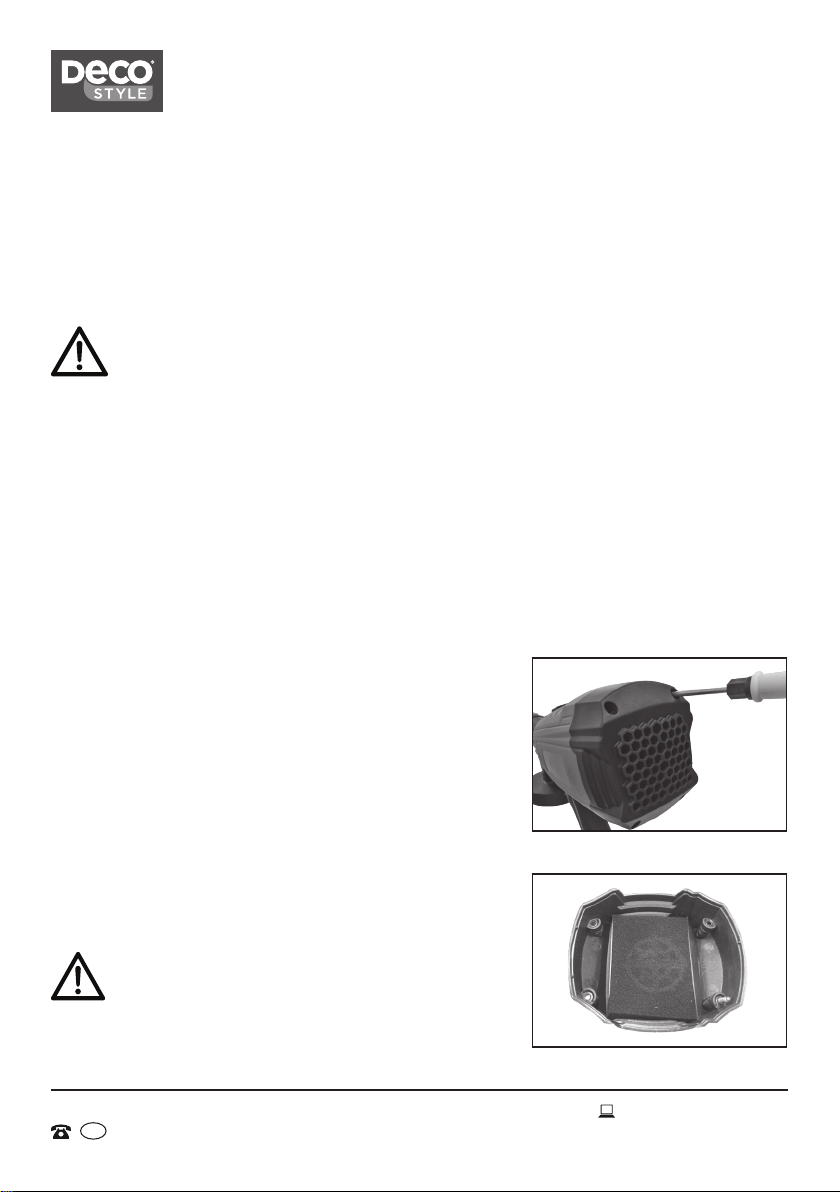

9.1 Clean the lter (See Fig.10-1, 10-2):
Remove the lter cover by loosening the four screws an-
clockwise using a philips head screwdriver (not supplied).
Take the sponge lter out and clean it by water. Re-install the
dry and clean lter back to the tool.
WARNING: Do not use the sprayer without lter,
otherwise dirt may be sucked in the motor and
cause a failure.
Fig. 10-1
Fig. 10-2

16
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
9.2 Clear the nozzle(7)/air cap(8) (See Fig. 10-3)
Clear the nozzle (7) / air cap (8) with solvents or water when
they are blocked with paint or the paint is accumulated on the
air cap. (See Fig. 10-3)
9.3 Clear and maintenance of spray shelter.
Clear the spray shelter with alcohol, vehicle or banana oil. It is not recommended to clean the
spray shelter frequently, it will corrode the spray shelter. Put it in a cool, venlated place to dry it.
Aer that, package the spray shelter into bag to storage it in a place free of dust. It is also
recommended to consult the paint shop for cleaning.
9.4 Storage and Transportaon
• When you nish working, clean the Paint Sprayer, making sure there is no liquid in the paint
container.
• Store the Paint Sprayer in a dry place.
• Store the Paint Sprayer away from direct sunlight.
• Store the Paint Sprayer away from children and pets.
10. WARRANTY
Your new DECO® STYLE 500W Paint Sprayer + Spray Shelter in Carry Bag will more than sasfy
your expectaons.
It has been manufactured under stringent DECO® STYLE Quality Standards to meet superior
performance criteria.
You will nd your new 500W Paint Sprayer + Spray Shelter in Carry Bag easy and safe to
operate, and, with proper care, it will give you many years of dependable service.
CAUTION. Carefully read through this enre instrucon manual before using your new DECO®
STYLE 500W Paint Sprayer + Spray Shelter in Carry Bag . Take special care to heed the
Cauons and Warnings.
Your DECO® STYLE 500W Paint Sprayer + Spray Shelter in Carry Bag has many features that
will make your job faster and easier. Safety, performance, and dependability have been given top
priority in the development of this 500W Paint Sprayer + Spray Shelter in Carry Bag, making it
easy to maintain and operate.
Use only DECO® STYLE replacement parts for your product. Non-conforming parts or
modicaons made to parts will void your warranty.
Fig. 10-3
7
8

17
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
What your 3 year warranty means
Great care has gone into the manufacture of this product and it should therefore provide you with
years of good service when used properly.
In the event of product failure within its intended use over the course of as quickly as possible once
it has been brought to our aenon. In the unlikely event of such an occurrence, or if you require
any informaon about the product please contact us via our aer sales support services, details of
which can be found in this manual and on the product itself. Aer Sales Support TEL: [phone]
Service Support
If you have any issues with the operaon of your product, please call us on 1300 889 028 for
advice, or email us at [e-mail]
11.ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and
packaging should be sorted, taken to the local recycling centre and disposed of in an
environmentally safe way.
12.ACCESSORIES AND AFTER SALES PARTS
The following is available for purchase by vising hps://help.tools/ or calling our customer
service hotline on: 1300 889 028
Viscosity
cup/ ller
Gun head module (Press the
unlock button to change it)
Sponge lter
Cleaning
needle Spray shelter in carry bag 800ml paint container

18
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
13. FAQ/TROUBLESHOOTING
Symptom Possible Cause Remedy
No spray
Nozzle clogged Clean the nozzle
Sucon pipe clogged Clean the sucon pipe
Flow rate set too low Turn the adjusng knob clockwise (+)
to increase the ow rate
Sucon pipe loosened Tighten the sucon pipe
Paint container not
ghtened Tighten the paint container
Paint is too thick Check the viscosity of the paint and
dilute.
Paint dripping from
nozzle
Nozzle loosened Tighten the nozzle
Worn nozzle Replace the nozzle
Paint accumulated on air
cap or nozzle
Clean the air cap or nozzle with
solvents or water.
Spraying too thick
Paint is too thick Check the viscosity of the paint and
dilute.
Flow rate set too high Turn the adjusng knob an-clockwise
(-) to decrease the ow rate
Low pressure in the paint
container Re-ghten the paint container
Irregular spraying
Not enough paint in the
paint container Add enough paint
Dirty lter Clean the lter or replace it.
Liquid dripping while
spraying Flow rate set too high Turn the adjusng knob an-clockwise (-) to decrease the ow rate
For further inquiries or issues associated with your sprayer, call our Customer Service on
1300 889 028 or email us at [e-mail]

19
AFTER SALES SUPPORT:
AUS
MODEL: PRG500J PRODUCT CODE: 10562 09/2019
[e-mail]
1300 889 028
14. TECHNICAL SPECIFICATION
Voltage 220-240V~50Hz
Rated power 500W
Spraying pressure 0.1-0.2 Bar
Max viscosity 80 DIN-s
Paint container capacity 800ml
Max air volume ow 800ml/min
Product Dimension 290 x 120 x 290 mm
Weight 1.33kg
This 500W Spray gun complies with the following Standards:
Safety
IEC 60745-1
AS/NZS 60745.1
IEC 745-2-7
EMC
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3

500W PAINT SPRAYER
+ SPRAY SHELTER IN CARRY BAG
