Graco 278675 Instruction Manual

Operation
HTX 2030
-For Portable Airless and Air-Assisted Spraying of Water-Based Architectural Coatings with Base Coat Pump-
-For Airless Spraying Architectural Coatings and Paints with Top Coat Pump-
Model Number: 257369 (HTX2030 FreeFlo Inline Gun)
Model Number: 278675 (HTX2030 AirSpray Trigger Gun)
Model Number: 26C681 (HTX2030 STX Gun, 50 ft. Hose)
Model Number: 26C682 (HTX2030 STX Gun, 100 ft. Hose)
Model Number: 26C683 (HTX2030 Plus, STX Gun, 50 ft. Hose)
Model Number: 26C684 (HTX2030 Plus, STX Gun, 100 ft. Hose)
Model Number: 26C697 (HTX2030 w/ Air Manifold, Bare Unit)
Maximum Working Pressure:
Base Coat Pump: 1000 psi (69 bar, 6.9 MPa)
Top Coat Pump: 3300 psi (228 bar, 22.8 MPa)
Related Manuals
313891 - Operation (French)
313893 - Operation (Spanish)
313889 - Repair (English)
313892 - Repair (French)
313893 - Repair (Spanish)
313890 - Parts
313895 - HTX 2030 Flex Head and Pole Spray Applicator (English)
313896 - HTX 2030 Flex Head and Pole Spray Applicator (French)
313897 - HTX 2030 Flex Head and Pole Spray Applicator (Spanish)
310894 - Displacement Pump (Top Coat)
308491 - Airless Heavy Duty Texture Gun
313537 - HTX 2030 FreeFlo Inline Gun (English)
313603 - HTX 2030 FreeFlo Inline Gun (Chinese)
313908 - HTX 2030 FreeFlo Inline Gun (French)
313911 - HTX 2030 FreeFlo Inline Gun (Spanish)
332160 - HTX2030 AirSpray Trigger Gun (English)
332227 - HTX2030 AirSpray Trigger Gun (French)
332228 - HTX2030 AirSpray Trigger Gun (Spanish)
332229 - HTX2030 AirSpray Trigger Gun (Chinese)
3A6746 - STX Air Spray Trigger Gun
3A6839 - Air Manifold
IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions in this
manual. Save these instructions.
313888F
ti13632a
EN

Contents
June 2019 313888F
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 5
HTX 2030 with Base Coat Pump (257369) . . . . . 5
Top Coat Pump (Kit 24B140) . . . . . . . . . . . . . . . 6

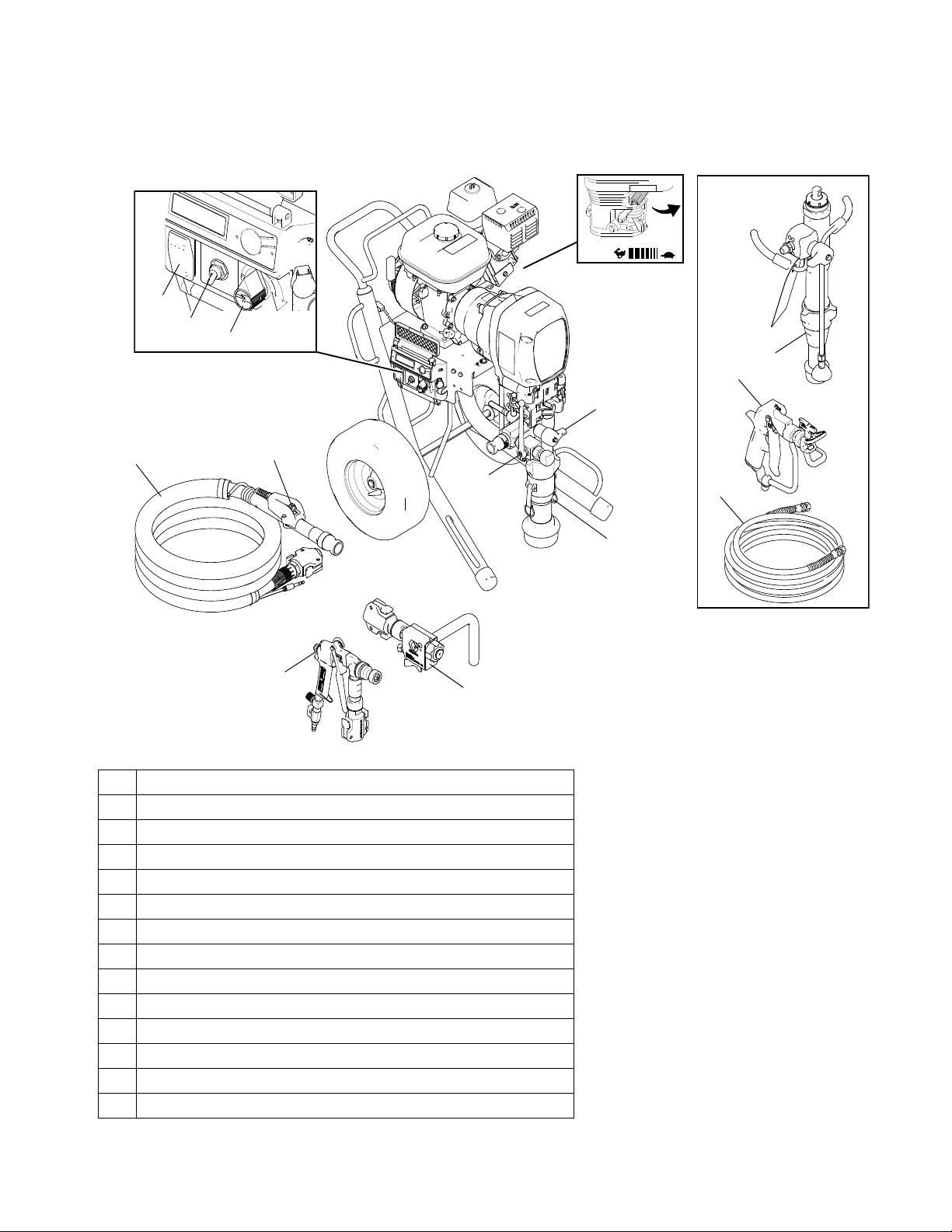

Component Identification - Sprayer . . . . . . . . . . . 7

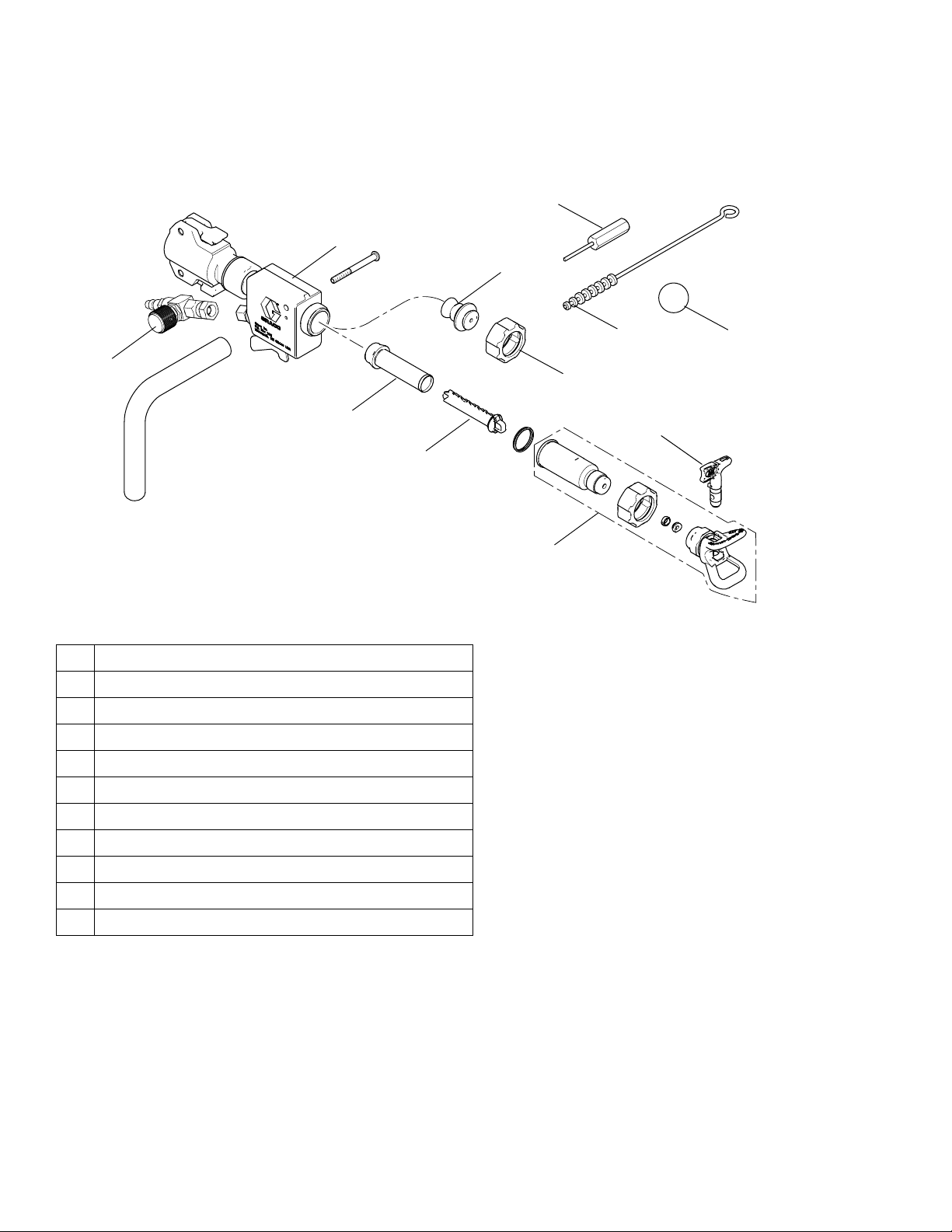

Component Identification - Base Coat Applicator 8
Component Identification - HTX2030 Air Spray
Trigger Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . 10
Applicator and Air Spray Trigger Gun
(Base Coat Pump) . . . . . . . . . . . . . . . . . . . 10
Spray Gun (Top Coat Pump) . . . . . . . . . . . . . . 11
Start Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Material and Sprayer Preparation . . . . . . . . . . . 13
Prime Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Spray With Airless Tip . . . . . . . . . . . . . . . . . . . . 14
Spray Without Air - Clear Clog . . . . . . . . . . . . . 15
Air Assisted Spray
(Base Coat Applicator) . . . . . . . . . . . . . . . . 15
Air Assisted Spray
(Air Spray Trigger Gun) . . . . . . . . . . . . . . . . 16
Spray Gun (Top Coat Pump) . . . . . . . . . . . . . . . 17
Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Digital Tracking System (DTS) . . . . . . . . . . . . . . . 21
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Secondary Menu - Stored Data Mode . . . . . . . . 22
Digital Display Messages . . . . . . . . . . . . . . . . . . . 23
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 28

Warnings
313888F June 2019
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific
hazard symbols and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire
and explosion:
•Use equipment only in well ventilated area.
•Do not fill fuel tank while engine is running or hot; shut off engine and let it cool. Fuel is flammable and can
ignite or explode if spilled on hot surface.
•Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
•Keep work area free of debris, including solvent, rags and gasoline.
•Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are
present.
•Ground all equipment in the work area. See Grounding instructions.
•Use only grounded hoses.
•Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they are
antistatic or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock.Do not use equipment until you
identify and correct the problem.
•Keep a working fire extinguisher in the work area.
SKIN INJECTION HAZARD (SPRAY GUN)
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a
cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
•Do not point gun at anyone or at any part of the body.
•Do not put your hand over the spray nozzle.
•Do not stop or deflect leaks with your hand, body, glove, or rag.
•Follow Pressure Relief Procedure in this manual when you stop spraying and before cleaning, checking,
or servicing equipment.
+
SKIN INJECTION HAZARD (APPLICATOR AND AIR SPRAY TRIGGER GUN)
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This may
look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
•Do not point dispensing device at anyone or at any part of the body.
•Do not put your hand over the fluid outlet.
•Do not stop or deflect leaks with your hand, body, glove, or rag.
•Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking, or ser-
vicing equipment.
•Tighten all fluid connections before operating the equipment.
•Check hoses and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
•Keep clear of moving parts.
•Do not operate equipment with protective guards or covers removed.
•Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, fol-
low the Pressure Relief Procedure and disconnect all power sources.

Warnings
June 2019 313888F
RECOIL HAZARD
Gun may recoil when triggered. If you are not standing securely, you could fall and be seriously injured.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction
and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage.
•Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids contain-
ing such solvents.
•Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for com-
patibility.
SUCTION HAZARD
Powerful suction could cause serious injury.
•Never place hands near the pump fluid inlet when pump is operating or pressurized.
CARBON MONOXIDE HAZARD
Exhaust contains poisonous carbon monoxide, which is colorless and odorless. Breathing carbon monoxide can
cause death.
•Do not operate in an enclosed area.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.
•Read MSDSs to know the specific hazards of the fluids you are using.
•Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns:
•Do not touch hot fluid or equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye injury,
hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is not limited to:
•Protective eyewear, and hearing protection.
•Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•Do not operate the unit when fatigued or under the influence of drugs or alcohol.
•Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
See Technical Data in all equipment manuals.
•Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all equipment
manuals. Read fluid and solvent manufacturer’s warnings. For complete information about your material,
request MSDS from distributor or retailer.
•Do not leave the work area while equipment is energized or under pressure.
•Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
•Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s
replacement parts only.
•Do not alter or modify equipment. Alterations or modifications may void agency approvals and create safety
hazards.
•Make sure all equipment is rated and approved for the environment in which you are using it.
•Use equipment only for its intended purpose. Call your distributor for information.
•Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
•Do not kink or over bend hoses or use hoses to pull equipment.
•Keep children and animals away from work area.
•Comply with all applicable safety regulations.
WARNING

Product Overview
313888F June 2019
Product Overview
HTX 2030 with Base Coat Pump
(257369)
The HTX 2030 Sprayer comes equipped with a Base
Coat Pump 24B321. Only water-based materials are to
be used with this configuration, such as:
•Smooth to heavily aggregated textures with silica
sand, perlite, vermiculite and polystyrene
•Smooth, medium, coarse and extra coarse textures
•Most materials with aggregates up to 2.5 mm (.100
in.) in longest dimension
When Base Coat Pump is Installed
Pump will only run when on/off switch is in ON position
AND:
•Pump control is rotated clockwise away from OFF
position, and either of the following switches are
also switched ON:
Prime Switch on pressure control box AND/OR
Applicator Switch near end of material hose
The pressure control will limit the sprayer to 1,000 psi
(69 bar), stopping the pump whenever pressure limit is
reached.
Flow rate is dependent on engine speed and the setting
of the pump control knob.

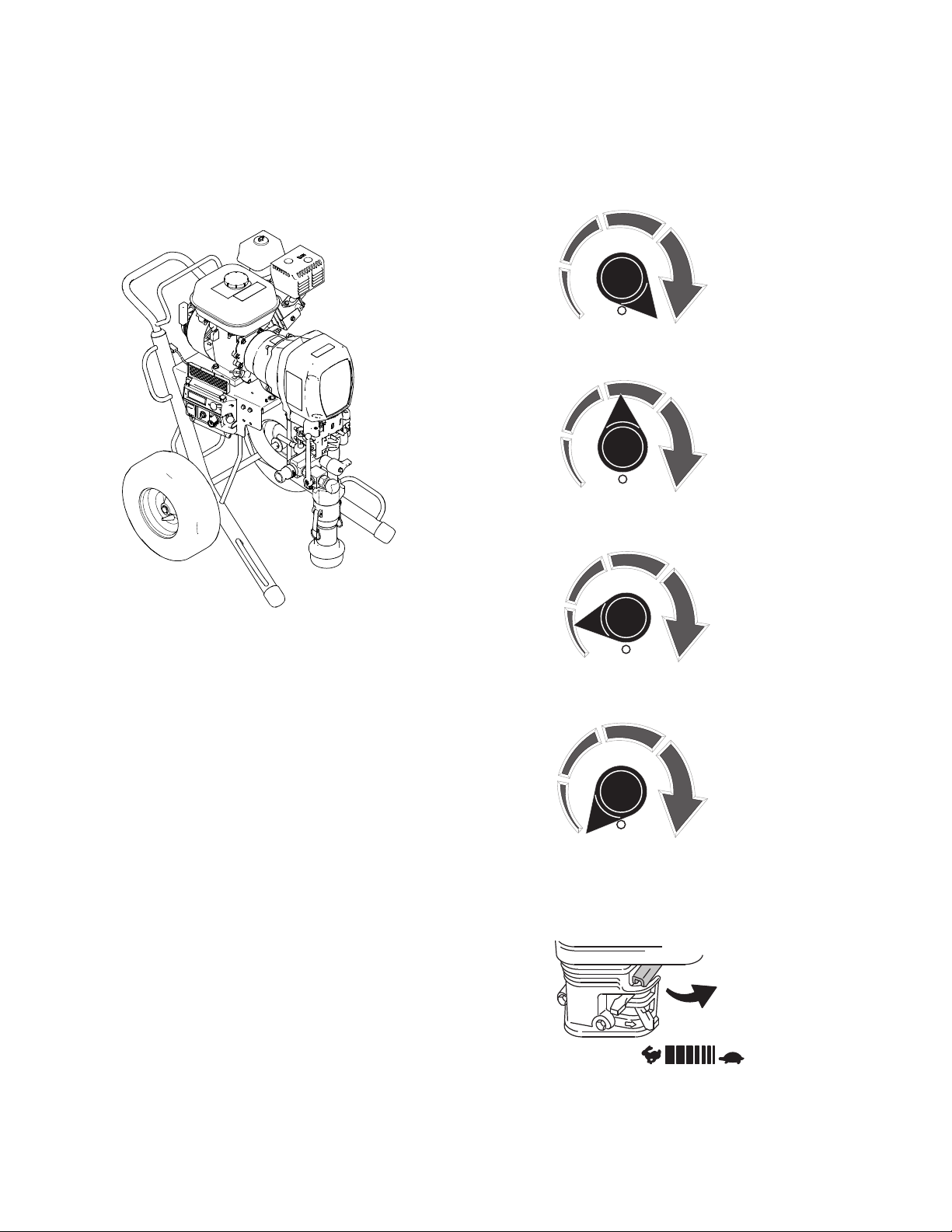

1. Flow 3 (fully clockwise) - allows the pump to run
continuously with minimal pulsation:
2. Flow 2 (near middle of the rotation) reduces flow
slightly by briefly interrupting pump:
3. Flow 1 (near counterclockwise end of pump control)
reduces flow more by interrupting pump longer:
4. OFF (fully counterclockwise) - stops pump com-
pletely:
5. Adjust engine speed to control flow rate of sprayer.
Start with the slowest speed possible for maximum
spray control. Different spray tip nozzle sizes can
also be tried.
ti13632a
ti13756a
ti13757a
ti13758a
ti13755a
ti5251a

Product Overview
June 2019 313888F
Top Coat Pump (Kit 24B140)
The pump on the HTX 2030 Sprayer can also be
switched out with a Top Coat Kit 24B140 (purchased
separately). This pump is used for less viscous
materials such as:
•Oil-based coatings
•Enamels
•Latex
•Block fillers
•Elastomerics
•Epoxies
•Drywall mud
•Other high-build materials
For instructions on installing the Top Coat Pump, see
manual 313889.
When Top Coat Pump is Installed
•Pump will only run when on/off switch is in ON posi-
tion and pump control is rotated clockwise away
from OFF position
•Pump control setting adjusts sprayer pressure
a. Rotating knob fully clockwise allows sprayer to
reach maximum working pressure of 3300 psi
(228 bar, 22.8 MPa)
b. Settings below maximum will lower system
pressure
•Pump will run whenever system pressure is below
the setting of the pump control
•Sprayer will not respond to Prime switch or Applica-
tor switch when Top Coat pump is installed
ti13653a
ti13653a

Component Identification - Sprayer
313888F June 2019
Component Identification - Sprayer
ti14415b
1
23
45
7
8
11
10
9
6
Top Coat Kit
12
13
14
1 ON/OFF Switch
2 Prime Switch (used with Base Coat Pump)
3 Pump Control Knob
4 Heavy Texture Material Hose (used with Base Coat Pump)
5 Applicator Switch (used with Base Coat Pump--on Hose)
6 Applicator (Base Coat) (Model 257369)
7 Pump (Base Coat)
8 Over Pressure Relief Valve
9 Pump (Top Coat)
10 Spray Gun (Top Coat)
11 Paint/Texture Material Hose (used with Top Coat Pump)
12 Prime/Drain Valve
13 Air Spray Gun (24R054)
14 Engine Throttle Lever/Material Flow

Component Identification - Base Coat Applicator
June 2019 313888F
Component Identification - Base Coat Applicator
ti14357a
1
2
3
4
5
6
910
7
8
11
1 Applicator
2 Air Hose Adapter and Air Adjustment Valve
3 Airless Filter or Air Passage Plug
4 Filter Support
5 Airless Spray Assembly
6 Airless Spray Tip Nozzle
7 Air Nozzle (4 mm, 6mm, 8mm, 10mm)
8 Air Nozzle Cleaner
9 Cleaning Brush
10 Cleaning Ball
11 Retaining Nut

Component Identification - HTX2030 Air Spray Trigger Gun
313888F June 2019
Component Identification - HTX2030 Air Spray Trigger Gun
6
5
4
3
2
12
9
1
11
7
10
8
ti21036a
1 HTX2030 Air Spray Trigger Gun
2 Nozzle, Size #1, Size #2, Size #3
3 Adapter, Housing
4 Ring, Retaining Nozzles
5 Tip, Disc, Spray, 1/8 in. (3 mm), 1/4 in. (6.3 mm), 5/16 in. (8 mm), 3/8 in. (9.5 mm)
6 Ring, Retaining, Spray Discs
7 Air Adjustment Valve
8 Trigger, Latch On
9 HTX Swivel Assembly
10 Air, Control Ball Valve
11 Flow, Adjust Knob
12 Trigger

Grounding
June 2019 313888F
Grounding
Ground sprayer with grounding clamp to earth ground
when flushing sprayer.
To maintain grounding continuity when flushing or
relieving pressure: Hold metal part of the spray gun
firmly to the side of a grounded metal pail, then trigger
the gun/valve.
Pressure Relief Procedure
Applicator and Air Spray Trigger Gun
(Base Coat Pump)
Follow the Pressure Relief Procedure whenever
you see this symbol.
1. Turn engine OFF.
2. Turn on/off switch OFF and turn pressure control
knob fully counterclockwise.
3. HTX2030 Air Spray Trigger Gun only: Pull gun
trigger to release pressure.
4. Turn prime/drain valve down to DRAIN position.
Fluid from drain valve can splash in eyes or skin and
cause serious injury. Keep hands clear of pressure
relief valve and always wear safety glasses.
NOTE: If you suspect spray tip nozzle or hose is com-
pletely clogged or that pressure has not been fully
relieved after following the previous steps, cover the
connection at end of hose with a heavy rag and very
slowly loosen connection.
The equipment must be grounded to reduce the risk of
static sparking. Static sparking can cause fumes to
ignite or explode. Grounding provides an escape wire
for the electric current.
ti3058a
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop spraying and before clean-
ing, checking, or servicing the equipment.
ti6208b ti13050a
ti14632a

Pressure Relief Procedure
313888F June 2019
Spray Gun (Top Coat Pump)
1. Lock gun trigger safety and turn engine OFF.
2. Turn on/off switch to OFF and turn pressure control
knob fully counterclockwise.
3. Unlock trigger safety. Hold metal part of gun firmly
to side of grounded metal pail and trigger gun to
relieve pressure.
4. Lock gun trigger safety. Open pressure prime/drain
valve. Leave valve open until ready to spray again.
NOTE: If you suspect that the spray tip nozzle or hose is
completely clogged, or that pressure has not been fully
relieved after following the previous steps, VERY
SLOWLY loosen the tip guard retaining nut or hose end
coupling to relieve pressure gradually, then loosen com-
pletely. Then clear tip or hose.
ti13131a
ti13050a ti10796b
ti13128a
ti13130a
ti13131a
ti14632a

Start Engine
June 2019 313888F
Start Engine
1. Move fuel valve to OPEN.
2. Move choke to CLOSED.
3. Set throttle to FAST.
4. Set engine switch to ON.
5. Pull starter rope.
6. After engine starts, move choke to OPEN.
7. Set throttle to desired setting.
ti5248a
ti5249a
ti5250a
ti3315a
ti5263a
ti5264a
ti5251a

Setup
313888F June 2019
Setup
1. Fill mixing pail with pre-mixed texture material. Mix
per material manufacturer instructions.
Add appro ximately 10% water to textu re mix or per mater ial manufa cturer instructio ns. Mix tho roughly.
2. Connect material hose to pump outlet.
Material and Sprayer Preparation
NOTE: To minimize material pack-out in hose when
priming, completely empty hose of all water. In hot con-
ditions, it may be necessary to wet the hose with water
to lower internal hose temperature, slowing material
setup. In this case, water removal is still recommended.
If using hose lubricant/wetting solutions, refer to manu-
facturer instructions for proper priming techniques.
Cementicious and other curing materials can harden
within the drain valve while spraying. At least once per
hour stop spraying and open the drain valve to flush out
the older material.
3. Pour mixed material into supply pail under sprayer.
4. Place pump suction tube into mixed material.
NOTE: For best results with aggregate, remove strainer.
Prime Pump
1. Start gasoline engine and adjust speed to half throt-
tle. Turn prime/drain valve to DRAIN.
2. Place material hose outlet over supply pail.
3. Turn on/off switch ON.
Base Coat Pump:
Also turn Prime switch ON, or activate applicator
switch on material hose.
4. Rotate pump control knob 1/4 turn. Run pump until
a steady stream of material flows from drain valve.
NOTICE
DO NOT USE MATERIALS THAT CURE RAPIDLY!
Materials with a fast curing time could plug the pump,
hose, gun, or applicator.
ti4118a
ti13638a
ti14416a
ti13652a
ti14632a
ti13640a
ti10795b
ti11930a

Setup
June 2019 313888F

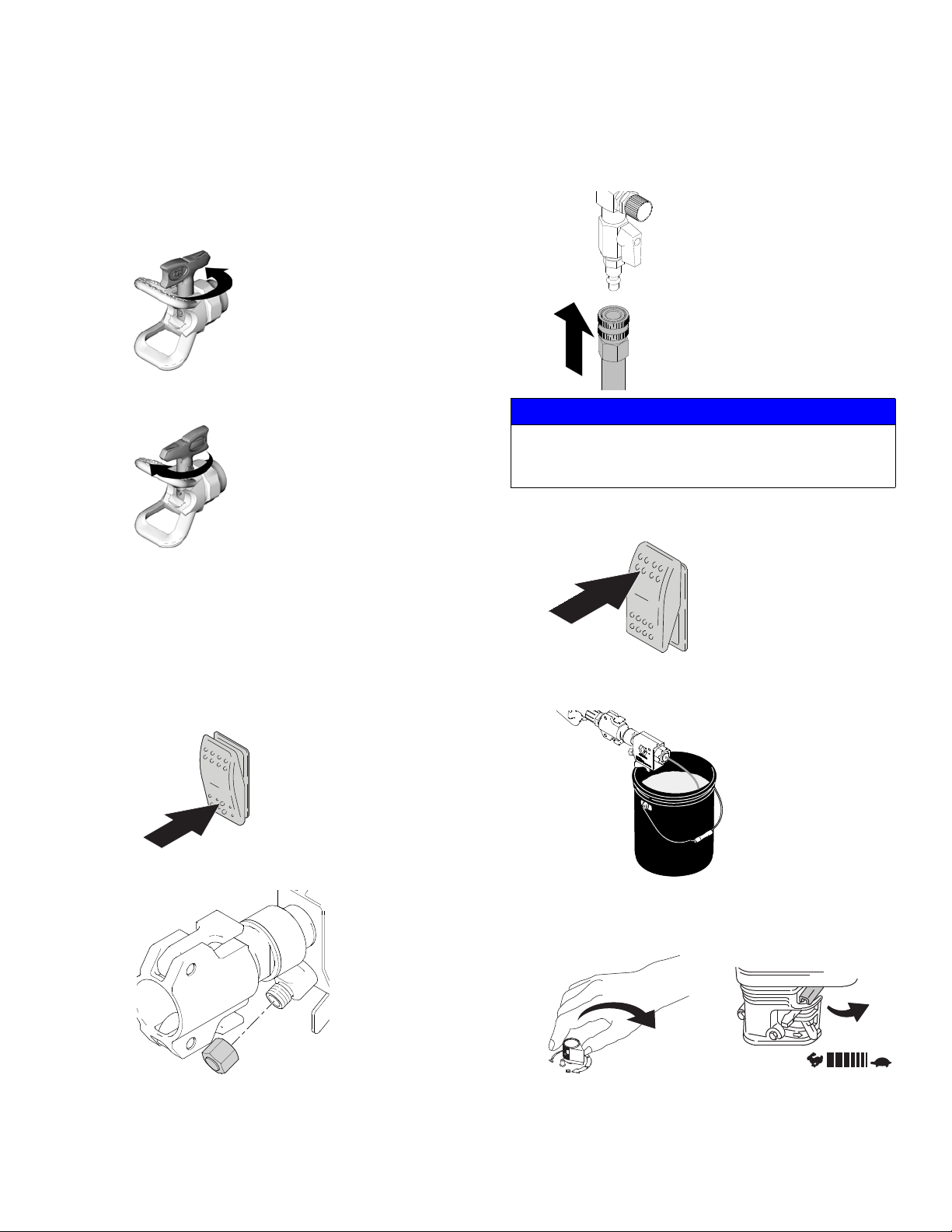

5. Turn on/off switch OFF and turn drain valve knob to
SPRAY.
6. Turn on/off switch ON, and run pump until a steady
stream of material flows from material hose. Turn
on/off switch to OFF and turn drain valve knob to
DRAIN.
7. Connect applicator to material hose.

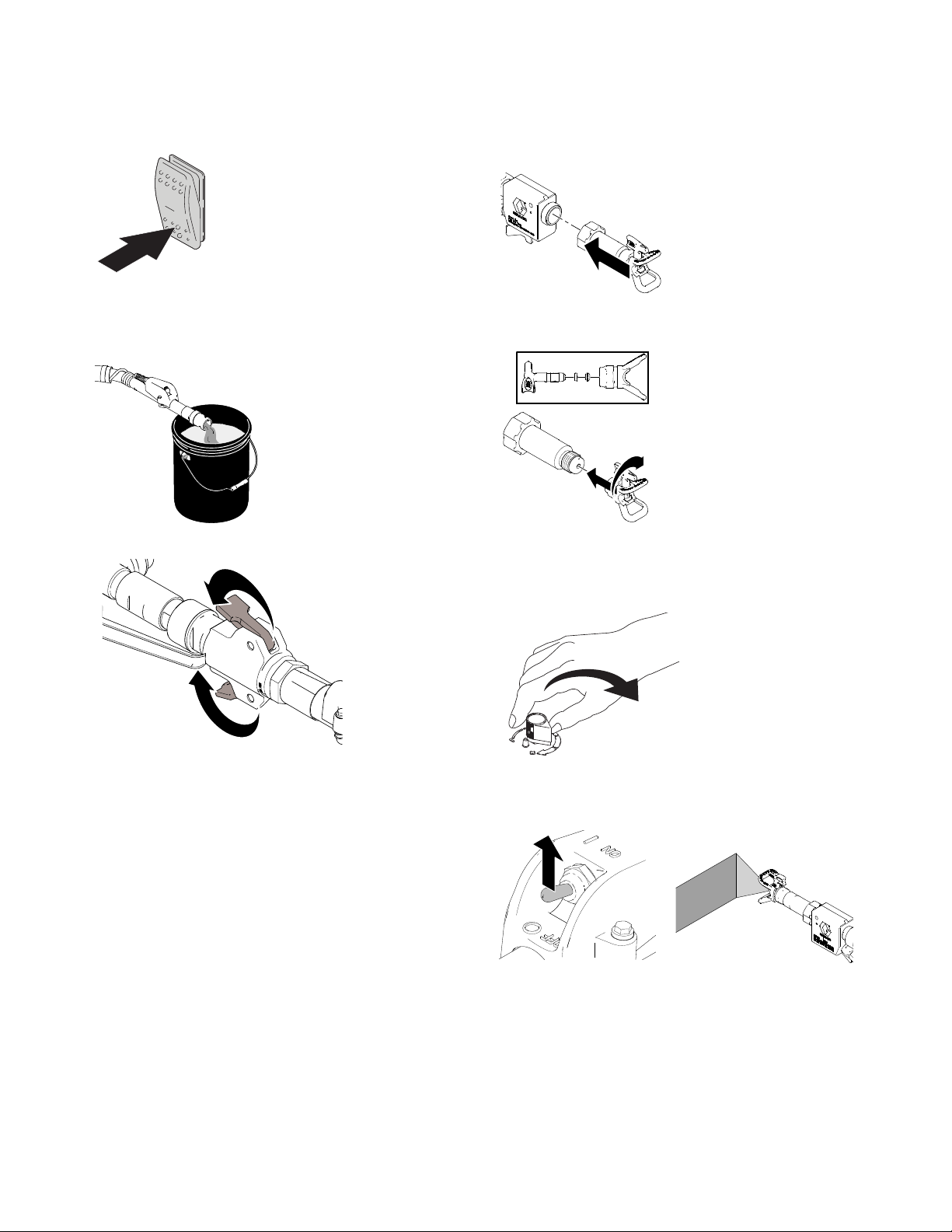

Spray With Airless Tip
1. Install filter and tip extension.
2. Insert metal seat and OneSeal. Insert Switch Tip.
Screw assembly onto applicator.
3. Turn drain valve to SPRAY, and turn on/off switch to
ON. Turn pump control knob clockwise and/or
adjust engine speed until desired material delivery
rate is achieved.
4. Spray test pattern. Aim applicator at floor. Turn
applicator switch ON and move applicator to spray
surface.
ti10796b
ti13649a
ti21038a
ti13648a
ti13650a
ti8794a
ti13651a
ti21042a

Setup
313888F June 2019
Spray Without Air - Clear Clog
1. Relieve Pressure, page 10.
2. Rotate SwitchTip to Clear position. Aim applicator at
floor and turn pump ON. When clog clears, turn
pump OFF.
3. Rotate SwitchTip to Spray position. Turn pump ON.
Spray test pattern.
Air Assisted Spray
(Base Coat Applicator)
1. Prepare material, page 13. Place material hose in
supply pail.
2. Turn on/off switch OFF.
3. Remove cap and install air valve assembly.
4. Turn air valve OFF. Connect applicator to material
hose and air hose. Air supply minimum require-
ments vary with material thickness and desired
thickness.
5. Turn on/off switch ON.
6. Hold applicator over material pail and turn pump ON
using applicator switch on hose.
7. Turn pump control clockwise until desired material
delivery rate is achieved.
ti11714a
ti11715a
ti10796b
ti13647a
NOTICE
DO NOT USE MATERIALS THAT CURE RAPIDLY!
Materials with a fast curing time could plug the pump
hose, gun, or applicator.
ti21037a
ti10795b
ti13641a
ti8794a ti5251a

Setup
June 2019 313888F
8. Spray test pattern. Aim applicator at floor. Turn air
valve ON. Move applicator to spray surface.
9. Adjust air valve and/or select alternative nozzle size
(4 - 10mm) for desired finish.
Air Assisted Spray
(Air Spray Trigger Gun)
1. Prepare material, page 13. Place material hose in
supply pail.
2. Turn on/off switch OFF.
3. Turn air valve OFF. Connect applicator to material
hose and air hose. Air supply minimum require-
ments vary with material thickness and desired
thickness.
4. Turn on/off switch ON.
5. Hold applicator over material pail, trigger on, and
turn pump ON using applicator switch on hose.
NOTE: Remove spray disk then set material flow to
prevent material from back-flowing into air passages
of gun.
6. Turn pump control clockwise and adjust engine
throttle to lowest setting until desired material deliv-
ery rate is achieved.
NOTICE
IF PUMP IS STOPPED LONGER THAN 3 MIN-
UTES, TO AVOID PUMP PLUGGING:
•Relieve pressure in the pump (See Pressure
Relief procedure - page 10).
•Recirculate the material by pumping back into
original material container.
Due to the high pressure fluid emitted, a strong recoil
action may occur when you trigger this gun. If you are
unprepared, your hand could be forced back toward
your body or you could lose your balance and fall,
resulting in serious injury.
ti13646a
ti11798a
6 mm
8 mm
10 mm
4 mm
ti10796b
NOTICE
DO NOT USE MATERIALS THAT CURE RAPIDLY!
Materials with a fast curing time could plug the pump
hose, gun, or applicator.
ti21263a
ti10795b
ti21243a
ti8794a

Setup
313888F June 2019
7. Turn air valve on and adjust air valve and/or select
alternative nozzles or spray discs to achieve desired
pattern.
8. Spray test pattern. Move applicator to spray sur-
face. NOTE: See Air Spray Trigger Gun manual for
helpful hints on spray patterns.
Spray Gun (Top Coat Pump)
1. Lock gun trigger safety. Insert seat and OneSeal™.
Insert SwitchTip.
2. Screw assembly onto gun. Hand tighten.
3. Trigger gun and spray test pattern. Slowly adjust
pressure to eliminate heavy edges. Use smaller tip
size if pressure adjustment can not eliminate heavy
edges.
4. Hold gun perpendicular, 10-12 in. (25-30 cm) from
surface. Spray back and forth. Use strokes over-
lapped by 50%. Start gun movement before trigger-
ing gun and release trigger before stopping gun
movement.
NOTICE
•Keep gun triggered as much as possible to
prevent pack-out.
•If gun has not been triggered for longer than 3
minutes, perform Pressure Relief (page 10) in
the pump and hose to prevent packout.
•Turn off applicator switch on hose before detrig-
gering to minimize retained pressure.
•Make sure air is flowing before triggering gun.
ti21034a
1/4 in.
3/8 in.
5/16 in.
1/8 in.
SwitchTip
ti5800a
Seat
One seal
ti13131a
ti5801a
heavy
edges
ti5823a
ti5824a

Cleanup
June 2019 313888F
Cleanup
1. Turn on/off switch OFF.
2. Perform Pressure Relief procedure, page 10.
3. Place pump in pail of clean water.
4. Shut OFF air if spraying with air. Remove applicator
from material and air hoses.
5. Base Coat Pump: Disconnect material hose from
pump outlet.
6. Insert wet cleaning ball into hose (Base Coat Only).
Connect material hose to pump outlet.
7. Hold material hose over waste pail.
8. Turn on/off switch ON and prime switch ON, or
applicator switch on material hose.
ti10796b
ti13644a
ti14284a
ti21040a
ti13639a
ti13643a
ti13638a
ti13640a
ti10795b

Cleanup
313888F June 2019
9. Run pump until cleaning ball exits material hose.
Save cleaning ball (Base Coat Only).
10. Turn on/off switch OFF and turn prime/drain valve to
DRAIN. Clean outside of pump and suction tube
with brush and water.
11. Connect applicator to material hose. Close
prime/drain valve.
12. Turn on/off switch ON.
Base Coat Pump: Turn prime switch ON, or appli-
cator switch on material hose.
13. Run pump until clean water flows from applicator.
14. Add additional water and repeat steps 12 - 13 if nec-
essary.
15. Open prime/drain valve and turn prime switch ON to
flush valve.
16. Turn on/off switch OFF when valve is thoroughly
flushed.
17. Open over pressure relief valve and turn prime
switch ON to flush valve.
ti4551c
ti10796b ti14632a
ti21038a
ti10795b
ti13641a ti21039a
ti13839a
ti14632a
ti10796b
ti13633a

Cleanup
June 2019 313888F
18. Remove and thoroughly clean applicator, spray tip
nozzle and guard with brush.
19. Turn on/off switch OFF when valve is thoroughly
flushed.
20. Clean hardened material from applicator nozzles
with air nozzle cleaner.
ti11810a
ti11811a
ti21035a
NOTICE
Do not use air nozzle cleaner to clean applicator
check valve or airless spray tip nozzle. Damage will
occur.
Remove air check valve from applicator to clean
hardened material from interior of applicator.
ti13642a
