decon INFM7015 User manual

Assembly Instructions
INFM7015, INFM7115, INFM7215
Infinity Mounting set
Invacare Action 5 Rigid Swing Away
2021-10
Revision 1

Mounting set
INFM7X02
__________________________________________________________________________________
__________________________________________________________________________________
Sida 2/8
1. Safety
Symbols
Risk of serious injury or death.
An operation that, if not correctly performed, may lead to injury to the operator or others.
Risk of material damage.
An operation that, if not correctly performed, may lead to material damage.
Particularly important or explanatory information
General instructions
These instructions shall always be followed when placing the mounting set INFM7015,
INFM7115, INFM7215.
To be able to connect Infinity to the wheelchair Infinity also needs to be adjusted according
to the assembly instructions that is included in the delivery of Infinity.
Warnings
Assembly work or changes made to the mounting set must be carried out by trained service
technician, reseller or another person assigned by Decon.

Mounting set
INFM7X02
__________________________________________________________________________________
__________________________________________________________________________________
Sida 3/8
2. Overview
A Center pipe adapter bar
B Outer pipe adapter bar
C Clamp adapter bar
D Adapter plate
E QR-Pin
F Universal clamp
G 19mm clamp
A
B
C
F
D
E
G

Mounting set
INFM7X02
__________________________________________________________________________________
__________________________________________________________________________________
Sida 4/8
3. Assembly and adjustment of adaptor
First mount the adapter plate (F), universal clamp
(F), wedge (I), sleeve (J), screw (K) and washer (L)
onto the wheelchair. Tighten loosely so that the
parts can move along the frame.
Mount the 19mm clamp (G) around the frame
using screw (K), washer (L) and locking nut (M)
and tighten loosely.
Assemble both sides.
WARNING!
Loctite 243 or eq. shall be applied to the screws
(K) for the universal clamp (F)
M
L
K
G
L
I
J
K
D
L

Mounting set
INFM7X02
__________________________________________________________________________________
__________________________________________________________________________________
Sida 5/8
Now mount the complete
adapter bar that consists of
center pipe (A), outer pipe (B)
and clamp (C). The complete
adapter bar is mounted into
the adapter plates (D) by using
the QR-pins (E).
Make sure the ends of the
outer pipe (B) are parallell
otherwise it can be hard to
assemble it into the holders
(D). It shall be possible to
move the center pipe (A)
sideways and also rotate it if
correctly assembled.
First tighten the screws in the
19mm clamp (G), it shall be
possible to move the center
pipe sideways and also rotate
it even after tightening of the screws. Now tighten the screws
in the universal clamp (F).
Check that the arrow on the labeling mounted on the center pipe (A) is pointing towards the
front of the wheelchair. If the center pipe (A) is mounted the wrong way around it will not be
possible to attach Infinity to the bar.

Mounting set
INFM7X02
__________________________________________________________________________________
__________________________________________________________________________________
Sida 6/8
Now use the leveling tool that is included in the delivery of Infinity. Since the adapter bar
have splines inside it will not be possible to get the bubble of the spirit level exactly right.
Just choose the most correct position.
The leveling tool has two marks “H” and “L”. When the bubble of the spirit level is towards
the “H” the castors of the wheelchair will lift higher from the ground compared to if the
bubble of the spirit level is towards the “L”.
Adjustment of the angle can be done in two different manners. Both is descriped bellow.
Alt1.
Using the adjustment tool that
is included in the delivery of
Infinity (not this mounting set),
set the angle of the adaptorbar
so that the spirit level is in level.
Inside the pipes there are
splines so when rotating you
will feel and hear a clicking.
When desired angle have been
accomplished, check that the
center pipe is centered in the
wheelchair. Now tighten the
screws in the clamps (C).
WARNING!
The screws holding the clamps
(C) shall be tightened to 7-9Nm
of torque.

Mounting set
INFM7X02
__________________________________________________________________________________
__________________________________________________________________________________
Sida 7/8

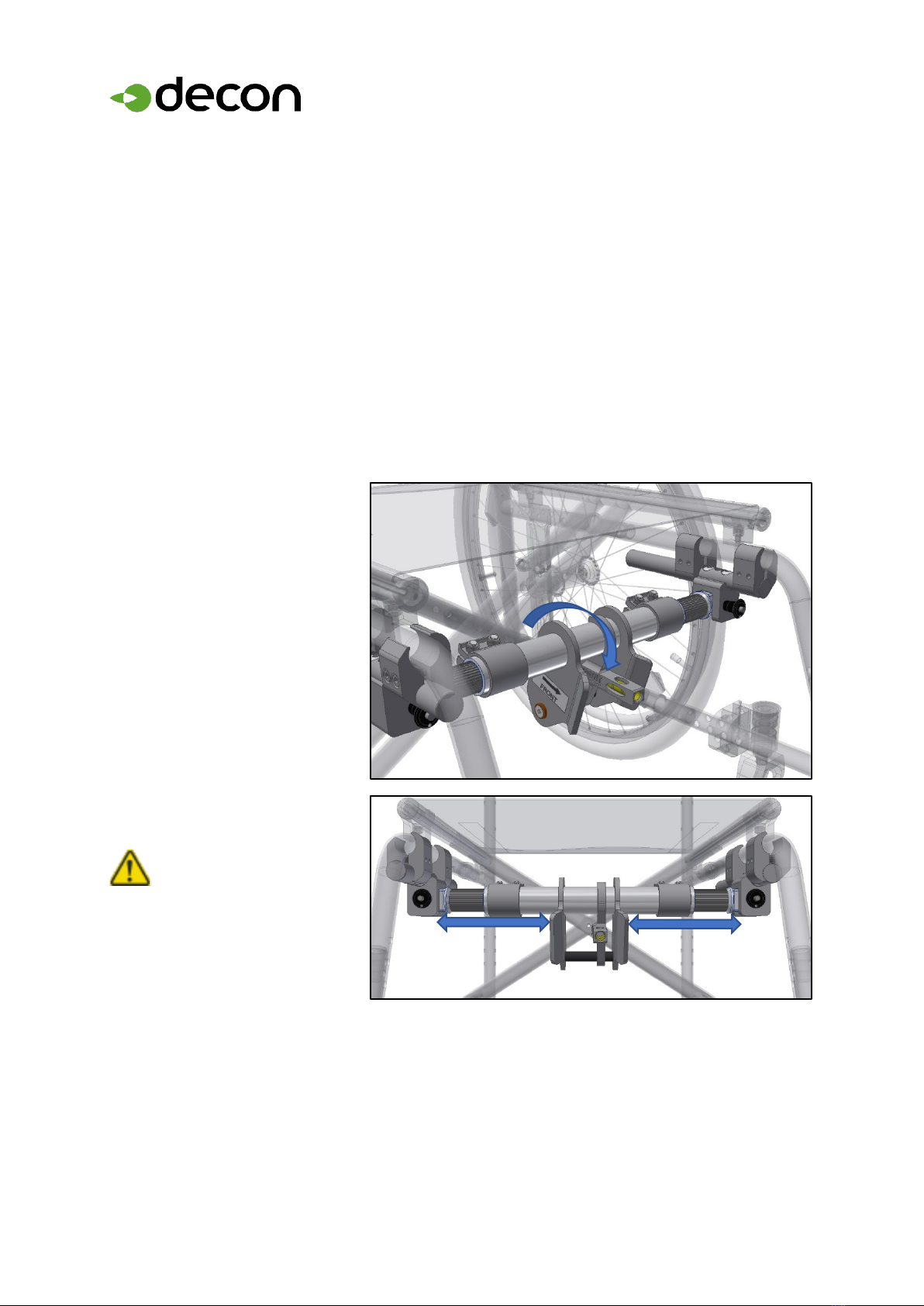

Alt.2
Using the adjustment tool that is included in the delivery
of Infinity (not this mounting set), set the angle of the
adaptorbar. Only mount the inner pipe on one side and
then rotate the center pipe to the correct angle. Now
mount the other inne pipe in the same position/angle as
the first one. Check that the center pipe is centered in
the wheelchair. Now tighten the screws in the clamps
(C).
WARNING!
The screws holding the clamps (C)
shall be tightened to 7-9Nm of
torque.
Now read the assembly instructions that was included in the delivery of the Infinity unit.
Assemble and adjust the Infinity according to the instruction.

Mounting set
INFM7X02
__________________________________________________________________________________
__________________________________________________________________________________
Sida 8/8
Decon Wheel AB
Södra Ekeryd 119, SE-314 93 Hyltebruk, Sweden
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
