Decor Star PL-003-AL User manual

Decor Star PL-003-AL Rev. A4 1220151
Decor Star PL-003-AL
Features
- Stunning stylish European inspired design
- Durable light weight aluminum alloy frame construction
- 14”Chrome brass shower arm
- 8” chrome round ABS rainfall shower head
- 6 adjustable massage jets
- Contemporary brass hand shower and tub spout
- Tempered glass shelf

Decor Star PL-003-AL Rev. A4 1220152
Thank you for purchasing Decor Star products. Please read the information below and keep this
installation guide for future reference. If you require assistance, please contact our customer service
department at 1-800-879-1197, Monday - Friday 10AM - 5PM Pacifi c Time. Or by email at
[email protected].
Limited Two (2) Year Warranty (For USA Only)
The manufacturer warrants this product to be free of manufacture defects during daily normal
household use for as long as it is owned by the original purchaser of this product. Please keep a
copy of the original invoice as proof of purchase.
Should a malfunction occur within the warranty period, Décor Star USA will, as its option, (1)
repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original
purchase price of the product(s) (Valid within 30 days from the date of purchase); or (3) issue a
credit to be applied toward the purchase of a new Décor Star product. Shipping/delivery charges
may apply and are in Décor Star USA’s sole discretion.
This limited warranty shall not apply to goods which have been subject to accident, negligence,
improper installation, product abuse, product misuse, or use of cleaners containing abrasives, alcohol
or other organic solvents, whether performed by a contractor, service company, or yourself, are
excluded from this warranty.
Our responsibility under this limited warranty is limited to only to replacement parts and no other
costs. Décor Star USA will not be responsible for labor charges and/or damage incurred by
installation, repair or replacement, nor for any indirect incidental or consequential damages, losses,
injury or costs of any nature relating to this product. Except as provided by law, this limited warranty
is in lieu of and excludes all other warranties, conditions, and guarantees, whether expressed or
implied, statutory or otherwise, including without restriction those merchantability of fi tness for use.
This limited warranty is non-transferable. This limited warranty only applies to products purchased
and installed in the United States. This limited warranty covers the original consumer purchase only
and does not include business, commercial or industrial use of this product. To obtain service under
the Limited Warranty, please contact Decor Star USA at [email protected]. The Decor Star
USA Customer Care Department will determine whether to repair or replace your product, issue a
refund, or issue a credit.

Decor Star PL-003-AL Rev. A4 1220153
Attention
• This installation guide is subject to change without notice, please contact us to request the most
updated version of this installation guide.
• This is a general installation guideline, actual installation may vary. Consult a professional if
necessary.
• Product drawings in this installation guide is for illustration purpose only. Actual product may vary
depends on model.
• Always take extra precautions and wear appropriate safety equipment when installing this product.
• Proper water pressure needs to be maintained to prevent possible scalding.
• Stainless steel shower panels are handmade and assembled. Product dimensions may vary
slightly, always measure the actual product before installation.
You may also need the following tools
1. Thread Sealant Tape, (PTFE Tape) 5. Pencil or Marker
2. Silicon Sealant 6. Level
3. Phillips Screw Driver 7. Hammer
4. Drill with ¼” Drill bit
Before You Begin
• Read and understand this instructions completely before installation.
• Unpack and inspect the shower panel from the package for shipping damage and make sure all
parts are included with the shower panel.
• Keep the product in its package until you are ready to install.
• Read and understand this installation guide completely.
• Make sure the installation site is clean and free of dust and debris.
• Please make sure the water supply is shut off to the installation area. If necessary, shut off the
water to the entire house.
• Turn on the water at a bathroom faucet in the house to relieve the pressure in the plumbing
system.
Rough-In
• Please follow all local building and plumbing codes.
• The height and placement of the shut off valves will be based on the installation height of
the shower panel, see fi gure A. The installation height is approximately the total distance of
measurement A and measurement B.
• The fi nished wall opening for the valves should not be larger than 4.5” wide by 6” tall. Make sure
the opening is completely waterproof to prevent any water leaking into the wall space. (NOTE:
Product warranty does not cover any damages caused by water leak due to negligent and
improper installation of the shut off valves and the shower panel.)
• A laundry outlet box such as the Sioux Chief Ox BoxTM can be used to speed up the installation
process of the shut off valves.

Decor Star PL-003-AL Rev. A4 1220154
Recommended
10” - 12”
Approximate shower inlet
valve location
laundry outlet
box
(This is the distance from
the oor to the bottom
edge of the shower panel)
Reference Model Height is 5’8”
Fig. A
(This is the distance from
the bottom edge of the
shower panel to the valve.
NOTE: This distance vary
by models, always take the
actual measurement from
the shower panel)
A
B
The installation height of the outlet box
is approximately the total distance of
measurement A and measurement B.
It is recommened to aim the top hori-
zontal body jets at the chest area of the
user for optimal showering experience.

Decor Star PL-003-AL Rev. A4 1220155
Technical Data
Recommended Operating Pressure: 50-80 PSI
Average Flow Rate: 3.12 gpm at 80 PSI
180mm
7.09”
350mm
13.78”
65mm
2.56”
1,500mm
59.06”
838mm
32.99”
260mm
10.24”
600mm
23.62”
300mm
11.81”
*All Measurements are Approximate

Decor Star PL-003-AL Rev. A4 1220156
1
2
3
4
5
11 12
13
6
7
8910
01. Shower Panel
02. Shower Arm
03. Shower Head
04. Glass Shelf
05. Hand Shower
06. Hand Shower Cradle
07. Hose
08. Water Supply Connector
09. Gasket
10. Hand Shower Connector
11. Screws X 6
12. Mounting Brackets X 2
13. Wall Anchors X 6
Parts List

Decor Star PL-003-AL Rev. A4 1220157
Installation
2. Install hand shower connector and attach
PVC tubing to complete the connection.
1. Attach shower arm assembly to the panel
body. Make sure to install screen washer to
protect shower head from debris in the plumb-
ing system.
3. Mark the positions of the 2 brackets on the
wall and set a side the panel. (NOTE: The
distance between the two brackets should be
838mm or 32.99”)
838mm
32.99”

Decor Star PL-003-AL Rev. A4 1220158
Installation (cont.)

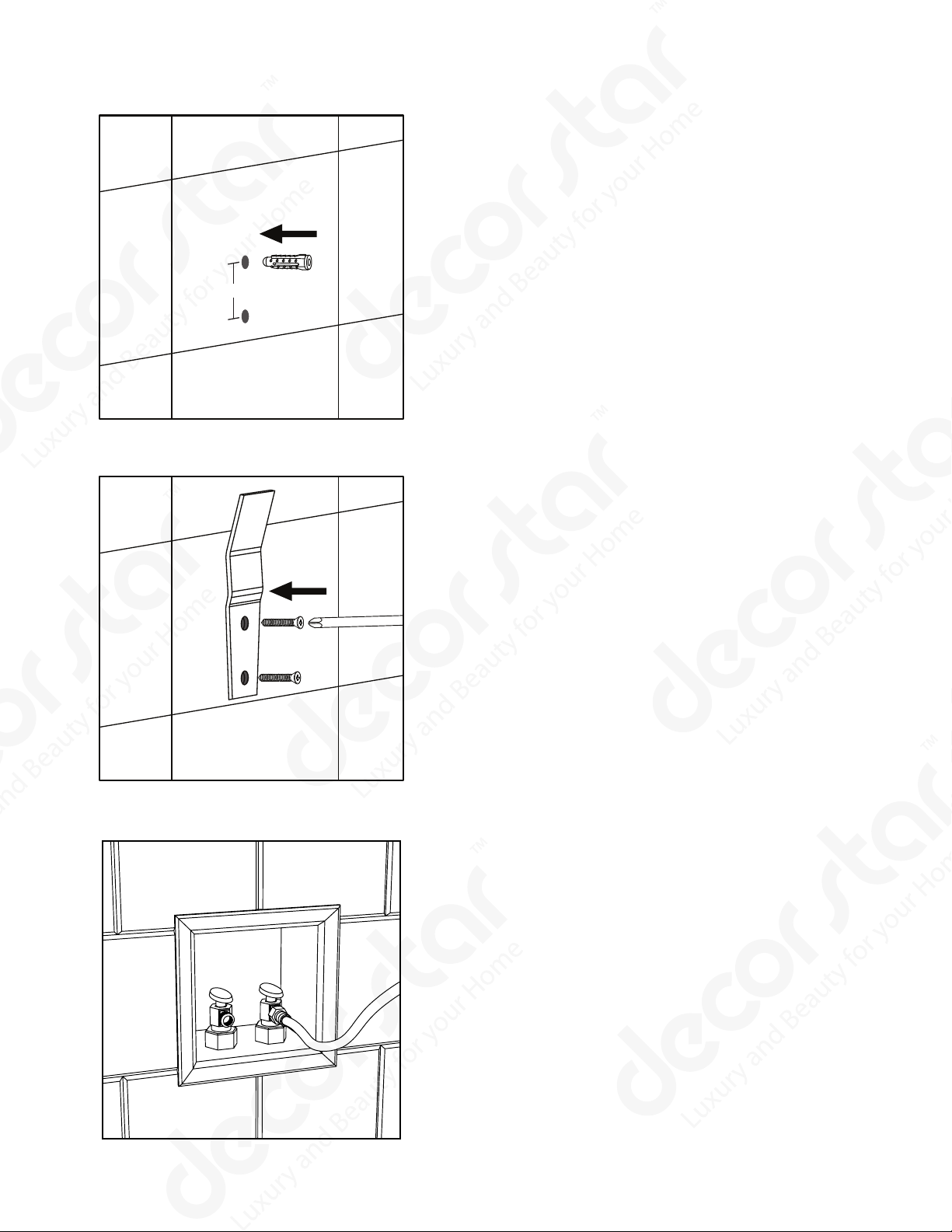

4. Using a drill with a tile bit, drill the hole
slowly into the tile. Do not drill into any piping
or wiring in the wall. Insert the anchors into
the wall. (NOTE: Before installing the wall
anchors, use a small piece of painters tape
or masking tape over the drill area. This will
prevent damages to the tile)
1”
5. Secure the mounting brackets to the wall.
6. Apply thread sealant tape to the threading
on the shut off valves before connect both hot
and cold water supply hoses to the valves.
Turn on the valves and check all connections
for possible leaks.

Decor Star PL-003-AL Rev. A4 1220159
7. Hang the unit on the wall to complete the
installation. Make sure the unit is seated prop-
erly. Apply silicon sealant on left and right
sides of the shower panel. (NOTE: do not seal
the bottom of the panel, this will allow any
possible future leaks to drain out the panel)
9. Connect hand shower hose to the main
panel body. Install the rubber washer.
8. Attache shower head. Apply some (NOTE:
PTFE tape on the thread to prevent leaking)
Installation (cont.)

Decor Star PL-003-AL Rev. A4 12201510
11. Loosen the set screws under the an-
chors to insert the glass shelf. Tighten the set
screws to secure the glass shelf.
(WARNING: Do not place heavy objects on
the glass shelf. Do not excess weight limit of 2
pounds when placing objects on the shelf)
10. Attach the hand shower to the hose.
Installation (cont.)

Decor Star PL-003-AL Rev. A4 12201511
Operation
1. To operate the unit lift the handle on the bottom knob to turn on the water.
2. Turn the top knob to select desired water function.
Overhead Rainfall Shower
Horizontal Body Jets
Handheld Shower
Maintenance Guide
Please follow the cleaning material manufacturer’s instructions. In addition, pay
attention to the following points:
1. Regular cleaning can prevent mineral build up on shower head and handheld
shower.
2. Use a mild detergent such as liquid dishwashing soap and warm water for cleaning.
3. Do not use abrasive / harsh chemical when cleaning the fi xture as they will damage
and dull the fi nish.
3. Carefully read the cleaner product label to ensure the cleaner is safe for use on the
material.
4. Test the cleaner on a small area before using on the entire surface.
5. Do not leave the cleaner on the fi xture longer than necessary.
6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray
directly onto the faucet as droplets can enter openings and gaps and cause damage.
5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
