Installation Manual
LCD-9084-301-x
8.4" Flat Panel LCD Monitor
Document # 540332

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 1 of 18
Document Revision History
Rev. Level
Date
Des
cription
IR 09/2006 Initial Release
IR1 10/2006 Clarified Mating Connector Information
A 01/2009 Removed old logo from product photo
Changed logo and web address
Added “DeCrane Aerospace” (DAAI) to Audio International”
Added “(or latest revision)” and updated Reference
Documents
Corrected “P” designated connectors to “J”
Removed “videocassette players”, corrected mounting kit
part number, Section 1.3
Removed “grounding lug” reference, Section 3.0
Corrected service number, Section 3.2.2
Corrected mounting provisions, Section 3.1.4
Removed “…anodized surfaces…”, & corrected
MIL-W-22759 to M22759, Section 3.4.2
Corrected J1 (-2) connector from DBA13W3SF0 to
DBA13W3SA19F0, Section 3.6
Corrected J2 (-1 & -2) connectors from male to female,
Section 3.6
Corrected J3 (-2) connector from DAMA-15P to
DEMA15PK87, Section 3.6
Troubleshooting and Continued Airworthiness are now
separate sections, Sections 4.0 & 5.0
Removed “every 3 months” from Section 4.1, conflicted with
“No periodic scheduled maintenance” in Section 5.0
Added Housing info to Unit Specifications, Section 6.1
Corrected SP-LCD6 dimensions for cutout, Section 6.2
Added center points of gravity and measurements to back
view, Section 7.1
Reference Documents
(or latest revision)
Document #
De
scription
525663 IR4 LCD-9084-301-x Outline Drawing
525667 IR SP-LCD6 Assembly Drawing
Service Bulletin List
Service
Bulletin # Subject
Manual
Revision
Revision
Date
Table of Illustrations
Section #
Description
Page #
2.3 Block Diagram 4
6.0 Reference Drawings 16-18
PROPRIETARY NOTICE: Despite any other copyright notice, this document and information
disclosed herein contains confidential, proprietary designs owned by DeCrane Aerospace Audio
International. Neither this document nor the data contained herein shall be reproduced, used, or
disclosed to anyone without the written authorization of DeCrane Aerospace Audio International.

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 2 of 18
Table of Contents
Section Description Page
1.0
General Information …………………………………………….
3
1.1 Introduction ……………………………………………………….. 3
1.2 Purpose of the Equipment ………………………………………. 3
1.3 Optional Equipment ……………. .………………………………. 3
2.0
Application ………………………………………………………..
4
2.1 Introduction ……………………………………………………….. 4
2.2 Communications ………………………………………………… 4
2.3 Block Diagram …………………………………………………… 4
2.4 Typical Interfaces ………………………………………………… 4
3.0
Instal
lation ………………………………………………………..
5
3.1 Prior to Installation ……………………………………………….. 5
3.2 Unpacking and Inspection ………………………………………. 6
3.3 Cautions & Warnings …………………………………………….. 6
3.4 Wiring Requirements …………………………………………….. 7
3.5 Electrical Characteristics…………………………………………. 9
3.6 Mating Connector Information ……………..……………………. 11
3.7 Pinout Assignment Descriptions ………………………………... 12
3.8 SP-LCD6 Configuration Overview………………………………. 13
4.0
Troubleshooting …………………………………………………
13
4.1 Cleaning Method………………………………………………….. 13
4.2 General Troubleshooting Procedures ………………………….. 14
4.3 Troubleshooting Chart………………………………………….. 15
5
.0
Instructions for Continued Airworthiness
……..…………..
15
6.0
Specifications ……………………………………………………
15
6.1 Unit Specifications-LCD-9084-301-x..………………………….. 15
6.2 Unit Specifications-SP-LCD6……………………………………. 15
7.0
Reference Drawings …………………………………………….
16
7.1 LCD-9084-301-x………………………………………………….. 16
7.2 SP-LCD6…………….. …………………………………………… 18

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 3 of 18
LCD-9084-301-x
8.4" LCD Monitor
1.0 General Information
1.1 Introduction
This manual contains information for the proper installation of the
DeCrane Aerospace Audio International (DAAI) 8.4Flat Panel LCD
Monitor, Model No: LCD-9084-301-x. The “-x” suffix designates the type of
connector utilized; “-1” = Positronic and “-2” = D-Subminiature. Also
included are physical and electrical characteristics of the unit.
1.2 Purpose of the Equipment
DeCrane Aerospace Audio International’s LCD-9084-301-x is an 8.4" flat
panel LCD monitor with Composite NTSC, PAL, and SECAM video, PC
Graphic capabilities, and Serial Digital interface capabilities. It provides an
800 x 600 (SVGA) resolution display. A state of the art thin film transistor
active matrix drive system provides brilliant and accurate color
reproduction, excellent high contrast images, cross talk suppression, and
fast response time with no distortion or smearing. The monitor is designed
for bulkhead mounting.
1.3 Optional Equipment
DeCrane Aerospace Audio International offers a comprehensive family of
Cabin Control Modules and Source Equipment, such as DVD players,
integrated touch screens, speakers, and other equipment that will perfectly
complement the LCD-9084-301-x and will be valuable and attractive
additions to any cabin interior. These modules provide convenient
solutions for a variety of frequently encountered interfacing needs or
special requirements and are an important part of DAAI’s “building block”
system for configuring total cabin management.
An optional mounting kit (part number LCDKIT-9004-01) may be
purchased for added mounting provisions. This kit is comprised of angle
brackets and spring clips to enable bulkhead and cover bezel installation
as well as behind bulkhead installation.
Additionally, an optional cover bezel (part number LCDCB-9084-0x; -01
for a black anodized finish, -02 for no finish) may be ordered for additional
décor. The LCDCB-9084-0x includes the LCDKIT-9004-01, so it is not
necessary to order both LCDCB-9084-0x and LCDKIT-9004-01.

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 4 of 18
2.0 Application
2.1 Introduction
The LCD-9084-301-x is a flat panel LCD monitor with Composite video,
PC Graphic capabilities, and Serial Digital interface capabilities. If any one
of these formats is applied to their respective inputs, the monitor will
display that format. In the case that both Composite and VGA are applied,
the monitor defaults to the VGA input. The user can switch between
inputs, or set video input priority, using the On Screen Display (see
Section 3.8).
2.2 Communication
This unit incorporates an RS-485 serial data bus interface for
communication purposes to other network-connected devices. All RS-485
serial data bus electronic interface parameters are compliant to DAAI
document #640071.

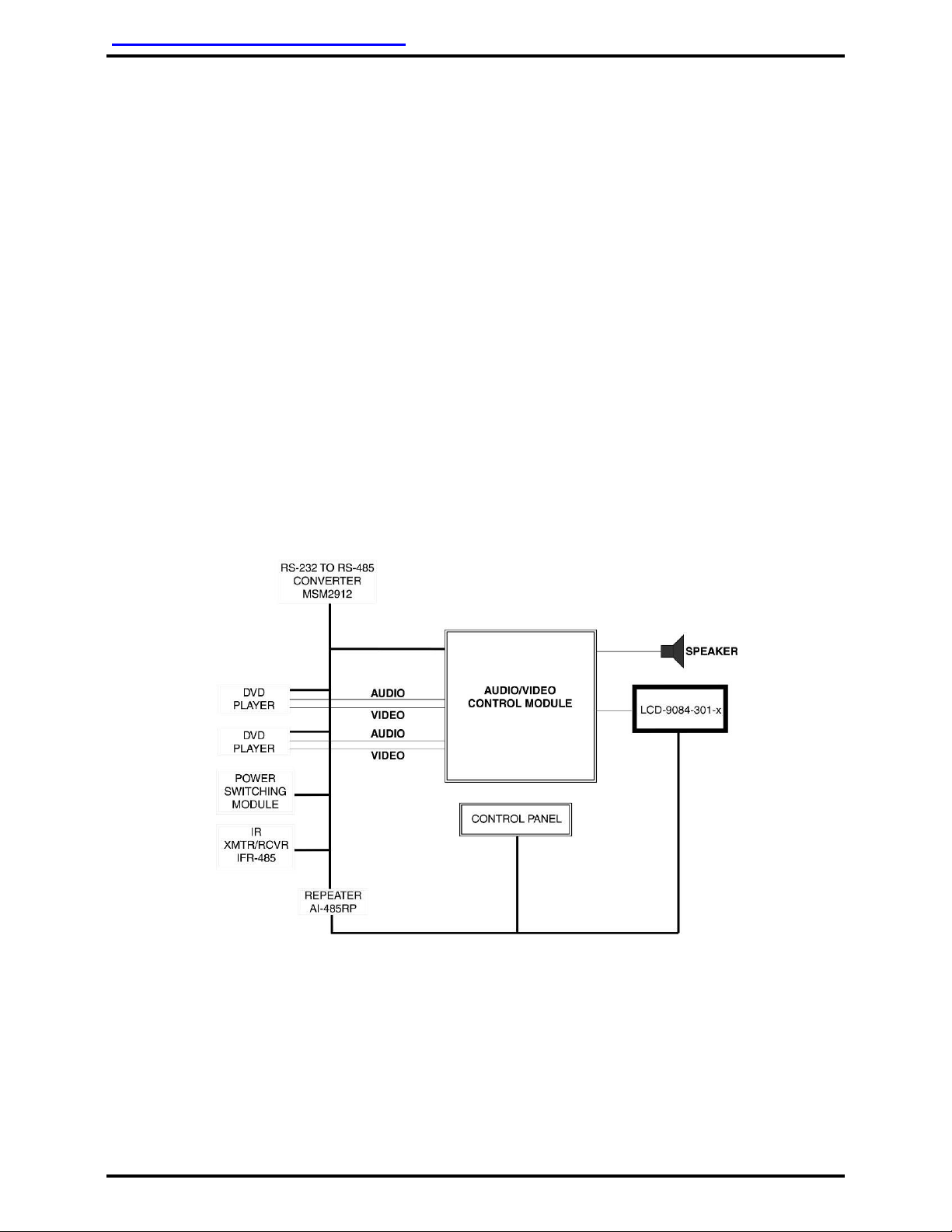

2.3 Block Diagram
2.4 Typical Interfaces
2.4.1 Typical Video Input (Analog) interfaces include various types of
level compliant sources of VGA and Composite (SECAM, PAL, and
NTSC).

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 5 of 18
2.4.2 The digital video input accepts SDI Video as defined by
ANSI/SMPTE 259M-1997 digital format.
2.4.3 SP-LCD6 is an external switch utilized for monitor set-up. The
switch, which must be ordered separately, provides configuration
control via DAAI’s proprietary RS-485 digital data bus
communication or may be configured directly to the J2 connector.
Refer to Section 3.8, Configuration Overview, for monitor set up.
The SP-LCD6 may be removed and stored after the monitor is set
up or can be mounted near the monitor for frequent use. Connector
J2 provides to the switch panel +28 VDC power and ground input,
serial data bus control, and unit ID strapping pins to allow
programming of multiple units.
2.4.4 Device addressing is accomplished via three (3) ID pins, which
allow for a total of eight (8) monitors to be independently addressed
on the data bus.
2.4.5 The monitor casing is specially designed for EMI and noise filtering,
guaranteeing a reduction in interference to ensure a high-quality
display.
2.4.6 A shallow mounting depth makes this monitor ideal for bulkhead
use. Convenient mounting holes are strategically located on the left
and right sides. An optional front cover bezel (see Section 1.3) may
be purchased for added mounting capabilities. Other plating options
are available and allow matching to other cabin décor of the
aircraft.
3.0 Installation
3.1 Prior to Installation
3.1.1 During the design and layout of the aircraft cabin, careful
consideration of the location of this module is necessary. Some of
the items to be considered include:
•Space
•Available power supply
•Environmental conditions (temperature, humidity, etc.)
•Length of cable runs
3.1.2 The LCD-9084-301-x shall be installed to conform to the standards
designated by the customer, installing agency, and existing
conditions as to the unit location and type of installation.
3.1.3 If the adjustment switch (SP-LCD6) is to be mounted in the aircraft,
the following should be considered; the pigtail is 24 inches

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 6 of 18
(60.96 cm) in length ±1 inch (2.54 cm) and has 6-32 x 0.75 inch
mounting studs. Refer to Sections 6.0 and 7.2 for the adjustment
switch characteristics.
3.1.4 Mounting provisions are provided via eight (8) 8-32 UNF-2B, on the
left and right sides, four (4) one each side. The maximum depth
should be no more than 0.38 inches. Refer to Section 7.0,
Reference Drawings, for mounting hole diameters and
configuration.
3.1.5 The monitor should be located as close to the source equipment as
possible in order to reduce the possibility of noise introduced into
the video. Refer to Section 7.0 for unit dimensions.
3.1.6 The LCD-9084-301-x is configured using the external menu
selection switch, SP-LCD6. The switch utilizes a D-Subminiature
connector. This connector mates with the D-Subminiature
connector on the LCD-9084-301-1 model monitor.
3.1.7 The maximum length of the connection to PC Graphic (VGA) input
is 15 feet.
3.2 Unpacking and Inspection
3.2.1 Carefully open the packaging and remove the LCD-9084-301-x.
Verify that all components have been included in the package per
the packing list. Inspect the unit for damage. Retain the packing
materials and packing list.
3.2.2 If damage has occurred during shipping, a claim should be filed
with DeCrane Aerospace Audio International WITHIN 24 hours and
a Return Request Authorization Number shall be obtained from
DAAI by contacting the Repair Department at 501.801.8101.
Repackage the unit in its original packaging materials and return it
to DAAI following instructions given by the DAAI representative.
Refer to the front cover of this manual for address. If no return is
necessary, retain the packing list and the packing materials for
storage.
3.3 Cautions and Warnings
3.3.1 It is important to do a pin-to-pin power and ground check on all
connectors. Ensure that power and ground are applied only where
specified. Damage to the unit may result if power or ground is
applied to the wrong points.

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 7 of 18
3.3.2 DO NOT connect or disconnect the monitor while power is applied.
3.3.3 DO NOT remove any factory-installed screws. Damage to the unit
may result and void any warranties.
3.3.4 DO NOT expose to moisture.
3.3.5 The SP-LCD6 can be removed and stored after the monitor is set
up or it can be mounted near the monitor for frequent use. Ensure
power is removed from the monitor and/or entertainment system
before connecting or disconnecting the SP-LCD6.
3.3.6 ESD (Electro Static Discharge) guidelines shall be followed.
3.4 Wiring Requirements
3.4.1 Clearance and Separation Requirements
The installing agency shall supply and fabricate all external cables
and mating connectors. The length and routing of external cables
should be carefully studied and planned before attempting
installation of the equipment. Allow adequate space for installation
of cable and connectors. Avoid sharp bends and placing cables
near aircraft control cables. Maintain a minimum clearance of three
(3) inches from any control cable. If wiring is run parallel to
combustible fluid or oxygen lines, maintain a separation of six (6)
inches between the lines.
3.4.2 Power Wires
DeCrane Aerospace Audio International recommends that the
chassis be electrically bonded to the airframe structure by a
conductive mounting point with <0.1 resistance using <50 
impedance cable. Power and Ground wires shall be in accordance
with M22759 or equivalent. Protect power wires with circuit
breakers or fuses located close to the electrical power source bus.

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 8 of 18
3.4.3 Video Lines
Composite video connections shall be shielded coaxial cable in
accordance with M17/94-RG179 or equivalent. Cable shields shall
be grounded at the source. Use of individual wires rather than
proper coaxial cable connections through production breaks is
unacceptable, and will cause significant and detrimental noise
introduction to the video signal supplied to the LCD-9084-301-x.
Serial digital video connections are recommended to use shielded
coaxial cable in accordance with PIC V76261 or equivalent.
3.4.4 RS-485 Connections
RS-485 connections shall be twisted shielded cable with the shield
properly grounded at the source (ideal practice) and floating at the
load end. If shield cannot be grounded at the source, then ground
at the load end with the source end floating. Each wire length shall
be terminated at one end only. The shield for RS-485 shall be
terminated to a dedicated pin. Twisted shielded cable shall be in
accordance with NEMA WC 27500 or equivalent.
3.4.5 RGB Connections
RGB wiring shall be in accordance with NEMA WC 27500 or
equivalent.

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 9 of 18
3.5 Electrical Characteristics
3.5.1 Electrical Specifications for LCD-9084-301-x:
Electrical Nominal Power 0.75 A @ +28 VDC
Maximum Power 1.00 A @ +28 VDC
Operating Voltage
Range +18 to +32 VDC
Screen Size 8.4" (21.34 cm) diagonal
Screen Resolution
(H x V) 800 x 600
Luminance 145 cd/m²
Color Depth 256 K
Viewing Angle 100°Horizontal
90°Vertical
Contrast Ratio 250 : 1
Video Format
Composite (SECAM,
PAL, and NTSC) and
RGB input (PC
compatible interface)
Operating Temperature +32°to +122°F
0°to +50°C
Storage Temperature -4°to +158°F
-20°to +70°C
Composite Video Input 1 V (p-p), 75 
Component RGB Input Industry Standard
Digital Video Input ANSI/SMPTE 259M-
1997
3.5.2 Electrical Specifications, SP-LCD6:
Electrical Power 80 mA at +28 VDC,
maximum
Switch Backlighting Green
Mounting Studs 6-32 x 0.75 inches long
3.5.3 The LCD-9084-301-x utilizes three (3) connectors. J1 is a 13-pin
connector that provides power input, ground, video input, monitor
on/off control and monitor status.
The monitor on/off function (J1, Pin 5) is transition level sensitive.
Either a constant ground input or momentary ground input may be
used. If constant ground input is used, the monitor will activate to
the ON state when +28 VDC power is applied to Pin 1 and a
constant ground is on Pin 5. If no constant ground is present, then

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 10 of 18
this input will float to a high level causing the monitor to be in the
OFF state.
If momentary ground input is used, the monitor will alternate
between ON and OFF states with each momentary ground pulse of
duration between 50 and 250 msec. If momentary ground logic is
used, then the monitor will power up to an OFF state when power is
applied to Pin 1.
3.5.4 J2 is a 9-pin connector that provides power output to the SP-LCD6,
ground, and data bus control. Three (3) ID pins are also provided
on the J2 connector. These ID pins allow for up to eight (8) units to
be connected on the same DAAI proprietary RS-485 data bus while
maintaining independent control of each unit. Depending upon the
necessary configuration, the ID 0, ID 1, and ID 2 pins shall connect
to the ID common as suggested below:
ID 2
ID 1
ID 0
No. of Units
1 1 1 1
1 1 0 2
1 0 1 3
1 0 0 4
0 1 1 5
0 1 0 6
0 0 1 7
0 0 0 8
0 = Connected to ID Common
1 = N/C
3.5.5 J3 is a 15-pin high-density connector that provides VGA signal to
the monitor.
3.5.6 The SP-LCD6 utilizes one (1) 9-pin connector that mates with J2 of
the LCD-9084-301-x. This connector provides +28 VDC power
input, ground, data bus connections, and data bus configuration ID
connections.

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 11 of 18
3.6 Mating Connector Information
All wiring harnesses to the unit shall be supplied and fabricated by the
installing agency.
J1 CONNECTOR
PART NUMBER
MATING CONNECTOR
LCD-9084-301-1 CBC13W3F140000 Female Plug or equivalent A1 size 8 Contact: FCC4102D (Positronic Industries)
A2 size 8 Contact: 110236 (PIC Wire & Cable)
LCD-9084-301-2 DBA13W3SA19F0 Female Plug w/male jackscrews or equivalent A1 size 8 Contact: D130344 (ITT Cannon)
A2 size 8 Contact: 110236 (PIC Wire & Cable)
J2 CONNECTOR
PART NUMBER
MATING CONNECTOR
LCD-9084-301-1 RD9M10JVL0 Female Plug or equivalent
(Positronic Industries)
LCD-9084-301-2 DEMA-9P Female Plug w/male jackscrews or equivalent
(ITT Cannon)
J3 CONNECTOR
PART NUMBER
MATING CONNECTOR
LCD-9084-301-1 DD15M10JVL0 Male Plug or equivalent
(Positronic Industries)
LCD-9084-301-2 DEMA15PK87 Male Plug w/male jackscrews or equivalent
(ITT Cannon)
3.7 Pinout Assignment Descriptions
3.7.1 Pinout assignment for the LCD-9084-301-x is as follows:
J1
Pin #
Description
1 +28VDC Power Input
2 Ground
3 Reserved
4 Monitor Status Gnd Output
5 Monitor On/Off Gnd Input
6* SE Video Enable
7* SE Video Common
8-10 Reserved
A1 Composite Video
A2 Serial Digital Video
A3 Reserved
* note that pins 6 and 7 tie together for single-ended composite video sources

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 12 of 18
J2
Pin #
Description
1 +28VDC Power Output For Monitor Control Panel
2 Ground
3 Data Bus A
4 Data Bus B
5 Data Bus Shield
6 ID0
7 ID1
8 ID2
9 ID Common
J3
Pin #
Description
1 Red Video
2 Green Video
3 Blue Video
4 Reserved
5 Ground
6 Red Ground
7 Green Ground
8 Blue Ground
9 Key
10 Sync Ground
11 Reserved
12 Reserved
13 Horizontal Sync
14 Vertical Sync
15 Reserved
3.7.2 Wiring description for the SP-LCD6 is as follows:
SP
-
LCD6
Pin #
Description
1 + 28 VDC Power Input
2 Power Ground
3 Serial Data Bus A (HI)
4 Serial Data Bus B (LO)
5 Serial Data Bus Shield
6 Unit ID 0
7 Unit ID 1
8 Unit ID 2
9 Unit ID Common

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 13 of 18
3.8 SP-LCD6 Configuration Overview
Configuration is typically accomplished via an SP-LCD6 attached to the
D-Subminiature connector on the monitor. DeCrane Aerospace Audio
International reserves the right to add, delete, or alter functions from the
setup menus without advance notification to the user. To access the Main
Menu, press the “MENU 1” button, which will cause the Monitor setup
menu to be displayed on the LCD-9084-301-x. To scroll through the setup
modes, press the “MENU 2” button to scroll forward or the “MENU1”
button to scroll back. When in the desired mode for setup monitor, press
either LEFT (-) or RIGHT (+) to change the selected value. Pressing the
LEFT button decreases the selected value and pressing the RIGHT button
increases the selected value. Press the appropriate button for the desired
adjustment. Press the “MENU 2” button to scroll to the next menu option.
A typical Monitor Setup Menu consists of the following modes:
1. “OSD TIMEOUT”- Timeout period until monitor defaults out of menu mode.
2. “BACKLIGHT”- Backlighting intensity.
3. “FACTORY PRESET”- All modes may be reset to the default factory setting. Select
either “YES” or “NO”.
4. “SOURCE PRIORITY”- Selects priority operating mode to “PC” (personal computer)
or “None”. Setting this mode to “PC” allows user to normally view composite video
until a PC laptop is turned on, then the monitor will automatically switch to PC input
upon sensing VGA input.
5. “H-POS”- Adjusts viewing area horizontally.
6. “V-POS”- Adjusts viewing area vertically.
7. “SHARPNESS”- Adjusts picture sharpness.
8. “COLOR”- Adjusts picture color.
9. “TINT”- Adjusts picture tint.
10. “CONTRAST”- Adjusts picture contrast.
11. “BRIGHT”- Adjusts picture brightness.
The setup menu may vary slightly from monitor model to model. As
technology advances, additional features may be added to the setup
menu and existing features may be modified. DeCrane Aerospace Audio
International’s intention is to provide clear and concise instructions on any
new or modified feature in the setup menu as these changes occur.
4.0 Troubleshooting
4.1 Cleaning Method
The LCD-9084-301-x should be cleaned when excessive dust or dirt
becomes apparent.
Use a twin pack cleaning system that employs a wet pad pre-moistened
with an Isopropyl Alcohol based cleaner/anti-static solution and a lint-free

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 14 of 18
drying cloth. DeCrane Aerospace Audio International recommends using
“Kleen & Dry” RR1205 manufactured by READ RIGHT, Nanuet, NY
10954.
Do not use benzene, ammonia, thinner, or any other volatile
substance to clean the monitor or screen. These chemicals may
damage the screen or internal circuitry.
Do not allow cleaner to puddle or pool around edges. Seepage
may damage internal circuitry.
DeCrane Aerospace Audio International’s recommended cleaning method
follows:
A. Turn off monitor.
B. Open pre-moistened pad and gently wipe evenly across display
glass. Do not allow solution to “pool” or puddle around display
edges.
C. Immediately dry display using the absorbent, lint-free cloth. Gently
wipe display to a dry, clear finish.
4.2 General Troubleshooting Procedures
•Verify power to the unit by rechecking +28 VDC power is applied to the
proper pins on the unit. Use a voltmeter to verify correct level.
•Remove power from the unit for at least one (1) minute and reapply
power.
•Recheck all connections to the unit for security. Check all harness runs
for possible pinching. Recheck all pinouts for application accuracy.
•Check data bus integrity by utilizing a voltmeter, oscilloscope, or other
voltage instrument to verify proper input voltage on the data bus pins.
Typical measurements are as follows:
A to Ground: 4.0 to 4.5 VDC
B to Ground: 0.1 to 1.0 VDC
If any device is transmitting (i.e., holding bus active), then these typical
measurements would be reversed for the A-to-Ground and
B-to-Ground. This troubleshooting tool can help indicate a data bus
lockup. If this occurs, remove the data bus from all other equipment
one piece at a time. As each is removed, check the bus status to see if
it is now functioning properly. Once you have removed the piece or
pieces of offending equipment, disconnect power and then reconnect
everything but the suspect component. Reapply power and then test
the functionality of the unit(s).

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 15 of 18
4.3 Troubleshooting Chart
Problem
Possible Cause
Solution
Poor picture quality or
scrambled video
LCD backlight malfunction
SP-LCD6 programming
Poor video source
•Contact DAAI
•Check setup
•Change cassette
Blank screen* LCD not receiving power
Mother board malfunctioning
•Check all cable connections
•Contact DAAI
*The monitor displays a black screen with the unit turned on and no video
signal.
5.0 Instructions for Continued Airworthiness
No periodic scheduled maintenance or calibration is required for continued
airworthiness of the LCD-9084-301-x. If the unit fails to perform to specifications,
it must be removed and serviced by a qualified service facility.
6.0 Specifications
6.1 Unit Specifications for LCD-9084-301-x:
Physical Specifications
–
LCD
-
9084
-
3
01
-
x
Screen Size 8.4 (21.34 cm) diagonal
Housing Iridited Aluminum
(with black powder-coat finish)
Weight Approx. 1.80 lb / 0.82 kg
Dimensions
(l x w x h) 8.33" x 1.13" x 5.83" 21.16 cm x 2.87 cm x 14.81 cm
6.2 Unit Specifications for SP-LCD6:
Physi
cal Specifications
–
SP
-
LCD6
Bezel Plating Raw, unless otherwise specified
Weight Approx. 0.13 lb / 0.06 kg
with connector
Dimensions
(l x w x h) 2.53" x 1.54" x 2.38" 6.43 cm x 3.91 cm x 6.05 cm
Note: These dimensions are for the cutout.

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 16 of 18
7.0 Reference Drawings
7.1 LCD-9084-301-x
The following diagrams show the unit dimensions, mounting locations, and
connector locations for the LCD-9084-301-x.
J2
J1
J3

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 17 of 18

DeCrane Aerospace Audio International LCD-9084-301-x Installation Manual
Document # 540332, Rev A, 01/2009 Page 18 of 18
7.2 External Menu Switch
The following diagrams show the unit dimensions and connector locations
for the external menu selection switch, SP-LCD6.
