Installation & Operation Manual
LCDP-9084-301-x
8.4" LCD Monitor
with the 9G Plug-in Arm
Document # 540344

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 1 of 16
Document Revision History
Rev. Level
Date
Desc
ription
IR 06/2007 Initial Release
IR1 08/2007 Corrected dimensional and other issues
A 02/2009 Added image of product to cover
Changed logo and web address
Added “DeCrane Aerospace” (DAAI) to Audio International”
Added “(or latest revision)” and updated Reference Documents
Corrected Reference Documents, 525748 description should be
listed with the suffix “-1” not “-x”, also added document 526065
Corrected the “-x” suffix designators, Section 1.1
Removed “videocassette players”, Section 1.3
Corrected arm mobility, Section 2.4
Corrected service number, Section 3.2.2
Added Mating Connector and Pinout info for both models,
Section 3.6 and 3.7
Added section for Operation, Section 4.0
Added Housing and Measurement info to Unit Specifications,
Section 7.0
Replaced all Reference Drawings and added plug-in bases,
Section 8.0
A1 02/2009 Added “9G” Plug-In Arm, and “no stow” option throughout
Moved BSE-9101-10x-x to Purpose of Equipment (Section 1.2)
from Optional Equipment (Section 1.3), the base is not optional
Removed “…common circuit ground and chassis ground
connections…”, Section 3.4.2
Added “Composite video connections…”, Section 3.43
Reference Documents
(or latest revision)
Document #
Description
525748 B2 LCDP-9084-301-1 Outline Drawing
526065 IR1 LCDP-9084-301-2 Outline Drawing
525888 IR3 BSE-9101-101-x Outline Drawing
526226 IR1 BSE-9101-102-x Outline Drawing
Service Bulletin List
Service
Bulletin # Subject
Manual
Revision
Revision
Date
Table of Illustrations
Section #
Description
Page #
2.2 Typical Application 4
2.4 9G Plug-In Arm Mobility 5
4.1 Controls 10
4.2 Control Functions 11-12
8.0 Reference Drawings 13-16
PROPRIETARY NOTICE: Despite any other copyright notice, this document and information
disclosed herein contains confidential, proprietary designs owned by DeCrane Aerospace Audio
International. Neither this document nor the data contained herein shall be reproduced, used, or
disclosed to anyone without the written authorization of DeCrane Aerospace Audio International.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 2 of 16
Table of Contents
Section Description Page
1.0
General Information …………………………………………….
3
1.1 Introduction ……………………………………………………….. 3
1.2 Purpose of the Equipment ………………………………………. 3
1.3 Optional Equipment ……………. .………………………………. 3
2.0
Application ………………………………………………………..
4
2.1 Introduction………………………………………………………… 4
2.2 Typical Application……………………………………………….. 4
2.3 Typical Interfaces…………………………………………………. 4
2.4 9G Plug-In Arm Mobility………………………………………….. 5
3.0
Installation ………………………………………………………..
6
3.1 Prior to Installation ……………………………………………….. 6
3.2 Unpacking and Inspection ………………………………………. 6
3.3 Cautions & Warnings …………………………………………….. 7
3.4 Wiring Requirements …………………………………………….. 7
3.5 Electrical Characteristics…………………………………………. 8
3.6 Mating Connector Information ……………..……………………. 9
3.7 Pinout Assignment Descriptions ………………………………... 9
4.0
Operation
………………..………………….…
………………….
1
0
4.1 Controls …………………………………………………………… 10
4.2 Control Functions ………………………………………………… 10
5.0
Instructions for Continued
Airworthiness
………………….
11
6.0
Troubleshooting …………………………………………………
11
6.1 Cleaning Method………………………………………………….. 11
6.2 General Troubleshooting Procedures ………………………….. 12
6.3 Troubleshooting Chart …………………………………………… 12
7.0
Specifications ……………………………………………………
1
2
8.0
Reference Drawings …………………………………………….
13

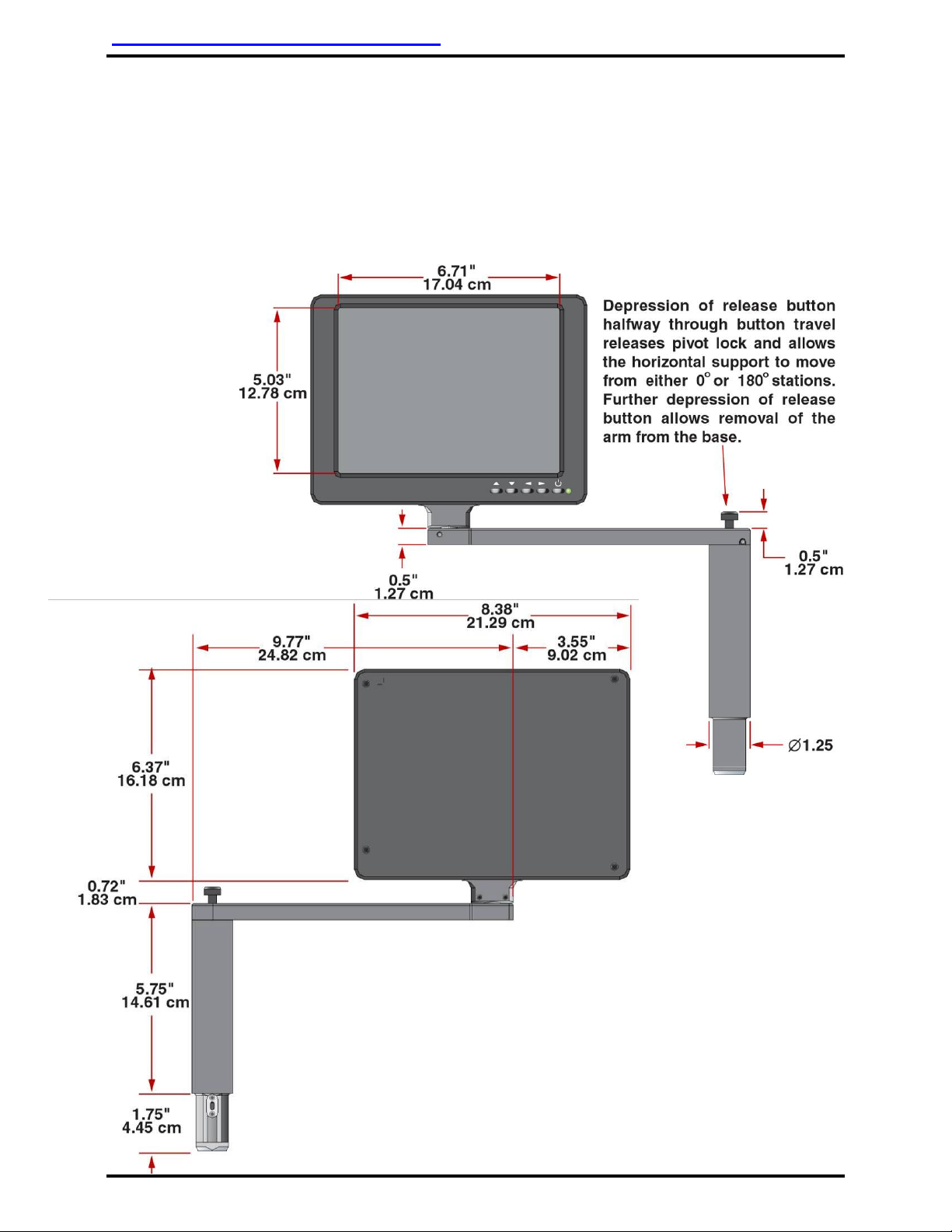

8.1 LCDP-9084-301-x ……………………………………………… 13

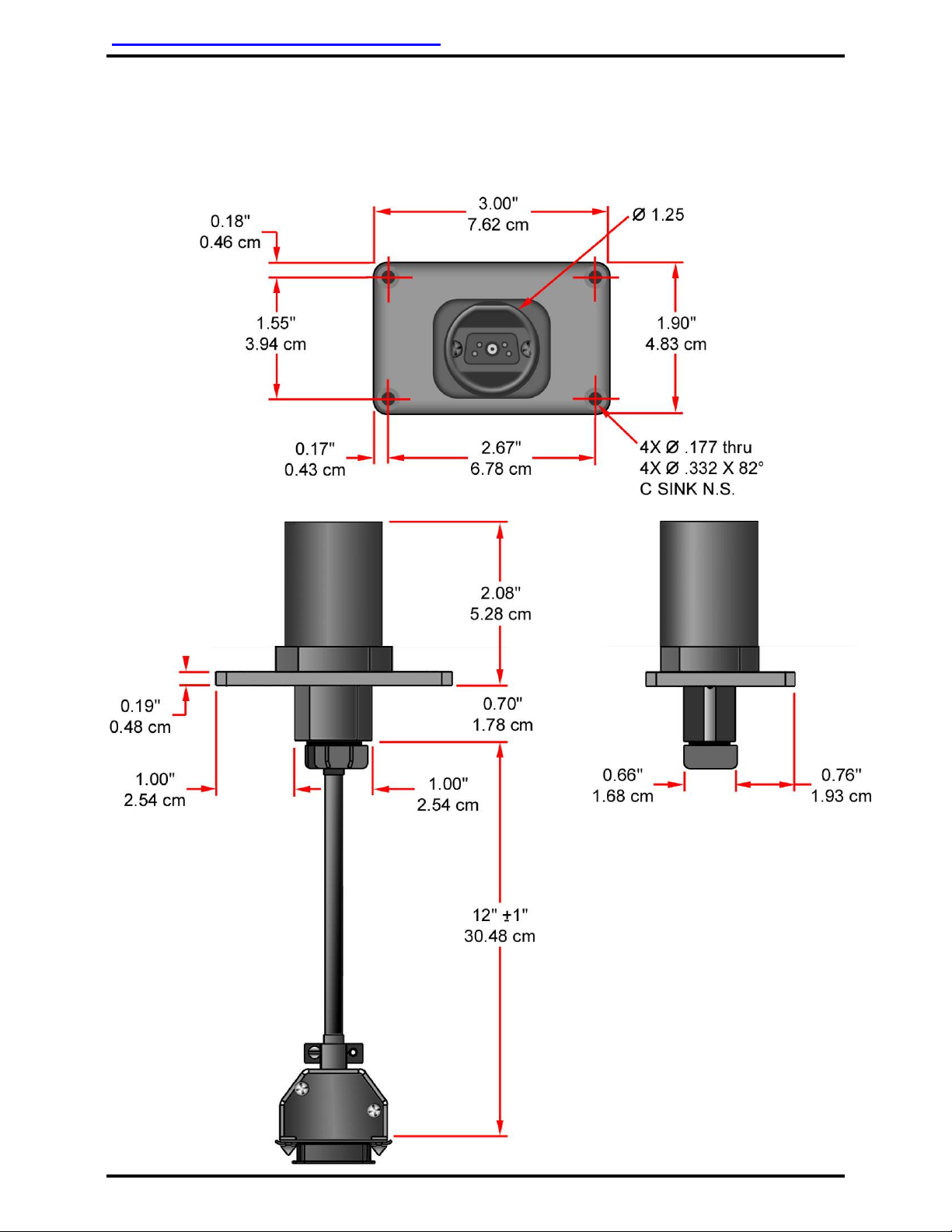

8.2 BSE-9101-101-x ………………………………………………….. 15
8.3 BSE-9101-102-x ………………………………………………….. 16

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 3 of 16
LCDP-9084-301-x
8.4" LCD Monitor with the 9G Plug-in Arm
1.0 General Information
1.1 Introduction
This manual contains information for the proper installation of the
DeCrane Aerospace Audio International (DAAI) 8.4" LCD Monitor with the
9G Plug-In Arm, Model No: LCDP-9084-301-x. The “-x” suffix designates
the type of video utilized; “-1” = Composite analog video and “-2” = Serial
Digital Interface (SDI) video. Also included are physical and electrical
characteristics of the unit.
1.2 Purpose of the Equipment
DeCrane Aerospace Audio International’s LCDP-9084-301-x is an 8.4" flat
panel LCD monitor attached to the 9G Plug-in Arm for mounting. This
product has the ability to meet or exceed all of the industry’s expectations
and there is no need for it to be stowed during take-off or landing.
Depending on the model number, the monitor possesses Composite
NTSC/PAL/SECAM video or Serial Digital Interface video. Both models
display 800 x 600 (SVGA) resolution. A state of the art thin film transistor
active matrix drive system provides brilliant and accurate color
reproduction, excellent high contrast images, cross talk suppression, and
fast response time with no distortion or smearing.
The BSE-9101-10x-x Plug-in Monitor Base is required for mounting. Refer
to Sections 8.2 and 8.3, for differing measurements and hole placements
between the “-101-x” and “102-x” models. Bases are sold separately.
Contact your DAAI representative for details.
1.3 Optional Equipment
DeCrane Aerospace Audio International offers a comprehensive family of
Cabin Control Modules and Source Equipment, such as DVD players,
integrated touch screens, speakers, and other equipment that will perfectly
complement the LCD-9170-101-x. These modules provide convenient
solutions for a variety of frequently encountered interfacing needs or
special requirements and are an important part of DAAI’s “building block”
system for configuring total cabin management.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 4 of 16
2.0 Application
2.1 Introduction
The LCDP-9084-301-x is an 8.4" flat panel LCD monitor containing a
Liquid Crystal Display (LCD) screen. The -1 unit is capable of displaying
composite (NTSC, PAL, SECAM) video, while the -2 unit is capable of
displaying SMPTE 259M SDI (NTSC, PAL) video.
Very flexible wide-ranging picture controls are provided via an on-screen
menu. These controls include picture size/position controls as well as
contrast, brightness, and color/hue for video.

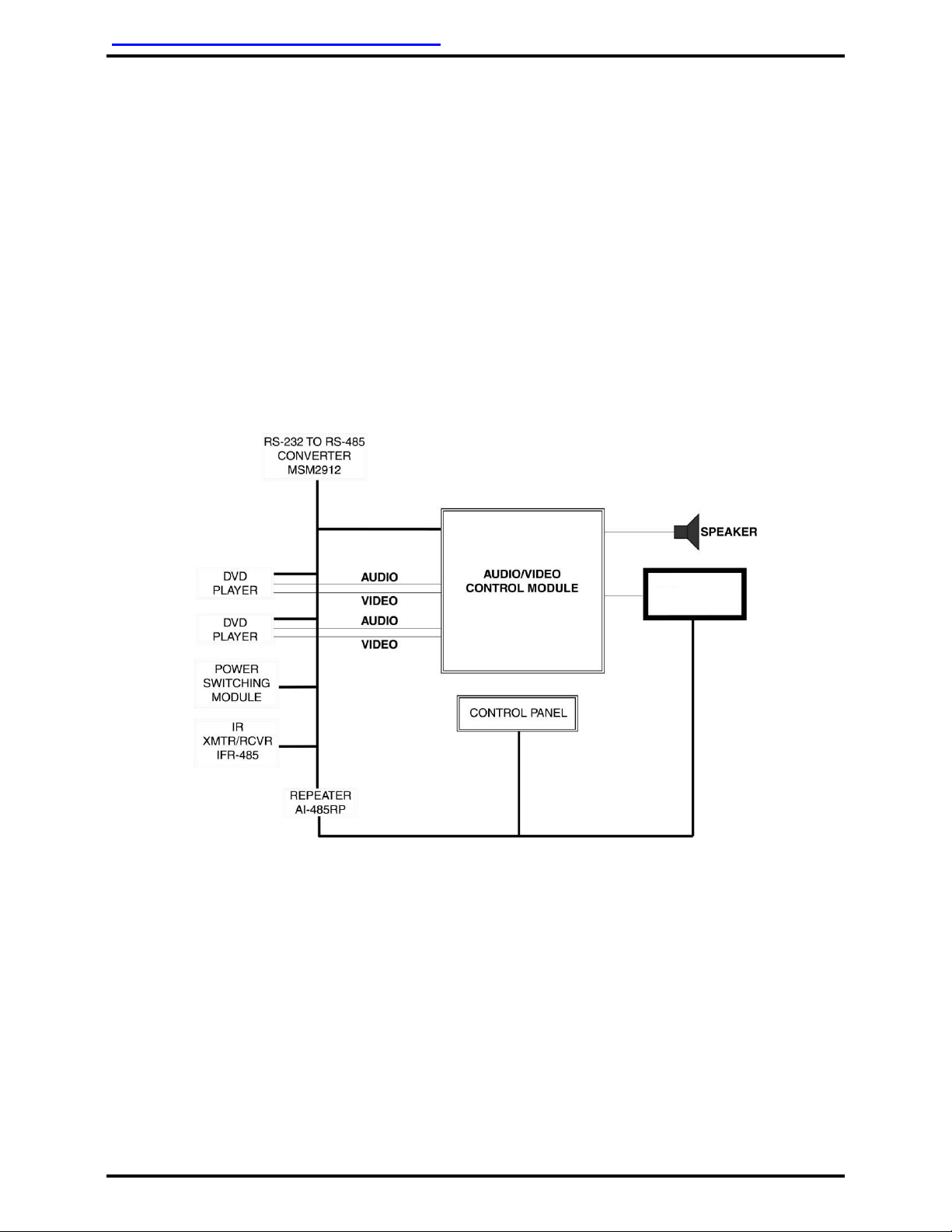

2.2 Typical Application
2.3 Typical Interfaces
The “-1” unit has level compliant sources of composite video. This unit is
capable of interfacing with and accepting input from all analog video
capable source equipment from DeCrane Aerospace Audio International.
The “-2” unit has SDI Video as defined by ANSI/SMPTE 259M-1997 digital
format. This unit is capable of interfacing and accepting input from all SDI
capable video source equipment from DeCrane Aerospace Audio
International.
LCDP-9084-301-x

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 5 of 16
2.4 9G Plug-In Arm Mobility
The 9G Plug-In Arm affords the LCDP-9084-301-x a wide range of
mobility (see drawings below). Depression of the Release Button halfway
through the button’s travel releases the pivot lock and allows the
horizontal support to move from either 0° or 180° stations. Further
depression of the Release Button allows removal of the arm from the
base.
Motion range allowances shown below:
Release Button
TOP VIEW
SIDE VIEW
3.0
Note:
This product has the ability to meet or exceed all of the industry’s expectations and there
is no need for it to be stowed during take
-
off or landing.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 6 of 16
Installation
3.1 Prior to installation, the following items should be considered:
3.1.1 During the design and layout of the aircraft cabin, careful
consideration of the location of this module is necessary. Some of
the items to be considered include:
•Space
•Available power supply
•Environmental conditions (temperature, humidity, etc.)
•Length of cable runs
3.1.2 The LCDP-9084-301-x shall be installed to conform to the
standards designated by the customer, installing agency, and
existing conditions as to the unit location and type of installation.
3.1.3 Mounting is accomplished by insertion of the 9G Plug-In Arm into
BSE-9101-101-x Plug-in Monitor Base. Refer to Section 8.0,
Reference Drawings, for mounting hole diameters and
configuration. (This product has the ability to meet or exceed all of
the industry’s expectations and there is no need for it to be stowed
during take-off or landing.)
3.1.4 Locate the monitor as close to the source equipment as possible in
order to reduce the possibility of noise introduced into the video.
Refer to Section 7.0 for unit dimensions.
3.2 Unpacking and Inspection
3.2.1 Carefully open the packaging and remove the LCDP-9084-301-x.
Verify that all components have been included in the package per
the packing list. Inspect the unit for damage. Retain the packing
materials and packing list.
3.2.2 If damage has occurred during shipping, a claim should be filed
with DeCrane Aerospace Audio International WITHIN 24 hours and
a Return Request Authorization Number shall be obtained from
DAAI by contacting the Repair Department at 501.801.8101.
Repackage the unit in its original packaging materials and return it
to DAAI following instructions given by the DAAI representative.
Refer to the front cover of this manual for address. If no return is
necessary, retain the packing list and the packing materials for
storage.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 7 of 16
3.3 Cautions and Warnings
3.3.1 It is important to do a pin-to-pin power and ground check on all
connectors. Ensure that power and ground are applied only where
specified. Damage to the unit may result if power or ground is
applied to the wrong points.
3.3.2 DO NOT connect or disconnect the monitor while power is applied.
3.3.3 DO NOT remove any factory-installed screws. Damage to the unit
may result and void any warranties.
3.3.4 DO NOT expose to moisture.
3.3.5 ESD (Electro Static Discharge) guidelines shall be followed.
3.4 Wiring Requirements
3.4.1 Introduction
The installing agency shall supply and fabricate all external cables
and mating connectors. The length and routing of external cables
should be carefully studied and planned before attempting
installation of the equipment. Allow adequate space for installation
of cable and connectors. Avoid sharp bends and placing cables
near aircraft control cables. Maintain a minimum clearance of three
(3) inches from any control cable. If wiring is run parallel to
combustible fluid or oxygen lines, maintain a separation of six (6)
inches between the lines.
3.4.2 Power Wires
Power and Ground wires shall be in accordance with M22759.
Protect power wires with circuit breakers or fuses located close to
the electrical power source bus.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 8 of 16
3.4.3 Video Lines
All single signal connections are shall be in accordance with NEMA
WC 27500.
SD-SDI video connections are recommended to use shielded
coaxial cable PIC V72261.
3.5 Electrical Characteristics:
Electrical Nominal Power 750 mA @ +28 VDC
Maximum Power 1000 mA @ +28 VDC
Operating Voltage
Range +18 to +32 VDC
Screen Size 8.4" (21.34 cm) diagonal
Screen Resolution
(H x V) 800 x 600 (SVGA)
Luminance 145 cd/m
Color Depth 6-bits per color, 18 bits total
Contrast Ratio 250:1 Typical
Video Format * Composite NTSC/SECAM/PAL
or SMPTE 259M SDI
Operating Temperature +5°to +131°F
-15°to +55°C
Storage Temperature -4°to +140°F
-20°to +60°C
Composite Video Input 1 V(p-p), 75 
Digital Video Input ANSI/SMPTE 259M-1997
* Note: The type of Video Format varies between the two models.
LCDP-9084-301-1 utilizes Composite video and LCDP-9084-301-2
utilizes Serial Digital Interface (SDI) video.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 9 of 16
3.6 Mating Connector Information
3.6.1 LCDP-9084-301-x
All wiring harnesses to the unit shall be supplied and fabricated by
the installing agency. Refer to Sections 8.2 and 8.3, for differing
measurements and hole placements between the “-101-x” and
“102-x” models.
Part
Number
MATING CONNECTOR
BSE-9101-10x-1 CBC5W1F0000 Female Plug or Equivalent (Positronic Industries)
Size 8 Contact: 110236 (PIC Wire & Cable)
BSE-9101-10x-2 DEMM5W1S Female Plug w/male jackscrews or Equivalent (ITT Cannon)
Size 8 Contact: 110236 (PIC Wire & Cable)
3.7 Pinout Assignment Descriptions
3.7.1 LCDP-9084-301-1
P1
Pin #
Description
1 +28VDC
2 Ground
3 Video Select Switch (Mom Gnd Out)
4 Reserved
A1 Video Input (Composite)
3.7.2 LCDP-9084-301-2
P1
Pin #
Description
1 +28VDC
2 Ground
3 Video Select Switch (Mom Gnd Out)
4 Reserved
A1 Video Input (SDI)

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 10 of 16
4.0 Operation
4.1 Controls
4.2 Control Functions:
UP BUTTON
Push to enter Menu Mode. UP BUTTON is used to navigate menu while
Menu Mode is active. Push and hold to turn off Menu Mode.
DOWN BUTTON
DOWN BUTTON is used to navigate menu while Menu Mode is active.
DOWN BUTTON is the Video Select button when Menu Mode is not
active.
LEFT BUTTON
LEFT BUTTON is only active in Menu Mode and is used to navigate the
menu and change values.
RIGHT BUTTON
RIGHT BUTTON is only active in Menu Mode and is used to navigate the
menu and change values.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 11 of 16
POWER BUTTON
POWER BUTTON turns the unit on or off.
STATUS LED
STATUS LED lights up green when power is activated.
5.0 Instructions for Continued Airworthiness
No periodic scheduled maintenance or calibration is required for continued
airworthiness of the LCDP-9084-301-x. If the unit fails to perform to
specifications, it must be removed and serviced by a qualified service facility.
6.0 Troubleshooting
6.1 Cleaning Method
The LCDP-9084-301-x should be cleaned when excessive dust or dirt
becomes apparent.
Use a twin pack cleaning system that employs a wet pad pre-moistened
with an Isopropyl Alcohol based cleaner/anti-static solution and a lint-free
drying cloth. DeCrane Aerospace Audio International recommends using
“Kleen & Dry” RR1205 manufactured by READ RIGHT, Nanuet, NY
10954.
Do not use benzene, ammonia, thinner, or any other volatile
substance to clean the monitor or screen. These chemicals may
damage the screen or internal circuitry.
Do not allow cleaner to puddle or pool around edges. Seepage may
damage internal circuitry.
DeCrane Aerospace Audio International’s recommended cleaning method
follows:
A. Turn off monitor.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 12 of 16
B. Open pre-moistened pad and gently wipe evenly across display
glass. Do not allow solution to “pool” or puddle around display
edges.
C. Immediately dry display using the absorbent, lint-free cloth.
Gently wipe display to a dry, clear finish.
6.2 General Troubleshooting Procedures
•Verify power to the unit by rechecking +28 VDC power is applied to the
proper pins on the unit. Use a voltmeter to verify correct level.
•Remove power from the unit for at least one (1) minute and reapply
power.
•Recheck all connections to the unit for security. Check all harness runs
for possible pinching. Recheck all pinouts for application accuracy.
6.3 Troubleshooting Chart
Problem
Possible Cause
Solution
Poor picture quality or
scrambled video
LCD backlight malfunction
Poor video source
•Contact DAAI
•Change source
Blank screen* LCD not receiving power
Mother board malfunctioning
•Check all cable
connections
•Contact DAAI
* Note: The monitor displays a black screen with the unit turned on and no video signal.
7.0 Specifications
Physical Specifications
–
LCDP
-
9084
-
301
-
x
Housing Black Anodized Aluminum
(with stainless steel skeleton)
Screen Size 8.4" (21.34 cm) diagonal
Weight 3.5lb/1.59kg
Dimensions
(l x w x h) 13.32" x 1.13" x 14.59" 33.83 cm x 2.87 cm x 37.06 cm

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 13 of 16
8.0 Reference Drawings
8.1 LCDP-9084-301-x
The following diagrams show the unit dimensions, mounting locations, and
connector locations for the monitor. All dimensions are given with
tolerance of 0.03" (0.08 cm).
Note:
This product has the ability to meet or
exceed all of the industry’s expectations and
there is no need for it to be stowed during
take-off or landing.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 14 of 16
Note: Torque fasteners allow arm movement with minimum
resistance while allowing arm to remain in desired position.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 15 of 16
8.2 BASE-9101-101-x
The following diagrams show the unit dimensions, for the Plug-in Monitor
Base.
Note: The harness is not shown
in this view for clarity.

DeCrane Aerospace Audio International, Inc. LCDP-9084-301-x Installation Manual
Document # 540344, Rev A1, 02/2009 Page 16 of 16
8.3 BASE-9101-102-x
The following diagrams show the unit dimensions, for the Plug-in Monitor
Base.
Note: The harness is not shown
in this view for clarity.
