DeDietrich AGC 35 User manual

Modulens EN
Gas fired floor-standing condensing boiler
AGC 10/15
AGC 15
AGC 25
AGC 35
User Guide
300026080-001-07

Contents
1 Safety instructions .....................................................................................4
1.1 General safety instructions .................................4
1.2 Recommendations ................................................5
1.3 Liabilities ...............................................................6
1.3.1 Manufacturer’s liability .............................................6
1.3.2 Installer’s liability .....................................................7
1.3.3 User’s liability ..........................................................7
2About this manual ......................................................................................8
2.1 Symbols used .......................................................8
2.1.1 Symbols used in the manual ...................................8
2.1.2 Symbols used on the equipment .............................8
2.2 Abbreviations ........................................................9
3Technical specifications ..........................................................................10
3.1 Certifications .......................................................10
3.2 Technical specifications ....................................10
4 Description ................................................................................................12
4.1 Operating principle .............................................12
4.1.1 Gas/air setting .......................................................12
4.1.2 Combustion ...........................................................12
4.2 Main parts ............................................................13
4.3 Control panel .......................................................14
4.3.1 Description of the keys ..........................................14

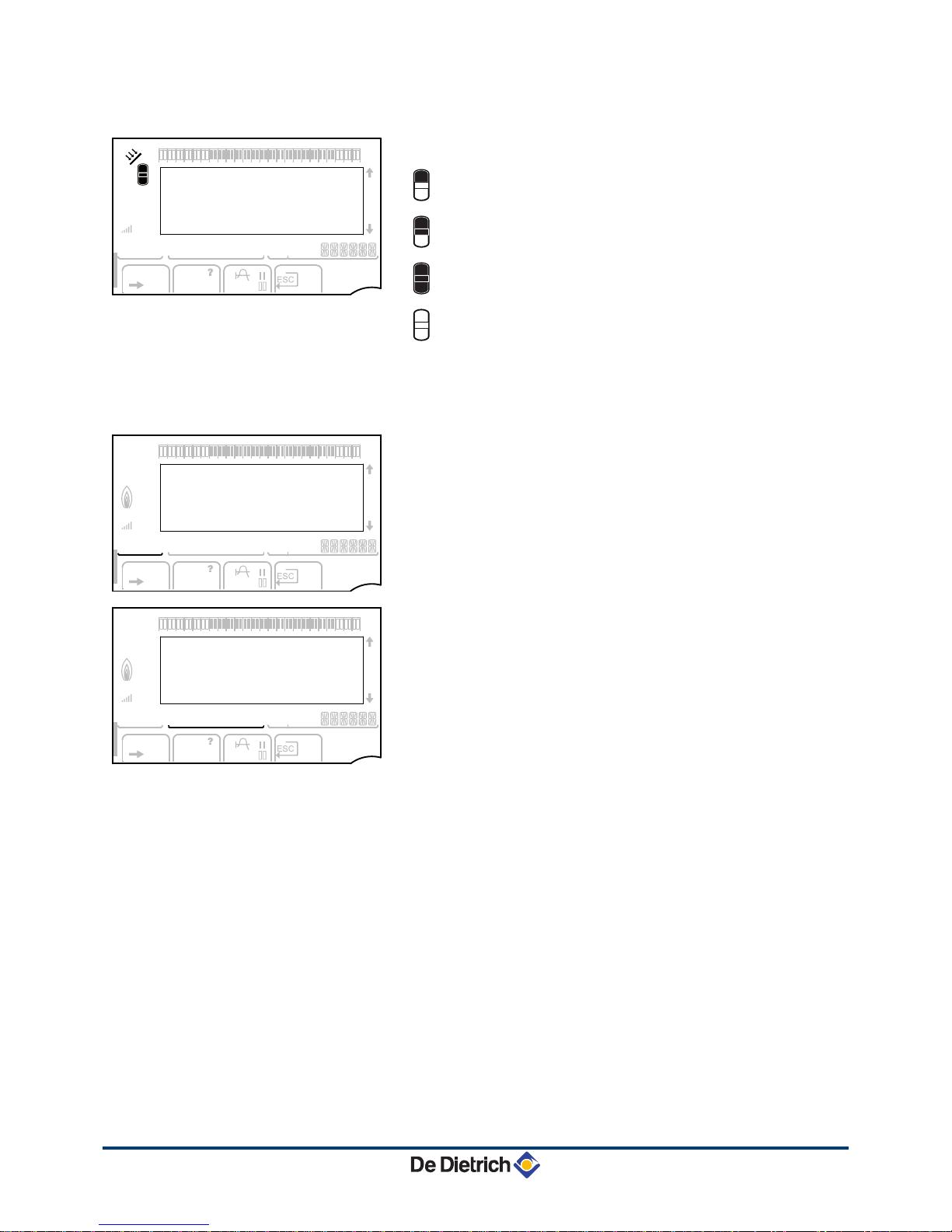

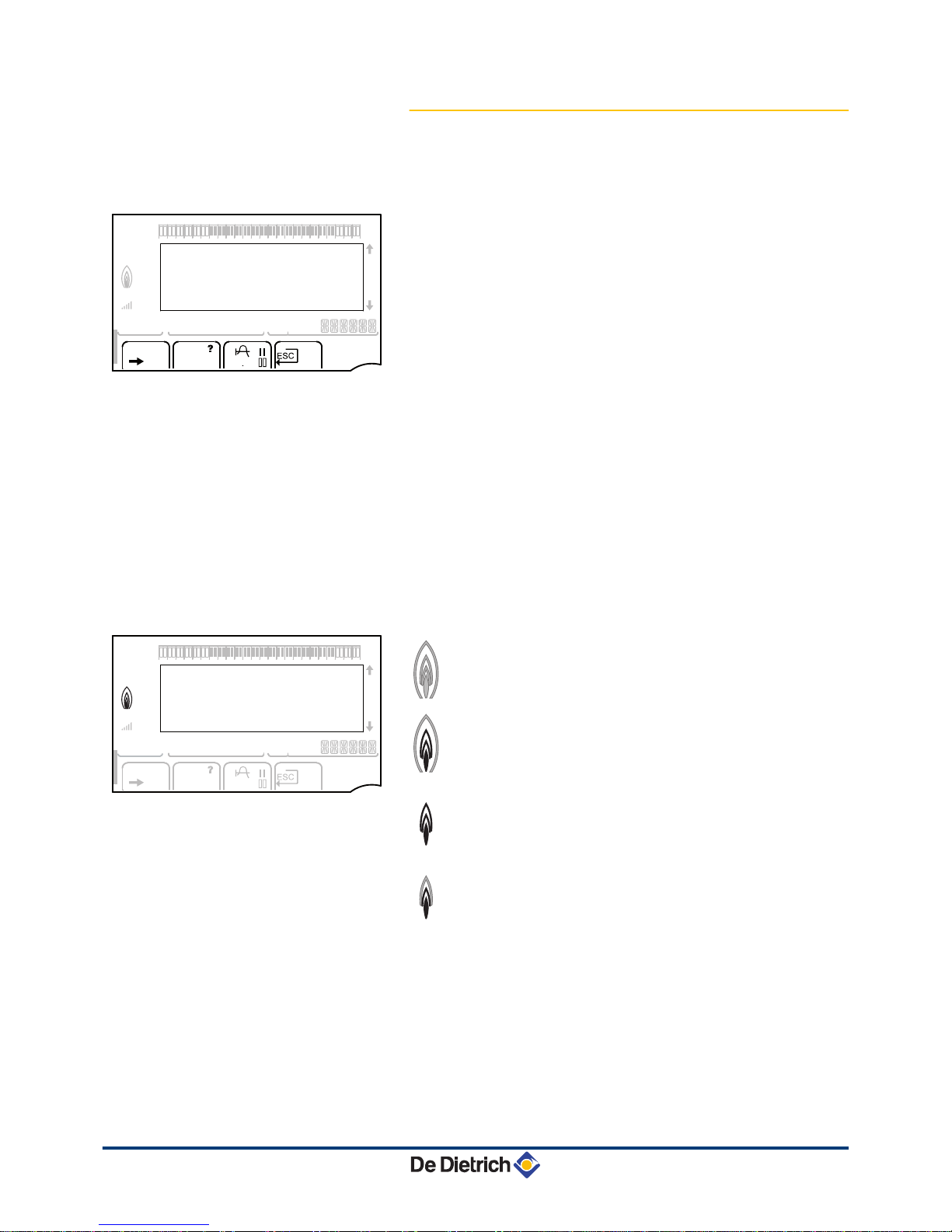

4.3.2 Description of the display ......................................15

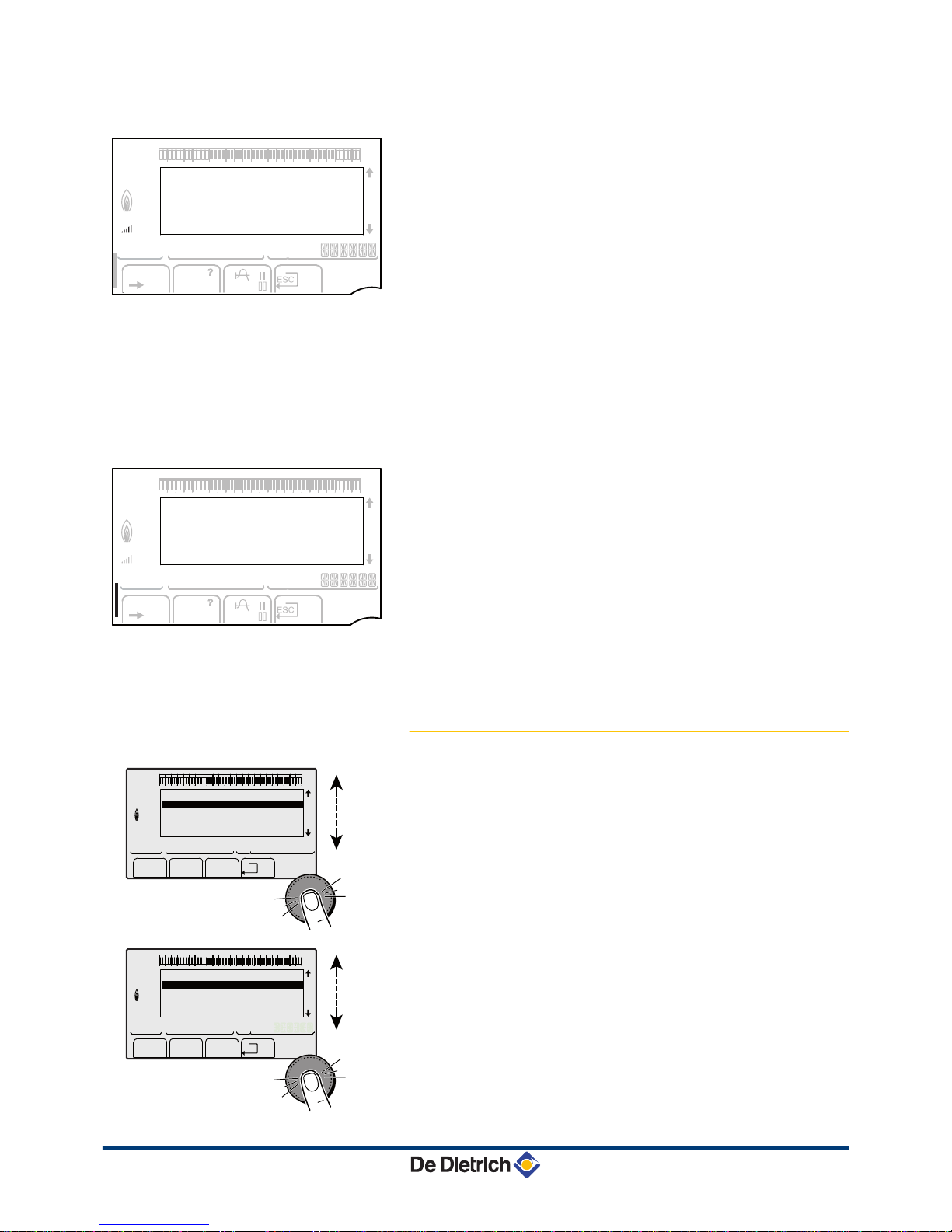

4.3.3 Browsing in the menus ..........................................17
5 Operating the appliance ..........................................................................19
5.1 Putting the appliance into operation ................19
5.2 Reading out measured values ...........................19
5.3 Changing the settings ........................................21
5.3.1 Setting the set point temperatures ........................21
5.3.2 Selecting the operating mode ...............................21
5.3.3 Forcing domestic hot water production .................22
5.3.4 Setting the contrast and lighting on the
display ...................................................................23
115/03/2016 - 300026080-001-07

5.3.5 Setting the time and date ......................................23
5.3.6 Selecting a timer programme ................................24
5.3.7 Customising a timer programme ...........................24
5.4 Installation shutdown .........................................26
5.5 Antifreeze protection ..........................................26
6 Checking and maintenance .....................................................................28
6.1 General instructions ...........................................28
6.2 Periodic checks ..................................................28
7 Troubleshooting .......................................................................................30
7.1 Anti-hunting ........................................................30
7.2 Messages (Code type Bxx or Mxx) ....................30
7.3 Faults (Code type Lxx or Dxx) ...........................32
8 Energy savings .........................................................................................38
8.1 Energy-saving advice .........................................38
8.2 Recommendations ..............................................38
9 Warranty ....................................................................................................39
9.1 General ................................................................39
9.2 Warranty terms ...................................................39
10 Appendix – Information on the Ecodesign and Energy Labelling
Directives ..................................................................................................40
Contents
215/03/2016 - 300026080-001-07

315/03/2016 - 300026080-001-07

1 Safety instructions
1.1 General safety instructions
DANGER
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
CAUTION
4The use of the boiler and system by you as
the end-user must be limited to the
operations described in this User Manual.
All other actions may only be undertaken by
a qualified fitter/engineer.
4Only qualified persons are authorised to
assemble, install and maintain the
installation.
DANGER
If you smell gas:
1. Do not use a naked flame, do not smoke, do
not operate electrical contacts or switches
( doorbell, light, motor, lift, etc..).
2. Shut off the gas supply.
3. Open the windows.
4. Evacuate the premises.
5. Call your fitter.
AGC 10/15 AGC 15 AGC 25 AGC 35 1. Safety instructions
15/03/2016 - 300026080-001-07 4

DANGER
If you smell flue gases:
1. Switch the appliance off.
2. Open the windows.
3. Evacuate the premises.
4. Call your fitter.
DANGER
The installation and maintenance of the boiler
must be undertaken by a qualified fitter/engineer
in accordance with the information in the
supplied Installation and Service Manual, doing
otherwise may result in dangerous situations
and/or bodily injury.
WARNING
Depending on the settings of the appliance:
4The temperature of the flue gas conduits
may exceed 60°C.
4The temperature of the radiators may reach
85°C.
4The temperature of the domestic hot water
may reach 65°C.
CAUTION
Do not neglect to service the appliance:
4For completely safe and optimum operation,
you must have your boiler regularly serviced
by an approved installer.
1.2 Recommendations
WARNING
Only qualified professionals are authorised to
work on the appliance and the installation.
1. Safety instructions AGC 10/15 AGC 15 AGC 25 AGC 35
515/03/2016 - 300026080-001-07

DANGER
For safety reasons, we recommended fitting
smoke and CO alarms at suitable places in your
home.
4Regularly check the water pressure in the installation
(minimum pressure 0.8 bar, recommended pressure
between 0.8 and 1.5 bar).
4Keep the appliance accessible at all times.
4Never remove or cover labels and rating plates affixed
to the appliance. Labels and rating plates must be
legible throughout the entire lifetime of the appliance.
4The appliance should be on Summer or Antrifreeze
mode rather than switched off to guarantee the
following functions:
-Anti blocking of pumps
-Antifreeze protection
1.3 Liabilities
1.3.1. Manufacturer’s liability
Our products are manufactured in compliance with the
requirements of the various applicable European
Directives. They are therefore delivered with [ marking
and all relevant documentation.
In the interest of customers, we are continuously
endeavouring to make improvements in product quality.
All the specifications stated in this document are therefore
subject to change without notice.
Our liability as the manufacturer may not be invoked in the
following cases:
4Failure to abide by the instructions on using the
appliance.
4Faulty or insufficient maintenance of the appliance.
4Failure to abide by the instructions on installing the
appliance.
AGC 10/15 AGC 15 AGC 25 AGC 35 1. Safety instructions
15/03/2016 - 300026080-001-07 6

1.3.2. Installer’s liability
The installer is responsible for the installation and
commissioning of the appliance. The installer must
respect the following instructions:
4Read and follow the instructions given in the manuals
provided with the appliance.
4Carry out installation in compliance with the prevailing
legislation and standards.
4Perform the initial start up and carry out any checks
necessary.
4Explain the installation to the user.
4If a maintenance is necessary, warn the user of the
obligation to check the appliance and maintain it in
good working order.
4Give all the instruction manuals to the user.
1.3.3. User’s liability
To guarantee optimum operation of the appliance, the
user must respect the following instructions:
4Read and follow the instructions given in the manuals
provided with the appliance.
4Call on qualified professionals to carry out installation
and initial start up.
4Get your installer to explain your installation to you.
4Ensure the Appliance is serviced in accordance with
the manufacturer’s instructions by a suitable qualified
person.
4Keep the instruction manuals in good condition close
to the appliance.
1. Safety instructions AGC 10/15 AGC 15 AGC 25 AGC 35
715/03/2016 - 300026080-001-07

2 About this manual
2.1 Symbols used
2.1.1. Symbols used in the manual
In these instructions, various danger levels are employed to draw the
user’s attention to particular information. In so doing, we wish to
safeguard the user’s safety, highlight hazards and guarantee correct
operation of the appliance.
DANGER
Risk of a dangerous situation causing serious physical
injury.
WARNING
Risk of a dangerous situation causing slight physical
injury.
CAUTION
Risk of material damage.
Signals important information.
¼Signals a referral to other instructions or other pages in the
instructions.
2.1.2. Symbols used on the equipment
4Protective earthing
~Alternating current
Before installing and commissioning the device, read
carefully the instruction manuals provided.
Dispose of the used products in an appropriate recovery
and recycling structure.
This appliance must be connected to the protective earth.
D000241-C
AGC 10/15 AGC 15 AGC 25 AGC 35 2. About this manual
15/03/2016 - 300026080-001-07 8

Caution: danger, live parts.
Disconnect the mains power prior to any operations.
2.2 Abbreviations
43CE: Collective conduit for sealed boiler
4DHW: Domestic hot water
4Interscenario switch: Home automation switch that can be used
to centralise and control several scenarios
4Hi: Lower heating value LHV (Nett)
4Hs: Higher heating value HHV (Gross)
4PPS: Polypropylene hardly inflammable
4PCU: Primary Control Unit - PCB for managing burner operation
4PSU: Parameter Storage Unit - Parameter storage for PCBs
PCU and SU
4SCU: Secondary Control Unit - control panel PCB
4SU: Safety Unit - Safety PCB
43WV: 3-way valve
4HL: High Load - DHW tank with plate exchanger
4SL: Standard Load - DHW tank with coil
4SHL: Solar High Load - Solar DHW tank with plate exchanger
4SSL: Solar Standard Load - Solar DHW tank with coil
1 2
M002628-A
2. About this manual AGC 10/15 AGC 15 AGC 25 AGC 35
915/03/2016 - 300026080-001-07

3 Technical specifications
3.1 Certifications
CE identification no CE-0085CM0178
NOx classification 5 (EN 15502-1, EN 15502-2-1)
Type of connection Chimney: B23, B33
Flue gas outlet: C13(x), C33(x), C43(x), C53, C83(x),
C93(x)
3.2 Technical specifications
Boiler type AGC 10/15 AGC 15 AGC 25 AGC 35
General
Nominal output (Pn)
Heating System (80/60 °C)
minimum-
maximum
kW 3,0 - 10,4 3,0 - 14,9 5,0 - 24,8 6,3 - 34,8
Nominal output (Pn)
Heating System (50/30 °C)
minimum-
maximum
kW 3,4 - 11,2 3,4 - 15,8 5,6 - 25,5 7,0 - 35,9
Nominal output (Pn)
Heating System (40/30 °C)
minimum-
maximum
kW 3,4 - 16,0 3,4 - 16,0 5,6 - 25,9 7,0 - 36.4
Nominal input (Qn)
Heating System (Hi)
minimum-
maximum
kW 3,1 - 10,5 3,1 - 15,0 5,2 - 25,0 6,5 - 35,1
Nominal input(Qn)
Heating System (Hs)
minimum-
maximum
kW 3,4 - 11,7 3,4 - 16,7 5,8 - 27,8 7,2 - 39,0
Nominal input (Qnw)
DHW System (Hi)
minimum-
maximum
kW 3,1 - 15,0 3,1 - 15,0 5,2 - 29,3 6,5 - 35,1
Nominal input (Qnw)
DHW System (Hs)
minimum-
maximum
kW 3,4 - 16,7 3,4 - 16,7 5,8 - 32,6 7,2 - 39,0
Heating efficiency under full load (Hi)
(80/60 °C)
- % 99,3 99,3 99,2 99,1
Heating efficiency under full load (Hi)
(50/30 °C)
- % 107,0 105,3 102,0 102,2
Heating efficiency under partial load
(Hi) (Return temperature 60°C)
- % 94,9 94,9 96,1 96,3
Heating efficiency under partial load
(EN 92/42) (Return temperature
30°C)
- % 110,2 110,2 110,1 110,6
Data on the gases and combustion gases
Gas consumption - Natural gas H
(G20)
minimum-
maximum
m3/h 0,33 - 1,59 0,33 - 1,59 0,55 - 3,10 0,69 - 3,71
Gas consumption - Natural gas L
(G25)
minimum-
maximum
m3/h 0,38 - 1,85 0,38 - 1,85 0,64 - 3,61 0,80 - 4,32
Gas consumption - Propane G31 minimum-
maximum
m3/h 0,13 - 0,61 0,13 - 0,61 0,21 - 1,20 0,27 - 1,44
Mass flue gas flow rate minimum-
maximum
kg/h 5,3 - 25,2 5,3 - 25,2 8,9 - 49,3 11,1 - 57,3
AGC 10/15 AGC 15 AGC 25 AGC 35 3. Technical specifications
15/03/2016 - 300026080-001-07 10

Boiler type AGC 10/15 AGC 15 AGC 25 AGC 35
Flue gas temperature minimum-
maximum
°C 30 - 65 30 - 65 30 - 80 30 - 75
Maximum counter pressure Pa 80 80 130 140
Characteristics of the heating circuit
Water content (ex expansion vessel) l 1,9 1,9 1,9 2,5
Water operating pressure minimum kPa (bar (MPa)) 80 (0,8) 80 (0,8) 80 (0,8) 80 (0,8)
Water operating pressure (PMS) maximum kPa (bar (MPa)) 300 (3,0) 300 (3,0) 300 (3,0) 300 (3,0)
Water temperature maximum °C 110 110 110 110
Operating temperature maximum °C 90 90 90 90
Electrical characteristics
Power supply voltage VAC 230 230 230 230
Power consumption - Full load maximum W 101 101 116 132
Electrical protection index IP21 IP21 IP21 IP21
Other characteristics
Weight (empty) kg 56 56 56 50
3. Technical specifications AGC 10/15 AGC 15 AGC 25 AGC 35
11 15/03/2016 - 300026080-001-07

4 Description
4.1 Operating principle
4.1.1. Gas/air setting
Air is sucked in by the fan and the gas injected into the venturi
attached to the fan inlet. The fan rotation speed modulates and adapts
to thermal energy requirements thanks to the temperatures measured
by the various sensors. The gas and air are mixed in the venturi, which
enables operation at a constant ratio. The noise of the venturi is
absorbed by a silencer attached to its inlet. The gas/air mixture is
carried to the burner in the top of the exchanger, guided by the pre-
mix channel.
4.1.2. Combustion
The burner heats the heating water circulating in the heat
exchanger. At a return temperature lower than around 55°C, the flue
gases cool down to a temperature lower than the dew point, thus
causing the condensation of the water vapour contained in the flue
gases in the lower section of the heat exchanger. The heat released
during this condensation process (the latent heat or condensing heat)
is also transferred to the heating water. The cooled combustion gases
are evacuated via the combustion gas outlet flue. The condensation
water is evacuated via a condensate trap.
AGC 10/15 AGC 15 AGC 25 AGC 35 4. Description
15/03/2016 - 300026080-001-07 12

4.2 Main parts
1Flue gas discharge pipe
2Flue gas measuring point
3Heat exchanger
4Ignition/ionization electrode
5Box for the control PCBs
6Control panel
7Command module
8Water pressure sensor
9Circulation pump
10 Hydroblock
11 3-way valve
12 Safety valve
13 Casing
14 Expansion vessel
15 Combined venturi and gas valve unit
16 Fan
17 Air intake silencer
18 Mixer pipe
19 Automatic air vent
C003072-C
18
19
16
17
15
14
13
12
11
1234
10
9
5
6
7
8
4. Description AGC 10/15 AGC 15 AGC 25 AGC 35
13 15/03/2016 - 300026080-001-07

4.3 Control panel
4.3.1. Description of the keys
ATemperature setting key (heating, DHW, swimming pool)
BOperating mode selection key
CDHW override key
DKey to access the parameters reserved for the installer
EKeys on which the function varies as and when selections
are made
FRotary setting button:
4Turn the rotary button to scroll through the menus or
modify a value
4Press the rotary button to access the selected menu
or confirm a value modification
A000866-A
bar
STD t
0 2 4 6 8 10 12 14 16 18 22 2420
pb
AUTO
x
c
r
j
M
gm
A
B
C
DEF
('
AGC 10/15 AGC 15 AGC 25 AGC 35 4. Description
15/03/2016 - 300026080-001-07 14

4.3.2. Description of the display
nKey functions
>Access to the various menus
(Used to scroll through the menus
’Used to scroll through the parameters
?The symbol is displayed when help is available
fUsed to display the curve of the parameter selected
STD Reset of the time programmes
bSelection of comfort mode or selection of the days to be
programmed
vSelection of reduced mode or deselection of the days to
be programmed
jBack to the previous level
ESC Back to the previous level without saving the
modifications made
tManual reset
nFlame output level
C002705-A
The whole symbol flashes: The burner starts up but the
flame is not yet present
C002704-A
Part of the symbol flashes: Output is increasing
C002703-A
Steady symbol: The required output has been reached
C002702-A
Part of the symbol flashes: Output is dropping
bar r
STD
('t
0 2 4 6 8 10 12 14 16 18 22 2420
C002696-A
pb
AUTO
x c
r
j
L
gm
bar
STD t
0 2 4 6 8 10 12 14 16 18 22 2420
C002701-B
pb
AUTO
x c
r
j
M
gm
4. Description AGC 10/15 AGC 15 AGC 25 AGC 35
15 15/03/2016 - 300026080-001-07

nSolar (If connected)
uThe solar load pump is running
L000200-A
The top part of the tank is reheated to the tank set point
L000201-A
The entire tank is reheated to the tank set point
L000198-A
The entire tank is reheated to the solar tank set point
L000199-A
The tank is not loaded - Presence of the solar control
system
nOperating modes
pSummer mode: The heating is off. Domestic hot water
continues to be produced
bWINTER mode: Heating and domestic hot water working
AUTO Operation in automatic mode according to the timer
programme
xComfort mode: The symbol is displayed when a DAY
override (comfort) is activated
4Flashing symbol: Temporary override
4Steady symbol: Permanent override
mReduced mode: The symbol is displayed when a NIGHT
override (reduced) is activated
4Flashing symbol: Temporary override
4Steady symbol: Permanent override
gHoliday mode: The symbol is displayed when a HOLIDAY
override (antifreeze) is activated
4Flashing symbol: Holiday mode programmed
4Steady symbol: Holiday mode active
mManual mode: The boiler operates with the displayed set
point. All of the pumps operate. The 3-way valves are not
controlled.
bar
STD t
0 2 4 6 8 10 12 14 16 18 22 2420
L000197-A
pb
AUTO
x c
r
j
M
gm
bar
STD t
0 2 4 6 8 10 12 14 16 18 22 2420
C002697-B
pb
AUTO
x c
r
j
M
gm
bar
STD t
0 2 4 6 8 10 12 14 16 18 22 2420
C002698-B
pb
AUTO
x c
r
j
M
gm
AGC 10/15 AGC 15 AGC 25 AGC 35 4. Description
15/03/2016 - 300026080-001-07 16

nSystem pressure
bar Pressure indicator: The symbol is displayed when a water
pressure sensor is connected.
4Flashing symbol: The water pressure is insufficient.
4Steady symbol: The water pressure is sufficient.
lWater pressure level
4R: 0,9 to 1,1 bar
4E: 1,2 to 1,5 bar
4Z: 1,6 to 1,9 bar
4A: 2,0 to 2,3 bar
4l: > 2,4 bar
nDomestic Hot Water override
A bar is displayed when a DHW override is activated:
4Flashing bar: Temporary override
4Steady bar: Permanent override
nOther information
4.3.3. Browsing in the menus
1. To select the desired menu, turn the rotary button.
2. To access the menu, press the rotary button.
To go back to the previous display, press the key j.
3. To select the desired parameter, turn the rotary button.
4. To modify the parameter, press the rotary button.
To go back to the previous display, press the key j.
bar
STD t
0 2 4 6 8 10 12 14 16 18 22 2420
C002708-A
pb
AUTO
x c
r
j
M
gm
bar
STD t
0 2 4 6 8 10 12 14 16 18 22 2420
C002707-A
pb
AUTO
x c
r
j
M
gm
bar
1
1
2
2
r
c
STD
('t
v
0 2 4 6 8 10 12 14 16 18 22 2420
pb
AUTO
x c
r
j
L
gm
#MEASURES
#CHOICE TIME PROG.
#TIME PROGRAM
#SETTING
#TIME .DAY
a
C002220-B-04
bar
1
1
2
2
r
c
STD
('t
v
0 2 4 6 8 10 12 14 16 18 22 2420
pb
AUTO
x c
r
j
L
gm
CURRENT PROG.B
CURRENT PROG.C
P2
P3
a
C002221-C-04
4. Description AGC 10/15 AGC 15 AGC 25 AGC 35
17 15/03/2016 - 300026080-001-07

5. To modify the parameter, turn the rotary button.
6. To confirm, press the rotary button.
To cancel, press key h.
7. To go back to the main display, press key j2 times.
It is possible to use the ( and ’ keys instead of the rotary
button.
bar
1
1
2
2
r
c
STD
('t
v
0 2 4 6 8 10 12 14 16 18 22 2420
pb
AUTO
x c
r
j
L
gm
CURRENT PROG.C
"Choice of the timeprogram
applied C"
P4
a
C002222-C-04
bar
1
1
2
2
r
c
STD
('t
v
0 2 4 6 8 10 12 14 16 18 22 2420
pb
AUTO
x c
r
j
M
gm
LUNDI 11:45
C002224-D-04
2x
AGC 10/15 AGC 15 AGC 25 AGC 35 4. Description
15/03/2016 - 300026080-001-07 18

5 Operating the appliance
5.1 Putting the appliance into operation
1. Turn on the boiler using the on/off switch.
2. The first time the boiler is powered up, the LANGUAGE menu is
displayed. Select the desired language by turning the rotary
button.
3. To confirm, press the rotary button.
The boiler will begin an automatic venting-programme (which lasts
approx. 3 minutes) and will do this every time the power supply is
isolated. If there is a problem, the error is displayed on the screen.
4. Check the water pressure in the installation shown on the control
panel display.
If the water pressure is lower than 0,8 bar, more water
should be added. If necessary, top up the water level in the
heating system (recommended hydraulic pressure
between 1,5 and 2,0 bar).
5.2 Reading out measured values
The various values measured by the appliance are displayed in the
#MEASURES menu.
1. To access user level: Press the > key.
2. Select the menu #MEASURES.
4Turn the rotary button to scroll through the menus or
modify a value.
4Press the rotary button to access the selected menu
or confirm a value modification.
¼For a detailed explanation of menu browsing, refer to
the chapter: "Browsing in the menus", page 17.
8 22 2420
l
0
C003159-B
Français - Deutsch - English -
Italiano - Espanol - Nederlands
- Pycck - Polski - Türk -
bar
1
1
2
2
r
c
STD
('t
v
0 2 4 6 8 10 12 14 16 18 22 2420
pbx
c
r
gm
ÿ
LANGUE FRANCAIS
C002286-C
bar
1
1
2
2
r
c
STD
('t
v
0 2 4 6 8 10 12 14 16 18 22 2420
pb
AUTO
x c
r
j
M
gm
SUNDAY 11:45
C002219-D-04
5. Operating the appliance AGC 10/15 AGC 15 AGC 25 AGC 35
19 15/03/2016 - 300026080-001-07
