dedolight Turbo DLED2 User manual

DLED Turbo System
Manual v1.8
1

DLED Turbo System
Manual v1.8
2
CONTENT
CONTENT___________________________________________2
IMPORTANT INFORMATION____________________________3
GENERAL DESCRIPTION OF THE SYSTEM _______________4
TECHNICAL DATA ____________________________________4
OPERATING THE SYSTEM_____________________________5
PHOTOMETRICS _____________________________________7
DIMENSIONS ________________________________________8
SAFETY PRECAUTIONS _______________________________9
WARRANTY ________________________________________11

DLED Turbo System
Manual v1.8
3
IMPORTANT INFORMATION
Read all of the following information carefully before operating the
dedolight DLED Turbo System.
This document contains important information regarding safety,
operation and maintenance of this system.
This equipment is intended for professional use and is to be used
by trained personnel only.
Keep the operating instructions with the equipment at all times.
The manufacturer is not responsible for damage caused by
improper use or mishandling.
The DLED Turbo systems is are built in accordance with CE and
EMV-regulations EN61347-2-13, EN61347-1, safety standards
EN 60598-1 and EN 60598-2-17 and cETLus complies to the
UL1573 standard.
NOTE: This equipment has been tested and found to comply with
the limits for a class A digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
This equipment also complies with the technical requirements for a
class B device.

DLED Turbo System
Manual v1.8
4
GENERAL DESCRIPTION OF THE SYSTEM
The compact DT3, DT7 and DT10 power supply is intended
exclusively for use with the applicable dedolight DLED Turbo light
head.
The smallest version, same size as the well-known DLED2, which
features 20W, or as bicolor 2x20W, now working with a highly
effective 40 W or double 40 W system for bicolor. Active cooling in
a silent version, enabling drastically enhanced output. Complete,
versatile lighting kit in a handbag format, with the full range of light-
shaping and imaging capabilities.
Soft boxes, optionally available, for gentle, pleasing soft light
application.
Most probably the smallest, most versatile lighting kit. Small
enough to be allowed as cabin baggage.
Also in the Turborange: DLED7 and DLED10
TECHNICAL DATA
Focus Range
(Intensity Range)
50° - 5° (1:7)
Focus Control
3/4 turn on focus ring
Power Max. Power
Consumption
40W (DLED3) / even for bi-color version,
alternating between two 40W light sources.
90W (DLED7) and 308W (DLED10)
Mounting
5/8" (16 mm) receptacle AND and 1 1/8”
(28mm) stud.
Operating Position
Any
Tilt Control
Adjustable friction
Accessory Holder
Ø 2.3" (58 mm) for mounting the unique
range of DLED3 front - end accessories
Ø3“ (76 mm) diameter (DLED7),
Ø5“ (128 mm) diameter (DLED10).,
Safety
Protection Class III, SELV, IP20
Cooling
Active Silent Cooling
UV
No UV radiation
DC in connector
5.5/2.5mm Pole (for applicable DTs)

DLED Turbo System
Manual v1.8
5
OPERATING THE SYSTEM
*shown with DLED3 system
1- Make sure no DC Power is connected
2- Connect light head with DT3 PSU
3- Connect DT3 PSU with battery or AC/DC PSU
4- Fix on mount
5- Switch Power Switch on

DLED Turbo System
Manual v1.8
6

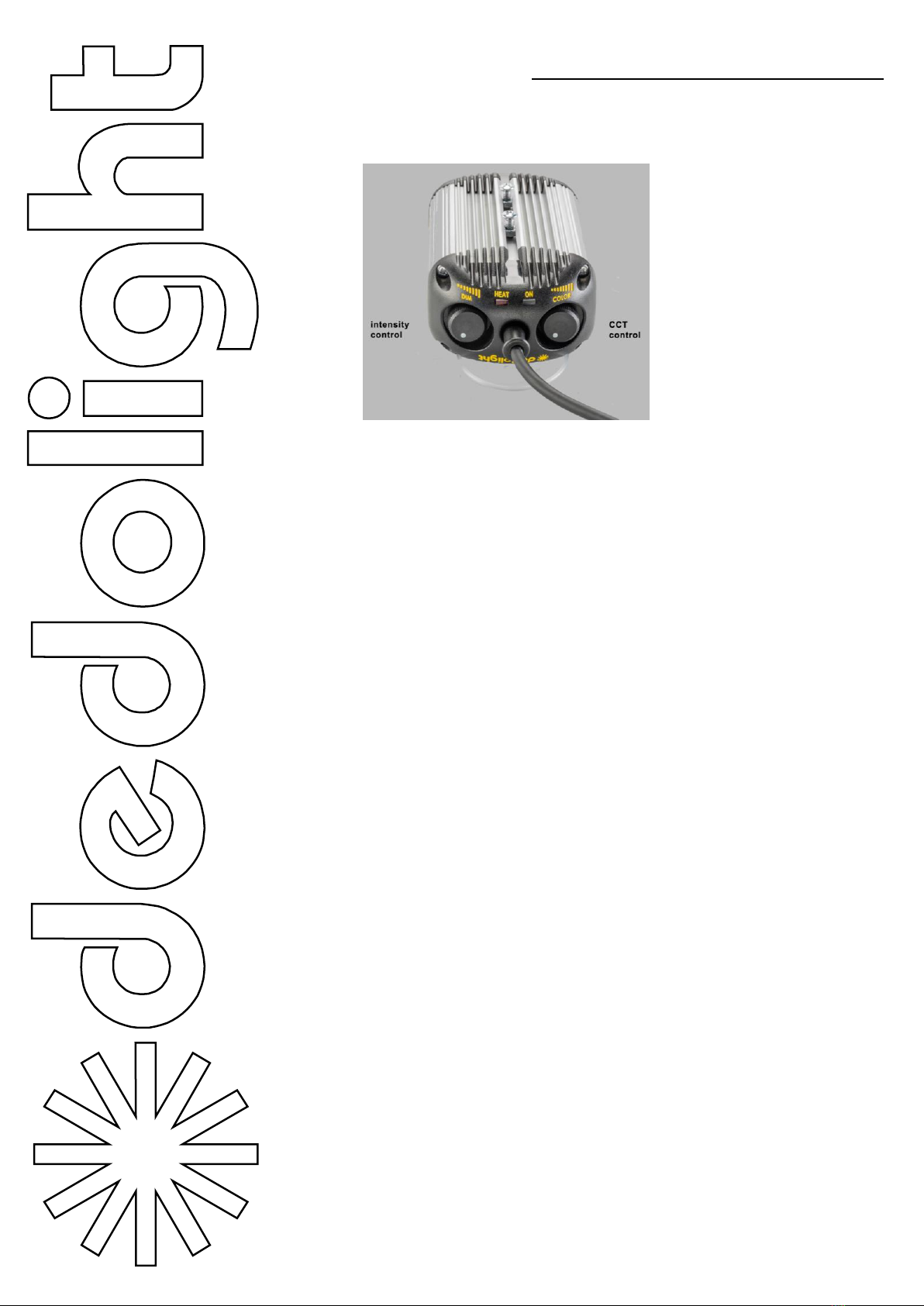

6- Control Intensity (and CCT) through dials on DT3 PSU
7- Focus light head by turning the yellow focus ring.

DLED Turbo System
Manual v1.8
7

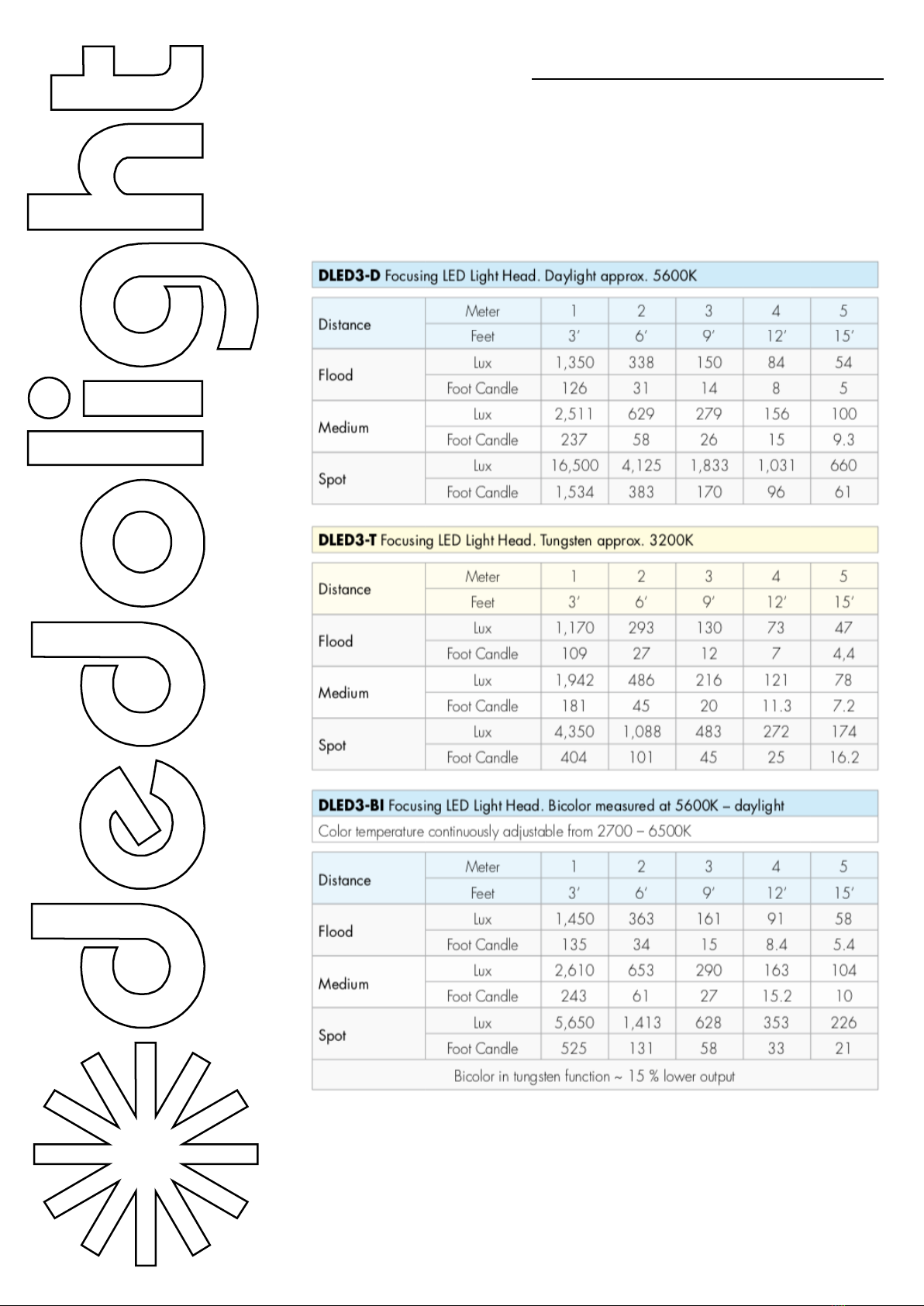

PHOTOMETRICS
DLED7 and DLED10 photometrics available online or on request

DLED Turbo System
Manual v1.8
8

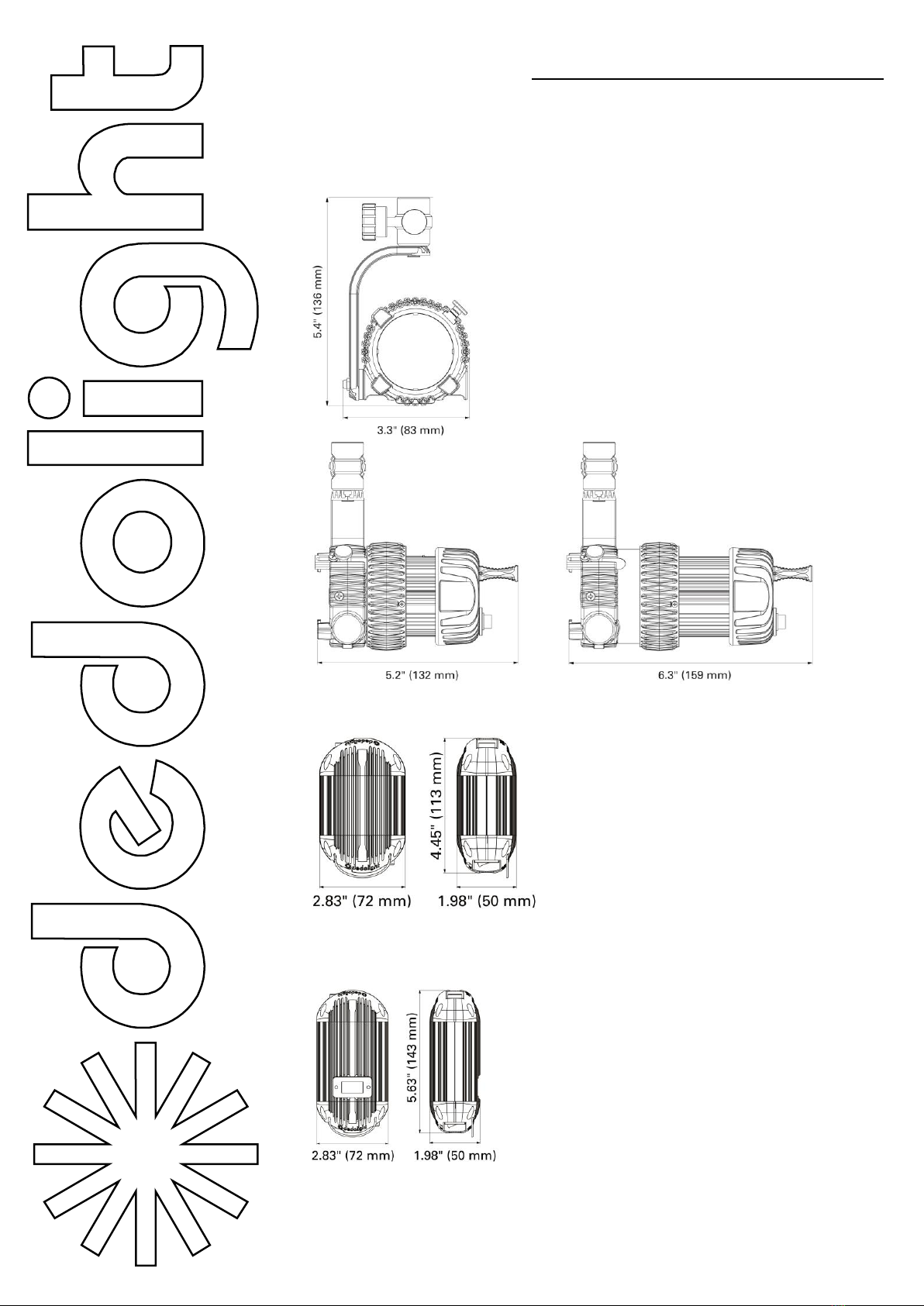

DIMENSIONS
DLED3 lighthead
DT3 PSU
DT3BI PSU
DLED7 and DLED10 dimensions available online or on request

DLED Turbo System
Manual v1.8
9
SAFETY PRECAUTIONS
The DLED3 light head cannot be operated without the DT3 power
supply (DLED7-DT7, DLED10-DT10).
A) CAUTION: VOLTAGE!
The DLED3 Turbo System is a DC low voltage system. Hence no
Safety class applies.The DT3 PSU works with all voltages from
10.2-18V DC through batteries or external AC/DC PSU.
Before connecting the ballast to the DC in, be sure the outlet meets
safety regulations.
DT7 PSU are available in DC and also as AC 100-240V. DT7-AC
and DT10 are Protection Class III, SELV, IP20.
B) DISTANCE TO FLAMMABLE MATERIAL
The light head must never be operated near flammable material.
Minimum distance to flammable material in direction of the emitted
light:1,5m (5 ft).
Minimum distance of the light head housing to flammable material:
0,4m (1,4ft).
The system must not be switched on or used in aggressive or
explosive media.
Caution: Do not put light into transport case while still hot !!
C) OUTDOOR OPERATION
The electronic ballast DTs are built according to Safety Class IP20
and is therefore not suitable for use in wet or high humidity
surroundings.
The fixture (light head) are built according to Safety Class IP21
which allows it to be used in light drizzle (straight downward falling
drops) but it must not be exposed to rain when switched off.
D) COOLING
DT PSU
The sides of the housing of the PSU are built as cooling elements.
Cooling ribs must not be covered or obstructed in any way. It must
not be operated on humid or wet surfaces. Avoid direct sunlight on
the DT.
DLED lighthead:

DLED Turbo System
Manual v1.8
10
To prevent the possibility of fire, the DLED light head must be
mounted on a light hanger suitable for the load or on a lighting
stand of suitable dimension to prevent the light head from falling or
tipping over.
Do not cover the air intake or air exit openings or place any object
on top of the light
head.
D) REPAIR AND MAINTENANCE
Repair, maintenance and adjustments are only to be conducted by
Dedotecs’ repair department or qualified service personnel. Only
manufacturers original replacement parts are to be used.
The devices must be visually inspected at least once a year. Even
if only minor mechanical damage has occurred, these components
must be replaced.
E) ADDITIONAL PRECAUTIONS
-Switch equipment off when not in use
-Don’t carry the equipment by its power cable
-Don’t squeeze cables underneath doors
-Don’t place cables over sharp objects
-In case of malfunction, disconnect PSU from DC (don’t pull on
the cable)
-Do not allow children to operate the devices
-Make sure that damaged equipment is rendered inoperable and
properly
disposed of or sent to the manufacturer for repairs

DLED Turbo System
Manual v1.8
11
WARRANTY
Dedotec GmbH warrants to the original purchaser, that this product
is free from defects in material and workmanship and agrees to
repair or replace, at its option, products which under normal
installation and use discloses such defect, provided the product is
delivered to Dedotec by the original purchaser, intact, for
examination with all transportation charges prepaid along with a
dated sales receipt, within one (1) year from the date of purchase
from an authorized Dedotec dealer and provided that such
examination discloses in the judgment of Dedotec that it is thus
defective.
This warranty does not cover any equipment which has been
subjected to misuse, abuse, neglect, incorrect wiring, improper
installation, lightning or other incidence of excessive voltage or use
in violation of instructions furnished by us nor to any equipment
which may have been tampered with, altered or repaired by other
than Dedotec or its authorized service agencies.
Dedotec is not responsible or liable for indirect, special, or
consequential
damages arising out of or in connection with the use or
performance of the product or other damages with respect to any
economic loss, loss of property, loss of revenues or profit, or costs
of removal, installation or reinstallation.
Except as provided herein, Dedotec makes no express warranty,
and any
implied warranty of merchantability or fitness for a particular
purpose is limited in its duration to the duration of the written
warranties set forth herein.
Dedotec GmbH issues no warranty for the completeness of this
document.
Information in this manual and product is subject to change without
notice or obligation.
Copyright Dedotec GmbH, 2018.
All rights reserved.

DLED Turbo System
Manual v1.8
12
Service address:
DEDOTEC optical and mechanical systems GmbH
Karl-Weinmair-Str. 10
80807 Munich
Phone: 089 / 356 16 01
Fax:089 / 356 60 86
Service address:
DEDOTEC USA,INC.
216 Little Falls Rd.
Cedar Grove, NJ 00709
Phone: [phone]
Fax: [phone]
