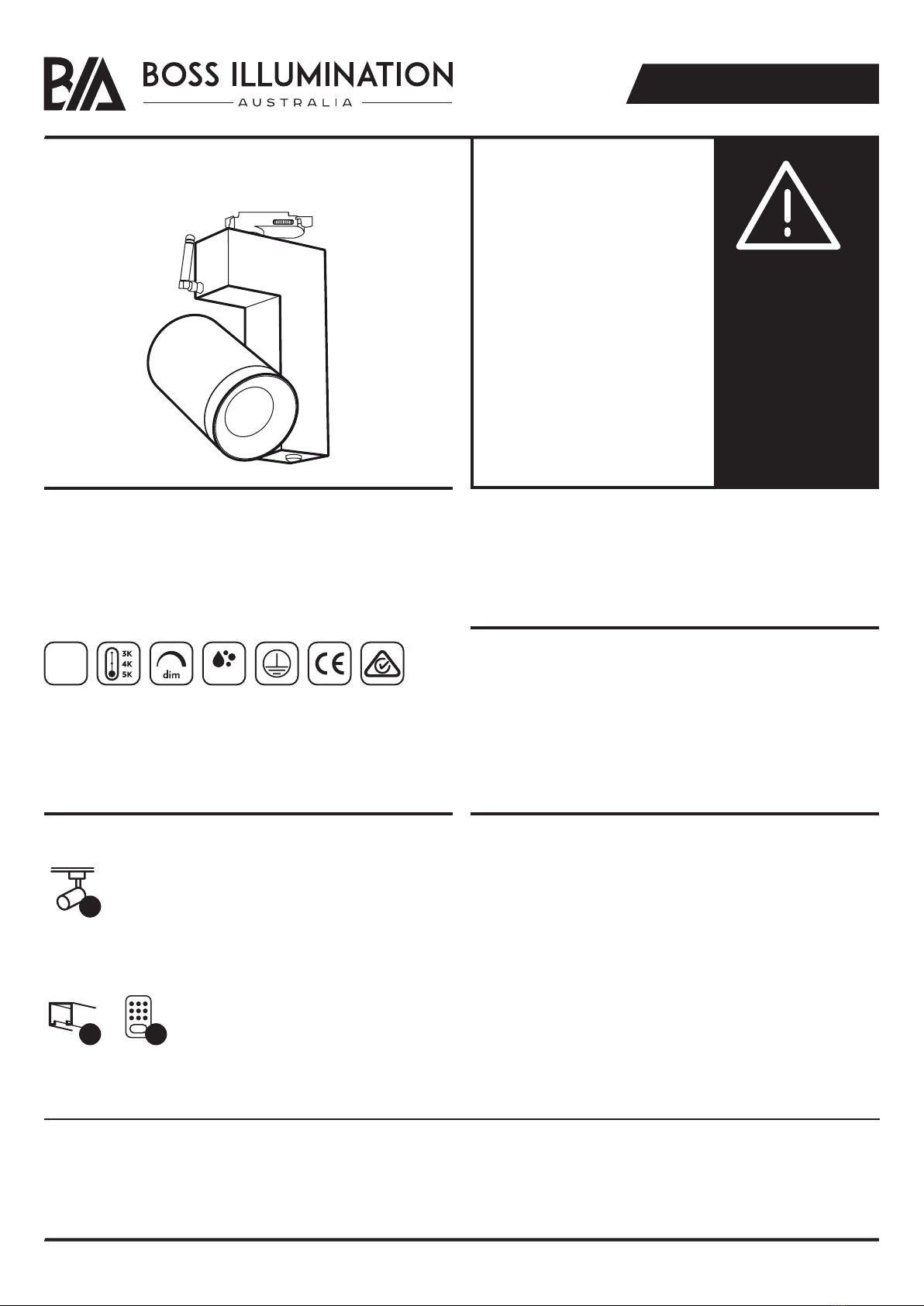

BOSS ILLUMINATION SOLIS User manual

www.bia.lighting | [email protected]page 1 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V11.20
WARRANTY STATEMENT This product is covered by a 3 year replacement warranty.
BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will x
or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated
on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on
warranty please visit www.bia.lighting/warranty
BIA reserves the right to change specications and other information, modify products and discontinue items without prior notication.
PRODUCT VARIANTSPRODUCT SPECIFICATIONS
Power : 30W
Input Voltage : 240VAC
Operating Temperature : -10 to 40°C
Dimming : Yes
Material : Aluminium
SOLIS
TRACK LIGHT
Must be installed by
a licensed electrician.
Must be installed
in accordance with
relevant Australian
Standards.
ADDITIONAL INFORMATION
1. This product is suitable for indoor use only.
2. Congurations can be made through controller, see Remote
Control section above.
3. If cleaning maintenance is required, disconnect from mains
supply and allow luminaire to cool. Use a clean microbre cloth,
slightly dampened with a mild dilution of detergent that is PH
neutral, alcohol free and non-abrasive.
4. Do not use harsh chemicals or solvents. Do not use high
pressure cleaners.
5. Care must be taken during installation and maintenance to
prevent accidental damage to the surface of the luminaire. These
damages may result in corrosion.
REMOTE CONTROL
Power : 0 to 30W
CCT : 2700K to 5000K
Beam Angle : 15º to 60º
Beam Direction : 350º horizontal rotation / +-90º vertical rotation
Dimming : 5% to 100%
Paring devices : up to 999 track lights per controller
PARTS INCLUDED
Colour : White
Black
Silver
Track Light
circuit
3
IP20
OPTIONAL COMPATIBLE PARTS sold separately
Track Rail
Disclaimer: Please read this product
manual carefully before installing the
product.
Warranty is void if installation guidelines
are disregarded, if the product has been
modied, or if damage is caused by
misuse or improper installation.
Images, drawings and diagrams are for
illustrative purposes only.
BIA products are manufactured
and certied in accordance with all
mandatory Australian Standards.
Technical data and information subject
to changes. Please visit our website for
latest version.
x1
x1 x1
Controller

www.bia.lighting | [email protected]page 2 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V11.20
INSTALLATION INSTRUCTIONS
1. Before commencing installation, ensure the main power is
switched off.
2. Insert tracklight adaptor into the rail.
3. Turn the switch to lock it against the rail.
4. Rotate dial to desired circuit.
5. Set station number combination digits as desired.
6. Turn on main power.
7. Adjust brightness, colour temperature, beam angle and beam
direction through the remote control.
CONTROLLER
1. Switch: Turns the light on and off.
2. Mode: Click to switch mode, press and
hold to save mode.
3. Display Screen: Displays conguration.
4. Station No.: Pairs with station number
set on track light.
5. Beam Rotation: Adjusts direction of
beam. Horizontal rotation ±175º. Vertical
rotation ±90º.
6. Dimming: Adjusts brightness between
5% to 100%. ±1% per click. Press and
hold to speed up adjustment.
7. Colour temperature: Adjusts colour
temperature between 2700K to 5000K.
±23K per click. Press and hold to speed
up adjustment.
8. Beam angle: Adjusts beam angle
between 15º to 60º.
DIMENSION DIAGRAM
3
4
2
5
7
136mm
Ø80mm
241mm
355º
±90º
1 2
3
4
5
6
7
8
