Defender Security LICG24SM User manual

LICG24SM Colour Camera
Weatherproof IR Colour Camera
Specification
Packing List
No Name Model Number
2. User Guide LICG24SM 1
1. Weatherproof IR Colour Camera LICG24SM 1
Franchiser：
Notes:Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Model LICG24SM
Pick up Element 1/3"CMOS
Horizontal Resolution 800TV Line
Minimum Illumination 0.01Lux /F1.2
S/N Ratio More than 48dB
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter NTSC: 1/60s~1/100, 000s, PAL: 1/50s~1/100,000s
Gama Characteristic 0.45
IR Distance 20 Meters (with ￠5X24PCS Infrared LED)
IR Status Under 10Lux by CDS
IR Power On CDS AUTO Control
Video Output 1Vpp, 75Ω
Auto Gain Control Auto
Power/Current DC12V (+/-10%)/350mA
Lens Board Lens 3.6mm/F2.0
Dimension (mm) 168(W) x73.5(H) x65(D)
Weight (g) 500
Storage Temperature -30~+60℃ RH95% MAX
Operating Temperature -10~+50℃ RH95% MAX
Effective Picture Elements
(H×V) 976(H) X 496(V）

INTRODUCTION
Congratulations on your purchase of this product.
This User Guide suits LICG24SM product. We adopt the
latest CMOS technical of sensor and driver. The most
attractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the
characters of high definition and stability, strong anti-
jamming, rich and real Colour. Fixing and using this model
are convenient too. It is very good for you to apply to your
CCTV system.
Please read this instruction manual carefully to
ensure proper use of the product.

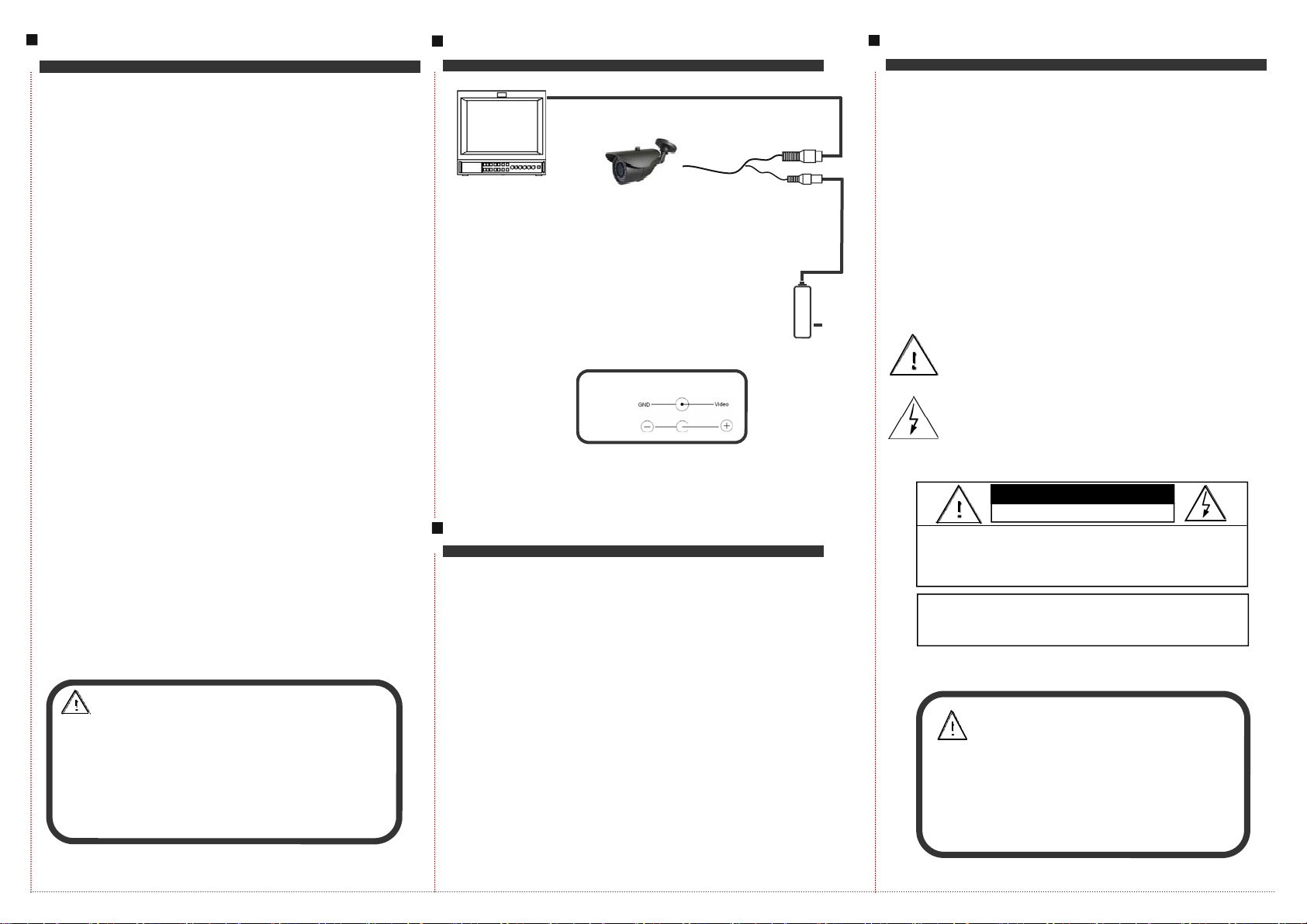

CONNECTING
BRIEF OF PRODUCT
* Sensor
Adopt CMOS 1/3"Sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The Colour
camera
can get high definition picture in low Lux condition.
* Auto Electronic Shutter (AES)
Built-in auto electronic shutter function. The Colour
camera’s AES speed can reach 1/100,000s.
* Gama Characteristic
Camera Gama characteristic is 0.45.
* Scanning Mode
NTSC or PAL mode.
* Water Resistance
IP66
* Support UTC function
With UTC Remote Controller for the convenience of
OSD menu setting.
DC12V Power Supply
Monitor
LICG24SM
TROUBLE AND SOLUTION
Link wire rule：
Power
Video
Note:
● Please note the camera’s operating temperature and its using
environment requirement. Avoid using the camera at too high
or too low temperatures. The operating temperature is -
30~+60℃. (Recommendatory operating temperature is -
10~+50℃.)
● Never make the camera face the sun or bright object.
Otherwise, it will damage the CCD.
● Do not mount the camera near by the radiator or heater.
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background Colour changes continuously
. The fluorescent lamp’s electromagnetic field cause Colour roll. This is
proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to
a risk of electric shock to persons.
Notes：
●The power supply must through safe attestation. Its output voltage,
current, voltage polarity and operating temperature must match the
camera’s requirement.
●When using the camera in the thunderbolt condition,please note to
mount Anti-thunder device or put off the power supply plug and cable.
●In order to capture high quality pictures, the power supply’s cable and
video output cable should not be too long.
Video
DC12V
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
