Defender G-lens 321/323/324/326 webcam
www.defender-global.com 1

www.defender-global.com
2
Defender G-lens 321/323/324/326 webcam
Thank you for choosing our Defender webcam! The quality of this
digital product is guaranteed by our cutting-edge technologies. With
high denition and high-speed data transmission features the Defender
G-lens webcam will make communication with friends and relatives more
comfortable while reducing the distance between you.
System requirements:
• CPU from 1 GHz
• Windows XP/Vista/ Windows 7
• Graphics card compatible with Direct X 9.0 VGA
• Free USB port
• Audio card
• Free 500 Mb of space on hard drive
• USB 2.0 interface (500 mA)
Installation of G-lens webcam software for Windows XP
Installation of the device driver from CD
1. Insert the CD from the webcam kit into the CD drive. If your operating
system has the autorun support feature enabled, the installation program
will be launched automatically. If your operating system has the autorun
support feature disabled, open the CD contents and run the autorun.exe
le using the explorer.
2. In the popup window of the installation program select Install driver.
3. In the next popup window select the model of your webcam.

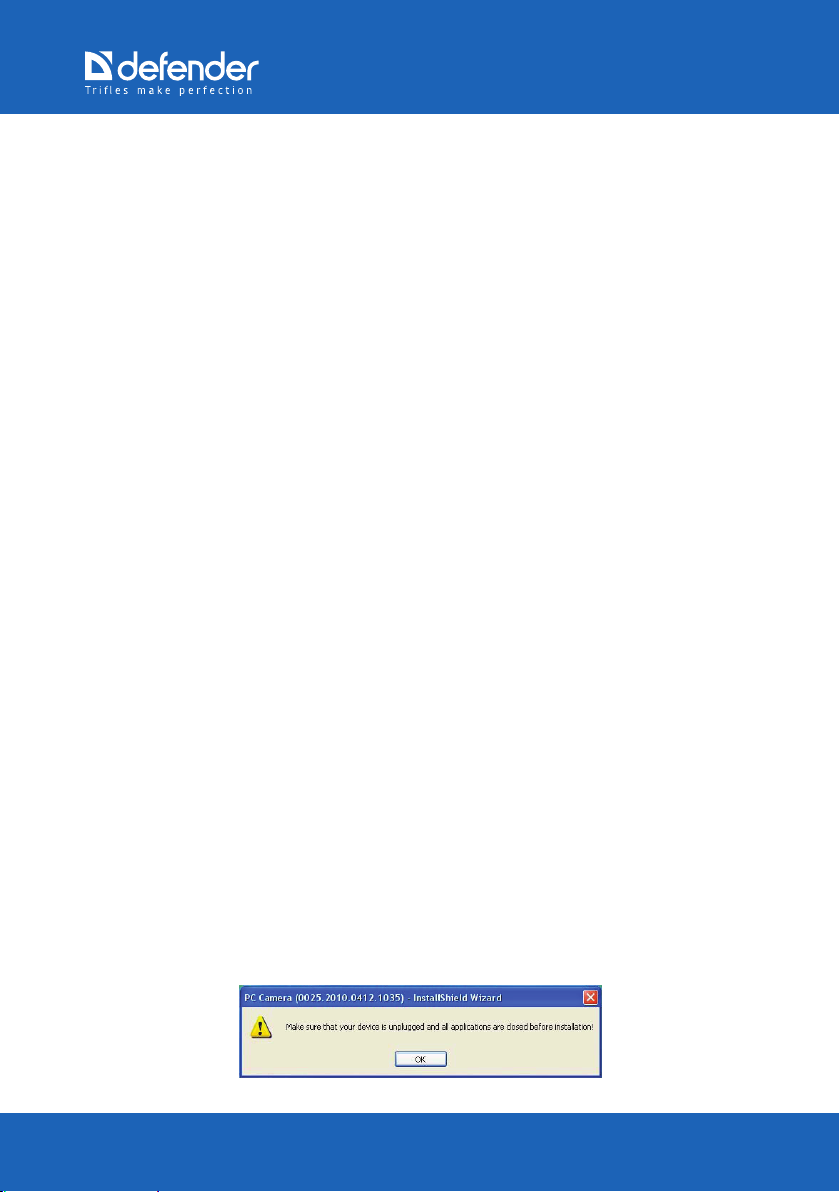

4. he following window will alert you that the webcam should be disabled
and all launched programs should be closed.
Press OK.

www.defender-global.com www.defender-global.com 3

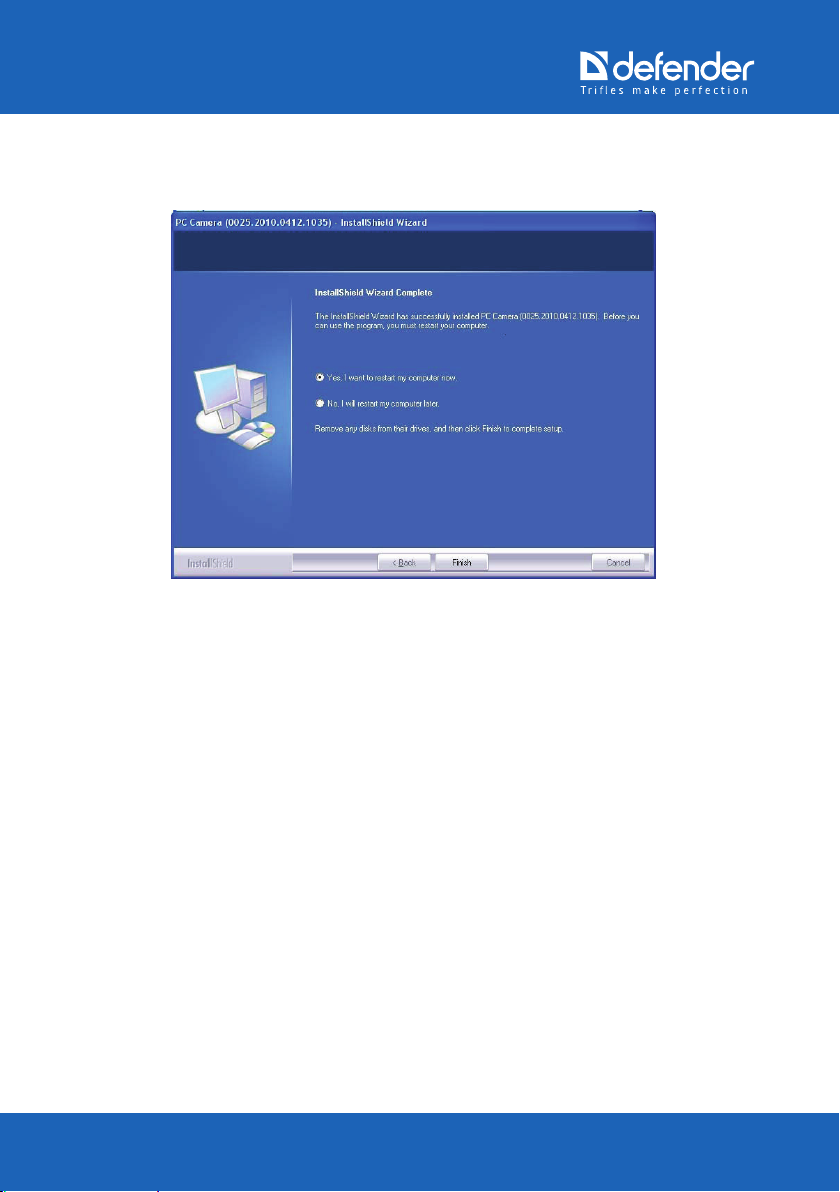

5. After installation is nished, the webcam installation completion
windows will popup.
Connect your webcam. At the right bottom of the screen New equipment
found icon will popup.
6. New Equipment Wizard window will popup.
Press Next.
7. The automatic installation of drivers will start.
8. After installation is nished, press Done.
How to nd your webcam in the Devices Manager
In case of successful installation the Devices Manager will have a PC
Camera device listed in the Image Processing Devices section.
The Devices Manager window can be opened in two ways:
1. Press Start (at the left bottom of the screen or on the keyboard). Then
select My Computer or Computer, press the right mouse button and select
Properties. In the popup window select Devices Manager.
2. Press Start. Then select My Computer or Computer, press the right

www.defender-global.com
4
mouse button and select Management. In the popup window select
Devices Manager.
How to disable the digital signature verication feature
1. Press Start (at the left bottom of the screen or on the keyboard). Then
select My Computer or Computer, press the right mouse button and select
Properties. Open the Equipment tab and press Signature of drivers.
2. The Parameters of driver signature window will popup.
Check boxes Skip-install software and not prompt for approvals and Use
the action as the system one by default.
3. When you’re nished, press OK in opened windows and conrm the
restart of computer.
Note: In some cases, depending on the software and computer
congurationadierentlayoutofwindowsandotheroperationsprocedure
are possible. If user rights are restricted, we recommend contacting the
computer administrator or use the computer administrator account.
Manual installation of the driver
1. Download the driver for manual installation and unzip it (depending on
the archive, ZIP or RAR archive manager may be required) to the PAC7302
folder located in the system root disk.
If you have previously installed the driver from the setup disk, the folder
with drivers will be located as specied below:
System disk:\Program Files\Common Files\PAC7302 (for 32-bit operating
systems).
We recommend copying the PAC7302 folder to the system root disk or any
other disk available in the system. Depending on the operating system
settings the above path may appear unavailable. Refer to operating
system sections in the documents which describe how to make hidden
and system les available.
2. Launch the Devices Manager (see the launching procedure above) and
connect your webcam.

www.defender-global.com www.defender-global.com 5
3. The Equipment Wizard window will open.
Press Next.
In case the window does not open:
1) right click on USB Device or Unknown device (as situation requires) and
select Properties.
2) in the popup window select the Driver tab, then select Refresh.
3) in the popup New equipment wizard window select Installation from
the specied location.
4) In the popup window press Browse. The following window will appear:
Select the folder where you have previously unzipped the driver to and
press OK.
5. Installation of the driver will launch.
6. After installation is nished, press Done.
7. In case of successful installation the Devices Manager will have a PC
Camera device listed in the Image Processing Devices section.
8. After installation is nished, restart the computer.
Note: In some cases, depending on the software and computer
conguration a dierent layout of windows and other operations
procedure are possible. If user rights are restricted, we recommend
contacting the computer administrator or use the computer administrator
account.
Installation of G-lens webcam software for Windows Vista
Installation of the device driver from CD
1. Insert the CD from the webcam kit into the CD drive. If your operating
system has the autorun support feature enabled, the installation program
will be launched automatically.
2. In case your operating system has the autorun support feature disabled,
open the CD contents and run the autorun.exe le using the explorer.

www.defender-global.com
6
Select Run autorun.exe.
3. In the popup window of the installation program select Install driver.
4. In the next popup window select the model of your webcam.
5. Select the Enable button in the User accounts control window.
6. The window alerting you that the webcam should be disabled and all
launched programs should be closed will open.
Press OK.
7. The Windows Safety window will popup.
Press Install.

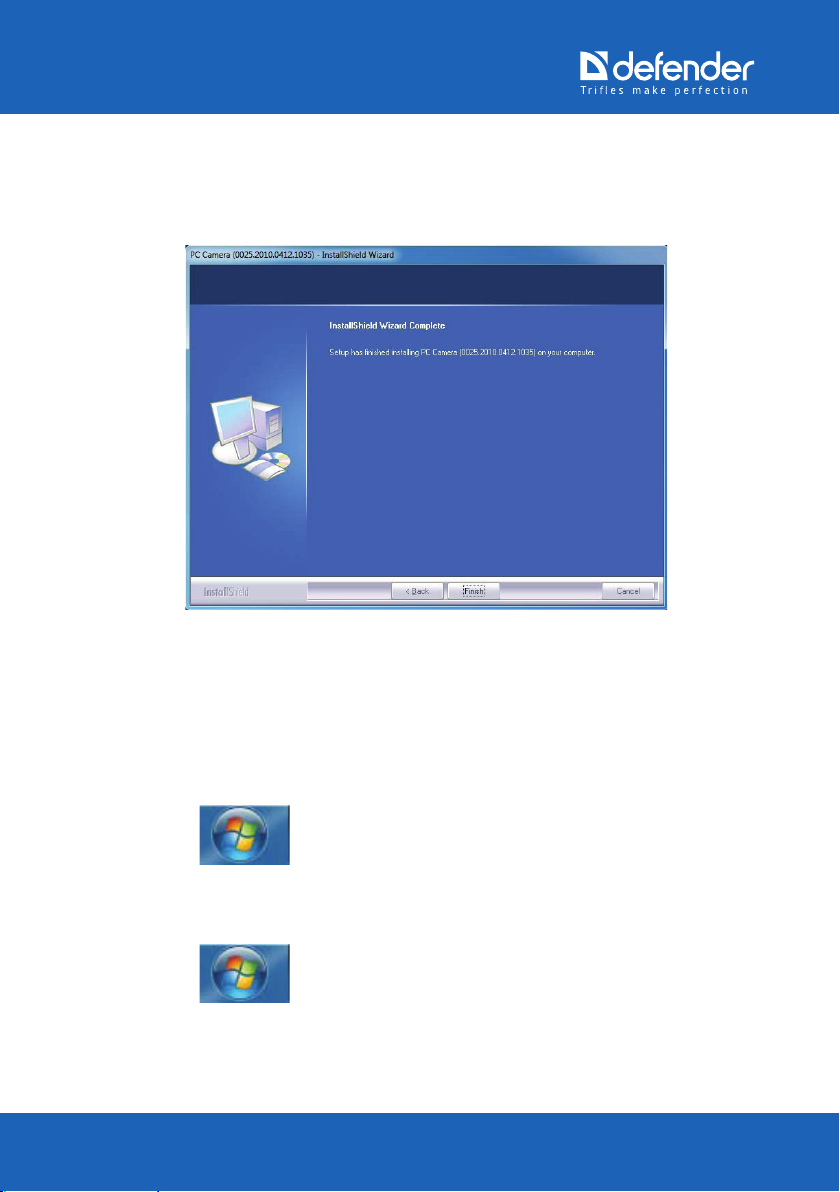

8. Wait until the installation completion window appears:

www.defender-global.com www.defender-global.com 7
9. Connect your webcam. At the right bottom of the screen the Software
installation icon (the end icon located on the left in the icons row) will
appear.
10. Make sure the Devices Manager in the Image Processing Devices
section has a PC Camera device listed.
Press Finish in the installation completion window.
How to nd your webcam in the Devices Manager
The Devices Manager window can be opened in two ways:
1. Press Start (at the left bottom of the screen or on the keypad).
Then right click on My Computer or Computer and select Properties. In the
popup window select Devices Manager.
2. Press Start (at the left bottom of the screen or on the keypad).
Then right click on My Computer or Computer and select Management. In
the popup window select Devices Manager.

www.defender-global.com
8
The following message may appear when launching the Devices Manager
Note: In some cases, depending on the software and computer
conguration a dierent layout of windows and other operations
procedure are possible. If user rights are restricted, we recommend
contacting the computer administrator or use the computer administrator
account.
Manual installation of the driver
1. Download the driver for manual installation and unzip it (depending
on the archive and operating system settings, ZIP or RAR archive manager
may be required).
We recommend copying the PAC7302 folder to the system root disk or any
other disk available in the system.
2. Connect your webcam to the computer. Select Find and install the driver
(recommended).
3. The drivers search window will popup. Press Browse and specify the
folder where you posted your unzipped drivers to:
Press OK.
Press Install this driver in any case.
4. The New equipment installation window will popup. After the driver has
been installed select Close in the popup window:
Restart your computer.
5. In case of successful installation the Devices Manager will have a PC
Camera device listed in the Image Processing Devices section.
In that case press Start.
Note: In some cases, depending on the software and computer
conguration a dierent layout of windows and other operations
procedure are possible. If user rights are restricted, we recommend
contacting the computer administrator or use the computer administrator
account.

www.defender-global.com www.defender-global.com 9
What is User Account Control (UAC)
User Account Control (UAC) is the Windows Vista feature which allows
preventing unauthorized changes in the operating systems. User account
control provides security by requesting administrator’s authorization
or password before performing potentially dangerous operations or
changing parameters which can aect other users’ or operating system’s
work.
The appeared UAC message should be attentively read, and one should
make sure the name of the operation (program) performed corresponds
to the one which is actually performed (launched). By verifying such
operations before launch, the user account control helps prevent
installation of malicious software and spyware including attempts of such
programs to make unauthorized changes in the operating system.
In case an authorization or password is required to complete the task, the
user account control feature will display a warning message in one of the
following forms:
– Windows requires your permission to continue: – your permission is
required to launch a Windows feature or program which can potentially
aect the work of other users of this PC. Check the operation name to
make sure this is the feature or program which needs to be launched;
– The program requires your permission to continue: your permission is
required to launch a non-Windows program. It has a valid digital signature
which contains its name and publisher which allows conrming the
program authenticity. Make sure this is the program which needs to be
launched:
– Unrecognized program attempts to get access to this computer:
unrecognized program is a program which doesn’t have a valid digital
signature from the publisher which allows conrming the program
authenticity. It doesn’t necessarily imply danger since many old licensed
programs lack signatures. However, such programs need additional
attention, and they can be launched only provided they are received from

www.defender-global.com
10
a reliable source such as original CD or publisher’s web-site;
- The program has been blocked: the program the launch of which is
blocked by the administrator on purpose. To launch it, it is necessary to
contact the administrator and request him/her to unblock the program.
Read in full:
How to disable the user account control feature
Var.1. Disabling the user account control using the control panel
1. Press Start –> Control panel –> User accounts –> Enabling or disabling
the user account control (UAC);
2. Enter the administrator password if there is a relevant request;
3. Clear a tick box Use the user account control (UAC) to protect your
computer feature –> OK;
4. After restarting your PC user account control will be disabled.
Var.2. Disabling user account control using the System conguration
tools wizard
1. Log into the system as Administrator.
2. Press the Windows button + R;
3. In the Open eld of the Run window enter mscong –> OK;
4. In the System conguration window open the Service tab;
5. In the scrollable list nd the Disable user account control (UAC) tool –>
Start;
6. After restarting your computer user account control will be disabled.
Var.3. Disabling user account control using the registry editor
1. Press Start.
2. In the Start searching line enter regedit;
3. Under the Programs title right click on regedit.exe;

www.defender-global.com www.defender-global.com 11
4. From the shortcut menu select Run as Administrator;
5. Enter the administrator password if there is a relevant request;
6. In the popup Registry editor window nd the
[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\
CurrentVersion\Policies\System] section;
Find REG_DWORD - EnableLUA parameter;
Set it to 0.
Var.4. Disabling user account control using the Windows commands
processor
1. Press Start.
2. In the Start searching line enter cmd;
3. Under the Programs title right click on cmd.exe;
4. From the shortcut menu select Run as Administrator;
5. Enter the administrator password if there is a relevant request;
6. When prompted, enter
REG ADD HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\
System /v EnableLUA /t REG_DWORD /d 0 /f command
7. Press Enter.
Installation of G-lens webcam software for Windows 7
Installation of the device driver from CD
1. Insert the CD from the webcam kit into the CD drive.
If your operating system has the autorun support feature enabled, the
installation program will be launched automatically. In case your operating
system has the autorun support feature disabled, open the CD contents
and run the autorun.exe le using the explorer.
2. In the popup window of the installation program select Install driver.

www.defender-global.com
12
3. In the next popup window select the model of your webcam. Press Yes
in the User accounts control window.
4. The following window alerting you that the webcam should be disabled
and all launched programs should be closed will open:
Press OK.
5. The Windows Safety window will popup.
Press Install.

www.defender-global.com www.defender-global.com 13
6. Wait until the installation completion window appears:
Connect your webcam. At the right bottom of the screen the Installing the
software icon will popup.
7. In case of successful installation the Devices Manager will have a PC
Camera device listed in the Image Processing Devices section. Press Finish
in the installation completion window.
How to nd your webcam in the Devices Manager
The Devices Manager window can be opened in two ways:
1. Press Start (at the left bottom of the screen or on the keyboard).
Then right click on My Computer or Computer and select Properties. In the
popup window select Devices Manager.
2. Press Start (at the left bottom of the screen or on the keyboard).
Then right click on My Computer or Computer and select Management. In
the popup window select Devices Manager.

www.defender-global.com
14
How to disable the digital signature verication feature
There are two ways.
The rst way: when booting the computer press F8 at the moment of BIOS
operation completion and before the operating system starts loading.
In the popup window select the Disabling the driver digital signature
verication option.
The second way:
1. Press Start (at the left bottom of the screen or on the
keyboard). Then in the Search for les and programs window enter gpedit.
msc and press Enter.
2. The Local group policy editor window will open. Select: User
conguration - Administrative templates - System - Driver installation
-Device driver digital signature. Double click or right click this item and
select Edit:
3. In the popup window select the Disable item. Press Apply and OK.
If you select Enable, you can additionally set the way the system should
respond to the driver without digital signature.
4. After conrmation restart the computer.
Note: In some cases, depending on the software and computer
conguration a dierent layout of windows and other operations
procedure are possible. If user rights are restricted, we recommend
contacting the computer administrator or use the computer administrator
account.
Manual installation of the driver
1. Download the driver for manual installation and unzip it (depending on
the archive ZIP or RAR archive manager may be required) to the folder. We
recommend posting the folder in the system root disk.

www.defender-global.com www.defender-global.com 15
2. If you have previously installed the driver from the setup disk, the folder
with drivers will be located as specied below:
System disk:\Program Files (x86)\Common Files\PAC7302 (for 64-bit
operating systems)
System disk:\Program Files\Common Files\PAC7302 (for 32-bit operating
systems).
We recommend copying the PAC7302 folder to the System root disk or any
other disk available in the system.
3. Launch the Devices Manager (see the launching procedure above) and
connect your webcam.
4. Right click on the Unknown device icon and select Properties. In the
popup window select the Driver tab, then select Refresh.
5. Select Search for drivers on this computer.
6. Press Browse.
Select the folder which the driver was unzipped to for manual installation
and press OK.
7. Select Install this driver in any case. Wait until the installation completion
window appears.
8. When the driver is installed press Close in the popup window.
9. In the Image Processing Devices section the Devices Manager will have
a PC Camera device listed.
After installation is nished, restart the computer.
Note: In some cases, depending on the computer conguration and
software, a dierent layout of windows and other operations procedure
are possible. If user rights are restricted, we recommend contacting the
computer administrator or use the computer administrator account.

www.defender-global.com
16
Webcam operation
1. To start working with the webcam press Start, then select Programs -
Amcap as shown on the gure below.
2. The program window will appear on the screen. You will see the picture
displayed by the webcam.
3. From the Options upper menu select Video Capture Pin... to set the
required image denition.

www.defender-global.com www.defender-global.com 17

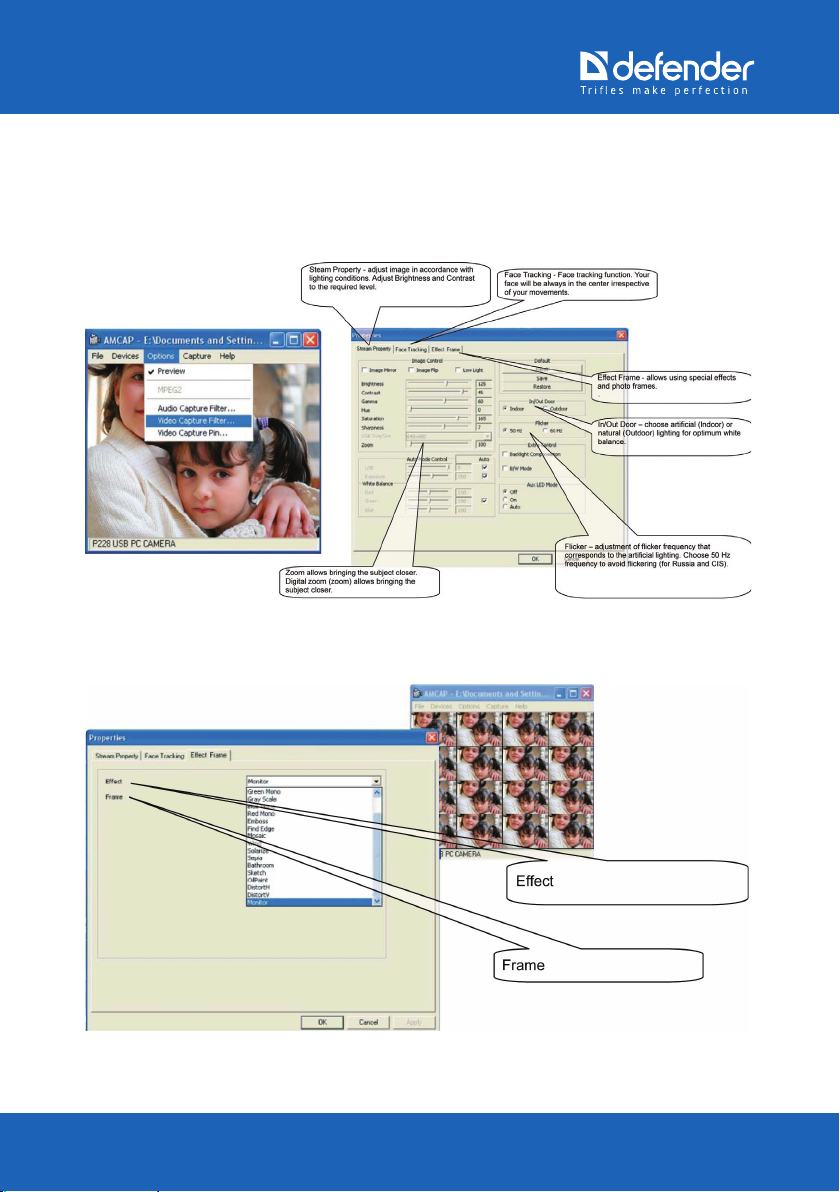

Additional settings
By selecting Video Capture Filter you can setup an image using additional
settings.
You can select 10 frames and special eects.

www.defender-global.com
18
How to make a picture?
From the Capture upper menu select the Snap Shot option and take a
picture. The picture taken will appear on the screen. Go to the File menu
and save your picture in the required directory.
How to record a video?
From the Capture upper menu select the Start Capture option and
recording will begin. Select Stop Capture to stop recording. Go to the File
menu and save your video in the required directory.
Backlight feature
(only in the G-lens 321 model)
The backlight can be switched on and o using the toggle button on the
webcam back.
Using Skype with the webcam
Launch Skype only from the developer website http://www.skype.com/
intl/ru/home .
After Skype is installed, restart the computer. For getting Skype technical
support contact its developer.
1. To access settings, launch the Skype window, select Tools and Settings...
2. Go to Audio settings and specify the microphone: Microphone (USB
audio device). In case there is only one device in the system, the item to
be selected can be unavailable.
3. Go to Video settings and specify as follows in the Select webcam
window: PC Camera. If there is only one device in the system, the item to
be selected can be unavailable.

www.defender-global.com www.defender-global.com 19
ATTENTION !!!
When used for a long period of time, the webcam can heat up.
In case of excessive heat turn the webcam o for a while.
Do not use the webcam in hot (over 40˚С, direct sunlight), cold (below 10˚С),
dusty or humid premises (over 90 % of humidity, moisture condensation).
Do not drop the webcam.
Make sure the lens doesn’t contact solid objects, do not touch the lens with
hands; to remove dust use the optics care products. Never use solvents
such as alcohol, acetone etc., as well as acid containing liquids.
Avoid ingress of moisture and liquids on the surface and inside the
webcam.
In case of outside temperature uctuations (by over 7˚С) do not turn on
the webcam during two hours.
To transmit video signal on the Internet or on any other IP networks,
relevant software is required, and it should be congured according to
the documents on operating a specic webcam.
Cases non-covered by the limited warranty
The limited warranty does not cover User Manuals, any third-party
software as well as settings added during installation, assembly, purchase,
any other stage of delivery or added otherwise by the use.
Furthermore, the limited warranty does not cover:
• ordinary wear and tear;
• software;

www.defender-global.com
20
• defects caused through careless use;
• defects or damage caused through improper use of the product,
including use which contradicts the Manual;
• defects or suspected defects caused by using or connecting the
product to any product, software or service that are non-compatible
with the webcam, as well as by using the product for purposes other
than intended;
• defects caused through mechanical damage of wire, webcam body,
unsealing the body, using the equipment which is not designed
therefor, as well as in case of breakup traces;
• if the product has been broken up, modied or repaired by anyone
except for the service center, if it has been repaired with the use of
unauthorized parts or if the product serial number is destroyed,
changed or can not be read, provided that this fact is determined at
the discretion of Defender;
• if the product has been exposed to moisture, humidity or
extreme temperature or external exposures or sudden changes of
environmental conditions, corrosion, oxidation, in case liquids have
been spilled on it or it has been aected by chemicals or food has
been dropped on it.
• the warranty does not cover the outcome of third parties actions.
• this warranty does not cover damages which occurred as a result
of circumstances beyond one’s reasonable control, such as: natural
disasters, industrial disasters, acts of terrorism, explosions etc.
