INTRODUCTION
Congratulations on the purchase of this quality appliance. We, the manufacturer, trust
that you will enjoy many years of trouble free use. Please read these instructions carefully
before using the oven. This book will provide you with information on how to operate
and care for your appliance in order that you gain the maximum benefit from it.
UNPACKING
• Please ensure that packaging material is disposed of in a responsible manner. Plastic
bags should be cut up to prevent children playing with them and accidentally
suffocating.
• Remove all packing from the oven cavity and position the accessories.
• If the appliance is damaged in any way, do not use it. Report the damage to your
dealer, who will take the necessary corrective action.
CUPBOARD DESIGN
• Cooking appliances generate considerable heat. The layout and materials of the
mounting cabinet should take account of the characteristics of the oven.
• Surfaces immediately adjacent to the oven should be able to withstand temperatures
of up to 100 C without delaminating or discolouring.
• Gemini ovens exhaust through a vent in the upper part of the handle. The vent at the
bottom of the handle is an air intake.
• Gemini ovens are designed for installation with cupboard doors which provide at least
100mm. clearance alongside and above the oven. Overhead doors may be subjected to
heat as well as condensation if moist foods are being cooked.
• Note that the oven doors are reversible and may hinge from the left or right. Consult
the nearest Defy Service Centre and they will advise the correct procedure.
SAFETY ADVICE
• Only use the appliance for preparing food.
• Always keep children away from the appliance when it is in use.
• Do not leave hot fat or oil unattended. If overheating occurs, these could catch fire.
• Switch off the power at the mains in the event of a fault or when cleaning the oven.
• Do not store flammable items in the oven. If the oven is inadvertently switched on,
these could catch fire.
• Never cover the bottom oven element with aluminium foil. Cooking times will be
affected and the oven enamel could be damaged.
• Avoid spilling fruit juice, particularly citrus, on the appliance as it could damage the
enamel.
• Always keep the oven door gaskets clean as this will enable the door to seal properly.

INSTALLATION

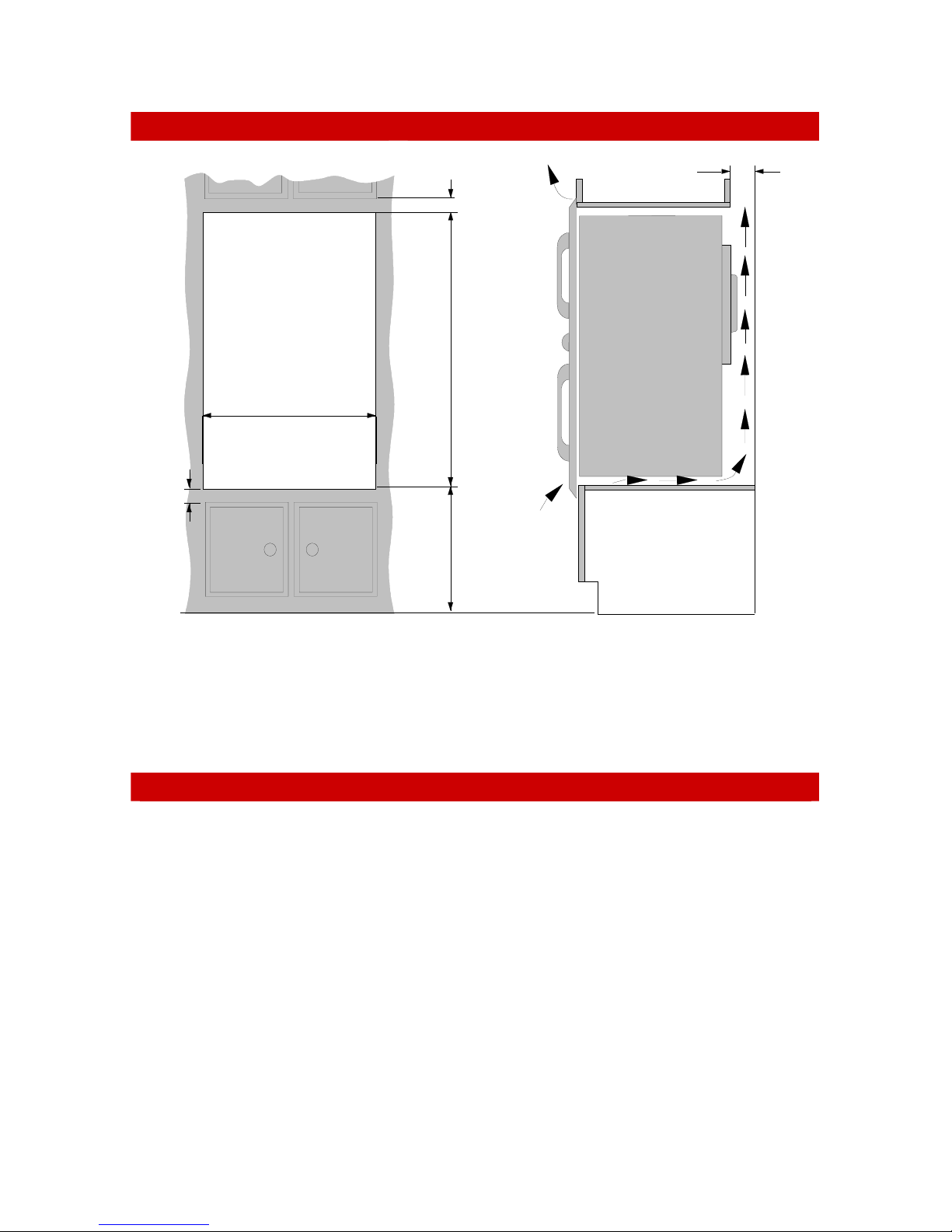

1085
Aperture
Typical section showing
ventilation requirements
Aperture
1085 H x 700 W x 580 D
700
600
Above floor
level
Floor
60
+
_3
0
+
_3
0
+
_3
0
+
_3
0
Aperture
32
32
• Support the oven in front of the aperture and make the electrical connection before
installing. This will ensure enough cable length for subsequent servicing.
• Unscrew and remove the top and bottom trims to expose the fixing holes.
• Secure the oven to the cabinet using suitable screws. ( Fasteners are not provided.)
• Replace the top and bottom trims.
ELECTRICAL INSTALLATION
This appliance must be earthed and the manufacturer and the seller do not
accept responsibility for any damage due to incorrect installation or
electrical connection.”
Earth leakage
This appliance should not be connected through an earth leakage system.
Refer to S.A.B.S. 0147.
Connection to the power supply must be carried out by a licensed electrician, who will
ensure that the oven is correctly connected and safely earthed. The rated current is printed
on the serial number label attached to the oven bottom trim.
The appliance must be connected to the mains through a double pole isolating switch
which has a minimum clearance between the contacts of 3 mm. in both poles.
A means for disconnection must be provided in the fixed wiring.

THE CONTROL PANEL
1
0
8
+
-
S
GEMINI CORDON BLEU
12:45
1
0
8
1
0
8
THE OVEN THERMOSTATS ARE MARKED DOWN TO 70°C.
WHEN SET TO THIS POSITION, THE OVENS MAY BE USED AS WARMERS
AUTOMATIC OVEN TIMER / CLOCK

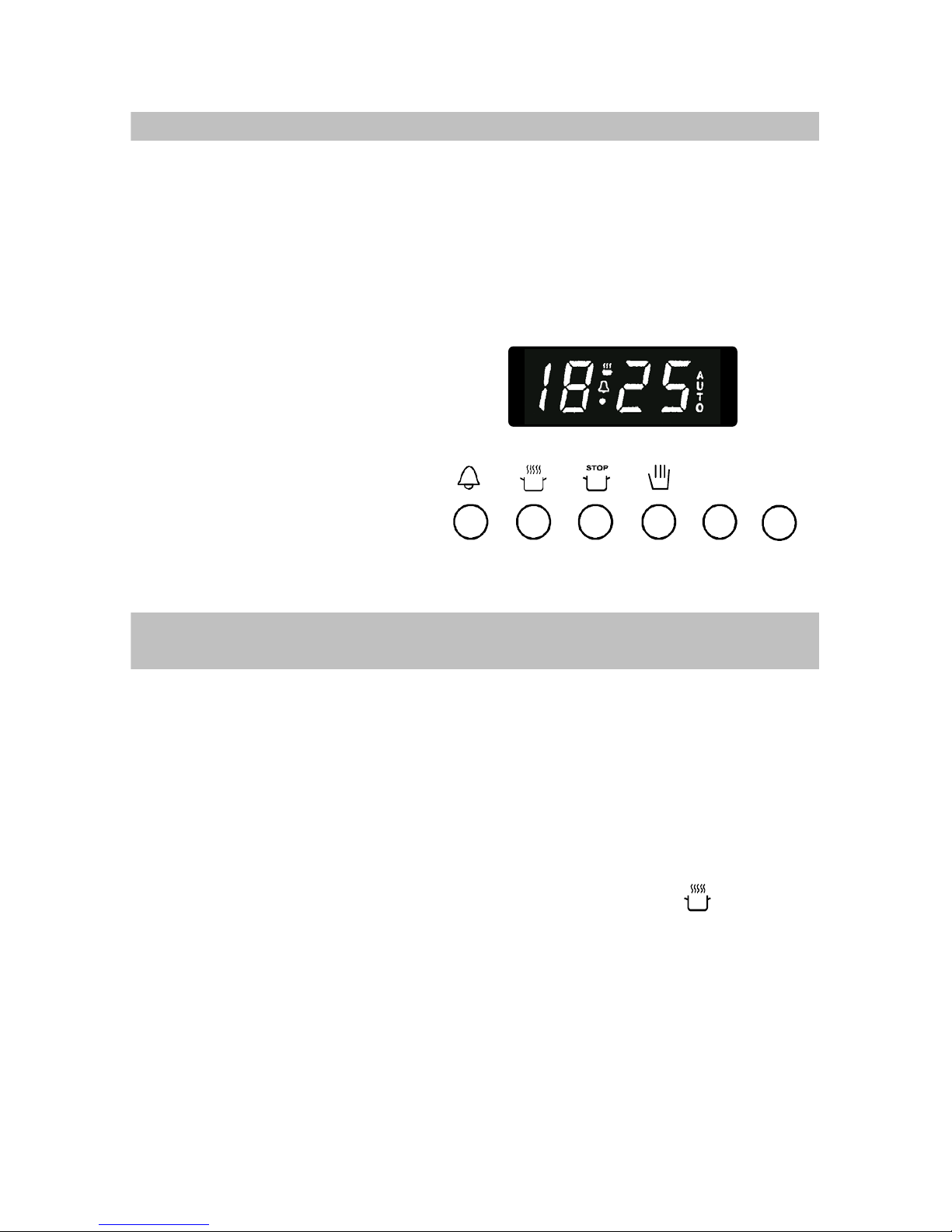

BUTTON FUNCTIONS
1= MINUTE MINDER
2= COOKING PERIOD
3= STOP TIME
4= MANUAL CONTROL
5= SUBTRACT
6= ADD
SETTING THE TIME OF DAY
• When the power is first connected ( or after a power failure), the clock display will
flash 00.00.
• To set the clock, press buttons 1and 2and hold them down.
• Press button 5or 6until the correct time of day is displayed.
• Release the buttons. The clock is now set.
• Please note that the clock has a 24 hour display.
• For example 3.00 PM will be displayed as 15.00.
Bottom oven
thermostat
and indicator
light
Top oven
thermostat and
indicator light
Automatic
oven timer
and clock for
bottom oven
only
Bottom
oven
variable
grill
+
-
654321

MINUTE MINDER
• Suppose that you wish to time the boiling of a 5 minute egg.
• First boil the water
• Press and hold button 1. The display will show 00.00
• Press button 6 until the display shows 00.05
• Release the buttons and place the egg in the boiling water. The display will again
show the time of day.
• After 5 minutes the timer will emit an electronic tone which lasts for about one
minute (2 beeps every 2 seconds). To cancel the tone, press any of the buttons.
Note:
• During the operation of the
minute minder, the remaining
time may be displayed by
pushing button 1
• The minute minder can be used
simultaneously and independent
of any automatic control program
• The display will always revert to
the time of day after any program
has been set.
SWITCHING THE OVEN ON AND OFF AUTOMATICALLY
(Autobake)
Autobake is intended for dishes such as roasts and casseroles. These are not affected by a
waiting period in a cold oven.
• Prepare your meal and place it in the oven.
• Set the cooking period required by pressing buttons 2and 6 until the desired period is
displayed.
• Set the stop time by pushing buttons 3and 6until the desired stop time is displayed.
• Release the buttons and the clock will again display the time of day.
• The word AUTO will light up on the clock display.
• Now set the relevant oven thermostat to the desired temperature setting.
The automatic control will automatically switch the oven on and the symbol will
light up in the clock display.
Cooking will commence at the selected temperature and for the selected cooking period.
The oven will automatically switch off at the selected stop time and emit an electronic
tone for about one minute (4 beeps every 2 seconds). To cancel the tone, press any of the
buttons.
• The word AUTO will flash until button 4is pressed and manual control is restored.
• The oven thermostat must be turned to the OFF position in an anticlockwise
direction.
+
-
654321

Example:
Suppose the time of day is now 13h00. The food needs to be cooked for 2 hours at 180 C
and it should be ready to serve at 18h00. Here’s what to do.
• Ensure the clock is set to the correct time of day, 13.00.
• Press buttons 2and 6until 02.00 is displayed
• Press buttons 3and 6until 18.00 is displayed.
Set the oven thermostat to 180 C
Hint:
It is not advisable to use the Autobake function for cooking periods that are
less than 60 minutes.
+
-
654321
SWITCHING THE OVEN OFF AUTOMATICALLY
Suppose you have to go out and you will not be back in time to switch off a meal already
cooking in the oven and requiring another 40 minutes before it is done. Proceed as
follows:
• Press and hold button 2. The clock will display 00.00.
• Press button 6until the clock displays 00.40.
• Release the buttons and the clock will again display the time of day. and the
word AUTO will light up in the display.
• After 40 minutes the oven will switch off automatically and emit an electronic tone
for about one minute. (4 beeps every 3 seconds)
• To cancel the tone, press any of the buttons.
• The word AUTO will flash until button 4is pressed and manual control is restored.
• The oven thermostat must be turned to the OFF position in an anticlockwise
direction.
Important
If the Automatic start and or stop functions are not required, the clock must be set to
manual mode. Unless this is done, the oven will not work. Press button 4
The automatic timer / clock only controls the bottom oven.

BAKING OR COOKING IN THE OVEN
• If the bottom oven is being used, the timer must be set to manual. Press button 4.
• Set the oven thermostat to the required temperature. The indicator light will glow and
remain on until the oven has reached the selected temperature.
• When the indicator light switches off, the food should be placed in the oven.
• During cooking the indicator light will cycle on and off as the oven thermostat
maintains the selected temperature
• After completion, the thermostat must be returned to the OFF position in an anti
clockwise direction.
Baking guide
• Where possible, bake on the middle shelf
position (3) in the oven.
• Place the food halfway between the back of the
oven and the door.
• Do not open the oven door until at least two
thirds of the baking time has lapsed.
GRILLING (BOTTOM OVEN ONLY)
• The oven door must remain partially open (about 50 mm)
• Ensure that the timer is set to manual. Press
button 4.
• Set the oven thermostat to the GRILL position.
• Pre-heat the roast pan and broiler for 5 minutes
under the grill element to help seal the meat.
• Place the food on the roast pan and place this on a
wire shelf near to the grill element.
• Monitor the grilling process to avoid
burning the food.
• Care must be taken not to touch the grill element while handling food in the oven.
• After completion, the thermostat must be returned to the OFF position in an anti
clockwise direction.
WARNING:
ACCESSIBLE PARTS MAY BECOME HOT WHEN GRILLING.
TAKE CARE NOT TO TOUCH THESE PARTS AND TO KEEP CHILDREN
AWAY.
1
2
3
4
5
RECOMMENDED
BAKE POSITION
1
2
3
4
5
RECOMMENDED
GRILL POSITION

MAINTENANCE
Cleaning the ovens
• Switch off the power at the wall switch, open the oven
door and allow the oven to cool down.
• Remove the oven shelves, side racks, broiler, roast pan
and element guard. Wash in soapy water, rinse dry and
replace.
• Clean the oven with a hot soapy cloth.
• It may be necessary to soak burnt soils with a liquid
cleaner to soften them before scrubbing them with a
nylon brush or scouring sponge.
• Heavy soils on the bottom of the oven may require
overnight soaking under a sponge liberally sprinkled with
household ammonia. The soil can then be removed the
following morning by washing normally.
• Do not use metal objects or steel wool to clean the oven.
• After cleaning, fit the bottom element into the element
guard hooks. Failure to observe this precaution would
allow the element to rest on and possibly damage the oven
enamel.
• Restore the power and re-set the timer. (see page 4)
General cleaning.
• Switch the power off at the wall switch.
• Wipe down glass panels, cabinet, door, control knobs, trims and handles with a hot
soapy cloth.
• Use only liquid household cleaners and avoid abrasive powders, scouring pads and
caustic cleaners.
• Rinse and wipe down with a clean cloth.
• Restore the power and re-set the timer. (see page 4)
The oven light.
The oven light is switched on by the multi function knob or the oven thermostat knob
(depending on model).
(1st position on the dial) and switches off when the multi function knob or thermostat is
returned to 0.
To replace a faulty light bulb, proceed as follows.
• Switch off the power at the wall switch.
• Remove the light cover by unscrewing it in an anti-clockwise direction.
• Unscrew the faulty bulb and fit a new 40-watt bulb rated for 300 C.
• Refit the light cover.
Restore the power and re-set the timer (see page 4).

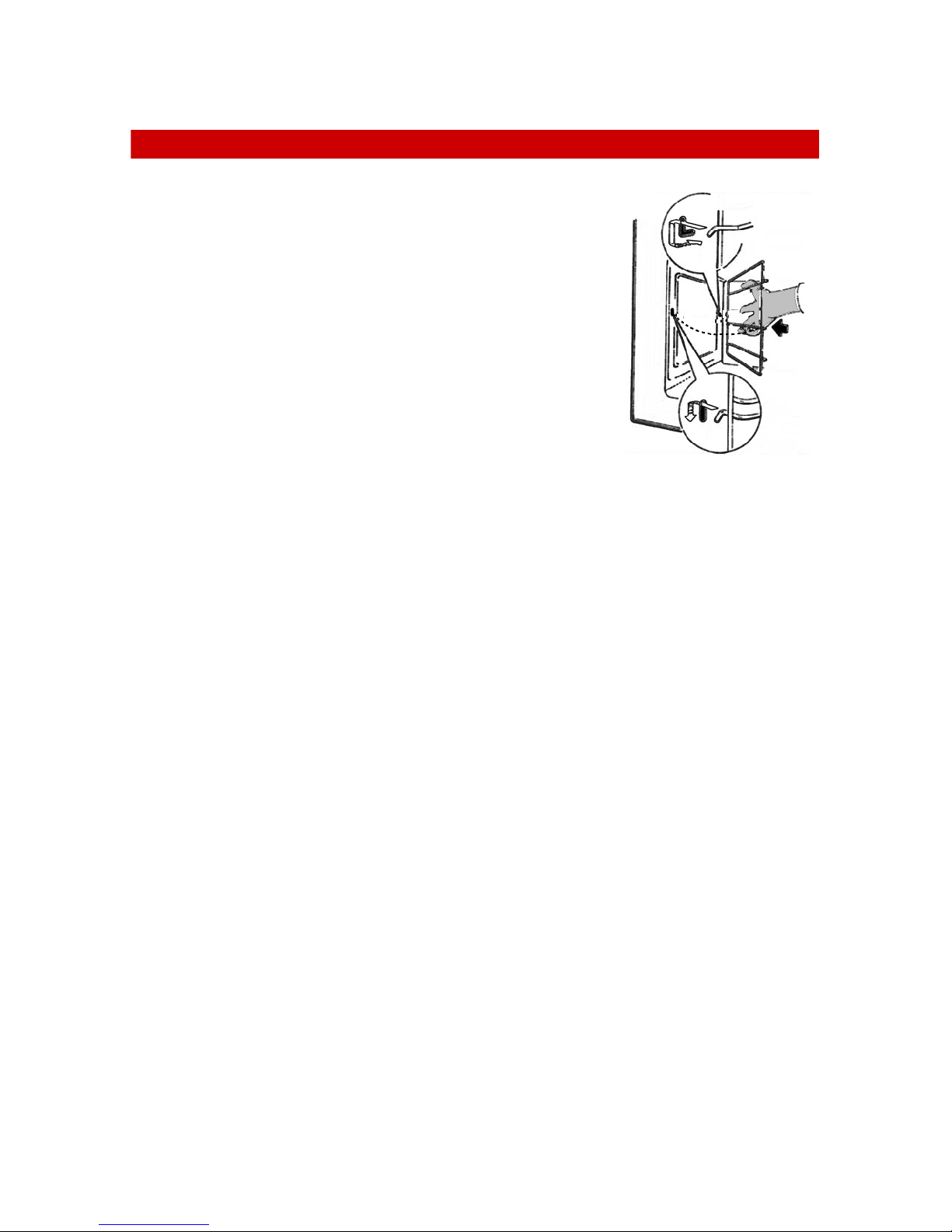

To remove the side
racks, lift and pull
out the front, slide
the rack forwards
and lift free.
Fit in reverse order

PROBLEM CHECK
Before calling a service technician to assist with a problem, PLEASE
CHECK THE FOLLOWING
THE MAINS DISTRIBUTION BOARD
THE WALL SWITCH
SET THE TIMER TO MANUAL
Remember that you may be charged for a service call even during the warranty period if
the fault is due to or caused by any of the above.
OWNER’S RESPONSIBILITY
Since the following are not factory faults, they are the owner’s responsibility.
• Damage to exterior finish.
• Breakage of glass and other components.
• Replacement of the light bulb.
• Damage through improper use or installation of the appliance.
• Damage caused by moving the appliance.
SERVICE
If you have followed the instructions and still have a problem, contact the nearest Defy
Service Centre. They will be able to advise you on any aspect of the machine or send a
qualified technician to repair it.

FEATURES AND BENEFITS
FEATURES BENEFITS
Double oven Versatile cooking
Conventional cooking and grilling Traditional baking and grilling at
its best
Automatic oven timer Start time, cooking time, minute
minder, and time of day
Reversible doors Designed to suit any kitchen
layout
Full glass doors Easy inspection of oven interior
Illuminated displays Easy to read and comprehend
Roast pan and broiler Accessories for cooking
convenience
The Manufacturer strives for continuous improvements. For this reason the text and
illustrations in this book are subject to change without notice.
Part Number 061 800
