Dehler 39 User manual

N
ame of Boat
Shipyard Number
HIN ( Hull Identification Number )
Design Category
A
OWNER’S MANUAL
DEHLER 39
Dehler Segelyachten GmbH
Industriegebiet Im Langel
D-59872 Meschede
Telefon [phone]
Telefax 0049-2903-440-282

Manual DEHLER 39
2 - 72
Owner’s manual version 28.08.01
Your Seller’s Stamp

Manual DEHLER 39
3 - 72
1.1 Table of Contents
Zuiddijk 412 --------------------------------------------------------------------Fehler! Textmarke nicht definiert.
1.1 Table of Contents ----------------------------------------------------------------------------------- 3
1.2 List of Illustrations ----------------------------------------------------------------------------------------- 7
1.3 Introduction----------------------------------------------------------------------------------------- 8
1.4 Stickers - List--------------------------------------------------------------------------------------- 9
Gas---------------------------------------------------------------------------------------------------------- 9
1.5 Design Category -----------------------------------------------------------------------------------11
1.6 Identification---------------------------------------------------------------------------------------11
1.7 Manufacturer’s Plate-----------------------------------------------------------------------------12
1.8 Statement of Conformity -------------------------------------------------------------------------13
1.9 Technical Regulations----------------------------------------------------------------------------14
2. Description of the boat-----------------------------------------------------------------------------15
2.1 Main data---------------------------------------------------------------------------------------------------15
2.2 Transport measurements--------------------------------------------------------------------------------16
2.3 Dimensions of sails----------------------------------------------------------------------------------------16
2.4 Weights------------------------------------------------------------------------------------------------------16
2.5 Engine system----------------------------------------------------------------------------------------------16
2.6 Electrical system ------------------------------------------------------------------------------------------16
2.6.1 230 V Alternating current------------------------------------------------------------------------------------ 16
2.6.2 12 V Direct current system----------------------------------------------------------------------------------- 17
2.6.3 Battery capacities ---------------------------------------------------------------------------------------------- 17
2.7 Capacity of tanks------------------------------------------------------------------------------------------17
2.8 Maximum number of persons--------------------------------------------------------------------------17
2.9 Additional load --------------------------------------------------------------------------------------------18
2.10 Cranes -----------------------------------------------------------------------------------------------------18
3. General Drawings ----------------------------------------------------------------------------------19
3.1 >2 Cab.-Version-------------------------------------------------------------------------------------------19
3.2 >3 Cab.-Version-------------------------------------------------------------------------------------------20
3.3 Deck drawing ---------------------------------------------------------------------------------------------21
3.3.1 Deck--------------------------------------------------------------------------------------------------------------- 22
3.3.2 Sea railing ------------------------------------------------------------------------------------------------------- 22
3.3.3 Lifeboat ---------------------------------------------------------------------------------------------------------- 22
3.4 Sail plan-----------------------------------------------------------------------------------------------------23
3.4.1 Sail dimensions ------------------------------------------------------------------------------------------------- 23
3.4.2 Masting plan ---------------------------------------------------------------------------------------------------- 23
3.4.3 Halyard running ----------------------------------------------------------------------------------------------- 24
3.4.4 Main sheet running-------------------------------------------------------------------------------------------- 24
3.4.5 Furling genua / Main sheet traveller------------------------------------------------------------------------ 24
3.6 Shrouds, stays and halyards-----------------------------------------------------------------------------25
Dimensions-------------------------------------------------------------------------------------------------------25
3.7 Running rigging--------------------------------------------------------------------------------------------25

Manual DEHLER 39
4 - 72
3.8 Hints for easy sailing -------------------------------------------------------------------------------------26
4. Description of on-board systems------------------------------------------------------------------27
4.1 Machine installation-----------------------------------------------------------------------------------27
Standard ---------------------------------------------------------------------------------------------------------27
Optional----------------------------------------------------------------------------------------------------------27
4.1.1 Exhaust system-------------------------------------------------------------------------------------------------- 27
4.1.2 Exhaust system/Maintenance-------------------------------------------------------------------------------- 28
4.1.3 Maintenance hints for the propeller------------------------------------------------------------------------ 29
4.1.4 Engine maintenance intervals ------------------------------------------------------------------------------- 29
4.1.5 Fuel tank--------------------------------------------------------------------------------------------------------- 29
4.1.6 Fuel cycle -------------------------------------------------------------------------------------------------------- 29
4.1.7 Engine switch board------------------------------------------------------------------------------------------- 32
4.2 Fresh water, drinking water, cold---------------------------------------------------------------------33
4.2.1 Cockpit shower( optional ) ----------------------------------------------------------------------------------- 33
4.2.2 Shower in the shower room---------------------------------------------------------------------------------- 33
4.2 Fresh water, hot ----------------------------------------------------------------------------------------34
4.3.1 Heat exchanger – cold-resistant------------------------------------------------------------------------------ 35
Components -----------------------------------------------------------------------------------------------------35
4.3.2 Waste water pump--------------------------------------------------------------------------------------------- 36
4.3.3 Fast shut-off valve fresh water installation --------------------------------------------------------------- 37
4.5 Alternating current installation------------------------------------------------------------------------38
4.5.1 Shore connection unit ----------------------------------------------------------------------------------------- 38
4.5.2 Charge unit MASTERVOLT-------------------------------------------------------------------------------- 38
4.6 On-board direct current system -----------------------------------------------------------------------39
4.6.1 Setup of main fuses -------------------------------------------------------------------------------------------- 39
4.6.2 Additional fuses-------------------------------------------------------------------------------------------- 39
4.6.3 Main data switch board--------------------------------------------------------------------------------------- 41
Fuse locations ---------------------------------------------------------------------------------------------------41
4.6.4 Battery Charging----------------------------------------------------------------------------------------------- 42
Alternating current consumers------------------------------------------------------------------------------42
4.6.5 Auxiliary supply ----------------------------------------------------------------------------------------42
4.6.6 Tank Control---------------------------------------------------------------------------------------------------- 42
4.6.7 Wiring diagram of switch board---------------------------------------------------------------------------- 43
4.6.8 Folded electric wiring diagram------------------------------------------------------------------------------ 44
4.6.9 Fuse bars/Switch bars----------------------------------------------------------------------------------------- 45
4.6.10 Waste water tank (optional)-------------------------------------------------------------------------------- 46
4.6.11 Holding tank 2nd Shower Room--------------------------------------------------------------------------- 46
4.6.12 Comfort Consumers ----------------------------------------------------------------------------------------- 46
4.6.13 Electric wiring diagram------------------------------------------------------------------------------------- 46
4.6.14 Relevant indications for the direct current installation----------------------------------------------- 46
4.7 Bilge systems-----------------------------------------------------------------------------------------------48
4.7.1 Anchor locker--------------------------------------------------------------------------------------------------- 48
4.7.2 Cockpit----------------------------------------------------------------------------------------------------------- 48
4.7.3 Hand bilge pump----------------------------------------------------------------------------------------------- 48
4.7.4 Piston pump----------------------------------------------------------------------------------------------------- 49
4.7.5 Electric bilge pump-------------------------------------------------------------------------------------------- 49
4.8 Rudder system----------------------------------------------------------------------------------------------50
4.8.1 Rudder blade and rudder bearing-------------------------------------------------------------------------- 51
4.8.2 Return------------------------------------------------------------------------------------------------------------ 51
4.8.3 Steering column ------------------------------------------------------------------------------------------------ 51
4.8.4 Rudder maintenance ------------------------------------------------------------------------------------------ 51
4.8.5 Emergency head------------------------------------------------------------------------------------------------- 51

Manual DEHLER 39
5 - 72
4.9 Gas installation-----------------------------------------------------------------------------------------52
4.9.1 Certificate for Gas Installations------------------------------------------------------------------------------ 53
4.10 Pump toilet ------------------------------------------------------------------------------------------------54
4.10.1 Holding tank (optional) -------------------------------------------------------------------------------------- 54
4.10.2 Emptying of the tank ----------------------------------------------------------------------------------------- 54
Maintenance-----------------------------------------------------------------------------------------------------55
4.1.4 Fast shut-off valves -------------------------------------------------------------------------------------------- 55
5. Fire protection ---------------------------------------------------------------------------------------56
5.1 Preventive fire protection -------------------------------------------------------------------------------56
5.2 Active fire protection-------------------------------------------------------------------------------------57
5.3 Firefighting-------------------------------------------------------------------------------------------------58
5.4 In case of a fire in the pantry---------------------------------------------------------------------------58
5.5 in case of a fire in the engine room--------------------------------------------------------------------58
5.6 In case of a fire in the living space---------------------------------------------------------------------58
6 Heating (optional): ----------------------------------------------------------------------------------59
6.1 Temperature control -------------------------------------------------------------------------------------59
6.3 Dosage pump/Filter---------------------------------------------------------------------------------------59
7 . Board outlets, sea valves---------------------------------------------------------------------------60
7.1 >2 Cab. and 3 Cab.-Version ----------------------------------------------------------------------------60
7.1.1 Cabin bilger----------------------------------------------------------------------------------------------------- 61
7.1.2 Helm hollow----------------------------------------------------------------------------------------------------- 61
7.1.3 Leak stop--------------------------------------------------------------------------------------------------------- 61
Components -----------------------------------------------------------------------------------------------------61
8. Environmental protection -------------------------------------------------------------------------63
8.1 Fuel and oil-------------------------------------------------------------------------------------------------63
8.2 Rubbish -----------------------------------------------------------------------------------------------------63
8.4 Backwater --------------------------------------------------------------------------------------------------63
8.5 Exhaust fumes ---------------------------------------------------------------------------------------------63
8.6 Antifouling Paint------------------------------------------------------------------------------------------64
8.9 Paint remover----------------------------------------------------------------------------------------------64
8.10 Holding tank (optional) ---------------------------------------------------------------------------------64
9. Anchoring, towing and tie up systems-----------------------------------------------------------65
9.1 Anchor (optional) -----------------------------------------------------------------------------------------65
9.2 Second anchor ---------------------------------------------------------------------------------------------65
9.3 Tie up rope -------------------------------------------------------------------------------------------------65
9.4 Towing rope------------------------------------------------------------------------------------------------65
10. >Ten golden rules for water sports fans--------------------------------------------------66
11. Maintenance, repairs and cleaning------------------------------------------------------------67
11.1 Hull, deck -------------------------------------------------------------------------------------------------67
11.2 Cleaning ---------------------------------------------------------------------------------------------------67

Manual DEHLER 39
6 - 72
11.3 Ventilation ------------------------------------------------------------------------------------------------67
11.4 Rigging-----------------------------------------------------------------------------------------------------67
11.5 Electricity -------------------------------------------------------------------------------------------------67
11.6 Hose braces -----------------------------------------------------------------------------------------------67
11.7 Tanks-------------------------------------------------------------------------------------------------------68
11.8 Pump toilet------------------------------------------------------------------------------------------------68
11.9 Paint--------------------------------------------------------------------------------------------------------68
12. Winter storage -------------------------------------------------------------------------------------68
13. Final remarks and indications ------------------------------------------------------------------69
14. Guarantee Card------------------------------------------------------------------------------------71
15. Manufacturers’ Information --------------------------------------------------------------------71

Manual DEHLER 39
7 - 72
1.2 List of Illustrations

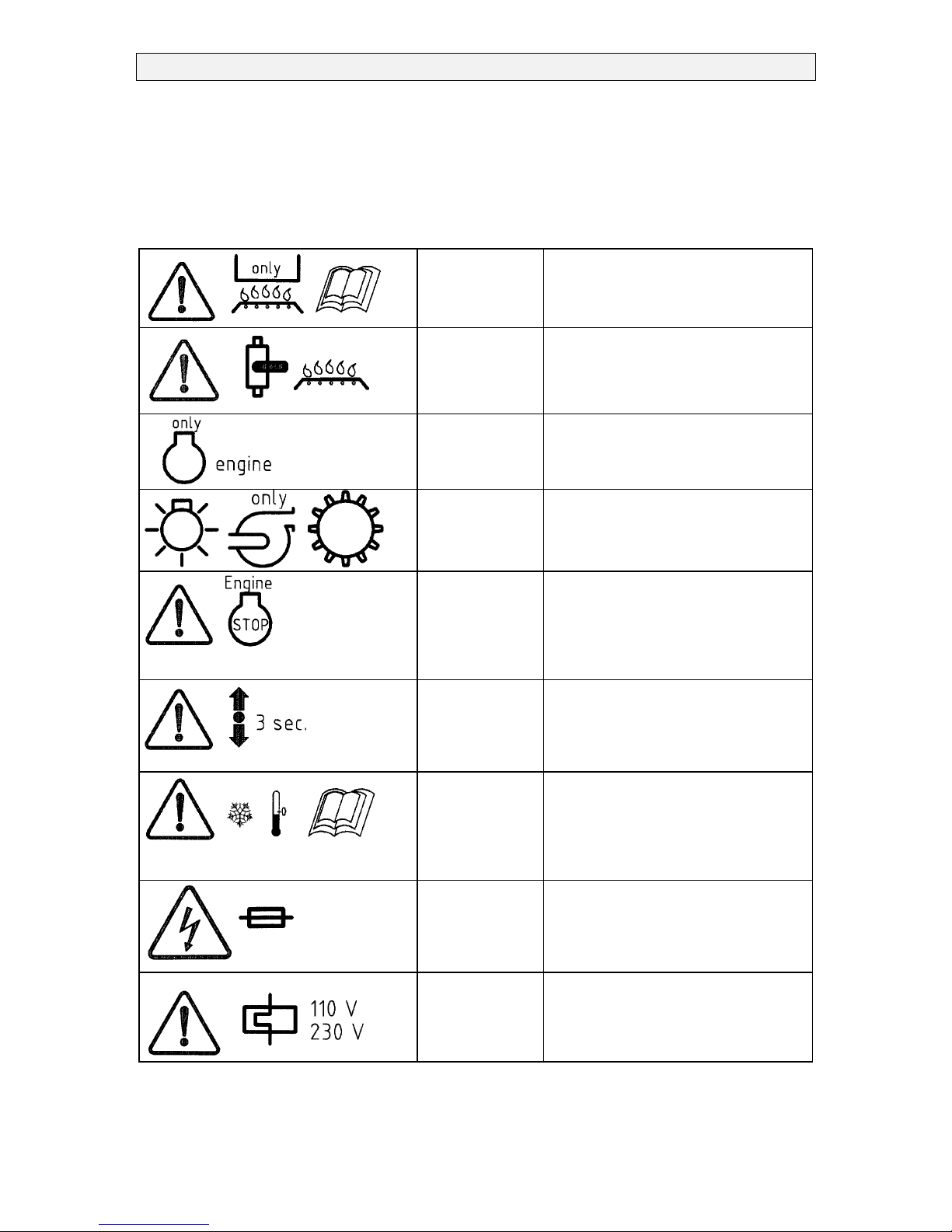

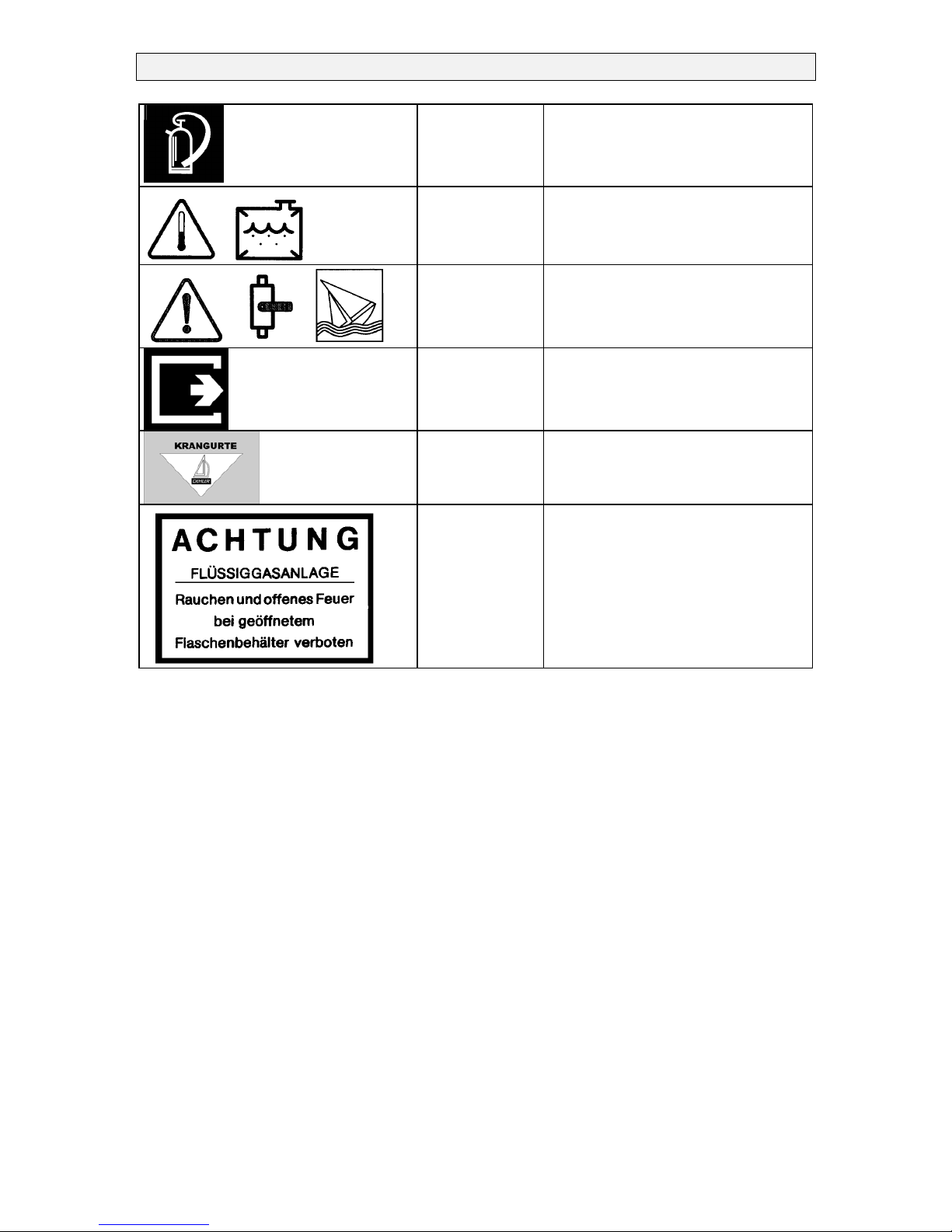

FIGURE.: WARNINGS -------------------------------------------------------------------------------------------------------- 10

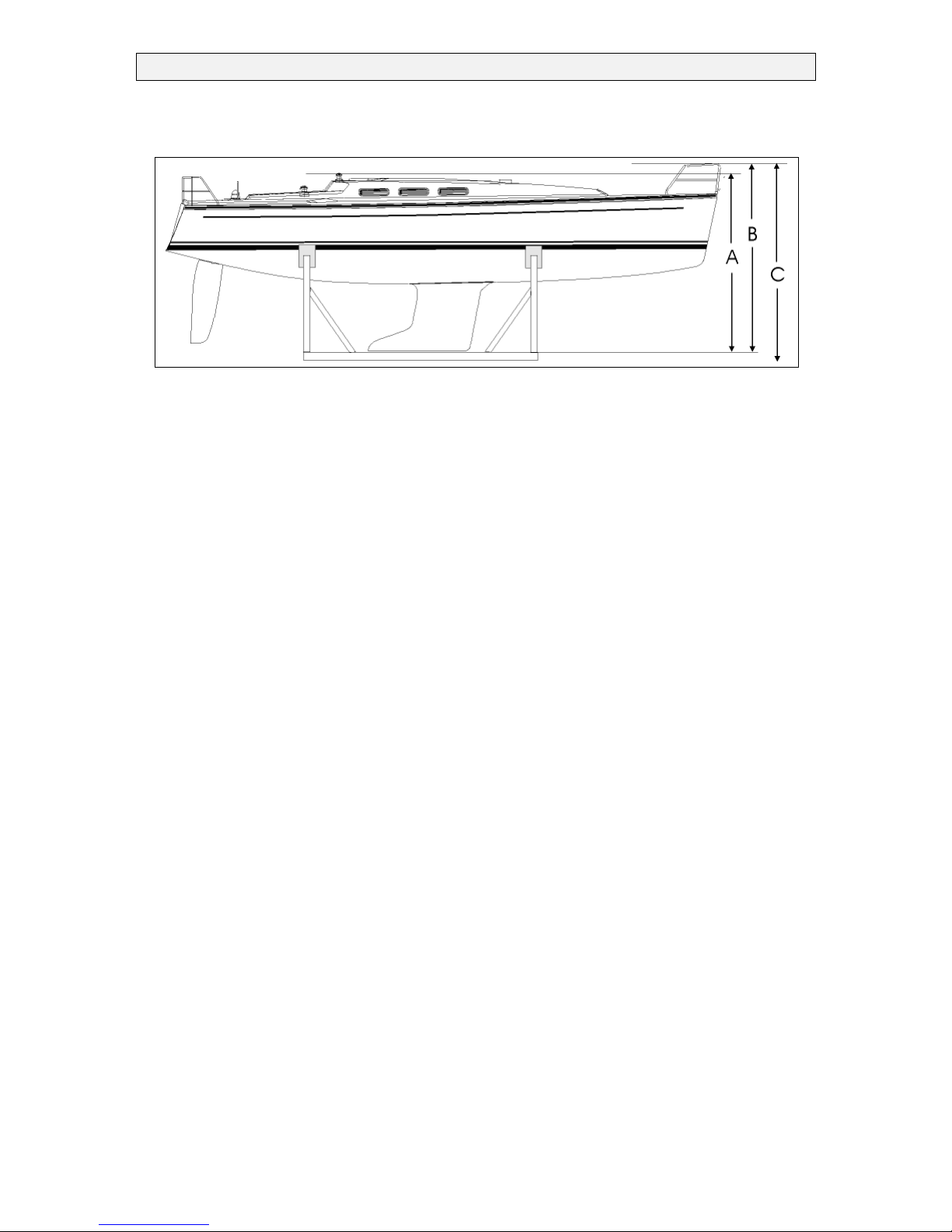

FIGURE.: TRANSPORT MEASURES------------------------------------------------------------------------------------------ 16

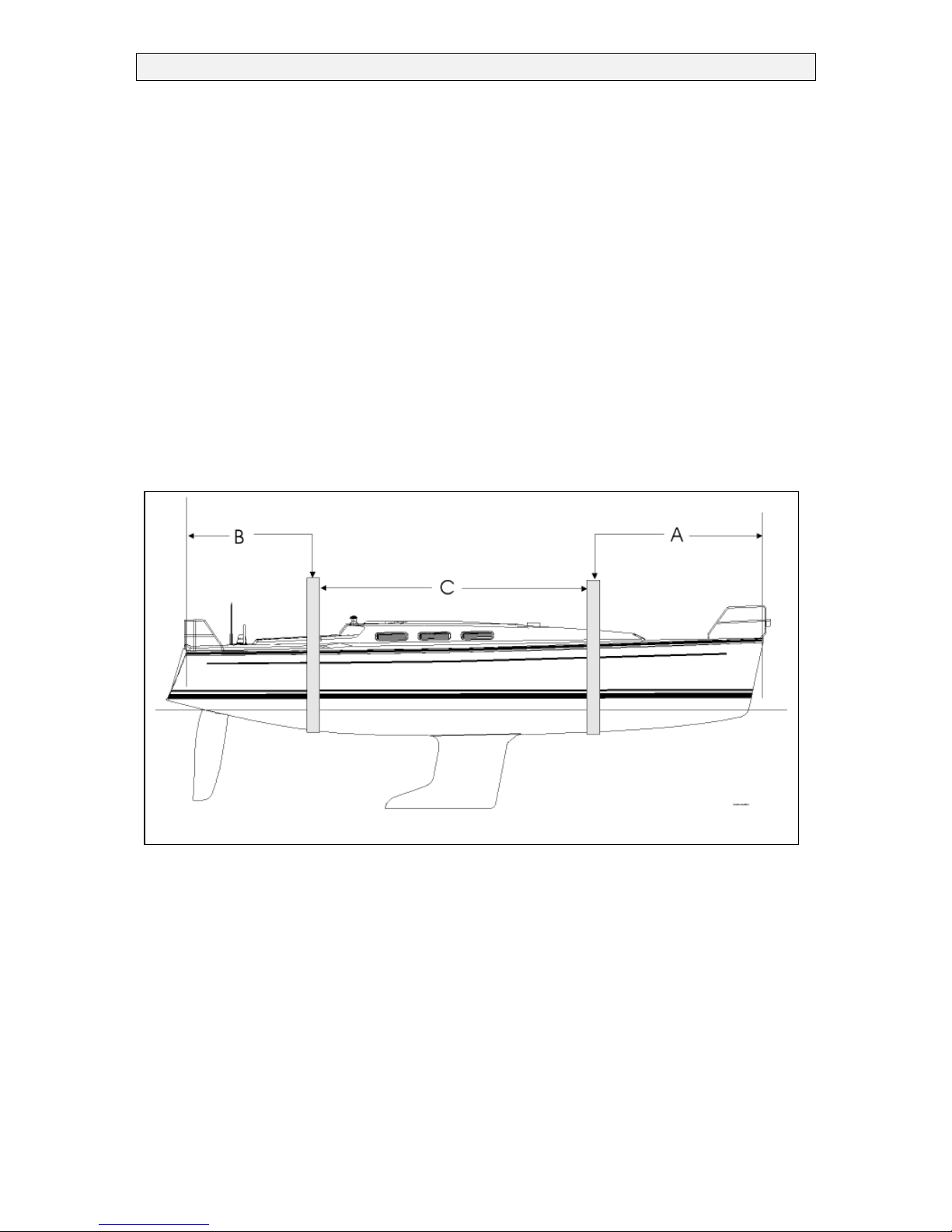

FIGURE.: CRANE BELT BEARANCES
FIGURE.: GENERAL DRAWING 2-CAB-------------------------------------------------------------------------------------- 19
FIGURE.: SHROUDS/STAYS-----------------------------------------------------------------------------------------------------
FIGURE.: MACHINE INSTALLATION---------------------------------------------------------------------------------------- 28
FIGURE.: FUEL PIPE ---------------------------------------------------------------------------------------------------------- 30
FIGURE.: DIESEL TANK ----------------------------------------------------------------------------------------------------- 31
FIGURE.: ENGINE PANEL ---------------------------------------------------------------------------------------------------- 32
FIGURE.: HOT WATER ------------------------------------------------------------------------------------------------------- 34
FIGURE.: HEAT EXCHANGER------------------------------------------------------------------------------------------------ 35
FIGURE.: SHORE CONNECTION PANEL------------------------------------------------------------------------------------- 38
FIGURE.: MAIN FUSES ------------------------------------------------------------------------------------------------------- 39
FIGURE.: FUSE LOCATIONS ----------------------------------------------------------------------------------------------------
FIGURE.: SWITCH BOARD --------------------------------------------------------------------------------------------------- 43
FIGURE.: WIRING DIAGRAM------------------------------------------------------------------------------------------------- 43
FIGURE.: FUSE BARS--------------------------------------------------------------------------------------------------------- 45
FIGURE.: BILGE SYSTEMS--------------------------------------------------------------------------------------------------- 48
FIGURE.: RUDDER SYSTEM ------------------------------------------------------------------------------------------------- 50
FIGURE.: EMERGENCY HEAD ----------------------------------------------------------------------------------------------- 51
FIGURE.: GAS SYSTEM ------------------------------------------------------------------------------------------------------ 52
FIGURE.: SHUT-OFF VALVE GAS-------------------------------------------------------------------------------------------- 53
FIGURE.: HOLDING TANK SYSTEM ----------------------------------------------------------------------------------------- 54
FIGURE.: FAST SHUT-OFF VALVE SHOWER ROOM ------------------------------------------------------------------------ 55
FIGURE.: FIRE EXITINGUISHERS LOCATION ------------------------------------------------------------------------------- 57
FIGURE.: ON BOARD HEATING---------------------------------------------------------------------------------------------- 59
FIGURE.: BOARD OUTLETS 2 CAB.----------------------------------------------------------------------------------------- 60
FIGURE.: BOARD OUTLETS 3 CAB.----------------------------------------------------------------------------------------- 61

Manual DEHLER 39
8 - 72
1.3 Introduction
This manual was set up and compiled to make it possible for you
to use your sailing boat in a safe and pleasant way.
Apart from many details regarding the sailing boat itself, the
manual also contains indications about the supplied or fitted
gear and information on its use and maintenance, in addition to
the information given by the manufacturer. Please read the
manual carefully through and get used to it before you go sailing
with your yacht.
We kindly recommend you to make copies of the relevant parts of
the manual and some manufacturer’s information, such as
instructions about maintenance and warning, so as to have them
handy on board in case you need to find out quickly the cause of
a technical fault and repair it.
In case this is your first sailing boat or if you are not yet used to
the special features of a yacht of this size, please try to know
some more about the handling and use of the yacht for your own
safety and comfort, before taking over the command. Your seller
is there to help you with everything you need.
Of course, a prerequisite for a successful sailing trip is that you
have sufficient experience as a sailor, so that you know how to
behave in all kinds of situations.
We hope you will enjoy your new DEHLER 39 and wish you
good luck and safe sailing.
An Owner’s Manual is a technical document which gives you a general description of the
yacht and its technical systems. It helps the skipper/sailor to safely handle and maintain the
yacht and its systems, identify possible technical faults and sometimes even to repair these
faults himself. The shipyard reserves the right to carry out changes in the equipment and
technique. The systems represented in this manual should not be considered a basis for the
sales contract. In that case you should use the description of the construction given in the
valid price list from which you bought your yacht.
PLEASE KEEP THIS MANUAL IN A SAFE PLACE AND GIVE IT TO THE
NEW OWNER, IN CASE YOU SELL THE YACHT.

Manual DEHLER 39
9 - 72
1.4 Stickers - List
List of main indications, made known by stickers.
Observance of the indication stickers is very important for both the boat and its crew. Non-
observance of the indications can lead to the boat’s total loss and problems for the crew. As
the skipper responsible for the boat’s safety you should inform new crew menbers about the
stickers and their meaning.
Don’t use the
cooker for heating!
Sticker under the cooker’s lid
Shut valve
Gas
Oven
Sticker under the cooker’s lid
Main switch
Engine
Indication next to the companion way bow
Main switch
Consumption
Indication next to the companion way bow
Emergency shut-off
valve
Fuel
Diesel engine
Sticker in the space under the navigation
table, above the reach through opening
Only switch with
neutral number of
revolutions!
Sticker next to the Gas/Switch
Cold-resistant
Please observe
manufacturer’s
instructions!
F
or onboard diesel engine and heat exchange
r
at the companion way bulkhead and the
scavenger valve
Fuse
12V
A= see print
Sticker inside the companion way valve
Automatic fuse
110V or 230V
Sticker next to the automatic fuse
Shore connection

Manual DEHLER 39
10 - 72
Sticker Fire
extinguisher
Indication for fire extinguisher on the
navigation seat and on the starboard fore
castle locker
Electric water-
heater
Sticker next to the switch on the shore
connection panel
When sailing, close
the sea valves
Sticker on each cupboard door and on the
flap door hiding the sea valves
Indication for the
escape hatch
Sticker on t he bow bulkhead on the bow hull
Position crane belt Four stickers on deck side
Warnings Gas
Installation
Sticker
b
ehind the bulkhead for the gas bottle
FIGURE.: WARNINGS

Manual DEHLER 39
11 - 72
1.5 Design Category
One of the requirements of the EC Directive on Pleasure Craft is that every boat should
belong to a specific design category.
The yacht type DEHLER 39 belongs to Design Category A.
The Directive describes Design Category A as follows::
Design Category A: High Sea
Designed for longer trips, with possible weather conditions of a force 8 wind or more
(Beaufort Scale) and waves as high as 4 m or more, during which these boats can go on
sailing on their own.
1.6 Identification
For a yacht of this size the EC Directive only foresees the certification model Aa. This means
that the manufacturer certifies the conformity of its construction and equipment with the
directive, but that its stability needs to be tested by a recognized testing institute. The
„Germanische Lloyd“ (Abbreviation GL), one of the testing institutes allowed by the EC
Directive, was in charge of testing, see the Statement of Conformity on page 12.
On the mirror on the fore castle the hull identification number was stamped in a gel coating.
This is a world-wide unique succession of numbers and letters. For example:
DEDEH 65012K900
This successon of numbers and letters comprises the following data:
DE Germany, Country of Origin
DEH Unique Shipyard Code
(the Register is kept by the German Boat and Shipbuilders’Association)
65 Type Name as chosen by the shipyard
12 Conntinous Construction Number
K Start of Construction Month November
9 1999, when construction started
00 End digits of the year 2000, when the yacht was delivered
Month Code Month Code Month Code
January A May E September I
February B June F October J
March C July G November K
April D August H December L

Manual DEHLER 39
12 - 72
1.7 Manufacturer’s Plate
The manufacturer’s plate on the fore castle companion way bulkhead is a requirement of the
EC Directive, explaining certain obligatory data.
3 – Cab.-Version 2 – Cab. – Version
Explanation of the information required by the Directive:
ADesign Category A: High Sea
Maximum additional load This weight indication comprises. persons, supplies,
food supplies, water, fuel and personal equipment
Max. Pers. Maximum number of persons, recommended by the
manufacturer,when the boat is located in a maritime area
corresponding to its design category.
Max. kg Maximum weight of personal equipment
0098 CE Sign indicating that the boat was built accordin to the
requirements of the Directive. The succession of numbers is
the reference number of the certifying institute, in this case the
Germanische Lloyd (see Statement of Conformity).

Manual DEHLER 39
13 - 72
1.8 Statement of Conformity
Dehler Deutschland GmbH
Industriegebiet Im Langel
D-59872 Meschede-Freienohl
EC- Statement of Conformity
according to EC-Directive „Pleasure Craft“ 94/25/EC, Annex XV
We herewith state that the sailing boat described hereunder complies with the basic safety and
health requirements of the EC Directive „Pleasure Craft“, both in its concept and construction
method as in its commercial execution. In case the boat undergoes changes, which affect the
„basic safety requirements“ without our approval, this statement shall no longer be valid.
Description of the boat Sailing yacht
Type of Boat Dehler 39
Main dimensions 11,80 x 3,85 x 1,98 m or
11,80 x 3,85 x 2,35 m
Serial number of hull see entry on the covering plate
Design Category A
Certification module Aa
Applicable Directives EC-RL Pleasure Craft (94/25/Ec)
•
•
•
• Applied harmonized standards see Annex Page 13
• Applied international standards see Annex Page 13
• Applied national standards see Annex Page13
• Other applied regulations see Annex Page 13
Selected testing institute according to
Annex XIV Germanischer Lloyd
Address Vorsetzen 32, D – 20459 Hamburg
in charge of
- internal manufacture checking and testing (Module Aa) pursuant to Annex VI
- numbers 3.2 and 3.3
- EC Testing of Construction Type (Module B) pursuant to Annex VII
-
Test Certificate No. . 88.01.0457
Freienohl,
Signature of Manufacturer ............................................................................
Position of the undersigned .............................................................................

Manual DEHLER 39
14 - 72
1.9 Technical Regulations
Attachment to the Statement of Conformity or Manufacturer’s Certificate
Applied Standards and/or Technical Regulations
listed in the same order as in Annex I and Annex II of the Directive
Annex I
1 Design Category Annex I
2.1 Hull Identification Number EN ISO 10087
2.2 Manufacturer’s Plate ISO/WD 14945
2.3 Protection against falling overboard ISO/WD 15085
2.5 Owner’s Manual EN ISO 10240
3.1 Sizing ISO/WD 12215 (6 Volumes)
3.2 Stability, free board ISO/WD 12217 (3 Volumes)
3.3 Buoyancy, floating capacity ISO/WD 12217 (3 Volumes)
3.4 Openings, hatches, windows ISO/DIS 12216
3.5 Flooding
- Cockpit, Cockpit drainage ISO/CD 11812
- Bilge system ISO/WD 15083
3.6 Recommended maximum load ISO/WD 14946
3.7 Storage space for lifeboats ------
3.8 Emergency escape
- (fire protection) ISO/DIS 9094
3.9 Anchoring, mooring, towing ISO/WD 15084
4 Engine power, manoeuvring capacity ISO/CD 11592
5.1 Engine system and engine room
- Steam, noise, heat ICOMIA-Standard in preparation
- Ventilation ISO 11105 (Petrol)
- Exposed parts Annex I
5.2 Fuel system ISO 10088
5.3 Electrical system
- Direct current systems ISO 10133
- Alternating current systems ISO 13297
5.4 Steering systems (5 standards see construction elements)
- Auxiliary rudder Annex I
5.5 Liquid gas systems ISO/DIS 10239.2
5.6 Fire protection ISO/DIS 9094
5.7 Navigation lights National Regulations
5.8 Sewage ISO 8099
- Waste water tank
- Holding and preparation systems
- Black water tanks

Manual DEHLER 39
15 - 72
2. Description of the boat
2.1 Main data
Overall length Ol 11.80 m
Length waterline Lwl 11.03 m
Maximum beam Bmax 3.85 m
Beamhull Bh 3.80 m
Draft hull Hull 0.50 m
Max. draft standard keel Tmax 1.98 m
Draft regatta keel (optional) Tmax 2.35 m
Side height midship Db1.22 m
Transport height standard keel without support HT4.02 m
Transport height regatta keel without support Hr4.39 m
Full height mast* HD18.30 m
Full height mast with additional antennas Hmax D
• The full height can be critical when you have to pass undr a bridge or a high voltage line.
It is the height above the waterline until the highest point of the mast. It is measured
without possible antennas nor a radar reflector but taking into account the measurement
for the WINDEX. Please correct the measurement if you install any additional gear and
mark it in the last line of the main data.

Manual DEHLER 39
16 - 72
2.2 Transport measurements
FIGURE.:TRANSPORT MEASUREMENTS
Standard keel:
A = Transport height without bow basket and helm 3.81m
B = Transport height with bow basket 4.02 m C = Transport height with support 4.18 m
Regatta keel:
A = Transport height with bow basket and helm 4.18 m
B = Transport height with 4.39 m C = Transport height with support 4,50 m
Transport width, see main data
2.3 Dimensions of sails
Mainsail 44.0 m²
Frontsail from 34,7 till 115 m²
2.4 Weights
Weight without load- Standard keel Gempty 7 800 kg
Weight without load Regatta keel Gempty 7 150 kg
Max. weight with standard keel
Vmax approx. 9 800 kg
Max. weight With Regatta keel
Vmax approx. 9 150 kg
Keel weight standard keel Gs 2,945 kg
Keel weight regatta keel Gs 2,295 kg
2.5 Engine system
Manufacturer YANMAR, Type 3GM30 FC 27 hp
Optional 3JH3CE 40 hp
2.6 Electrical system
2.6.1 230 V Alternating current
The Dehler 39 is equipped with a shore connection system to charge the batteries and to
ensure that the hot water supply works even when mooring at a port. Additional 230 V plugs
complete the system.

Manual DEHLER 39
17 - 72
2.6.2 12 V Direct current system
Normal on-board power supply and the supply for navigation lighting, pumps, electric and
electronic gear, night lights and comfort lighting is supplied by a 12 V direct current system.
2.6.3 Battery capacities
The Dehler 39 is equipped with 3 batteries, which are used as consumption and starter
batteries.
• Starter battery 12 V 55 Ah, free of maintenance, leak protection
• The battery is placed under the berth/double berth at the port stern
• Consumption batteries 2 x 12 V 110 Ah, maintenance-free, leak protection
Optional 2 x 12 V 200 Ah, Gel, maintenance-free, leak protection
• The batteries are placed under the berth/double berth at the starboard and port stern in the
storage space under the floor bulkhead..
2.7 Capacity of tanks
1 PE-Fresh water tank 230 l
The tank is installed in the cabin under the port corner cabin quilting
1 PE- Freshwater tank( optional ) 174 l
The tank is placed at the bow under the triangular quiltings
1 stainless steel fuel tank 110 l
The tank is installed in the cabin under the starboard side berth
1 stanless steel holding tank ( optional ) 45 l
The tank is installed on starboard in the closet of the shower room- rear cabin
1 stanless steel holding tank 45 l
(incl. in second shower room. )
To see a detailed description of the different water tanks, see installation schemes on the next
pages.
2.8 Maximum number of persons
The Directive requires to establish a maximum recommended number of persons on-board
when the boat is sailing in its adequate area. The Dehler 39 is designed for off-coast
navigation , that is to say trips of a few days between different ports. Therefore we
recommend you the following::
• In case of sailing journeys of a few days, no more than 8 persons should be on board,
since this is the maximum number of available berths;
• Note: There should be enough life-jackets on board for all persons on the boat.. An
inflatable lifeboat should have enough space for at least 8 persons.
For day trips, if possible not more than 10 persons should be on board, since there is just
enough space for them in the cockpit. For very short trips, the number can be increased.
• Note: There should be enough life-jackets on board for all persons on the boat.

Manual DEHLER 39
18 - 72
2.9 Additional load
The Directive requires the shipyard to recommend the maximum additional load. It
comprises persons, personal equipment, fuel, water and food supplies. It is marked on the
type plate. Maximum additional load for the DEHLER 39 is 2000 kg.
This value was taken as a basis to calculate the yacht’s stability..
2.10 Cranes
In many harbours yachts are taken on land with a crane and hoisting gear. Belts are to be
placed taking into account the solidity of the boat’s build and the distribution of weight. On
the Dehler 39, the recommended bearances are marked on the coaming guard rods The
bearance at the front is A, at about 4.00 m of the bow front and the bearance at the rear is B,
at about 3.00 m of the stern side.
The distance C between these two markings is about 5.00 m. Taking into account these
markings, belts should not be displaced more as:
Rear and front: max. 200 mm forewards or backwards.
FIGURE.: CRANE BELT BEARANCES

Manual DEHLER 39
19 - 72
3. General Drawings
3.1 >2 Cab.-Version
FIGURE.: GENERAL DRAWING 2-CAB.

Manual DEHLER 39
20 - 72
3.2 >3 Cab.-Version
Components
2 + 3 Cab.
⇐⇒
1. Anchor entrance
2. Bow berths
3. Storage space
4. Bow cupboard
5. Water tank
6. Cabin couch
7. Storage closets
8. Cool-box
9. Double sink
10. Gas cooker
11. Cupboard
12.Batteries
13.Fuel tank
14 Navigation room
15. Shower room
16. Shower 2-Cab.
17. Storage space 2-Cab.
18.Stern berths
19 Heating
20. Storage space stern
21.Heat exchanger FIGURE.: Genera ldrawing 3-Cab.
