Del ozone Spa eclipse User manual

Next Generation Corona Discharge

Auto Voltage Sensing

Installation Manual

4-2122-01 Rev.B

IMPORTANT SAFETY INSTRUCTIONS

When installing and operating the Spa Eclipse ozone generator, basic

precautions should always be followed:

READ AND FOLLOW ALL INSTRUCTIONS

• Read this manual completely before attempting installation.

• All permanent electrical connections should be made by a qualified

electrician.

• Follow all applicable electrical codes.

• Be sure the electrical power is shut OFF at the main circuit breaker

before installing the Spa Eclipse.

• If the Spa Eclipse electrical connection is to be attached to the

spa controls, be sure the spa controls are protected by a Ground

Fault Circuit Interrupter (G.F.C.I.). If the Spa Eclipse is connected to

an independent electrical supply, then a G.F.C.I. must be installed

between the Spa Eclipse and the electrical supply.

• WARNING - To reduce the risk of electrical shock, if the power cord

is damaged, replace the entire unit immediately.

• The Spa Eclipse must be mounted indoors or sheltered, under a cover,

from natural elements (rain, sun, sprinklers).

• Mount the Spa Eclipse so that it is inaccessible to anyone in the spa.

• Install a check valve in the tubing between the Spa Eclipse and the

vacuum source.

• Plastic ozone supply tubing is available with the Spa Eclipse. Never

replace this tubing with metal tubing.

• Do not operate the Spa Eclipse unless sufficient air flow is being

drawn through the unit.

• WARNING: Short term inhalation of high concentrations of ozone and

long term inhalations of low concentrations of ozone can cause

harmful

physiological effects. Do not inhale ozone gas produced by this

device.

SAVE THESE INSTRUCTIONS!

Spa Eclipse Installation & Operations Manual

TABLE OF CONTENTS

Installation Instructions

1. Mounting ............................................................................................ 1

2. Plumbing - DEL Mixing System........................................................ 1

3. Plumbing - Ozone Generator............................................................ 1

4. Electrical ............................................................................................ 2

5. Operation ........................................................................................... 2

6. System Maintenance......................................................................... 2

Figure 1: Spa Eclipse Mounting & Connections ................................. 3

Figure 2: DEL Optimized Mixing System............................................. 3

Warranty ................................................................................................. 4

Installation Instructions

1. Mounting

a. The Spa Eclipse must be mounted horizontally with ozone

tubing connection pointing down. Use both mounting flanges.

b. Mount as high as possible within the protected equipment area.

2. Plumbing - DEL Mixing System

a. For optimal dissolution of ozone into the water, install the DEL

Mixing System in the water circulation line as generally shown in

Figure 2.

b. For other circulation systems or vacuum sources, DEL Industries

provides a wide range of installation kits. Contact DEL Customer

Service for assistance.

3. Plumbing - Ozone Generator

a. Connect ozone compatible tubing (1/4” internal diameter) to the

open hose barb on the Spa Eclipse.

b. Run tubing to the ozone injector or appropriate vacuum source.

i. If the ozone generator is mounted above the water line, tubing

may be run directly to the vacuum source.

ii. If ozone generator is mounted below the water line, run tubing

to a point above the water line and back down to the vacuum

source.

Spa Eclipse Installation & Operations Manual

c. Install the check valve in the tubing above the water line. Ensure

flow direction is from the Spa Eclipse to the vacuum source.

d. Secure all tubing connections with hose clamps.

4. Electrical

a. Verify that there is no power to the spa and connect the Spa

Eclipse cord into the mating connector(s) on the spa control box.

b. Where possible, route the Spa Eclipse power cord away from

other electrical lines. Avoid routing the power cord parallel to

any low-voltage signal wires.

5. Operation

a. With the spa filled to the proper level, run the spa controller

through several cycles.

i. Verify that the green light on the Spa Eclipse turns on and off

as required by the controller.

ii. Verify that gas is flowing into the injector (there should be no

water in the tubing and very small bubbles at the return).

iii. Verify that water does not push past the check valve during

any spa cycle.

iv. Check for and correct any leaks in the ozone tubing.

6. System Maintenance

a. Ordering Information:

To locate the dealer nearest you call 1.800.676.1335 ext. 232

Be prepared with the following information:

• Name • Date Purchased

• Address • Dealer Name

• Model #

b. Standard Replacement Parts List:

i. Ozone Check Valve..............................................7-1140-01

ii. Ozone Tubing.......................................................7-0075

iii. Inlet Filter Assembly.............................................9-0858-01

The Ozone Check Valve (Item i) should be replaced annually.

c. Regularly inspect ozone supply tubing for cracks or wear.

Also check to make sure no water is present between the

Spa Eclipse Installation & Operations Manual

Tubing Connection

1/4˝ ID tubing

Mounting

Flange

Mounting

Flange

Spa Eclipse

Ozone Generator

Return

Fitting

Pump

Injector

Check Valve

MTM™ Nozzle LGM™

Mixer

Spa Controller/

Heater

Ozone

Flow

Inlet Filter

Assembly

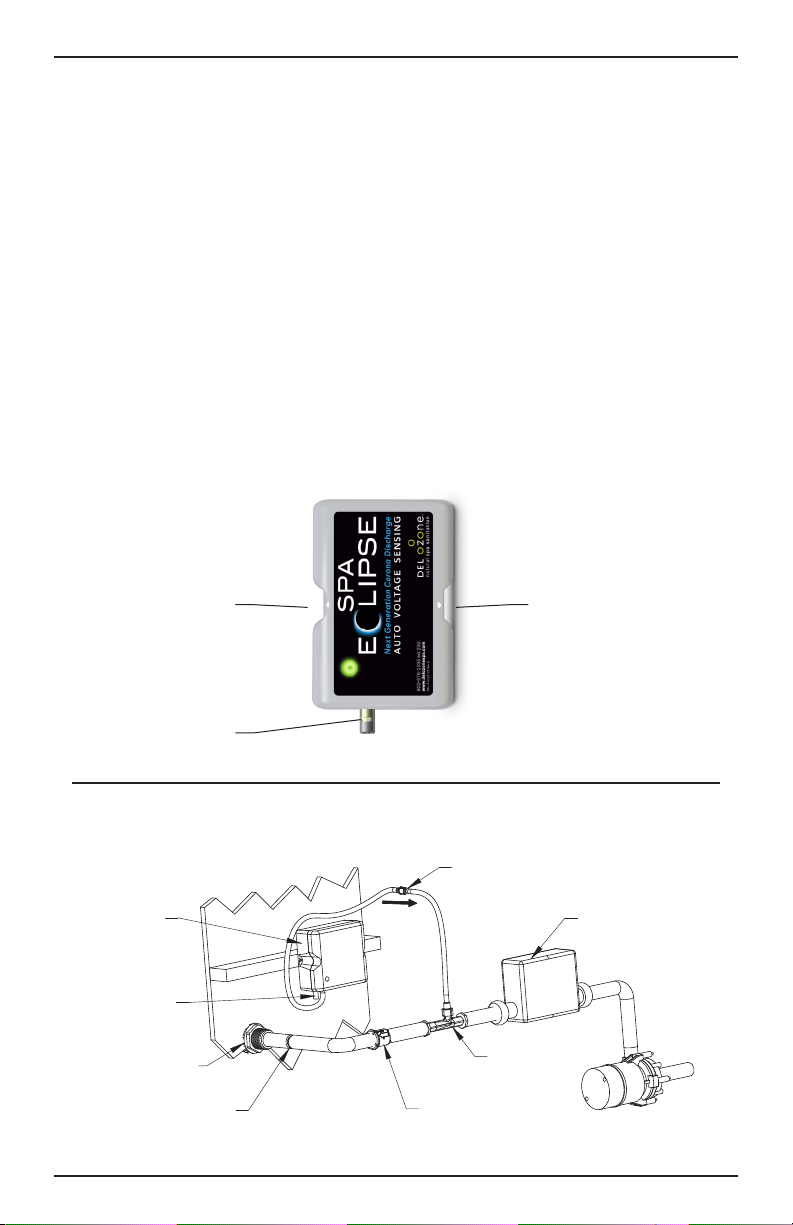

Figure 1: Spa Eclipse Mounting & Connections

Figure 2: DEL Optimized Mixing System

Check Valve and the Ozone Generator. This indicates Check

Valve failure. Replace the Ozone Check Valve and tubing

immediately.**

d. Regularly inspect the inlet filter for dirt build-up. If the cotton

filter element is clogged, remove the filter assembly and clean

the filter or replace the filter assembly.

**WARNING: Trace amounts of nitric acid may be present in

the check valve or tubing and could be mildly corrosive. If

condensation is present shut off the ozone generator and allow

the moisture to be drawn out or dried up prior to servicing.
