UC4427N FRONT-BREATHING UNDERCOUNTER REFRIGERATORS
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
UC4427N UNDERCOUNTER
Front-Breathing Undercounter Refrigerators
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfi eld.com
Phone: [phone]
Fax: [phone]
Email: info@delfi eld.com
Approval _________________
Date ____________________
SPECIFICATIONS
Exterior top is one-piece, 22-gauge stainless steel with
integral square nosing on the front.
Exterior back and bottom are two-piece 24-gauge
galvanized steel.
Exterior ends are stainless steel.
Interior sides of door models are thermoformed ABS
plastic with integral shelves supports. Interior back is one-
piece 22-gauge stainless steel. Interior bottom and top
are thermoforned ABS plastic. Base is fully insulated with
high-density foamed in place polyurethane.
Refrigeration system uses HFC-404A refrigerant.
Compressor is 1/5 H.P., with condenser coil and
condensate evaporator mounted on rear of the cabinet.
Evaporator coil are located on the interior rear wall of
the cabinet. Refrigerant flow is controlled by a capillary
tube. Cabinet maintains an interior cabinet temperature of
36°F to 40°F (2°C to 4°C).
ACT control. ACT electronic, solid state control, mounted
on the exterior rear of the cabinet, allows unit to maintain
precise temperatures in heavy duty conditions.
Electrical connections are 115 volt, 60 Hertz, single
phase. Unit has a 7’ (2.1m) long electrical cord and NEMA
5-15P plug.
Casters: Equipment is mounted on 2” (5.08cm) diameter
front locking plate casters. 2.5” (6.35cm) ride height.
Doors have a 24-gauge stainless steel exterior, with
thermoformed ABS plastic interior liner. Cabinet of door
models has one adjustable epoxy-coated wire shelf.
Drawers have a 24-gauge stainless steel exterior
with thermoformed ABS plastic interior liner. Drawer
frames are 12-gauge stainless steel. Drawer slides are
11-gauge stainless steel with Delrin bearings. Drawer
units have two drawers. Top drawer holds one 12” x
20” (30.5cm x 50.8cm x 10.1cm) and three 1/6 size
4"-6" deep pans. Bottom drawer holds one 12" x 20"
and three 1/6 size 4" deep pans. Pans are supplied
by others.
MODELS:
❑ UC4427N Single section refrigerator ❑ UCD4427N Single section refrigerator
Under counter with doors Under counter with drawers

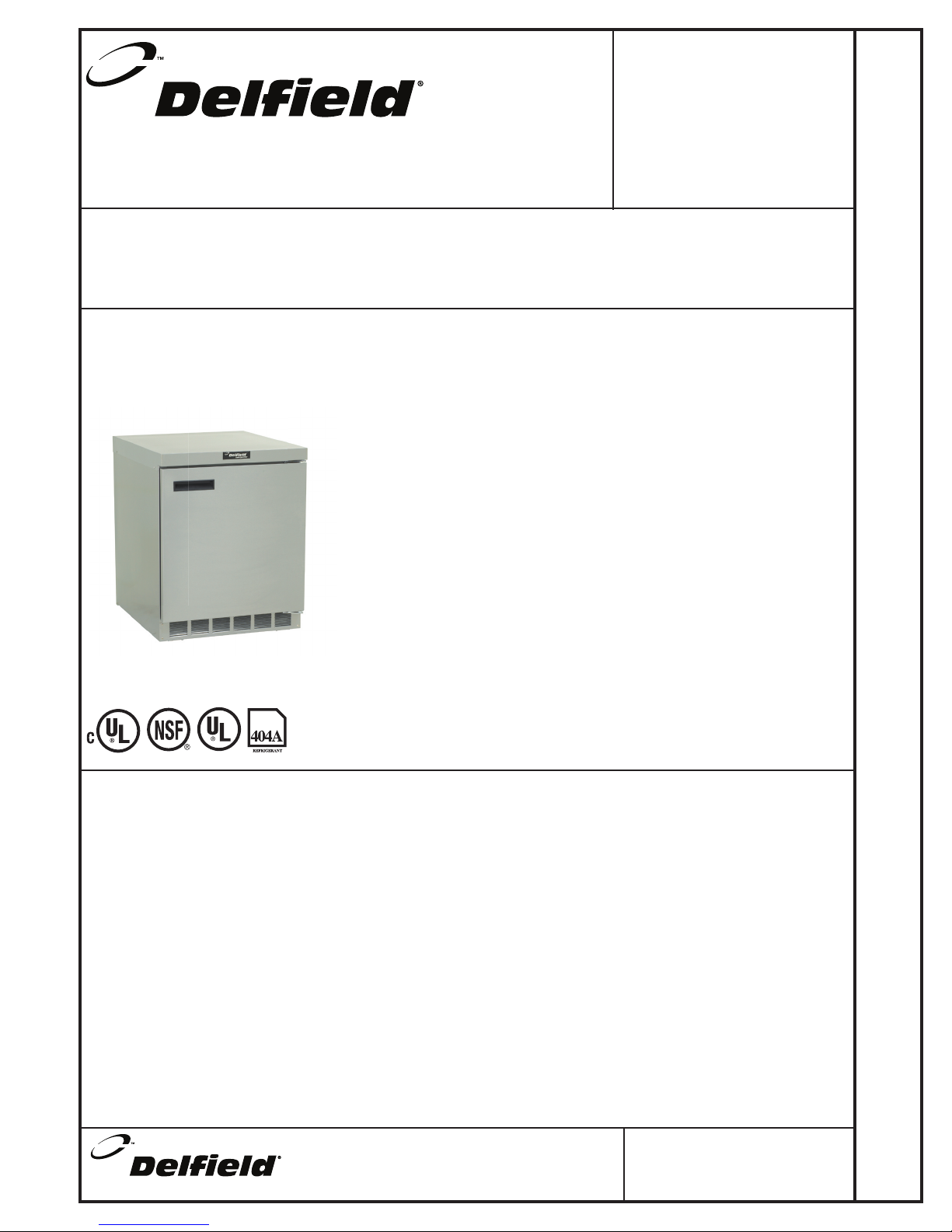

Model UC4427N
STANDARD FEATURES
• All 4400 and 4500 Series units are 100% front
breathing, which allows the unit to be pushed against
a wall or built into a cabinet or an existing line up
• Durable, rugged stainless steel sides, top and front
• Features Delfi eld’s exclusive ABS interior (on sides).
ABS is extremely durable - it won’t dent, chip or
corrode and is backed by a limited lifetime warranty
• Heavy duty self-closing hinges
• “D” prefi x models feature Delfi eld’s exclusive new
drawer system. Drawers are backed by a 10-year
warranty on the track assembly
• Environmentally friendly R404A refrigerant
• High density foamed in place polyurethane keeps
energy costs low
• Black recessed quick grip handle
• Standard on 2” casters for easy cleaning and
installation
• 60-cycle single phase electrical system
• 7’ cord and plug supplied
• Cord spring relief - prevents cord rollover
• One epoxy coated wire shelf standard, installed per
door section
• ACT solid state electronic control
• One year parts and 90 day labor standard warranty.
OPTIONS AND ACCESSORIES
❑ Flat lift off cover
❑ 18” wide single tier overshelf
❑ Stainless steel finish on back
❑ Plastic laminate on front
❑ Additional wire shelves
❑ Door lock
❑ Exterior thermometer
❑ Interior lights
❑ Glass door(s)
❑ *220V/50 Hertz electrical system
* Inclusion of this option will alter electrical
specifications of the unit.

UC4427N Front-Breathing Undercounter Refrigerators
Model #__________
CSI Section
Printed in the USA.
07/06
DSUC4427N
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com


 








INSTALLATION NOTE:
Refrigeration system is designed
so that air will flow under the unit,
through the compressor area and out
the front of the unit. Any restriction
to this air flow path will void the
warranties.
PLEASE NOTE:
Air flow through the louver on the
back of the unit is not necessary
for operation, however, any air
which passes through the louver is
beneficial.
UC4427N ISO VIEWUC4427N ELEVATION VIEW UC4427N RIGHT SIDE VIEW
UCD4427N ISO VIEW
UCD4427N ELEVATION VIEW UCD4427N RIGHT SIDE VIEW
UC4427N & UCD4427N
REAR ISO VIEW

























































Mechanical Data - Standard Unit
MODEL
NUMBER # OF SHELVES SHELF AREA SQ.FT.
STORAGE CAP.
CU.FT. H.P. VOLTS/HERTZ/ PHASE AMPS NEMA PLUG SHIP WEIGHT
UC4427N 1 3.20 5.7 1/5 115/60/1 7.2 5-15P 220LBS./100KG.
UCD4427N NA NA 1.5 1/5 115/60/1 7.2 5-15P 265LBS./120KG.
