Set up your OptiPlex 3090 Ultra
Topics:
•Installing the device on a fixed stand
•Installing the device on a Pro 1 height-adjustable stand
•Installing device on offset VESA mount
•Installing the device on a Pro 2 height-adjustable stand
•Installing device on Wall Mount
Installing the device on a fixed stand
1. Align and insert the slots on the fixed stand into the tab on the stand base.
2. Lift and tilt the stand base.
3. Tighten the captive screw to secure the stand to the base.
4. Slide the release latch on the stand, until you hear a click, to release the stand cover.
5. Slide and lift the cover to release it from the stand.
1
Set up your OptiPlex 3090 Ultra 5

6. Remove the screw that secures the stand mounting bracket to the stand.
7. Lift the mounting bracket to release the hooks on the bracket from the slots on the stand.
6Set up your OptiPlex 3090 Ultra

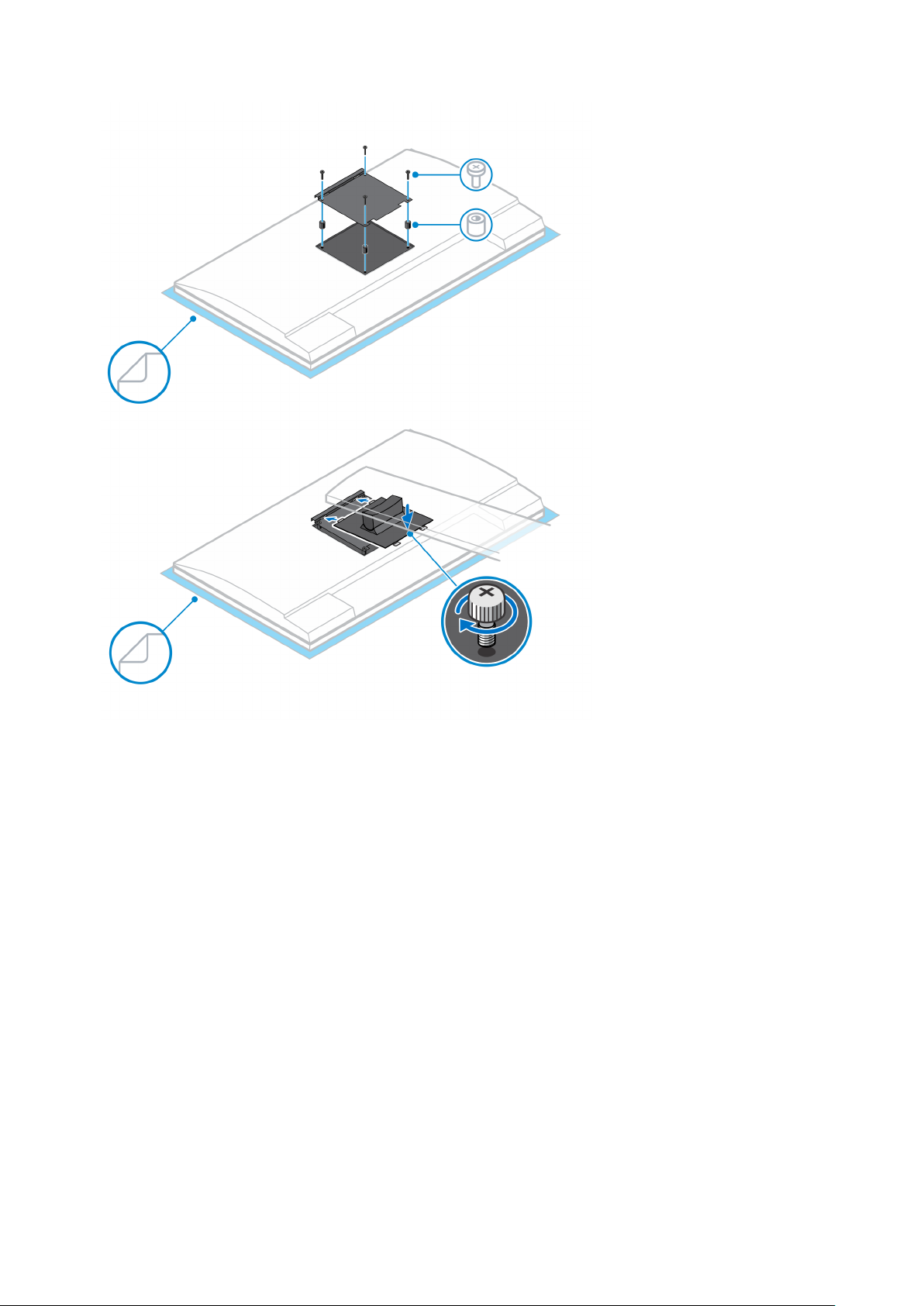

8. To avoid any damage to the monitor, ensure that you place the monitor on a protective sheet.
9. Align the screws on the mounting bracket with the screw holes on the monitor.
10. Tighten the four captive screws to secure the mounting bracket to the monitor.
Set up your OptiPlex 3090 Ultra 7

11. Select the height at which you want to mount the monitor and align the hooks on the mounting bracket with the slots on the
stand.
12. Replace the screw to secure the fixed stand to the monitor.
8Set up your OptiPlex 3090 Ultra

13. Align the vents on the device with the vents on the stand cover.
14. Lower the device in the stand until you hear a click.
15. Connect the power, network, keyboard, mouse, and display cables to the device and to the power outlet.

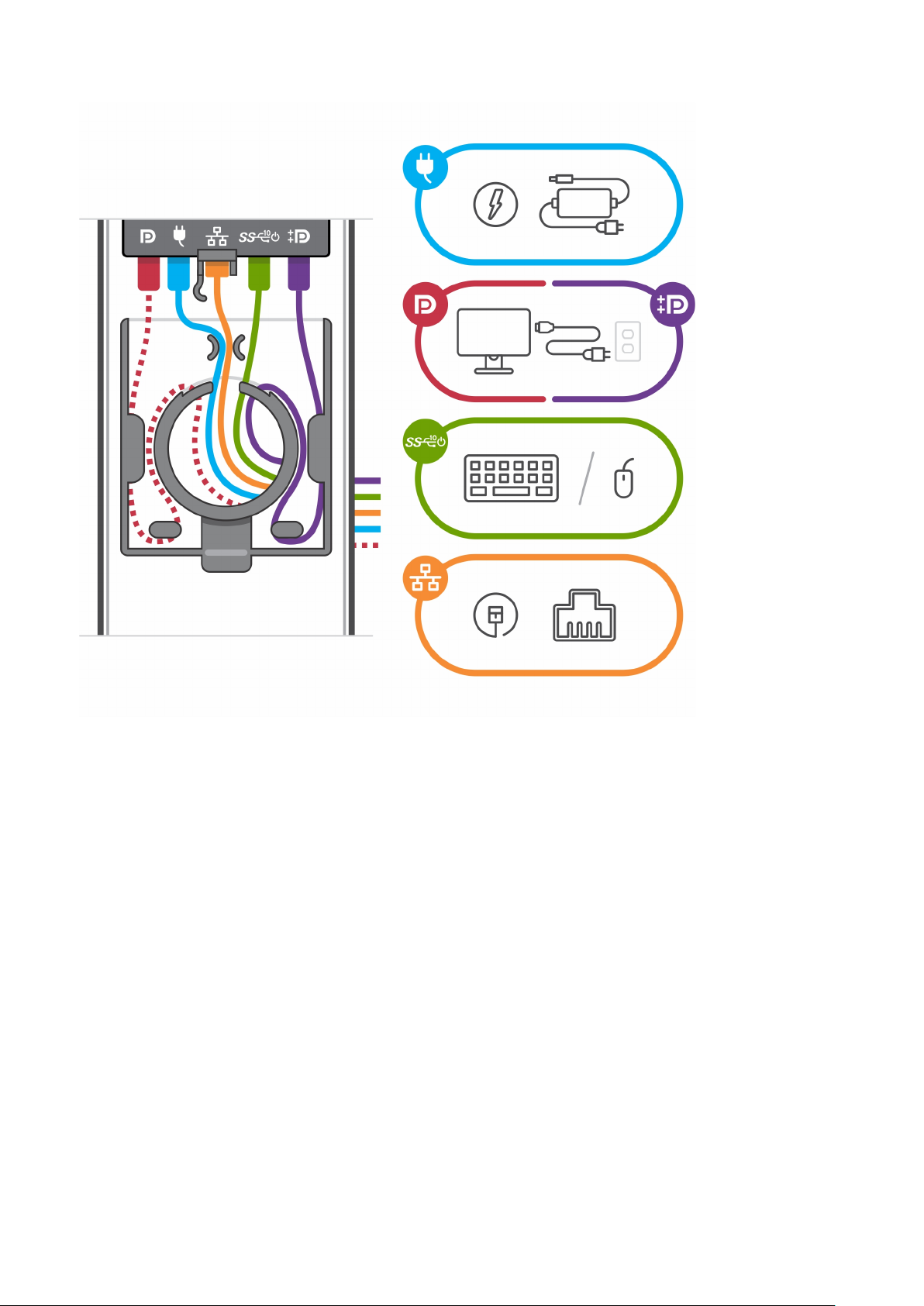

NOTE: To avoid any pinching or crimping of the cables while closing the stand cover, it is recommended that you route
the cables as indicated in the image.
Set up your OptiPlex 3090 Ultra 9

NOTE: All the cables and ports are used depending on the peripherals chosen and the configuration of the computer.
16. Slide the back cover, along with the device, into the stand until you hear a click.
10 Set up your OptiPlex 3090 Ultra

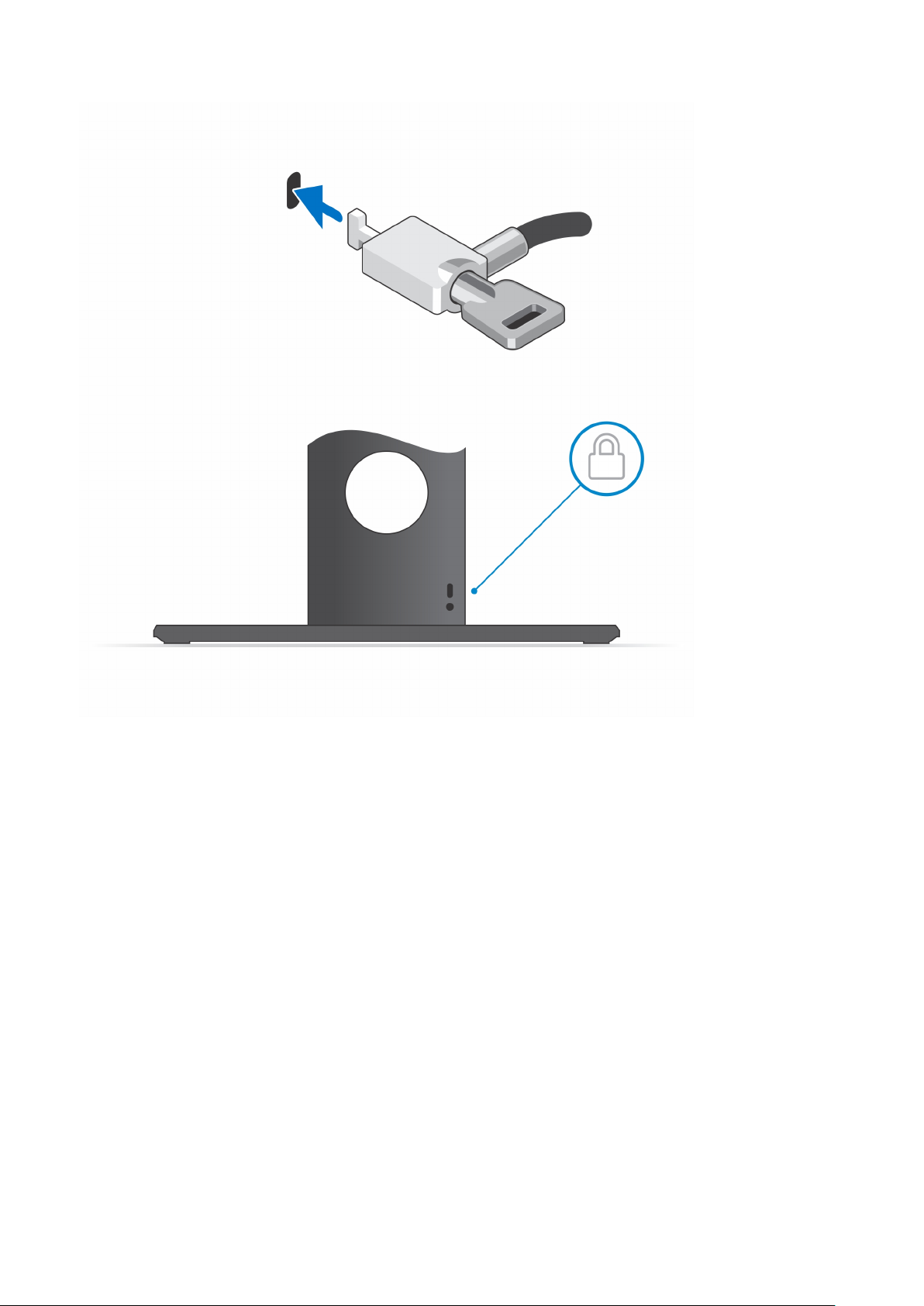

17. Lock the device and the stand cover.
Set up your OptiPlex 3090 Ultra 11

18. Press the power button to turn on the device.
12 Set up your OptiPlex 3090 Ultra

Set up your OptiPlex 3090 Ultra 13

Monitor tilt angle
Installing the device on a Pro 1 height-adjustable
stand
1. Align and insert the slots on the height-adjustable stand into the tab on the stand base.
2. Lift and tilt the stand base.
3. Tighten the captive screw to secure the stand to the base.
14 Set up your OptiPlex 3090 Ultra

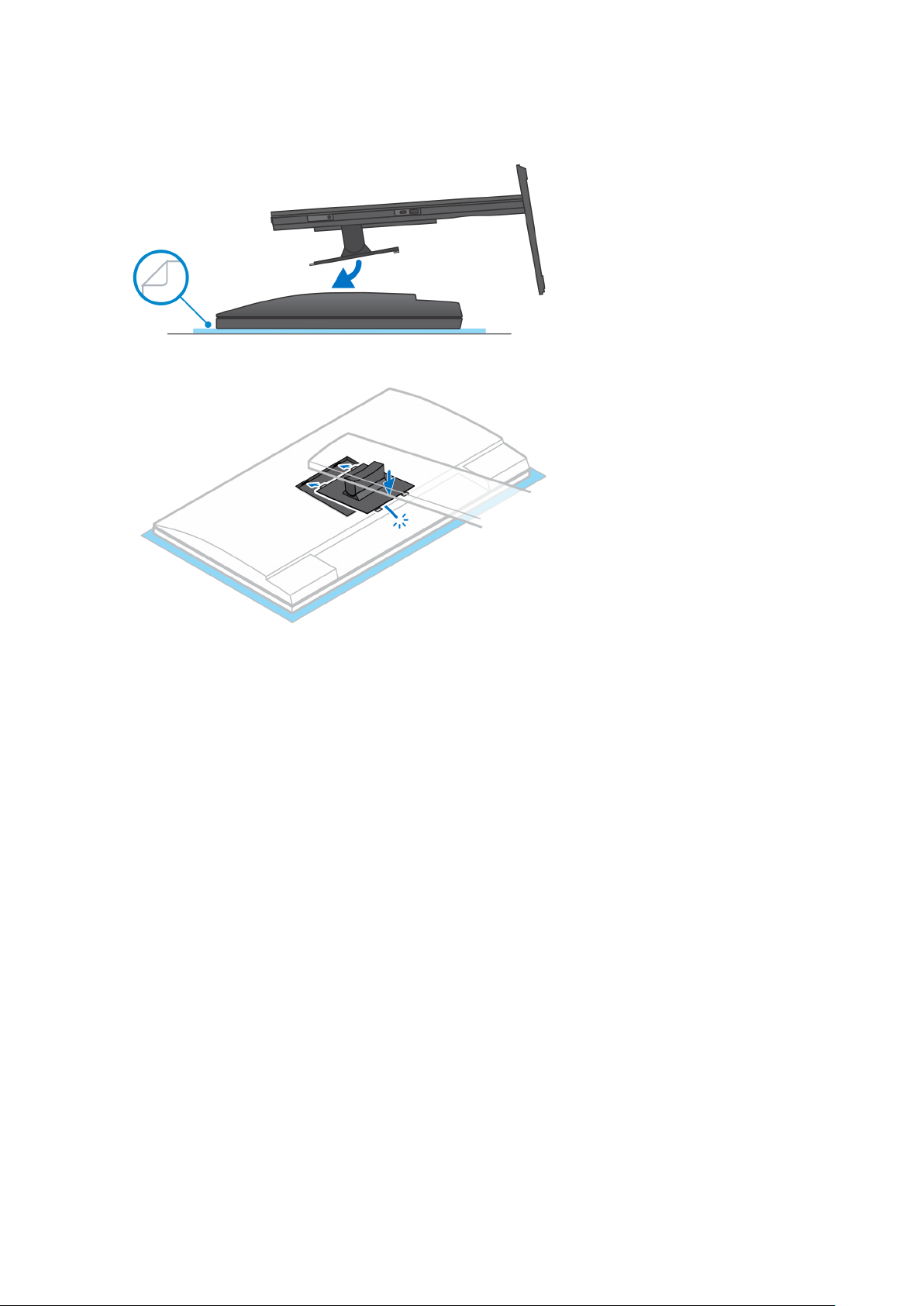

4. To avoid any damage to the monitor, ensure that you place the monitor on a protective sheet.
5. For installing the height-adjustable stand to the monitor:
a. Align and insert the hooks on the mounting bracket on the stand into the slots on the monitor, until you hear a click.
Set up your OptiPlex 3090 Ultra 15

6. For installing QR to VESA bracket for E-Series monitor:
a. Align the screw holes on the QR to VESA bracket with the screw holes on the monitor.
b. Install the four screw spacers and the screws to secure the QR to VESA bracket to the monitor.
c. Align and insert the QR tabs on the stand into the slots on the QR to VESA bracket on the monitor.
d. Tighten the thumb screw to secure the stand to the QR to VESA bracket.
16 Set up your OptiPlex 3090 Ultra

7. To release the stand cover, slide the release latch until you hear a click.

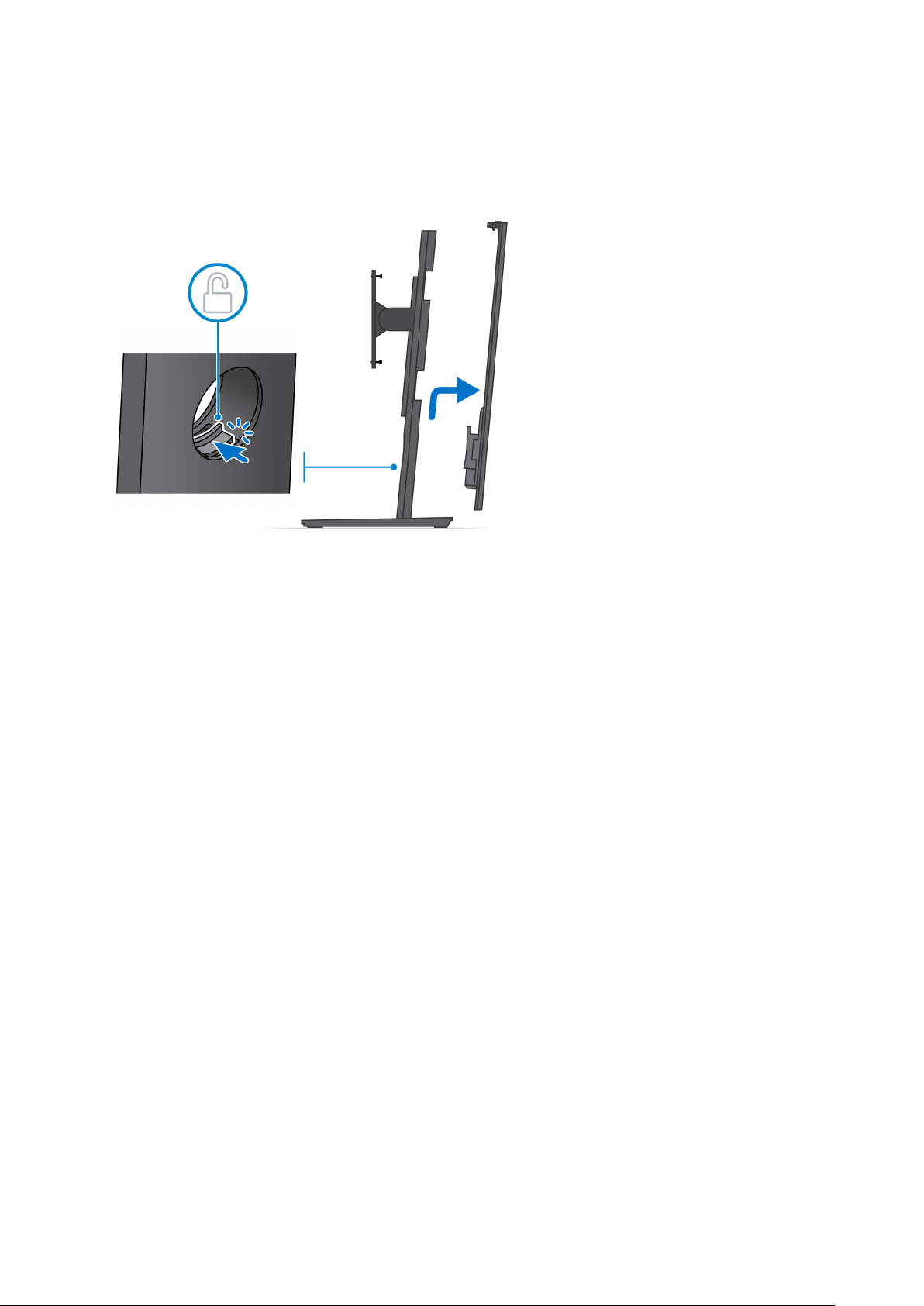

8. Slide and lift the cover to release it from the stand.
9. Align the vents on the device with the vents on the stand cover.

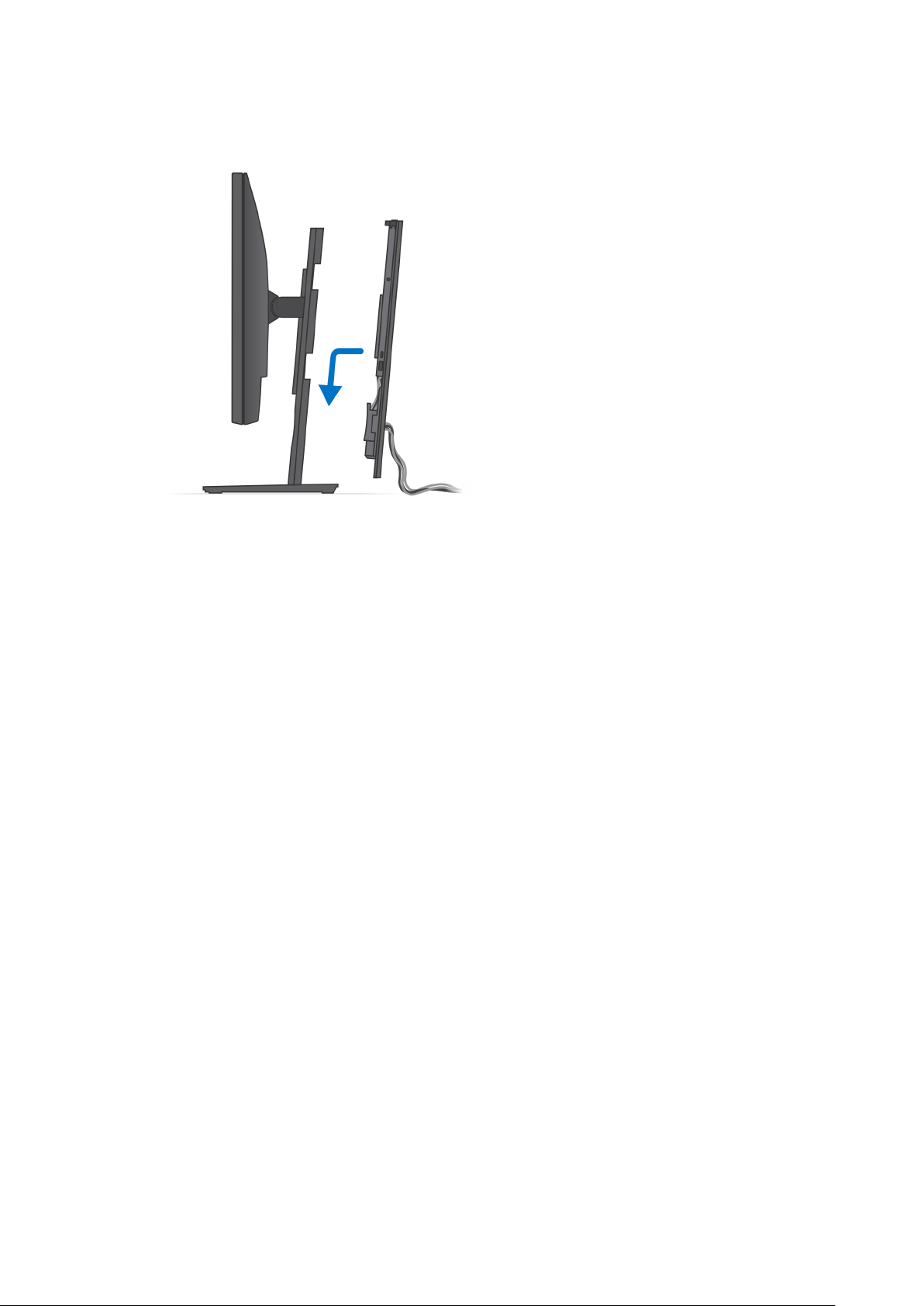

10. Lower the device in the stand until you hear a click.
Set up your OptiPlex 3090 Ultra 17

11. Connect the power, network, keyboard, mouse, and display cables to the device and to the power outlet.

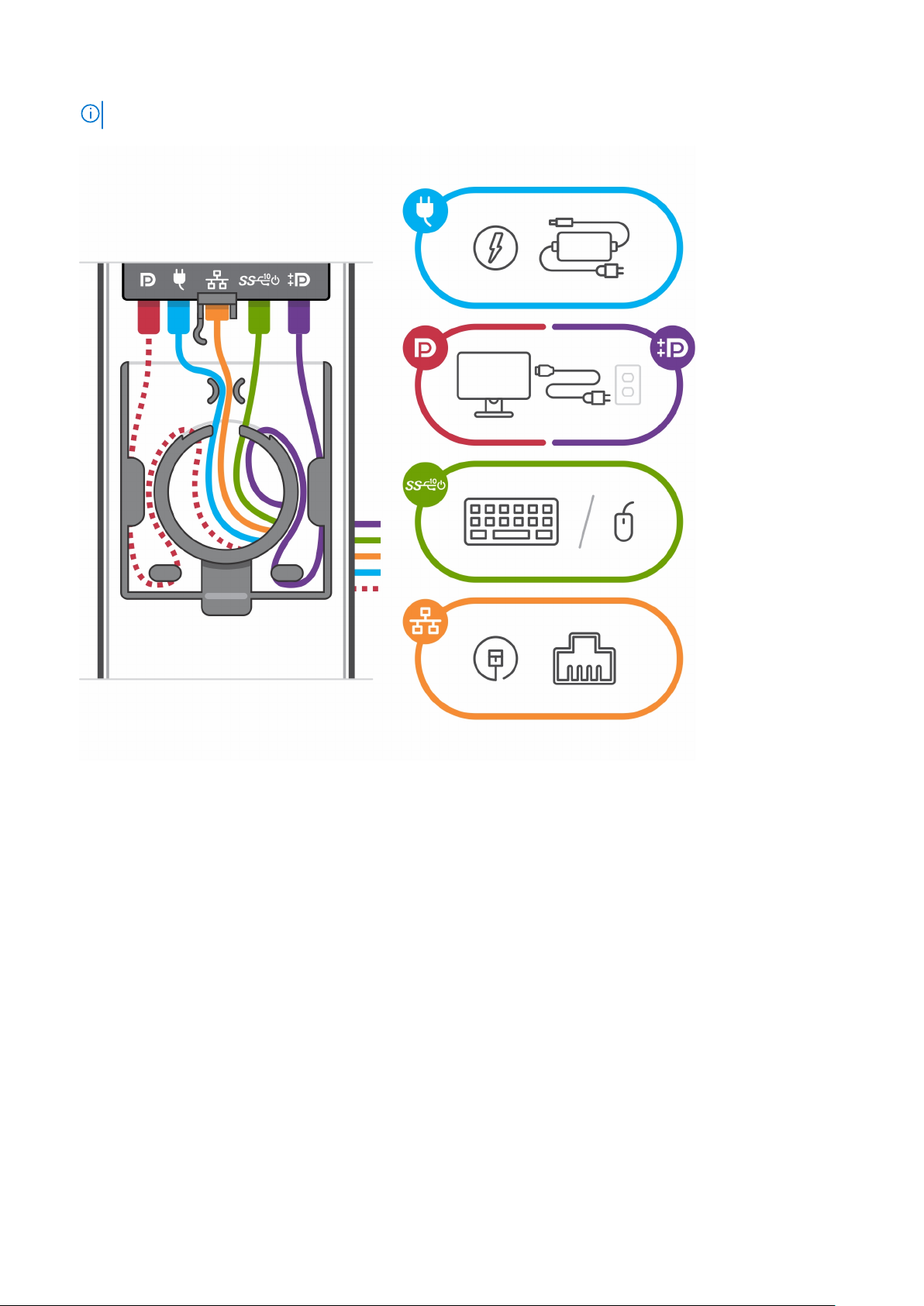

NOTE: To avoid any pinching or crimping of the cables while closing the stand cover, it is recommended that you route
the cables as indicated in the image.
NOTE: All the cables and ports are used depending on the peripherals chosen and the configuration of the computer.
18 Set up your OptiPlex 3090 Ultra

12. Slide the back cover, along with the device, into the stand until you hear a click.
Set up your OptiPlex 3090 Ultra 19

13. Lock the device and the stand cover.
20 Set up your OptiPlex 3090 Ultra
