Set up your computer
1 Connect the keyboard and mouse.
2 Connect to your network using a cable, or connect to a wireless network.

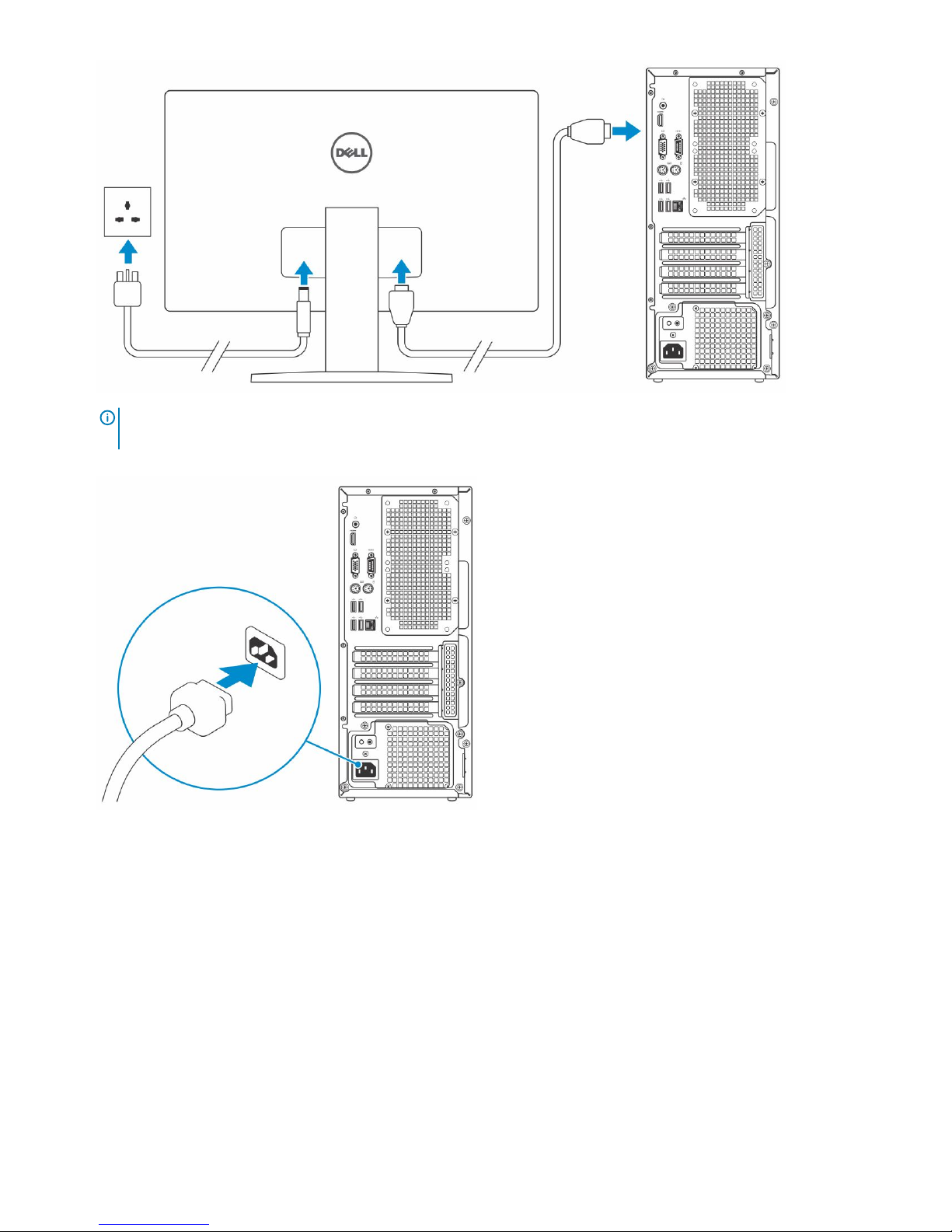

3 Connect the display.
1
Set up your computer 3

NOTE: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of
your computer are covered. Connect the display to the discrete graphics card.
4 Connect the power cable.
5 Press the power button.
4Set up your computer

6 Follow the instructions on the screen to nish Windows setup:
a Connect to a network.
b Sign-in to your Microsoft account or create a new account.
7 Locate Dell apps.
Set up your computer 5

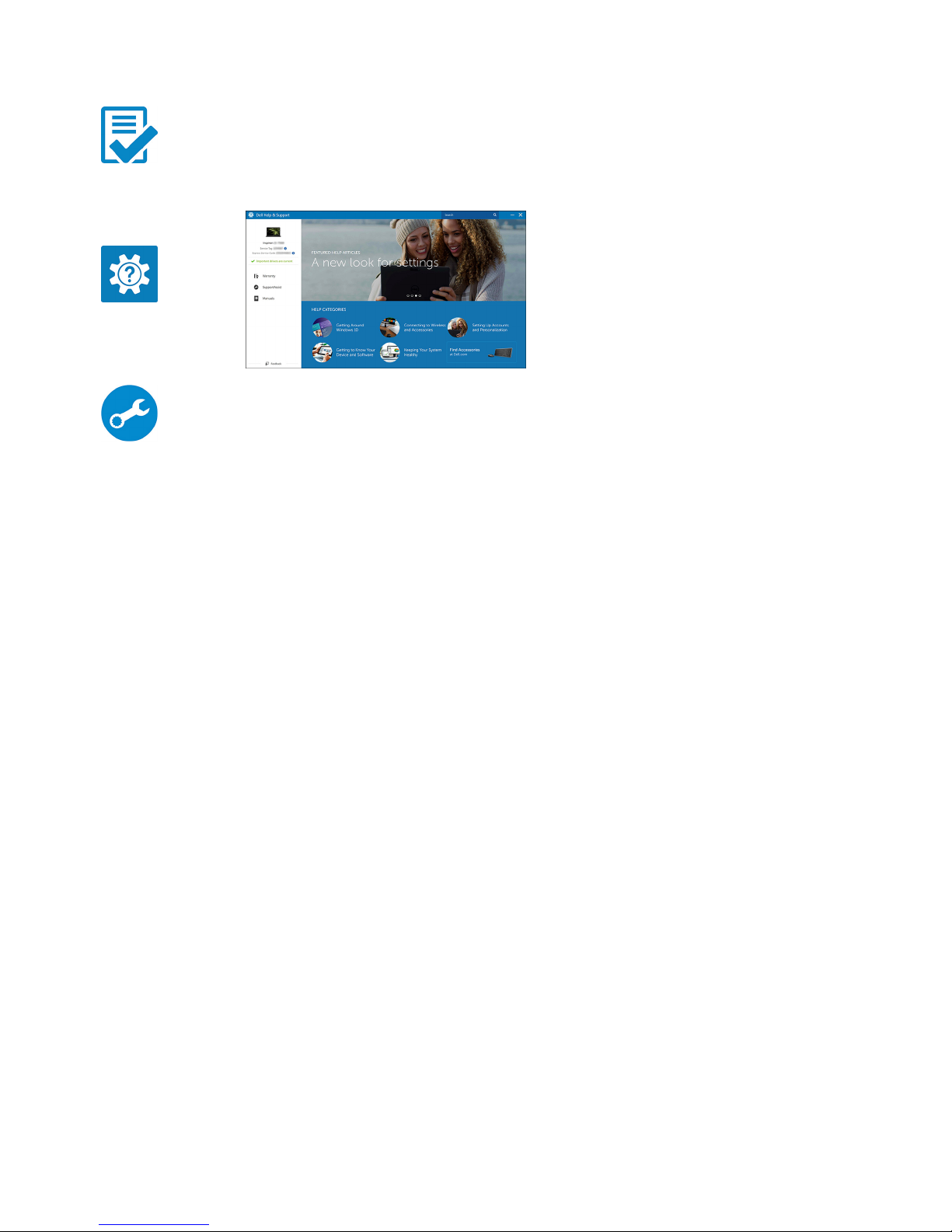

Table 1. Locate Dell apps
Register your computer
Dell Help & Support
SupportAssist — Check and update your computer
6Set up your computer

Chassis
System front view
1 Optical drive 2 Power button and power status light
3 Hard drive activity light 4 Universal audio jack
5 USB 3.1 Gen 1 ports
2
Chassis 7

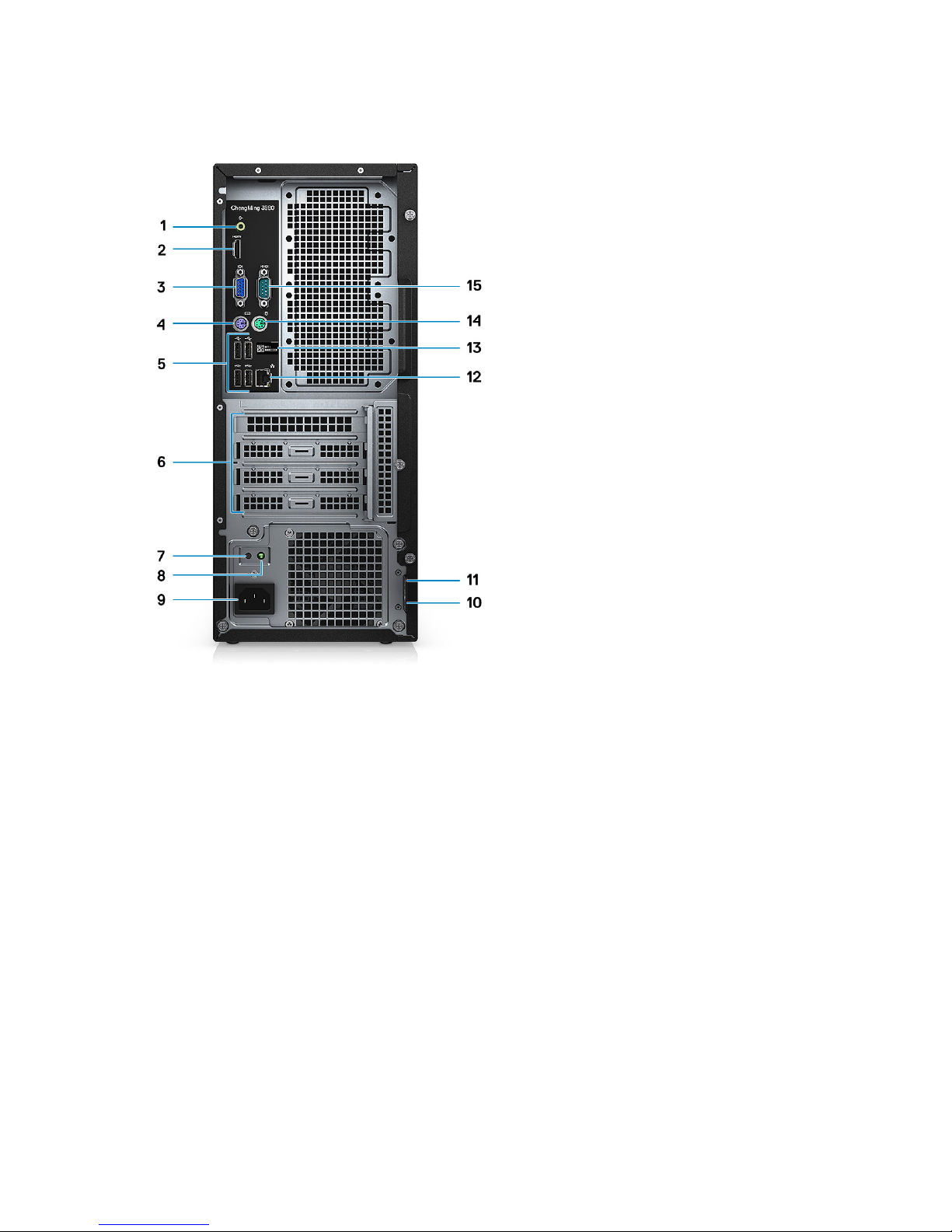

System back view
1 Line out port 2 HDMI port
3 VGA port 4 PS2 port for keyboard
5 USB 2.0 ports (4) 6 Expansion card slots
7 Power supply diagnostic button 8 Power diagnostic light
9 Power connector port 10 Padlock ring
11 Kensington security slot 12 Network port
13 Service tag 14 PS2 port for mouse
15 Serial port
8 Chassis

Technical specications
NOTE: Oerings may vary by region. The following specications are only those required by law to ship with your computer. For
more information about the conguration of your computer, go to Help and Support in your Windows operating system and
select the option to view information about your computer.
Topics:
• Dimensions and weight
• System information
• Processor
• Operating system
• Memory
• Ports and connectors
• Communication specications
• Video specications
• Audio
• Storage
• Storage combinations
• Power supply specications
• Security hardware
• Regulatory and Environmental Compliance
Dimensions and weight
Table 2. Dimensions and weight
Height 373.7
Width 160
Depth 289.4mm
Weight 5.9 kg (13.01 lb)
System information
Table 3. System information
Chipset Integrated: Intel H370
DRAM bus width 64-bit wide channels
FLASH EPROM 256Mbit
3
Technical specications 9

PCIe bus 100MHz
External bus frequency DMI3.0 8GT/s
Processor
Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchronized transitions
on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to reduce the number of
congurations managed on a worldwide basis, thereby reducing their costs. They also enable companies to implement global IT standards
by locking in specic product congurations worldwide. The following GSP processors identied below will be made available to Dell
customers.
NOTE: Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/
country.
Table 4. Processor specications
Type UMA Graphics
Intel Celeron- G4900 (2 Cores/2MB/2T/3.1GHz/65W) Intel Ultra HD (UHD) Graphics 610 with shared graphics memory
Intel Pentium Gold- G5400 (2 Cores/4MB/4T/3.7GHz/65W) Intel UHD Graphics 610 with shared graphics memory
Intel Core i3-8100 (4 Cores/6MB/4T/3.6GHz/65W) Intel UHD Graphics 630 with shared graphics memory
Intel Core i5-8400 (6 Cores/9MB/6T/ 4.0GHz/65W) Intel UHD Graphics 630 with shared graphics memory
Intel Core i5-8500 (6 Cores/9MB/6T/4.1GHz/65W) Intel UHD Graphics 630 with shared graphics memory
Intel Core i7-8700 (6 Cores/12MB/12T/4.6GHz/65W) Intel UHD Graphics 630 with shared graphics memory
Operating system
Table 5. Operating system
Operating systems supported • Windows 10 64-bit
• Windows 10 64-bit Professional
• Ubuntu
• NeoKylin
Memory
Table 6. Memory specications
Minimum memory conguration 4 GB
Maximum memory conguration 32 GB
Number of slots 2 UDIMM
Maximum memory supported per slot 16 GB
Memory options • 4GB DDR4 2400MHz (4Gx1)
• 8GB DDR4 2400MHz (8Gx1)
• 8GB DDR4 2400MHz (4Gx2)
10 Technical specications

• 16GB DDR4 2400MHz (8Gx2)
• 16GB DDR4 2400MHz (16Gx1)
• 32GB DDR4 2400MHz (16Gx2)
• 4GB DDR4 2666MHz (4Gx1)
• 8GB DDR4 2666MHz (8Gx1)
• 8GB DDR4 2666MHz (4Gx2)
• 16GB DDR4 2666MHz (8Gx2)
• 16GB DDR4 2666MHz (16Gx1)
• 32GB DDR4 2666MHz (16Gx2)
NOTE:
The memory modules are customer replaceable units (CRU),
and memory can be upgraded.
Memory performance on Intel Celeron, Pentium, and Core i3
processors will be at 2400 MHz.
Type DDR4 SDRAM Non-ECC memory.
Speed • 2666 MHz
• 2400 MHz on Celeron, Pentium, and i3 processor
Ports and connectors
Table 7. Ports and connectors
USB • Four USB 3.1 Gen 1 ports
• Four USB 2.0 ports
Security • Kensington security slot
• Padlock ring
Audio • Headset port
• Line-out
Video • VGA port
• HDMI 1.4 (UMA)
Network adapter One RJ-45 connector
Serial port One serial port
PS/2 ports for keyboard and mouse • One PS/2 port for mouse
• One PS/2 port for keyboard
Technical specications 11

Communication specications
Table 8. Communication specications
Network adapter Ethernet controller 10/100/1000 Mb/s Ethernet (RJ-45 )
Wireless • WLAN/Bluetooth combo wireless NIC add-in card (with
external antenna)
• 2nd gigabit NIC add-in card (PCIe)
Video specications
Table 9. Video specications
Controller Type CPU
Dependency
Graphics
memory type
Capacity External display
support
Maximum
resolution
Intel UHD
Graphics 610
UMA Intel Pentium
Gold G5400
Celeron
processor
G4900
Integrated Shared system
memory
VGA
HDMI 1.4
VGA:
2048x1536@60 Hz
HDMI : 1920x1080@
60Hz
Intel UHD
Graphics 630
UMA Intel Core i3
-8100
Intel Core i5
-8400
Intel Core i3
-8100
Intel Core i5
-8400
Intel Core i7 -
8700
Integrated Shared system
memory
VGA
HDMI 1.4
VGA:
2048x1536@60 Hz
HDMI : 1920x1080@
60Hz
NVIDIA GeForce
GT 730 2GB
Discrete N\A GDDR5 2 GB DP1.2 Max Resolution
• 2560X1600
AMD Radeon RX
550 4GB
Discrete N\A GDDR5 4 GB mDP and DP Max Resolution
• 5120 X 2880
NVIDIA GeForce
GTX 1060
Discrete N/A GDDR5 3 GB DL-DVI
DP
HDMI
DL-DVI = 2560 x
1600x 24bpp @
60hz (reduced
blanking)
DisplayPort =
• 7680 x 4320 @
60hz YUV420
8bit with single
DP1.3
• 5120 x 3200 x 24
bpp @ 60hz
12 Technical specications

Controller Type CPU
Dependency
Graphics
memory type
Capacity External display
support
Maximum
resolution
(reduced
blanking)
• 5120 x 3200 x
30 bpp @ 60hz
(YUV422)
HDMI = 4096 x 2160
x 24bpp @ 60hz
Audio
Table 10. Audio
Controller Audio software: Waves MaxxAudio Pro
Type Four-channel high-denition audio
Speakers Two (Directional speakers)
Interface • Universal audio jack
• High quality speakers
• Microphones
• Stereo headset/mic combo
Internal speaker amplier 2W (RMS) per channel
Storage
Table 11. Storage specications
Type Form factor Interface Capacity
Hard drive
(HDD)
3.5 inch HDD and 2.5 inch HDD Up to 6Gbps
(SATA 3.0)
Up to 2 TB
Solid-State
Drive (SSD)
SSD M.2 PCIe 2230 and 2280 PCIe PCIe Gen3
8Gb/s (up to 4
lanes)
Up to 512GB
Solid-State
Drive (SSD)
M.2 SATA 2230 and 2280 SATA AHCI,
Up to 6 Gbps
Up to 512GB
Solid-State
Drive (SSD)
2.5 inch SSD Up to 6Gbps
(SATA 3.0)
Up to 512GB
Up to 32 GB
(optional)
Optane N\A Up to 32GB
Optical Drive options
Slim ODD tray type 9.5 mm (Optional)
Technical specications 13

Storage combinations
Table 12. Storage combinations
Type Form factor
M.2 Drive + SATA M.2 128GB Solid State Drive+ 1TB 7200 rpm Hard Drive
Power supply specications
Table 13. Power supply
Input Voltage 100–240 VAC or 200-240 VAC, 50–60Hz
Wattage • 290W PSU (APFC)
• 290W PSU (EPA Bronze)
• 365 W PSU (EPA Gold), pair with NVIDIA GTX 1060 3GB
GDDR5
Security hardware
Table 14. Security hardware
Security HW • Data wipe via BIOS (Secure Erase)
Regulatory and Environmental Compliance
Table 15. Regulatory and Environmental Compliance
Regulatory and Environmental Compliance • Energy Star 6.1 (available in selected congurations only)
• FCC, UL mark
• Silver EPEAT Registered (for selected congurations only). For
specic country participation and rating, please visit
www.epeat.net
14 Technical specications

System setup
System setup enables you to manage your desktop hardware and specify BIOS level options. From the System setup, you can:
• Change the NVRAM settings after you add or remove hardware
• View the system hardware conguration
• Enable or disable integrated devices
• Set performance and power management thresholds
• Manage your computer security
Topics:
• Boot Sequence
• Navigation Keys
• System Setup options
• Updating the BIOS in Windows
• System and setup password
Boot Sequence
Boot Sequence allows you to bypass the System Setup–dened boot device order and boot directly to a specic device (for example:
optical drive or hard drive). During the Power-on Self Test (POST), when the Dell logo appears, you can:
• Access System Setup by pressing F2 key
• Bring up the one-time boot menu by pressing F12 key
The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options are:
• Removable Drive (if available)
• STXXXX Drive
NOTE: XXX denotes the SATA drive number.
• Optical Drive (if available)
• SATA Hard Drive (if available)
• Diagnostics
NOTE: Choosing Diagnostics, will display the ePSA diagnostics screen.
The boot sequence screen also displays the option to access the System Setup screen.
Navigation Keys
The following table displays the system setup navigation keys.
NOTE: For most of the system setup options, changes that you make are recorded but do not take eect until you re-start the
system.
4
System setup 15

Table 16. Navigation Keys
Keys Navigation
Up arrow Moves to the previous eld.
Down arrow Moves to the next eld.
<Enter> Allows you to select a value in the selected eld (if applicable) or follow the link in the eld.
Spacebar Expands or collapses a drop‐down list, if applicable.
<Tab> Moves to the next focus area.
NOTE: For the standard graphics browser only.
<Esc> Moves to the previous page till you view the main screen. Pressing <Esc> in the main screen displays a message
that prompts you to save any unsaved changes and restarts the system.
<F1> Displays the System Setup help le.
System Setup options
NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not appear.
Table 17. General
Option Description
System Information Displays the following information:
• System Information: Displays BIOS Version, Service Tag, Asset Tag, Ownership Date,
Manufacture Date, and the Express Service Code.
• Memory Information: Displays Memory Installed, Memory Available, Memory Speed, Memory
Channels Mode, Memory Technology, DIMM 1 Size, and DIMM 2 Size.
• PCI Information: Displays SLOT1, SLOT2, SLOT3, SLOT4, SLOT5_M.2
• Processor Information: Displays Processor Type, Core Count, Processor ID, Current Clock
Speed, Minimum Clock Speed, Maximum Clock Speed, Processor L2 Cache, Processor L3
Cache, HT Capable, and 64-Bit Technology.
• Device Information: Displays SATA-0, SATA-1, SATA-2, SATA-3, LOM MAC Address, Video
Controller
Boot Sequence Allows you to specify the order in which the computer attempts to nd an operating system from the
devices specied in this list.
• Legacy
•UEFI (default)
Advanced Boot Options Allows you to select the Enable Legacy Option ROMs option, when in UEFI boot mode. By default,
this option is enabled.
UEFI Boot Path Security Options:
•Always, Except Internal HDD (default)
• Always
• Never
Date/Time Allows you to set the date and time settings. Changes to the system date and time take eect
immediately.
16 System setup

Table 18. System Conguration
Option Description
Integrated NIC Allows you to control the on-board LAN controller. The options are:
• Enable UEFI Network stack
• Disabled
• Enabled
• Enabled w/PXE (default)
NOTE: Depending on the computer and its installed devices, the items listed in this section
may or may not appear.
Serial Port Identies and denes the serial port settings. You can set the serial port to:
• Disabled
• COM1 (default)
• COM2
• COM3
• COM4
SATA Operation Allows you to congure the operating mode of the integrated hard drive controller.
• Disabled = The SATA controllers are hidden
• AHCI
•RAID On (default)
Drives Allows you to enable or disable the various drives on-board:
• SATA-0
• SATA-1
• SATA-2
• SATA-3
• M.2 PCIe SSD-0
Default Setting: All drives are enabled.
Smart Reporting This eld controls whether hard drive errors for integrated drives are reported during system startup.
This option is disabled by default.
USB Conguration Allows you to enable or disable the integrated USB controller for:
• Enable Boot Support
• Enable Front USB Ports
• Enable Rear USB Ports
All the options are enabled by default.
Front USB Conguration Allows you to enable or disable the Front USB conguration. The options are:
• Front Port 1 (Left)*
• Front Port 2( Right)*
• Front Port 3 (Left)*
• Front Port 4 (Right)*
All the options are enabled by default.
* denotes a USB 3.0-capable port
Rear USB Conguration Allows you to enable or disable the rear USB conguration. The options are:
System setup 17

Option Description
• Rear Port 1 (Left)
• Rear Port 2 (Right)
• Rear Port 3 (Left)
• Rear Port 4 (Right)
All the options are enabled by default.
* denotes a USB 3.0-capable port
Audio Allows you to enable or disable the integrated audio controller.
• Enable Microphone
• Enable Internal Speaker
Both the options are enabled by default.
Miscellaneous Devices Allows you to enable or disable the various on-board devices.
• Enable PCI Slot (default option)
.
Table 19. Video
Option Description
Primary Display Allows you to select the primary display when multiple controllers are available in the system.
•Auto (default)
• Intel HD Graphics
• NVIDI HD Graphics
NOTE: If you do not select Auto, the on-board graphics device will be present and enabled.
Multi-Display The option is enabled by default
Table 20. Security
Option Description
Admin Password This option lets you enable or disable Admin passwords for the system.
NOTE: You must set the admin password before you set the system or hard drive
password. Deleting the admin password automatically deletes the system password and
the hard drive password.
NOTE: Successful password changes take eect immediately.
Default Setting: Not set
System Password Allows you to set, change or delete the system password.
NOTE: Successful password changes take eect immediately.
Default Setting: Not set
Internal HDD-0 Password Allows you to set, change or delete the password on the system's internal hard-disk drive.
NOTE: Successful password changes take eect immediately.
Default Setting: Not set
18 System setup

Option Description
Internal HDD-2 Password Allows you to set, change or delete the password on the system's internal hard-disk drive.
NOTE: Successful password changes take eect immediately.
Default Setting: Not set
Password Change Allows you to enable the disable permission to the System and Hard Drive passwords when the admin
password is set.
Default Setting: Allow Non-Admin Password Changes is selected.
UEFI Capsule Firmware Updates Allows you to controls whether the system allows BIOS update via UEFI capsule update packages.
Default setting: Enable
PTT Security Allows you to control the Platform Trust Technology feature (PTT) is visible to the operating system.
The options are:
• PTT On
NOTE: Disabling this option dose not change any setting you have made to the PTT nor
dose it delete or change any information or keys you may have stored in the PTT. Changes
to this settings take eect immediately
Master Password Lockout The option is disabled by default
HDD Protection Support The option is disabled by default
SMM Security Mitigation The option is disabled by default
CPU XD Support Allows you to enable or disable the Execute Disable mode of the processor. This option is enabled by
default.
Table 21. Secure Boot
Option Description
Secure Boot Enable Allows you to enable or disable Secure Boot feature. The option is disabled by default.
Secure Boot Mode •Deployed Mode (default)
• Audit Mode
Expert key Management Allows you to manipulate the security key databases only if the system is in Custom Mode. The
Enable Custom Mode option is disabled by default. The options are:
•PK (default)
• KEK
• db
• dbx
If you enable the Custom Mode, the relevant options for PK, KEK, db, and dbx appear. The
options are:
•Save to File- Saves the key to a user-selected le
•Replace from File- Replaces the current key with a key from a user-selected le
•Append from File- Adds a key to the current database from a user-selected le
•Delete- Deletes the selected key
•Reset All Keys- Resets to default setting
•Delete All Keys- Deletes all the keys
NOTE: If you disable the Custom Mode, all the changes made will be erased and the
keys will restore to default settings.
System setup 19

Table 22. Intel Software Guard Extensions
Option Description
Intel SGX Enable Allows you to enable or disable the Intel Software Guard Extensions to provide a secured
environment for running code/storing sensitive information in the context of the main operating
system.
• Disabled
• Enabled
•Software Controlled (default)
Enclave Memory Size Allows you to set the Intel SGX Enclave Reserve Memory Size.
• 32 MB
• 64 MB
• 128 MB
Table 23. Performance
Option Description
Multi Core Support This eld species whether the process will have one or all cores enabled. This option is enabled by
default.
Enable Intel SpeedStep Allows you to enable or disable the Intel SpeedStep mode of the processor. This option is enabled by
default.
C States Control Allows you to enable or disable additional processor sleep states. This option is enabled by default.
Intel TurboBoost Allows you to enable or disable the Intel TurboBoost mode of the processor. This option is enabled by
default.
Hyper-Thread Control Allows you to enable or disable the HyperThreading in the processor.
• Disabled
•Enabled (default)
Table 24. Power Management
Option Description
AC Recovery Determines how the system responds when AC power is re-applied after a power loss. You can set
the AC Recovery to:
• Power O
• Power On
• Last Power State
This option is Power O by default.
Enable Intel Speed Shift
Technology
The option is enabled by default
Auto On Time Sets time to automatically turn on the computer. Time is kept in standard 12-hour format
(hour:minutes:seconds). Change the startup time by typing the values in the time and AM/PM elds.
NOTE: This feature does not work if you turn o your computer using the switch on a
power strip or surge protector or if Auto Power is set to disabled.
Deep Sleep Control Allows you to dene the controls when Deep Sleep is enabled.
•Disabled (default)
• Enabled in S5 only
20 System setup
