Dell™ Dimension™ 5150/E510 Service Manual
Before You Begin
Technical Overview
Specifications
Removing the Computer Cover
Removing and Installing Parts
Replacing the Computer Cover
Troubleshooting
System Setup
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
If you purchased a Dell™ n Series computer, any references in this document to Microsoft® Windows® operating systems are
not applicable.
Information in this document is subject to change without notice.
© 2005–2006 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Dimension are trademarks of Dell Inc.; Intel, Intel SpeedStep, and Pentium are registered
trademarks of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model DCSM
August 2006 Rev. A01

Back to Contents Page
Before You Begin
Dell™ Dimension™ 5150/E510 Service Manual
Getting Started
Recommended Tools
Turning Off Your Computer
Before Working Inside Your Computer
Getting Started
This section provides procedures for removing and installing the components in your computer. Unless otherwise noted, each
procedure assumes that the following conditions exist:
You have performed the steps in "Turning Off Your Computer" and "Before Working Inside Your Computer."
You have read the safety information in your Dell™ Product Information Guide.
A component can be replaced by performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
Small flat-blade screwdriver
Long Phillips screwdriver
Flash BIOS update program floppy disk or CD
Turning Off Your Computer
NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off your
computer.
1. Shut down the operating system:
a. Save and close any open files, exit any open programs, click the Start button, and then click Turn Off
Computer.
b. In the Turn off computer window, click Turn off.
The computer turns off after the operating system shutdown process finishes.
2. Ensure that the computer and any attached devices are turned off. If your computer and attached devices did not
automatically turn off when you shut down your operating system, press and hold the power button for 4 seconds.
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own

personal safety.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card.
Hold a card by its edges or by its metal mounting bracket. Hold a component such as a processor by its
edges, not by its pins.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is
not authorized by Dell is not covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some
cables have a connector with locking tabs; if you are disconnecting this type of cable, press in on the locking tabs
before you disconnect the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any
connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
1. Turn off your computer.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the
network port or device.
2. Disconnect any telephone or telecommunication lines from the computer.
3. Disconnect your computer and all attached devices from their electrical outlets, and then press the power button to
ground the system board.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before
opening the cover.
4. Remove the computer cover.
NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface,
such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to
dissipate any static electricity that could harm internal components.
Back to Contents Page

Back to Contents Page
Technical Overview
Dell™ Dimension™ 5150/E510 Service Manual
Front View of the Computer
Back View of the Computer
Inside View of Your Computer
System Board Components
Power Supply DC Connector Pin Assignments
Front View of the Computer
1cover latch
release Use this latch to remove the computer cover.
2location of
Service
Tag
Use the Service Tag to identify your computer when you access the Dell
Support website or call technical support.
3CD or DVD
eject
button
Press to eject a disk from the CD or DVD drive.
4CD or DVD
activity
light
The drive light is on when the computer reads data from the CD or DVD drive.
5 FlexBay Can contain an optional floppy drive or optional Media Card Reader. For more
information about the Media Card Reader, see your computer Owner's
Manual.
6 microphone Use the microphone connector to attach a personal computer microphone for

connector voice or musical input into a sound or telephony program.
On computers with a sound card, the microphone connector is on the card.
7 headphone
connector Use the headphone connector to attach headphones.
8 diagnostic
lights (4) Use the lights to help you troubleshoot a computer problem based on the diagnostic code. For more information, see "Diagnostic Lights."
9 hard-drive
activity
light
The hard drive activity light is on when the computer reads data from or
writes data to the hard drive. The light might also be on when a device such
as a CD player is operating.
10 power
button,
power light
Press the power button to turn on the computer. The power light in the center
of this button indicates the power state. See "Specifications" for more
information.
NOTICE: To avoid losing data, do not use the power button to turn off the
computer. Instead, perform an operating system shutdown.
11 USB 2.0
connectors
(2)
Use the front USB connectors for devices that you connect occasionally, such
as joysticks or cameras. It is recommended that you use the back USB
connectors for devices that typically remain connected, such as printers,
keyboards, and mice, or for bootable USB devices, which may not function
properly if attached to the front connectors.
12 vents For adequate cooling, do not block any of the vents.
NOTICE: Ensure that there is a minimum of two inches of space between all
vents and any object near these vents.
NOTICE: Do not lift or carry the computer by the vents to avoid damage to
the computer.
NOTICE: Keep the vent area clean and dust-free to ensure that the computer
is adequately ventilated. Use only a dry cloth to clean the vent area to avoid
water damage to the computer.
Back View of the Computer

1voltage selection switch See the safety instructions in the Product Information Guide for more information.
2power connector Insert the power cable.
3back panel connectors Plug USB, audio, and other devices into the appropriate connector.
4card slots Access connectors for any installed PCI and PCI Express cards.
1link integrity
light Green — A good connection exists between a 10-Mbps network and the computer.
Orange — A good connection exists between a 100-Mbps network
and the computer.
Off — The computer is not detecting a physical connection to the
network.
2network adapter
connector To attach your computer to a network or broadband device, connect one end of a network cable to either a network jack or your network or
broadband device. Connect the other end of the network cable to the
network adapter connector on the back panel of your computer. A click
indicates that the network cable has been securely attached.
NOTE: Do not plug a telephone cable into the network connector.
On computers with a network connector card, use the connector on the
card.

It is recommended that you use Category 5 wiring and connectors for
your network. If you must use Category 3 wiring, force the network
speed to 10 Mbps to ensure reliable operation.
3network activity
light Flashes a yellow light when the computer is transmitting or receiving network data. A high volume of network traffic may make this light
appear to be in a steady "on" state.
4 surround
connector Use the black surround connector to attach multichannel-capable speakers.
5line-in connector Use the blue line-in connector to attach a record/playback device such
as a cassette player, CD player, or VCR.
On computers with a sound card, use the connector on the card.
6 line-out
connector Use the green line-out connector (available on computers with integrated sound) to attach headphones and most speakers with
integrated amplifiers.
On computers with a sound card, use the connector on the card.
7 micro-
phone/side
surround
connector
Use the pink and silver connector to attach a personal computer
microphone for voice or musical input into a sound or telephony
program.
On computers with a sound card, the microphone connector is on the
card.
The side-surround output provides enhanced surround audio for
computers with 7.1 speakers.
8 center/subwoofer
connector Use the yellow connector to attach a speaker to a Low Frequency Effects (LFE) audio channel.
9VGA video
connector If your monitor has a VGA connector, plug it into the VGA connector on the computer.
10 USB 2.0
connectors (5) Use the back USB connectors for devices that typically remain connected, such as printers, keyboards, and mice, or for bootable USB
devices which may not function properly if attached to the front
connectors (see "System Setup" for more information on booting to a
USB device)
It is recommended that you use the front USB connectors for devices
that you connect occasionally, such as joysticks or cameras.
Inside View of Your Computer
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.

System Board Components

Power Supply DC Connector Pin Assignments

DC Main Power Connector P1
Pin Number Signal Name 18-AWG Wire
1+3.3 VDC* Orange
2+3.3 VDC* Orange
3 COM Black
4 +5VDC Red
5 COM Black
6+5 VDC Red
7 COM Black
8 POK Gray
9+5 VFP Purple

10 +12 VBDC White
11 +12 VBDC White
12 +3.3 VDC* Orange
13 +3.3 VDC*/SE* Orange
14 –12 VDC Blue
15 COM Black
16 PS-ON Green
17 COM Black
18 COM Black
19 COM Black
20 NA NA
21 +5 VDC Red
22 +5 VDC Red
23 +5 VDC Red
24 COM Black
*The orange +3.3 VDC output wires must be 16 AWG. The +3.3 VDC terminals are high current type (9 A current
rating/Molex-HCS type).
*The +3.3VDC/SE is a brown sense wire for +3.3VDC and is optional.
DC Processor Power Connector P2
Pin Number Signal Name 18-AWG Wire
1 COM Black
2 COM Black
3+12 VADC Yellow
4+12 VADC Yellow
DC Peripheral Connectors P3 and P5
Pin Number Signal Name 18-AWG Wire
1+3.3 VDC Orange
2 COM Black
3+5 VADC Red
4 COM Black
5+12 VBDC White
DC FDD Connector P7
Pin Number Signal Name 18-AWG Wire

1+5 VDC Red
2 COM Black
3 COM Black
4+12 VADC Yellow
DC Peripheral Connectors P8 and P9
Pin Number Signal Name 18-AWG Wire
1+12 VBDC White
2 COM Black
3 COM Black
4+5 VDC Red
Back to Contents Page

Back to Contents Page
Specifications
Dell™ Dimension™ 5150/E510 Service Manual
Processor
Processor type Intel®Pentium®4 5XXX and 6XXX
processors with Hyper-Threading
technology
NOTE: Not all Pentium 4 processors
support Hyper-Threading technology.
Level 1 (L1) cache 16 KB
Level 2 (L2) cache 1 MB for Pentium 5XXX processors
2 MB for Pentium 6XXX processors
(depending on your computer
configuration) pipelined-burst, eight-way
set associative, write-back SRAM
Memory
Type 400-MHz and 533-MHz DDR2 unbuffered
SDRAM
Memory connectors four
Memory capacities 256 MB, 512 MB, or 1 GB non-ECC
Maximum memory 4 GB
NOTE: See "Addressing Memory With 4-
GB Configurations" to verify the amount
of memory available to the operating
system.
BIOS address F0000h
Computer Information
Chipset Intel 945G Express
RAID Support RAID 1 (Mirroring)
DMA channels eight
Interrupt levels 24
BIOS chip (NVRAM) 4 Mb
NIC Integrated network interface capable of
10/100 communication
System clock 800- or 1066-MHz data rate
Video
Type Integrated Intel Graphics Media

Accelerator 950 (GMA950)
Audio
Type Sigmatel STAC9220
Expansion Bus
Bus type PCI 2.3
PCI Express x1 and x16
Bus speed PCI: 33 MHz
PCI Express:
x1 slot bidirectional speed - 500
MB/s
x16 slot bidirectional speed - 8
GB/s
PCI
connectors two
connector size 120 pins
connector data width (maximum) 32 bits
PCI Express
connector one x1
connector size 36 pins
connector data width (maximum) 1 PCI Express lane
PCI Express
connector one x16
connector size 164 pins
connector data width (maximum) 16 PCI Express lanes
Drives
Externally accessible:
one 3.5-inch FlexBay (may contain an
optional floppy drive or an optional Media
Card Reader)
two 5.25-inch drive bays
Available devices Serial ATA drives (2), floppy drive, USB
memory devices, CD drive, CD-RW drive,
DVD drive, DVD-RW drive, DVD and CD-
RW combo drive, and Media Card Reader
Internally accessible: two bays for 1-inch high serial ATA hard
drives
Connectors
External connectors:
Video 15-hole connector
Network adapter RJ-45 connector

USB two front-panel and five back-panel USB
2.0-compliant connectors
Audio five connectors for line-in, line-out,
microphone/ side-surround, surround,
and center/subwoofer connector (LFE
channel); two front-panel connectors for
headphones and microphone
System board connectors:
Primary IDE drive one 40-pin connector
Serial ATA two 7-pin connectors
FlexBay Drive one USB 10-pin header for optional Media
Card Reader (3.5-inch bay device)
Floppy drive one 33-pin connector
Fan one 5-pin connector
PCI 2.3 two 120-pin connectors
PCI Express x1 one 36-pin connector
PCI Express x16 one 164-pin connector
Controls and Lights
Power button push button
Power light green light — Blinking green in sleep
state; solid green for power-on state.
amber light — Blinking amber indicates a
problem with the power supply inside the
computer. If the system cannot boot and
there is a solid amber light, this indicates
a problem with the system board (see
"Power Problems" in your computer
Owner's Manual).
Hard-drive access light green
Link integrity light (on integrated network
adapter) green light — A good connection exists between a 10-Mbps network and the
computer.
orange light — A good connection exists
between a 100-Mbps network and the
computer.
off (no light) — The computer is not
detecting a physical connection to the
network.
Activity light (on integrated network
adapter) yellow blinking light
Diagnostic lights four lights on the front panel (see
"Diagnostic Lights")
Standby power light AUX_PWR on the system board
Power
DC power supply:
Wattage 305 W

Heat dissipation 1041 BTU/hr
Voltage (see the safety instructions
in the Product Information Guide
for important voltage setting
information)
90 to 135 V and 180 to 265 V at 50/60
Hz
Backup battery 3-V CR2032 lithium coin cell
Physical
Height 41.1 cm (16.2 inches)
Width 18.8 cm (7.4 inches)
Depth 45.7 cm (18.0 inches)
Weight 14.3 kg (31.4 lb)
Environmental
Temperature:
Operating 10° to 35°C (50° to 95°F)
Storage –40° to 65°C (–40° to 149°F)
Relative humidity 20% to 80% (noncondensing)
Maximum vibration:
Operating 0.25 G at 3 to 200 Hz at 0.5 octave/min
Storage 0.5 G at 3 to 200 Hz at 1 octave/min
Maximum shock:
Operating bottom half-sine pulse with a change in
velocity of 20 inches/sec (50.8 cm/sec)
Storage 27-G faired square wave with a velocity
change of 200 inches/sec (508 cm/sec)
Altitude:
Operating –15.2 to 3048 m (–50 to 10,000 ft)
Storage –15.2 to 10,668 m (–50 to 35,000 ft)
Back to Contents Page

Back to Contents Page
Removing the Computer Cover
Dell™ Dimension™ 5150/E510 Service Manual
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before
removing the cover.
1. Follow the procedures in "Before You Begin."
NOTICE: Ensure that sufficient space exists to support the removed cover—at least 30 cm (1 ft) of desktop space.
NOTICE: Ensure that you are working on a level, protected surface to avoid scratching either the computer or the
surface on which it is resting.
2. Lay your computer on its side with the computer cover facing up.

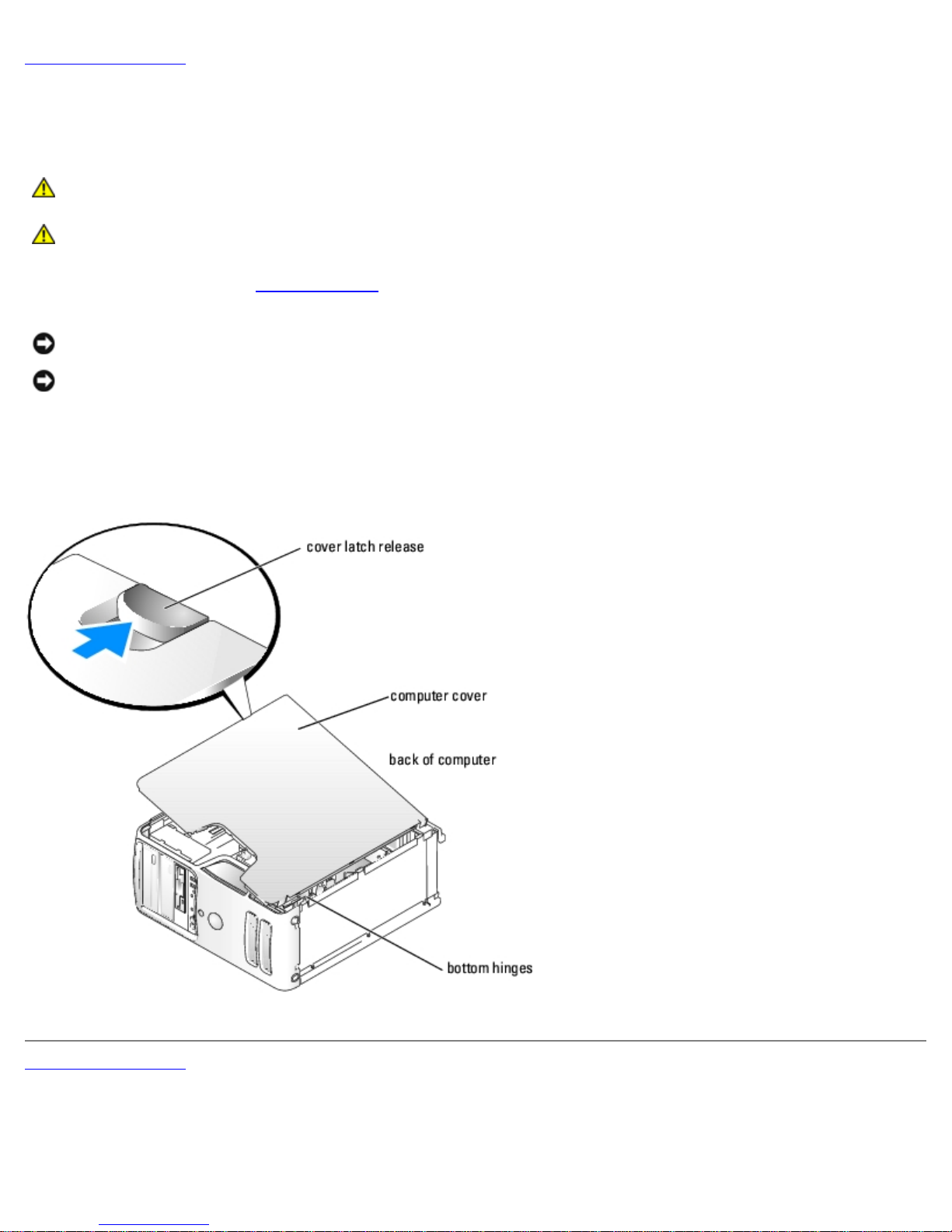

3. Pull back the cover latch release located on the top panel.
Back to Contents Page

Back to Contents Page
Removing and Installing Parts
Dell™ Dimension™ 5150/E510 Service Manual
Memory CD/DVD
Drive
Cards Heat- Sink
Assembly
Drive Panel Processor
Front Panel Fan
Assembly
Drives Front
I/O Panel
Hard Drive System
Board
Floppy Drive Power
Supply
Media Card Reader (Optional)
Memory
You can increase your computer memory by installing memory modules on the system board.
Your computer supports DDR2 memory. For additional information on the type of memory supported by your computer, see
your Owner's Manual.
DDR2 Memory Overview

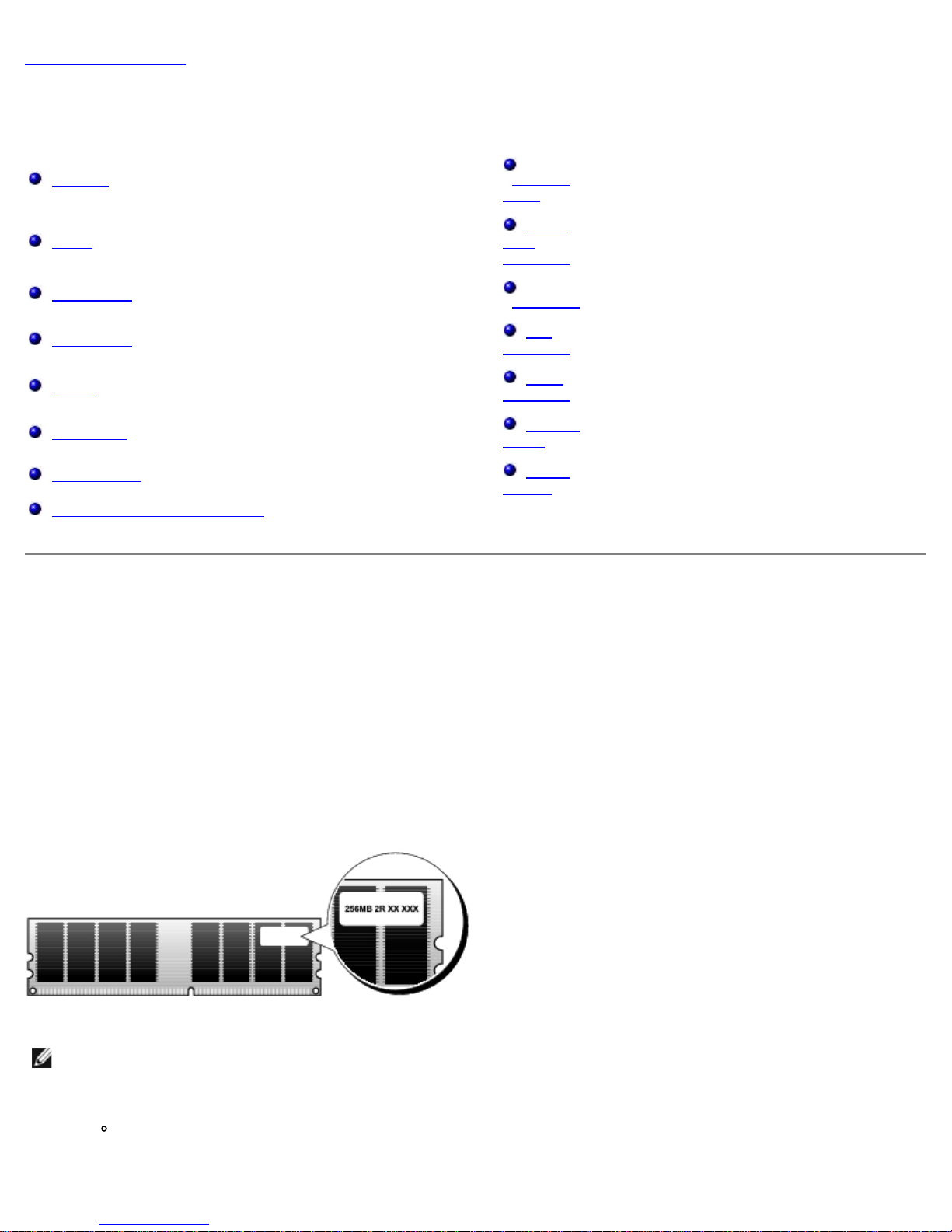

DDR2 memory modules should be installed in pairs of matched memory size, speed, and technology. If the DDR2 memory
modules are not installed in matched pairs, the computer will continue to operate, but with a slight reduction in performance.
See the label on the module to determine the module's capacity.
NOTE: Always install DDR2 memory modules in the order indicated on the system board.
The recommended memory configurations are:
A pair of matched memory modules installed in DIMM connectors 1 and 2

or
A pair of matched memory modules installed in DIMM connectors 1 and 2 and another matched pair installed in
DIMM connectors 3 and 4
NOTICE: Do not install ECC or buffered memory modules. Only unbuffered, non-ECC memory is supported.
NOTE: If you install DDR2 667-MHz memory, the speed is reduced to 533 MHz.
If you install mixed pairs of DDR2 400-MHz (PC2-3200) and DDR2 533-MHz (PC2-4300) memory, the modules function
at the slowest speed installed.
Be sure to install a single memory module in DIMM connector 1, the connector closest to the processor, before you
install modules in the other connectors.
NOTE: Memory purchased from Dell is covered under your computer warranty.
NOTICE: If you remove your original memory modules from the computer during a memory upgrade, keep them
separate from any new modules that you may have, even if you purchased the new modules from Dell. If possible, do
not pair an original memory module with a new memory module. Otherwise, your computer may not start properly.
You should install your original memory modules in pairs either in DIMM connectors 1 and 2 or DIMM connectors 3 and
4.
Addressing Memory With 4-GB Configurations
Your computer supports a maximum of 4 GB of memory when you use four 1-GB DIMMs. Current operating systems, such as
Microsoft® Windows® XP, can use a maximum of 4 GB of address space; however, the amount of memory available to the
operating system is less than 4 GB. Certain components within the computer require address space in the 4-GB range. Any
address space reserved for these components cannot be used by computer memory.
Removing Memory
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body
before you touch any of your computer's electronic components. You can do so by touching an unpainted metal surface
on the computer chassis.

1. Follow the procedures in "Before You Begin."
2. Remove the computer cover.
3. Press out the securing clip at each end of the memory module connector.
4. Grasp the module and pull up.
If the module is difficult to remove, gently ease the module back and forth to remove it from the connector.
Installing Memory
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body
before you touch any of your computer's electronic components. You can do so by touching an unpainted metal surface
on the computer chassis.
1. Follow the procedures in "Before You Begin."
2. Remove the computer cover.
3. Press out the securing clip at each end of the memory module connector.

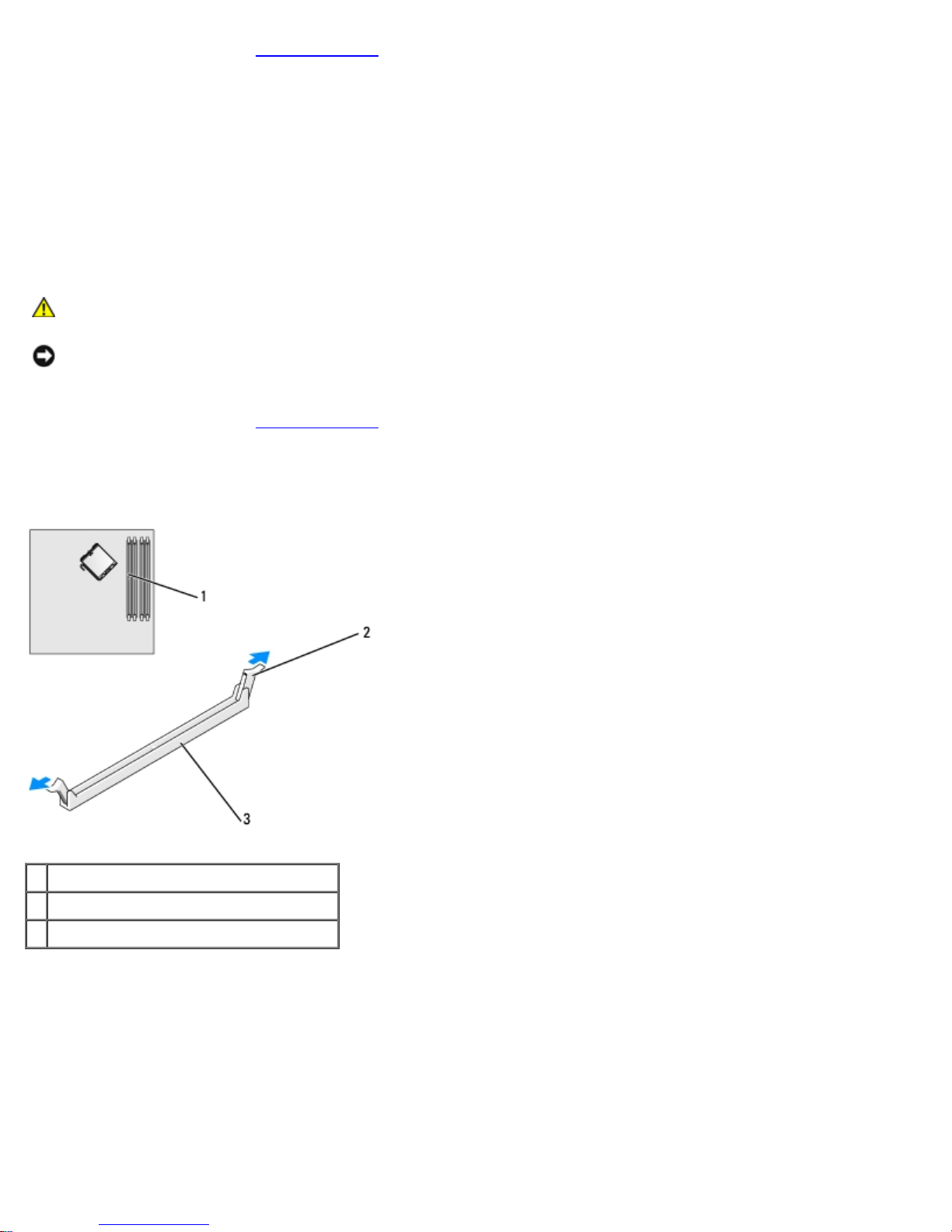

1memory connector closest to processor
2securing clips (2)
3memory connector
4. Align the notch on the bottom of the module with the crossbar in the connector.
