Dell Inspiron One 2330
Owner’s Manual
Computer model: Inspiron One 2330 Regulatory model: W05C Regulatory type: W05C001
OM_Book.book Page 1 Friday, March 30, 2012 1:21 PM

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and Inspiron™are trademarks of Dell Inc.;
Microsoft®, Windows®, and the Windows start button logo
are either trademarks or registered
trademarks of Microsoft corporation in the United States and/or other countries; Bluetooth®is a
registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license; Intel® and Intel
SpeedStep®are registered trademarks of Intel Corporation in the U.S. and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
2012 - 03 Rev. A00
OM_Book.book Page 2 Friday, March 30, 2012 1:21 PM

Contents 3
Contents
1Before You Begin. . . . . . . . . . . . . . . . . . . 11
Turn Off Your Computer and Connected Devices . . . . 11
Safety Instructions. . . . . . . . . . . . . . . . . . . . 12
Recommended Tools. . . . . . . . . . . . . . . . . . . 12
2After Working Inside Your Computer. . . . 13
3Technical Overview . . . . . . . . . . . . . . . . . 15
Inside View of Your Computer . . . . . . . . . . . . . . 16

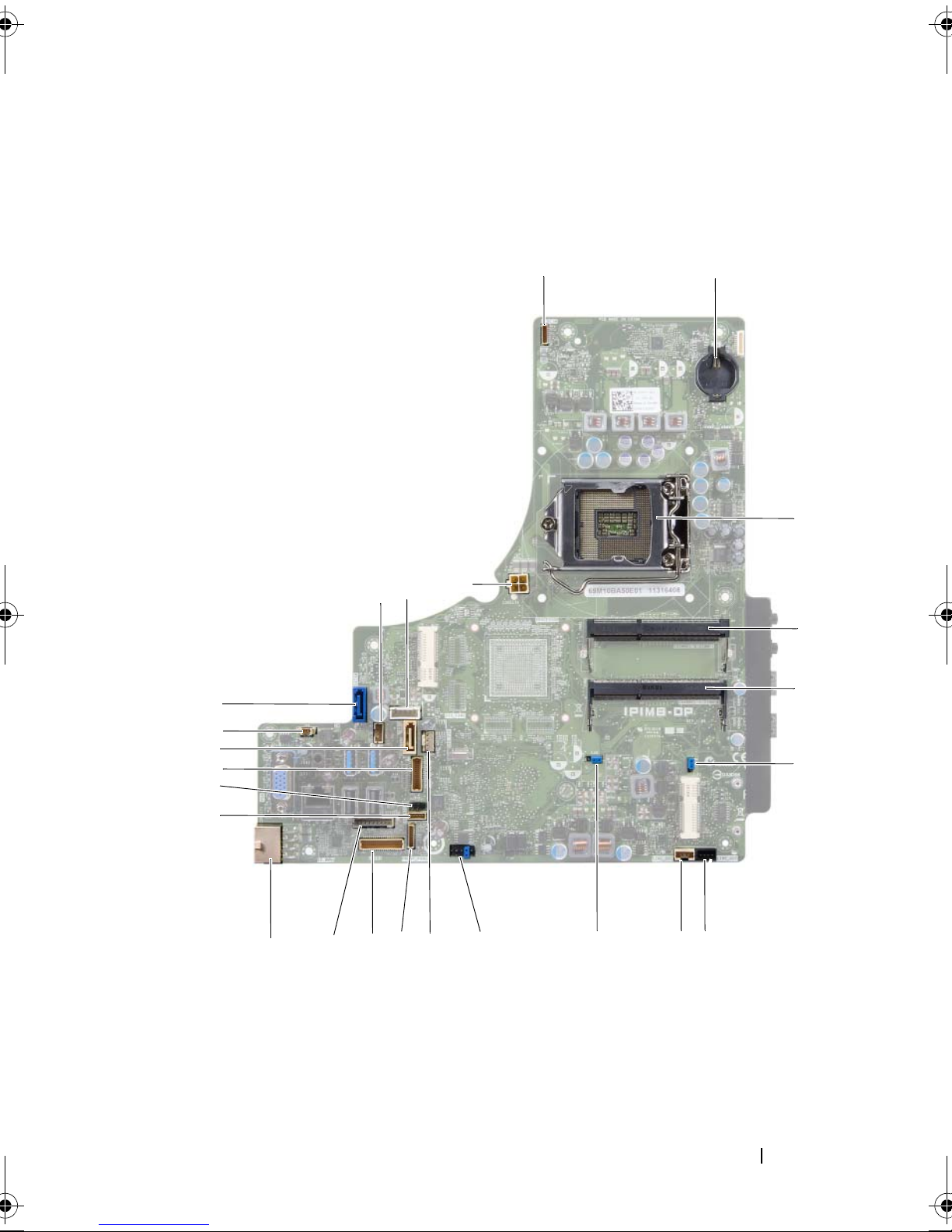

System Board Components . . . . . . . . . . . . . . . 17
4Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

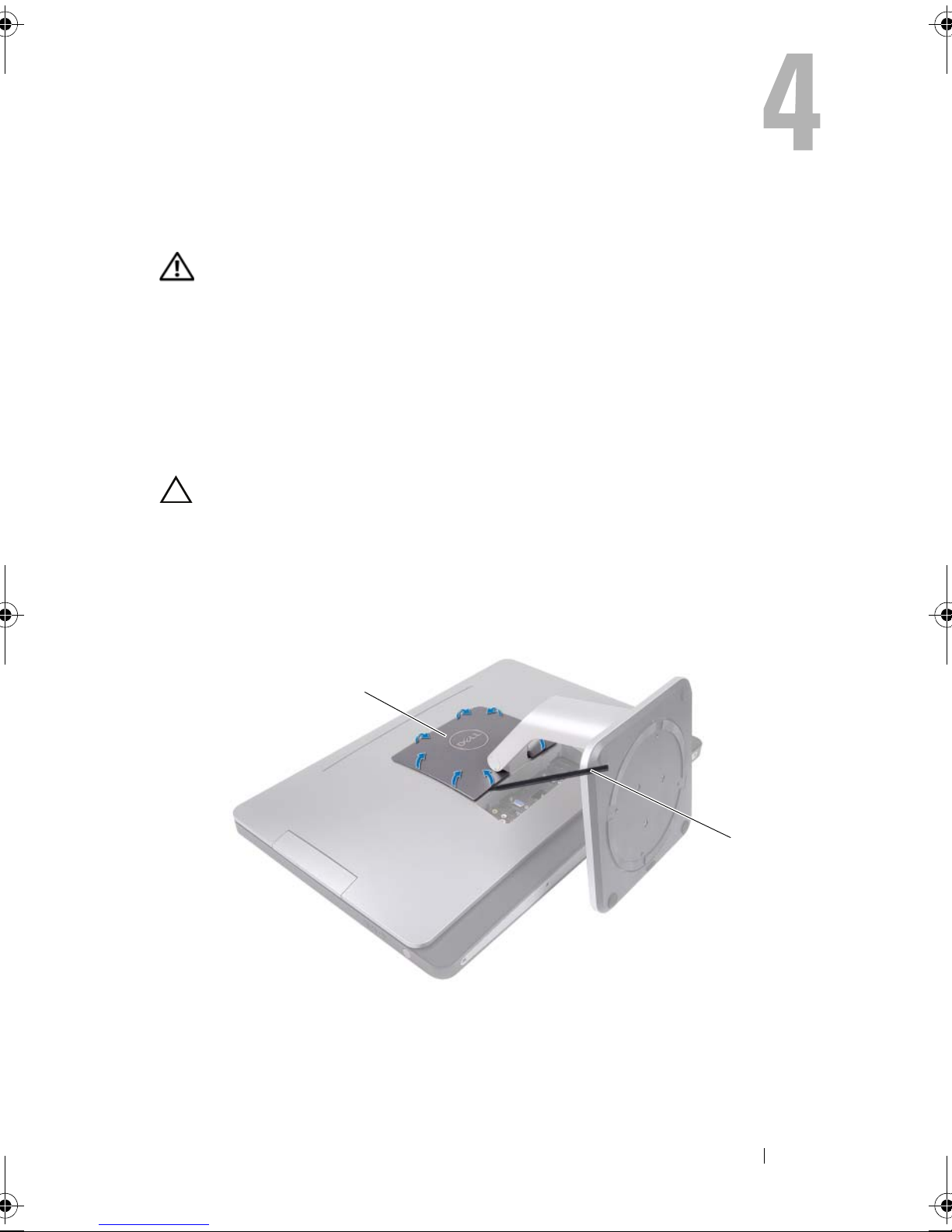

Removing the Stand . . . . . . . . . . . . . . . . . . . 19
Replacing the Stand . . . . . . . . . . . . . . . . . . . 21
5Back Cover . . . . . . . . . . . . . . . . . . . . . . . 23
Removing the Back Cover . . . . . . . . . . . . . . . . 23
Replacing the Back Cover . . . . . . . . . . . . . . . . 24
OM_Book.book Page 3 Friday, March 30, 2012 1:21 PM

4Contents
6B-CAS Card . . . . . . . . . . . . . . . . . . . . . . 25
Removing the B-CAS Card . . . . . . . . . . . . . . . . 25
Replacing the B-CAS card . . . . . . . . . . . . . . . . 27
7Converter Board . . . . . . . . . . . . . . . . . . 29
Removing the Converter Board . . . . . . . . . . . . . 29
Replacing the Converter Board . . . . . . . . . . . . . 31
8Power-Button Board . . . . . . . . . . . . . . . 33
Removing the Power-Button Board . . . . . . . . . . . 33
Replacing the Power-Button Board . . . . . . . . . . . 34
9Memory Module(s). . . . . . . . . . . . . . . . . 35
Removing the Memory Module(s) . . . . . . . . . . . . 35
Replacing the Memory Module(s) . . . . . . . . . . . . 37
10 Optical Drive . . . . . . . . . . . . . . . . . . . . . 39
Removing the Optical Drive . . . . . . . . . . . . . . . 39
Replacing the Optical Drive . . . . . . . . . . . . . . . 42
OM_Book.book Page 4 Friday, March 30, 2012 1:21 PM

Contents 5
11 VESA-Mount Bracket . . . . . . . . . . . . . . . 43
Removing the VESA-Mount Bracket. . . . . . . . . . . 43
Replacing the VESA-Mount Bracket . . . . . . . . . . 44
12 Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . 45
Removing the Hard Drive . . . . . . . . . . . . . . . . 45
Replacing the Hard Drive . . . . . . . . . . . . . . . . 48
13 System-Board Shield . . . . . . . . . . . . . . . . 49
Removing the System-Board Shield . . . . . . . . . . . 49
Replacing the System-Board Shield. . . . . . . . . . . 51
14 TV Tuner Card . . . . . . . . . . . . . . . . . . . . . 53
Removing the TV Tuner Card. . . . . . . . . . . . . . . 53
Replacing the TV Tuner Card . . . . . . . . . . . . . . 56
15 Wireless Mini-Card . . . . . . . . . . . . . . . . . 57
Removing the Wireless Mini-Card . . . . . . . . . . . 57
Replacing the Wireless Mini-Card . . . . . . . . . . . 59
OM_Book.book Page 5 Friday, March 30, 2012 1:21 PM

6Contents
16 Speakers . . . . . . . . . . . . . . . . . . . . . . . . 61
Removing the Speakers . . . . . . . . . . . . . . . . . 61
Replacing the Speakers . . . . . . . . . . . . . . . . . 63
17 Processor Heat-Sink . . . . . . . . . . . . . . . 65
Removing the Processor Heat-Sink . . . . . . . . . . . 65
Replacing the Processor Heat-Sink . . . . . . . . . . . 67
18 Processor Heat-Sink Fan . . . . . . . . . . . . 69
Removing the Processor Heat-Sink Fan . . . . . . . . . 69
Replacing the Processor Heat-Sink Fan. . . . . . . . . 71
19 Processor. . . . . . . . . . . . . . . . . . . . . . . . 73
Removing the Processor . . . . . . . . . . . . . . . . . 73
Replacing the Processor. . . . . . . . . . . . . . . . . 75
20 Power-Supply Fan Bracket . . . . . . . . . . 77
Removing the Power-Supply Fan Bracket. . . . . . . . 77
Replacing the Power-Supply Fan Bracket . . . . . . . 79
OM_Book.book Page 6 Friday, March 30, 2012 1:21 PM

Contents 7
21 I/O Cover . . . . . . . . . . . . . . . . . . . . . . . . . 81
Removing the I/O Cover . . . . . . . . . . . . . . . . . 81
Replacing the I/O Cover . . . . . . . . . . . . . . . . . 83
22 I/O Board Shield . . . . . . . . . . . . . . . . . . . 85
Removing the I/O Board Shield . . . . . . . . . . . . . 85
Replacing the I/O Board Shield . . . . . . . . . . . . . 88
23 Power-Supply Unit. . . . . . . . . . . . . . . . . . 89
Removing the Power-Supply Unit . . . . . . . . . . . . 89
Replacing the Power-Supply Unit . . . . . . . . . . . . 91
24 Power-Supply Fan . . . . . . . . . . . . . . . . . . 93
Removing the Power-Supply Fan . . . . . . . . . . . . 93
Replacing the Power-Supply Fan . . . . . . . . . . . . 95
25 TV-In Port . . . . . . . . . . . . . . . . . . . . . . . . 97
Removing the TV-In Port . . . . . . . . . . . . . . . . . 97
Replacing the TV-In Port. . . . . . . . . . . . . . . . . 99
OM_Book.book Page 7 Friday, March 30, 2012 1:21 PM

8Contents
26 Infrared Port . . . . . . . . . . . . . . . . . . . . . 101
Removing the Infrared Port . . . . . . . . . . . . . . 101
Replacing the Infrared Port . . . . . . . . . . . . . . 103
27 I/O Board . . . . . . . . . . . . . . . . . . . . . . . . 105
Removing the I/O Board . . . . . . . . . . . . . . . . 105
Replacing the I/O Board . . . . . . . . . . . . . . . . 108
28 Coin-Cell Battery . . . . . . . . . . . . . . . . . . 109
Removing the Coin-Cell Battery . . . . . . . . . . . . 109
Replacing the Coin-Cell Battery . . . . . . . . . . . . 111
29 System Board . . . . . . . . . . . . . . . . . . . . . 113
Removing the System Board . . . . . . . . . . . . . . 113
Replacing the System Board . . . . . . . . . . . . . . 115
Entering the Service Tag in the BIOS . . . . . . . . . 116
30 Antenna Module(s) . . . . . . . . . . . . . . . . 117
Removing the Antenna Module(s) . . . . . . . . . . . 117
Replacing the Antenna Module(s) . . . . . . . . . . . 120
OM_Book.book Page 8 Friday, March 30, 2012 1:21 PM

Contents 9
31 Display Panel. . . . . . . . . . . . . . . . . . . . . 123
Removing the Display Panel. . . . . . . . . . . . . . . 123
Replacing the Display Panel . . . . . . . . . . . . . . 128
32 Infrared Sensor . . . . . . . . . . . . . . . . . . . 131
Removing the Infrared Sensor. . . . . . . . . . . . . . 131
Replacing the Infrared Sensor. . . . . . . . . . . . . . 134
33 Camera Module . . . . . . . . . . . . . . . . . . . 137
Removing the Camera Module . . . . . . . . . . . . . 137
Replacing the Camera Module . . . . . . . . . . . . . 140
34 System Setup . . . . . . . . . . . . . . . . . . . . . 143
Overview . . . . . . . . . . . . . . . . . . . . . . . . . 143
Entering System Setup . . . . . . . . . . . . . . . . . . 143
Clearing Forgotten Passwords . . . . . . . . . . . . . 152
Clearing CMOS Settings . . . . . . . . . . . . . . . . . 154
35 Flashing the BIOS . . . . . . . . . . . . . . . . . 157
OM_Book.book Page 9 Friday, March 30, 2012 1:21 PM

10 Contents
OM_Book.book Page 10 Friday, March 30, 2012 1:21 PM

Before You Begin 11
Before You Begin
Turn Off Your Computer and Connected Devices
CAUTION: To avoid losing data, save and close all open files and exit all open
programs before you turn off your computer.
1 Save and close all open files and exit all open programs.
2 Click Start and click Shut Down .
Microsoft Windows shuts down and then the computer turns off.
NOTE: If you are using a different operating system, see the documentation of
your operating system for shut-down instructions.
3 Disconnect your computer and all attached devices from the
electrical outlets.
4 Disconnect all telephone cables, network cables, and attached devices
from your computer.
5 After the computer is unplugged, press and hold the power button for
about 5 seconds to ground the system board.
OM_Book.book Page 11 Friday, March 30, 2012 1:21 PM

12 Before You Begin
Safety Instructions
Use the following safety guidelines to protect your computer from potential
damage and ensure your personal safety.
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the computer cover or
panels. After you finish working inside the computer, replace all covers, panels,
and screws before connecting to the power source.
CAUTION: To avoid damaging the computer, ensure that the work surface is flat
and clean.
CAUTION: To avoid damaging the components and cards, handle them by their
edges and avoid touching pins and contacts.
CAUTION: Only a certified service technician is authorized to remove the
computer cover and access any of the components inside the computer. See the
safety instructions for complete information about safety precautions, working
inside your computer, and protecting against electrostatic discharge.
CAUTION: Before touching anything inside your computer, ground yourself by
touching an unpainted metal surface, such as the metal at the back of the
computer. While you work, periodically touch an unpainted metal surface to
dissipate static electricity, which could harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab,
not on the cable itself. Some cables have connectors with locking tabs or
thumb-screws that you must disengage before disconnecting the cable. When
disconnecting cables, keep them evenly aligned to avoid bending any connector
pins. When connecting cables, ensure that the connectors and ports are correctly
oriented and aligned.
CAUTION: To disconnect a network cable, first unplug the cable from your
computer and then unplug the cable from the network device.
Recommended Tools
The procedures in this document may require the following tools:
• Phillips screwdriver
• Plastic scribe
OM_Book.book Page 12 Friday, March 30, 2012 1:21 PM

After Working Inside Your Computer 13
After Working Inside Your Computer
After you complete the replacement procedures, ensure the following:
• Replace all screws and ensure that no stray screws remain inside
your computer
• Connect any external devices, cables, cards, and any other part(s)
you removed before working on your computer
• Connect your computer and all attached devices to the electrical outlets
CAUTION: Before turning on your computer, replace all screws and ensure
that no stray screws remain inside the computer. Failure to do so may damage
your computer.
OM_Book.book Page 13 Friday, March 30, 2012 1:21 PM

14 After Working Inside Your Computer
OM_Book.book Page 14 Friday, March 30, 2012 1:21 PM

Technical Overview 15
Technical Overview
WARNING: Before working inside your computer, read the safety information that
shipped with your computer and follow the steps in "Before You Begin" on page 11.
For additional safety best practices information, see the Regulatory Compliance
Homepage at dell.com/regulatory_compliance.
OM_Book.book Page 15 Friday, March 30, 2012 1:21 PM

16 Technical Overview
Inside View of Your Computer
1 optical-drive assembly 2 power-supply unit
3 hard-drive assembly 4 processor heat-sink fan
5 coin-cell battery 6 processor heat-sink
7 memory module(s) 8 wireless Mini-Card
9 system board 10 speakers (2)
11 I/O cover 12 I/O board shield
13 B-CAS card 14 power-supply fan
15 power-button board 16 converter board
15
16
1
2
36
7
12
8
4
13
11
9
10
14
5
OM_Book.book Page 16 Friday, March 30, 2012 1:21 PM

Technical Overview 17
System Board Components
15
21
17
24
8
20
1 2
3
5
11 9
12
13
14
22
10
6
23
19
18
16
4
7
OM_Book.book Page 17 Friday, March 30, 2012 1:21 PM

18 Technical Overview
1 camera cable connector (WEBCAM) 2 battery socket (BAT1)
3 processor socket (PROCESSOR) 4 memory-module connector
(CHANNEL A DIMM 1)
5 memory-module connector
(CHANNEL A DIMM 0)
6 CMOS reset jumper (SW50)
7 left speaker cable connector
(LINE_OUT)
8 right speaker cable connector
(LINE_OUT)
9 password reset jumper (E49) 10 SPI connector (E16)
11 processor heat-sink fan cable
connector (CPU FAN)
12 power-button board cable connector
(FRONT_PANEL)
13 I/O board cable connector (LVDS1) 14 converter board cable connector
(INVERTER)
15 main power-supply cable connector
(CON5171) (CN3111)
16 touchscreen board cable connector
17 infrared cable connector (CN29) 18 display cable connector (For non-AV
board) (P170)
19 SATA connector (SATA1) 20 power-supply fan cable connector
(P10)
21 SATA connector (CON5141) 22 power cable connector (P161)
23 power cable connector (P160) 24 processor power-supply cable
connector (CON5176)
OM_Book.book Page 18 Friday, March 30, 2012 1:21 PM

Stand 19
Stand
WARNING: Before working inside your computer, read the safety information that
shipped with your computer and follow the steps in "Before You Begin" on page 11.
For additional safety best practices information, see the Regulatory Compliance
Homepage at dell.com/regulatory_compliance.
Removing the Stand
Procedure
CAUTION: Before opening your computer, ensure that you place the computer
on a soft cloth or clean surface to avoid any scratches on the display.
1 Place the computer face down on a flat surface.
2 Using a plastic scribe, release the stand cover starting from the bottom
of your computer.
1 stand cover 2 plastic scribe
1
2
OM_Book.book Page 19 Friday, March 30, 2012 1:21 PM

20 Stand
3 Slide and lift the stand cover off your computer.
4 Remove the screws that secure the stand to your computer.
5Pivot the stand upward and remove the stand off your computer.
1 screws (4) 2 stand
1
2
OM_Book.book Page 20 Friday, March 30, 2012 1:21 PM
