Removing and Installing Parts
Dell™Dimension™XPS Service Manual
Memory PCI Cards
AGP Cards Drives
Processor Airflow Shroud Processor
System Board Power Supply
Front Panel Drive Door
Battery
Memory
You can increase your computer memory by installing memory modules on the system board. For information on the type
of memory supported by your computer, see "Memory."
NOTE: DDR 333 memory operates at 320-MHz when used with an 800-MHz front-side bus
processor.
DDR Memory Overview
DDR memory modules should be installed in pairs of matched memory size. This means that if you purchased your
computer with 256 MB of memory installed and you want to add another 256 MB of memory, you must install it in
the appropriate connector. If the DDR memory modules are not installed in matched pairs, the computer will continue
to operate, but with a slight reduction in performance.
Hello, TIM (not TIM ?)
Cart
Keyword Search

Documentation
NOTE: Always install DDR memory modules in the order indicated on the system
board.
The recommended memory configurations are:
●A pair of matched memory modules installed in connectors DIMM1 and DIMM2
or
●A pair of matched memory modules installed in connectors DIMM1 and DIMM2 and another matched pair installed in
connectors DIMM3 and DIMM4
Additional memory recommendations include:
●Do not install ECC memory modules.
●Be sure to install a single memory module in DIMM 1 or the connector closest to the processor before you install
modules in the other connectors.
Memory Installation Guidelines
NOTICE: If you remove your original memory modules from the computer during a memory upgrade, keep them
separate from any new modules that you may have, even if you purchased the new modules from Dell. You should
install your original memory modules in pairs either in connectors DIMM1 and DIMM2 or connectors DIMM3 and DIMM4.
If possible, do not pair an original memory module with a new memory module. Otherwise, your computer may not
function at optimal performance.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (2 of 37) [3/26/2008 3:57:09 PM]

Documentation
NOTE: Memory purchased from Dell is covered under your computer
warranty.
Installing Memory
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your
Owner's Manual.
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. Lay the computer on its side so that the system board is on the bottom of the inside of the computer.
4. If necessary, remove a memory module:
a. Press out the securing clip at each end of the memory module connector.
b. Grasp the module and pull up.
If the module is difficult to remove, gently ease the module back and forth to remove it from the connector.
5. To insert a module, press out the securing clip at each end of the memory module connector.

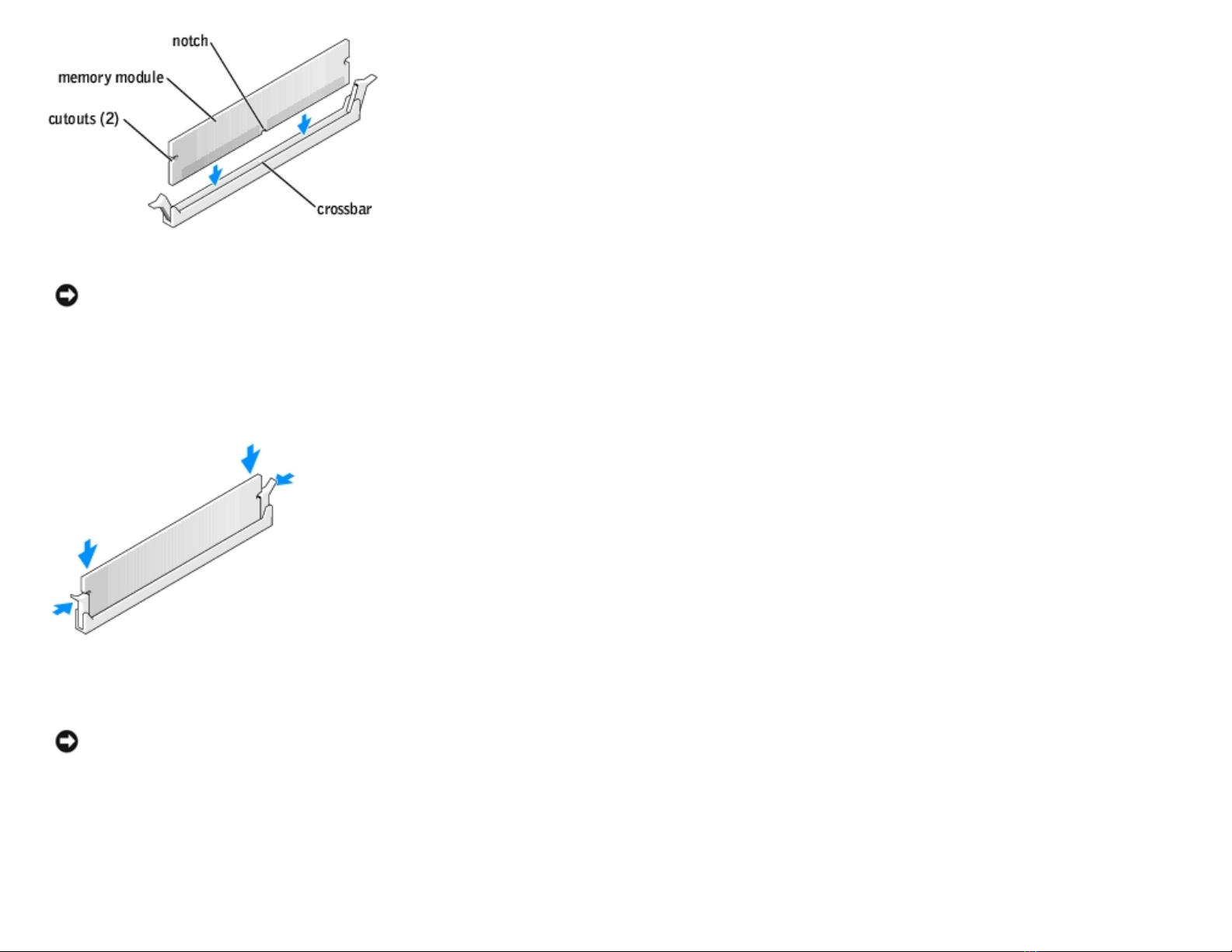

6. Align the notch on the bottom of the module with the crossbar in the connector.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (3 of 37) [3/26/2008 3:57:09 PM]

Documentation
NOTICE: To avoid breaking the memory module, do not press near the middle of the
module.
7. Insert the module straight down into the connector, ensuring that it fits into the vertical guides at each end of the
connector. Press firmly on the ends of the module until it snaps into place.
If you insert the module correctly, the securing clips snap into the cutouts at each end of the module.
8. Close the computer cover.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the
computer.
9. Connect your computer and devices to electrical outlets, and then turn them on.
10. Click the Start button, right-click My Computer, and then click Properties.
11. Click the General tab.
12. To verify that the memory is installed correctly, check the amount of memory (RAM) listed.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (4 of 37) [3/26/2008 3:57:09 PM]

Documentation
PCI Cards
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your
Owner's Manual.
Your Dell™computer provides slots for up to four 32-bit, 33-MHz cards. For more information, see "Specifications."
NOTE: For optimum performance, install a PCI sound card only in PCI slot 3 or 4 and a modem card only in PCI slot 2,
3, or 4.
Installing a PCI Card
1. If you are replacing a card, remove the current driver for the card from the operating system.
2. Follow the instructions in "Before You Begin."
3. Open the computer cover.

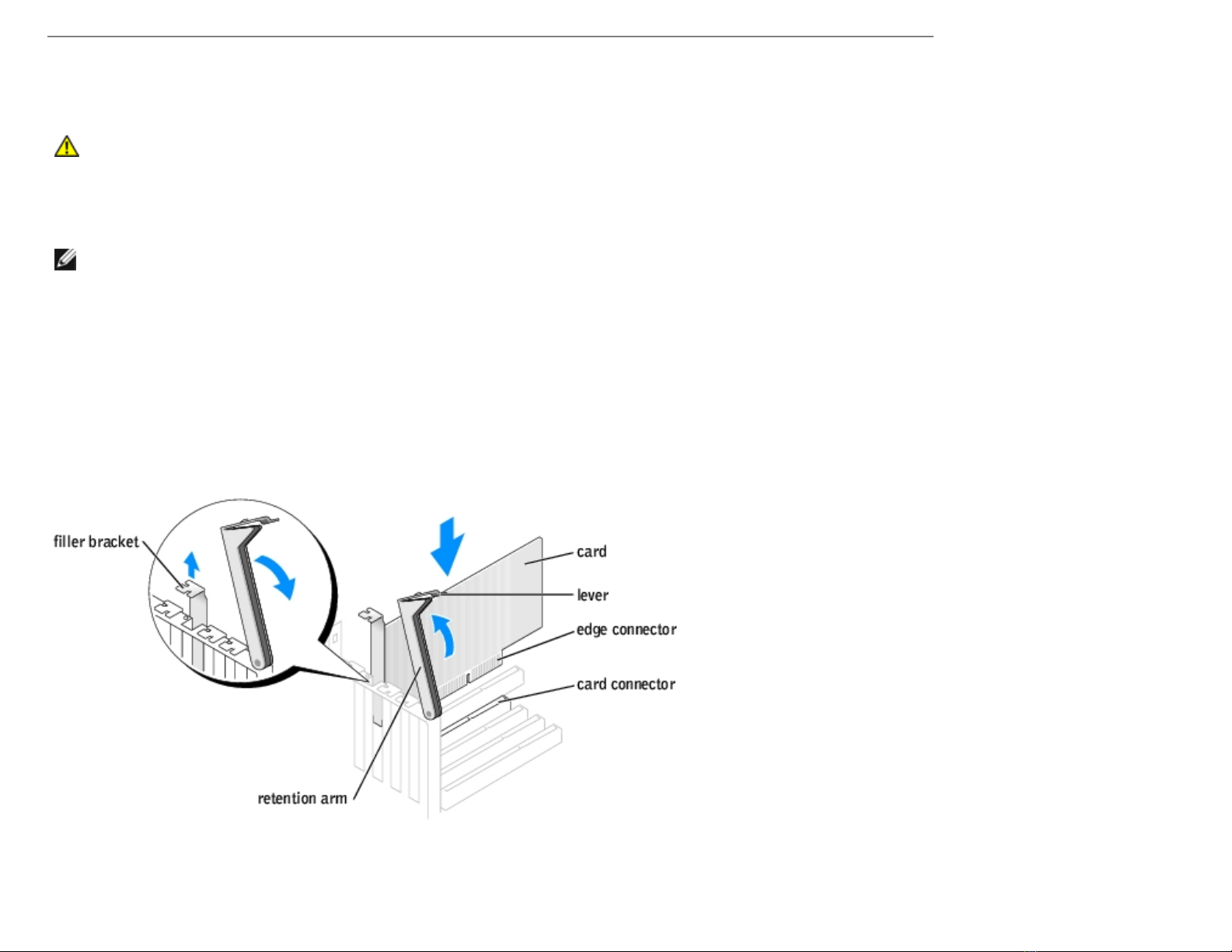

4. Press the lever on the card retention arm and raise the retention arm.
5. If you are installing a new card, remove the filler bracket to create a card-slot opening. Then continue with step 7.
6. If you are replacing a card that is already installed in the computer, remove the card.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (5 of 37) [3/26/2008 3:57:09 PM]

Documentation
If necessary, disconnect any cables connected to the card. Grasp the card by its top corners, and ease it out of its
connector.
7. Prepare the card for installation.
See the documentation that came with the card for information on configuring the card, making internal connections, or
otherwise customizing it for your computer.
CAUTION: Some network adapters automatically start the computer when they are connected to a
network. To guard against electrical shock, be sure to unplug your computer from its electrical outlet
before installing any cards.
8. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.
If the card is full-length, insert the end of the card into the card guide bracket as you lower the card toward its connector
on the system board. Insert the card firmly into the card connector on the system board.

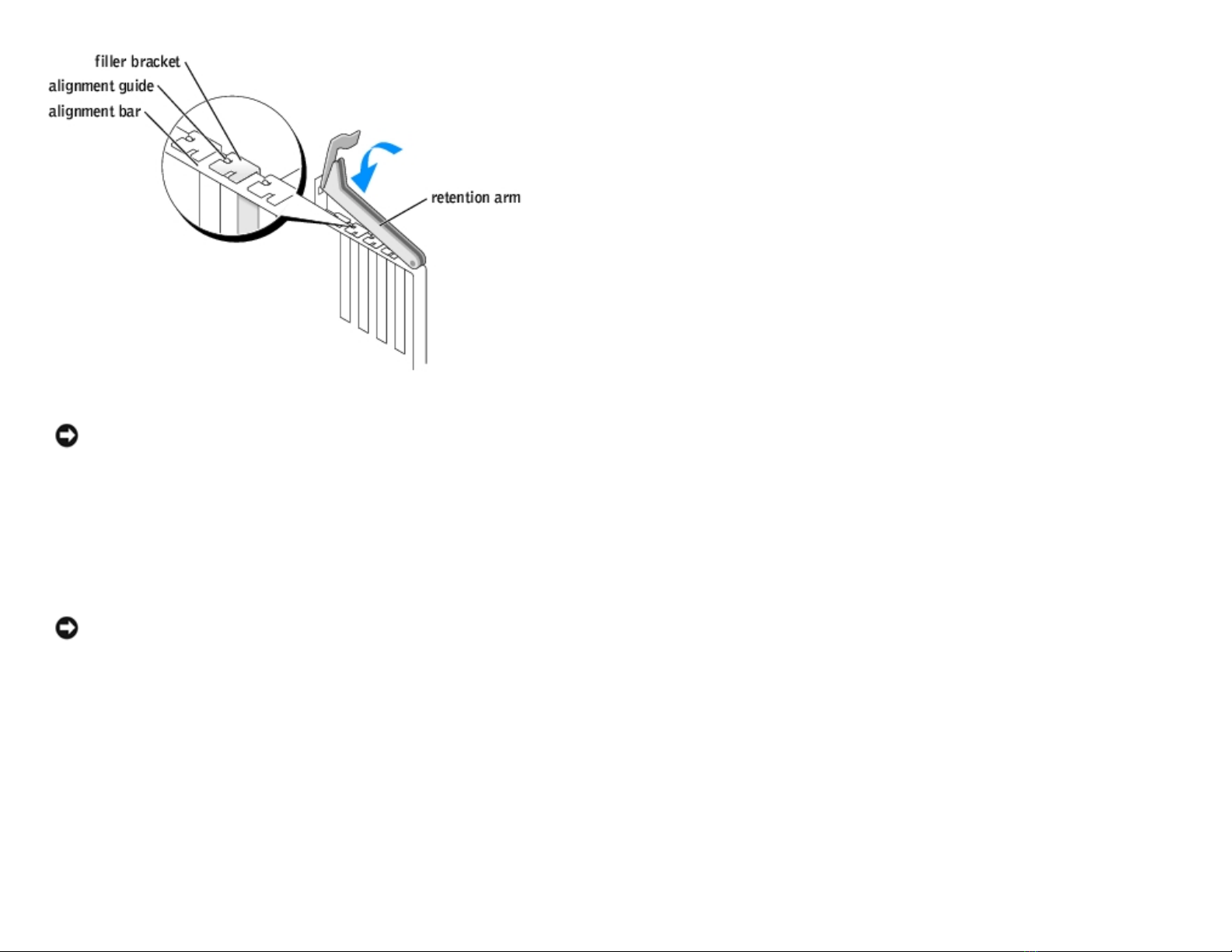

9. Before you lower the retention arm, ensure that:
●The tops of all cards and filler brackets are flush with the alignment bar.
●The notch in the top of the card or filler bracket fits around the alignment guide.
10. Press the retention arm into place, securing the card(s) in the computer.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (6 of 37) [3/26/2008 3:57:09 PM]

Documentation
NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer
cover from closing properly or cause damage to the equipment.
11. Connect any cables that should be attached to the card.
See the documentation for the card for information about the card's cable connections.
12. Close the computer cover.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the
computer.
13. Connect your computer and devices to electrical outlets, and then turn them on.
14. Install any drivers required for the card as described in the card documentation.
Removing a PCI Card
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. Press the lever on the card retention arm and raise the retention arm.
4. If necessary, disconnect any cables connected to the card.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (7 of 37) [3/26/2008 3:57:09 PM]

Documentation
5. Grasp the card by its top corners, and ease it out of its connector.
6. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.
If you need a filler bracket, contact Dell.
NOTE: You must install filler brackets over empty card-slot openings to maintain FCC certification of the computer.
The brackets also keep dust and dirt out of your computer.
7. Lower the retention arm and press it into place, securing the card(s) in the computer.
8. Close the computer cover.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the
computer.
9. Connect your computer and devices to electrical outlets, and then turn them on.
10. Remove the card's driver from the operating system.
AGP Cards
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your
Owner's Manual.
Your Dell™computer provides a connector for an AGP card.
Removing an AGP Card
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. Press the lever on the card retention arm and raise the retention arm.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (8 of 37) [3/26/2008 3:57:09 PM]

Documentation
4. Pull the card up and out of the card clip.
Installing an AGP Card
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. Press the lever on the card retention arm and raise the retention arm.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (9 of 37) [3/26/2008 3:57:09 PM]

Documentation
4. Gently press the card into the AGP connector until it clicks into place, ensuring that the tab fits into the notch on the
front end of the card.
5. Lower the retention arm and press it into place, securing the card(s) in the computer.
6. Close the computer cover.
7. Connect the monitor cable to the card's video connector.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the
computer.
8. Connect your computer and devices to electrical outlets, and turn them on.
Drives
Overview
Your computer supports one floppy drive and a combination of up to four of the following:
●Either two IDE hard drives or two Serial ATA hard drives
●Two CD or DVD drives
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (10 of 37) [3/26/2008 3:57:09 PM]

Documentation
Your computer also supports this drive combination:
●Two Serial ATA drives in either a RAID level 0 configuration or a RAID level 1 configuration
●One IDE hard drive
●Two CD or DVD drives
Hard Drive
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your
Owner's Manual.
Removing a Hard Drive
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (11 of 37) [3/26/2008 3:57:09 PM]

Documentation
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. Disconnect the power and hard-drive cables from the drive.

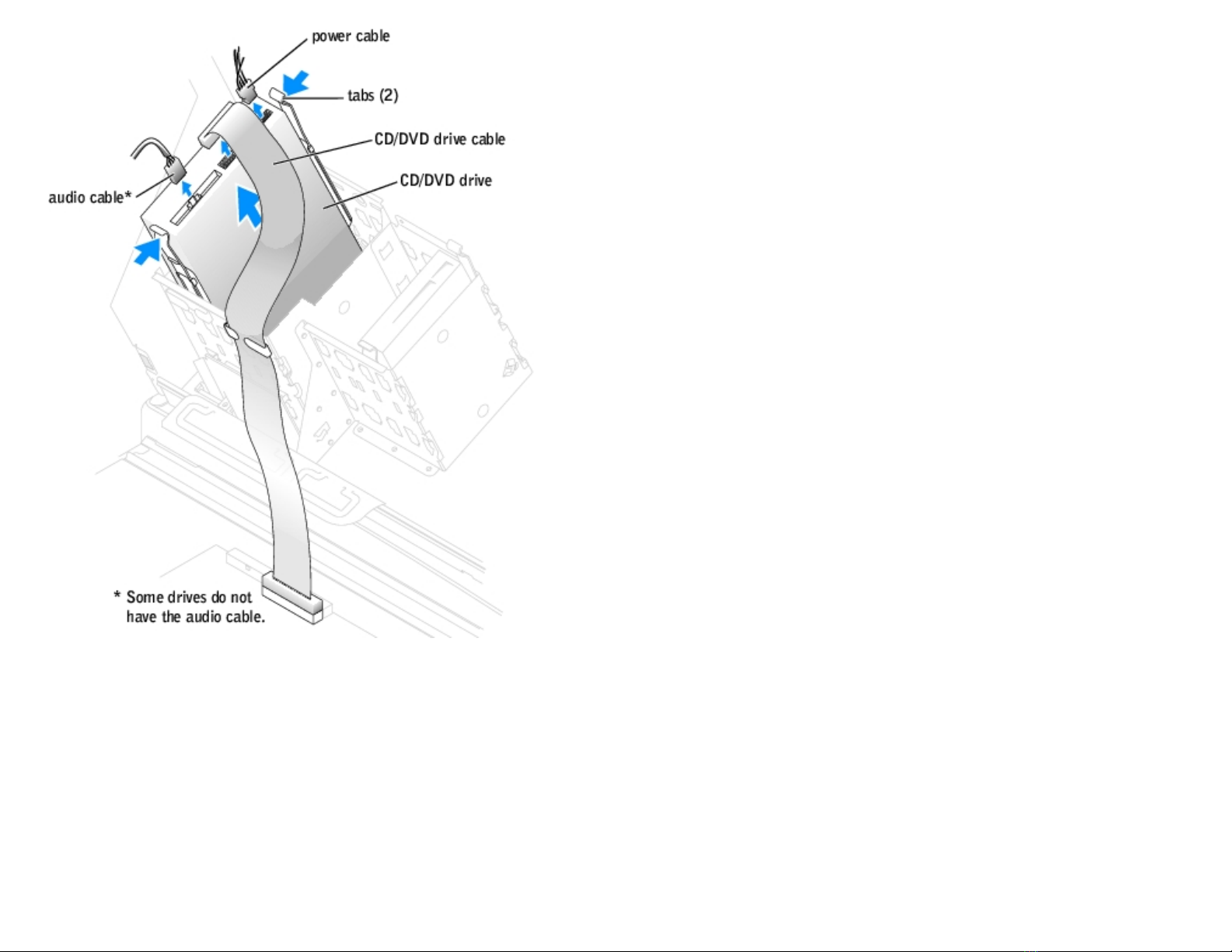

4. Press in on the tabs on each side of the drive and slide the drive up and out.
Installing a Hard Drive
1. Unpack the replacement hard drive, and prepare it for installation.
2. Check the documentation for the drive to verify that it is configured for your computer.
3. Follow the instructions in "Before You Begin."
4. Open the computer cover.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (12 of 37) [3/26/2008 3:57:09 PM]

Documentation
5. If your replacement hard drive does not have the bracket rails attached, remove the rails from the old drive by
removing the two screws that secure each rail to the drive. Attach the bracket rails to the new drive by aligning the
screw holes on the drive with the screw holes on the bracket rails and then inserting and tightening all four screws (two
screws on each rail).
6. Install the hard drive into the computer by gently sliding the drive into place until you hear it click securely.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (13 of 37) [3/26/2008 3:57:09 PM]

Documentation
7. Connect the power and hard-drive cables to the drive.
8. Check all connectors to be certain that they are properly cabled and firmly seated.
9. Close the computer cover.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the
computer.
10. Connect your computer and devices to electrical outlets, and turn them on.
See the documentation that came with the drive for instructions on installing any software required for drive operation.
Floppy Drive
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (14 of 37) [3/26/2008 3:57:09 PM]

Documentation
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your
Owner's Manual.
Removing a Floppy Drive
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. Disconnect the power and floppy-drive cables from the back of the floppy drive.

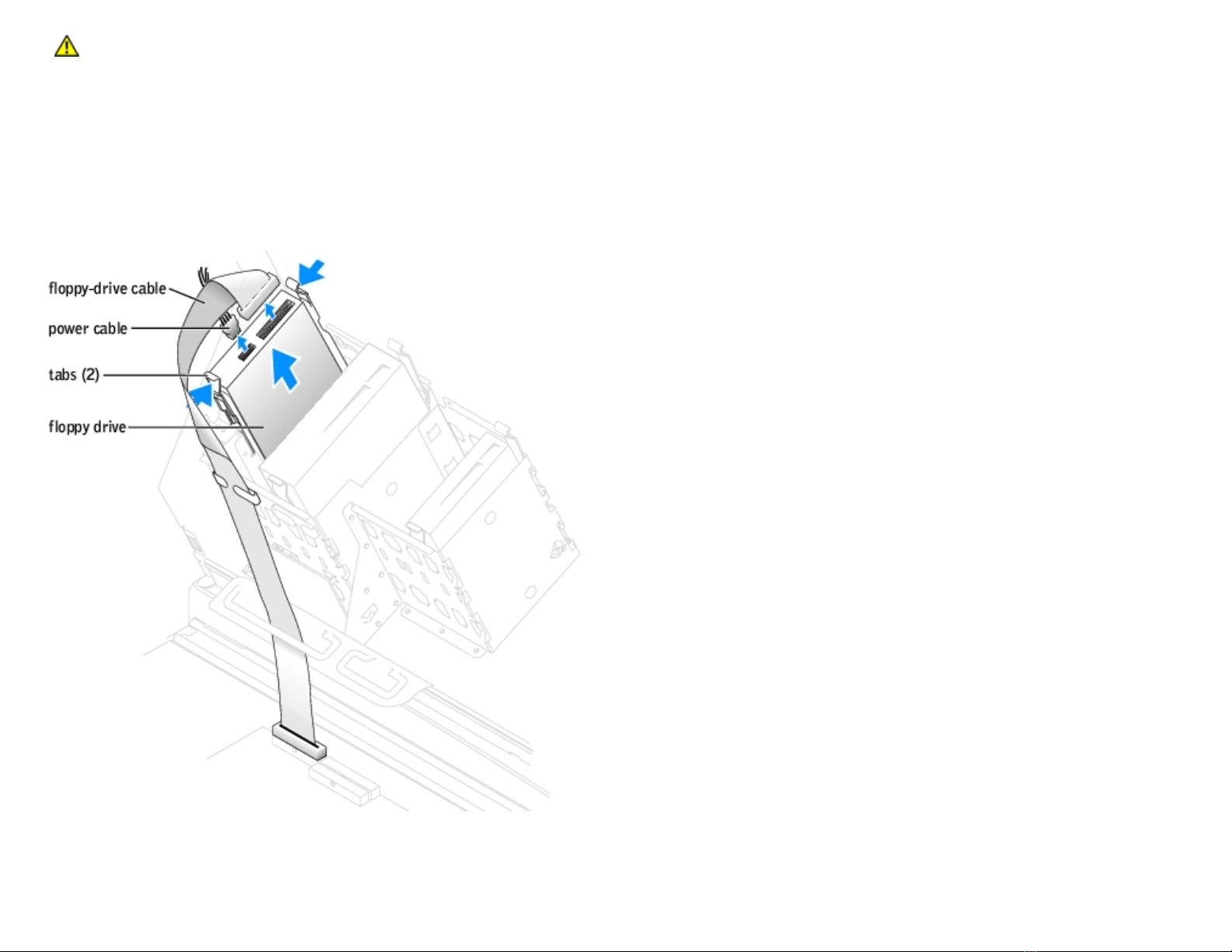

4. Press inward on the two tabs on the sides of the drive, slide the drive upward, and remove it from the floppy-drive bay.
Installing a Floppy Drive
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (15 of 37) [3/26/2008 3:57:09 PM]

Documentation
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. If you are replacing a drive and the new drive does not have the bracket rails attached, remove the rails from the old
drive by removing the two screws that secure each rail to the drive. Attach the bracket to the new drive by aligning the
screw holes on the drive with the screw holes on the bracket rails and then inserting and tightening all four screws (two
screws on each rail). See the diagram.
4. Gently slide the drive into place until the tabs securely click into position.
5. Attach the power and floppy-drive cables to the floppy drive.
6. If you are installing a new floppy drive rather than replacing a drive, remove the front- panel inserts.
From inside the drive bay, gently press on each side of the insert until it pops out.
7. Check all cable connections, and fold cables out of the way to provide airflow for the fan and cooling vents.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (16 of 37) [3/26/2008 3:57:09 PM]

Documentation
8. Close the computer cover.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the
computer.
9. Connect your computer and devices to electrical outlets, and turn them on.
See the documentation that came with the drive for instructions on installing any software required for drive operation.
CD/DVD Drive
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your
Owner's Manual.
Removing a CD/DVD Drive
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. Disconnect the power and CD/DVD drive cables from the back of the drive.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (17 of 37) [3/26/2008 3:57:09 PM]

Documentation
4. Press inward on the two tabs on the sides of the drive, and then slide the drive upward and remove it from the drive
bay.
Installing a CD/DVD Drive
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. If you are installing a new drive, unpack the drive and prepare it for installation.
Check the documentation that accompanied the drive to verify that the drive is configured for your computer. If you are
installing an IDE drive, configure the drive for the cable select setting.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (18 of 37) [3/26/2008 3:57:09 PM]

Documentation
4. Connect the new drive to the set of rails that are attached to the inside of the cover. If a set of rails is not attached
inside the computer cover, contact Dell.
5. If you are installing a replacement drive and the new drive does not have the bracket rails attached, remove the rails
from the old drive by removing the two screws that secure each rail to the drive. Attach the bracket to the new drive by
aligning the screw holes on the drive with the screw holes on the bracket rails and then inserting and tightening all four
screws (two screws on each rail). See the diagram.
6. Gently slide the drive into place until the tabs securely click into position.
7. Connect the power and CD/DVD drive cables to the drive.
If you are adding a drive that has an audio cable, connect the audio cable to the audio connector on the audio card.
8. If you are installing a new CD/DVD drive rather than replacing a drive, remove the front-panel inserts.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (19 of 37) [3/26/2008 3:57:09 PM]

Documentation
From inside the drive bay, gently press on each side of the insert until it pops out.
9. If you are installing a drive that has its own controller card, install the controller card in an expansion slot.
See the documentation that accompanied the drive and controller card to verify that the configuration is correct for your
computer.
10. Check all cable connections, and fold cables out of the way to provide airflow for the fan and cooling vents.
11. Close the computer cover.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the
computer.
12. Connect your computer and devices to electrical outlets, and turn them on.
See the documentation that came with the drive for instructions on installing any software required for drive operation.
Processor Airflow Shroud
CAUTION: Before you perform this procedure, follow the safety instructions in your Owner's Manual.
Removing the Processor Airflow Shroud
1. Follow the instructions in "Before You Begin."
2. Open the computer cover.
3. Press down and back on the indentations at the top corners of the shroud.
The top anchor tabs disengage from the anchor slots.
4. Lift the airflow shroud out of the chassis.
http://support.dell.com/support/edocs/systems/dimxpsg2/en/SM/parts.htm (20 of 37) [3/26/2008 3:57:09 PM]
