Dell™Inspiron™1546ServiceManual
Notes, Cautions, and Warnings
Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell
under license; Microsoft,Windows, Windows Vista, and Windows Vista start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States
and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Regulatory Model P02F Regulatory Type P02F001

November 2009 Rev. A00
Before You Begin
Battery
Hard Drive
Optical Drive
Module Cover
Memory Module(s)
Wireless Mini-Card
Processor Heat Sink
Processor Module
Center Control Cover
Keyboard
Internal Module With Bluetooth®Wireless Technology
Power Button Board
Display
Camera Module (Optional)
Palm Rest
Audio Connector Cover
Speakers
Daughter Board
System Board
Coin-Cell Battery
Thermal Fan
Battery Latch Assembly
Flashing the BIOS
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page

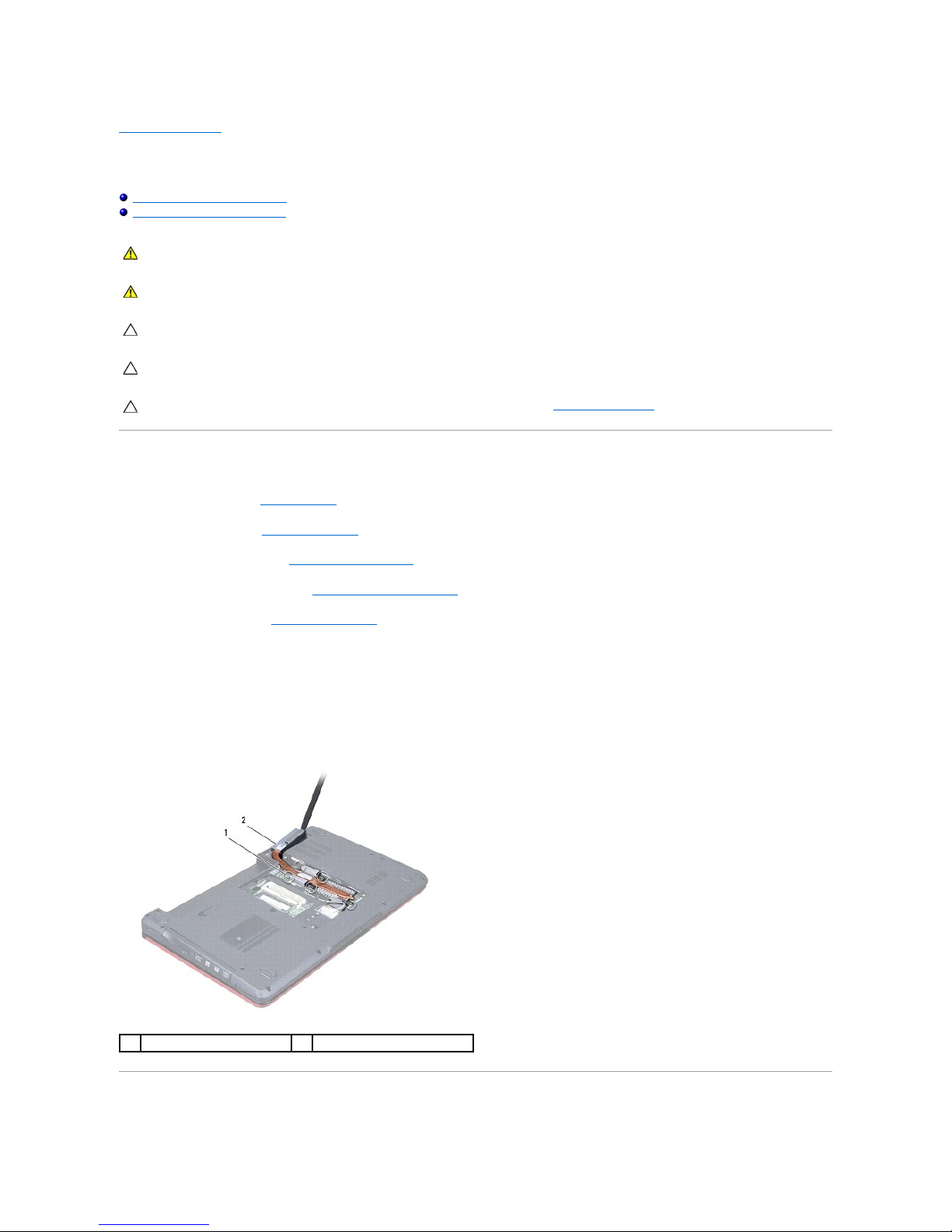

Audio Connector Cover
Dell™Inspiron™1546ServiceManual
Removing the Audio Connector Cover
Replacing the Audio Connector Cover




Removing the Audio Connector Cover

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the module cover (see Removing the Module Cover).

4. Remove the memory module(s) (see Removing the Memory Module(s)).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the Mini-Card (see Removing the Mini-Card).

7. Remove the center control cover (see Removing the Center Control Cover).

8. Remove the keyboard (see Removing the Keyboard).

9. Remove the Bluetooth module (see Internal Module With Bluetooth®Wireless Technology).

10. Remove the palm rest (see Removing the Palm Rest).

11. Lift the audio connector cover off the computer base.
Replacing the Audio Connector Cover

1. Follow the procedures in Before You Begin.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
audio connector cover
2
computer base


2. Place the audio connector cover on the computer base.

3. Replace the palm rest (see Replacing the Palm Rest).

4. Replace the Bluetooth module (see Internal Module With Bluetooth®Wireless Technology).

5. Replace the keyboard (see Replacing the Keyboard).

6. Replace the center control cover (see Replacing the Center Control Cover).

7. Replace the Mini-Card (see Replacing the Mini-Card).

8. Replace the memory module(s) (see Replacing the Memory Module(s)).

9. Replace the module cover (see Replacing the Module Cover).

10. Replace the hard drive (see Replacing the Hard Drive).

11. Replace the battery (see Replacing the Battery).

Back to Contents Page

CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page

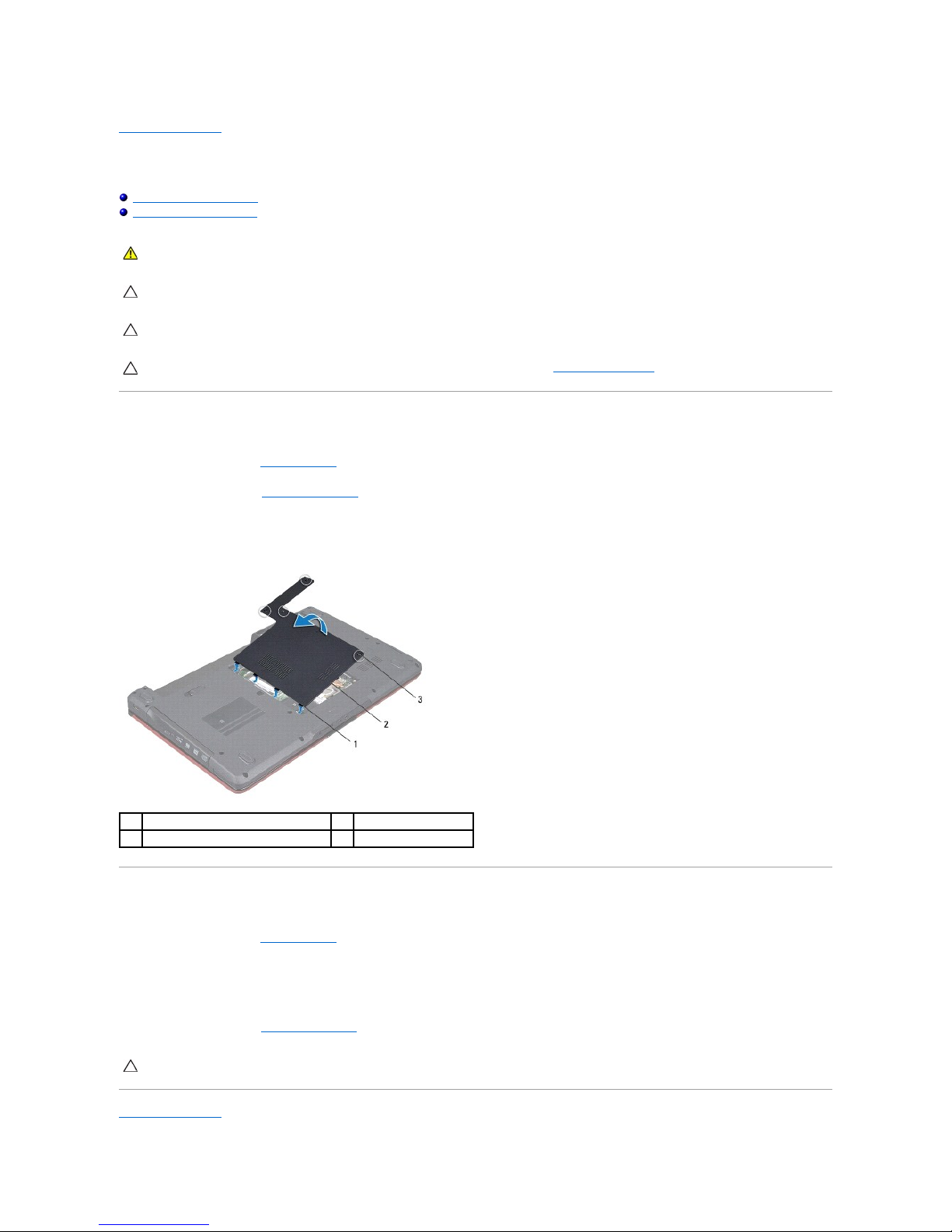

Module Cover
Dell™Inspiron™1546ServiceManual
Removing the Module Cover
Replacing the Module Cover




Removing the Module Cover

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Loosen the four captive screws that secure the module cover to the computer base.

4. Lift the module cover off the computer at an angle as shown in the figure.
Replacing the Module Cover

1. Follow the procedures in Before You Begin.

2. Align the tabs on the module cover with the slots on the computer base and gently place it in position.

3. Tighten the four captive screws that secure the module cover to the computer base.

4. Replace the battery (see Replacing the Battery).

Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
module cover tabs (4)
2
module cover
3
captive screws (4)


CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.



Back to Contents Page
Before You Begin
Dell™Inspiron™1546ServiceManual
Recommended Tools
Turning Off Your Computer
Before Working Inside Your Computer
This manual provides procedures for removing and installing components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.
lYou have read the safety information that shipped with your computer.
lA component can be replaced or—if purchased separately—installed by performing the removal procedure in the reverse order.
Recommended Tools
The procedures in this document may require the following tools:
lSmall flat-blade screwdriver
lPhillips screwdriver
lPlastic scribe
lBIOS executable update program available at support.dell.com
Turning Off Your Computer


1. Save and close all open files and exit all open programs.

2. Shut down the operating system:
Windows Vista®:
Click Start , click the arrow , and then click Shut Down.
Windows 7:
Click Start and then click Shut Down.
The computer turns off after the operating system shutdown process finishes.

3. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut
down your operating system, press and hold the power button until the computer turns off.
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.





CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a processor by its edges, not by its pins.



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.

2. Turn off your computer (see Turning Off Your Computer).

3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.


4. Disconnect all telephone or network cables from the computer.

5. Press and eject any installed cards from the ExpressCard slot or the 7-in-1 Media Card Reader.

6. Disconnect your computer and all attached devices from their electrical outlets.


7. Remove the battery (see Removing the Battery).

8. Turn the computer top-side up, open the display, and press the power button to ground the system board.
Back to Contents Page

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking
tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep
them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented
and aligned.
CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.

Back to Contents Page
Flashing the BIOS
Dell™Inspiron™1546ServiceManual

1. Turn on the computer.

2. Go to support.dell.com.

3. Click Drivers & Downloads®Select Model.

4. Locate the BIOS update file for your computer:
If you have your computer's Service Tag:
a. Click Enter a Service Tag.
b. Enter your computer's Service Tag in the Enter a service tag: field, click Go, and proceed to step 5.
If you do not have your computer's Service Tag:
a. Select the type of product in the Select Your Product Family list.
b. Select the product brand in the Select Your Product Line list.
c. Select the product model number in the Select Your Product Model list.
d. Click Confirm.

5. A list of results appear on the screen. Click BIOS.

6. Click Download Now to download the latest BIOS file.
The File Download window appears.

7. Click Save to save the file on your desktop. The file downloads to your desktop.

8. Click Close if the Download Complete window appears.
The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.

9. Double-click the file icon on the desktop and follow the procedures on the screen.
Back to Contents Page

NOTE: The Service Tag for your computer is located at the bottom of the computer.
NOTE: If you have selected a different model and want to start over again, click Start Over on the top right of the menu.

Back to Contents Page
Internal Module With Bluetooth®Wireless Technology
Dell™Inspiron™1546ServiceManual
Bluetooth Card
Bluetooth Board




If you ordered a card with Bluetooth wireless technology with your computer, it is already installed.

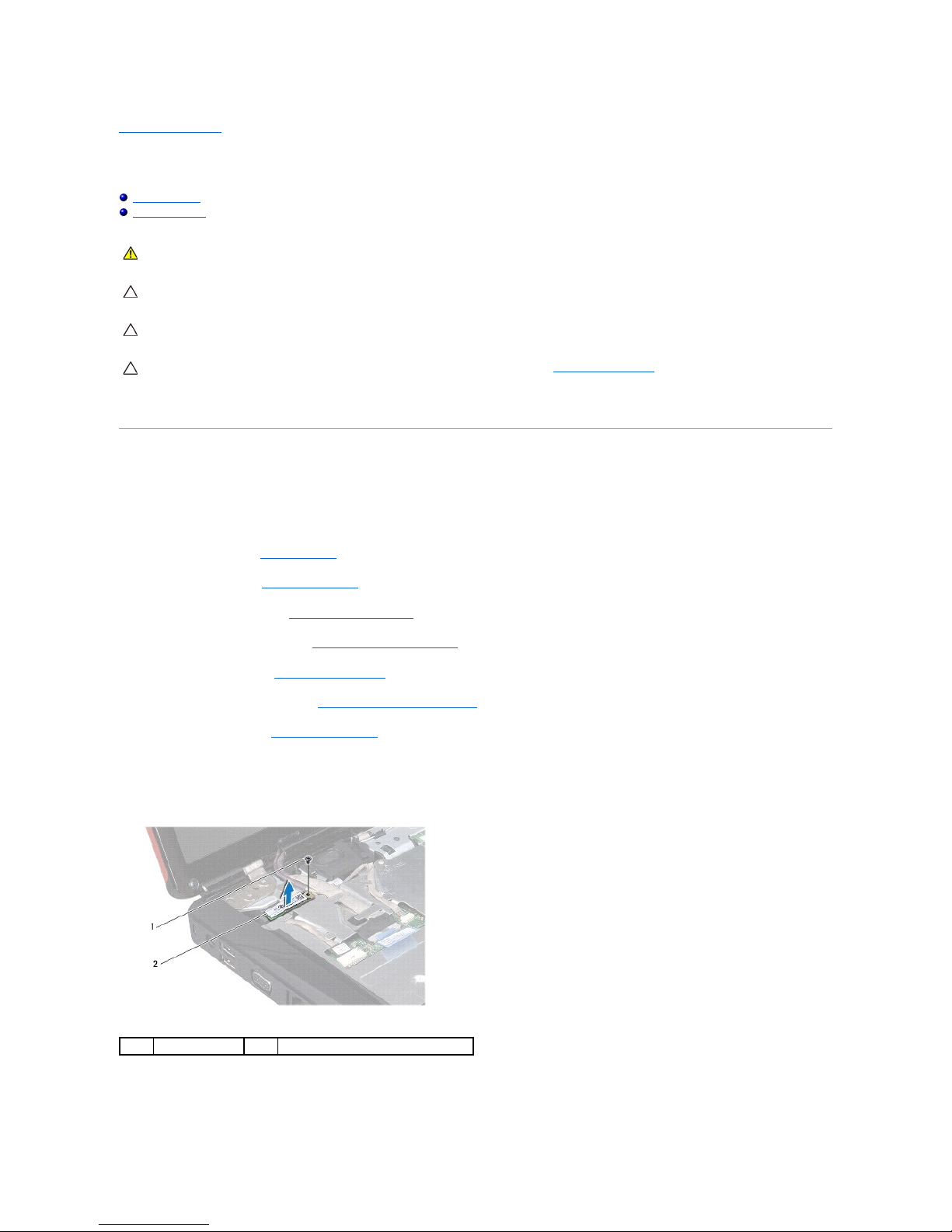

Bluetooth Card

Removing the Bluetooth Card

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the module cover (see Removing the Module Cover).

4. Remove the memory module(s) (see Removing the Memory Module(s)).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the center control cover (see Removing the Center Control Cover).

7. Remove the keyboard (see Removing the Keyboard).

8. Remove the screw that secures the Bluetooth card to the Bluetooth board.

9. Lift the Bluetooth card to disconnect it from the connector on the Bluetooth board.

Replacing the Bluetooth Card
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
screw
2
Bluetooth card


1. Follow the procedures in Before You Begin.

2. Connect the Bluetooth card to the connector on the Bluetooth board.

3. Replace the screw that secures the Bluetooth card to the Bluetooth board.

4. Replace the keyboard (see Replacing the Keyboard).

5. Replace the center control cover (see Replacing the Center Control Cover).

6. Replace the hard drive (see Replacing the Hard Drive).

7. Replace the memory module(s) (see Replacing the Memory Module(s)).

8. Replace the module cover (see Replacing the Module Cover).

9. Replace the battery (see Replacing the Battery).

Bluetooth Board

Removing the Bluetooth Board

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the module cover (see Removing the Module Cover).

4. Remove the memory module(s) (see Removing the Memory Module(s)).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the center control cover (see Removing the Center Control Cover).

7. Remove the keyboard (see Removing the Keyboard).

8. Remove the Bluetooth card (see Removing the Bluetooth Card).

9. Disconnect the Bluetooth board cable from the system board connector and remove it from the routing guide.


10. Using a plastic scribe, pry out the Bluetooth board to release it from the palm rest.
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
CAUTION: The Bluetooth board is glued to the palm rest. Do not pull on the Bluetooth board cable to remove the Bluetooth board.


Replacing the Bluetooth Board

1. Follow the procedures in Before You Begin.

2. Align the Bluetooth board with the slot on the palm rest and adhere the Bluetooth board on the palm rest.

3. Route the Bluetooth board cable through the routing guide and connect it to the system board connector.

4. Replace the Bluetooth card (see Replacing the Bluetooth Card).

5. Replace the keyboard (see Replacing the Keyboard).

6. Replace the center control cover (see Replacing the Center Control Cover).

7. Replace the hard drive (see Replacing the Hard Drive).

8. Replace the memory module(s) (see Replacing the Memory Module(s)).

9. Replace the module cover (see Replacing the Module Cover).

10. Replace the battery (see Replacing the Battery).

Back to Contents Page

1
Bluetooth board
2
Bluetooth board cable
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page
Camera Module (Optional)
Dell™Inspiron™1546ServiceManual
Removing the Camera Module
Replacing the Camera Module




Removing the Camera Module

1. Follow the procedures in Before You Begin.

2. Remove the display assembly (see Removing the Display Assembly).

3. Remove the display bezel (see Removing the Display Bezel).

4. Remove the display panel (see Removing the Display Panel).

5. Disconnect the camera cable from the connector on the camera module.

6. Remove the two screws that secure the camera module to the display cover.

7. Remove the camera module.
Replacing the Camera Module

1. Follow the procedures in Before You Begin.

2. Replace the two screws that secure the camera module to the display cover.

3. Connect the camera cable to the connector on the camera module.

4. Replace the display panel (see Replacing the Display Panel).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
screws (2)
2
camera module
3
camera cable connector



5. Replace the display bezel (see Replacing the Display Bezel).

6. Replace the display assembly (see Replacing the Display Assembly).

Back to Contents Page

CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page
Center Control Cover
Dell™Inspiron™1546ServiceManual
Removing the Center Control Cover
Replacing the Center Control Cover





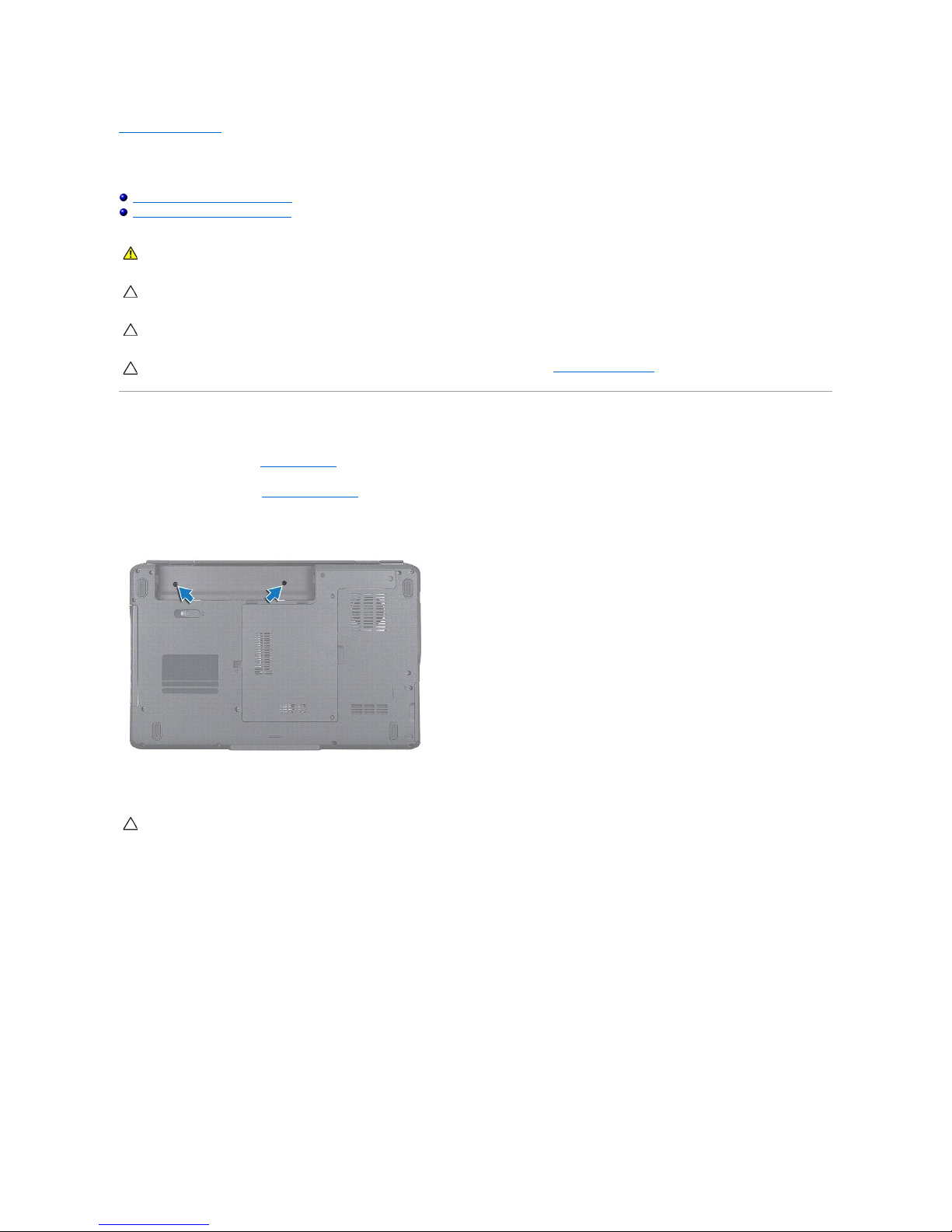

Removing the Center Control Cover

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the two screws that secure the center control cover to the computer base.

4. Turn the computer top side up, and open the display as far as possible.


5. Pry out the center control cover with a plastic scribe.

6. Ease the center control cover up.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
CAUTION: Be extremely careful when removing the center control cover. The cover is very fragile.

Replacing the Center Control Cover

1. Follow the procedures in Before You Begin.

2. Align the tabs on the center control cover with the slots on the palm rest and snap the cover in place.

3. Replace the two screws that secure the center control cover to the computer base.

4. Replace the battery (see Replacing the Battery).

Back to Contents Page

1
center control cover
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page
Coin-Cell Battery
Dell™Inspiron™1546ServiceManual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery





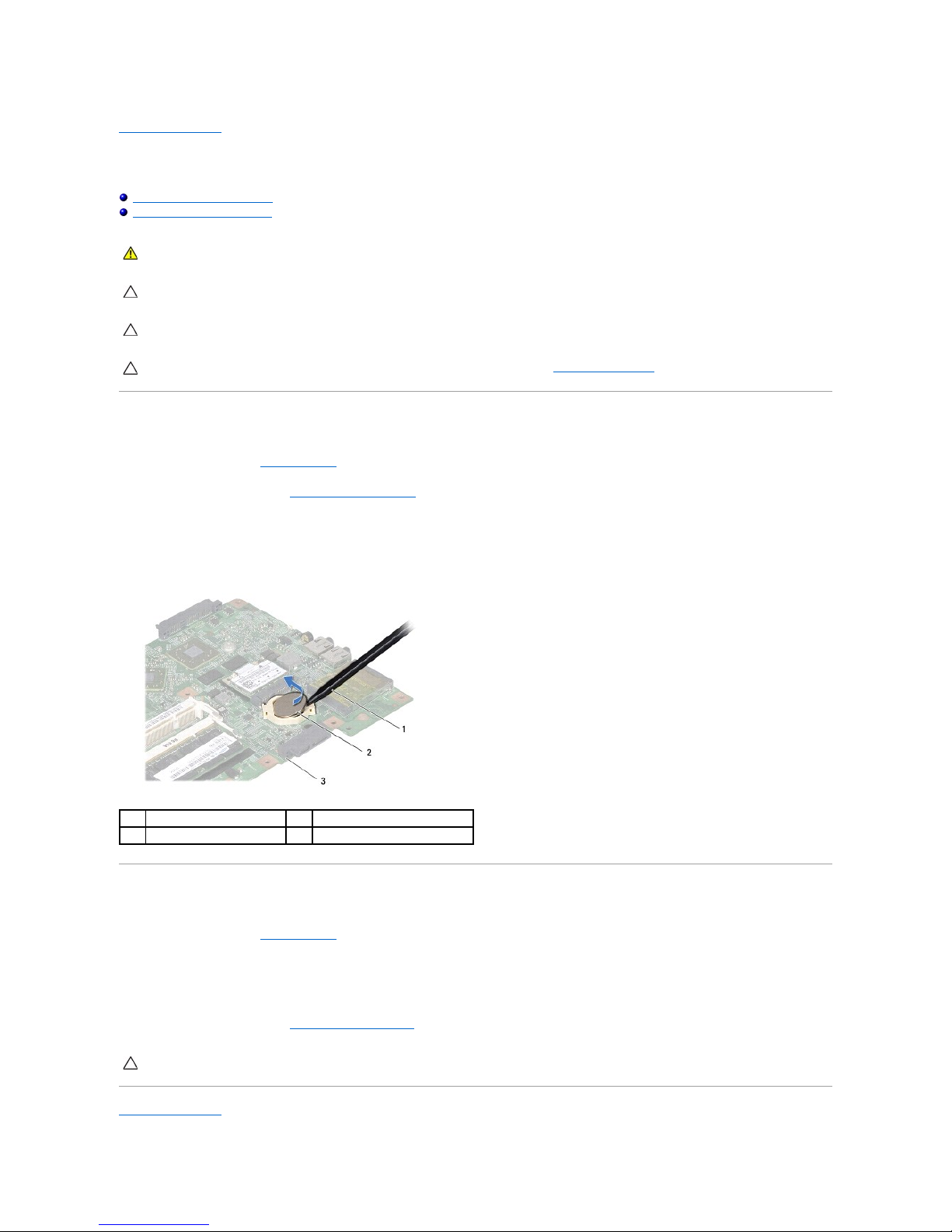

Removing the Coin-Cell Battery

1. Follow the procedures in Before You Begin.

2. Remove the system board (see Removing the System Board).

3. Turn the system board over.

4. Use a plastic scribe to pry out the coin-cell battery.
Replacing the Coin-Cell Battery

1. Follow the procedures in Before You Begin.

2. Hold the coin-cell battery with the positive (+) side facing up.

3. Slide the coin-cell battery into the slot on the system board and gently press until it snaps into place.

4. Replace the system board (see Replacing the System Board).

Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
plastic scribe
2
coin-cell battery
3
system board


CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.



Back to Contents Page
Processor Module
Dell™Inspiron™1546ServiceManual
Removing the Processor Module
Replacing the Processor Module







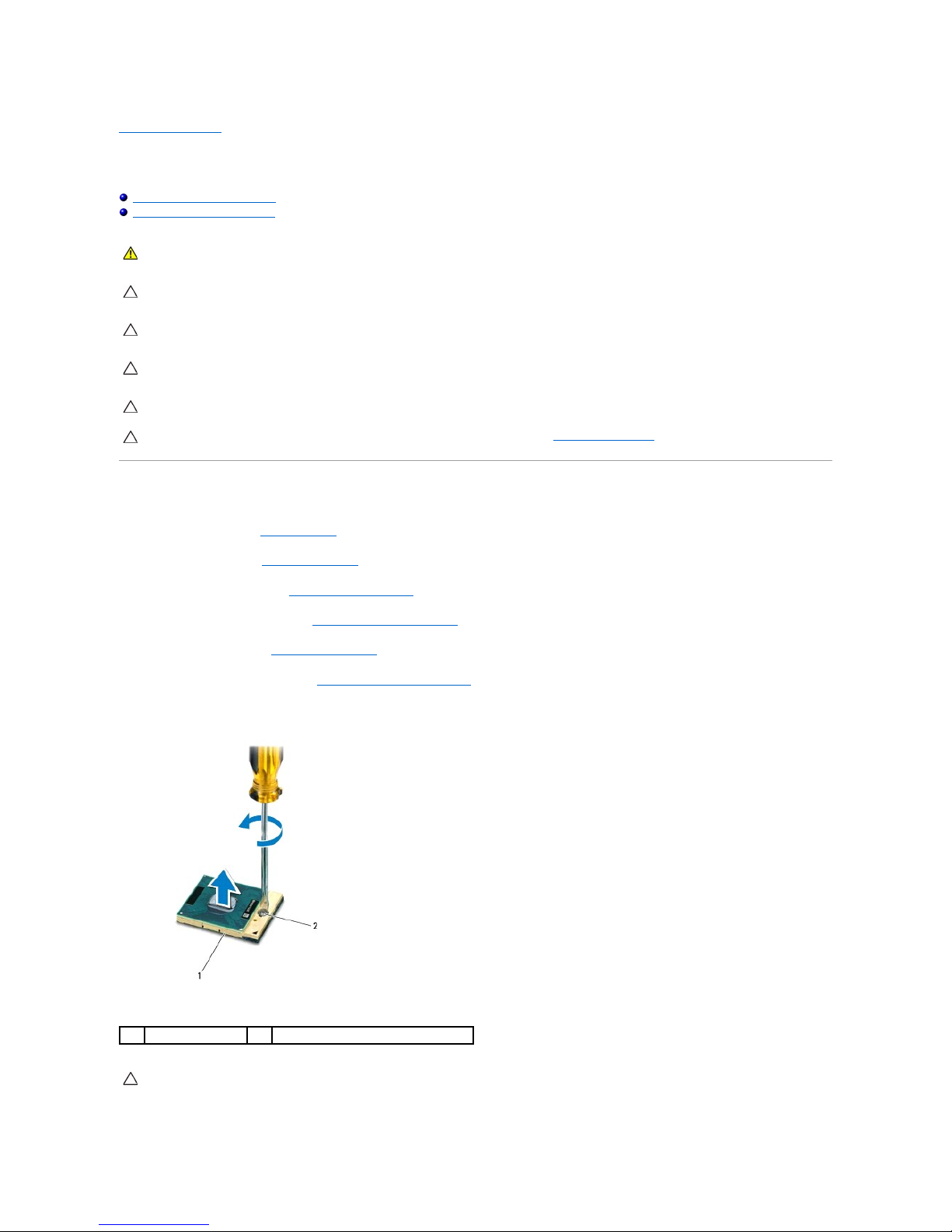

Removing the Processor Module

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the module cover (see Removing the Module Cover).

4. Remove the memory module(s) (see Removing the Memory Module(s)).

5. Remove the Mini-Card (see Removing the Mini-Card).

6. Remove the processor heat sink (see Removing the Processor Heat Sink).

7. To loosen the ZIF socket, use a small flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.


WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To prevent intermittent contact between the ZIF-socket cam screw and the processor when removing or replacing the processor, press
to apply slight pressure to the center of the processor while turning the cam screw.
CAUTION: To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
ZIF socket
2
ZIF-socket cam screw
CAUTION: To ensure maximum cooling for the processor, do not touch the heat transfer areas on the processor thermal-cooling assembly. The
oils in your skin can reduce the heat transfer capability of the thermal pads.


8. Lift the processor module from the ZIF socket.
Replacing the Processor Module

1. Follow the procedures in Before You Begin.

2. Align the pin-1 corner of the processor module with the pin-1 corner of the ZIF socket, then place the processor module.
When the processor module is properly seated, all four corners are aligned at the same height. If one or more corners of the module are higher than the
others, the module is not seated properly.


3. Tighten the ZIF socket by turning the cam screw clockwise to secure the processor module to the system board.

4. Replace the processor heat sink (see Replacing the Processor Heat Sink).

5. Replace the Mini-Card (see Replacing the Mini-Card).

6. Replace the memory module(s) (see Replacing the Memory Module(s)).

7. Replace the module cover (see Replacing the Module Cover).

8. Replace the battery (see Replacing the Battery).

Back to Contents Page

CAUTION: When removing the processor module, lift the module straight up. Be careful not to bend the pins on the processor module.
NOTE: If a new processor is installed, you will receive a new thermal-cooling assembly, which will include an affixed thermal pad, or you will receive a
new thermal pad along with documentation to illustrate proper installation.
NOTE: The pin-1 corner of the processor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.
CAUTION: To avoid damage to the processor, hold the screwdriver perpendicular to the processor when turning the cam screw.
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page
Processor Heat Sink
Dell™Inspiron™1546ServiceManual
Removing the Processor Heat Sink
Replacing the Processor Heat Sink





Removing the Processor Heat Sink

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the module cover (see Removing the Module Cover).

4. Remove the memory module(s) (see Removing the Memory Module(s)).

5. Remove the Mini-Card (see Removing the Mini-Card).

6. In sequential order (indicated on the processor heat sink) loosen the five captive screws that secure the processor heat sink to the system board.

7. Pry out the processor heat sink with a plastic scribe.

8. Lift the processor heat sink off the computer base.
Replacing the Processor Heat Sink
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: If you remove the processor heat sink from the computer when the heat sink is hot, do not touch the metal housing of the processor
heat sink.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
captive screws (5)
2
processor heat sink
