Dell™Inspiron™518/519ServiceManual
Model: DCMF
Notes, Notices, and Cautions
Information in this document is subject to change without notice.
©2008DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; AMD is a trademark of Advanced Micro Devices Inc.; Microsoft and Windows are either
trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
May2008Rev.A00
Technical Overview
Before You Begin
Removing the Computer Cover
Replacing the Front Panel
Replacing Memory Module(s)
Replacing a PCI/PCI Express Card
Replacing Drives
Replacing Fans
Replacing the Front I/O Panel
Replacing the Processor
Replacing the System Board
Replacing the Power Supply
Replacing the Battery
Replacing the Computer Cover
System Setup
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Great user manuals database on UserManuals.info
Back to Contents Page
Before You Begin
Dell™Inspiron™518/519ServiceManual
Technical Specifications
Recommended Tools
Turning Off Your Computer
Safety Instructions
This chapter provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Safety Instructions.
lYou have read the safety information that shipped with your computer.
lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.
Technical Specifications
For information on technical specifications of your computer, see the Quick Reference Guide that shipped with your computer or see the Dell Support website at
support.dell.com.
Recommended Tools
The procedures in this document may require the use of a small Phillips screwdriver size #2.
Turning Off Your Computer
1. Shut down the operating system.
2. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut
down your operating system, press and hold the power button for about 4 seconds to turn them off.
Safety Instructions
Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.
1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.
2. Turn off your computer (see Turning Off Your Computer).
3. Disconnect all telephone or network cables from the computer.
4. Disconnect your computer and all attached devices from their electrical outlets.
NOTICE: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™isnot
covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking tabs; if
you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly
aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.
Great user manuals database on UserManuals.info
5. Press and hold the power button while the system is unplugged to ground the system board.
Back to Contents Page
NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the
computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal components.
Great user manuals database on UserManuals.info
Back to Contents Page
Replacing a PCI/PCI Express Card
Dell™Inspiron™518/519ServiceManual
Removing a PCI/PCI Express Card
Installing a PCI/PCI Express Card
Replacing the Card Retention Bracket
Configuring Your Computer After Removing or Installing a PCI/PCI Express Card
Removing a PCI/PCI Express Card
1. Follow the procedures in Before You Begin.
2. Uninstall the card's driver and software from the operating system. For more information, see the Quick Reference Guide.
3. Remove the computer cover. See Removing the Computer Cover.
4. Remove the screw holding the card retention bracket.
5. Lift the card retention bracket and set it aside in a secure place.
6. If necessary, disconnect any cables connected to the card.
lFor a PCI card, grasp the card by its top corners, and ease it out of its connector.
lFor a PCI Express card, pull the securing tab, grasp the card by its top corners, and then ease it out of its connector.
7. If you are replacing an existing card, go to step 6 of Installing a PCI/PCI Express Card.
8. Install a filler bracket in the empty card-slot opening.
9. Replace the card retention bracket. See Replacing the Card Retention Bracket.
10. Replace the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.
11. To complete the removal procedure, see Configuring Your Computer After Removing or Installing a PCI/PCI Express Card.
Installing a PCI/PCI Express Card
1. Follow the procedures in Before You Begin.
2. Remove the computer cover. See Removing the Computer Cover.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
1
card retention bracket
2
filler bracket
NOTICE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust
and dirt out of your computer.
Great user manuals database on UserManuals.info
3. Remove the screw holding the card retention bracket.
4. Lift the card retention bracket and set it aside in a secure place.
5. Remove the filler bracket to create a card-slot opening.
6. Prepare the card for installation.
See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your
computer.
7. Align the card with the connector.
8. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.
9. Replace the card retention bracket. See Replacing the Card Retention Bracket.
10. Connect any cables that should be attached to the card.
See the documentation for the card for information about the card's cable connections.
11. Replace the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.
12. To complete the installation, see Configuring Your Computer After Removing or Installing a PCI/PCI Express Card.
Replacing the Card Retention Bracket
NOTE: If you are installing a PCI Express card into the x16 connector, ensure that the securing slot is aligned with the securing tab.

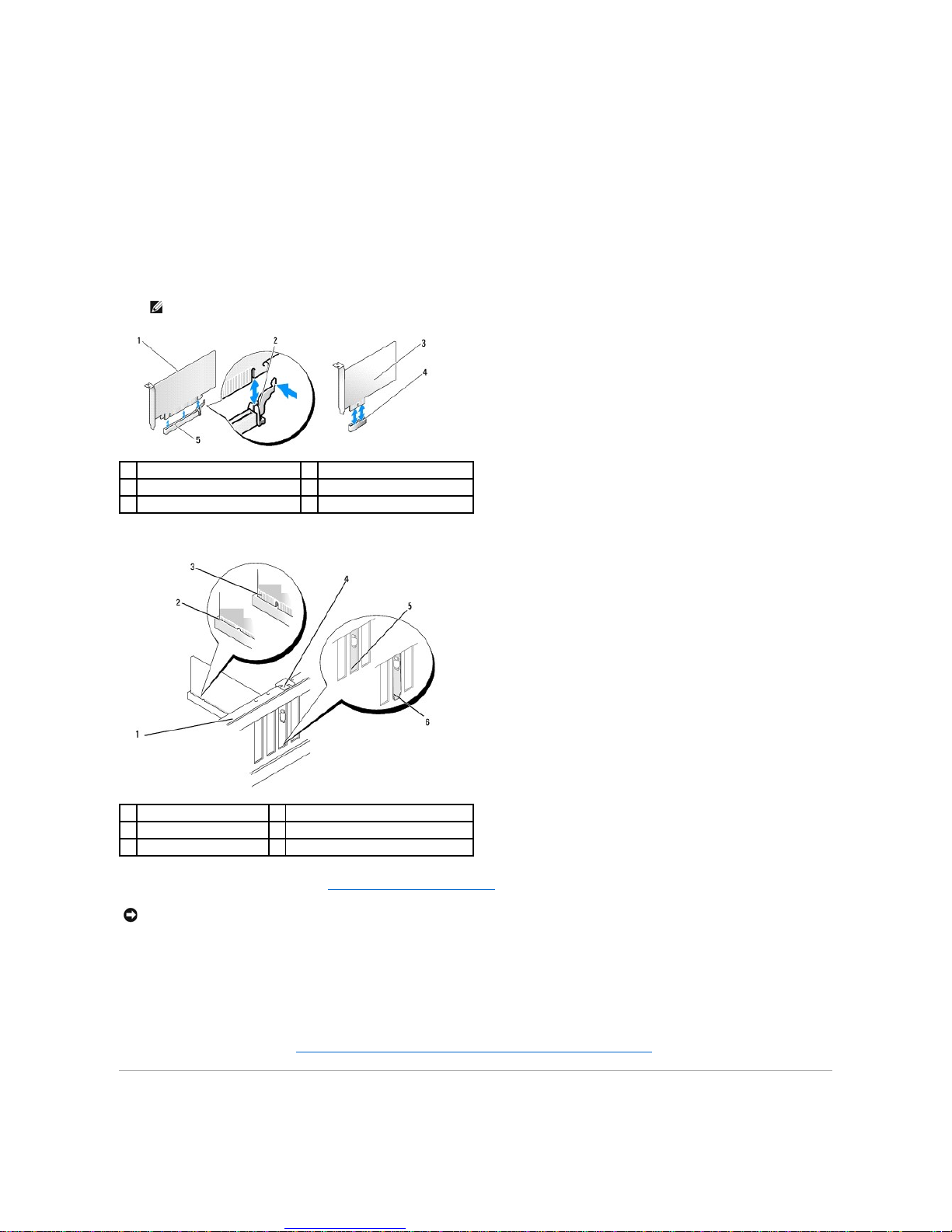

1
PCI Express x16 card
2
securing tab
3
PCI Express x1 card
4
PCI Express x1 card slot
5
PCI Express x16 card slot
1
alignment bar
2
fully-seated card
3
not fully-seated card
4
alignment guide
5
bracket within slot
6
bracket caught outside of slot
NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly or
cause damage to the equipment.
Great user manuals database on UserManuals.info
Replace the card retention bracket ensuring that:
lThe guide clamp is aligned with the guide notch.
lThe tops of all cards and filler brackets are flush with the alignment bar.
lThe notch in the top of the card or filler bracket fits around the alignment guide.
Configuring Your Computer After Removing or Installing a PCI/PCI Express Card
Back to Contents Page
1
alignment guide
2
filler bracket
3
alignment bar
4
card retention bracket
5
guide clamp (2)
6
guide notch (2)
NOTE: For information on location of connectors, see the Quick Reference Guide. For information on installing drivers and software for your card, see the
documentation that shipped with the card.
Installed
Removed
Sound
Card
1. Enter system setup (see
System Setup)
2. Go to Integrated
Peripherals and select
Onboard Audio
Controller, and then
change the setting to
Disabled.
3. Connect the external
audio devices to the
sound card's connectors.
1. Enter system setup (see
System Setup)
2. Go to Integrated
Peripherals and select
Onboard Audio
Controller, and then
change the setting to
Enabled.
3. Connect the external
audio devices to the
computer's back panel
connectors.
Network
Card
1. Enter system setup (see
System Setup)
2. Go to Integrated
Peripherals and select
Onboard LAN Controller,
and then change the
setting to Disabled.
3. Connect the network
cable to the network
card's connector.
1. Enter system setup (see
System Setup)
2. Go to Integrated
Peripherals and select
Onboard LAN Controller,
and then change the
setting to Enabled.
3. Connect the network
cable to the integrated
network connector.
Great user manuals database on UserManuals.info
Back to Contents Page
Replacing the Battery
Dell™Inspiron™518/519ServiceManual
1. Record all the screens in system setup (see System Setup) so that you can restore the correct settings in step 10.
2. Follow the procedures in Before You Begin.
3. Remove the computer cover (see Removing the Computer Cover).
4. Locate the battery socket (see System Board Components).
5. Carefully press the battery release lever away from the battery and the battery will pop out.
6. Remove the battery from the system and properly dispose of the battery.
7. Insert the new battery into the socket with the side labeled "+" facing up, then snap the battery into place.
8. Replace the computer cover (see Replacing the Computer Cover).
9. Connect your computer and devices to electrical outlets, and then turn them on.
10. Enter system setup (see System Setup) and restore the settings you recorded in step 1.
Back to Contents Page
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer's instructions.
NOTICE: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the object is
inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by prying off
the socket or by breaking circuit traces on the system board.

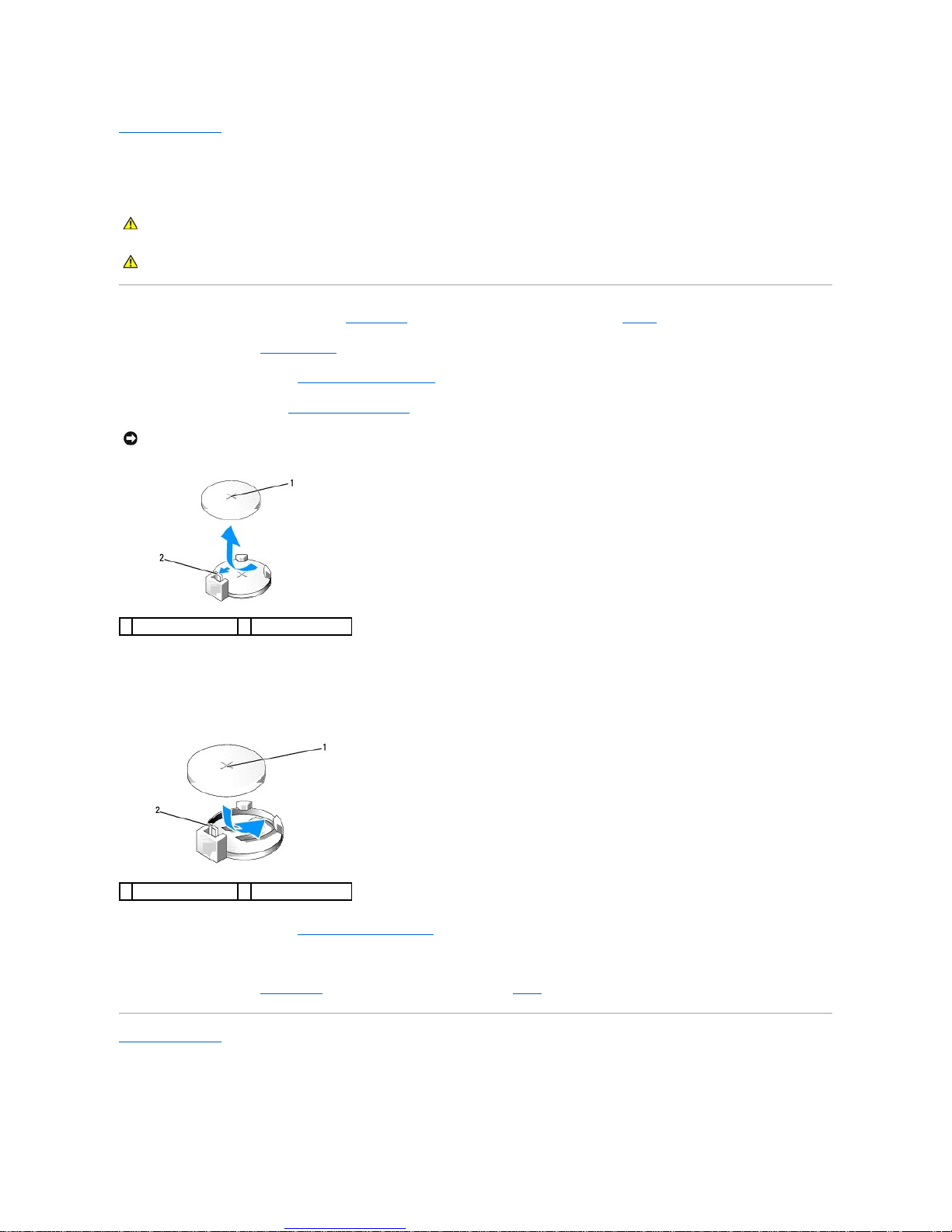

1
battery (positive side)
2
battery release lever
1
battery (positive side)
2
battery release lever
Great user manuals database on UserManuals.info
Back to Contents Page
Replacing the Computer Cover
Dell™Inspiron™518/519ServiceManual
1. Ensure that all cables are connected, and fold cables out of the way.
2. Ensure that no tools or extra parts are left inside the computer.
3. Align the tabs at the bottom of the computer cover with the slots located along the edge of the computer.
4. Press the computer cover down and slide it towards the front of the computer until you feel the computer cover is securely installed.
5. Ensure that the cover is seated correctly.
6. Replace and tighten the two screws that secure the computer cover, using a screwdriver.
7. Turn the computer to the upright position.
8. Connect your computer and devices to electrical outlets, and turn them on.
Back to Contents Page
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Do not operate your equipment with any cover(s) (including computer covers, front panel, filler brackets, front-panel inserts, etc.)
removed.
1
front of the computer
2
computer cover
3
slot
4
computer cover tab
NOTICE: Ensure that none of the system air-vents are blocked. Blocking them would cause serious thermal problems.
Great user manuals database on UserManuals.info
Back to Contents Page
Removing the Computer Cover
Dell™Inspiron™518/519ServiceManual
1. Follow the procedures in Before You Begin.
2. Lay your computer on its side with the computer cover facing up.
3. Open the padlock, if applicable.
4. Loosen the two thumbscrews.
5. Pull the cover grip towards the back of the computer to release the cover.
6. Set the cover aside in a secure location.
To replace the computer cover, see Replacing the Computer Cover.
Back to Contents Page
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To guard against likelihood of electric shock, laceration by moving fan blades or other unexpected injuries, always unplug your
computer from the electrical outlet before removing the cover.
NOTICE: Ensure that sufficient space exists to support the system with the cover removed—at least 30 cm (1 ft.) of desktop space.
1
computer cover
2
front of computer
3
thumbscrew (2)
4
cover grip
Great user manuals database on UserManuals.info
Back to Contents Page
Replacing the Processor
Dell™Inspiron™518/519ServiceManual
Removing the Processor
Installing the Processor

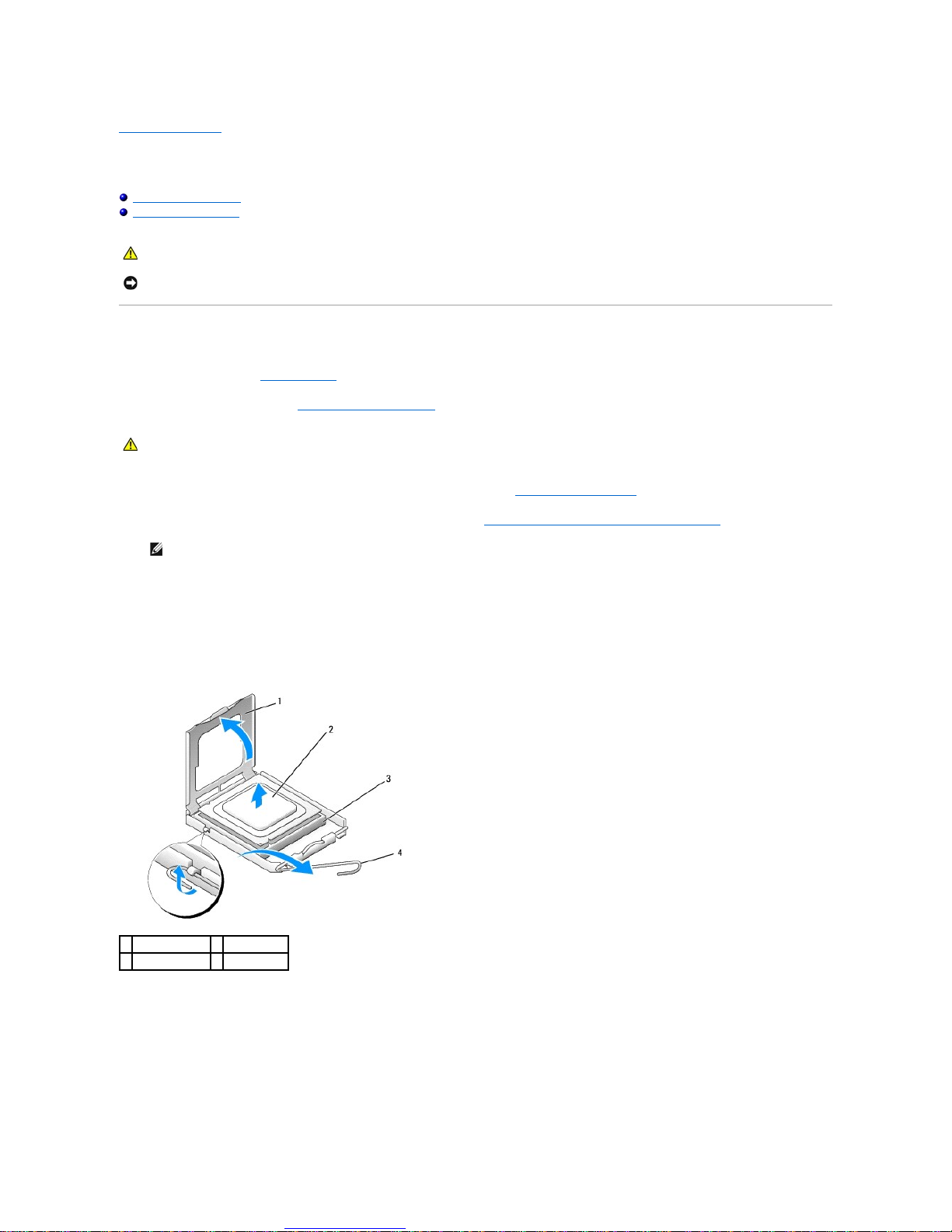

Removing the Processor
1. Follow the procedures in Before You Begin.
2. Remove the computer cover (see Removing the Computer Cover).
3. Disconnect the power cables from the ATX_POWER and ATX_CPU connectors (see System Board Components) on the system board.
4. Remove the processor fan and heat sink assembly from the computer (see Replacing the Processor Fan and Heat Sink Assembly).
5. Press and push the release lever down and out to release it from the tab that secures it.
6. Open the processor cover, if applicable.
Dell™Inspiron™518
Dell Inspiron 519
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: Do not perform the following steps unless you are familiar with hardware removal and replacement. Performing these steps incorrectly could
damage your system board. For technical service, see the Quick Reference Guide.
CAUTION: Despite having a plastic shield, the heat sink assembly may be very hot during normal operation. Be sure that it has had sufficient time
to cool before you touch it.
NOTE: Unless a new heat sink is required for the new processor, reuse the original heat sink assembly when you replace the processor.
1
processor cover
2
processor
3
socket
4
release lever
Great user manuals database on UserManuals.info
7. Lift up the processor to remove it from the socket, place it aside in a safe and secure place.
Leave the release lever extended in the release position so that the socket is ready for the new processor.
Installing the Processor
1. Follow the procedures in Before You Begin.
2. Unpackthenewprocessor,beingcarefulnottotouchtheundersideoftheprocessor.
Dell Inspiron 518
1
processor
2
release lever
3
socket
NOTICE: When replacing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.
NOTICE: Ground yourself by touching an unpainted metal surface on the back of the computer.
NOTICE: You must position the processor correctly in the socket to avoid permanent damage to the processor and the computer when you turn on the
computer.
NOTICE: Socket pins are delicate. To avoid damage, ensure that the processor is aligned properly with the socket, and do not use excessive force
when you install the processor. Be careful not to touch or bend the pins on the system board.
1
processor cover
2
tab
3
processor
4
processor socket
5
center cover latch
6
release lever
7
front alignment-notch
8
processor pin-1 indicator
9
rear alignment notch
Great user manuals database on UserManuals.info
Dell Inspiron 519
3. If the release lever on the socket is not fully extended, move it to that position.
4. For Inspiron 518, orient the front and rear alignment-notches on the processor with the front and rear alignment-notches on the socket.
5. Align the pin-1 corners of the processor and socket.
6. Set the processor lightly in the socket and ensure that the processor is positioned correctly.
7. When the processor is fully seated in the socket, close the processor cover, if applicable.
Ensure that the tab on the processor cover is positioned underneath the center cover latch on the socket.
8. Pivot the socket release lever back towards the socket, and snap it into place to secure the processor.
9. Clean the thermal grease from the bottom of the heat sink.
10. Apply the new thermal grease to the top of the processor.
11. Install the processor fan and heat sink assembly (see Replacing the Processor Fan and Heat Sink Assembly).
12. Replace the computer cover (see Replacing the Computer Cover).
13. Connect your computer and devices to electrical outlets, and then turn them on.
Back to Contents Page
1
release lever
2
processor
3
socket
4
processor pin-1 indicator
NOTICE: To avoid damage, ensure that the processor aligns properly with the socket, and do not use excessive force when you install the processor.
NOTICE: Ensure that you apply new thermal grease. New thermal grease is critical for ensuring adequate thermal bonding, which is a requirement for
optimal processor operation.
NOTICE: Ensure that the processor fan and heat sink assembly is correctly seated and secure.
Great user manuals database on UserManuals.info
Back to Contents Page
Replacing Drives
Dell™Inspiron™518/519ServiceManual
Replacing a Hard Drive
Replacing a CD/DVD Drive
Replacing a Media Card Reader
Removing the FlexBay Break-Away Metal Plate
Replacing the Drive Panel Insert
Replacing a Hard Drive
1. Follow the procedures in Before You Begin.
2. Remove the computer cover (see Removing the Computer Cover).
3. Disconnect the power and data cables from the drive.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: The system does not support IDE devices.
NOTE: The 3.5-inch media card reader is not interchangeable with the hard drive carrier.
1
hard drive
2
optional hard drive
3
media card reader
4
optional CD or DVD drive
5
CD or DVD drive
NOTICE: If you are replacing a hard drive that contains data you want to keep, back up your files before you begin this procedure.
NOTE: If you are not replacing the hard drive at this time, disconnect the other end of the data cable from the system board and set it aside. You
can use the data cable to install a hard drive at a later time.
Great user manuals database on UserManuals.info
4. Remove the four screws securing the hard drive to the chassis.
5. Slide the drive out away from the front of the computer.
6. If you are replacing the drive or installing a new one, check the documentation for the drive to verify that it is configured for your computer.
7. Slide the hard drive into the hard drive bay.
8. Align the four screw holes in the hard drive with the screw holes in the hard drive bay.
9. Replace and tighten the four screws to secure the hard drive to the chassis.
10. Connect the power and data cables to the drive.
11. Ensure that all the cables are properly connected and firmly seated.
12. Replace the computer cover (see Replacing the Computer Cover).
13. Connect your computer and devices to electrical outlets, and then turn them on.
Replacing a CD/DVD Drive
1. Follow the procedures in Before You Begin.
2. Remove the computer cover (see Removing the Computer Cover).
3. Remove the front panel(see Replacing the Front Panel).
1
screw holes in the hard drive bay (4)
2
screws (4)
3
system board connector (any available connector
SATA0 -SATA3)
4
serial ATA data
cable
5
power cable
6
hard drive
NOTICE: Ensure that you do not scratch the hard disk circuit board, while removing or replacing the hard drive.
Great user manuals database on UserManuals.info
4. Disconnect the power cable and the CD/DVD drive data cable from the back of the drive.
5. Remove the two screws securing the CD/DVD drive to the chassis.
6. Slide the CD/DVD drive out through the front of the computer.
7. If you are not replacing the drive:
a. Replace the drive panel insert (see Replacing the Drive Panel Insert).
b. Go to step 12.
8. Gently slide the drive into place.
9. Align the screw holes in the CD/DVD drive with the screw holes in the CD/DVD drive bay.
10. Replace and tighten the two screws securing the CD/DVD drive to the chassis.
11. Connect the power and data cables to the drive.
12. Replace the front panel (see Replacing the Front Panel).
13. Replace the computer cover (see Replacing the Computer Cover).
14. Connect your computer and devices to their electrical outlets, and turn them on.
Replacing a Media Card Reader
1. Follow the procedures in Before You Begin.
2. Remove the computer cover (see Removing the Computer Cover).
3. Remove the front panel (see Replacing the Front Panel)
1
custom
screws (2)
2
screw holes in the
CD/DVD drive bay
3
system board connector (any
available connector SATA0 -
SATA3)
4
power
cable
5
data cable
6
CD/DVD drive
NOTE: If you are uninstalling the only CD/DVD drive in your computer and will not replace it at this time, disconnect the data cable from the system
board and set it aside.
NOTE: If you installed a new drive, see the documentation that came with the drive for instructions on installing any software required for drive
operation.
Great user manuals database on UserManuals.info
4. Disconnect the FlexBay USB cable and the power cable from the back of the Media Card Reader and from the internal USB connector (F_USB4) on the
system board (see System Board Components).
5. Remove the two screws securing the Media Card Reader.
6. Slide the Media Card Reader out through the front of the computer.
7. If you are not reinstalling the Media Card Reader, replace the drive panel insert. See Replacing the Drive Panel Insert.
8. If you are installing a new Media Card Reader:
a. Remove the drive panel insert (see Replacing the Drive Panel Insert).
b. Remove the Media Card Reader from its packaging.
9. Gently slide the Media Card Reader into place in the FlexBay slot.
10. Align the screw holes in the Media Card Reader with the screw holes in the FlexBay.
11. Tighten the two screws to secure the Media Card Reader.
12. Connect the FlexBay USB cable to the back of the Media Card Reader and to the internal USB connector (F_USB4) on the system board (see System
Board Components).
13. Replace the front panel(see Replacing the Front Panel).
14. Replace the computer cover (see Replacing the Computer Cover).
15. Connect your computer and devices to electrical outlets, and then turn them on.
Removing the FlexBay Break-Away Metal Plate
1
custom screws (2)
2
F_USB4 connector
3
power cable
4
flexbay USB cable
5
media card reader
NOTE: Ensure that the Media Card Reader is installed before the FlexBay cable is connected.
Great user manuals database on UserManuals.info

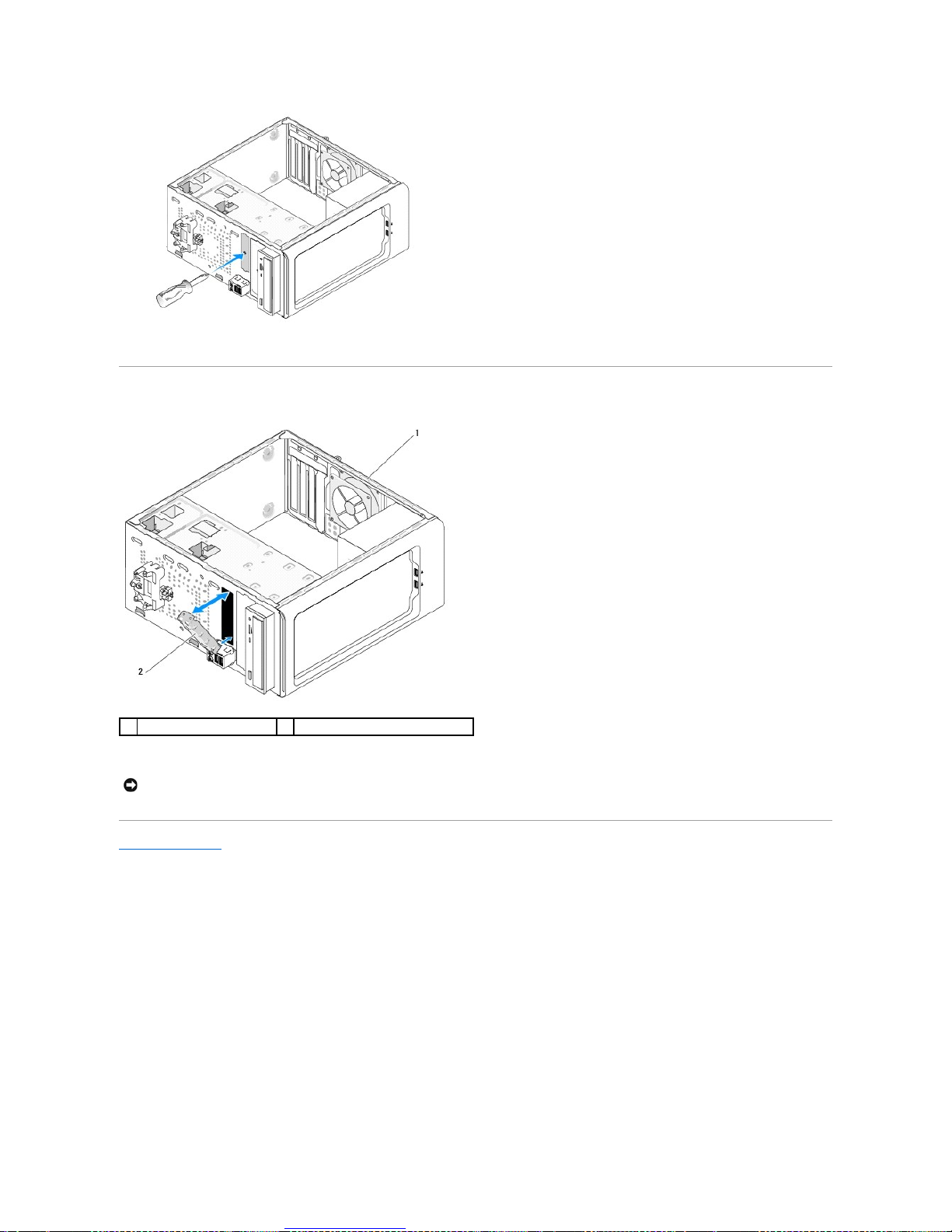

Align the tip of a Phillips screwdriver with the slot on the break-away metal plate and rotate the screwdriver outwards to break and remove the metal plate.
Replacing the Drive Panel Insert
Align the drive panel insert along the edges of the empty slot of the Media Card Reader and push the panel insert. The drive panel insert is locked in place.
Back to Contents Page
1
back of the computer
2
drive panel insert (optional)
NOTICE: To comply with FCC regulations, it is recommended that you replace the drive panel insert whenever the Media Card Reader is removed from
the computer.
Great user manuals database on UserManuals.info
Back to Contents Page
Replacing Fans
Dell™Inspiron™518/519ServiceManual
Replacing the Chassis Fan
Replacing the Processor Fan and Heat Sink Assembly
Replacing the Chassis Fan
1. Follow the procedures in Before You Begin.
2. Remove the computer cover (see Removing the Computer Cover).
3. Disconnect the chassis fan cable from the system board connector (CHASSIS_FAN).
4. Remove the four screws securing the chassis fan.
5. Slide the chassis fan towards the front of the computer and lift it up.
6. To install the chassis fan, slide it in place towards the back of the computer.
7. Tighten the four screws to secure the chassis fan.
8. Connect the chassis fan cable to the system board connector (CHASSIS_FAN).
9. Replace the computer cover (see Replacing the Computer Cover).
Replacing the Processor Fan and Heat Sink Assembly
1. Follow the procedures in Before You Begin.
2. Remove the computer cover (see Removing the Computer Cover).
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To guard against likelihood of electric shock, laceration by moving fan blades or other unexpected injuries, always unplug your
computer from the electrical outlet before removing the cover.
NOTICE: Do not touch the fan blades when you are removing the chassis fan. This could damage the fan.
1
screws (4)
2
chassis fan
CAUTION: Despite having a plastic shield, the heat sink fan assembly may be very hot during normal operation. Be sure that it has had sufficient
time to cool before you touch it.
NOTICE: Do not touch the fan blades when you are removing the processor fan and heat sink assembly. This could damage the fan.
NOTICE: The processor fan with the heat sink is one single unit. Do not try to remove the fan separately.
Great user manuals database on UserManuals.info
3. Disconnect the processor fan cable from the CPU_FAN connector on the system board (see System Board Components).
4. Carefully move away any cables that are routed over the processor fan and heat sink assembly.
5. Follow the instructions below to replace the processory fan and heat sink assembly, depending on your computer model:

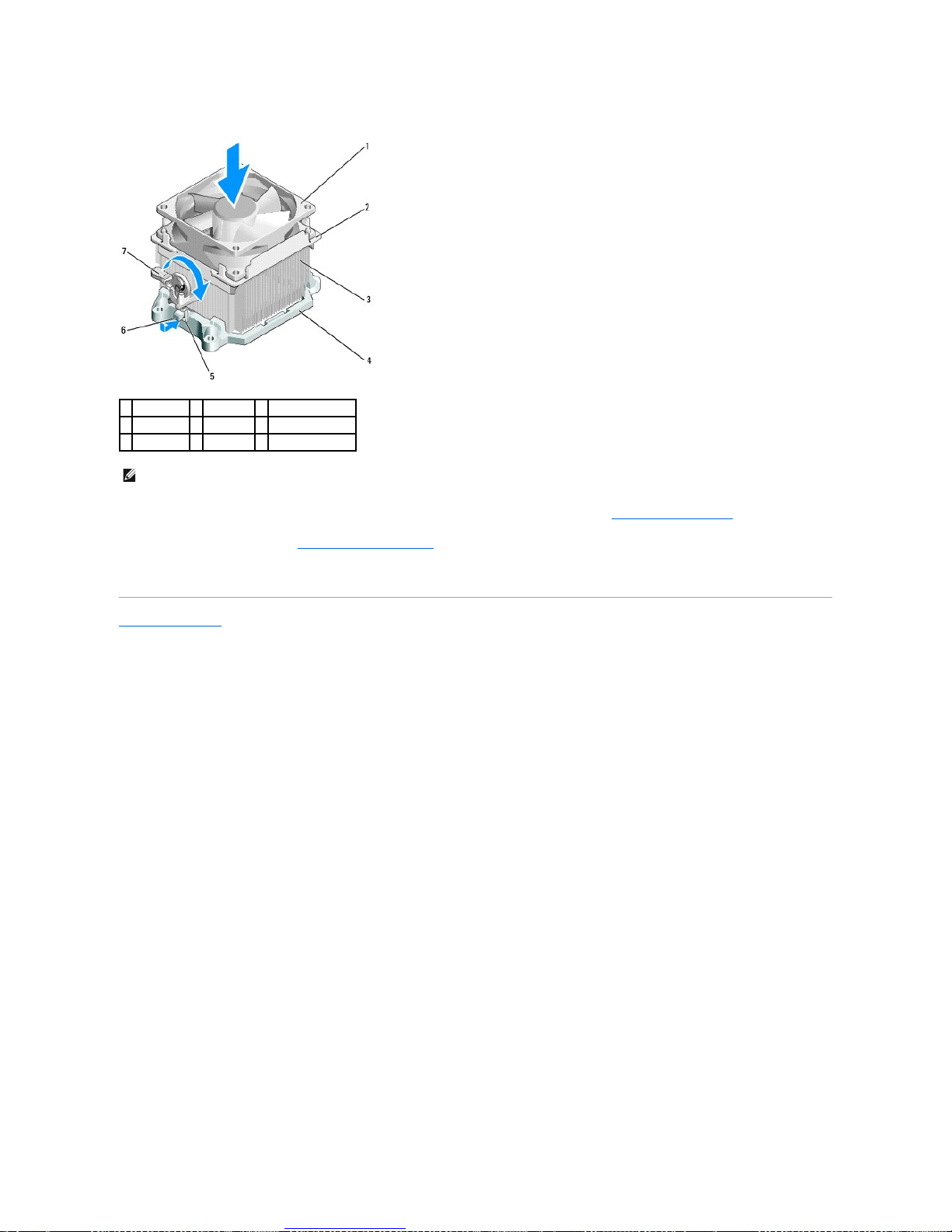

Inspiron 518
a. Loosen the four captive screws securing the processor fan and heat sink assembly and lift it straight up.
b. To reinstall the processor fan and heat sink assembly, align the captive screws on the processor fan and heat sink assembly to the four metal
screw hole projections on the system board.
c. Tighten the four captive screws.
Inspiron 519
a. Rotate the clamp lever 180 degrees counter-clockwise to release the clamp grip from the bracket projection.
b. Release the clamp grip from the bracket projection on the opposite side.
c. Rotate the heat sink assembly upward gently, and remove it from the computer. Lay the heat sink assembly down on its top, with the thermal
grease facing upward.
d. Place the heat sink and fan assembly back onto the heat-sink assembly bracket.
e. Ensure that the two clamp grips are aligned with the two bracket projections.
1
processor fan and heat sink assembly
2
captive screws (4)
NOTE: The processor fan and heat sink assembly in your computer may not look exactly like the one shown in the illustration above.
1
clamp lever
2
bracket projection
3
clamp grip
4
bracket
5
heat sink
6
fan cover
7
fan
Great user manuals database on UserManuals.info
f. Hold the heat sink fan assembly in place and rotate the clamp lever 180 degrees clockwise to secure the heat sink and fan assembly.
6. Connect the processor fan and heat sink assembly cable to the CPU_FAN system board connector (see System Board Components).
7. Replace the computer cover (see Replacing the Computer Cover).
8. Connect your computer and devices to an electrical outlet, and turn them on.
Back to Contents Page
1
fan
2
fan cover
3
heat sink
4
bracket
5
clamp grip
6
bracket projection
7
clamp lever
NOTE: Ensure that the processor fan and heat sink assembly is correctly seated and secure.
Other manuals for Inspiron 518
1
This manual suits for next models
1
Table of contents
Other Dell Laptop manuals
Dell
Dell Precision X001C User manual
Dell
Dell Latitude D530 User manual
Dell
Dell Latitude 13 User manual
Dell
Dell Vostro 3400 User manual
Dell
Dell Inspiron 3584 Operation and maintenance manual
Dell
Dell Precision Workstation 340 User guide
Dell
Dell P126G Operation and maintenance manual
Dell
Dell Inspiron 1520 User manual
Dell
Dell Inspiron 1440 User manual
Dell
Dell Latitude JD925 User manual
Dell
Dell P110G002 User manual
Dell
Dell Vostro 1320 User manual
Dell
Dell Vostro 7590 User manual
Dell
Dell XPS Adamo XPS Manual
Dell
Dell Inspiron 17 5000 Series User manual
Dell
Dell Inspiron 24 5415 Operation and maintenance manual
Dell
Dell Latitude E6400 XFR Owner's manual
Dell
Dell XPS 15 User manual
Dell
Dell Inspiron 14 5000 Series User manual
Dell
Dell Latitude 5511 User guide
