Dell™Latitude™ATGD620User'sGuide
For information on other documentation included with your computer, see Finding Information.
Notes, Notices, and Cautions
Abbreviations and Acronyms
For a complete list of abbreviations and acronyms, see the Glossary.
IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.
Information in this document is subject to change without notice.
©2007DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, PowerEdge, PowerVault, PowerApp, ExpressCharge, TravelLite, Strike Zone, Wi-Fi
Catcher, Dell MediaDirect, XPS, and Dell OpenManage are trademarks of Dell Inc.; Core and Intel are registered trademarks of Intel Corporation; Microsoft, Outlook, and Windows are
registered trademarks of Microsoft Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license; TouchStrip is a trademark of
UPEK, Inc.; EMC is a registered trademark of EMC Corporation; ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner,
Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP18L
January2007P/NFP139Rev.A01
Finding Information
Using a Battery
About Your Computer
Using the Keyboard
Using the Display
Using Multimedia
Using Cards
Using Networks
Securing Your Computer
Troubleshooting
System Setup Program
Reinstalling Software
Adding and Replacing Parts
Dell™QuickSetFeatures
Traveling With Your Computer
Getting Help
Specifications
Appendix
Glossary
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page
About Your Computer
Dell™Latitude™ATGD620User'sGuide
Front View
Left Side View
Right Side View
Back View
Bottom View
Front View

display latch —Keeps the display closed.

display —For more information about your display, see Using the Display.

power button —Press the power button to turn on the computer or exit a power management mode (see Power Management Modes).
If the computer stops responding, press and hold the power button until the computer turns off completely (which may take several seconds).

device status lights
1
display latch
2
display
3
power button
4
device status lights
5
keyboard
6
touch pad
7
fingerprint reader
(optional)
8
speaker
9
touch pad buttons/track stick
buttons
10
track stick
11
keyboard status
lights
12
volume control buttons
13
ambient light sensor
14
mute button
15
keyboard illumination lights
NOTICE: To avoid losing data, turn off your computer by performing a Microsoft®Windows®operating system shutdown rather than by pressing the
power button.

If the computer is connected to an electrical outlet, the light operates as follows:
¡Solid green: The battery is charging.
¡Flashing green: The battery is almost fully charged.
¡Off: The battery is adequately charged (or external power is not available to charge the battery).
If the computer is running on a battery, the light operates as follows:
¡Off: The battery is adequately charged (or the computer is turned off).
¡Flashing orange: The battery charge is low.
¡Solid orange: The battery charge is critically low.

keyboard —The keyboard includes a numeric keypad as well as the Windows logo key. For information on supported keyboard shortcuts, see Using the
Keyboard.

touch pad —Provides the functionality of a mouse (see Touch Pad and Track Stick).

fingerprint reader (optional) —HelpstokeepyourDell™computersecure.Whenyouslideyourfingeroverthereader,itusesyouruniquefingerprintto
authenticate your user identity. For information on how to activate and use the security management software that controls the fingerprint reader, see
Security Management Software.

speaker —To adjust the volume of the integrated speaker, press the volume control buttons, mute button, or volume-control keyboard shortcuts (see Key
Combinations).

touch pad buttons/track stick buttons —Use these buttons much like the buttons on a mouse when you use the touch pad and track stick to move the
cursor on the display (see Touch Pad and Track Stick).

track stick —Provides the functionality of a mouse (see Touch Pad and Track Stick).

Turns on when you turn on the computer and blinks when the computer is in a power
management mode.
Turns on when the computer reads or writes data.

NOTICE: To avoid loss of data, never turn off the computer while the light is
flashing.
Turns on steadily or blinks to indicate battery charge status.
Turns on when wireless devices are enabled.
Turns on when Bluetooth®wireless technology is enabled. To enable or disable
Bluetooth wireless technology, move the wireless switch to the "on" position (see
wireless switch for more information).

NOTE: Bluetooth wireless technology is an optional feature on your computer, so the
icon turns on only if you ordered Bluetooth wireless technology with your
computer. For more information, see the documentation that came with your Bluetooth
wireless technology.

keyboard status lights
The green lights located above the keyboard indicate the following:

volume control buttons —Press these buttons to adjust the volume.

ambient light sensor —Detects available environmental light and automatically increases or decreases the display backlighting to compensate for low-light
and high-light environments. Press the <Fn> and left-arrow key to enable or disable the sensor (see Using the Ambient Light Sensor).

mute button —Press this button to turn off the volume.

keyboard illumination lights —Press <Fn> and the right-arrow key to toggle on and off these lights for illumination of the keyboard in low-light environments.
Left Side View
Turns on when the numeric keypad is enabled.
Turns on when the uppercase letter function is enabled.
Turns on when the scroll lock function is enabled.


air vents —The computer uses an internal fan to create airflow through the vents, which prevents the computer from overheating.

security cable slot —Lets you attach a commercially available antitheft device to the computer (see Security Cable Lock).

audio connectors

infrared sensor —Lets you transfer files from your computer to another infrared-compatible device without using cable connections. When you receive your
computer, the sensor is disabled. You can use the system setup program (see System Setup Program) to enable the sensor. For information on transferring
data, see Windows Help, the Help and Support Center, or the documentation that came with your infrared-compatible device.

smart card slot (with blank) —Supports one smart card. Smart cards provide a variety of functions, including security features and data storage. The blank
prevents foreign matter from entering the interior of the computer when a smart card is not installed in the smart card slot. For more information and
instructions on removing the blank, see Using Smart Cards.

wireless switch —When enabled through Dell QuickSet, this switch can scan for wireless LAN in your vicinity. You can also use it to rapidly turn off or on any
wireless devices such as WLAN cards and internal cards with Bluetooth wireless technology (see Dell™Wi-FiCatcher™NetworkLocator).
1
air vents
2
security cable slot
3
audio connectors (2)
4
infrared sensor
5
smart card slot (with blank)
6
wireless switch
7
Wi-Fi Catcher™light
8
PC Card/ExpressCard slot
9
hard drive
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow
environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.
NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.
Attach headphones to the connector.
Attach a microphone to the connector.
1
"off" position
Disables wireless devices
2
"on" position
Enables wireless devices
3
"momentary"
position
Scans for WLAN networks (see Dell™Wi-FiCatcher™Network
Locator)
4
Wi-Fi Catcher light



Wi-FiCatcher™light—The light operates as follows:
¡Flashing green: Searching for networks
¡Solid green: Strong network found
¡Solid yellow: Weak network found
¡Flashing yellow: Error
¡Off: No signal found

PC Card/ExpressCard slot —Supports one PC Card, such as a modem or network adapter, or an ExpressCard (with a PCMIA adapter). The computer ships
with a blank installed in the slot to prevent foreign matter from entering the computer interior when a card is not installed (see Card Types).

hard drive —Stores software and data.
Right Side View

media bay —Supportsafloppyoranopticaldrive,secondbattery,secondharddrive,oraDellTravelLite™module(seeUsing Multimedia).

device latch release —Press the latch release to eject any device installed in the media bay.

USB connectors

USB port cover —The USB port cover prevents foreign matter from entering the computer interior when a USB device is not attached to either connector.
Back View
1
optical drive in media bay
2
media-bay device latch release
3
USB connectors (2)
4
USB port cover




Connect USB devices, such as a mouse, keyboard, or printer.


network connector (RJ-45)

modem connector (RJ-11)


USB connectors


serial connector


video connector


AC adapter connector
1
network connector (RJ-45)
2
modem connector (RJ-11)
3
USB connectors (2)
4
serial connector
5
video connector
6
AC adapter connector
7
air vents
8
port cover


CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,
such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.
NOTICE: The network connector is slightly larger than the modem connector. To avoid damaging the computer, do not plug a telephone line into the
network connector.
Connects the computer to a network. The two lights next to the connector
indicate status and activity for wired network connections.
For information on using the network adapter, see the device user's guide
supplied with your computer.
If you ordered the optional internal modem, connect the telephone line to
the modem connector.
For information on using the modem, see the online modem
documentation supplied with your computer (see Finding Information).
Connect USB devices, such as a mouse, keyboard, or printer.
Connects serial devices, such as a mouse or handheld device.
Connects video devices, such as a monitor.
Connects an AC adapter to the computer.

The AC adapter converts AC power to the DC power required by the computer. You can connect the AC adapter with your computer turned either on or off.

port cover —Protects the interior of the computer from debris that might enter through the port and connector openings. Also protects the connector pins
from potential damage that might occur when the computer is used in environments away from the safety of a desk top. To access the ports on the back of
the computer, rotate the cover downward. To remove the cover entirely, close the display, turn the computer upside down, and lift the cover away from the
computer. To replace the cover, perform the removal procedure in reverse.

air vents —The computer uses an internal fan to create airflow through the vents, which prevents the computer from overheating.

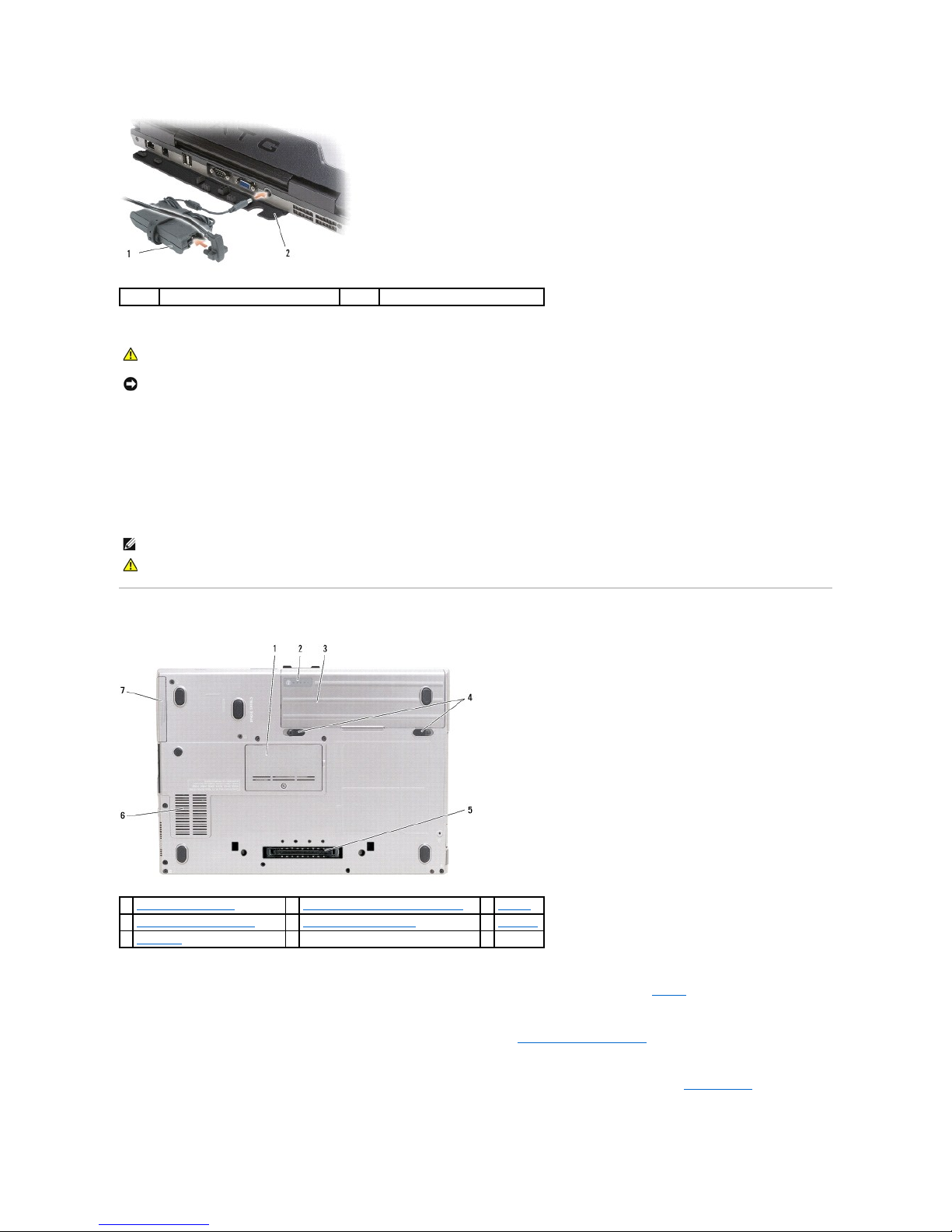

Bottom View

memory module cover —Covers the compartment that contains the second memory module connector (DIMM B) (see Memory).

battery charge gauge/health gauge —Provides information on the battery charge (see Checking the Battery Charge).

battery —When a battery is installed, you can use the computer without connecting the computer to an electrical outlet (see Using a Battery).

1
AC adapter
2
port cover
CAUTION: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an
incompatible cable or improperly connecting the cable to the power strip or electrical outlet may cause fire or equipment damage.
NOTICE: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself, and pull firmly but gently to avoid
damaging the cable. When you wrap the AC adapter cable, ensure that you follow the angle of the connector on the AC adapter to avoid damaging the
cable.
NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,
such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.
1
memory module cover
2
battery charge gauge/health gauge
3
battery
4
battery-bay latch releases (2)
5
docking-device connector
6
air vents
7
hard drive





battery-bay latch releases —Release the battery (see Replacing the Battery for instructions).

docking-device connector —Lets you attach your computer to a docking device. See the Dell documentation that came with your docking device for more
information.

air vents —The computer uses an internal fan to create airflow through the fan air vents, which prevents the computer from overheating.

hard drive —Stores software and data.
Back to Contents Page

NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,
such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

Back to Contents Page
Appendix
Dell™Latitude™ATGD620User'sGuide
Cleaning Your Computer
Macrovision Product Notice
FCC Notice (U.S. Only)
Cleaning Your Computer

Computer, Keyboard, and Display
lUse a can of compressed air to remove dust from between the keys on the keyboard.
lMoisten a soft, lint-free cloth with either water or a display cleaner, and wipe the display until it is clean.
lMoisten a soft, lint-free cloth with water and wipe the computer and keyboard. Do not allow water from the cloth to seep between the touch pad and
the surrounding palm rest.

Touch Pad

1. Shut down and turn off your computer.

2. Disconnect any attached devices from the computer and from their electrical outlets.

3. Remove any installed batteries (see Replacing the Battery).

4. Moisten a soft, lint-free cloth with water, and wipe it gently across the surface of the touch pad. Do not allow water from the cloth to seep between the
touch pad and the surrounding palm rest.

Floppy Drive
Clean your floppy drive using a commercially available cleaning kit. These kits contain pretreated floppy disks to remove contaminants that accumulate during
normal operation.

CDs and DVDs
If you notice problems, such as skipping, with the playback quality of your CDs or DVDs, try cleaning the discs.

1. Hold the disc by its outer edge. You can also touch the inside edge of the center hole.

2. With a soft, lint-free cloth, gently wipe the bottom of the disc (the unlabeled side) in a straight line from the center to the outer edge of the disc.
For stubborn dirt, try using water or a diluted solution of water and mild soap. You can also purchase commercial products that clean discs and provide
some protection from dust, fingerprints, and scratches. Cleaning products for CDs are also safe to use on DVDs.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
CAUTION: Before you clean your computer, disconnect the computer from the electrical outlet and remove any installed batteries. Clean your
computer with a soft cloth dampened with water. Do not use liquid or aerosol cleaners, which may contain flammable substances.
NOTICE: To avoid damaging the computer or display, do not spray cleaning solution directly onto the display. Only use products specifically designed for
cleaning displays, and follow the instructions that are included with the product.
NOTICE: Do not attempt to clean drive heads with a swab. You might accidentally misalign the heads which prevents the drive from operating.
NOTICE: Always use compressed air to clean the lens in the CD/DVD drive, and follow the instructions that come with the compressed-air product.
Never touch the lens in the drive.
NOTICE: To avoid damaging the surface, do not wipe in a circular motion around the disc.

Macrovision Product Notice
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is prohibited.
FCC Notice (U.S. Only)

FCC Class B
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction
manual, may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be
determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:
lReorient the receiving antenna.
lRelocate the system with respect to the receiver.
lMove the system away from the receiver.
lPlug the system into a different outlet so that the system and the receiver are on different branch circuits.
If necessary, consult a representative of Dell Inc. or an experienced radio/television technician for additional suggestions.
The following information is provided on the device or devices covered in this document in compliance with the FCC regulations:
lProductname:Dell™Latitude™ATGD620
lModel number: PP18L
Company name:
Dell Inc.
Worldwide Regulatory Compliance & Environmental Affairs
One Dell Way
Round Rock, TX 78682 USA
512-338-4400
Back to Contents Page

NOTICE: The FCC regulations provide that changes or modifications not expressly approved by Dell Inc. could void your authority to operate this
equipment.
NOTE: For further regulatory information, see your Product Information Guide.

Back to Contents Page
Using a Battery
Dell™Latitude™ATGD620User'sGuide
Battery Performance
Checking the Battery Charge
Conserving Battery Power
Power Management Modes
Configuring Power Management Settings
Charging the Battery
Replacing the Battery
Storing a Battery
Battery Performance
For optimal computer performance and to help preserve BIOS settings, operate your Dell portable computer with the main battery installed at all times. One
battery is supplied as standard equipment in the battery bay.
Battery operating time varies depending on operating conditions. You can install an optional second battery in the media bay to significantly increase
operating time.
Operating time is significantly reduced when you perform operations including, but not limited to, the following:
lUsing optical drives
lUsing wireless communications devices, PC Cards, ExpressCards, media memory cards, or USB devices
lUsing high-brightness display settings, 3D screen savers, or other power-intensive programs such as complex 3D graphics applications
lRunning the computer in maximum performance mode (see Configuring Power Management Settings)
You can check the battery charge (see Checking the Battery Charge) before you insert the battery into the computer. You can also set power management
options to alert you when the battery charge is low (see Configuring Power Management Settings).
Checking the Battery Charge
The Dell QuickSet Battery Meter, the Microsoft Windows Power Meter window and icon, the battery charge gauge and health gauge, and the low-battery
warning provide information on the battery charge.

Dell™QuickSetBatteryMeter
If Dell QuickSet is installed, press <Fn><F3> to display the QuickSet Battery Meter. The Battery Meter displays status, battery health, charge level, and charge
completion time for the battery in your computer.
For more information about QuickSet, right-click the icon in the taskbar, and click Help.

Microsoft®Windows®Power Meter
NOTE: ForinformationabouttheDell™warrantyforyourcomputer,seetheProductInformationGuideorseparatepaperwarrantydocumentthat
shipped with your computer.
NOTE: Because the battery may not be fully charged, use the AC adapter to connect your new computer to an electrical outlet the first time you use the
computer. For best results, operate the computer with the AC adapter until the battery is fully charged. To view battery charge status, click the Start
button®Settings®Control Panel®Power Options®Power Meter tab.
NOTE: Battery operating time (the time the battery can hold a charge) decreases over time. Depending on how often the battery is used and the
conditions under which it is used, you may need to purchase a new battery during the life of your computer.
NOTE: It is recommended that you connect your computer to an electrical outlet when writing to a CD or DVD.
CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased
from Dell. The battery is designed to work with your Dell computer. Do not use a battery from other computers with your computer.
CAUTION: Do not dispose of batteries with household waste. When your battery no longer holds a charge, call your local waste disposal or
environmental agency for advice on disposing of a lithium-ion battery. See "Battery Disposal" in the Product Information Guide.
CAUTION: Misuse of the battery may increase the risk of fire or chemical burn. Do not puncture, incinerate, disassemble, or expose the battery to
temperaturesabove65°C(149°F).Keepthebatteryawayfromchildren.Handledamagedorleakingbatterieswithextremecare.Damaged
batteries may leak and cause personal injury or equipment damage.

The Windows Power Meter indicates the remaining battery charge. To check the Power Meter, double-click the icon on the taskbar.
If the computer is connected to an electrical outlet, a icon appears.

Charge Gauge
By either pressing once or pressing and holding the status button on the charge gauge on the battery, you can check:
lBattery charge (check by pressing and releasing the status button)
lBattery health (check by pressing and holding the status button)
The battery operating time is largely determined by the number of times it is charged. After hundreds of charge and discharge cycles, batteries lose some
charge capacity—or battery health. That is, a battery can show a status of "charged" but maintain a reduced charge capacity (health).

Check the Battery Charge
To check the battery charge, press and release the status button on the battery charge gauge to illuminate the charge-level lights. Each light represents
approximately 20 percent of the total battery charge. For example, if the battery has 80 percent of its charge remaining, four of the lights are on. If no lights
appear, the battery has no charge.

Check the Battery Health
To check the battery health using the charge gauge, press and holdthestatusbuttononthebatterychargegaugeforatleast3seconds.Ifnolightsappear,
the battery is in good condition, and more than 80 percent of its original charge capacity remains. Each light represents incremental degradation. If five lights
appear,lessthan60percentofthechargecapacityremains,andyoushouldconsiderreplacingthebattery.SeeBattery for more information about the
battery operating time.

Low-Battery Warning
The battery status light on the hinge cover (at the lower-right corner of the display) flashes orange when the battery charge is low, and it is solid orange
when the battery charge is critically low. Also, a pop-up window warns you when the battery charge is approximately 90 percent depleted. If two batteries are
installed, the low-battery warning means that the combined charge of both batteries is approximately 90 percent depleted. The computer enters hibernate
mode when the battery charge is at a critically low level.
You can change the settings for the battery alarms in QuickSet or the Power Options Properties window. See Configuring Power Management Settings for
information about accessing QuickSet or the Power Options Properties window.
Conserving Battery Power
Perform the following actions to conserve battery power:
lConnect the computer to an electrical outlet when possible because battery life is largely determined by the number of times the battery is used and
recharged.
1
battery
2
status button (for battery charge
status)
3
charge gauge (for battery
health)
NOTE: You can check battery health in one of two ways: by using the charge gauge on the battery as described below or by using the Battery Meter in
Dell QuickSet. For information about QuickSet, right-click the icon in the taskbar, and click Help.
NOTICE: To avoid losing or corrupting data, save your work immediately after a low-battery warning. Then connect the computer to an electrical outlet,
or install a second battery in the media bay. If the battery runs completely out of power, hibernate mode begins automatically.

lPlace the computer in standby mode or hibernate mode (see Power Management Modes) when you leave the computer unattended for long periods of
time.
lUse the Power Management Wizard (see Configuring Power Management Settings) to select options to optimize your computer's power usage. These
options can also be set to change when you press the power button, close the display, or press <Fn><Esc>.
Power Management Modes

Standby Mode
Standby mode conserves power by turning off the display and the hard drive after a predetermined period of inactivity (a time-out). When the computer exits
standby mode, it returns to the same operating state it was in before entering standby mode.
To enter standby mode:
lClick the Start button, click Turn off computer, and then click Stand by.
or
lDepending on how you set the power management options on the Advanced tab in the Power Options Properties window, use one of the following
methods:
¡Press the power button.
¡Close the display.
¡Press <Fn><Esc>.
To exit standby mode, press the power button or open the display depending on how you set the options on the Advanced tab. You cannot make the
computer exit standby mode by pressing a key or touching the touch pad or track stick.

Hibernate Mode
Hibernate mode conserves power by copying system data to a reserved area on the hard drive and then completely turning off the computer. When the
computer exits hibernate mode, it returns to the same operating state it was in before entering hibernate mode.
Your computer enters hibernate mode if the battery charge level becomes critically low.
To manually enter hibernate mode:
lClick the Start button, click Turn off computer, press and hold <Shift>, and then click Hibernate.
or
lDepending on how you set the power management options on the Advanced tab in the Power Options Properties window, use one of the following
methods to enter hibernate mode:
¡Press the power button.
¡Close the display.
¡Press <Fn><Esc>.
or
lPress <Fn><F1> if you have used the QuickSet program to set this keyboard shortcut (see Dell™QuickSetFeatures).
To exit hibernate mode, press the power button. The computer may take a short time to exit hibernate mode. You cannot make the computer exit hibernate
mode by pressing a key or touching the touch pad or track stick. For more information on hibernate mode, see the documentation that came with your
operating system.
Configuring Power Management Settings
You can use the QuickSet Power Management Wizard or Windows Power Options Properties to configure the power management settings on your computer.
NOTE: See Battery Performance for more information on conserving battery power.
NOTICE: If your computer loses AC and battery power while in standby mode, it may lose data.
NOTICE: You cannot remove devices or undock your computer while your computer is in hibernate mode.
NOTE: Some PC Cards or ExpressCards may not operate correctly after the computer exits hibernate mode. Remove and reinsert the card (see Card
Types), or simply restart (reboot) your computer.

lFor more information about QuickSet, right-click the icon in the taskbar and click Help.
lTo access the Power Options Properties window, click the Start button, point to Settings®Control Panel®Performance and Maintenance, and then
click Power Options. For information on any field in the Power Options Properties window, click the question mark icon on the title bar and then click on
the area where you need information.
Charging the Battery
When you connect the computer to an electrical outlet or install a battery while the computer is connected to an electrical outlet, the computer checks the
battery charge and temperature. If necessary, the AC adapter then charges the battery and maintains the battery charge.
If the battery is hot from being used in your computer or being in a hot environment, the battery may not charge when you connect the computer to an
electrical outlet.
The battery is too hot to start charging if the light flashes alternately green and orange. Disconnect the computer from the electrical outlet and allow the
computer and the battery to cool to room temperature. Then connect the computer to an electrical outlet to continue charging the battery.
Replacing the Battery
For information about replacing the optional second battery in the media bay, if applicable, see Media Bay.
To remove the battery:

1. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

2. Ensure that the computer is turned off or in hibernate mode (see Hibernate Mode).

3. Turn the computer upside down, with the front of the computer facing away from you.

4. Slide the battery-bay latch release on the right side of the battery until it engages and locks.

5. Slide and hold the battery-bay latch release on the left side of the battery, grasp the battery by the battery tab, and slide the battery horizontally
toward the front of the computer.

6. Lift to remove the battery from the bay.
To replace the battery, perform the removal procedure in reverse order.
NOTE: WithDell™ExpressCharge™,theACadapterchargesacompletelydischargedbatteryinapproximately1hourwiththecomputerturnedoff.
Charge time is longer with the computer turned on. You can leave the battery in the computer as long as you like. The battery's internal circuitry
prevents the battery from overcharging.
NOTE: If you want to use a 9-cell battery to obtain Dell ExpressCharge, you need to use it in conjunction with a 90-W AC adapter.
CAUTION: Before performing these procedures, turn off the computer, disconnect the AC adapter from the electrical outlet and the computer,
disconnect the modem from the wall connector and computer, and remove any other external cables from the computer.
CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased
fromDell.ThebatteryisdesignedtoworkwithyourDell™computer.Donotuseabatteryfromothercomputerswithyourcomputer.
NOTICE: You must remove all external cables from the computer to avoid possible connector damage.
1
battery
2
battery-bay latch release (2)
3
batterytab

Storing a Battery
Remove the battery when you store your computer for an extended period of time. A battery discharges during prolonged storage. After a long storage period,
recharge the battery fully before you use it (see Charging the Battery).
Back to Contents Page


Back to Contents Page
Using Cards
Dell™Latitude™ATGD620User'sGuide
Card Types
Installing a PC Card or ExpressCard
Removing a Card or Blank
Card Types

PC Cards
See Specifications for information on supported PC Cards.
The PC Card slot has one connector that supports a single Type I or Type II card. The PC Card slot supports CardBus technology and extended PC Cards.
"Type" of card refers to its thickness, not its functionality.

ExpressCards
See Specifications for information on supported ExpressCards.
ExpressCards leverage PC Card technology to provide a fast and convenient way to add memory, wired and wireless network communications (including
Mobile Broadband network [also known as WWAN] communications), multimedia, and security features to your computer. To use an ExpressCard in the PC
Card slot, you must use an adapter. The adapter is included with the ExpressCard.

Smart Cards
Smart cards provide valuable tools for security, data storage, and special programs (see Using Smart Cards).

Card Blanks
Your computer shipped with a plastic blank installed in the card slots. Blanks protect unused slots from dust and other particles. Save the blank for use when
no card is installed in the slots; blanks from other computers may not fit your computer.
To remove a blank, see Removing a Card or Blank.

Extended Cards
An extended PC Card (for example, a wireless network adapter) is longer than a standard PC Card and extends outside the computer. Follow these
precautions when using extended PC Cards:
lProtect the exposed end of an installed card. Striking the end of the card can damage the system board.
lAlways remove an extended PC Card before you pack the computer in its carrying case.
Installing a PC Card or ExpressCard
You can install a PC Card or ExpressCard in the computer while the computer is running. The computer automatically detects the card.
PC Cards and ExpressCards are generally marked with a symbol (such as a triangle or an arrow) to indicate which end to insert into the slot. The cards are
keyed to prevent incorrect insertion. If card orientation is not clear, see the documentation that came with the card.

NOTE: Electrical and electronic devices are sensitive to electrostatic discharge (ESD). If a substantial ESD occurs, the device may reset and the device
software may attempt to reinitialize a connection. If the software is not operational after an ESD occurrence, restart the modem software program.
NOTE: A PC Card is not a bootable device.
NOTE: An ExpressCard is not a bootable device.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

PC Card

1. Hold the card with its orientation symbol pointing into the slot and the top side of the card facing up. The latch may need to be in the "in" position
before you insert the card.

2. Slide the card into the slot until the card is completely seated in its connector.
If you encounter too much resistance, do not force the card. Check the card orientation and try again.
The computer recognizes most PC Cards and automatically loads the appropriate device driver. If the configuration program tells you to load the
manufacturer's drivers, use the floppy disk or CD that came with the PC Card.

ExpressCard

1. Place the ExpressCard in the adapter (the adapter is included with the ExpressCard).

2. Install the ExpressCard with adapter the same way as a PC Card (see PC Cards).
Removing a Card or Blank
Press the latch and remove the card or blank. For some latches, you must press the latch twice: once to pop the latch out, and then a second time to pop the
card out.
Back to Contents Page

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: Click the icon in the taskbar to select a card and stop it from functioning before you remove it from the computer. If you do not stop the
card in the configuration utility, you could lose data. Do not attempt to eject a card by pulling its cable, if one is attached.

Back to Contents Page
Using the Display
Dell™Latitude™ATGD620User'sGuide
Adjusting Brightness
Switching the Video Image
Setting Display Resolution and Refresh Rate
Dual Independent Display Mode
Swapping Primary and Secondary Displays
Using the Ambient Light Sensor
Adjusting Brightness
WhenaDell™computerisrunningonbatterypower,youcanconservepowerbysettingthebrightnesstothelowestcomfortablesettingbypressing<Fn>
and the up-or down-arrow key on the keyboard.
You can press the following keys to adjust display brightness:
lPress <Fn> and the up-arrow key to increase brightness on the integrated display only (not on an external monitor).
lPress <Fn> and the down-arrow key to decrease brightness on the integrated display only (not on an external monitor).
Switching the Video Image
When you start the computer with an external device (such as an external monitor or projector) attached and turned on, the image may appear on either the
computer display or the external device.
Press <Fn><F8> to switch the video image between the display only, the external device only, or the display and the external device simultaneously.
Setting Display Resolution and Refresh Rate
To display a program at a specific resolution, both the graphics card and the display must support the program, and the necessary video drivers must be
installed.
If you choose a resolution or color palette that is higher than the display supports, the settings adjust automatically to the closest supported values.

1. Click the Start button and click Settings®Control Panel.

2. Under Pick a category, click Appearance and Themes.

3. Under Pick a task..., click the area you want to change, or under or pick a Control Panel icon, click Display.

4. In the Display Properties window, click the Settings tab.

5. Try different settings for Color quality and Screen resolution.
If the video resolution setting is higher than that supported by the display, the computer enters pan mode. In pan mode, the entire screen cannot be
displayed at one time. For example, the taskbar that usually appears at the bottom of the desktop may no longer be visible. To view the rest of the screen,
use the touch pad or track stick to pan up, down, left, and right.
Dual Independent Display Mode
NOTE: Brightness key combinations only affect the display on your portable computer, not monitors or projectors that you attach to your portable
computer or docking device. If your computer is connected to an external monitor and you try to change the brightness level, the Brightness Meter may
appear, but the brightness level on the external device does not change.
NOTE: Before you change any of the default display settings, make a note of the default settings for future reference.
NOTE: Use only the Dell-installed video drivers, which are designed to offer the best performance with your Dell-installed operating system.
NOTE: As the resolution increases, icons and text appear smaller on the screen.
NOTICE: You can damage an external monitor by using an unsupported refresh rate. Before adjusting the refresh rate on an external monitor, see the
user's guide for the monitor.

You can attach an external monitor or projector to your computer and use it as an extension of your display (known as "dual independent display" or
"extended desktop" mode). This mode allows you to use both screens independently and drag objects from one screen to the other, effectively doubling the
amount of viewable work space.

1. Connect the external monitor or projector to the computer.

2. Click the Start button and click Settings®Control Panel.

3. Under Pick a category, click Appearance and Themes.

4. Under Pick a task..., click the area you want to change, or under or pick a Control Panel icon, click Display.

5. In the Display Properties window, click the Settings tab.

6. Click the monitor 2 icon, click the Extend my Windows desktop onto this monitor check box, and then click Apply.

7. Change Screen resolution to the appropriate sizes for both displays and click Apply.

8. If prompted to restart the computer, click Apply the new color setting without restarting and click OK.

9. If prompted, click OK to resize your desktop.

10. If prompted, click Yes to keep the settings.

11. Click OK to close the Display Properties window.
To disable dual independent display mode:

1. Click the Settings tab in the Display Properties window.

2. Click the monitor 2 icon, uncheck the Extend my Windows desktop onto this monitor option, and then click Apply.
If necessary, press <Fn><F8> to bring the screen image back to the computer display.
Swapping Primary and Secondary Displays
To swap your primary and secondary display designations (for example, to use your external monitor as your primary display after docking):

1. Click the Start button and click Settings®Control Panel.

2. Under Pick a category, click Appearance and Themes.

3. Under Pick a task..., click the area you want to change, or under or pick a Control Panel icon, click Display.

4. Click the Settings tab®Advanced®Displays tab.
See the documentation that came with your video card for additional information.
Using the Ambient Light Sensor
The ambient light sensor is located on the bottom of the computer display panel. The sensor detects available environmental light and automatically increases
or decreases the display backlighting to compensate for low-light and high-light environments.
You can enable or disable the ambient light sensor feature by pressing the <Fn> and left-arrow key combination.
NOTE: If you choose a resolution or color palette that is higher than the display supports, the settings adjust automatically to the closest supported
values. For more information, see your operating system documentation.
NOTE: Do not cover the ambient light sensor with any adhesive labels. If covered up, the sensor automatically sets the display brightness to the
minimum level.
