Dell Latitude V700 Service Manual
Dell™ Latitude™ V700 Service Manual
Before You Begin
Preparing to Work Inside the Computer
Recommended Tools
Screw Identification
System Components
Hard Drive and Fixed Optical Drive
Hard Drive
Fixed Optical Drive
Memory Modules and Mini PCI Card
Memory Modules
Mini PCI Card
Keyboard
Display
Display and Bezel Assembly
Display Bezel and Panel
Display Latch
Microprocessor Thermal Cooling Assembly
Microprocessor Module
Video Memory Cache Card (Optional)
Palm Rest
LED Board
System Board
Battery and Media Bay Latches
Fan
RJ-11/RJ-45 Board
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or
death.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/V700/v700_SERVICE_MANUAL/index.htm (1 of 2)6/21/2004 2:50:56 AM

Dell Latitude V700 Service Manual
Information in this document is subject to change without notice.
© 2001 Dell Computer Corporation. All rights reserved.
Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, and DellWare are
trademarks of Dell Computer Corporation; Intel and Pentium are registered trademarks and Celeron is a trademark of Intel
Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other
than its own.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and
other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
August 2001
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/V700/v700_SERVICE_MANUAL/index.htm (2 of 2)6/21/2004 2:50:56 AM

Before You Begin : Dell Latitude V700 Service Manual
Back to Contents Page
Before You Begin
Dell™ Latitude™ V700 Service Manual
Preparing to Work Inside the Computer
Recommended Tools
Screw Identification
Preparing to Work Inside the Computer
NOTICE: Only a certified service technician should perform repairs on your computer. Damage
or inoperability due to servicing not authorized by Dell is not covered by your warranty.
NOTE: Unless otherwise noted, each procedure in this document assumes that a part can be
replaced by performing the removal procedure in reverse order.
NOTICE: To dissipate any static electricity while you work, periodically touch an unpainted
metal surface on the surface of the computer, such as the I/O panel on the back of the
computer chassis.
NOTICE: Handle components and cards with care. Do not touch the components or contacts on
a card. Hold a card by it edges or by its metal mounting bracket. Hold a component such as a
microprocessor by its edges, not by its pins.
1. To avoid damaging the computer, perform the following steps before you begin working inside
the computer.
2. Make sure that the work surface is clean to prevent scratching the computer cover.
3. Save any work in progress and close all open programs.
NOTE: Make sure the computer is turned off and not in standby or hibernate mode. If you
cannot shut down the computer using the computer's operating system, press and hold the
power button for 4 seconds.
4. Turn off the computer and all attached devices.
5. Make sure the computer is not connected to a port replicator.
6. Disconnect the computer from the electrical outlet.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/V700/v700_SERVICE_MANUAL/begin.htm (1 of 5)6/21/2004 2:50:57 AM

Before You Begin : Dell Latitude V700 Service Manual
NOTICE: To avoid possible damage to the system board, wait 10 to 20 seconds before you
disconnect any attached devices.
7. Disconnect all external cables and attached devices from the computer.
8. Remove any installed PC Cards or plastic blanks from the PC Card slot.
9. Close the display and turn the computer upside down on a flat work surface.
10. Remove the battery from the battery bay.
NOTICE: To avoid damaging the system board, you must remove the battery before you
service the computer.
11. Remove any installed device in the media bay.
Recommended Tools
●#1 magnetized Phillips-head screwdriver
●Small flat-blade screwdriver
●Pry stick
●Small plastic scribe
●Microprocessor extractor
●Flash BIOS update program floppy disk or CD (required only when upgrading the
microprocessor or replacing the system board)
Screw Identification
Before removing and replacing components, photocopy the screw placemat as a tool to help keep track
of the screws. The placemat provides the number of screws and the sizes.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/V700/v700_SERVICE_MANUAL/begin.htm (2 of 5)6/21/2004 2:50:58 AM

Before You Begin : Dell Latitude V700 Service Manual
NOTICE: When reinstalling a screw, you must use a screw of the correct diameter and length.
Make sure that the screw is properly aligned with its corresponding hole, and avoid over
tightening.
Screw Placemat
Hard Drive Door Security:
M3 x 5 mm (1 each)
Keyboard to Bottom Case
Assembly:
M2.5 x 20 mm (4 each; one
in memory door and one in
Mini PCI card door)
Display to
Base:
M2.5 x 6 mm (3
each; 2 at back
of computer; 1
at flex-cable
strain relief)
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/V700/v700_SERVICE_MANUAL/begin.htm (3 of 5)6/21/2004 2:50:58 AM

Before You Begin : Dell Latitude V700 Service Manual
Display Bezel:
Rubber screw covers (4 each)
Plastic screw covers (2 each)
M2.5 x 4 mm (6 each)
Display Panel to Display
Mounting Bracket: 15-
inches
M2 x 3 mm (6 each)
Flex-Cable Mounting
Bracket to Top Cover:
M2.5 x 4 mm (1 each)
Display Panel
to Display
Mounting
Bracket: 14.1-
inches
M2 x 3 mm (4
each)
Flex-Cable
Mounting
Bracket to Top
Cover:
M2.5 x 4 mm (1
each)
Video Memory Cache Card:
M2.5 x 4 mm (2 each)
Palm Rest to
Bottom Case Assembly:
M2.5 x 20 mm (9 each)
LED Board:
M2 x 4 mm (2
each)
System Board:
M2.5 x 4-mm captive-washer
screws (3 each)
M2.5 x 20 mm (1 each)
Fan:
M2 x 4 mm (3 each)
RJ-11/RJ-45
Board:
M2.5 x 4 mm (1
each)
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/V700/v700_SERVICE_MANUAL/begin.htm (4 of 5)6/21/2004 2:50:58 AM

Before You Begin : Dell Latitude V700 Service Manual
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/V700/v700_SERVICE_MANUAL/begin.htm (5 of 5)6/21/2004 2:50:58 AM

System Components : Dell Latitude V700 Service Manual
Back to Contents Page
System Components
Dell™ Latitude™ V700 Service Manual
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...k/Latitude/V700/v700_SERVICE_MANUAL/system.htm (1 of 2)6/21/2004 2:50:58 AM

System Components : Dell Latitude V700 Service Manual
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...k/Latitude/V700/v700_SERVICE_MANUAL/system.htm (2 of 2)6/21/2004 2:50:58 AM

Hard Drive and Fixed Optical Drive : Dell Latitude V700 Service Manual
Back to Contents Page
Hard Drive and Fixed Optical Drive
Dell™ Latitude™ V700 Service Manual
Hard Drive
Fixed Optical Drive
Hard Drive
NOTICE: Disconnect the computer and attached devices from electrical outlets and remove any
installed battery.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...20ok/Latitude/V700/v700_SERVICE_MANUAL/hdd.htm (1 of 4)6/21/2004 2:50:59 AM

Hard Drive and Fixed Optical Drive : Dell Latitude V700 Service Manual
NOTICE: To avoid ESD, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface on the computer.
Removing the Hard Drive
NOTICE: To avoid damaging the system board, you must remove the battery before you
service the computer.
NOTICE: Make sure that the work surface is clean to prevent scratching the computer
cover.
NOTICE: The disk drive is very sensitive to shock. Handle the assembly by its edges (do not
squeeze the top of the hard drive case), and avoid dropping it.
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Close the display, turn the computer upside down on a flat work surface, and remove the
battery.

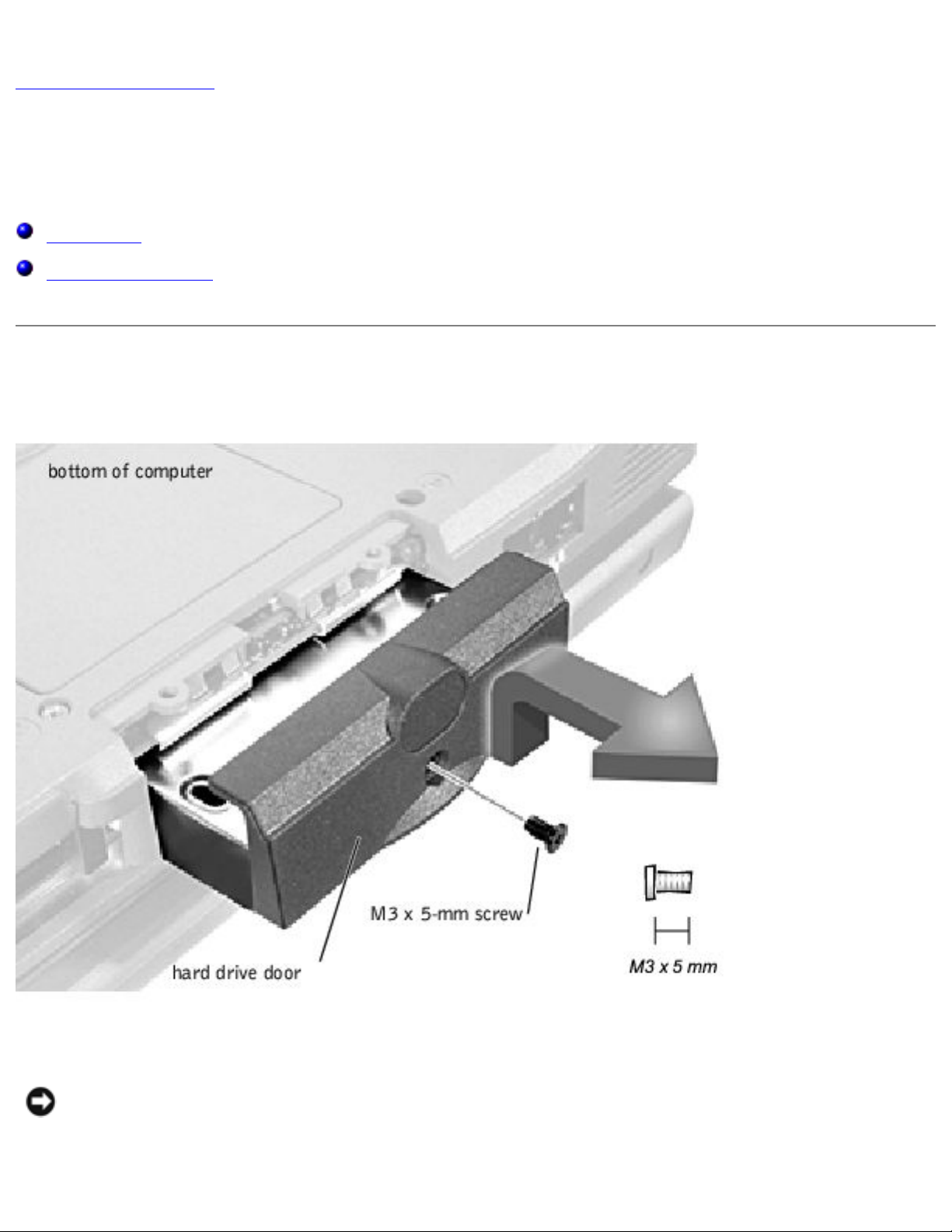

3. Remove the M3 x 5-mm screw from the center of the hard drive door.
4. Slide the drive door up until the drive assembly tab disengages from the door slots in the
bottom case assembly.
5. Carefully pull the drive assembly straight out of the bottom case assembly.
Replacing the Hard Drive
1. Push the drive assembly into the hard drive opening on the left side of the computer.
2. Align the drive assembly tabs with the bottom case assembly slots and push down until it clicks
into place.
3. Replace the M3 x 5-mm screw in the drive door.
Fixed Optical Drive
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...20ok/Latitude/V700/v700_SERVICE_MANUAL/hdd.htm (2 of 4)6/21/2004 2:50:59 AM

Hard Drive and Fixed Optical Drive : Dell Latitude V700 Service Manual
NOTICE: Disconnect the computer and attached devices from electrical outlets and remove any
installed battery.
NOTICE: To avoid ESD, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface on the computer.
Removing the Fixed Optical Drive
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Loosen the captive screw on the bottom of the computer.

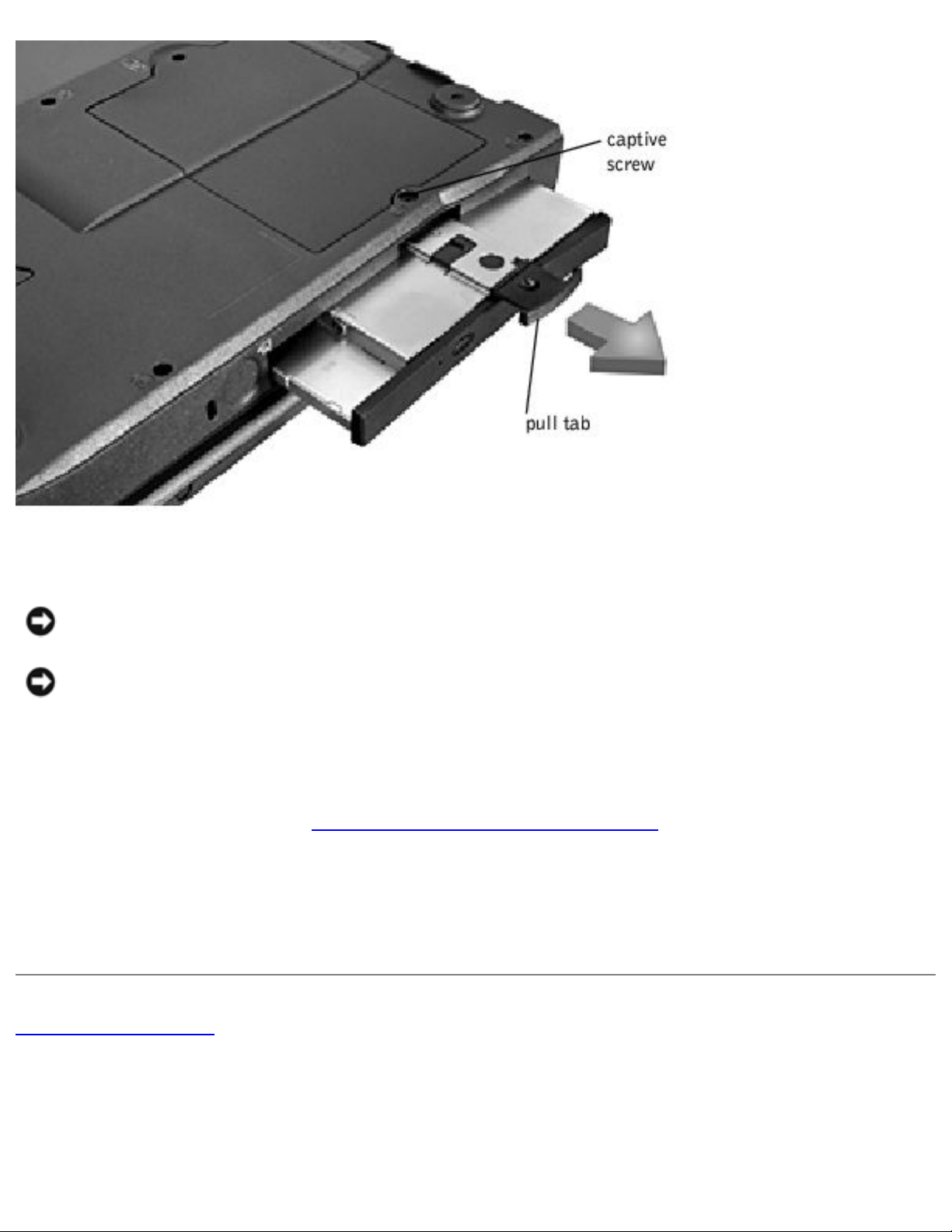

3. Turn the computer over, loosen the captive screw marked "C," and pull out the pull tab to
remove the fixed optical drive.
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...20ok/Latitude/V700/v700_SERVICE_MANUAL/hdd.htm (3 of 4)6/21/2004 2:50:59 AM

Hard Drive and Fixed Optical Drive : Dell Latitude V700 Service Manual
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...20ok/Latitude/V700/v700_SERVICE_MANUAL/hdd.htm (4 of 4)6/21/2004 2:50:59 AM

Memory Modules and Mini PCI Card : Dell Latitude V700 Service Manual
Back to Contents Page
Memory Modules and Mini PCI Card
Dell™ Latitude™ V700 Service Manual
Memory Modules
Mini PCI Card
Memory Modules
NOTICE: Disconnect the computer and attached devices from electrical outlets and remove any
installed battery.
NOTICE: To avoid possible damage to the memory module from ESD, ground yourself by using
a wrist grounding strap or by periodically touching an unpainted metal surface on the
computer.
Removing the Memory Module Cover
NOTICE: To avoid damaging the system board, you must remove the battery before you
service the computer.
NOTICE: Handle memory modules with care. Don't touch the components on a module. Hold a
module by its edges.
1. Follow the instructions in "Preparing to Work Inside the Computer."

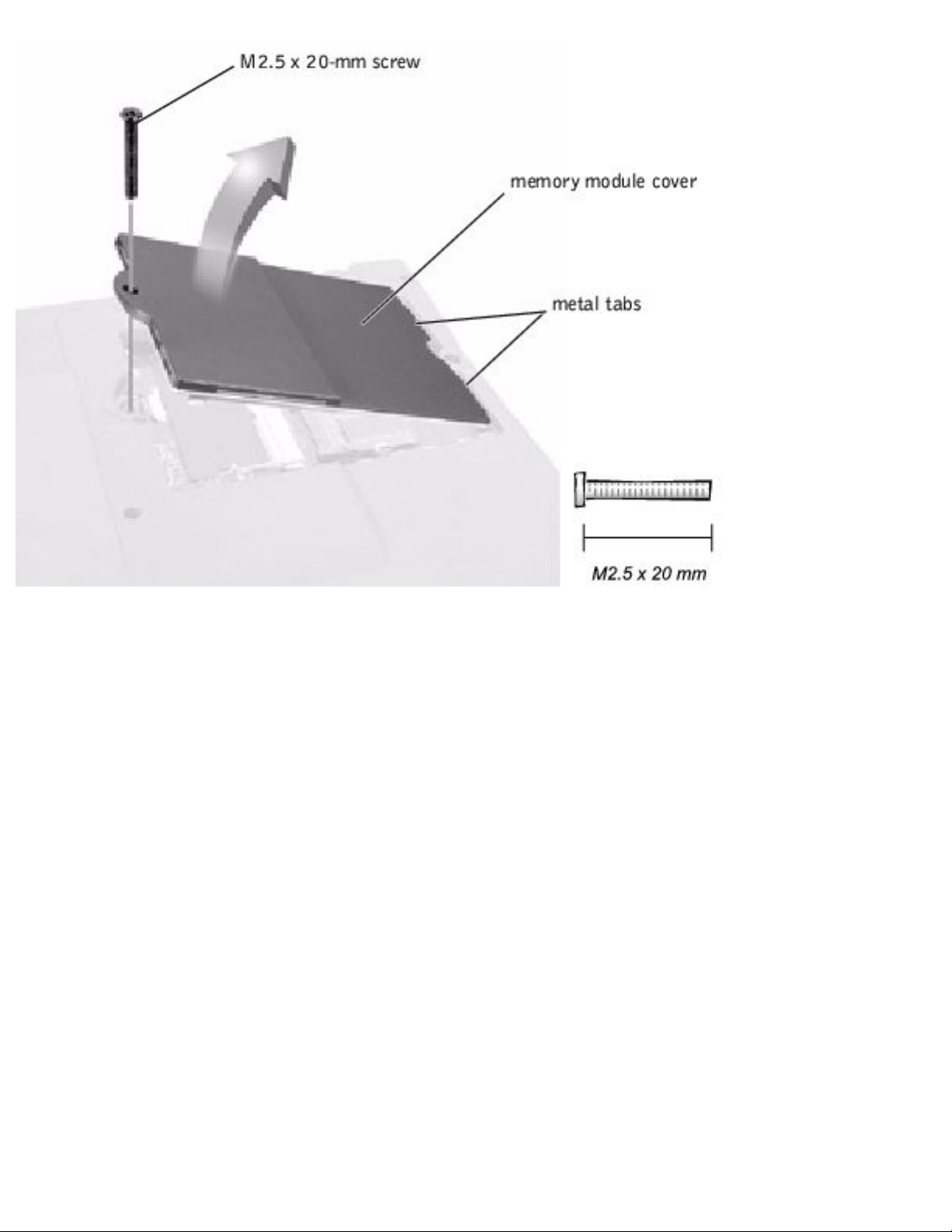

2. Remove the M2.5 x 20-mm screw.
3. Disengage the metal tabs at the opposite end of the cover.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/V700/v700_SERVICE_MANUAL/upgrades.htm (1 of 6)6/21/2004 2:50:59 AM

Memory Modules and Mini PCI Card : Dell Latitude V700 Service Manual
Removing Memory Modules
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/V700/v700_SERVICE_MANUAL/upgrades.htm (2 of 6)6/21/2004 2:50:59 AM

Memory Modules and Mini PCI Card : Dell Latitude V700 Service Manual
1. Remove the memory module cover.

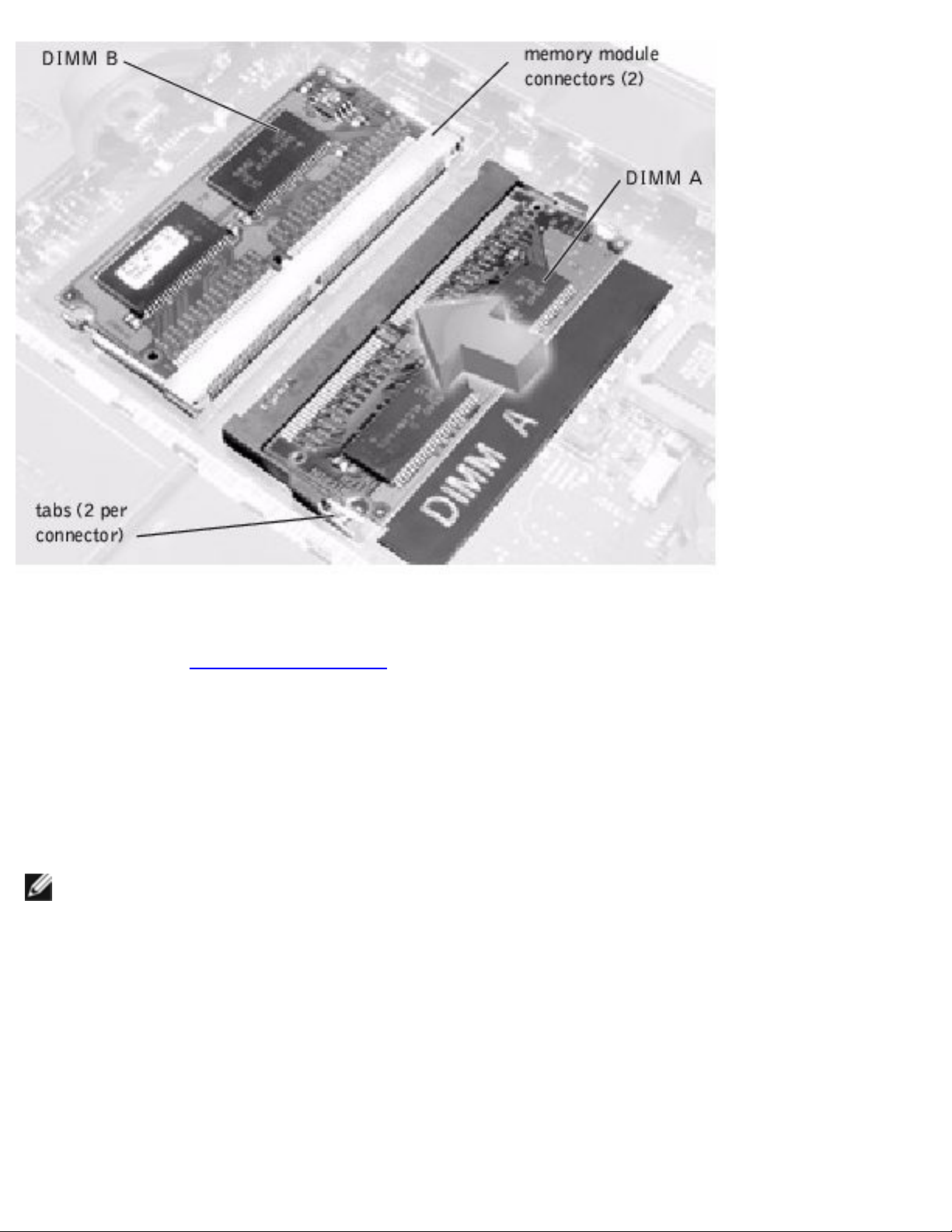

2. To release a memory module from its connector, spread apart the tabs at each side of the
module until the module pops up slightly.
3. Lift the memory module out of its connector.
Replacing Memory Modules
NOTE: Memory modules are keyed, or designed to fit into their connectors, in only one
direction.
1. If you only have one memory module, install it in the connector labeled "DIMM A." If you have
two memory modules, install the second module in the connector labeled "DIMM B."
2. Insert the memory module's edge connector with the slot at a 45- degree angle, and press the
memory module firmly into the slot.
3. Pivot the memory module down until it clicks into place. If you do not hear a click, remove the
module and reinstall it.
4. Insert the metal tabs on the memory module cover into the bottom case assembly. Rotate the
cover down and replace the screw.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/V700/v700_SERVICE_MANUAL/upgrades.htm (3 of 6)6/21/2004 2:50:59 AM

Memory Modules and Mini PCI Card : Dell Latitude V700 Service Manual
Mini PCI Card
NOTICE: Disconnect the computer and attached devices from electrical outlets and remove any
installed battery.
NOTICE: To avoid ESD, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface on the computer.
You must remove the optional Mini PCI card before the system board can be removed. A Mini PCI card
may consist of a modem or a modem and network adapter combination. A modem or modem and
network adapter combination must be connected to the wiring harness as appropriate.
Removing the Mini PCI Card
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the M2.5 x 20-mm screw and lift out the Mini PCI card cover.
3. To release the Mini PCI card, spread the metal securing tabs until the card pops up slightly.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/V700/v700_SERVICE_MANUAL/upgrades.htm (4 of 6)6/21/2004 2:50:59 AM

Memory Modules and Mini PCI Card : Dell Latitude V700 Service Manual

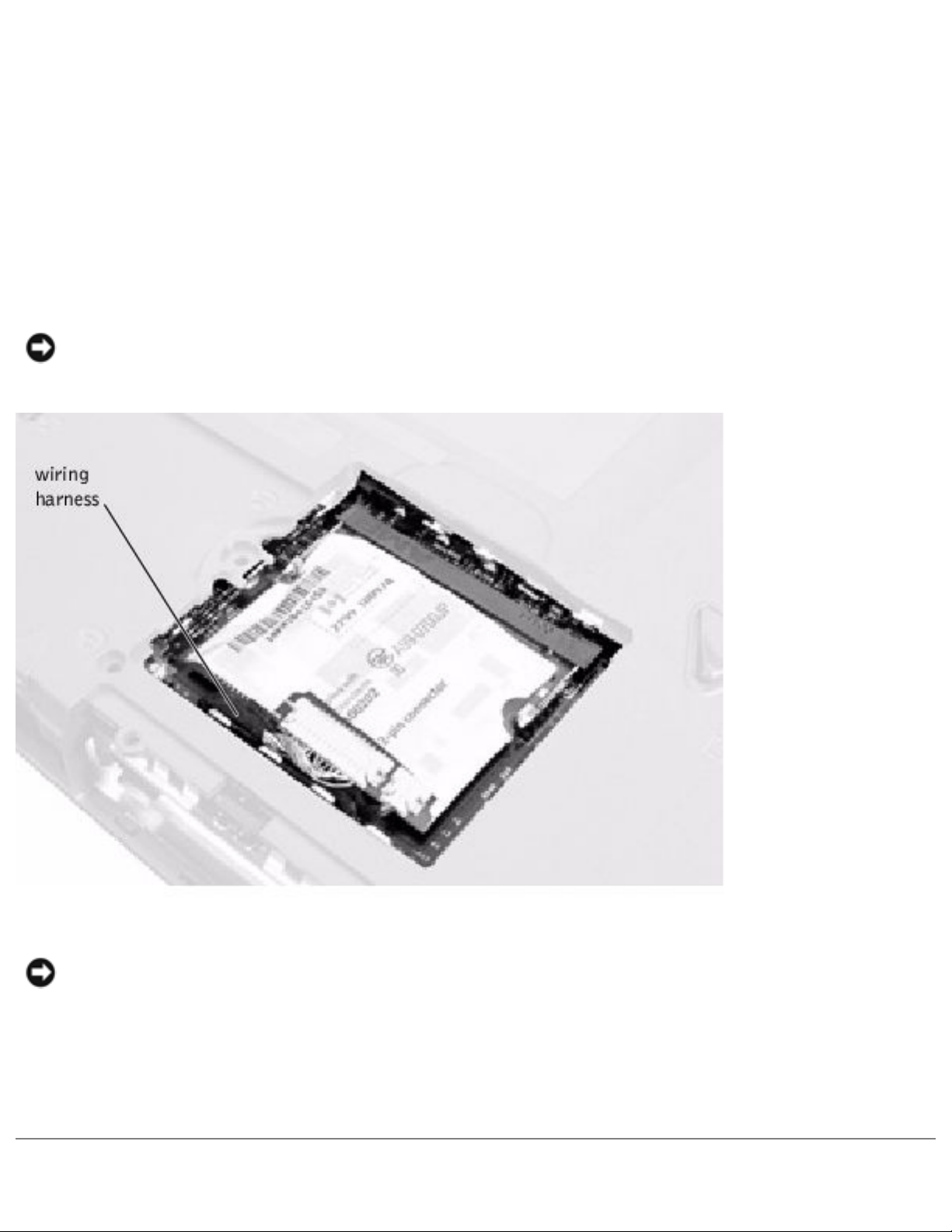

4. Disconnect the card from the wiring harness.
5. Lift out the card and disconnect any attached cables.
Replacing the Mini PCI Card
1. Align the Mini PCI card with the socket at a 45-degree angle, and press the Mini PCI card into
the socket.
2. Connect the wiring harness to the Mini PCI card.
NOTICE: The connectors are keyed for correct insertion; do not force the
connections.
NOTICE: If you are installing a modem card, fold and tuck the unused wiring harness under
the card so that it does not interfere with the cover.
3. Pivot the Mini PCI card down until it clicks into place.
4. Replace the Mini PCI card cover.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/V700/v700_SERVICE_MANUAL/upgrades.htm (5 of 6)6/21/2004 2:50:59 AM

Memory Modules and Mini PCI Card : Dell Latitude V700 Service Manual
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/V700/v700_SERVICE_MANUAL/upgrades.htm (6 of 6)6/21/2004 2:50:59 AM
