Dell Latitude V710/V740 Service Manual
Dell™ Latitude™ V710/V740 Service Manual
Before You Begin
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
System Components
Back-Panel Fan (V740 Only)
Hard Drive
Memory Module, Modem, Optical Drive, and Floppy Drive
Memory Module
Modem
Optical Drive
Floppy Drive
Keyboard
Display Assembly and Display Latch
Display Assembly
Display Latch
EMI Shield, Video Board, and Palm Rest
EMI Shield
Video Board
Palm Rest
Microprocessor Thermal-Cooling Assembly
Microprocessor Module
Flashing the BIOS
Speakers
System Board
Base Plastics
Battery Latch Assembly
Pin Assignments for I/O Connectors
USB Connector
PS/2 Connector
Video Connector
Parallel Connector
Notes, Notices, and Cautions
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/index.htm (1 of 2)6/21/2004 2:56:53 AM

Dell Latitude V710/V740 Service Manual
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or
death.
Information in this document is subject to change without notice.
© 2002 Dell Computer Corporation. All rights reserved.
Trademarks used in this text: Dell, the DELL logo, and Latitude are trademarks of Dell Computer Corporation; Intel is a
registered trademarks of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other
than its own.
April 2002 Rev. A01
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/index.htm (2 of 2)6/21/2004 2:56:53 AM

Before You Begin: Dell Latitude V710/V740 Service Manual
Back to Contents Page
Before You Begin
Dell™ Latitude™ V710/V740 Service Manual
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
Preparing to Work Inside the Computer
CAUTION: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow applicable instructions in "Safety and EMC
Instructions: Portable Computers" in the Latitude™ System Information Guide that
came with the computer.
NOTICE: To avoid damaging the computer, perform the following steps before you begin
working inside the computer.
1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.
2. Save any work in progress and exit all open programs.
3. Turn off the computer and all attached devices.
NOTE: Ensure that the computer is off and not in a power management mode. If you cannot
shut down the computer using the computer operating system, press and hold the power button
for 4 seconds.
4. Disconnect the computer from the electrical outlet.
5. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any
attached devices.
6. Disconnect all other external cables from the computer.
7. Remove any installed PC Cards from the PC Card slot.
8. Close the display and turn the computer upside down on a flat work surface.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/begin.htm (1 of 8)6/21/2004 2:56:55 AM

Before You Begin: Dell Latitude V710/V740 Service Manual
NOTICE: To avoid damaging the system board, you must remove the main battery before you
service the computer.
CAUTION: When you remove the battery, ensure that the computer is upside down
on a flat work surface so that the battery does not fall out of the computer.
9. Remove the battery:
a. Unlock the battery.
b. Slide and hold the battery latch release all the way up until the left edge of the battery
pops up.
c. Remove the battery.
1 battery lock
2 battery latch release
3 battery
10. To dissipate any static electricity while you work, use a wrist grounding strap or periodically
touch an unpainted metal surface.
11. Handle components and cards with care. Do not touch the components or contacts on a card.
Hold a card by its edges or by its metal mounting bracket. Hold a component such as a
microprocessor by its edges, not by its pins.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/begin.htm (2 of 8)6/21/2004 2:56:55 AM

Before You Begin: Dell Latitude V710/V740 Service Manual
Recommended Tools
The procedures in this manual require the following tools:
●#1 magnetized Phillips screwdriver
●¼-inch flat-blade screwdriver
●Nut driver
●Small plastic scribe
●Microprocessor extractor
●Flash BIOS update program floppy disk or CD
Computer Orientation
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/begin.htm (3 of 8)6/21/2004 2:56:55 AM

Before You Begin: Dell Latitude V710/V740 Service Manual

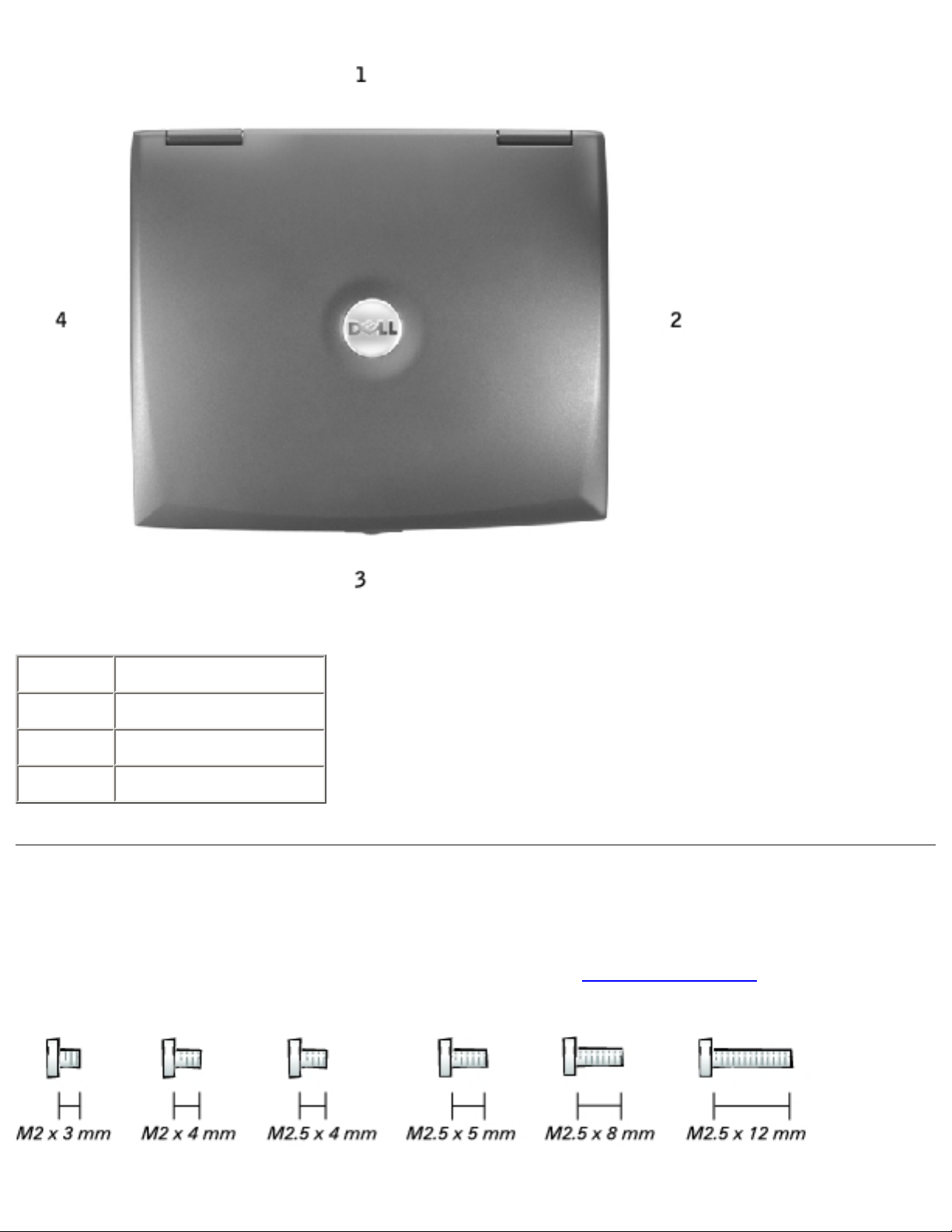

1 back
2 right
3 front
4 left
Screw Identification
When you are removing and replacing components, photocopy "Screw Identification" as a tool to lay
out and keep track of the screws. The placemat provides the number of screws and their sizes.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/begin.htm (4 of 8)6/21/2004 2:56:55 AM

Before You Begin: Dell Latitude V710/V740 Service Manual
NOTICE: When reinstalling a screw, you must use a screw of the correct diameter and length.
Ensure that the screw is properly aligned with its corresponding hole, and avoid overtightening.

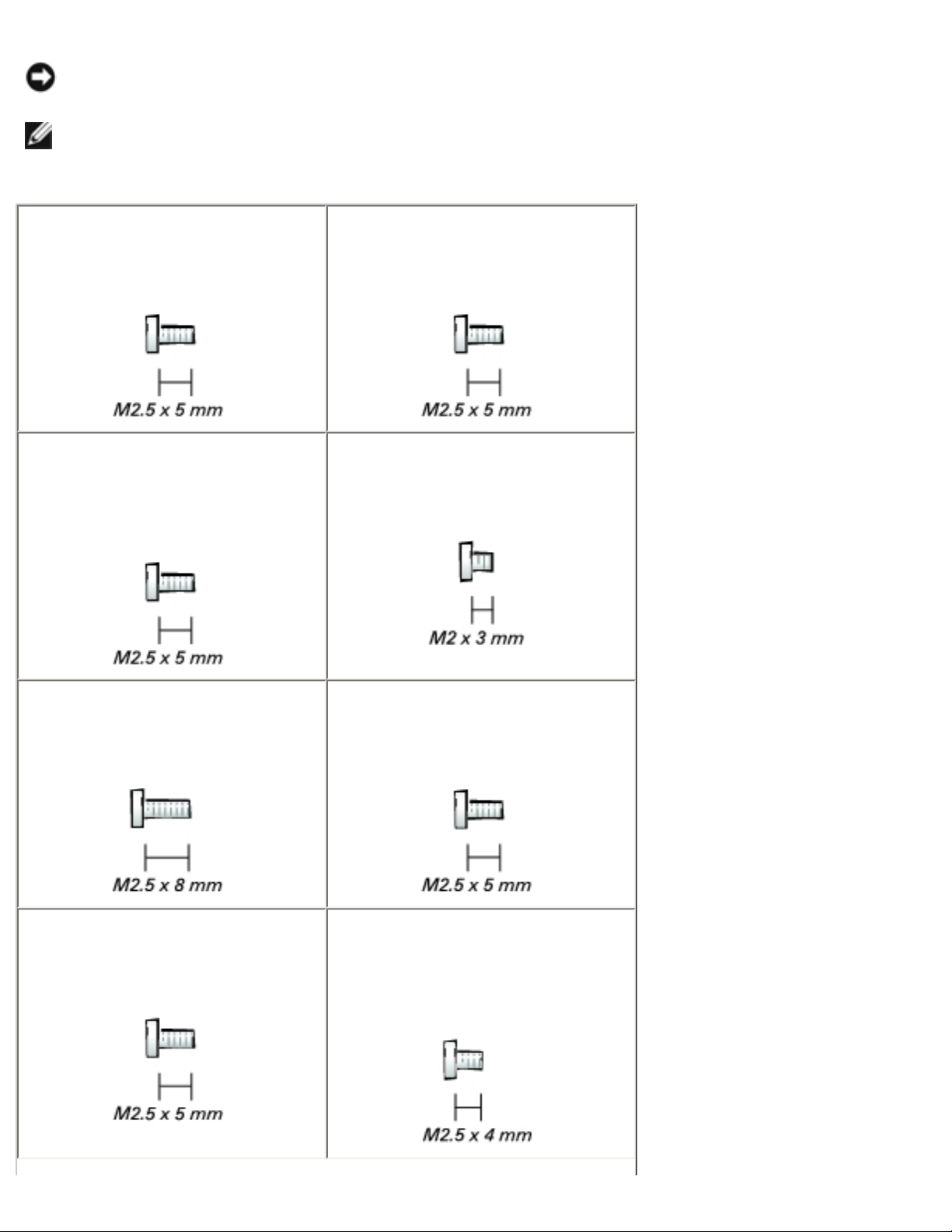

NOTE: All M2.5 x 4 screws are silver, and all other screws are
black.
Back-Panel Fan:
(2 each)
Hard Drive Door:
(1 each)
Memory Module/
Modem Cover:
(1 each)
Modem to System Board:
(2 each)
Optical Drive:
(1 each)
Floppy Drive:
(2 each)
Keyboard Assembly to Hinges:
(2 each)
Keyboard to
Bottom Case:
(4 each; silver screws)
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/begin.htm (5 of 8)6/21/2004 2:56:55 AM

Before You Begin: Dell Latitude V710/V740 Service Manual
Display Assembly
to Back Panel:
(2 each)
Display-Feed Flex Cable
to System Board:
(2 each)
Hinge Bracket to Bottom Case:
(4 each)
Display Bezel:
(5 each)
Screw Covers (5 each)
Display Panel:
(4 each)
Display-Feed Flex Cable to
Display Assembly:
(1 each)
Display Latch:
(2 each)
EMI Shield:
(3 each)
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/begin.htm (6 of 8)6/21/2004 2:56:55 AM

Before You Begin: Dell Latitude V710/V740 Service Manual
Top of Palm Rest to
Bottom Case:
(2 each)
Video Board
to Bottom Case:
(1 each)
Palm Rest to
Bottom Case:
(12 each)
Floppy Drive Cage to
Bottom Case:
(2 each)
Hard Drive Cage to
Bottom Case:
(2 each)
System Board to
Bottom Case:
(6 each; silver screws)
Battery Latch Assembly
to Bottom Case:
(1 each)
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/begin.htm (7 of 8)6/21/2004 2:56:55 AM

Before You Begin: Dell Latitude V710/V740 Service Manual
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...0V740/v710%20v740%20SERVICE_MANUAL/begin.htm (8 of 8)6/21/2004 2:56:55 AM

System Components: Dell Latitude V710/V740 Service Manual
Back to Contents Page
System Components
Dell™ Latitude™ V710/V740 Service Manual
NOTICE: Only a certified service technician should perform repairs on your computer. Damage
due to servicing that is not authorized by Dell is not covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be
replaced by performing the removal procedure in reverse order.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...V740/v710%20v740%20SERVICE_MANUAL/system.htm (1 of 2)6/21/2004 2:56:56 AM

System Components: Dell Latitude V710/V740 Service Manual
1 display assembly 13 hard drive
2 display-feed flex cable 14 hard drive cage
3 center control cover 15 floppy drive cage
4 keyboard 16 floppy drive
5 video board 17 speaker
6 microprocessor 18 modem
7 system board 19 microprocessor thermal-
cooling assembly
8 battery connector cover 20 headphone/microphone bridge
9 optical drive 21 palm rest
10 back-panel fan (V740 only) 22 memory module/modem
cover
11 bottom case 23 EMI shield
12 battery
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...V740/v710%20v740%20SERVICE_MANUAL/system.htm (2 of 2)6/21/2004 2:56:56 AM

Back-Panel Fan (V740 Only): Dell Latitude V710/V740 Service Manual
Back to Contents Page
Back-Panel Fan (V740 Only)
Dell™ Latitude™ V710/V740 Service Manual
Removing the Back-Panel Fan
NOTICE: To prevent data loss, turn off the computer before removing the back-panel fan. Do
not remove the fan while the computer is on or in a power management mode.
NOTICE: Read "Preparing to Work Inside the Computer" before performing the following
procedure.
1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.
2. Save and close any open files, exit any open programs, and shut down the computer.
NOTICE: Disconnect the computer and any attached devices from electrical outlets, and
remove any installed batteries.
NOTICE: To avoid ESD, ground yourself by using a wrist grounding strap or by touching an
unpainted metal surface on the computer.
3. Turn the computer over. Use a #1 Phillips screwdriver to remove the two M2.5 x 5-mm screws
from the fan cover, and place the screws in a safe location.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...%20V740/v710%20v740%20SERVICE_MANUAL/fan.htm (1 of 4)6/21/2004 2:56:57 AM

Back-Panel Fan (V740 Only): Dell Latitude V710/V740 Service Manual
1 M2.5 x 5-mm screws (2)
2 fan cover
3 scalloped left edge of fan
cover
4. Use a small flat-blade screwdriver or plastic scribe to lift the scalloped left edge of the fan
cover, and pry the cover loose from the bottom case.
5. Lift the fan cover up and away from the bottom case.
6. Disconnect the fan cable connector from the system board.
7. Lift the fan out of the bottom case.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...%20V740/v710%20v740%20SERVICE_MANUAL/fan.htm (2 of 4)6/21/2004 2:56:57 AM

Back-Panel Fan (V740 Only): Dell Latitude V710/V740 Service Manual

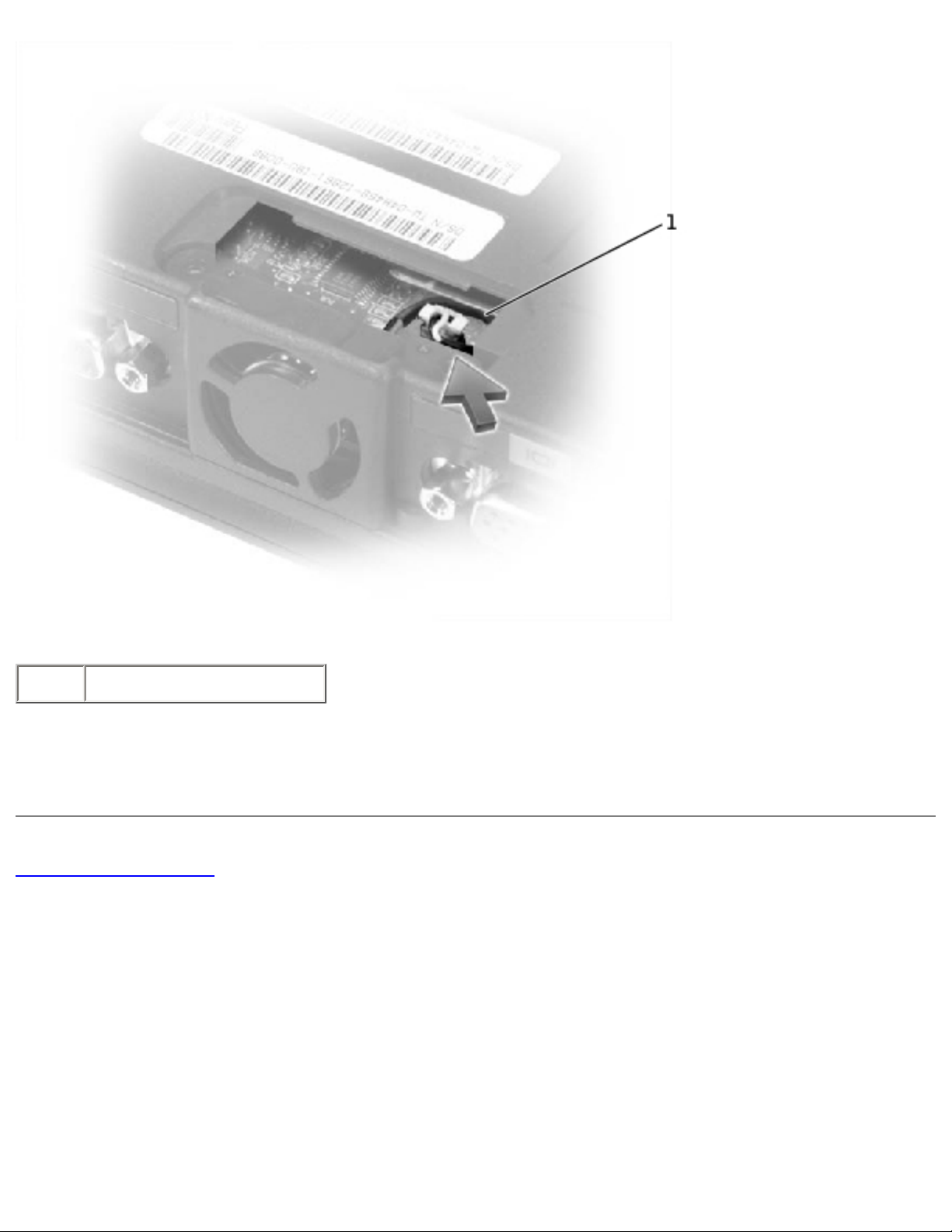

1 fan
2 fan cable connector
Replacing the Back-Panel Fan
1. Slide the fan into the bottom case.
2. Tuck the fan cable under the bottom case, and connect the cable to the system board.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...%20V740/v710%20v740%20SERVICE_MANUAL/fan.htm (3 of 4)6/21/2004 2:56:57 AM

Back-Panel Fan (V740 Only): Dell Latitude V710/V740 Service Manual
1 fan cable
3. Replace the fan cover, and reinstall the two M2.5 x 5-mm screws that secure the cover to the
bottom case.
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...%20V740/v710%20v740%20SERVICE_MANUAL/fan.htm (4 of 4)6/21/2004 2:56:57 AM

Hard Drive: Dell Latitude V710/V740 Service Manual
Back to Contents Page
Hard Drive
Dell™ Latitude™ V710/V740 Service Manual
Removing the Hard Drive
NOTICE: To prevent data loss, turn off the computer before removing the hard drive. Do not
remove the hard drive while the computer is on or in a power management mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the
drive.
CAUTION: If you remove the hard drive from the computer when the drive is hot, do
not touch the metal housing of the hard drive.
NOTICE: Read "Preparing to Work Inside the Computer" before performing the following
procedure.
1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.
2. Save and close any open files, exit any open programs, and shut down the computer.
NOTICE: Disconnect the computer and any attached devices from electrical outlets, and
remove any installed batteries.
NOTICE: To avoid ESD, ground yourself by using a wrist grounding strap or by touching an
unpainted metal surface on the computer.
3. Turn the computer over. Use a #1 Phillips screwdriver to remove the M2.5 x 5-mm screw from
the hard drive door, and place the screw in a safe location.
NOTICE: When the hard drive is not in the computer, store it in protective antistatic
packaging.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...%20V740/v710%20v740%20SERVICE_MANUAL/hdd.htm (1 of 3)6/21/2004 2:56:57 AM

Hard Drive: Dell Latitude V710/V740 Service Manual

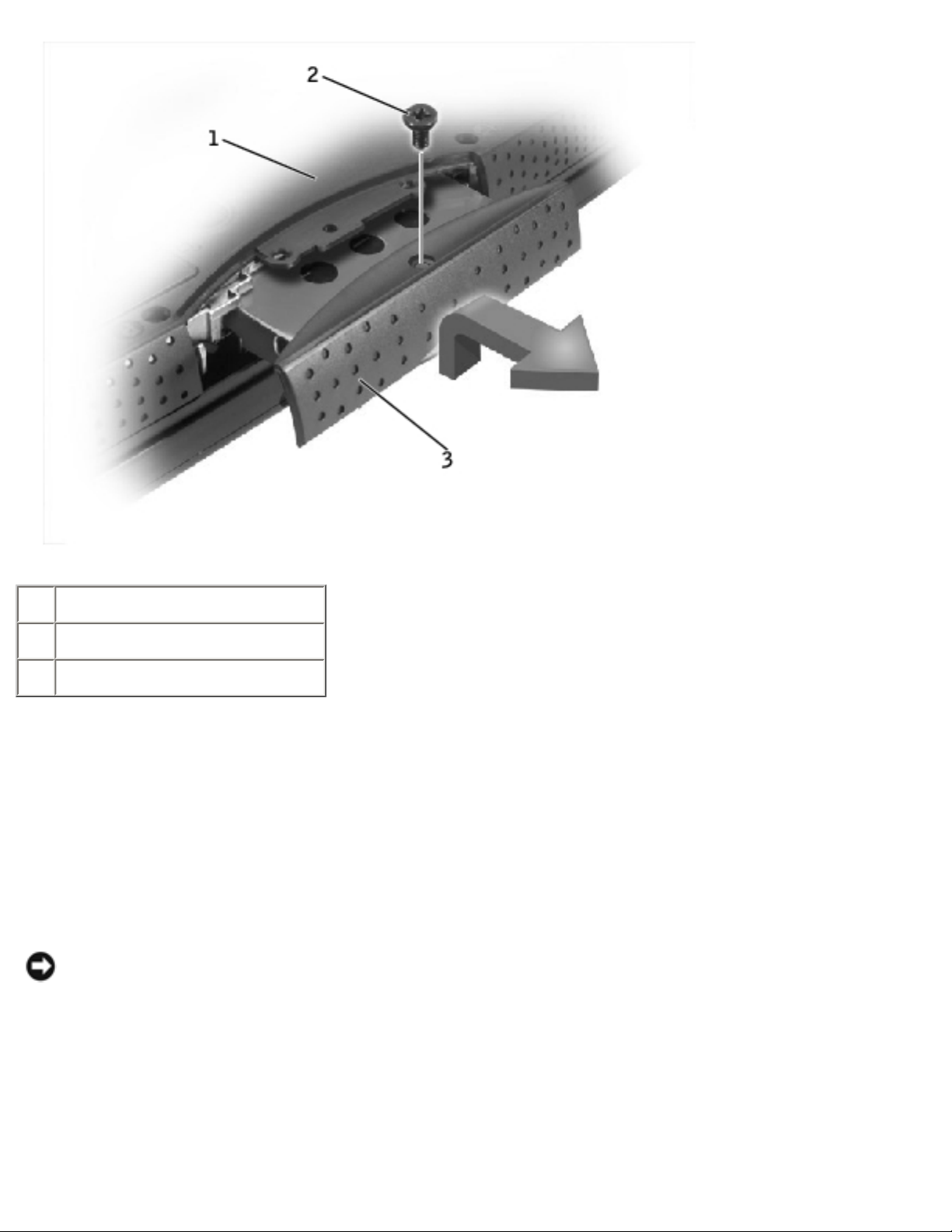

1 bottom of computer
2 M2.5 x 5-mm screw
3 hard drive door
4. Lift the hard drive door to release it, and slide the hard drive out of the computer.
Replacing the Hard Drive
1. Remove the new drive from its packaging.
Save the original packaging to use when storing or shipping the hard drive.
NOTICE: Use firm and even pressure to slide the drive into place. If you force the hard drive
into place using excessive force, you may damage the connector.
2. Slide the hard drive into the bay, and press down on the hard drive door until it is fully seated.
3. Replace and tighten the M2.5 x 5-mm screw in the hard drive door.
4. Use the Operating System CD to install the operating system for your computer.
5. Use the Drivers and Utilities CD to install the drivers and utilities for your computer.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...%20V740/v710%20v740%20SERVICE_MANUAL/hdd.htm (2 of 3)6/21/2004 2:56:57 AM

Hard Drive: Dell Latitude V710/V740 Service Manual
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/...%20V740/v710%20v740%20SERVICE_MANUAL/hdd.htm (3 of 3)6/21/2004 2:56:57 AM
