Dell XPS 13
Owner’s Manual
Computer model: L321x Regulatory model: P29G Regulatory type: P29G001
Spyder_OM_Book.book Page 1 Monday, January 16, 2012 11:02 AM

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and XPS™are trademarks of Dell Inc.;
Microsoft®, Windows®and the Windows start button logo
are either trademarks or registered
trademarks of Microsoft corporation in the United States and/or other countries; Bluetooth®is a
registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory model: P29G Regulatory type: P29G001
2012 - 1 Rev. A00
Spyder_OM_Book.book Page 2 Monday, January 16, 2012 11:02 AM

Contents 3
Contents
1 Before You Begin. . . . . . . . . . . . . . . . . . . . 9
Turn Off Your Computer and Connected Devices . . . . . 9
Safety Instructions. . . . . . . . . . . . . . . . . . . . . 9
Recommended Tools. . . . . . . . . . . . . . . . . . . 10
2 After Working Inside Your Computer. . . . 11
3BaseCover. . . . . . . . . . . . . . . . . . . . . . . 13
Removing the Base Cover . . . . . . . . . . . . . . . . 13
Replacing the Base Cover . . . . . . . . . . . . . . . . 14
4 Power-Light Board . . . . . . . . . . . . . . . . . 15
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . 15
Removing the Power-Light Board . . . . . . . . . . . . 15
Replacing the Power-Light Board. . . . . . . . . . . . 16
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 16
5Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . 17
Spyder_OM_Book.book Page 3 Monday, January 16, 2012 11:02 AM

4Contents
Removing the Battery . . . . . . . . . . . . . . . . . . 17
Replacing the Battery . . . . . . . . . . . . . . . . . . 18
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 18
6 Speakers . . . . . . . . . . . . . . . . . . . . . . . . 19
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . 19
Removing the Speakers . . . . . . . . . . . . . . . . . 19
Replacing the Speakers . . . . . . . . . . . . . . . . . 21
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 22
7 Wireless Mini-Card . . . . . . . . . . . . . . . . 23
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . 23
Removing the Mini-Card . . . . . . . . . . . . . . . . . 23
Replacing the Mini-Card. . . . . . . . . . . . . . . . . 25
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 26
8 Solid-State Drive . . . . . . . . . . . . . . . . . . 27
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . 27
Removing the Solid-State Drive . . . . . . . . . . . . . 27
Replacing the Solid-State Drive . . . . . . . . . . . . . 29
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 29
Spyder_OM_Book.book Page 4 Monday, January 16, 2012 11:02 AM

Contents 5
9 Heat Sink . . . . . . . . . . . . . . . . . . . . . . . . . 31
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . 31
Removing the Heat Sink . . . . . . . . . . . . . . . . . 31
Replacing the Heat Sink . . . . . . . . . . . . . . . . . 32
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 32
10 Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . 33
Removing the Fan . . . . . . . . . . . . . . . . . . . . 33
Replacing the Fan . . . . . . . . . . . . . . . . . . . . 35
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 35
11 Power-Adapter Connector . . . . . . . . . . . 37
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . 37
Removing the Power-Adapter Connector . . . . . . . . 37
Replacing the Power-Adapter Connector. . . . . . . . 39
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 40
12 I/O Board . . . . . . . . . . . . . . . . . . . . . . . . . 41
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . 41
Removing the I/O Board . . . . . . . . . . . . . . . . . 41
Replacing the I/O Board . . . . . . . . . . . . . . . . . 42
Spyder_OM_Book.book Page 5 Monday, January 16, 2012 11:02 AM

6Contents
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 42
13 System Board. . . . . . . . . . . . . . . . . . . . . 45
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . 45
Removing the System Board . . . . . . . . . . . . . . . 45
Replacing the System Board . . . . . . . . . . . . . . . 48
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 48
Entering the Service Tag in BIOS . . . . . . . . . . . . 49
14 Coin-Cell Battery . . . . . . . . . . . . . . . . . . 51
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . 51
Removing the Coin-Cell Battery . . . . . . . . . . . . . 51
Replacing the Coin-Cell Battery . . . . . . . . . . . . . 52
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 52
15 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . 53
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . 53
Removing the Keyboard . . . . . . . . . . . . . . . . . 53
Replacing the Keyboard . . . . . . . . . . . . . . . . . 55
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 55
Spyder_OM_Book.book Page 6 Monday, January 16, 2012 11:02 AM

Contents 7
16 Display Assembly . . . . . . . . . . . . . . . . . . 57
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . 57
Removing the Display Assembly . . . . . . . . . . . . 57
Replacing the Display Assembly . . . . . . . . . . . . 60
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 61
17 Palm-Rest Assembly . . . . . . . . . . . . . . . . 63
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . 63
Removing the Palm-Rest Assembly . . . . . . . . . . . 63
Replacing the Palm-Rest Assembly . . . . . . . . . . . 64
Postrequisites . . . . . . . . . . . . . . . . . . . . . . 64
Spyder_OM_Book.book Page 7 Monday, January 16, 2012 11:02 AM

8Contents
Spyder_OM_Book.book Page 8 Monday, January 16, 2012 11:02 AM

Before you Begin 9
1
Before You Begin
Turn Off Your Computer and Connected Devices
CAUTION: To avoid losing data, save and close all open files and exit all open
programs before you turn off your computer.
1 Save and close all open files and exit all open programs.
2 Click Start and click Shut Down .
Microsoft Windows shuts down and then the computer turns off.
NOTE: If you are using a different operating system, see the documentation of
your operating system for shut-down instructions.
3 Disconnect your computer and all attached devices from their electrical
outlets.
4 Disconnect all telephone cables, network cables, and attached devices
from your computer.
5 Press and hold the power button, while the computer is unplugged, to
ground the system board.
Safety Instructions
Use the following safety guidelines to protect your computer from potential
damage and ensure your personal safety.
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
CAUTION: To avoid damaging the computer, ensure that the work surface is flat
and clean.
CAUTION: To avoid damaging the components and cards, handle them by their
edges and avoid touching pins and contacts.
WARNING: Disconnect all power sources before opening the computer cover or
panels. After you finish working inside the computer, replace all covers, panels,
and screws before connecting to the power source.
Spyder_OM_Book.book Page 9 Monday, January 16, 2012 11:02 AM

10 Before you Begin
CAUTION: Only a certified service technician is authorized to remove the
computer cover and access any of the components inside the computer. See the
safety instructions for complete information about safety precautions, working
inside your computer, and protecting against electrostatic discharge.
CAUTION: Before touching anything inside your computer, ground yourself by
touching an unpainted metal surface, such as the metal at the back of the
computer. While you work, periodically touch an unpainted metal surface to
dissipate static electricity, which could harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab,
not on the cable itself. Some cables have connectors with locking tabs or
thumb-screws that you must disengage before disconnecting the cable. When
disconnecting cables, keep them evenly aligned to avoid bending any connector
pins. When connecting cables, ensure that the connectors and ports are correctly
oriented and aligned.
CAUTION: To disconnect a network cable, first unplug the cable from your
computer and then unplug the cable from the network device.
Recommended Tools
The procedures in this document may require the following tools:
• Torx 5 screwdriver
• Phillips screwdriver
• Plastic scribe
Spyder_OM_Book.book Page 10 Monday, January 16, 2012 11:02 AM

After Working Inside Your Computer 11
2
After Working Inside Your Computer
After you complete replacement procedures, ensure the following:
• Replace all screws and ensure that no stray screws remain inside your
computer
• Connect any external devices, cables, cards, and any other part(s) you
removed before working on your computer
• Connect your computer and all attached devices to their electrical outlets
CAUTION: Before turning on your computer, replace all screws and ensure that
no stray screws remain inside the computer. Failure to do so may damage your
computer.
Spyder_OM_Book.book Page 11 Monday, January 16, 2012 11:02 AM

12 Before you Begin
Spyder_OM_Book.book Page 12 Monday, January 16, 2012 11:02 AM

Base Cover 13
3
Base Cover
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 9. For additional safety best practices information, see the Regulatory
Compliance Homepage at dell.com/regulatory_compliance.
Removing the Base Cover
1 Close the display and turn the computer over.
2 Using the Torx 5 screwdriver, remove the ten screws that secure the base
cover to the palm-rest assembly.
3 Using your fingertips, lift the base cover starting from the back of your
computer.
4 Remove the base cover off the palm-rest assembly.
1
2
Spyder_OM_Book.book Page 13 Monday, January 16, 2012 11:02 AM

14 Base Cover
Replacing the Base Cover
1 Align the base cover with the palm-rest assembly and press the base cover
in to place.
2 Using the Torx 5 screwdriver, replace the ten screws that secure the base
cover to the palm-rest assembly.
3 Follow the instructions in "After Working Inside Your Computer" on
page 11
1 base cover 2 screws (10)
Spyder_OM_Book.book Page 14 Monday, January 16, 2012 11:02 AM

Power-Light Board 15
4
Power-Light Board
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 9. For additional safety best practices information, see the Regulatory
Compliance Homepage at dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover. See "Removing the Base Cover" on page 13
Removing the Power-Light Board
1 Lift the connector latch and pull the pull-tab to disconnect the power-
light board cable from the connector on the I/O board.
2 Remove the screw that secures the power-light board to the palm-rest
assembly.
3 Lift the power-light board off the palm-rest assembly.
Spyder_OM_Book.book Page 15 Monday, January 16, 2012 11:02 AM

16 Power-Light Board
Replacing the Power-Light Board
1 Align the screw hole on the power-light board with the screw hole on the
palm-rest assembly.
2 Replace the screw that secures the power-light board to the palm-rest
assembly.
3 Slide the power-light board cable into the system-board connector and
press down on the connector latch to secure the cable.
Postrequisites
1 Replace the base cover. See "Replacing the Base Cover" on page 14
2 Follow the instructions in "After Working Inside Your Computer" on
page 11
1 power-light board 2 screw
3 power-light board cable
2
3
1
Spyder_OM_Book.book Page 16 Monday, January 16, 2012 11:02 AM

Battery 17
5
Battery
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 9. For additional safety best practices information, see the Regulatory
Compliance Homepage at dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover. See "Removing the Base Cover" on page 13
2 Remove the power-light board. See "Removing the Power-Light Board" on
page 15

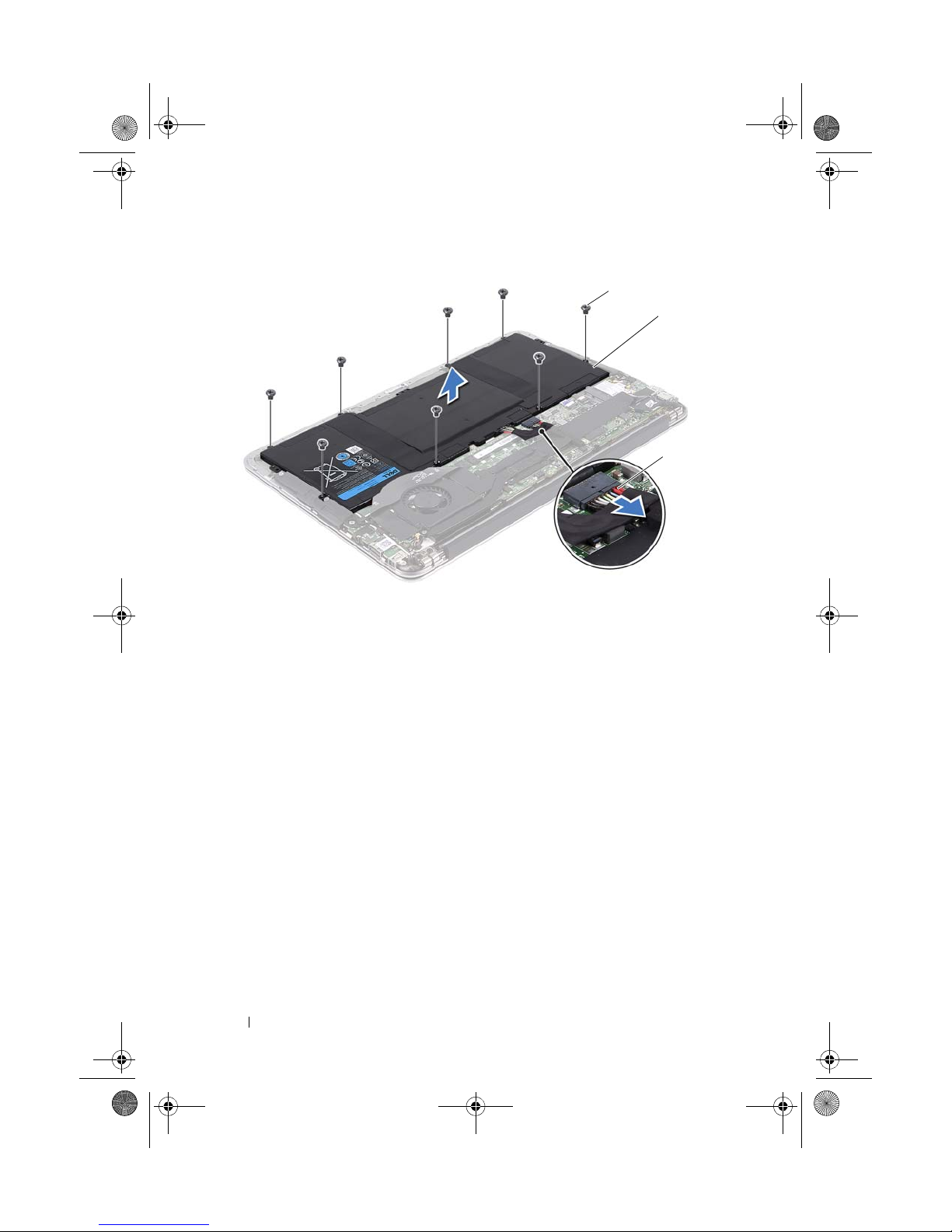

Removing the Battery
1 Disconnect the battery cable from the system-board connector.
2 Remove the eight screws that secure the battery to the palm-rest assembly.
3 Lift the battery off the palm-rest assembly.
Spyder_OM_Book.book Page 17 Monday, January 16, 2012 11:02 AM

18 Battery
Replacing the Battery
1 Align the screw holes on the battery with the screw holes on the palm-rest
assembly.
2 Replace the eight screws that secure the battery to the palm-rest assembly.
3 Connect the battery cable to the system-board connector.
Postrequisites
1 Replace the power-light board. See "Replacing the Power-Light Board" on
page 16
2 Replace the base cover. See "Replacing the Base Cover" on page 14
3 Follow the instructions in "After Working Inside Your Computer" on
page 11
1 screws (8) 2 battery
3 battery cable
3
2
1
Spyder_OM_Book.book Page 18 Monday, January 16, 2012 11:02 AM

Speakers 19
6
Speakers
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 9. For additional safety best practices information, see the Regulatory
Compliance Homepage at dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cove. See "Removing the Base Cover" on page 13
2 Remove the battery. See "Removing the Battery" on page 17
Removing the Speakers
Left Speaker
1 Disconnect the I/O cable from the I/O board connector and system-board
connector.
2
3
1
Spyder_OM_Book.book Page 19 Monday, January 16, 2012 11:02 AM

20 Speakers
2 Disconnect the left-speaker cable from the system-board connector.
3 Release the Mini-Card cables from the routing guide on the left speaker.
4 Remove the two screws that secure the left speaker to the palm-rest
assembly.
5 Lift the left speaker from the palm-rest assembly.
Right Speaker
1 Disconnect the right-speaker cable from the system-board connector.
2 Remove the two screws that secure the right speaker to the palm-rest
assembly.
1 I/O cable 2 I/O board connector
3 system-board connector
1 screws (2) 2 routing guide
3 left-speaker cable
1
3
2
Spyder_OM_Book.book Page 20 Monday, January 16, 2012 11:02 AM
