Dell™ PowerEdge™ 100 and 110 Appliances and
PowerEdge™ 350 Systems
RACK INSTALLATION GUIDE
2D786bk0.book Page 3 Thursday, January 18, 2001 8:44 PM

____________________
Information in this document is subject to change without notice.
© 2001 Dell Computer Corporation. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, PowerEdge, and PowerApp are trademarks of Dell Computer Corporation. Other
trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their
products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other than its own.
January 2001 P/N 2D786 Rev. A00
2D786bk0.book Page 4 Thursday, January 18, 2001 8:44 PM

v
Safety Instructions
Use the following safety guidelines to ensure your own personal safety and to help
protect your server, storage system, or appliance from potential damage. For com-
plete safety, regulatory, and warranty information, refer to your system’s System
Information document.
Notes, Notices, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in
bold type or in italic type. These blocks are notes, notices, cautions, and warnings,
and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of
your computer system.
NOTICE: A NOTICE indicates either potential damage to hardware or loss
of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
WARNING: A WARNING indicates a potentially hazardous situation which,
if not avoided, could result in death or serious bodily injury.
Precautions for Rack-Mountable Products
Observe the following precautions for rack stability and safety. Also refer to the rack
installation documentation accompanying the system and the rack for specific warn-
ing and/or caution statements and procedures.
Servers, storage systems, and appliances are considered to be components in a rack.
Thus, “component” refers to any server, storage system, or appliance, as well as to
various peripherals or supporting hardware.
WARNING: Installing Dell system components in a Dell rack without the
front and side stabilizers installed could cause the rack to tip over, poten-
tially resulting in bodily injury under certain circumstances. Therefore,
always install the stabilizers before installing components in the rack.
2D786bk0.book Page v Thursday, January 18, 2001 8:44 PM

vi
After installing system/components in a rack, never pull more than one
component out of the rack on its slide assemblies at one time. The weight
of more than one extended component could cause the rack to tip over and
injure someone.
NOTE: Dell’s servers, storage systems, and appliances are certified as components
for use in Dell’s rack cabinet using the Dell customer rack kit. The final installation of
Dell systems and rack kits in any other brand of rack cabinet has not been approved by
any safety agencies. It is the customer’s responsibility to have the final combination of
Dell systems and rack kits for use in other brands of rack cabinets evaluated for suit-
ability by a certified safety agency.
•System rack kits are intended to be installed in a Dell rack by trained service tech-
nicians. If you install the kit in any other rack, be sure that the rack meets the
specifications of a Dell rack.
•Do not move large racks by yourself. Due to the height and weight of the rack,
Dell recommends a minimum of two people to accomplish this task.
•Before working on the rack, make sure that the stabilizers are secure to the rack,
extend to the floor, and that the full weight of the rack rests on the floor. Install
front and side stabilizers on a single rack or front stabilizers for joined multiple
racks before working on the rack.
•Always load the rack from the bottom up, and load the heaviest item in the rack
first.
•Make sure that the rack is level and stable before extending a component from
the rack.
•Use caution when pressing the component rail release latches and sliding a com-
ponent into or out of a rack; the slide rails can pinch your fingers.
•After a component is inserted into the rack, carefully extend the rail into a locking
position, and then slide the component into the rack.
•Do not overload the AC supply branch circuit that provides power to the rack. The
total rack load should not exceed 80 percent of the branch circuit rating.
•Ensure that proper airflow is provided to components in the rack.
•Do not step on or stand on any system/component when servicing other
systems/components in a rack.
2D786bk0.book Page vi Thursday, January 18, 2001 8:44 PM

vii
Contents
Two-Post Center-Mount Rack Kit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Rack Kit Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Recommended Tools and Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Marking the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Attaching the Brackets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Installing the System in the Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Two-Post Flush-Mount Rack Kit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Rack Kit Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Recommended Tools and Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Marking the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Installing the Bracket in the Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Installing the Inner Rails on the System Chassis . . . . . . . . . . . . . . . . . . . . . . . 1-9
Installing the System in the Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Installing Tab Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Four-Post Rack Kit Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Rack Kit Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Recommended Tools and Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Installing the Rack Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Removing the Doors From the 42-U Rack . . . . . . . . . . . . . . . . . . . . . . . 1-14
Removing the Doors From the 24-U Rack . . . . . . . . . . . . . . . . . . . . . . . 1-16
Installing the Slide Assemblies in the Four-Post Rack . . . . . . . . . . . . . . 1-17
Installing the Inner Rails on the System Chassis . . . . . . . . . . . . . . . . . . 1-21
Installing the System in the Four-Post Rack. . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
Installing the Cable-Management Arm . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
Replacing the Rack Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
Replacing the Rack Doors on a 42-U Rack . . . . . . . . . . . . . . . . . . . . . . . 1-24
Replacing the Rack Doors on a 24-U Rack . . . . . . . . . . . . . . . . . . . . . . . 1-24
2D786bk0.book Page vii Thursday, January 18, 2001 8:44 PM

viii
Index
Figures Figure 1-1. Two-Post Center-Mount Rack Kit Contents . . . . . . . . . . . . . . . . . . . 1-2
Figure 1-2. Two-Post Open-Frame Relay Rack 1-U Hole Spacing . . . . . . . . . . . . 1-3
Figure 1-3. Securing the System in the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Figure 1-4. Two-Post Flush-Mount Rack Kit Contents. . . . . . . . . . . . . . . . . . . . . 1-6
Figure 1-5. Two-Post Open-Frame Relay Rack 1-U Hole Spacing . . . . . . . . . . . . 1-7
Figure 1-6. Installing the Bracket in the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Figure 1-7. Securing the Inner Rails to the System Chassis . . . . . . . . . . . . . . . . 1-9
Figure 1-8. Securing the System in the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Figure 1-9. Installing the Tab Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Figure 1-10. Four-Post Rack Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Figure 1-11. Opening the 42-U Rack Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Figure 1-12. Removing the 42-U Rack Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Figure 1-13. Opening the 24-U Rack Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
Figure 1-14. Removing the 24-U Rack Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
Figure 1-15. One Rack Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
Figure 1-16. Using Template to Mark Vertical Rails. . . . . . . . . . . . . . . . . . . . . . . 1-19
Figure 1-17. Installing the Slide Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
Figure 1-18. Installing the Inner Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
Figure 1-19. Installing the System in the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
Figure 1-20. Installing the Cable-Management Arm . . . . . . . . . . . . . . . . . . . . . . 1-23
2D786bk0.book Page viii Thursday, January 18, 2001 8:44 PM

support.dell.com Rack Installation Guide 1-1
Dell™ PowerApp™ 100 and 110
Appliances and PowerEdge™ 350
Systems — Rack Installation
Guide
This installation guide provides instructions for trained service technicians installing
one or more Dell PowerApp 100 or 110 or PowerEdge 350 systems in a rack. This
guide includes procedures for the following three rack kits:
•Two-post center-mount
•Two-post flush-mount
•Four-post rack cabinet
One rack kit is required for each system to be installed in the rack.
Two-Post Center-Mount Rack Kit
Installation
This procedure provides instructions for installing a Dell system in a two-post open-
frame relay rack, such as those found in telecommunications equipment facilities.
Both 3-inch and 6-inch wide two-post racks are accommodated.
The two-post open-frame relay rack must be properly secured to the floor, to the
ceiling or upper wall, and where applicable, to adjacent racks, using floor and wall
fasteners and bracing specified or approved by the rack manufacturer or by industry
standards. See the two-post open-frame relay rack manufacturer’s installation docu-
mentation for precautionary warnings and information before attempting this
installation.
CAUTION: Do not attempt to install the system into a two-post open-frame
relay rack that has not been securely anchored in place. Damage to the
system and personal injury may result.
See “Safety Instructions”at the front of this document for additional safety informa-
tion regarding rack installation.
2D786bk0.book Page 1 Thursday, January 18, 2001 8:44 PM

1-2 Rack Installation Guide
Rack Kit Contents
The rack kit includes the following items (see Figure 1-1):
•Two center-mount brackets
•Four 10-24 x 0.375-inch pan-head Phillips (or slotted) screws
•Two 12-24 x 0.5-inch pan-head Phillips screws

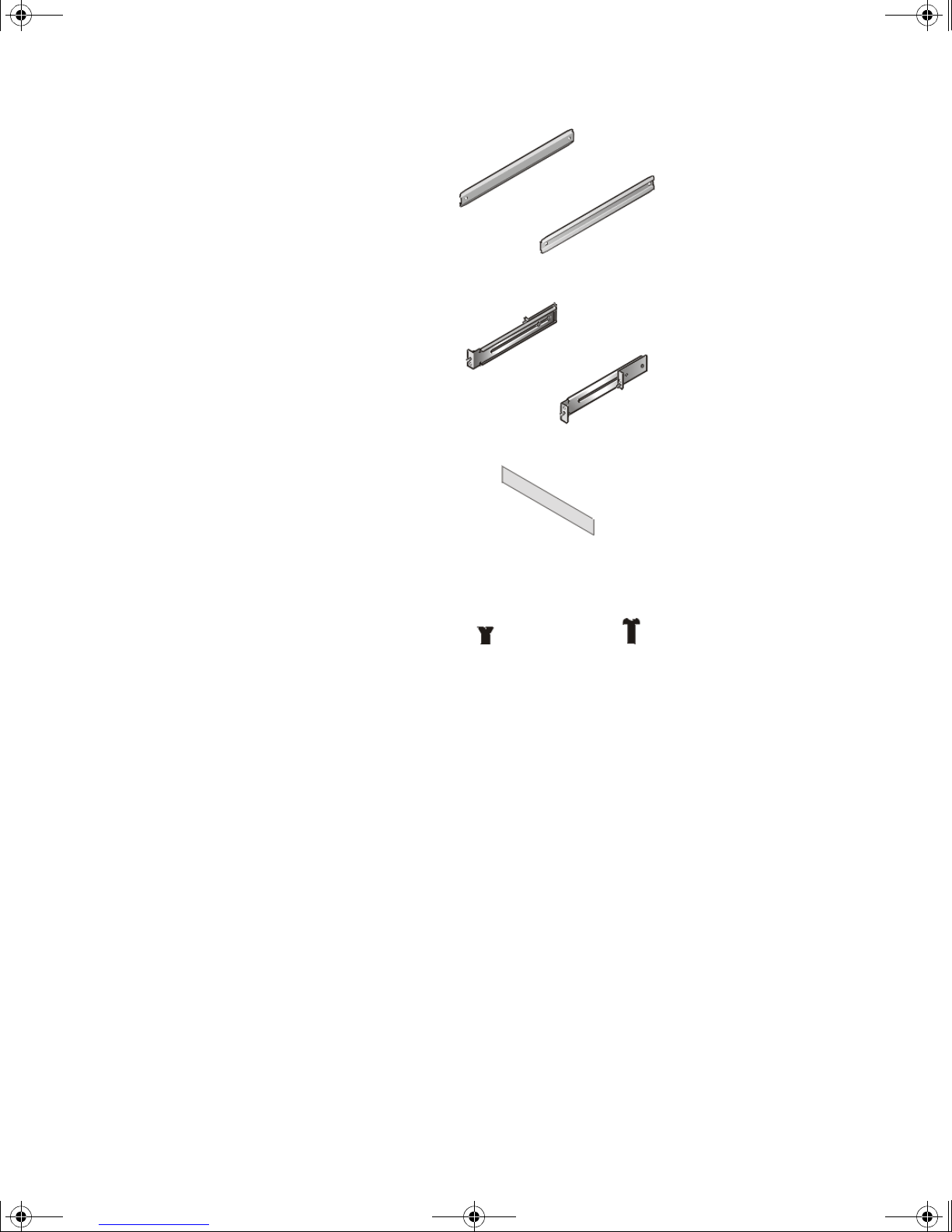

Figure 1-1. Two-Post Center-Mount Rack Kit Contents
Recommended Tools and Supplies
You need the following tools and supplies to install the system in a two-post open-
frame relay rack:
•#2 Phillips screwdriver
•Masking tape or a felt-tip pen, for use in marking the mounting holes to be used
center-mount brackets (2)
12-24 x 0.5-inch pan-head
Phillips screws (2)
10-24 x 0.375-inch pan-
head Phillips screws (4)
2D786bk0.book Page 2 Thursday, January 18, 2001 8:44 PM

support.dell.com Rack Installation Guide 1-3
Marking the Rack
1. Determine where you want to place the bottom of the system.
CAUTION: If you are installing more than one system, install the first sys-
tem in the lowest available position in the rack.
2. Mark the upper and lower-mounting positions on the two posts.
Each 1-U (1.75-inch) vertical space has three holes, with center-to-center spacing
between holes (beginning at the center of the top hole of a 1-U space) of 0.625,
0.625, and 0.5 inch (see Figure 1-2).
Figure 1-2. Two-Post Open-Frame Relay Rack 1-U Hole Spacing
1.75 inches (1 U)
0.5 inch
0.625 inch
0.625 inch
0.5 inch
2D786bk0.book Page 3 Thursday, January 18, 2001 8:44 PM

1-4 Rack Installation Guide
Attaching the Brackets
1. Locate one of the two brackets and align it over the two threaded holes on the
side of the system (see Figure 1-3).
2. Secure the bracket to the system chassis using two 10-24 x 0.375-inch screws
(see Figure 1-3).
Repeat this step to install the remaining bracket on the other side of the system.

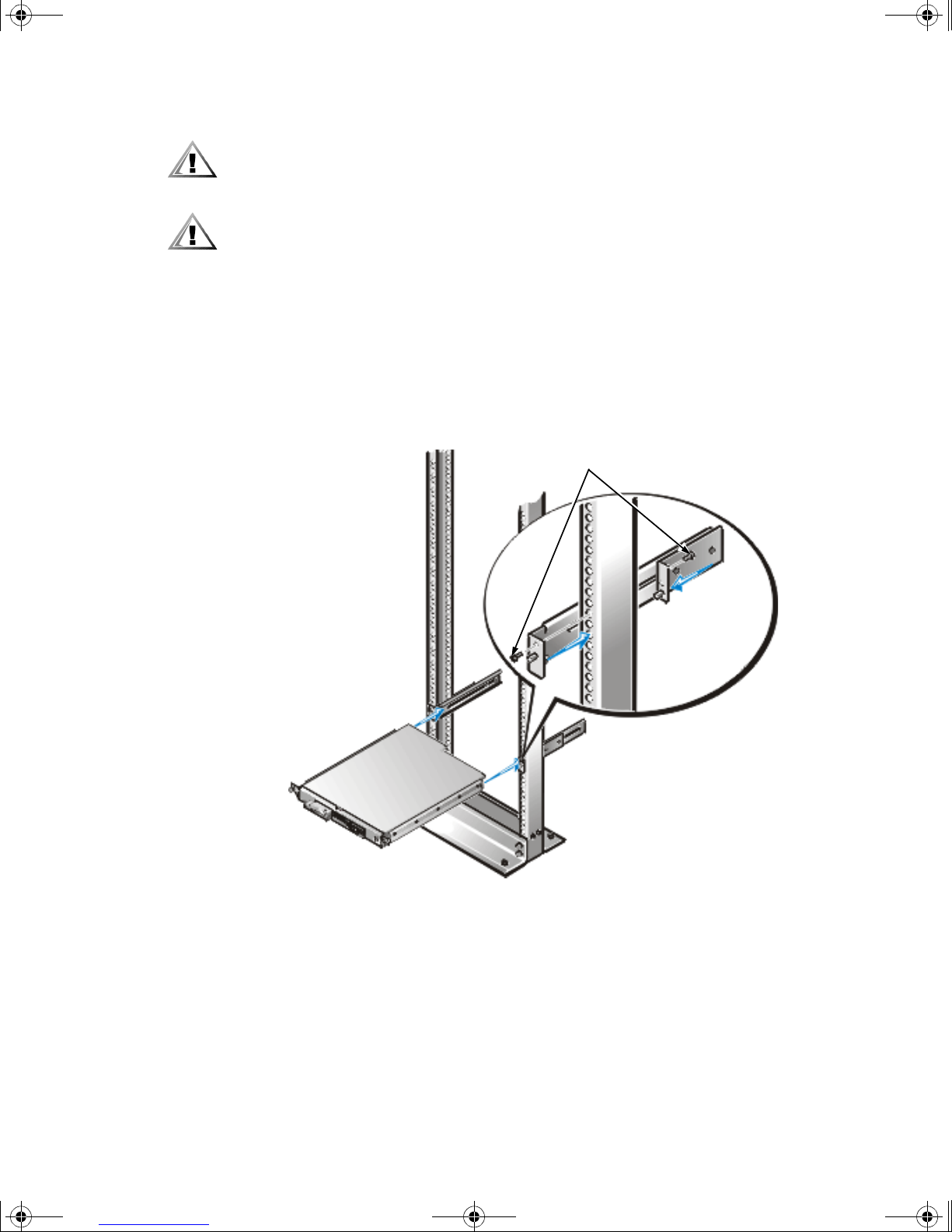

Figure 1-3. Securing the System in the Rack
Installing the System in the Rack
CAUTION: Due to the size and weight of the system, never attempt to install
the system by yourself.
1. Lift the system into position between the two posts, with the hole in the mount-
ing bracket aligned one hole above the mark you made in the two posts.
2. Secure the system to the rack using a 12-24 x 0.5-inch screw through the mount-
ing bracket to the front of the left and right posts (see Figure 1-3).
3. Attach the front bezel, if it is not already attached, to the system (see the
Installation and Troubleshooting Guide for instructions).
This completes the two-post center-mount rack installation.
12-24 x 0.5-inch
pan-head
Phillips screws
10-24 x 0.375-inch
pan-head Phillips
screws (2 per
bracket)
2D786bk0.book Page 4 Thursday, January 18, 2001 8:44 PM

support.dell.com Rack Installation Guide 1-5
Two-Post Flush-Mount Rack Kit Installation
This procedure provides instructions for installing a Dell system in a two-post open-
frame relay rack, such as those found in telecommunications equipment facilities.
Both 3-inch and 6-inch wide 2-post racks are accommodated.
The two-post open-frame relay rack must be properly secured to the floor, to the
ceiling or upper wall, and where applicable, to adjacent racks, using floor and wall
fasteners and bracing specified or approved by the rack manufacturer or by industry
standards. Refer to the two-post open-frame relay rack manufacturer’s installation
documentation for precautionary warnings and information before attempting this
installation.
CAUTION: Do not attempt to install the system into a two-post open-frame
relay rack that has not been securely anchored in place. Damage to the
system and personal injury may result.
See “Safety Instructions”found earlier in this guide for additional safety information
regarding rack installation.
Rack Kit Contents
The two-post flush-mount rack kit includes the following items (see Figure 1-4):
•Two flush-mount brackets
•Two inner mounting rails
•Four 12-24 x 0.5-inch pan-head Phillips (or slotted) screws
•Four 10-24 x 0.25-inch flat-head slotted screws for securing the inner mounting
rails to the sides of the system
•One 1-U template
2D786bk0.book Page 5 Thursday, January 18, 2001 8:44 PM

1-6 Rack Installation Guide
Figure 1-4. Two-Post Flush-Mount Rack Kit Contents
Recommended Tools and Supplies
You need the following tools and supplies to install the system in a two-post open-
frame relay rack:
•#2 Phillips screwdriver
•Masking tape or a felt-tip pen, for use in marking the mounting holes to be used
flush-mount brackets (2)
10-24 x 0.25 inch flat-
head Phillips screws (4)
1-U template
inner mounting rails (2)
12-24 x 0.5-inch pan-
head Phillips screws (4)
2D786bk0.book Page 6 Thursday, January 18, 2001 8:44 PM

support.dell.com Rack Installation Guide 1-7
Marking the Rack
1. Determine where you want to place the bottom of the system.
CAUTION: If you are installing more than one system, install the first sys-
tem in the lowest available position in the rack.
2. Place the 1-U template over the front of the two-posts of the rack in the desired
location.
3. Position the bottom of the template in line with the desired bottom position of
the system chassis.
4. Mark the upper and lower-mounting positions on the vertical rails as shown by
the V-notches on the sides of the template.
Each 1-U (1.75-inch) vertical space has three holes, with center-to-center spacing
between holes (beginning at the center of the top hole of a 1-U space) of 0.625,
0.625, and 0.5 inch (see Figure 1-5).
Figure 1-5. Two-Post Open-Frame Relay Rack 1-U Hole Spacing
1.75 inches (1 U)
0.5 inch
0.625 inch
0.625 inch
0.5 inch
2D786bk0.book Page 7 Thursday, January 18, 2001 8:44 PM

1-8 Rack Installation Guide
Installing the Bracket in the Rack
CAUTION: The 1-U mounting bracket is designed to support a single sys-
tem. Do not attempt to install any other system in this bracket. Damage to
the system and personal injury may result.
CAUTION: Due to the size and weight of the system, never attempt to install
the system by yourself.
1. Slide the back portion of the bracket to its widest opening and place the mount-
ing bracket into the rack, with the bottom of the bracket at the marks you made
earlier (see Figure 1-6).
2. Slide the back part of the bracket toward the front, with the pins entering the
lower screw holes in the rack, at the marks you made earlier. Secure the bracket
front and back to the rack with a 12-24 x 0.5-inch screw.
Repeat this step to install the remaining bracket on the other side of the rack.
Figure 1-6. Installing the Bracket in the Rack
12-24 x 0.5 inch screws (4)
2D786bk0.book Page 8 Thursday, January 18, 2001 8:44 PM

support.dell.com Rack Installation Guide 1-9
Installing the Inner Rails on the System Chassis
1. Locate the two inner rails and position one to the side of the chassis (see
Figure 1-7).
Ensure that the flat end of the inside rail is toward the front of the chassis and
that the end with two threaded holes is located at the back of the chassis. The
flat central part of the inside rail must be facing the chassis, with the raised upper
and lower rail surface facing outward (see Figure 1-7).
Figure 1-7. Securing the Inner Rails to the System Chassis
2. Secure each inner rail to the chassis using two 10-32 x 0.25-inch flat-head screws.
Installing the System in the Rack
CAUTION: Due to the size and weight of the system, never attempt to install
the system by yourself.
1. Remove the optional bezel from the system front panel. Press the tab on each
end of the bezel and pull the bezel straight out from the chassis.
2. Lift the system into position in front of the installed mounting bracket.
2D786bk0.book Page 9 Thursday, January 18, 2001 8:44 PM

1-10 Rack Inst allation Guide
3. Move the system back with its inside rail engaging the mounting bracket. Slide
the system completely into position and secure it to the rack using the captive
fasteners at the outer edge of the front panel (see Figure 1-8).
An internally threaded stud projecting from the front of the tray flanges accepts
the captive fastener on the front of the system.
Figure 1-8. Securing the System in the Rack
4. Attach the front bezel, if it was removed in step 1, to the system (see the
Installation and Troubleshooting Guide for instructions).
Installing Tab Covers
CAUTION: The system’s two-post flush-mount slide assembly does not have
a safety stop. Use care when sliding the system in and out of the rack; the
system could fall out of the rack, possibly resulting in bodily injury and
damage to the system.
1. Push the system completely into the rack.
2. Center the thumbscrew on the tab cover with the clearance hole on the system
tab, and align the slot on the tab cover with the opening on the system tab (see
Figure 1-9).
captive
fasteners
2D786bk0.book Page 10 Thursday, January 18, 2001 8:44 PM

support.dell.com Rack Installation Guide 1-11
Figure 1-9. Installing the Tab Cover
3. Hold the tab cover firmly onto the server tab and engage the thumbscrew with
the receiving fastener on the slide bracket.
4. Repeat steps 1 through 3 to install the tab cover on the other side of the system.
This completes the two-post flush-mount rack installation.
Four-Post Rack Kit Installation
This procedure provides instructions for installing a Dell system in a four-post rack cab-
inet. Both 24-U and 42-U racks are accommodated.
Rack Kit Contents
The rack kit includes the following items (see Figure 1-10):
•One pair of slide assemblies
•One cable-management arm
•Four 10-32 x 0.5-inch pan-head Phillips screws
•Six 10-24 x 0.375-inch pan-head Phillips screws
•One 1-U template for a four-post rack
NOTE: If you purchased a Dell rack along with your system, the slide assemblies may
be preinstalled in the rack.
server tab
thumbscrew
2D786bk0.book Page 11 Thursday, January 18, 2001 8:44 PM

1-12 Rack Installation Guide
Figure 1-10. Four-Post Rack Kit Contents
cable-management arm assembly
slide assemblies with
mounting brackets (1 pair)
10-32 x 0.5-inch
pan-head Phillips
screws (4)
1-U template
10-24 x 0.375-inch
pan-head Phillips
screws (6)
2D786bk0.book Page 12 Thursday, January 18, 2001 8:44 PM

support.dell.com Rack Installation Guide 1-13
Before You Begin
Before you begin installing your system in the rack, carefully read “Safety Instruc-
tions,”found earlier in this guide.
NOTICE: This rack kit is intended to be installed in a Dell rack by trained
service technicians. If you install the kit in any other rack, be sure that the
rack meets the specifications of American National Standards Institute
(ANSI)/Electronic Industries Association (EIA) standard ANSI/EIA-310-D-92,
International Electrotechnical Commission (IEC) 297, and Deutsche Indus-
trie Norm (DIN) 41494. One rack kit is required for each Dell server,
storage system, or appliance that is installed in a rack.
Recommended Tools and Supplies
You need the following tools and supplies to install the system in a four-post rack
cabinet:
•A #2 Phillips screwdriver
•A flat-blade screwdriver
•Masking tape or a felt-tip pen, for use in marking the mounting holes to be used
Installing the Rack Kit
NOTES: If you purchased a Dell rack along with your system, the slide assemblies
may be preinstalled in the rack.
For instructions on installing the system itself, see “Installing the System in the Four-
Post Rack”found later in this guide.
To install the slide assemblies in the rack, perform the following steps:
1. Remove the rack’s front and back doors.
2. Install the slide assemblies in the rack.
The subsections that follow include instructions for performing these tasks.
2D786bk0.book Page 13 Thursday, January 18, 2001 8:44 PM

1-14 Rack Installation Guide
Removing the Doors From the 42-U Rack
CAUTION: To prevent personal injury due to the size and weight of the
doors, never attempt to remove the doors by yourself.
CAUTION: Store the two doors where they will not injure someone if the
doors accidently fall over.
This procedure provides instructions for removing doors from earlier 42-U Dell racks.
If you have a newer Dell PowerEdge 4210 rack, refer to the procedures contained in
the Dell PowerEdge 4210 Rack Installation Guide.
1. Open the latch on the front door (see Figure 1-11).
Slide the button cover up as far as it will go, press the push button, rotate the
handle clockwise until the latch releases, and then pull the door open.
Figure 1-11. Opening the 42-U Rack Door
push button
push-button
cover
handle
2D786bk0.book Page 14 Thursday, January 18, 2001 8:44 PM
