Dell Networking M8024-k User manual

Expansion Modules for Dell Networking
Switches
A Dell Reference Guide
Dell Engineering
November 2013

2 Expansion Modules for Dell Networking Switches
©2013 Dell Inc., All rights reserved.
Except as stated below, no part of this document may be reproduced, distributed or transmitted in any form or by any
means, without express permission of Dell.
You may distribute this document within your company or organization only, without alteration of its contents.
THIS DOCUMENT IS PROVIDED “AS-IS”, AND WITHOUT ANY WARRANTY, EXPRESS OR IMPLIED. IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY DISCLAIMED.
PRODUCT WARRANTIES APPLICABLE TO THE DELL PRODUCTS DESCRIBED IN THIS DOCUMENT MAY BE FOUND
AT: http://www.dell.com/learn/us/en/19/terms-of-sale-commercial-and-public-sector Performance of network
reference architectures discussed in this document may vary with differing deployment conditions, network loads, and
the like. Third party products may be included in reference architectures for the convenience of the reader. Inclusion
of such third party products does not necessarily constitute Dell’s recommendation of those products. Please consult
your Dell representative for additional information.
Trademarks used in this text:
Dell™, the Dell logo, Dell Boomi™, Dell Precision™ ,OptiPlex™, Latitude™, PowerEdge™, PowerVault™,
PowerConnect™, OpenManage™, EqualLogic™, Compellent™, KACE™, FlexAddress™, Force10™ and Vostro™ are
trademarks of Dell Inc. Other Dell trademarks may be used in this document. Cisco Nexus®, Cisco MDS®, Cisco NX-
0S®, and other Cisco Catalyst® are registered trademarks of Cisco System Inc. EMC VNX®, and EMC Unisphere® are
registered trademarks of EMC Corporation. Intel®, Pentium®, Xeon®, Core® and Celeron® are registered trademarks
of Intel Corporation in the U.S. and other countries. AMD®is a registered trademark and AMD Opteron™, AMD
Phenom™ and AMD Sempron™ are trademarks of Advanced Micro Devices, Inc. Microsoft®, Windows®, Windows
Server®, Internet Explorer®, MS-DOS®, Windows Vista® and Active Directory® are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat® and Red Hat® Enterprise
Linux® are registered trademarks of Red Hat, Inc. in the United States and/or other countries. Novell® and SUSE® are
registered trademarks of Novell Inc. in the United States and other countries. Oracle® is a registered trademark of
Oracle Corporation and/or its affiliates. Citrix®, Xen®, XenServer® and XenMotion® are either registered trademarks
or trademarks of Citrix Systems, Inc. in the United States and/or other countries. VMware®, Virtual SMP®, vMotion®,
vCenter® and vSphere® are registered trademarks or trademarks of VMware, Inc. in the United States or other
countries. IBM® is a registered trademark of International Business Machines Corporation. Broadcom® and
NetXtreme® are registered trademarks of Broadcom Corporation. Qlogic is a registered trademark of QLogic
Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and/or names or their products and are the property of their respective owners. Dell disclaims proprietary
interest in the marks and names of others.

3 Expansion Modules for Dell Networking Switches
Revisions
Date
Description
Authors
November
2013
Updated Release v2.2 added N3000, and N4000
Series switches and expansion modules
Tracy Alonzo, Victor Teeter

4 Expansion Modules for Dell Networking Switches
Table of contents
Revisions............................................................................................................................................................................................. 3
Executive Summary .......................................................................................................................................................................... 5
1Introduction................................................................................................................................................................................6
2SFP+ Modules and Optic Requirements................................................................................................................................ 7
3Blade Switches and Corresponding Modules.......................................................................................................................8
3.1 Dell PowerEdge M1000e Blade Chassis .....................................................................................................................8
3.1.1 Dell Networking M8024-k.............................................................................................................................................9
3.1.2 Dell Networking M8024............................................................................................................................................... 10
3.1.3 Dell Networking M6220................................................................................................................................................11
3.1.4 Dell Networking MXL.................................................................................................................................................... 12
3.1.5 Dell Networking M6348............................................................................................................................................... 12
4Rack Switches and Corresponding Modules ...................................................................................................................... 13
4.1 Dell Networking N3000 Series (N3024, N3024F, N3024P, N3048, N3048P) ................................................... 13
4.2 Dell Networking N4000 Series (N4032, N4032F,N4064, N4064P) .................................................................... 14
4.3 Dell Networking 8100 Series (8132, 8132F, 8164, and 8164F).............................................................................. 15
4.4 Dell Networking 7000 Series (7024, 7024P, 7024F, 7048, 7048P, 7048R, and 7048R-RA) ........................... 16
4.5 Dell Networking 62xx Series (6224, 6224P, 6224F, 6248, 6248P)....................................................................... 17

5 Expansion Modules for Dell Networking Switches
Executive Summary
Dell offers several blade and rack-mounted switches that can be upgraded by installing expansion
modules. Using Dell’s FlexIO technology, these modules can be used to increase access ports,
augment upstream bandwidth, extend media forms (10GBase-T, SFP+, QSFP+, CX4, XFP), or add
stacking capabilities.
When possible, Dell allows for a module to be used in multiple devices. You can freely move a module
from one device to another device when supported.
This document identifies each Dell Networking switch and its corresponding set of expansion
modules. In this document, Blade Switches and Corresponding Modules lists and describes modules
for corresponding blade switches that install into a Dell M1000e blade chassis. Rack Switches and
Corresponding Modules lists and describes modules for corresponding rack-mounted switches.

6 Expansion Modules for Dell Networking Switches
1Introduction
Dell has five groups of switches that can use the same modules interchangeably within its group. The
following groups of switches can interchange expansion modules.
Dell Networking M6220, 6224, 6224P, 6224F, 6248, and 6248P
Dell Networking M8024 and M8024-k
Dell Networking 7024, 7024P, 7024F, 7048, 7048P 7048R, and 7048R-RA
Dell Networking 8132, 8132F, 8164, 8164F, N4032, N4032F, N4064, and N4064F and MXL
Dell Networking N3024, N3024F, N3024P, N3048, and N3048P
NOTE: Whenever a module is moved from an MXL to an 81xx/N40xx or vice versa, reload the
switch for proper functioning.
Unless noted, when two bays are available on a device, the same type of modules can be installed in
both bays at the same time, or two different modules can be installed at the same time, one in each
bay. Currently, there are no more than two expansion slots in any of the Dell Networking devices.
Listed below are all possible configurations:
Bays Available
Bay Status
1
empty
1
installed
2
empty, empty
2
empty, installed
2
installed, empty
2
installed, installed
NOTE: Any two modules can be installed, of same or different
types, unless noted otherwise. For example, the stacking modules
for the 62xx and M6220 can only be installed in bay 1.
There are several CX4 expansion modules available for Dell Networking switches. Each CX4 module
listed in the sections below mentions whether it has a clip-style or screw-style connector. Regardless
of the type of connection required, Dell has cables available to complete all CX4 connections. One
such cable includes a CX4 clip-style on one end and a CX4 screw-style on the other, which may be
required when connecting certain devices. Contact your Dell Support Representative for more
information.

7 Expansion Modules for Dell Networking Switches
2SFP+ Modules and Optic Requirements
When selecting optic transceivers or cables for SFP+ modules described in this document, it is
important to understand that while some SFP+ ports accepts both 1G and 10G, not all do. As seen in
the table below, most fixed port SFP+ ports on Dell Networking switches allow both 10G and 1G SFP+
optics; however, the expansion module ports often allow only 10G optics.
Table 1
Port Type /Switch
SFP+ expansion module
ports
SFP+ fixed ports
M6220
1. 10G only
2. n/a
3. M8024
4. 10G only
5. n/a
6. M8024-k
7. 10G only
8. 1G and 10G
9. Force10 MXL
10. 1G and 10G
11. n/a
12. 62XX
13. 10G only
14. n/a
15. 70XX
16. 1G and 10G
17. n/a
18. 81XX
19. 1G and 10G
20. 1G and 10G
21. N30XX
22. 1G and 10G
23. 1G and 10G
24. N40XX
25. 1G and 10G
26. 1G and 10G
Dell Networking switches that do not accept expansion modules are not listed in the table above, even
though they may contain SFP+ fixed ports (e.g. M6348 and 8000 series).

8 Expansion Modules for Dell Networking Switches
3Blade Switches and Corresponding Modules
The sections below describe each blade switch and their corresponding modules.
3.1 Dell PowerEdge M1000e Blade Chassis
The Dell PowerEdge M1000e blade chassis has six slots in the rear allow Dell Networking switches to
be installed. Most of these blade switches also have hardware upgrades of their own in the form of
expansion modules as shown in Figure 1.
.
Figure 1 Example of an Expansion Module for Blade Switch
This section identifies each type of blade switch for the M1000e system and the corresponding
expansion modules. It also provides an overview of each of these modules to help in identifying the
right module for its purpose. A picture of each switch is provided below. Under each switch are
pictures of supported modules, descriptions, and Dell part numbers for identification.

9 Expansion Modules for Dell Networking Switches
3.1.1 Dell Networking M8024-k
12
34
CONSOLE
PowerConnect M8024-k
17
18
19
20
Figure 2 Dell Networking M8024-k Blade Switch (10G Ethernet) and Available Modules
The Dell Networking M8024 and M8024-k switches support the same expansion modules. Fixed SFP+ ports on an
M8024-k can run 10G or 1G optics, but the SFP+ expansion module for the M8024-k can only run 10G optics. This
limitation only applies to the M8024-k SFP+ expansion module and is not prevalent for other devices or modules
(including the M8024).

10 Expansion Modules for Dell Networking Switches
3.1.2 Dell Networking M8024
Figure 3 Dell Networking M8024 Blade Switch (10G Ethernet) and Available Modules
The Dell Networking M8024 and M8024-k switches support the same expansion modules. All three modules can be
installed into either bay on the M8024.

11 Expansion Modules for Dell Networking Switches
3.1.3 Dell Networking M6220

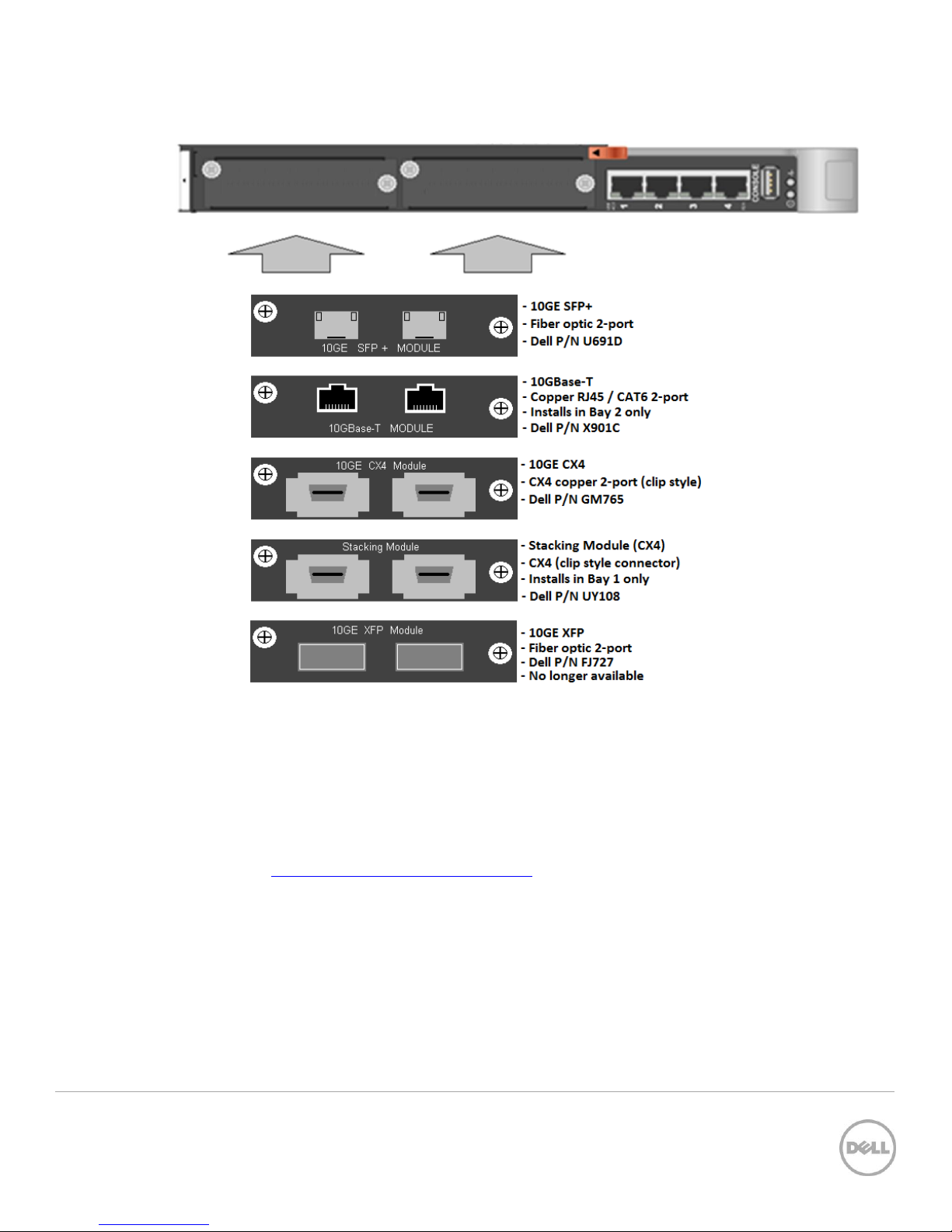

Figure 4 Dell Networking M6220 Blade Switch (1G Ethernet) and Available Modules
The Dell Networking M6220 switch supports the same expansion modules as the Dell Networking 6224, 6224P,
6224F, 6248, and 6248P switches. The stacking module only installs in Bay 1 (left bay). The 10GBase-T module only
installs in Bay 2 (right bay).
Both the stacking module and 10GE CX4 module can be configured for either role (Ethernet or Stacking). By default,
each module functions according to its module ID. Upon changing the role of a module, a reboot is required for the
change to take effect. See the 62xx Command Line Interface Guide for instructions on how to change roles.

12 Expansion Modules for Dell Networking Switches
3.1.4 Dell Networking MXL
Figure 5 Dell Networking MXL Blade Switch (10/40G Ethernet) and Available Modules
The Dell Networking MXL supports the same expansion modules as the Dell Networking N40xx and 81xx series rack
mounted switches. Whenever a module is moved from an N40xx/81xx to an MXL or vice versa, a reload of the switch
is required for proper functioning of the module.
3.1.5 Dell Networking M6348
Figure 6 Dell Networking MXL Blade Switch (10/40G Ethernet) and Available Modules
The Networking M6348 has no expansion slots; therefore, it does not support any module. However, the front panel
provides sixteen 10/100/1000Base-T auto-sensing full-duplex RJ-45 ports, two 10G SFP+ ports, and two 10G CX4
ports. There are also 32 internal 1G ports that connect to the servers in the chassis. The stacking ports on the front
panel allow stacking between M6348 switches as well as between M6348 and Dell Networking 7000 series switches.

13 Expansion Modules for Dell Networking Switches
4Rack Switches and Corresponding Modules
This section identifies each Dell Networking rack-mounted switch that supports expansion modules, lists each
corresponding expansion module, and provides a brief overview of each to help identify the correct module for its
purpose.
A picture of each switch is provided below. Under each switch are pictures of supported modules with descriptions
and Dell part numbers for identification and ordering.
4.1 Dell Networking N3000 Series (N3024, N3024F, N3024P, N3048,
N3048P)
There are five different switch models in the Dell Networking N3000 series, each with one expansion slot located on
the back of the chassis. The following modules are supported:
10BBASE-T module
SFP+ module
Each expansion module has two ports. The modules are hot-swappable, so modules can be installed without
rebooting the switch. The yellow outlines in Figure 7 show the expansion slot for each switch.

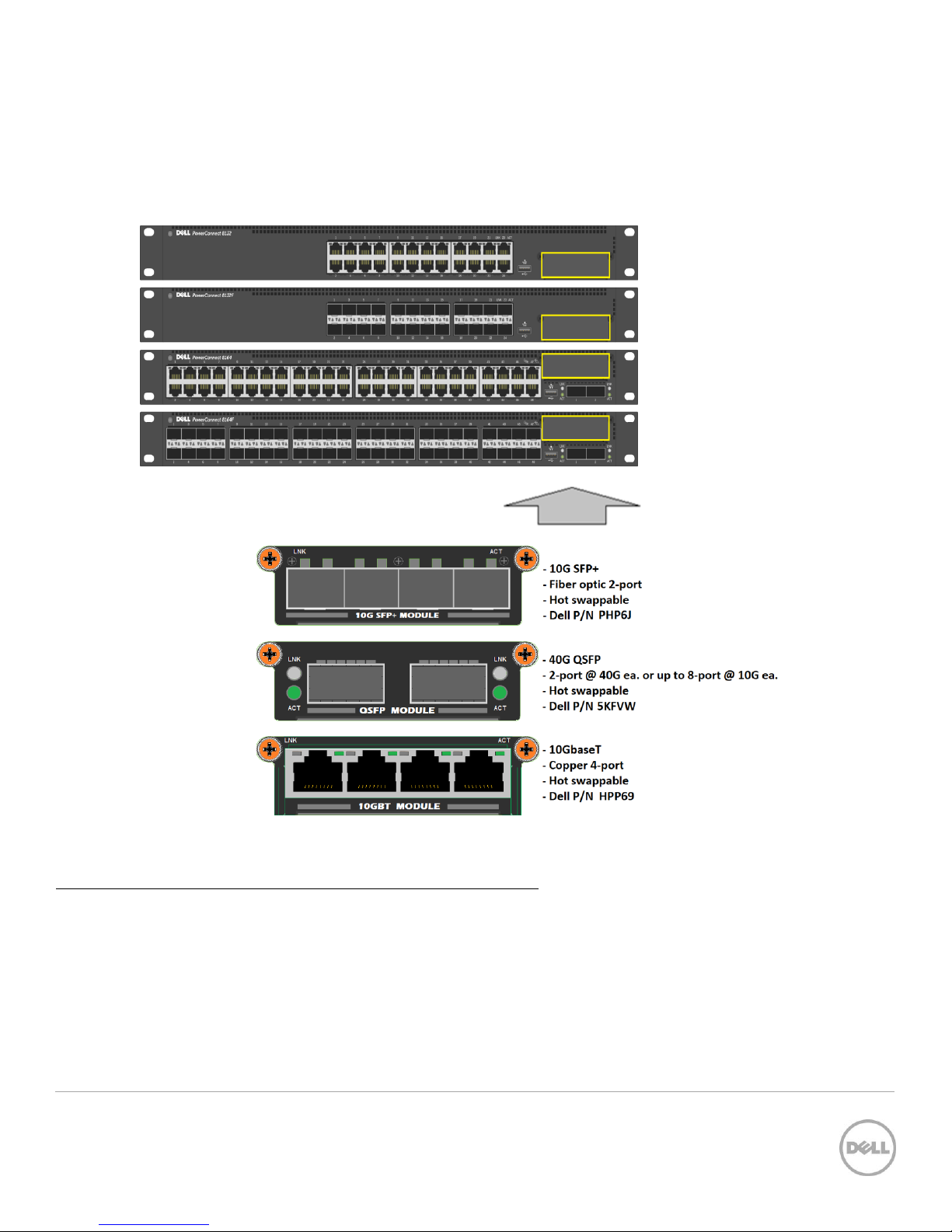

Figure 7 Dell Networking N3000 Series Switch (1G Ethernet) and Available Modules
NOTE: The N2000 series switches (N2024, N2024P, N2048, and N2048P) do not support expansion modules.

14 Expansion Modules for Dell Networking Switches
4.2 Dell Networking N4000 Series (N4032, N4032F,N4064, N4064P)
There are four different switch models in the Dell Networking N4000 series, each with one expansion module located
on the front of the chassis. The following modules are supported:
4 x 10GBASE-T module
4 x SFP+ module
2 x 40G QSFP
The modules are hot-swappable, so modules can be installed without rebooting the switch. The yellow outlines in
Figure 8 show the expansion slot for each switch.
Figure 8 Dell Networking N4000 Series Switch (40/10G Ethernet) and Available Modules
Dell Networking N4000 switches support the same expansion modules as the Dell Networking 81xx and the MXL
modular switch.

15 Expansion Modules for Dell Networking Switches
4.3 Dell Networking 8100 Series (8132, 8132F, 8164, and 8164F)
There are four switch models in the Dell Networking 8100 series, each with one bay on the front of the switch for an
expansion module. The front view of the switch is one of the four shown in the figure below. The yellow outline
shows the bay on each switch.
Figure 9 Dell Networking 8100 Series Switch (40/10G Ethernet) and Available Modules
All three modules may be used for stacking the 8100 series switches. Also, any port on the front of an 8100 may be
used for stacking. Orange screws on the modules above indicate that they are hot-swappable modules. The Dell
Networking 8100 series supports the same expansion modules as the N40xx and Dell Networking MXL. Whenever a
module is moved from an N40xx/MXL to an 8100 or vice versa, a reload of the switch is required for proper
functioning of the module.

16 Expansion Modules for Dell Networking Switches
4.4 Dell Networking 7000 Series (7024, 7024P, 7024F, 7048, 7048P,
7048R, and 7048R-RA)
There are seven different switch models in the Dell Networking 7000 series, each with two bays for expansion
modules. Depending on the model, the rear view of the switch is one of the three shown in Figure 10. The yellow
outlines show the two bays.
Figure 10 Dell Networking 7000 Series Switch (1G Ethernet) and Available Modules
Red lines on these Dell Networking modules indicate that they are hot-swappable modules. The CX4 Stacking
Module for the 7000 series is not capable of changing roles (to Ethernet) as is true for CX4 modules for the
62xx/M62xx. These stacking modules are only used for stacking.

17 Expansion Modules for Dell Networking Switches
4.5 Dell Networking 62xx Series (6224, 6224P, 6224F, 6248, 6248P)
There are five different switch models in the Dell Networking 62xx series, each with two bays for expansion modules.
The rear view of the switch looks similar to the one shown in Figure 11. The yellow outlines show the two bays on the
left end of the switch.
Figure 11 Dell Networking 62xx Series Switch (1G Ethernet) and Available Modules
Dell Networking 6224, 6224P, 6224F, 6248, and 6248P switches support the same expansion modules as the Dell
Networking M6220 modular switch.
The stacking module only installs into Bay 1 (left bay when viewing from the back). The 10GBase-T module only
installs into Bay 2 (right bay when viewing from the back).
Both the stacking module and 10GE CX4 module can be configured to either role (Ethernet or Stacking). By default,
each module functions according to its module ID. Upon changing the role of a module, a reboot is required for the
changes to take effect. See the 62xx Command Line Interface Guide for instructions on how to change roles.
