INSTALLATION and SERVICE INSTRUCTIONS
D 90 G
Professional
COOKER
USE and CARE INSTRUCTIONS
distributed by Industries Ltd
PP
PPAA AARR RREE EEXX XX

2
Dear Customer,
Thank you for having purchased and given your
preference to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of
the features offered by your appliance.
Please keep this booklet in a safe place. It may be
useful in future, either to yourself or to others in the
event that doubts should arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL

3
FIRST TIME USE THE OVEN
It is advised to follow these instructions:
■Clean the interior of the oven with cloth soaked in water and detergent (neutral)
then dry carefully.
■Fit the wire racks as described at chapter “Use and care”.
■Insert shelves and tray.
■Switch on the empty oven on max to eliminate grease tracks from the heating
elements.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental
rules. In particular:
■Never touch the appliance with wet hands or feet;
■do not operate the appliance barefooted;
■do not allow children or other incapable people to use the appliance
without supervision.
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or illogical use of the appliance.

4
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified techni-
cian.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not
be left around within easy reach of children, as these may cause serious injuries.
■Do not attempt to modify the technical characteristics of the appliance as this
may become dangerous to use.
■Do not carry out cleaning or maintenance operations on the appliance without
having previously disconnected it from the electric power supply.
■After use, ensure that the knobs are in off position.
■Do not allow children or other incapable people to use the appliance without
supervision.
■During and after use of the cooker, certain parts will become very hot. Do not
touch hot parts.
■Keep children away from the cooker when it is in use.
■Some appliances are supplied with a protective film on steel and aluminium parts.
This film must be removed before using the appliance.
■Fire risk! Do not store flammable material in the oven, and in the accessory
drawer.
■Make sure that electrical cables connecting other appliances in the proximity of
the cooker cannot come into contact with the hob or become entrapped in the
oven door.
■Do not line the oven walls with aluminium foil. Do not place baking trays or the
drip tray on the base of the oven chamber.
■The manufacturer declines all liability for injury to persons or damage to property
caused by incorrect or improper use of the appliance.
■IMPORTANT NOTE: This appliance shall not be used as a space
heater, expecially if installed in marine craft or caravans.

5
INSTALLATION
CAUTION:
■ This appliance must be installed in accordance with these installation
instructions, local gas fitting regulations, municipal building codes,
water supply regulations, electrical wiring regulations, AS5601 / AG 601
- Gas Installations and ony other relevant statutory regulations.
■ This appliance shall be only be serviced by authorized personnel.
■ This appliance is to be installed only by an authorised person.
■ Incorrect installation, for which the manufacturer accepts no
responsibility, may cause personal injury of damage.
■ Always disconnect the cooker from mains power supply before carrying
out any maintenance operations or repairs.
■ In the room where the cooker is installed, there must be enough air to
allow the gas to burn correctly, according to the current local
regulations.

6
ELECTRICAL REQUIREMENTS
■The appliance must be connected to the mains checking that the voltage
corresponds to the value given in the rating plate and that the electrical
cable sections can withstand the load specified on the plate.
■The plug must be connected to an earthed socket in compliance with safety
standards.
■If the appliance is supplied without plug, fit a standard plug which is
suitable for the power consumed by the appliance.
■The appliance must be connected directly to the mains placing an omnipolar
switch with minimum opening between the contacts of 3 mm between the
appliance and the mains.
■The power supply cable must not touch the hot parts and must be
positioned so that it does not exceed 50°C above ambient.
■Once the appliance has been installed, the switch or socket must always be
accessible.
■ If the power supply cable is damaged it must be substituted by a suitable
cable according to current electrical regulations.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualified
electrician.
He should also check that the socket cable section is suitable for the power drawn by
the appliance.
Replacing the power cord must be done by a qualified electrician in
accordance with the instructions supplied by the manufacturer and in
compliance with established electrical regulations.

7

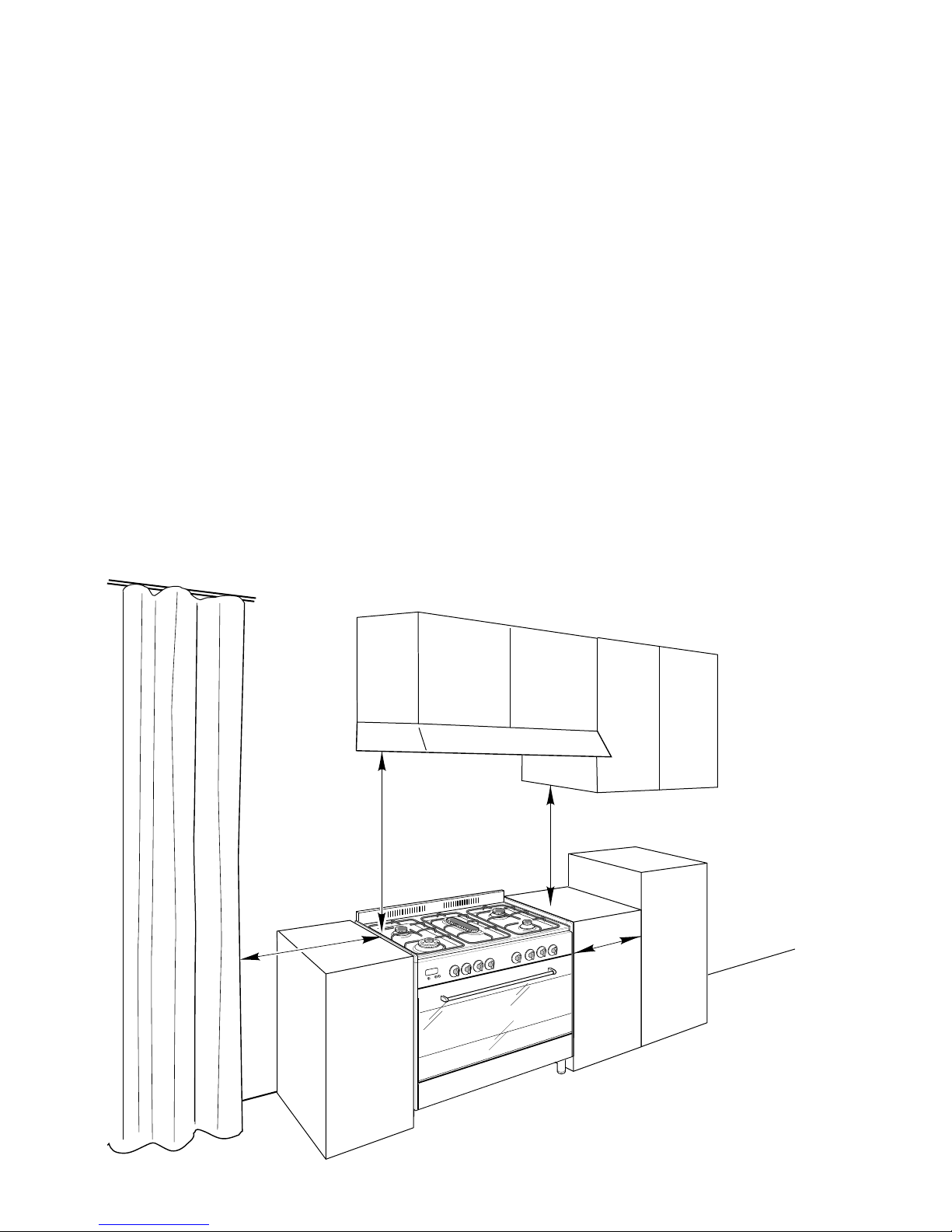

CLEARANCES
Installation clearances and protection of combustible surfaces shall comply with
the requirements of AS5601 / AG 601 - Gas installation.
Installation shall comply with the Dimension in Fig 1 bearing in mind that
Overhead Clearances
In no case shall the clearances between the highest part of the cooker be less
than 600mm or for an ovehead exhaust fan 750mm. AII other downward facing
combustible surfaces less than 600mm above the cooker surface shall be protected
for the full width of the cooking surface in accondance with the standards noted
above. In no case shall the clearance be less than 450mm
Side Clearances
Where the dimensions from the periphery of the nearest burner to any vertical
combustible surface is less than 200mm the surface shall be protected in
accordance with the standards to a height of not less than 150mm above the
cooking surface for the full width or depth of the cooking surface
Protection of combustible surfaces.
The standards above specify that where required protection shall ensure that the
surface temperature of the combustible surface does not exceed 50°C above room
temperature.
Figure 1
450 mm
300 mm
650 mm
500 mm

8
Figure 2
ANTI-TILT BRACKET
Fixing the anti-tilt bracket:
■After you have located where the cooker is to be positioned mark, on the wall, the
place where the 2 screws of the anti-tilt bracket have to be fitted. Please follow the
indications given in the drawing below.
■Make two holes of diameter 8mm diameter on the wall and insert the plastic plugs.
■Attach the anti-tilt bracket loosely by means of 2 screws.
■Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can
engage in one slot of the cooker back.
■Attach the anti-tilt bracket tight.
■Push the cooker against the wall so that the anti-tilt bracket is fully inserted in one slot
of the cooker back.
=
=

9
S
D
B
C

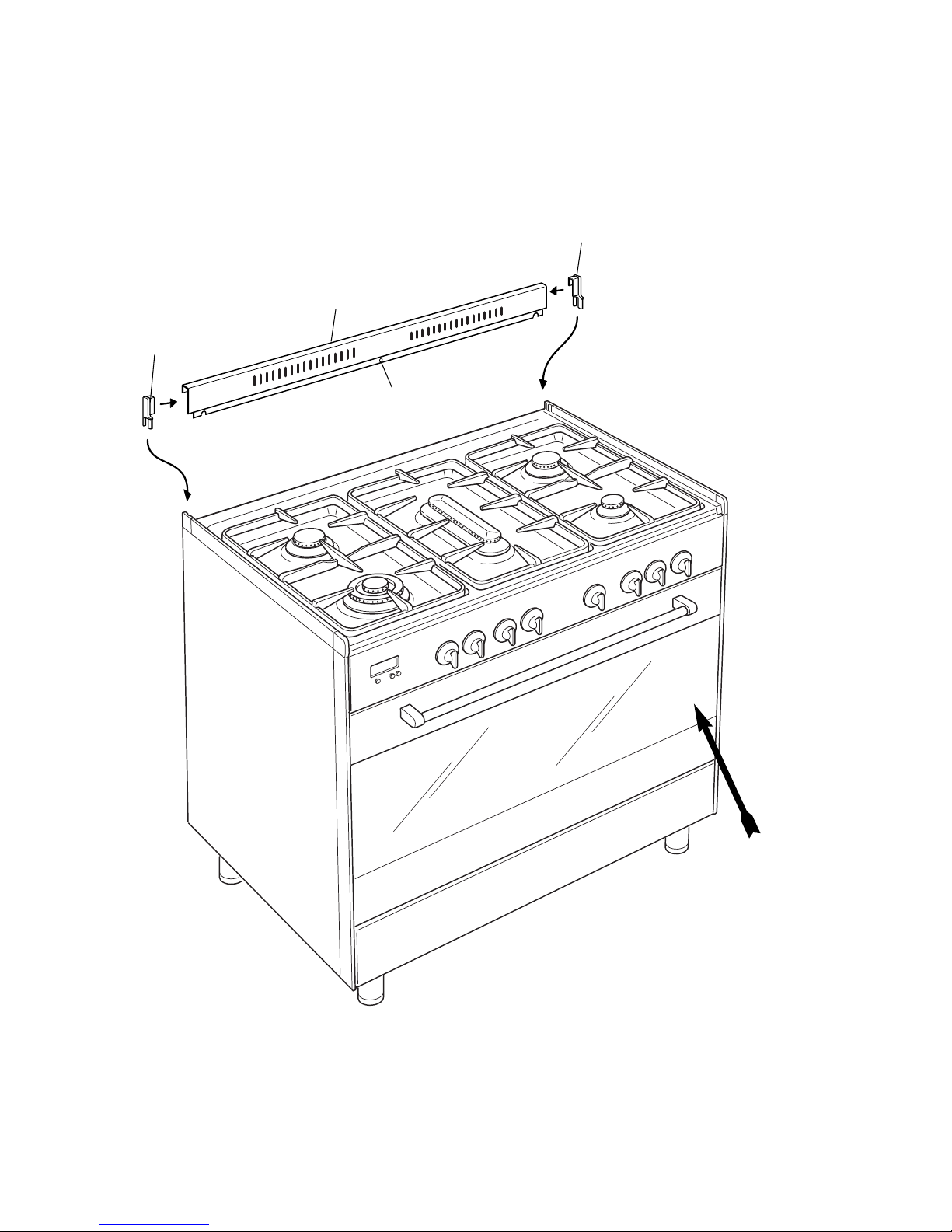

ASSEMBLING THE BACKGUARD
1. Insert the side supports S and D into the backguard B (see fig. 3)
2. Insert the backguard group into the support guides in the cooker
3. The backguard can be removed for cleaning or fixed with a screw through the
hole C.
Identification
label
When you open the
bottom oven door the
indentification label is
at the bottom right
hand side.
Figure 3

USE and CARE
CAUTION:
■This appliance must be used only for the task it has explicitly been designed for,
that is for cooking foodstuffs. Any other form of usage is to be considered as
inappropriate and therefore dangerous.
■Do NOT place combustible materials or products on this appliance at any time.
■Do NOT spray aerosols in the vicinity of this appliance while it is in use.
USING THE OVEN FOR THE FIRST TIME
■Clean the inside of the oven with a cloth soaked in water and neutral detergent
and dry thoroughly.

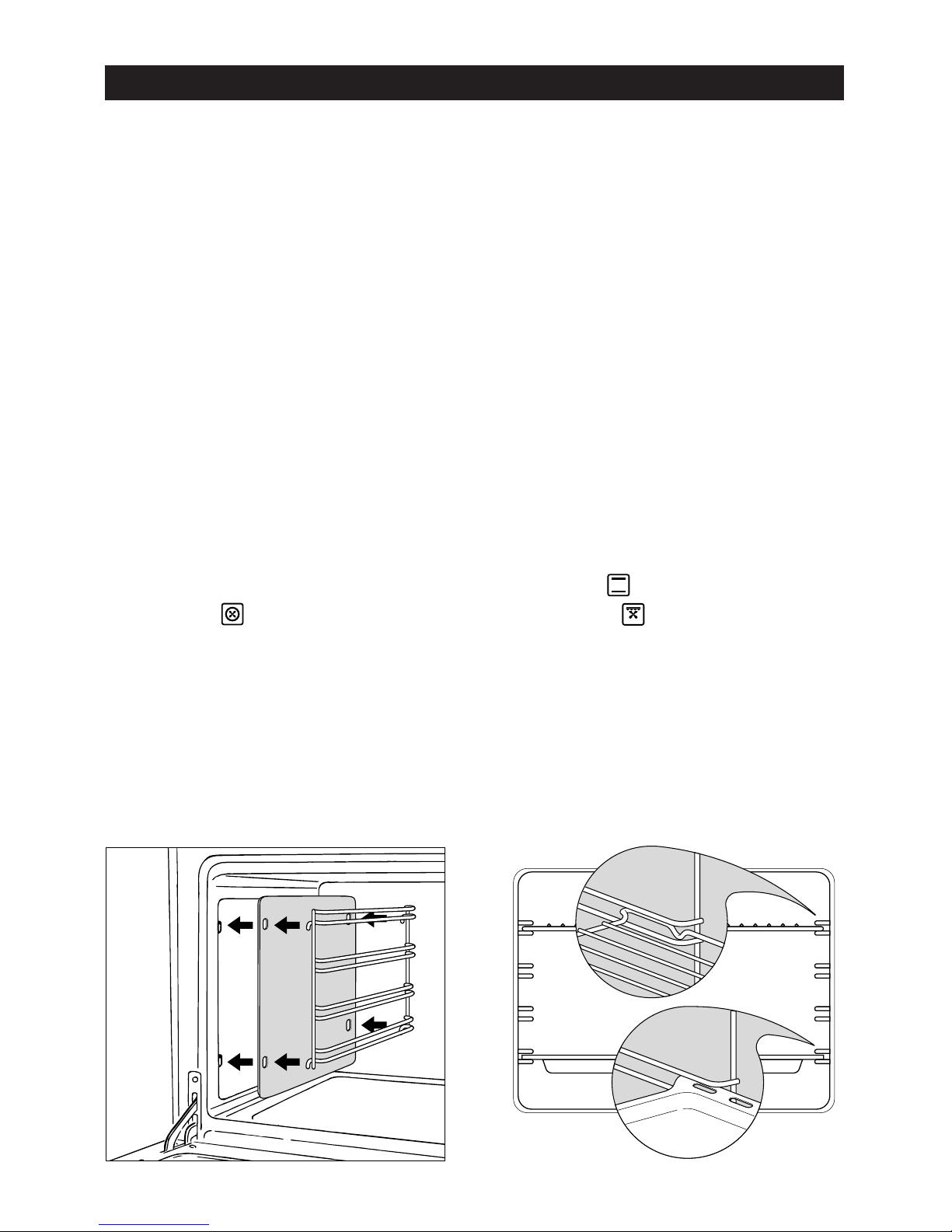

■Slide in the catalytic liners and wire racks on the oven wall as in Fig. 4. Position
the shelf and tray as per Fig. 5.
■To eliminate traces of grease in manifacture it is necessary to pre-heat the oven
at the maximum temperature, for 60 minutes in the position, for 30 minutes
in the position and for another 15 minutes in the position.
Figure 4 Figure 5
10

11
GAS SUPPLY:
■The connection must be executed by an authorised person according to the relevant
standards.
■Before connecting the appliance to the gas main, mount the brass conical adaptor
onto the gas inlet pipe, upon which the gasket has been placed (figures 6-7).
Conical adaptor and gasket are supplied with the appliance (packed with conversion
kit for use with Natural gas or LPG).
■This appliance is suitable for use with Natural Gas or LPG. (Check the “gas type” stick-
er attached to the appliance).
■For Natural Gas models the gas supply is connected to the pressure regulator which
is supplied with the appliance. Adjust the regulator to obtain a test point pressure of
1 kPa with the two largest burners operating.
■For LPG models connect the gas supply directly to the appliance inlet connection and
ensure that the supply pressure is regulated to 2.75 kPa.
■The connection must be made at the rear of appliance (left or right); the pipe do not
cross the cooker.
■The terminal not used must be closed off with the plug and gasket supplied.
■IMPORTANT: To screw the connecting tube operate with 2 spanners (side figure 9).
Gas connection for
LPG
Figure 7
Figure 6
Gas connection for
NATURAL GAS
Gas inlet pipe
Nipple
Gasket
Brass conical adaptor
(Thread tight: use
suitable seal)
Gas inlet pipe
Nipple
Gasket
Brass conical adaptor
(Thread tight: use
suitable seal)
Gas regulator

12
1. After connecting the gas supply, check the piping and connections for leaks using
a soap and water solution. The presence of bubbles indicates a leak, tighten or
replace connections as appropriate.
2. Adjust the test point pressure or supply pressure to the value which is appropriate
for the gas type.
3. The operation of the appliance must be tested before leaving.
4. Turn on the appliance gas controls and light each burner individually and in combi-
nation. Check for a well defined blue flame without any yellow tipping. If any
abnormality is evident then check that the burner cap is located properly and the
injector nipple is aligned correctly.
5. Check the minimum burner setting by quickly rotating the gas control knob from
the maximum to the minimum position, the flame must not go out. If adjustment is
required carry out the “minimum burner setting adjustment" procedure described
6. If satisfacfory performance cannot be obtained isolate the appliance and contact
the local gas authority for advice and assistance.
Plug
Figure 8 Figure 9

B
B
G
V
E
E
D
D
Figure 10
INJECTORS REPLACEMENT
This appliance is suitable for use with natural gas or LPG (check the “gas type” sticker
attached to the appliance). A label stating the type of gas used after replacing the
injectors should replace the existing label. The nominal gas consumption and injector
size details are provided in table at page 18.
To replace the injectors it is necessary to lift the cooktop and proceed as follows:
■Remove the backguard “E” (Fig. 10).
■Remove pan supports and burners from the cooktop.
■Unscrew the two screws “B” and remove the sockets (Fig. 10).
■Unscrew the two screws “C” and remove the two side trims and joints pulling
upwards.
■Pull forwards the hobtop to release it, then lift following arrow “D” (Fig. 10).
■Hold the hobtop open by a support.
■Fully raise the adjusting air tube A (fig. 11) in order to easily reach the injector.
■Using a 7 mm A/F angled spanner, remove the injector from its housing and replace
it one according to the kind of gas (see following tables - page 16).
13

M
J
A
PRIMARY AIR ADJUSTMENT OF THE BURNERS
By operating the screw “M”, reset the air adjuster “A” according to the instructions
see “Injector table”, where the distance between injector and air adjuster is
recommended (in mm).
Before refixing the hob top, set the burners on their sites and light them in order
to check whether the flames are correct, as per the specifications given above.
In case of uncorrect flame, lift or lower the air adjuster.
Figure 11
Flame faulty in Flame correct Flame with excess
primary air primary air
long, yellow and trembling clear interior blue cone short and sharp
too blue interior cone
tending to detach
CAUSE
air regulating tube, correct distance air regulating tube,
too closed of the tube too open
14

MINIMUM BURNER SETTING ADJUSTMENT
In the minimum position the flame must have a length of about 4 mm and must
remain lit even when turned quickly from the maximum position to minimum.
The flame adjustment is done in the following way:
■Turn on the burner
■Tum the tap to the MINIMUM position
■Take off the knob
■With a small flat screwdriver turn the screw “F” (fig. 12) to the correct regulation.
Normally for LPG, the regulation screw is tightened up fully.
Figure 12
F
15

TABLE FOR THE CHOICE OF THE INJECTORS
INCREASE OF AIR NECESSARY FOR GAS COMBUSTION (2 m3/h x kW)
BURNERS Air necessary for combustion [m3/h]
Auxiliary (A) 2,00
Semi-rapid (SR) 3,80
Double ring (DR) 6,90
Fish burner (FB) 7,10
Test Point Pressure [kPa] Natural gas Propane
1,0 2,75
BURNER
Auxiliary (A) 0,9 0,25 0,83 1 0,5 3
Semi-rapid (SR) 1,7 0,44 1,15 4 0,67 6
Double ring (DR) 3,4 0,85 1,6 15
0,92 Fully open
Fish burner (FB)
N = 2,8
0,85 1,42 15 0,90 Fully open
LPG = 3,06
Primary air
shutter
opening
[mm]
Nominal
Power
kW
Injector
Orifice Dia.
mm
Reduced
power
kW
Primary air
shutter
opening
[mm]
Injector
Orifice Dia.
mm
LUBRICATION OF THE GAS TAPS
If the gas tap becomes stiff, it is necessary to dismantle it carefully and clean it with petroleum
spirit. Specialist high temperature resistant grease should be used to lubricate the tap before
replacing.
The operations must be carried out by an authorised person.
16

GAS BURNERS Natural Gas Propane
Mj/hr Mj/hr
1. Double ring burner (DR) 12,2 10,8
2. Semi-rapid burner (SR) 6,1 5,6
3. Fish-burner (FB) 10,1 11,0
4. Semi-rapid burner (SR) 6,1 5,6
5. Auxiliary burner (A) 3,0 3,1
Figure 13
GAS HOB
23 4
5
1
17

Figure 14
LIGHTING GAS BURNERS
FITTED WITH SAFETY VALVE DEVICE AND ELECTRONIC IGNITION
■Check that the electricity is
switched on to allow spark igni-
tion.
■Make sure that all controls are
turned to zero.
■The gas flow to the burner is
controlled by a taps with safety
valve device. If the burner flame
should go out for some reason,
the safety valve will automatically
stop the gas flow. The switch of
the electric ignition is incorporat-
ed in the knobs.
■You control the flow by turning the knob indicator to line up with the following
symbols:
– Symbol ●: tap closed
(burner off)
– Symbol : High (maximum)
– Symbol : Low (minimum)
■To ignite automatically, simply push the required knob down and turn it to maxi-
mum, keep the knob down until the burner lights. When the flame is lit, wait
for about ten second with the knob down (safety valve activation delay).
■You can control the temperature by the knob to “full on” from “reduced rate”.
■To switch off, turn the knob clockwise until you hear the safety click.
■Note that, if you are using a burner at the minimum setting, you turn the knob
clockwise past the maximum setting before reaching the off position.
■Whenever the lighting of the burners will result difficult due to peculiar condi-
tions. If when lighting any of the burners an anormal flame appears, switch
that the burner off and relight using the minimum setting.
■If the flame is still different from normal, turn the burner off and consult your
DeLonghi service agent.
■In the case of a mains failure light the burner with a match or lighted taper.
18

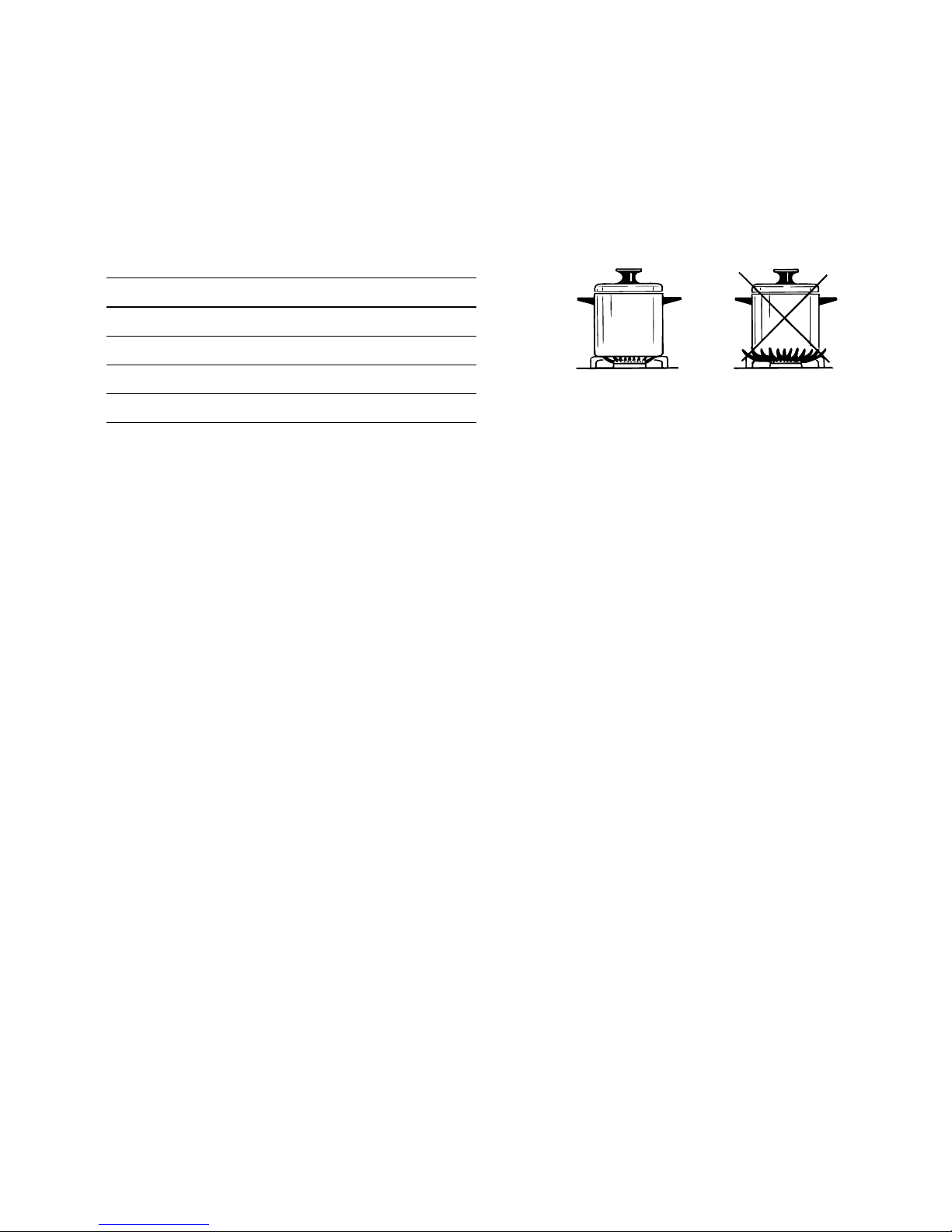

CHOICE OF BURNER
Burners Pan diameter
Auxiliary 16 cm
Semi-rapid 16 to 22 cm
Double ring up to 30 cm
Fish-burner from 12x30 to 18x40 cm
Wok max 36 cm
The burner must be chosen according to the diameter of the pans and energy
required.
Saucepans with handles which are excessively heavy, in relationship to the weight
of the pan, are safer as they are less likely to tip.
Pans which are positioned centrally on burners are more stable than those which
are offset.
It is far safer to position the pan handles in such a way that they cannot be
accidentally knocked.
When deep fat frying fill the pan only one third full of oil.
DO NOT cover the pan with a lid and DO NOT leave the pan unattended.
In the unfortunate event of a fire, leave the pan where it is and turn off all
controls.
Place a damp cloth or correct fitting lid over the pan to smother the flames.
DO NOT use water on the fire.
Leave the pan to cool for at least 30 minutes.
Figure 15
19

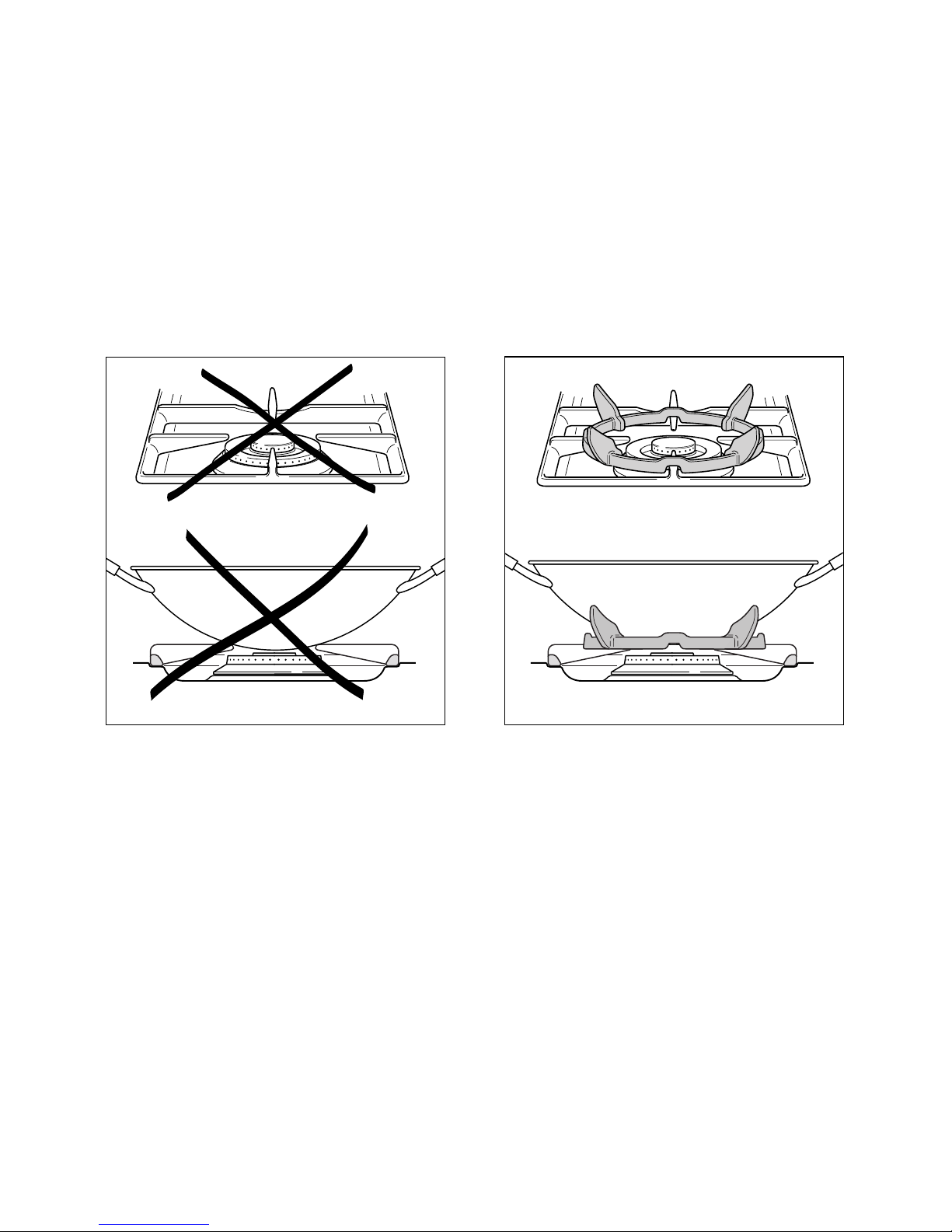

CORRECT USE OF DOUBLE-RING BURNER
■The flat-bottomed pans are to be placed directly onto the pan-support.
■To use the WOK you need to place the proper stand in order to avoid any faulty
operation of the wok burner.
Figure 16 Figure 17
WRONG CORRECT
20
