INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS

CAUTION:
<In order to avoid a hazard this appliance must be installed according to
these instructions for installation.
WARNING:
<This appliance is to be installed only by an authorised person.
<This appliance must be used only for the task it has explicitly been designed
for, that is for cooking foodstuffs.Any other form of usage is to be considered as
inappropriate and therefore dangerous.
<Do NOT place combustible materials or products on this appliance at any time.
<Do NOT spray aerosols in the vicinity of this appliance while it is in use.
TECHNICAL INFORMATIONS:
DIMENSIONS (Table 2):
(Note: Also refer to Figure 1 side)
Use and Care
INSTALLATION
2
General Dimensions
Width
Depth
575 mm
Cut-out Dimensions
Depth Below Mounting Surface
Width
Depth
505 mm
52 mm
560 mm
490 mm
Triple circuit hotplate 145 1200-1300 W nr. 2
Triple circuit hotplate 180 1700-1850 W nr. 1
Triple circuit hotplate 195 1900-2050 W nr. 1
Hotplate and residual heat indicator
“ON” indicator light
Glass overheat cut-out device nr. 1
Voltage 230-240 V~ / 400-415 V 3N~ 50 Hz
Maximum absorbed power 6000 - 6500 W
nr. 1
nr. 4

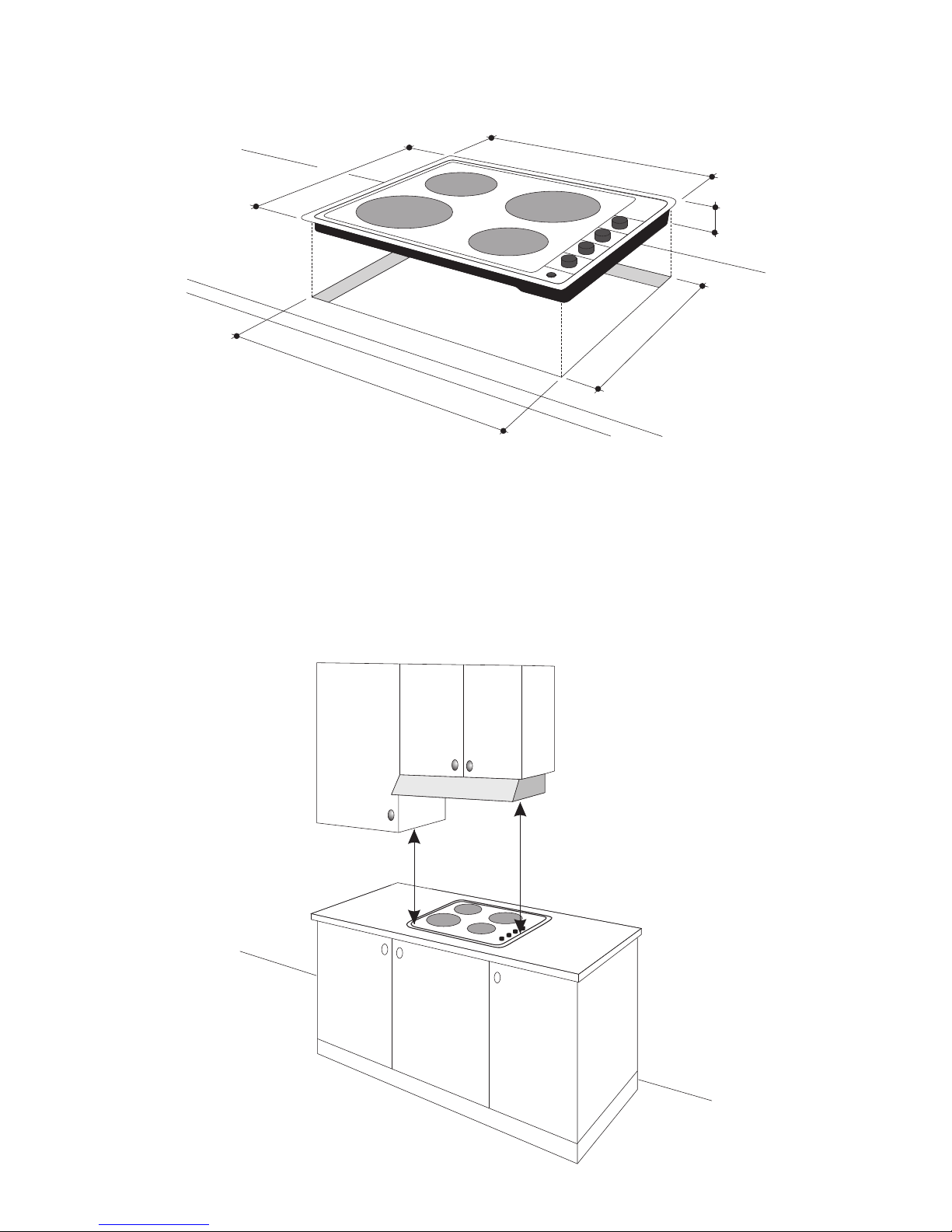

Figure 1
CLEARANCES:
Installation clearances and protection of combustible surfaces shall comply with
page 4.
Figure 2
3
575
505
52
560
490
450 mm
750 mm

The installation shall comply with the dimensions in Figures 1 and 2, bearing in
mind that:
<A minimum clearance of 40 mm has to be kept between the bottom of the
cooking hob and the top af an appliance or a thermal barrier (see next
page).
<Overhead clearances - In no case shall the clearances between the
highest part of the hob and a range hood be less than 600 mm, or for an
overhead axhaust fan, 750 mm. Any other downward facing combustible
surface less than 600 mm above the highest part of the hob shall be
protected for the full width and depth of the cooking surface area.
However, in no case shall this clearance to any surface be less than
450 mm.
<Side clearances - Where the dimension from the periphery of the nearest
hotplate to any vertical combustible surface is less than 200 mm, the
surface shall be protected to a height of not less than 150 mm above the
hob for the full dimension (width or depth) of the cooking surface area.
<Protection of combustible surfaces - The required protection shall
ensure that the surface temperature of the combustible surface does not
exceed 50°C above ambient. The fixing of 5 mm tick ceramic tiles to the
surface or attaching fire resistant material to the surface and covering with
sheet metal with minimum tickness of 0,4 mm would satisfy this
requirement.
CAUTION :
The underside surface of the cooking hob can reach a temperture exceeding
105°C during normal use.
If after installation the underside surface is accessible throught under-bench
cupboard doors and the like, it is essential that a rigid barrier is installed so
that such access is restricted. In order to avoid a hazard the barrier must be
of low thermal conductivity material installed according to the instructions
for installation.
Use and CareUse and Care
4

THERMAL BARRIER INSTALLATION :
WARNING:
<If the hob is installed over drawers or cupboards, a thermal
protection barrier must be fitted at least 40 mm beneath the base of
the hob (see Figure 3).
Note:
<Above not applicable if hob is mounted directly above an oven.
<For access to the hob for servicing or installation, ensure that the barrier
can be removed from beneath by the use of a tool.
<A gap of 20 mm may be allowed at rear for electrical connection and
ventilation

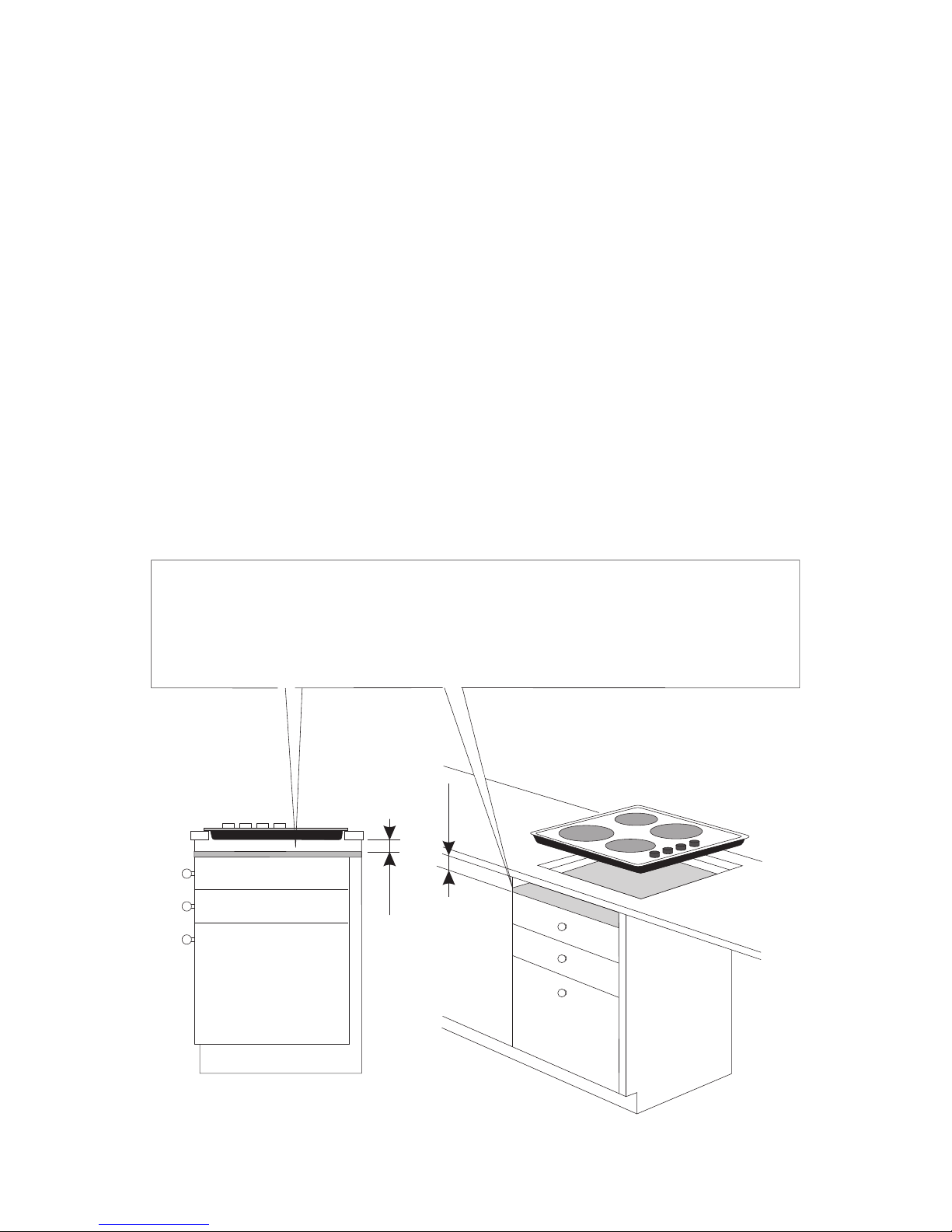

Figure 3
5
THERMAL PROTECTION BARRIER (min 15 mm thick)
Fitted the full lenghts of the hob below the workbench and must be
removable with the use of a tool for installation and service.
40 mm40 mm
40 mm40 mm

INSTALLATION :
<Apply the adhesive seal around the edge of the hob ensuring that the ends
do not overlap or leave a space (Figure 4).
<Slot in the cooking hob into the cut out of the workbench and locate it
correctly.
<Adjust the clamps according to the worktop tickness (30 or 40 mm - see
Figure 5) and tighten the fixing screws until the hob is firmly secured.
<Using a sharp tool, trim any excess gasket which protrudes from the edge
of the hob.
Figure 4
Figure 5
6
Adhesive
side
3 cm
4 cm
min
4 cm
4 cm
min

ELECTRICAL REQUIREMENTS :
WARNING :
<THIS APPLIANCE MUST BE EARTHED.
<In order to avoid a hazard this appliance must be installed according to
these instructions for installation.
CAUTION :
<Ensure that the power outlet is properly earthed before connecting the
appliance.
<Disconnect power before servicing the appliance.
A double pole switch must be provide do not further than 2 metres from the
appliance to the electrical supply.All supply current and earth conductors must be
able to withstand an ambient temperature of 75°C.
The wires in the power cable must be coloured in accordance with the following
code :
Green/Yellow = Earth, Blue = Neutral, Brown =Active or Live.
FEEDER CABLE SECTION
2
230-240 V ~ 3 x 4 mm (*)
2
230-240 V 3 ~ 4 x 2,50 mm (*)
2
400-415 V 3N~ 5 x 1,50 mm (*)
(*) - Connection with wall box
Figure 6
7
1 2 4
35
N (L2)
L1E
230-240 V~
1 2 4
35
L3
L1E
230-240 V 3~
L2
1 2 4
35
L3
L1E
400-415 V 3 N~
L2N

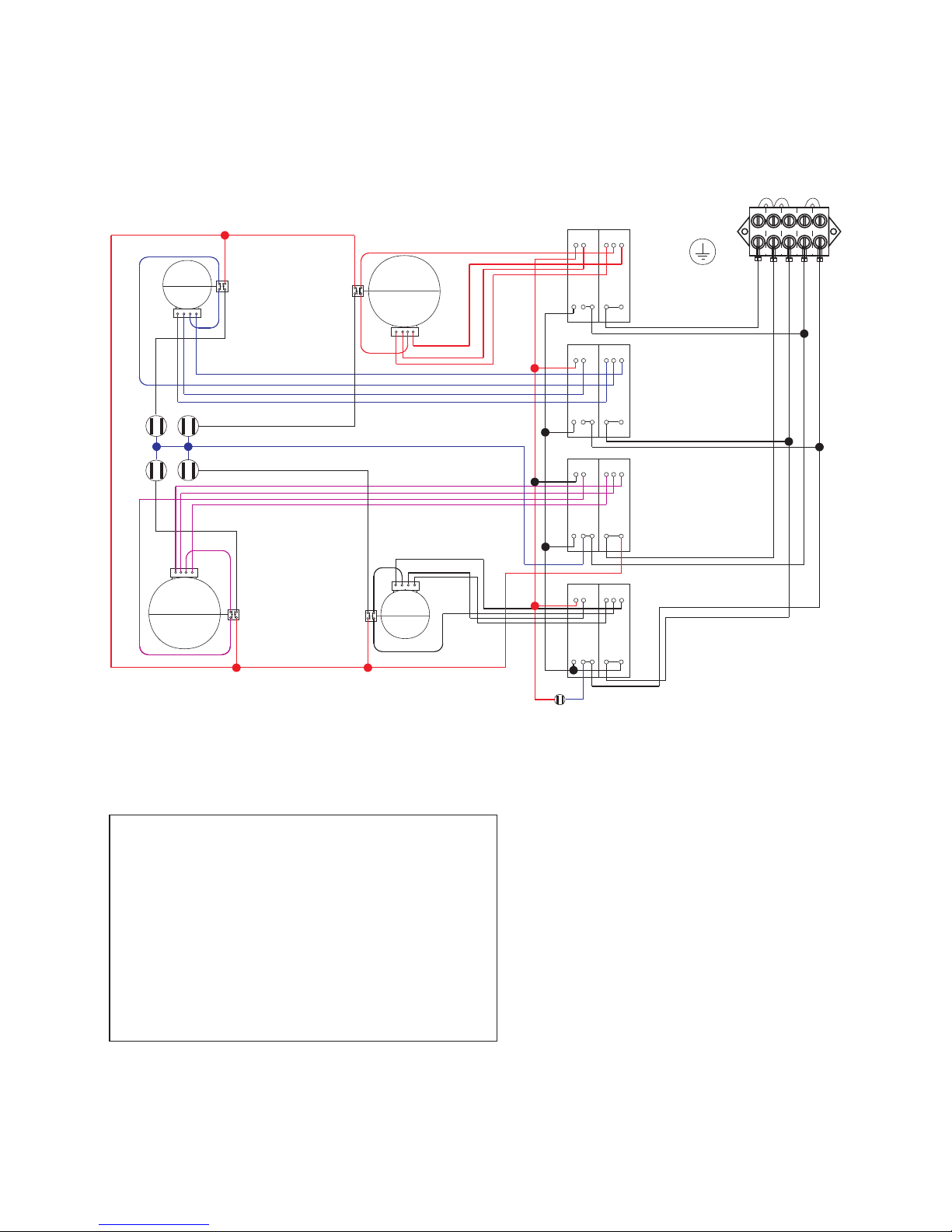

ELECTRIC DIAGRAM
8
P2
P3 P2 P1
P2
P3 P2 P1
543
543
P2
P3
5
P2
4
P1
3
P2
5
P3 P2
4
P1
3
P1
P1
21
21
P1
2 1
T0
P1
2 1
M
P3
GS
S
P4
P2 P1
F4
F3
F2
F1
ELECTRIC DIAGRAM KEY
F1\F4 Electric plates changers
P1 Electric plate 1900W-3C-230V
P2 Electric plate 1200W-3C-230V
P3 Electric plate 1700W-3C-230V
P4 Electric plate 1200W-3C-230V
S Pilot lamp
M Terminal block
GS Residual heat lamps

CAUTION :
<This appliance must be used for the task it has explicitly been designed for,
that is for cooking foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
<The appliance is not intended for use by young children or infirm persons
without supervision.
<Young children should be supervised to ensure that they do not play with
the appliance.
<Do NOT place combustible materials or products on this appliance at any
time.
<Do NOT spray aerosols in the vicinity of this appliance while it is in use.
<Before using for the first time, clean the cooktop with warm soapy water.
We recommend that you run each plate individually for several minutes. To
do this, place a saucepan of cold water on each plate in turn, and bring the
water to the boil. This should give enough time for the plates to burn off
properly. During this procedure the room should be well ventilated, as
there may be an emission of smoke and a slight odour.
<WARNING: If the surface of the ceramic cooktop is cracked, switch
off the appliance to avoid the possibility of electric shock.
9
Use and Care
USE and CARE
Operates right rear plate
Operates left rear plate
Operates left front plate
Operates right front plate
On/off warning led
4 Residual heat warning led
Figure 7

TRIPLE CIRCUIT HOTPLATES:
<Each hotplate is comprised of three elements which can be controlled
either separately or together using the 7 position switches. The three
elements can be seen in the figure 8.
<The temperature control knobs must be turned anti clockwise. When a
plate is on, the light next to the control knob will be lit.
<When the temperature of any plate is over 60°C the residual heat warning
led at the front of the hob will light up.
<This led will stay on even after the hob has been switched of to show that
the hob surface is still hot.
<This led will automatically switch off when the surface temperature falls
below 60°C.
Figure 8
10
