DeLonghi LGHW60 Quick guide

INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
distributed by
DèLonghi
Pty Ltd
COOKTOP
LGHW60
LGHS60
DGHS60

2
Dear Customer,
Thank you for having purchased and given your
preference to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of
the features offered by your appliance.
Please keep this booklet in a safe place. It may be
useful in future, either to yourself or to others in the
event that doubts should arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL

3
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental
rules. In particular:
■Never touch the appliance with wet hands or feet;
■do not operate the appliance barefooted;
■do not allow children or other incapable people to use the appliance
without supervision.
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or illogical use of the appliance.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified
technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should
not be left around within easy reach of children, as these may cause serious injuries.
■Do not attempt to modify the technical characteristics of the appliance as
this may become dangerous to use.
■Do not carry out cleaning or maintenance operations on the appliance
without having previously disconnected it from the electric power supply.
■After use, ensure that the knobs are in off position.
■Do not allow children or other incapable people to use the appliance
without supervision.
■During and after use of the hob, certain parts will become very hot. Do not
touch hot parts.
■Keep children away from the cooker when it is in use.
■Some appliances are supplied with a protective film on steel and aluminium
parts. This film must be removed before using the appliance.
■The manufacturer declines all liability for injury to persons or damage to
property caused by incorrect or improper use of the appliance.

4
580
550
100
min
500
470 35 min.

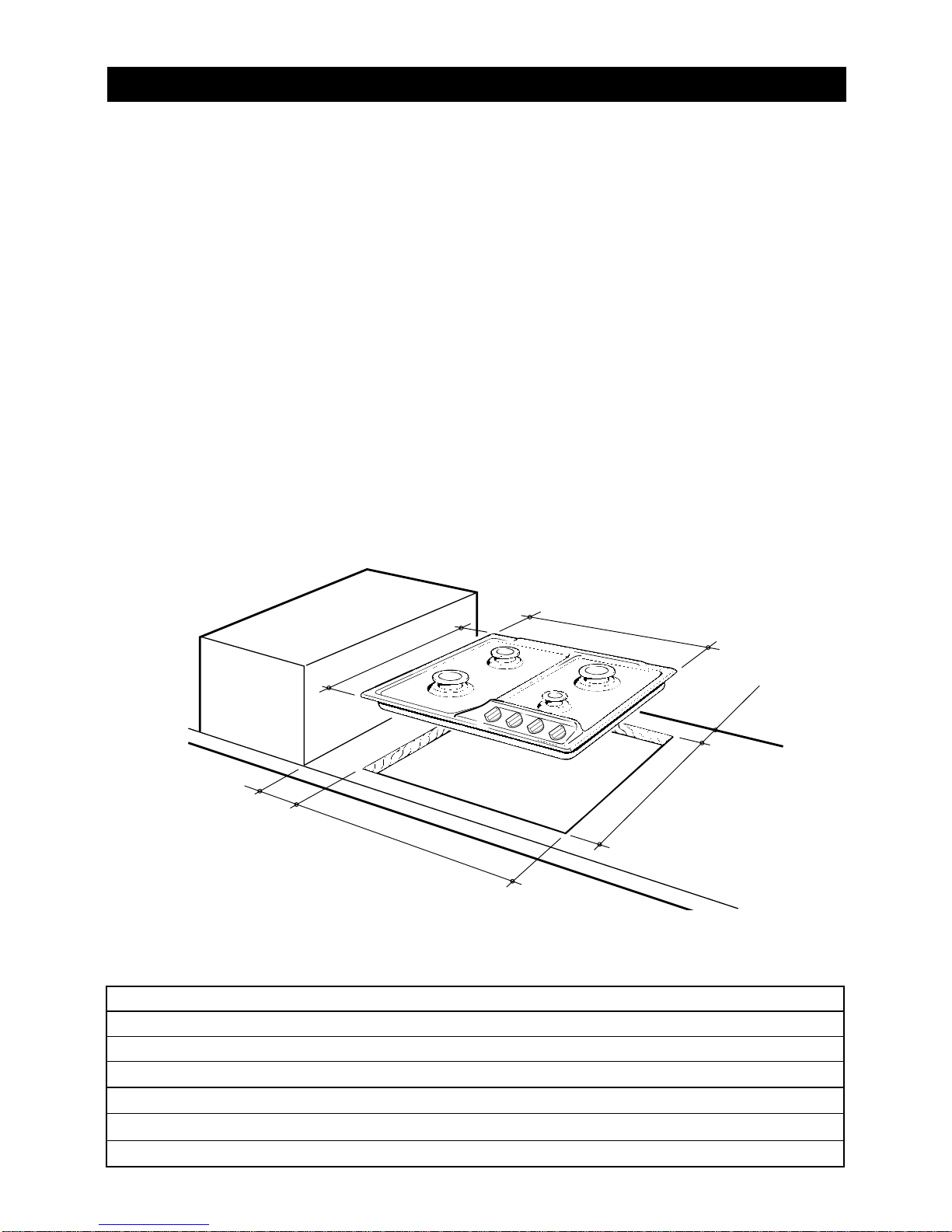

Figure 1
DIMENSIONS (Table 2):
(Note: Also refer to Figure 1 side)
General Dimensions
Width 580 mm
Depth 500 mm
Depth Below Mounting Surface 30 mm
Cut-out Dimensions
Width 550 mm
Depth 470 mm
INSTALLATION
CAUTION:
■ This appliance must be installed in accordance with these installation
instructions, local gas fitting regulations, municipal building codes, water
supply regulations, electrical wiring regulations, AS5601 / AG 601 - Gas
Installations and ony other relevant statutory regulations.
■ This appliance shall only be serviced by authorized personnel.
■ This appliance is to be installed only by an authorised person.
■ Incorrect installation, for which the manufacturer accepts no responsibility,
may cause personal injury of damage.
■ Always disconnect the cooker from mains power supply before carrying
out any maintenance operations or repairs.
■ In the room where the cooker is installed, there must be enough air to
allow the gas to burn correctly, according to the current local regulations.

5
750 mm
35 mm min
100 mm min
500 mm
450 mm
Figure 2

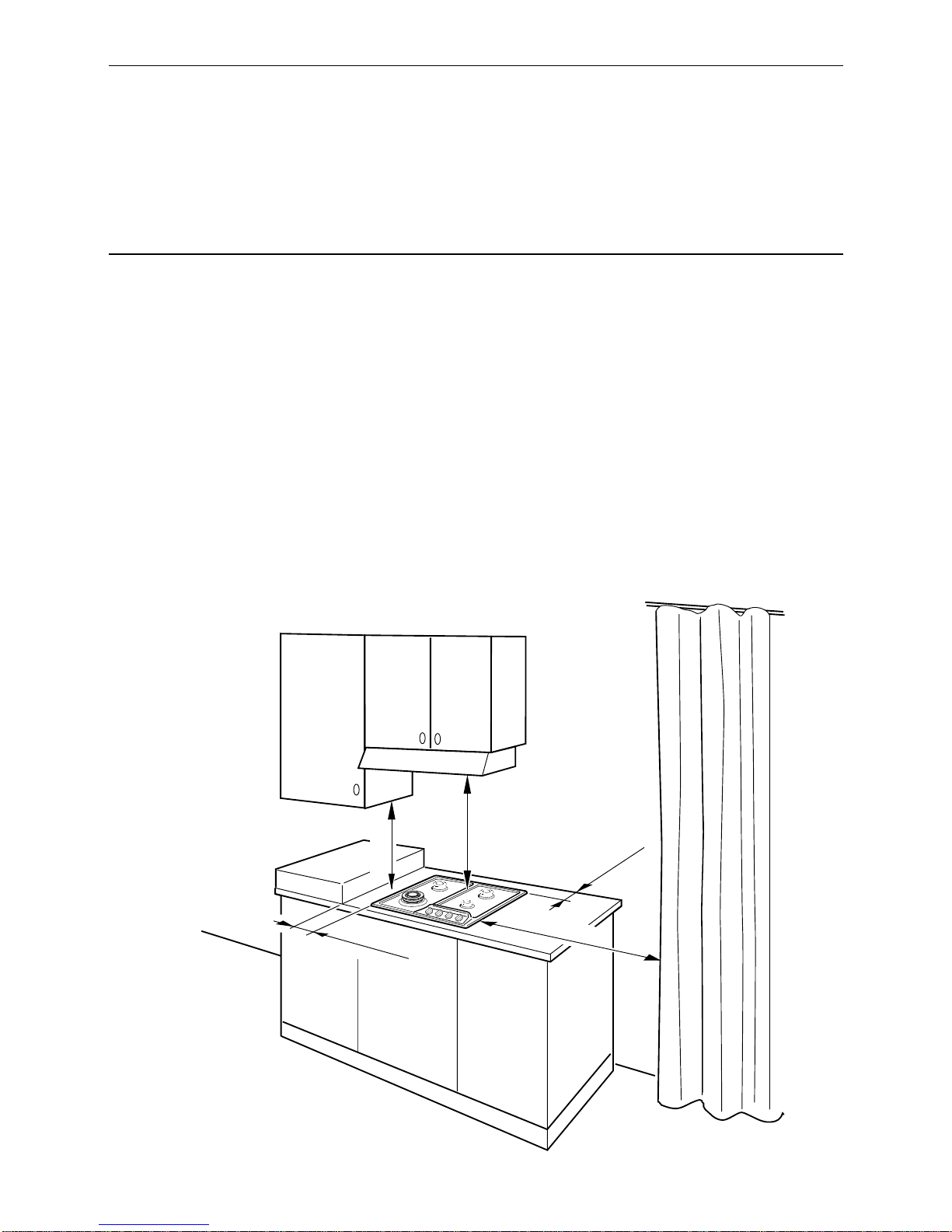

CLEARANCES:
Installation clearances and protection of combustible surfaces shall comply with the
current local regulations e.g. AG 601 (AS 5601) - Gas Installations code.
This cooktop has been designed and constructed in accordance with the following
codes and specifications:
AGA101 (AS 4551) Approval Requirements for Domestic Gas cooking appliances
AS/NZS 3350-1 General Requirements for Domestic electrical appliances
AS/NSZ 3350-2-6 Particular Requirements for Domestic electrical cooking appliances
AS/NSZ 1044 Electromagnetic Compatibility Requirements.

6
The installation shall comply with the dimensions in Figures 1 and 2, bearing in mind
that:
■A minimum clearance of 20 mm has to be kept between the bottom of the
cooking hob and the top of an appliance or a shelf. To ensure this clearance
mount the spacers, supplied with the appliance, as shown in the figure below.
■A partition between the base of the hob and the cupboard below should be
fitted 100 mm below the workbench surface if the cupboard is to be used
for storage.
■Overhead clearances - In no case shall the clearance between the highest
part of the hob and a range hood be less than 600 mm, or for an overhead
exhaust fan, 750 mm. Any other downward facing combustible surface less
than 600 mm above the highest part of the hob shall be protected for the full
width and depth of the cooking surface area in accordance with local regula-
tions in force. However, in no case shall this clearance to any surface be less
than 450 mm.
■Side clearances - Where the dimension from the periphery of the nearest
burner to any vertical combustible surface is less than 200 mm, the surface shall
be protected in accordance with with local regulations in force to a height of
not less than 150 mm above the hob for the full dimension (width or depth) of
the cooking surface area.
Where the dimensions from the periphery of the nearest burner to any vertical
combustible surface is less than 200mm, the horizontal surface shall be greater
than 10mm below the surface of the hob, or the horizontal surface require-
ment above.
■Protection of combustible surfaces - Local regulations in force specify that
where required protection shall ensure that the surface temperature of the com-
bustible surface does not exceed 65 °C above ambient. The fixing of 5 mm
thick ceramic tiles to the surface or attaching fire resistant material to the surface
and covering with sheet metal with minimum thickness of 0.4mm should be
satisfactory.
Figure 3
20 mm

7
INSTALLATION (Refer to Figure 4):
1. Spread out the gasket “C” over the workbench at the edge of the cut out tak-
ing care to overlap the gasket at the corners.
2. Slot in the cooking hob into the cut out of the workbench and locate it cor-
rectly.
3. Adjust the clamps “A” and tighten the screws “B” until the hob is firmly secured.
4. Using a sharp tool, trim any excess gasket which protrudes from the edge of
the hob.
Figure 4
20 mm min. 40 mm max.
B
C
A

8
GAS SUPPLY:
■This appliance is suitable for use with Natural Gas or Propane gas. (Check the “gas
type” sticker attached to the appliance).
■For Natural Gas the gas supply must be regulated to obtain a pressure of 1 kPa with
the two semi-rapid (SR) burners operating.
■For Propane gas models connect the gas supply directly to the appliance test point
adaptor (supplied with the conversion kit) and ensure that the supply pressure is reg-
ulated to 2.75 kPa.
■Do NOT force the ”elbow“ rotation prior to loosening nut.
■Do NOT over tighten the nut at the ”elbow“.
Figure 5b
Figure 5a

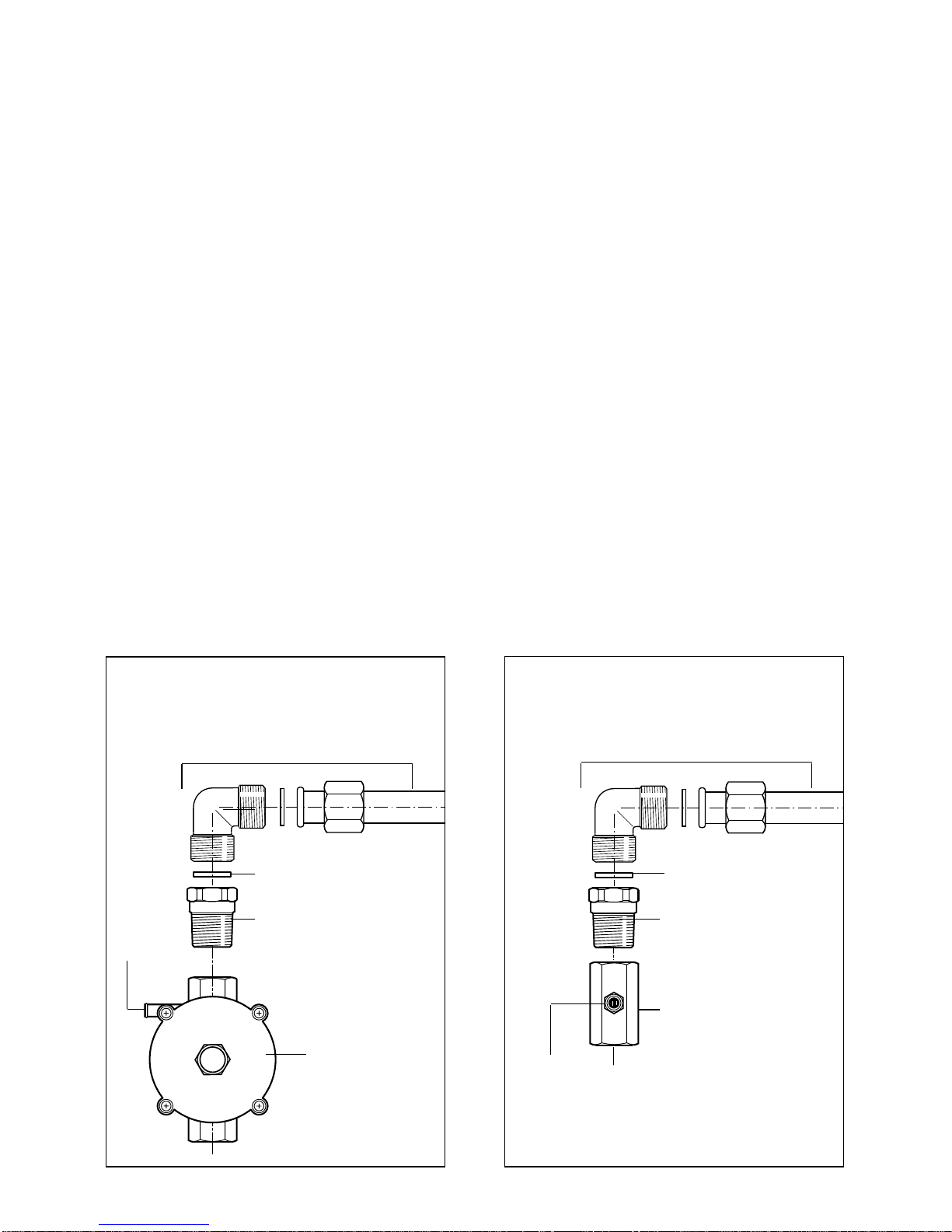

Gas connection for
PROPANE GAS
Test point adaptor
Gasket
Brass conical adaptor
(Thread tight: use
suitable seal)
Gas inlet pipe
Test
point
Gas connection for
NATURAL GAS
Gas inlet pipe
Gasket
Brass conical adaptor
(Thread tight: use
suitable seal)
Gas regulator
Test
point
1. After connecting the gas supply, check the piping and connections for leaks using a
soap and water solution. The presence of bubbles indicates a leak, tighten or
replace connections as appropriate.
Warning: Do not use any naked flame to check for leaks.
2. The operation of the appliance MUST be tested before leaving.
3. Adjust the test point pressure or supply pressure to the value which is appropriate
for the gas type.
4. Turn on the appliance gas controls and light each burner. Check for a well defined
blue flame without any yellow tipping. If any abnormality is evident then check that
the burner cap is located properly and the injector nipple is aligned correctly.

9
TABLE FOR THE CHOICE OF THE INJECTORS
Natural gas Propane gas
Test Point Pressure [kPa] 1.0 2.75
BURNER
Auxiliary (A) 0.85 3.6 0.53 3.6
Medium-speed burner (SR) 1.12 6.3 0.70 6.3
Triple-ring burner (TR) 1.55 11.9 0.94 11.9
Gas
Consumption
[MJ/h]
Injector
Orifice Dia.
[mm]
Gas
Consumption
[MJ/h]
Injector
Orifice Dia.
[mm]
5. Check the minimum burner setting by quickly rotating the gas control knob from
the maximum to the minimum position, the flame must not go out. If adjustment is
required carry out the “minimum burner setting adjustment" procedure described
below.
6. If satisfactory performance cannot be obtained, the installer shall check the installa-
tion and notify the local gas supply authority for a gas supply problem, or if it is an
appliance problem, our Customer Service Centre should be called to obtain the
nearest authorized Delonghi Service Agent.
7. Where the appliance data plate cannot be easily read with the appliance in the
installed position the duplicate data plate must be attached to adjacent surface and
the duplicate Propane Gas conversion label should also be included where a
Propane Gas conversion has been completed.
■If this appliance has to be installed with a hose assembly, the installer shall
refer to the network operator or gas supplòier for confirmation of the gas type,
if in doubt.
INSTALLATION WITH A FLEXIBLE HOSE ASSEMBLY
■The gas supply connection point shall be accessible when the appliance is
installed.
■Installation with a flexible hose assembly shall be carried out by using a hose
with internal diameter of 16 mm minimum.
The thread connection shall be Rp 1/2" (ISO 7-1) male.
■IMPORTANT WARNING: After connection the installer must check that the hose
is not kinked, subjected to abrasion or permanently deformed.
The installer must check also that the hose is not near (or in contact) with any
hot surfaces e.g. base of metal hotplate, underbench oven etc.
■The hose assembly shall be as short as practicable and comply with relevant
AS 5601/601 requirements.
■IMPORTANT WARNING: The installer shall ensure the hose assembly is restrained
from accidental contact with the flue outlet of an underbench oven.

10
CONVERSION PROCEDURE (to convert to LPG Propane)
REPLACING THE INJECTORS
The conversion procedure must be carried out only by an authorised person.
This appliance is suitable for use with Natural gas or Propane gas (check the “gas
type” sticker attached to the appliance). The nominal gas consumption and injector
size details are provided in table at page 9.
To replace the injectors proceed as follows:
■Remove pan supports and burners from the cooktop.
■Using a spanner, remove the injector J (fig. 6, 7) and replace it with one
according to the gas type (see tables - page 9).
■ Affix to the appliance the warning label stating that the cooktop has been convert-
ed for use with Propane gas (supplied with the Propane gas conversion kit.).
A second Propane gas conversion label should also be affixed to an adjacent sur-
face along with the duplicate data plate.
IMPORTANT
■If the cooktop is suitable for use with Natural gas and must be converted for
use with Propane gas, before connecting to gas main remove the appliance
gas regulator and replace with test point adaptor (see fig. 5a, 5b)
■If the cooktop is suitable for use with Propane gas and must be converted for
use with Natural gas, before connecting to the gas main remove the appliance
test point adaptor and replace with gas regulator (see figs. 5a, 5b).
NOTE:
Gas regulator and test point adaptor are supplied with the appliance (packed with
conversion kit)
The burners are designed so that regulation of primary air is not required.
Figure 6 Figure 7
J
J

11
MINIMUM BURNER SETTING ADJUSTMENT
Check whether the flame spreads to all burner ports when the burner is lit with the
gas tap set to the minimum position. If some ports do not light, increase the minimum
gas rate setting.
Check whether the burner remains lit even when the gas tap is turned quickly from
the maximum to the minimum position. If the burner does not remain lit, increase the
minimum gas rate setting.
The procedure for adjusting the minimum gas rate setting is described below.
For taps with adjusting screw inside the shaft (fig. 8):
✓using a screwdriver max. diameter 3 mm turn the screw inside the tap shaft until
the flame setting is correct.
For taps with adjusting screw on the body (fig. 9):
✓using a screwdriver turn screw "A" until the flame setting is correct.
Normally for Propane gas, fully tighten the adjustment screw.
LUBRICATING THE GAS TAP
If a gas tap is difficult to turn, disassemble it, clean it carefully with petrol and spread
a little high-temperature-resistant grease on it.
These operations must be performed by an Authorized person/Service agent.
A
Figure 8 Figure 9

12
ELECTRICAL REQUIREMENTS:
WARNING:
■THIS APPLIANCE MUST BE EARTHED.
CAUTION:
■Ensure that the power outlet is properly earthed before connecting the
appliance.
■Disconnect power before servicing the appliance.
The appliance is provided with a standard 240VAC three pin plug and power
cable (3 x 0.75 mm2).
The wires in the power cable are coloured in accordance with the following code:
Green/Yellow = Earth, Blue = Neutral, Brown = Active.
If the colours of the wires in the power cable to the appliance do not correspond
with the coloured markings identifying the terminals in the junction terminal,
proceed as follows:
1. The wire which is coloured green and yellow must be connected to the
terminal marked E(Earth) or coloured Green.
2 The wire which is coloured blue must be connected to the terminal
marked N(Neutral) or coloured Black.
3. The wire which is coloured brown must be connected to the terminal
marked L(Live) or A(Active) or coloured Red.
If the supply cord is damaged it must be replaced by the manufacturer or it’s Service
Agent or a similarly qualified person in order to avoid a hazard.
NL
A
M
PA PA PA PA
Figure 10
ELECTRIC DIAGRAM KEY
PA Ignition switches group
A Ignition coil
M Terminal block
T Earth conductor

13
USE and CARE
CAUTION:
■This appliance must be used only for the task it has explicitly been designed for,
that is for domestic cooking of foodstuffs. Any other form of usage is to be con-
sidered as inappropriate and therefore dangerous. Do not use this appliance as
a space heater.
■Do NOT place combustible materials or products on this appliance at any time.
■Do NOT spray aerosols in the vicinity of this appliance while it is in use.
■Before using for the first time, clean the cooktop with warm soapy water.
■Use the coffee pot support to ensure that small cooking utensils are stable.
■IMPORTANT NOTE: This appliance shall not be used as a space heater,
especially if installed in marine craft or caravans.

14
■The electric ignition is incorporated in
the knobs
■This appliance is class 3
2
8
765
3
1
4
CONTROL PANEL
5. Triple-ring burner control knob (4)
6. Left semi-rapid burner control knob (2)
7. Right semi-rapid burner control knob (3)
8. Auxiliary burner control knob (1)
Figure 11a
2
8
765
3
1
4
Figure 11b
GAS HOB
GAS BURNERS Natural Gas Propane gas
MJ/h MJ/h
1. Auxiliary burner (A) 3.6 3.6
2. Left semi-rapid burner (SR) 6.3 6.3
3. Right semi-rapid burner (SR) 6.3 6.3
4. Triple ring burner (TR) 11.9 11.9
mod. LGHW60
mod. LGHS60
mod. DGHS60
■The hob is fitted with a safety cut-out
device
■The electric ignition is incorporated in
the knobs
■This appliance is class 3

15
LIGHTING GAS BURNERS
FITTED WITH ELECTRONIC IGNITION
■Check that the electricity is switched on to allow spark ignition.
■Make sure that all controls are turned to zero.
■The gas flow to the burner is controlled by the knobs on the safety taps. These
knobs incorporate a switch to ignite the gas.
■You control the flow by turning the knob indicator to line up with the following
symbols:
–Symbol ●: tap closed
(burner off)
–Symbol : High (maximum)
–Symbol : Low (minimum)
■To ignite automatically, simply push the required knob down and turn it to
maximum, keep the knob down until the burner light.
■You can control the temperature by the knob to “High”from “Minimum”.
■To switch off, turn the knob clockwise until you hear the safety click.
■Note that, if you are using a burner at the minimum setting, you turn the knob
clockwise past the maximum setting before reaching the off position.
■Whenever lighting any of the burners produces an abnormal flame, switch that
burner off and relight using the minimum setting.
■If after relighting the burner, the flame is still abnormal, turn the burner off and
contact our Customer Service Centre to obtain the nearest authorized Delonghi
Service Agent.
■In the case of a mains failure light the burner with a match or lighted taper.

16
Lighting the burners
WITH ELECTRIC IGNITION (without safety cut-off valve)
mod. LGHW60 - LGHS60
To light one of the burners, press and turn the corresponding knob to the maximum
flow position (large flame) and keep the knob pressed down until the gas is lit.
Turn the gas tap to the position required.
Whenever lighting any of the burners produces an abnormal flame, switch that burner
off and relight using the minimum setting.
If after relighting the burner, the flame is still abnormal, turn the burner off and contact
our Customer Service Centre to obtain the nearest authorized Delonghi Service Agent.
Lighting the burners
WITH ELECTRIC IGNITION (fitted with safety cut-off valve)
mod. DGHS60
In order to light the burner, you must:
1 –Turn the knob in an anti-clockwise direction to the maximum flow position,
push in and hold the knob down which will light the burner.
2 –Wait for about ten seconds after the gas burner has been lit before letting go
of the knob (valve activation delay).
3 –Adjust the gas valve to the desired position.
If the burner flame should go out, the safety valve will automatically stop the gas
flow.
To re-light the burner, return the knob to the closed ●position, wait for at least 1
minute and then repeat the lighting procedure.
Whenever lighting any of the burners produces an abnormal flame, switch that burner
off and relight using the minimum setting.
If after relighting the burner, the flame is still abnormal, turn the burner off and contact
our Customer Service Centre to obtain the nearest authorized Delonghi Service Agent.

17
COOKING HINTS FOR GAS HOBS
Burners Pan diameter
Auxiliary 6 - 14 cm
Semi-rapid 16 - 20 cm
Triple ring 24 - 28 cm
Wok max 36 cm
The burner must be chosen according to the diameter of the pans and energy
required.
For optimum efficiency use a wok or pan no smaller than 230mm diameter.
Saucepans with handles which are excessively heavy, in relationship to the weight
of the pan, are safer as they are less likely to tip.
Pans which are positioned centrally on burners are more stable than those which
are offset.
It is far safer to position the pan handles in such a way that they cannot be
accidentally knocked.
When deep fat frying fill the pan only one third full of oil.
DO NOT cover the pan with a lid and DO NOT leave the pan unattended.
In the unfortunate event of a fire, leave the pan where it is and turn off all
controls.
Place a damp cloth or correct fitting lid over the pan to smother the flames.
DO NOT use water on the fire.
Leave the pan to cool for at least 30 minutes.
Figure 12
do not use pans with concave or convex bases
GRILL FOR SMALL COOK-
WARE (fig. 13)
Put it on the auxiliary burner (the small-
est) grid when small cookware is being
used to prevent the cookware from tip-
ping over.
Figure 13

18
mod. LGHW60 - LGHS60
Figure 14a

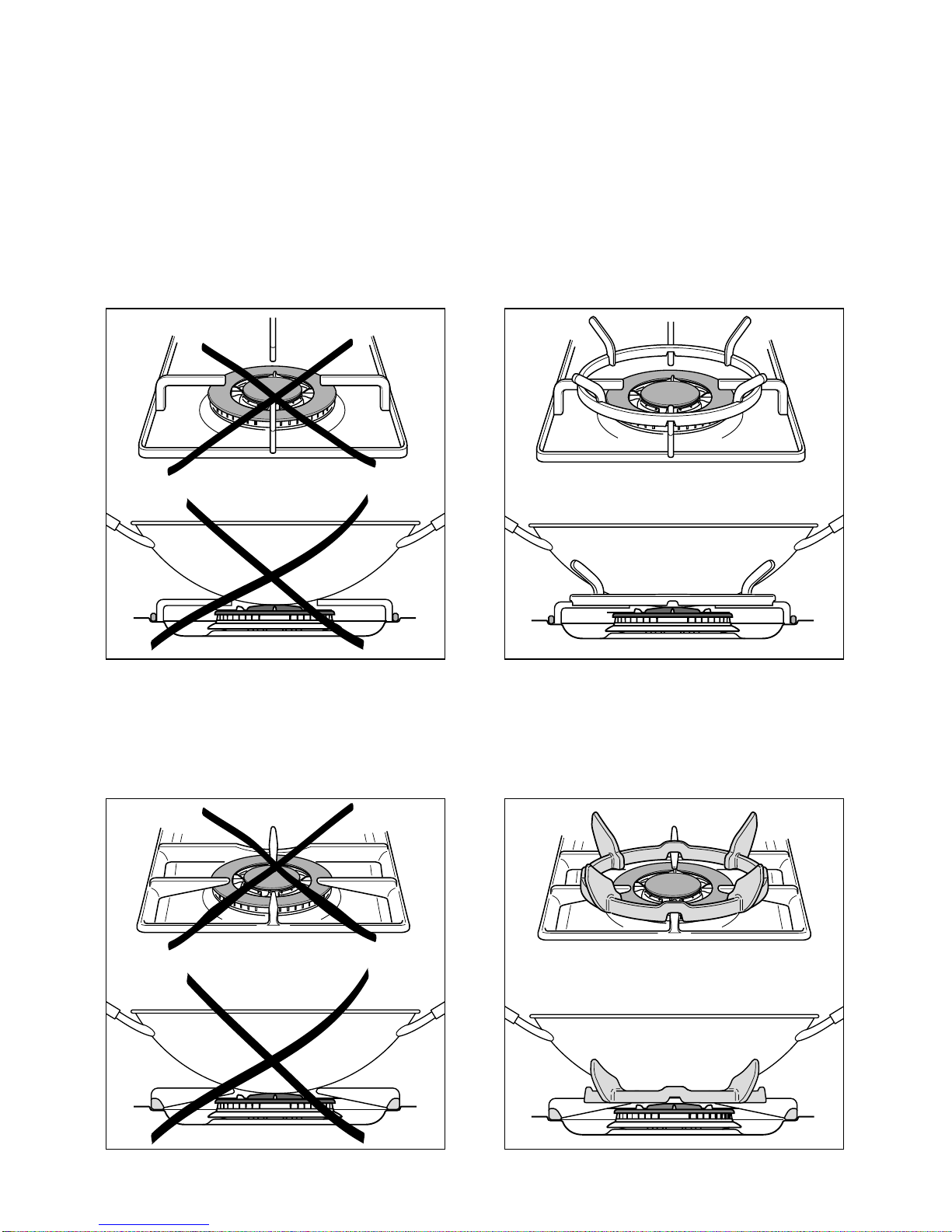

CORRECT USE OF TRIPLE-RING BURNER
■The flat-bottomed pans are to be placed directly onto the pan-support.
■To use the WOK, you must place the wok stand in the CORRECT position as
shown in fig. 14a - 14b.
WRONG CORRECT
WRONG CORRECT
mod. DGHS60
Figure 14b

19
GENERAL TIPS
■Before cleaning the hob switch it off and wait for it to cool down.
■Clean with a cloth, hot water and soap or liquid detergent.
■Do not use products which are abrasive, corrosive or chlorine based.
■Do not use steel pads.
■Do not leave acid or alkaline substances (vinegar, salt, lemon juice, etc.) on
the hob.
ENAMELLED PARTS
■All the enamelled parts must be washed only with a sponge with soapy
water or other non-abrasive products.
■Dry carefully.
STAINLESS STEEL HOB
■Clean with special products which are available on the market.
■Dry preferably with chamois leather.
■Note: regular use will cause discolouring around the burners, because of
the high flame temperature.
BURNERS AND GRIDS
■These pieces can be removed and washed with suitable products.
■After cleaning burners and spreaders dry them well and replace them
correctly.
■In appliances with electric ignition keep the electrode clean so that the
sparks always strike.
■Note: To avoid damage to the electric ignition do not use it when the
burners are not in place.
GAS TAPS
■Regular lubrication of the gas taps must only be performed by Authorized
person.
■If the gas taps are not working properly, call our Customer Service Centre to
obtain the nearest Authorized Delonghi Service Agent.
Cleaning and Maintenance

20
S
F
C
CORRECT POSITIONING OF THE BURNERS
It is very important to check that spreader F and cap C of the burner (see Figure 15) are
perfectly in place because if they move out of place serious problems could arise.
Make sure that electrode "S" (Fig. 15) is kept clean so that the sparks always strike.
TRIPLE-RING BURNER
The triple ring burner must be correctly positioned (see fig. 16); the burner rib must be
located in position as shown by the arrow.
The burner correctly positioned must not rotate (fig. 17).
Then position the cap A and the ring B (fig. 17).
AB
Figure 15 Figure 16
Figure 17
