DELONGTOP LFP-51200-10 Mounting instructions

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
1
Lithium-Iron Phosphate Battery
User Operation Manual
Product Name：Lifepo4 Battery Pack
Model：LFP-51200-10/20/30/40/50

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
2
WARNING
Quality Statement
Proper use and maintenance will ensure that the battery (or battery system) will operate
reliably and consistently for a long period of time.
△After receiving the product, please check if the packaging is in good condition. If the packaging
is broken, there may be damage to the product. If there is damage, please contact us.
△Anyone who does not use or maintain the battery according to this owner's manual, gives up
any right to warranty.
This battery is to be installed and serviced only by qualied personnel equipped with
appropriate personal protective equipment and following safe electrical work practices.
Always wear eye protection, gloves, apron and mask when working with batteries. Also
remove any metal / conductive jewelry.
Precautions When Working With Batteries
△Use caution to eliminate the risk of dropping a metal tool on the battery. It could spark or short
circuit the battery or other electrical parts and could cause an explosion.
△Insulated tools are strongly recommended anytime you are working around batteries.
△Never smoke or allow a spark or flame near the batteries.
△Ensure that someone is within range of your voice or close enough to come to your aid when
you are working near a battery.
△Wear complete eye / face protection and gloves. Avoid touching your eyes while
working near batteries.
△If you need to disconnect the battery, always remove the negative terminal from the battery
first. Make sure all accessories are turned off so you don’t cause a spark.
△Never use or combine this battery with another dissimilar battery.
△Batteries are temperature sensitive. For optimum performance, they should be installed in a
stable temperature environment.
△Always recycle old batteries. Contact your local recycling center for proper disposal
information.
△Contact your suppler or qualitied the battery installer befre wirng in parallel or series
Precautions When Working With Batteries
△Use caution to eliminate the risk of dropping a metal tool on the battery. It could spark or short
circuit the battery or other electrical parts and could cause an explosion.
△Insulated tools are strongly recommended anytime you are working around batteries.
△Never smoke or allow a spark or flame near the batteries.
△Ensure that someone is within range of your voice or close enough to come to your aid when
you are working near a battery.
△Wear complete eye / face protection and gloves. Avoid touching your eyes while
working near batteries.
△If you need to disconnect the battery, always remove the negative terminal from the battery
first. Make sure all accessories are turned off so you don’t cause a spark.
△Never use or combine this battery with another dissimilar battery.

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
3
△Batteries are temperature sensitive. For optimum performance, they should be installed in a
stable temperature environment.
△Always recycle old batteries. Contact your local recycling center for proper disposal
information.
△Contact your supplier or qualitied the battery installer before wirng in parallel or series
1. Introduction
Lithium iron phosphate battery is one of new energy storage products developed and
produced by manufacture, it can be used to support reliable power for various types
of equipment and systems. DL-51200 is especially suitable for application scene of
high power, limited installation space, and restricted load-bearing and long cycle life.
DL-51200 has built-in BMS battery management system, which can manage and
monitor cells information including voltage, current and temperature. What’s more,
BMS can balance cells charging and discharging to extend cycle life. Multiple
batteries can connected in parallel to expand capacity and power in parallel for larger
capacity and longer power supporting duration requirements.
1.1 Features:
The whole module is non-toxic, non-polluting and environmentally friendly;
Cathode material is made from LiFePO4 with safety performance and long cycle
life;
Battery management system (BMS)has protection functions including
over-discharge, over-charge, over-current and high/low temperature;
The system can automatically manage charge and discharge state and balance
current and voltage of each cell;
Flexible configuration, multiple battery modules can be in parallel for expanding
capacity and power.
Adopted self-cooling mode rapidly reduced system entire noise;
The module has less self-discharge, up to 6 months without charging in on shelf; no
memory effect, excellent performance of shallow charge and discharge;
Working temperature range is from -10 ℃to 50 ℃, (Charging 0~50 ℃;
discharging -20~60℃) with excellent discharge performance and cycle life;
Small size and light weight, standard of embedded designed module is
comfortable for installation and maintenance;

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
4

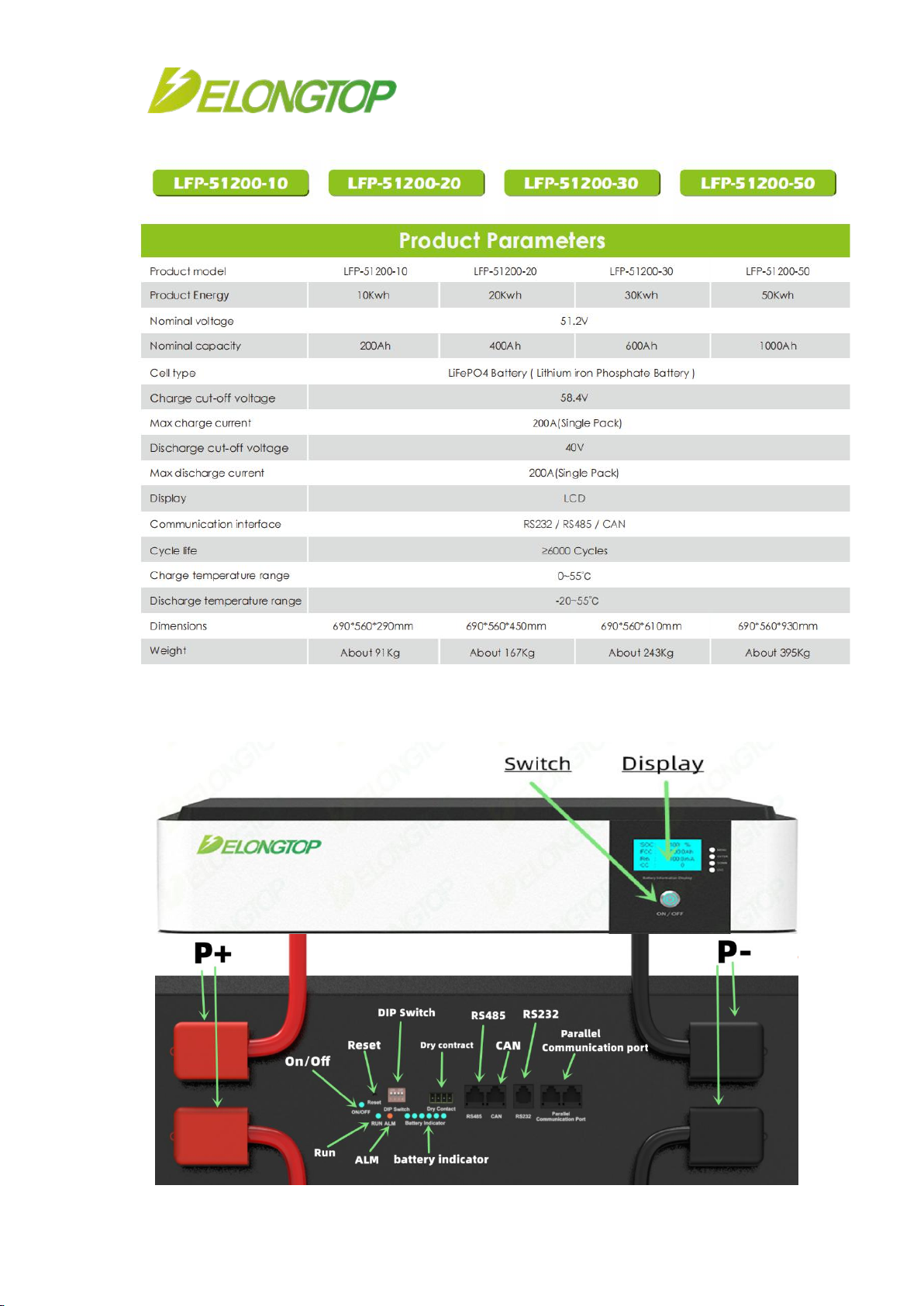

1.2 Specifications
1.3 Interfacing
This section details the front and back panel of the interface functions.

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
5
Switch
Power : to turn ON/OFF the whole battery BMS standby.
Display:
to show the batteries information
ON/OFF
ON/OFF Light: Constantly on after the boot, off after the extinguish
Run：
Run light: to show the Power Switch is ON, and the BMS has electricity (No power).
ALARM
Alarm light: Battery failure status indicator light, red for failure, green for normal.
Battery indicator
Battery Capacity: Power display, six indicator lights show the current power.
CAN
CAN Communication Terminal: (RJ45 port) follow CAN protocol, for output batteries
information.
RS232
R232 Communication Terminal: (RJ11 port) follow RS232 protocol, for output batteries
information.
RS485
R485 communication terminal : (RJ45 interface) using RS485 protocol, output battery
information, can also be used for multi-group lithium battery parallel communication.
Power Terminals(P+, P-)
Power cable terminals: for connecting to equipment and paralleling to other battery module for

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
6
capacity expanding. For each single module, each terminal can achieve charging and discharging
function.
RESET
RESET Switch: When BMS is in hibernation state, press the button (3~6s) and release it, the
protection plate will be activated, and the LED indicator will light up for 0.5 seconds successively
from "RUN". When BMS is in the active state, press the button (3~6s) and release it, the
protection board will sleep, and the LED indicator will light up for 0.5 seconds from the lowest
battery level light. When BMS is in the active state, press the button (6~10s) and release it, the
protection plate is reset, and all LED lights are on for 1.5 seconds at the same time.
DIP (ADD)
DIP (ADD) Switch: 4 ADD switches, to definite different address code for each battery
module when multiple modules are cascaded, up to 15 addresses.
NOTE ：The address corresponding to ADD1 in the table is the host, and all other
addresses are the slave
Dry contact
Dry contact: Dry contacts are reserved for external I/O port control signals
2 Safe handling of lithium batteries Guide
2.1 Schematic Diagram of Solution

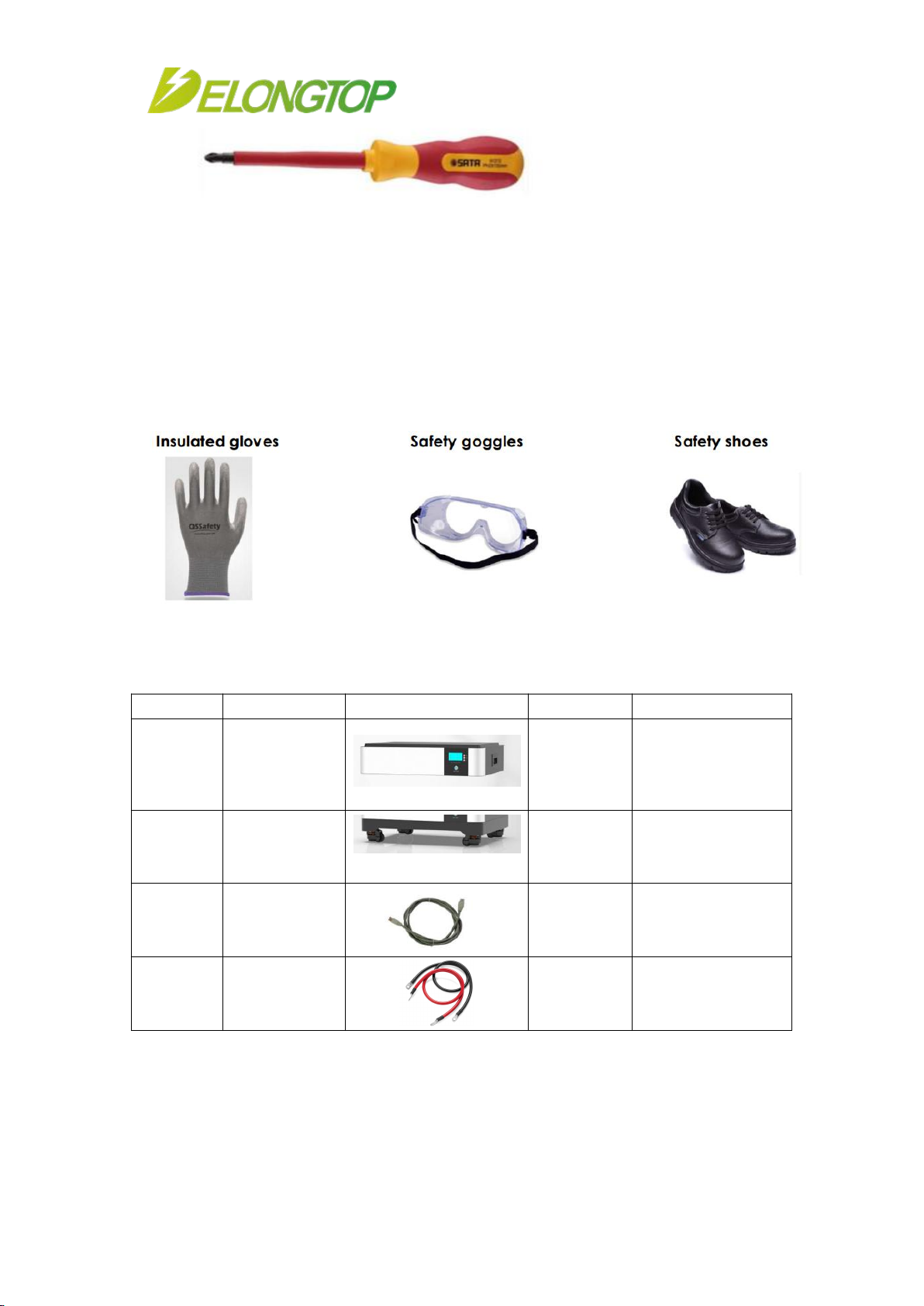

The following tools are required to install the battery pack

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
7
Screw Driver
NOTE
Use properly insulated tools to prevent accidental electric shock or short circuits.
If insulated tools are not available, cover the entire exposed metal surfaces of the available
tools, except their tips, with electrical tape.
2.2 Safety protection
It is recommended to wear the following safety gear when dealing with the battery pack
3 Installation
3.1 Package Items
No
Item
Qauntity
Specification
1
Battery pack
1pc
Wall mounted 48V
200Ah 10kwh
2
base
1 pc
**
3
Communication
Cable
1 pc
**
4
Parallel Cable
1set
**
3.2 Installation Condition
Make sure that the installation location meets the following conditions:
The area is completely water proof.
The floor is flat and level.

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
8
There are no flammable or explosive materials.
The ambient temperature is within the range from 0°C to 50°C.
The temperature and humidity is maintained at a constant level.
There is minimal dust and dirt in the area.
Installation Procedure
1. Put the batteries on the base
2. Connect the cables between battery modules
3. Connect the Communication cable between battery modules
4. Connect the cables to inverter
A. Power On
Double check all the power cable and communication cable.

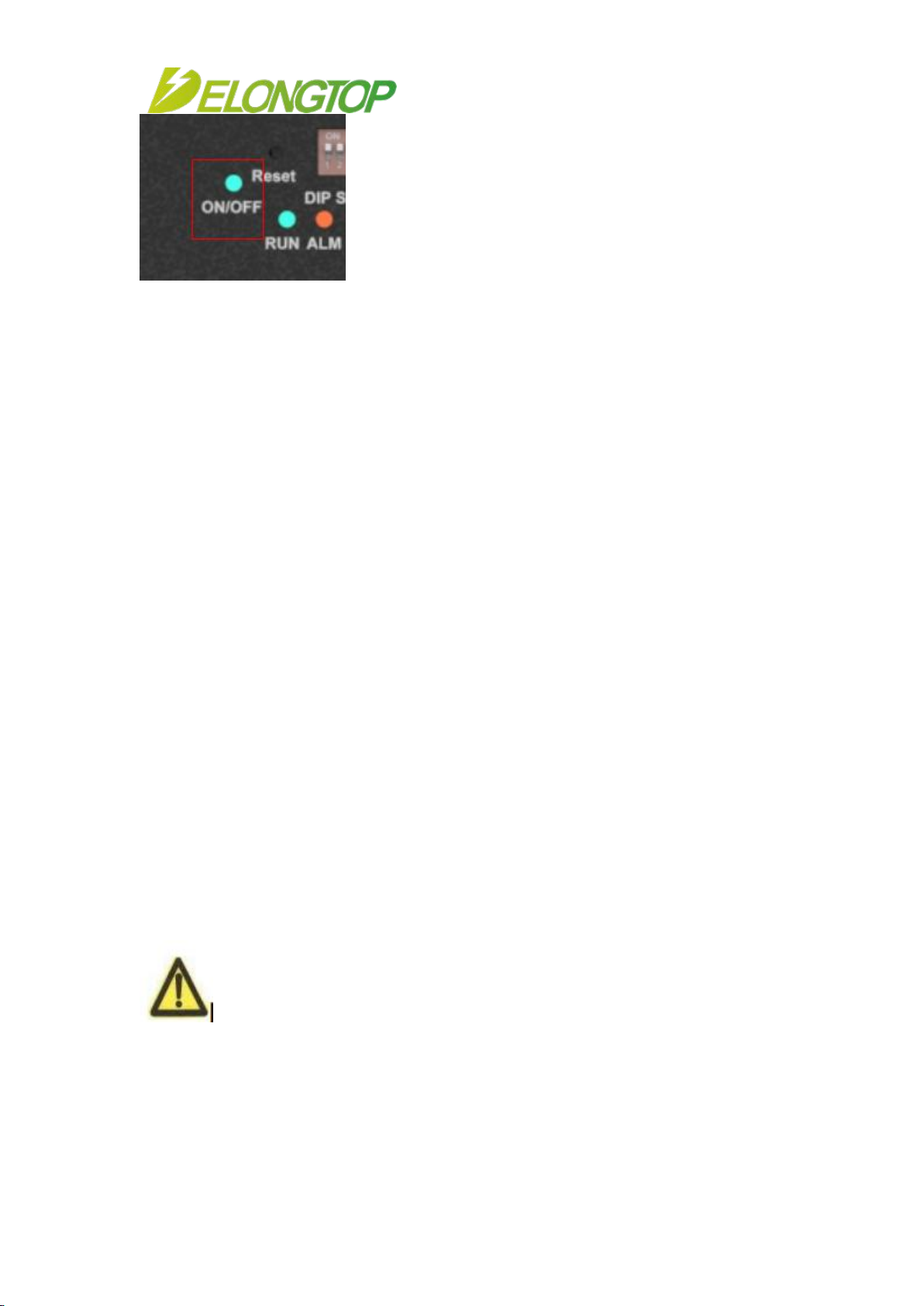

(1) Switch power on
Switch on all the battery modules and the green LED light below will be on:

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
9
4.1 Precautions before installation
1) After unpacking, please check product working or not
2) Before installation, be sure to cut off the grid power and make sure the battery is in the
turned-off mode;
3) Wiring must be correct, do not mistake the positive and negative cables, and
ensure no short circuit with the external device;
4) It is prohibited to connect the battery and AC power directly;
5) The embedded BMS in the battery is designed for 48VDC, please DO NOT connect battery in
series before confirm with the supplier
6) Battery system must be well grounded and the resistance must be less than 1Ω;
7) Please ensured the electrical parameters of battery system are compatible to
related equipment;
8) Keep the battery away from water and fire.
4.2 Notes in the process of use
1) If the battery system needs to be moved or repaired, the power must be cut off and the
battery is completely shut down;
2) It is prohibited to connect the battery with different type of battery.
3) It is prohibited to put the batteries working with faulty or incompatible inverter;
4) It is prohibited to disassemble the battery (QC tab removed or damaged);
5) In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are
prohibited;
6) Please do not open, repair or disassemble the battery except staffs from Manufacture or
authorized by dealer. We do not undertake any consequences or
related responsibility which because of violation of safety operation or violating of design,
production and equipment safety standards.
Reminded
1) Please read the user manual carefully (in the accessories);
2) If the battery is stored for long time , it is required to charge them every six months,
and the SOC should be no less than 80%;
3) Battery needs to be recharged within12 hours, after fully discharged;
4) All the battery terminals must be disconnected for maintenance;
5) Please contact the supplier within 24 hours if there is something abnormal.

Shenzhen Delong Energy Technology Co.,Ltd
深圳德隆能源有限公司
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
TEL: [phone] FAX: [phone]
10
6) The warranty claims are excluded for direct or indirect damage due to items above.
