Delta Electronics BX6.3AC100 Specification sheet

Operation and Installation Manual
Residential AC storage system
BX6.3_AC100
www.deltaww.com

06
06
06
06
07
07
08
09
09
13
13
14
14
15
18
18
19
19
20
22
24
28
28
28
30
32
33
34
34
35
36
37
38
39
40
41
41
42
43
44
Table of Contents
1 Safety
1.1 Information of the AC Storage System
1.1.1 Disclaimer
1.1.2 Target Group
1.2 General Safety
1.2.1 Condition of Use
1.2.2 Symbols
1.2.3 Safety Instructions
1.2.3.1 Handling of Prohibitions
2 Introduction
2.1 About this Manual
2.2 Product Description
2.3 Additional Information
2.4 Product Overview
2.5 LED Indicators
2.6 Push Button
3 Installation
3.1 Installation Environment
3.2 Unboxing and Review
3.3 Handle (optional)
3.4 Mechanical Installation
3.5 Electrical Installation for AC
3.5.1 Required Protective Devices and Cable Cross-sections
3.5.2 AC Connection
3.5.3 AC Plug Assembly
3.5.4 AC plug error check
3.6 Communication Module Connections
3.7 RS-485 Connection
3.8 Digital Input / DRM & EPO Functions
3.9 Dry Contact Connection
3.10 Sync Signal connection of VSG function
3.11 Installation of External CT Clamp.
3.12 Assemble DC connectors
3.13 Installation of BX12.6_AC100
4 Startup
4.1 Operation Mode
4.1.1 Self-consumption mode
4.1.2 Peak cut mode
4.1.3 Selling first mode
4.1.4 Charge first mode
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3

Figure 2-1 : The DELTA BX6.3_AC100 Series

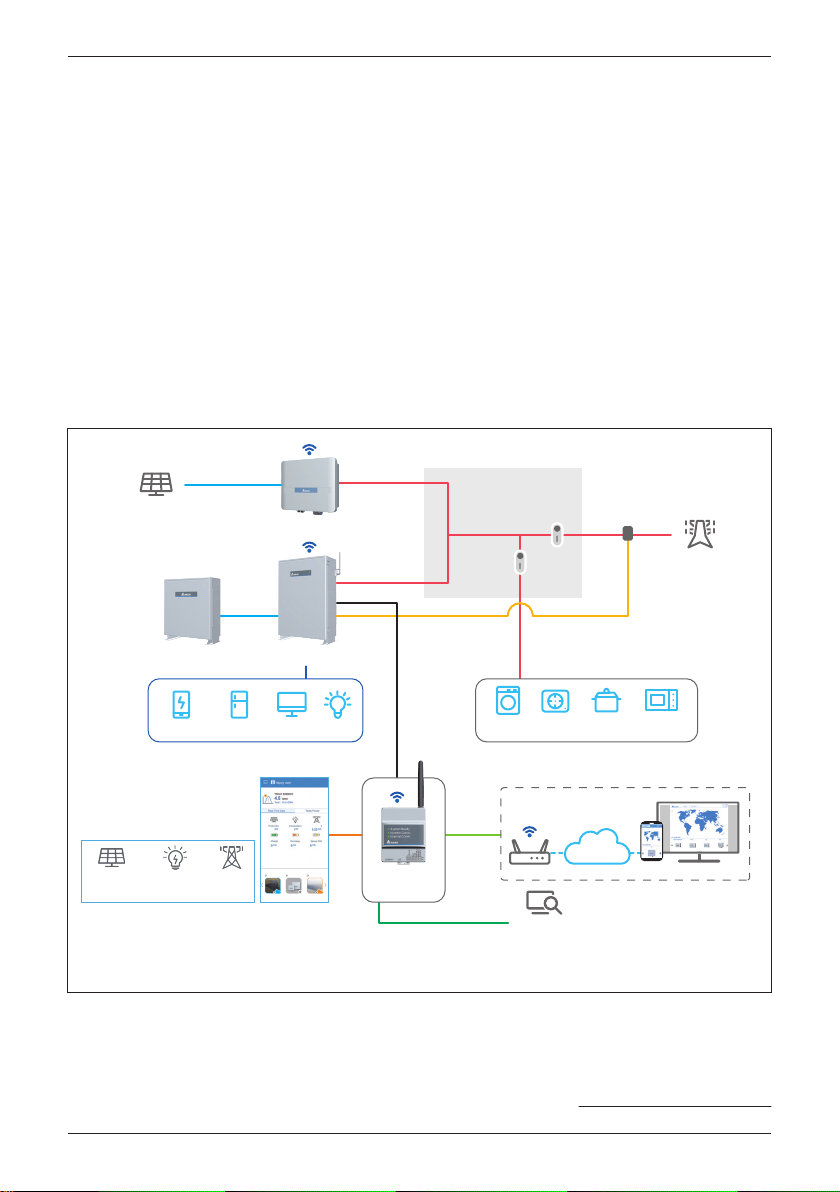

Figure 2-2 : System diagram of BX6.3_AC100 storage system
Figure 2-3 : Shipping Components
Figure 2-4 : Dimensions
Figure 2-5 : Overview of interface
Figure 2-6 : Rating labels
Figure 2-7 : LED indicators
Figure 3-1 : Unpack
Figure 3-2 : General handling method
Figure 3-3 : Handling with optional transport handle
Figure 3-4 : Handling with optional transport handle_2
Figure 3-5 : Recommended Installation Space
Figure 3-6 : Recommended Installation Space with Flex Inverter
Figure 3-7 : Recommended Installation Space of BX12.6_AC100
Figure 3-8 : Insert rawlplug
Figure 3-9 : Install the wiring cover
Figure 3-10 : Storage system operation illustration
Figure 3-11 : AC connection in AU & NZ
Figure 3-12 : Striping the wires
Figure 3-13 : AC plug illustration
Figure 3-14 : Communication module
Figure 3-15 : Sync Signal connection of VSG function
Figure 3-16 : Current Transformer installation
Figure 3-17 : Expanding the Battery Pack with DC(BT+/-) cables
Figure
13
14
15
16
16
17
18
20
21
22
23
24
25
25
26
27
28
29
30
31
33
36
37
39
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
4.1.5 Discharge first mode
4.1.6 Special Modes
4.2 Function Setting
4.3 Active & Reactive power control
4.3.1 Q(U) control
4.3.2 P(U) control
5 System application
6 Maintenance
7 Error message and Trouble Shooting
8 De-Commissioning
9 Technical Data
46
47
50
51
51
51
52
57
58
63
64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4

Figure 4-1 : Self-consumption mode current flows
Figure 4-2 : Self-consumption mode behavior
Figure 4-3 : Peak cut mode current flows
Figure 4-4 : Peak cut mode behavior
Figure 4-5 : Selling first mode current flows
Figure 4-6 : Selling first mode behavior
Figure 4-7 : Charge first mode current flows
Figure 4-8 : Charge first mode behavior (general)
Figure 4-9 : Charge first mode behavior (for AU & NZ)
Figure 4-10 : Discharge first mode current flows
Figure 4-11 : Discharge first mode behavior
Figure 4-12 : Standalone mode current flows
Figure 4-13 : Standalone mode behavior
Figure 4-14 : Forced charge mode current flows
Figure 4-15 : Forced charge mode behavior
Figure 5-1 : Critical Load Backup Power
Figure 5-2 : Hybrid Energy Storage System
Figure 5-3 : Off-Grid Support Hybrid Energy Storage System (Internal ATS Mode)
Figure 5-4 : Off-Grid Support Hybrid Energy Storage System (External ATS Mode)
Figure 5-5 : Backup Power with Higher Standalone Power
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Table
Table 2-1 : Packing list
Table 2-2 : Wi-Fi reset button function
Table 2-3 : Rating label explanation
Table 2-4 : LED Indicators
Table 3-1 : AC input cable requirement
Table 3-2 : Upstream circuit breaker
Table 3-3 : Pin definition and data format of RS-485
Table 3-4 : Definition of digital input & EPO functions
Table 3-5 : Definition of digital input & EPO functions (AU / NZ)
Table 3-6 : Pin definition and data format of VSG port
Table 5-1 : Requirements for the PV inverter
Table 7-1 : Error Message
Table 7-2 : Fault Message
Table 9-1 : Specifications for BX6.3_AC100
Table 9-2 : Specifications for BX6.3_EX100
15
16
17
18
28
28
34
34
35
36
54
58
60
64
66
41
41
42
42
43
43
44
44
45
46
46
47
47
48
48
52
53
54
55
56
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . .
. . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
5

Copyright – DELTA ELECTRONICS, INC. - All rights reserved.
This manual accompanies our product for use by the end users. The technical
instructions and illustrations contained in this manual are to be treated as
confidential and no part may be reproduced without the prior written permission
of DELTA ELECTRONICS, INC. Service engineers and end users may not
divulge the information contained herein or use this manual for purpose other
than those strictly connected with correct use of the product. All information and
specifications are subject to change without notice.
DELTA ELECTRONICS, INC. shall have no obligation to both personal injury
and property damage hereinafter with respect to any actions -- (a) the product
has been installed and repaired improperly; (b) the product has been misuse
without following the instructions on this user manual; (c) the product has failed
due to incorrect unpacking.
1 Safety
1.1 Information of the AC Storage System
1.1.1 Disclaimer
This user manual of the AC Storage System is prepared for a person who is
well-trained for installing, commissioning, using, and doing maintenance. The
well-trained person must have the following basic and advanced skills:
• The fundamentals of electricity, wiring, electrical components and electrical
schematic symbols.
• Knowledge of how a AC Storage System works and is operated.
•
Training in the installation and commissioning of electrical devices and installations.
• Training in how to deal with the dangers and risks associated with installing
and using electrical devices and installations.
• Compliance with this manual and all safety information.
Please read the user manual before working on the product.
1.1.2 Target Group
Safety
6

1.2 General Safety
- Please read these instructions carefully and keep them for later use.
IMPORTANT SAFETY INSTRUCTIONS : SAVE THESE INSTRUCTIONS !
To prevent any personal injury and any property damage, also ensure long-term
operation of the AC Storage System, you must read this section carefully and
review all the safety instructions at all times before using this AC storage system.
This user manual provides important instructions for DELTA BX6.3_AC100 AC
storage system. The product is designed, tested, verified, and certified according
to international
safety requirements, regulations, and standards but precautions
must be observed
when installing and operating the product.
The DELTA BX6.3_AC100 is a AC Storage System designed with two battery
modules. In order to prolong Lithium-based batteries' life, 100% state of charge
(SOC) shown on the device is actually within the range of 95%~100%.
The AC Storage System can be charged/discharged from grid, and provides
electricity to household loads and electricity supply backup is available.
The DELTA BX6.3_AC100 AC Storage System is NOT to be used as a backup
for any medical uses or life supporting uses.
Before battery module running one cycle, there might be some error in the SOC
accuracy.
If DELTA BX6.3_AC100 has not used for more than six months, please connect
to grid and check the SOC value via APP, if the SOC value is below 30%, please
select “Charge first mode” to charge BX6.3_AC100, it should be charged to at
least 30% SOC.
Utilize a brand new battery with used one may lead to reduction of battery lifetime
and increase the safety risk. Therefore, we suggest the evaluation of the battery
size have to be made thoroughly before installation.
Extend the battery size from 6.3kwh to 12.6kwh is not allowed.
1.2.1 Condition of Use
7
Safety

This section describes the definition of the symbols in this manual.
In order to prevent both personal injury and property damage, and to ensure
long-term operation of the product, please read this section carefully and follow
all the safety instructions while you use the product.
1.2.2 Symbols
DANGER!
- This warning indicates an immediate hazard which will lead to death or serious
injury may occur.
- This warning indicates a possible hazard which may lead to minor injury
may happen.
CAUTION !
WARNING !
- This warning indicates a possible hazard which may lead to death or serious
injury may occur.
- This warning indicates a possible damage to property and the environment
might happen.
ATTENTION
- Additional information is indicated by an exclamation mark enclosed by double
circle. This means the following section contains important information and
user should follow the instruction to prevent any hazards.
INFORMATION
DANGER : ELECTRICAL HAZARD!!
- This warning indicates an immediate electrical hazard which will lead
to death or serious injury may occur.
- Equipment grounding conductor (PE)
- (PE) Équipement conducteur de terre
Safety
8

The AC Storage System should not be installed under direct sunlight or on
flammable surfaces. Please make sure the AC Storage System is mounted tightly
on a solid / smooth surface. The optimal temperature range for the AC storage
system to operate is 10 to 30℃. The operating humidity is within the range from
0 to 95%. If the ambient temperature is outside the operating range, the AC
storage system stops to protect itself from any unexpected damage.
This AC Storage System should be installed by a trained and experienced
installer designated by the retailer. Having the product installed by a non-specialized
installer is very dangerous and can cause damage or injury. The AC storage
system is always installed by 2 or more people. (According to regional regulation,
more people may be required.)
Please make sure all the breakers are turned off before connecting cables.
Please note that the cable length must within 100 meters.
1.2.3 Safety Instructions
The battery module contains flammable materials such as organic solvents.
Mishandling the battery module may cause fire, smoke, or an explosion and the
battery module’s functionality will be seriously damaged. Protection circuits are
designed into the AC Storage System via BMSS (PCB part inside the battery
cabinet) to protect the battery modules.
Please read and check the following prohibited actions.
1.2.3.1 Handling of Prohibitions
9
Safety

(1) Electrical Shock
Do not touch the terminals of the battery module without protectors.
Be grounded with the specified conditions.
High voltage may occur between the positive and the negative terminals.
Electric shock impairs health or may cause threat to life.
More than 2,000 meters higher, risks of an electric shock will be increased.
(2) Immersion
Do not immerse the battery module in liquid such as water, beverages, or
other fluids.
Do not expose to corrosive substances such as sea breeze, steam or chemicals.
Do not install in the humid places or places to condensation.
Exposure to liquid may damage the battery module or the circuit board.
This may cause a battery module's damage to leak electrolyte, generate
heat, smoke, catch fire, or explode.
(3) High Temperature
Do not use or place the battery module near an open flame, heater or high
temperature. Subjecting the battery module to high temperature may damage
the separator and cause internal short circuit.
This may cause the battery module's damage to leak electrolyte, generate heat,
smoke, catch fire, or explode.
(4) Charge Conditions
Only charge the battery module within the specified conditions.
(e.g., temperature range, voltage, current and etc.)
Charging with unspecified conditions (e.g., over charge or abnormal current)
may cause the battery module's damage to leak electrolyte, generate heat,
smoke, catch fire,or explode.
(5) Reverse Polarity
Check the positive (+) and the negative (-) terminals.
If the battery module is connected with a reversed polarity, unexpected
reactions may occur.
This may cause the battery module's damage to leak electrolyte, generate
heat, smoke, catch fire, or explode.
DANGER!
- This warning indicates an immediate hazard which will lead to death or serious
injury may occur.
10
Safety

(6) Direct Connection
Do not connect the battery module to AC power or unspecified DC power.
This may cause the battery module's damage to leak electrolyte, generate
heat, smoke, catch fire, or explode.
(7) Use in Other Equipment
Do not use the battery module for any other purposes or connecting
unspecified equipment.
If the battery module is used with unapproved applications or systems, the
battery module may be damaged, leak electrolyte, generate heat, smoke,
catch fire, or explode.
(8) Incineration and Heat
Keep the battery module away from heat and fire.
Heating the battery module and may cause it to be damaged, leak electrolyte,
generate heat, smoke, catch fire, or explode.
(9) Short-Circuit
Do not connect between the positive (+) and the negative (-) terminals with
a conductive material (e.g., wire, a cable, etc.).
Do not carry or store the battery module with metal objects.
If the battery module is shorted, the battery module may be overheated.
This may cause the battery module's damage to leak electrolyte, generate
heat, smoke, catch fire, or explode.
(10) Disassembly
Do not disassemble or modify the battery module.
Disassembly or modification of the battery module may damage the
protection circuit.
This may cause the battery module's damage to leak electrolyte, generate
heat, smoke, catch fire, or explode.
(11) Charge in High Temperatures
Do not charge the battery module in high temperature environment.
If the battery module is charged with exposing high temperature, the battery
module’s protection circuit may be activated and stop or fail the charging.
This may cause the battery module's damage to leak electrolyte, generate
heat, smoke, catch fire, or explode.
(12) Open BX6.3_AC100 cover
To avoid risk of electrical shock, It is prohibited to open the front door. The
unit contains no user-serviceable parts.
It may cause failure.
The warranty is void once the door is opened.
11
Safety

WARNING !
- This warning indicates a possible hazard which may lead to death or serious
injury may occur.
(1) Magnetism
Do not place the battery module near strong magnetism. (e.g., electromagnetic
cooker, etc. )
This may cause the battery module's damage to leak electrolyte, generate
heat, smoke, catch fire, or explode.
(2) Mixed Use
Do not mix with other batteries.
The battery module should not be used with other batteries having a different
capacity, chemistry, manufacturing date or manufacturer.
This could cause the battery module's damage to leak electrolyte, generate
heat, smoke, catch fire, or explode.
- This warning indicates a possible hazard which may lead to minor injury
may happen.
CAUTION !
(1) Exposure to Direct Sunlight
Do not use or leave the battery module in a location exposed to excessive
heat, such as in direct sunlight or in a car. It could cause the battery module's
damage to leak electrolyte, generate heat, smoke, catch fire, or explode.
It may also cause the battery's performance and life to deteriorate.
(2) Charging Temperature Range
Only charge the battery module within operating temperature range.
Charging outside of this temperature range could cause the battery module's
damage to leak electrolyte, generate heat.
It may also cause the battery module's performance and life to deteriorate.
(3) Manual
Please read the system manual before use.
Keep the system manual for future reference.
(4) Recycling
When disposing of the battery module, recycle it according to local rules
and regulations.
12
Safety

The user manual is valid for the following device types :
• BX6.3_AC100
• BX6.3_AC101
• BX6.3_AC100 + BX6.3_EX100
• BX6.3_AC101 + BX6.3_EX100
• BX12.6_AC100(BX6.3_AC100 associated with BX6.3_EX100)
• BX12.6_AC101(BX6.3_AC101 associated with BX6.3_EX100)
The DELTA BX6.3_AC100 Series have 6 models as shown in Figure 2-1.
Delta reserves the right to make modifications to the content and technical
data in this user manual without prior notice.
2 Introduction
2.1 About this Manual
Figure 2-1 : The DELTA BX6.3_AC100 Series
• BX6.3_AC100
• BX6.3_AC101
• BX6.3_AC100 + BX6.3_EX100
• BX12.6_AC100(BX6.3_AC100 associated with BX6.3_EX100)
• BX6.3_AC101 + BX6.3_EX100
• BX12.6_AC101(BX6.3_AC101 associated with BX6.3_EX100)
13
Introduction

Figure 2-2 : System diagram of BX6.3_AC100 storage system
DeltaSolar (App)
Solar Panel
Grid
3rd Party
Monitoring Plaform
HXA
BX6.3_AC100
Distribution Panel
BX6.3_EX100
Critical Load
LightTVRefrigeratorChargeing
DC
DC
AC
CT
LAN
Ethernet
RS-485
P2P
MyDeltaSolar Cloud Service (Monitoring)
Cloud
CT
Load
MicrowaveRice
Cooker
IHWashing
Machine
* Only one communication protocol (LAN, Ethernet, Wi-Fi)
can be used at the same time.
More details or related product information, please visit: http://www.deltaww.com
2.3 Additional Information
DC1
Data
Collector
Karapinar
38.8 kWh -- kWh
IBARAKI
Tainan,Taiwan
20.4 kWh
Chiayi,Taiwan
Floating
Tainan,Taiwan
Feed-in
3.22 3.00
Production Feed-inConsumption
3.22 kW 0.22 kW3.00 kW
This device is an ac coupling battery system with following features:
• Integrated energy management system
• Integrated charger controller and inverter
• Non-isolated
The system diagram of BX6.3_AC100 is shown as Figure 2-2. Delta’s BX6.3/
12.6_AC100 series with high reliability Li-ion battery is a home energy storage
solution with 6.3/12.6 kWh capacity. It can be integrated with home PV system
and can be scalable up to 12kWh for future expansion. With BX6.3/12.6_AC100,
house owner can maximize the efficiency of home energy management by saving
and managing excess solar energy from home PV system. Besides, it can be
considered as the backup power during emergency or suffering a power outage.
2.2 Product Description
Introduction
14

2.4 Product Overview
The shipping components of DELTA BX6.3_AC100 are shown as Figure 2-3.
Object Qty Description
1 Delta BX6.3_AC100 1
1
1
Residential AC ESS
5 Rubber cover 1 Protective cover for non-critical waterproof and dust prevent
6 Plastic cover 3 Protective cover for non-critical waterproof and dust prevent
7 AC Plug 1 Connector for AC connection
Wiring Cover 2
Protective cover to prevent users from touching the power cable
Current sensor 1 120A current transformer
CT cable 1 Cable for CT connection
8
9
10
H4 Wrench 2 To disconnect H4 connector11
2 Quick Installation Guide The Instruction to provide the information of safety,
Installation and specification.
3 WiFi antenna 2.4Ghz Wi-Fi Antenna (IPX7)
4 Antenna Bracket 1 To support Wi-Fi antenna on BX6.3_AC100
Table 2-1 : Packing list
Figure 2-3 : Shipping Components
①
② ④ ⑤ ⑥
③
⑧ ⑨ ⑩ ⑪
⑦
15
Introduction

Figure 2-4 : Dimensions
unit: mm
Push
Button
Ex Comm.
AC Output
COMM.
RS-485
DRM
Dry contact
CT port
BT+ BT-
Figure 2-5 : Overview of interface
Wi-Fi
Reset
570
50
840
60
250
Battery
Earth
Figure 2-4 shows the dimensions of DELTA BX6.3_AC100.
Figure 2-5 shows the details of interface.
It is prohibited to open the front door.
It may cause failure.
The warranty is void once the door is
opened.
Table 2-2 : Wi-Fi reset button function
16
Introduction
Wi-Fi LED Status Explanation
Wi-Fi LED flashing once
every one seconds Reset Wi-Fi module, and Wi-Fi password returns to the default: DELTASOL
Wi-Fi LED flashing once
every half a second Reset Wi-Fi module
Operation
Push 3s~10s
Push 20s~
No flash No functionPush 10s~20s

Please refer to Figure 2-6 for the location of product label. You can identify the
model number and the specifications by the information on the product label.
In Australia and New Zealand, users can also identify the supported Demand
Response Modes (DRMs) of BX6.3_AC100 here. The table (Table 2-2) along
with
these labels explains the definition of the specific mark.
Figure 2-6 : Rating labels
Symbol Definition
Before working with the Battery Pack, you must read the supplied
manual and follow the instructions contained therein.
The housing of the Battery Pack must be grounded if this is required
by local regulations.
WEEE marking
The Battery Pack must not be disposed of as standard household waste,
but in accordance with the applicable electronic waste disposal regulations
of your country or region.
Table 2-3 : Rating label explanation
Danger to life through electric shock
Potentially fatal voltage is applied to the unit during operation.
This voltage persists even 60 seconds after disconnection of the power supply.
Never open the unit. The unit contains no components that must be maintained
or repaired by the operatoror installer.
Opening the housing will void the warranty.
60 seconds
BX6.3_AC100 is not separated from the grid with a transformer.
17
Introduction

The DELTA BX6.3_AC100 has three different color LED notification on the
front cover of the case that signal various system statuses:
2.5 LED Indicators
Use Push button to turn ON/OFF the unit, or start-up BX6.3_AC100 with AC supply.
2.6 Push Button
Figure 2-7 : LED indicators
Table 2-4 : LED Indicators
Status Operation Action
BX6.3_AC100 power OFF Grid supplied Power ON the unit
(AC start-up)
BX6.3_AC100 power OFF Power button push > 20 sec
(until grid green LED flash)
Power ON the unit
(Cold start-up)
BX6.3_AC100 power ON
already Power button push > 1 sec Power OFF the unit
Grid
SPS
Comm.
Definition
On Grid mode
On Grid count down
PCS Error
Standalone mode
Standalone count down
Battery Error
Communicating
LED StatusLED
GREEN ONGrid
SPS
(Stand-alone Power System)
Comm.
GREEN FLASH 1s ON/OFF
Grid setting “default”
GREEN FLASH 0.1s ON/OFF
RED ON
GREEN ON
GREEN FLASH
RED ON
GREEN ON
SBMS Balance mode
SBMS Force_CHG
Maintenance Mode
Grid / SPS GREEN FLASH
Grid ON 1s SPS ON 1s
No communicationOFF
Battery Power OFFRED FLASH
18
Introduction

The chapter contains instructions for (1) Installation environment
(2) Mechanical installation; (3) Electrical Installation; (4) Communication setup.
3 Installation
WARNING !
- Do not install BX6.3_AC100 near or on flammable surfaces.
- Please mount BX6.3_AC100 tightly on a solid / smooth surface.
- Install BX6.3_AC100 in a location that prevents damage from flooding.
- Do not expose BX6.3_AC100 to ambient temperatures above 60°C or below -20°C.
- Operating or storing BX6.3_AC100 at the temperatures out of its specified range
might cause damage to BX6.3_AC100.
- BX6.3_AC100 series should not be installed in multiple phase combinations.
- The optimal operation temperature for BX6.3_AC100 is between 10 to 30°C.
- If the ambient temperature is out of the optimal operating range, BX6.3_AC100
will be de-rating.
- The operating humidity is within the range from 0 to 95%.
- BX6.3_AC100 may limit charge or discharge power based on battery cell
temperature to improve battery lifespan.
- If the ambient temperature is out of the operating range, BX6.3_AC100 will stop
operating to avoid any unexpected damage.
CAUTION !
3.1 Installation Environment
Please avoid using BX6.3_AC100 under the following condition, otherwise the
device may malfunction.
• Locations where IP65 isn't satisfied.
• Locations where temperature changes severely.
• Locations where the device is directly exposed to saltwater, sea breezes and
high humidity.
• Locations that are or might be affected by explosive, combustible, corrosive
and other poisonous gases.
• Location exposed dust and dirt.
• Location with poor ventilation.
• Locations with other special conditions.
• At altitude above 2000m.
BX6.3_AC100 is designed to be waterproof and can be installed both indoors and
outdoors. However, please avoid exposure to direct sunlight, high temperature
and high humidity if installed outdoors.
19
Installation

3.2 Unboxing and Review
The unpacking procedure of BX6.3_AC100 is shown as Figure 3-1 .
Figure 3-1 : Unpack
Require two or more persons
to move the battery inverter.
There is an optional handle to
easily stand up BX6.3, please
see section 3.3 for detail.
①
②
③③
20
Installation
