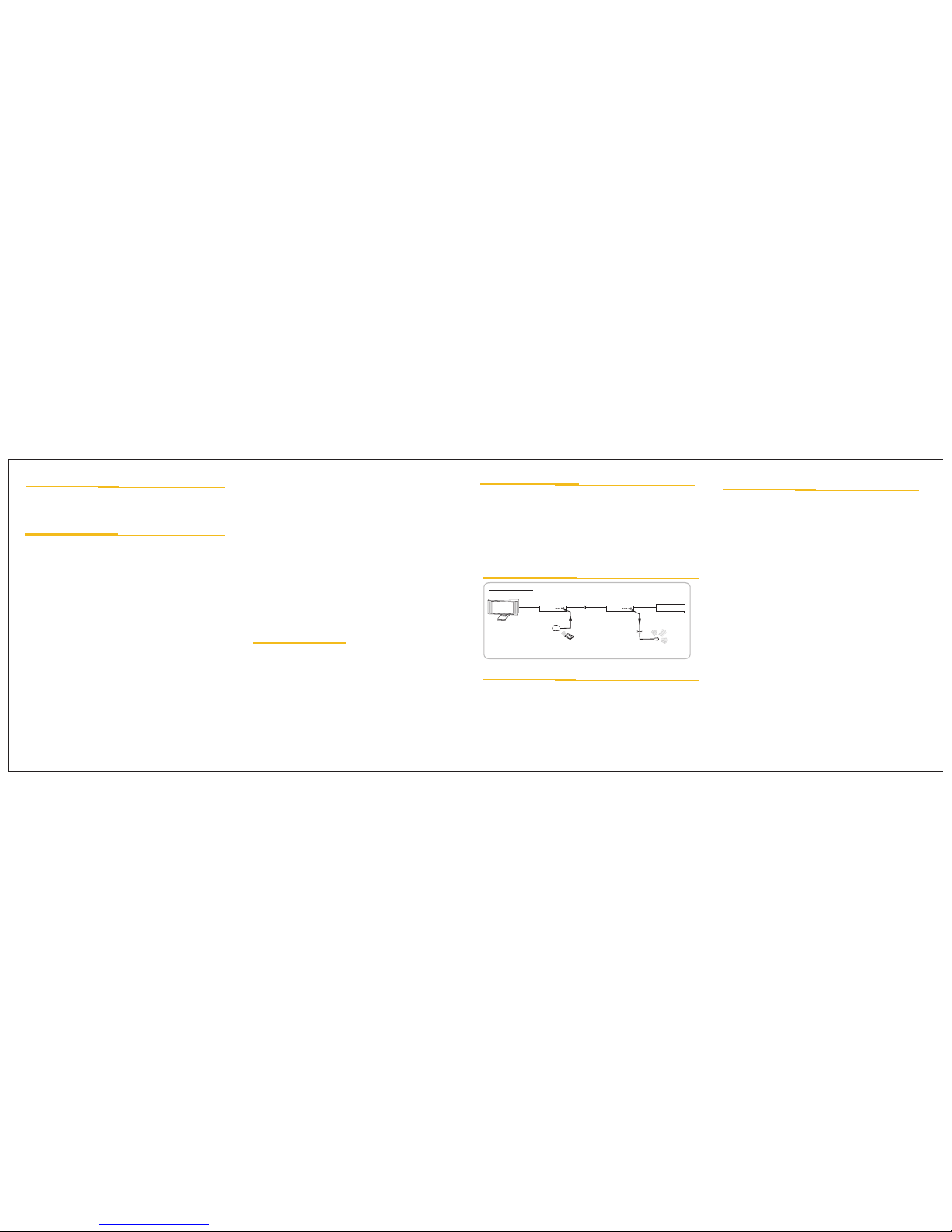

Delta HKHB0100SC User manual

New Function:
Product Picture:
Quality Guarantee:
This Limited Warranty only covers failures due to defects in
materials or workmanship, and does not cover normal wear and
tear or cosmetic damage. The Limited Warranty also does not
cover damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures
which result from accidents, misuse, abuse, neglect,mishandling,
misapplication, alteration, faulty installation, set-up adjustments,
maladjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modification, or service by
anyone other than a Factory Service center or other Authorized
Service, or damage that is attributable to acts of God.
There are no express warranties except as listed under “limited
warranty coverage”. the warrantor is not liable for incidental or
consequential damages resulting from the use of this product, or
arising out of any breach of this warranty. (As examples, this
excludes damages for lost time, cost of having someone remove
or re-install an installed unit if applicable, travel to and from the
service, loss or damage to media or images, data or other
recorded content. The items listed are not exclusive, but are for
illustration only.)
No damage caused by accident, One year warranty for free repair
and half way free transport.
-5- -6- -7-
User Manual
Wallplate Extender over HDBase-T
Model NO.: HKHB0100SC
HKHB0100AW-US
HKHB0100AW-EU
HDMI over Single Cat5e/6(HKHB0100SC)
HKHB0100SC
HDBase-T Daisy Chain Repeater (HKHB0200SC)
HDMI over Single Cat5e/6/100m
HKHB0070SC
HKHB0070AW-US
HKHB0070AW-EU
HKHB0 70SC0
HDMI over Single Cat5e/6/70m
HKHB0100AW-US
HKHB0100AW-EU
HKHB0070AW-US
100m extension CAT5e/6
HDM I Cable
PC
INT ERNET C ONNEC T
CAT5e /6
CAT5e /6
CAT5e /6
PC
PC
DVD
TV
HDM I Cable
HDM I Exten der Tran smitt er HDM I Exten der Rec eiver
NOTE :Thes e are ske tch map
NOTE :Thes e are ske tch map
Blu- ray DVD
HDB ase-T Tra nsmit ter
PC
HDB ase-T Da isy Cha in Repe ater HDB ase-T Da isy Cha in Repe ater HDB ase-T Da isy Cha in Repe ater
100m CAT5e/6Single
100m CAT5e/6Single
100m CAT5e/6Single
PC PC PC
70m extension CAT5e/6
HDM I Cable
DVD
TV
HDM I Cable
HDM I Exten der Tran smitt er HDM I Exten der Rec eiver
TX RX
NOTE :Thes e are ske tch map
HDMI over Single Cat5e/6(HKHB0070SC)
HKHB0070AW-EU
HDBase-T Wallplate Extender,EU type/70m
HDBase-T Daisy Chain Repeater
HKHB0200SC
HDBase-T Wallplate Extender,US type/100m HDBase-T Wallplate Extender,US type/70m
HDBase-T Wallplate Extender,EU type/100m
HKHB0200SC

HKHB0100SC…………………………………………Dimension:110x75x23.5mm
HDMI Extender over single Cat5e/6
100m long extension over HDBase-T technology
Built-in Lanswitch to distribute Internet to each room
6 level Daisy Chain for multi-place installation
IR backward and forward
100m Extension for HDMI,100Base-T
10.2Gbps transport capacity over HDBase-T
3D support
HKHB0070SC…………………………………………Dimension:110x75x23.5mm
HDMI Extender over single Cat5e/6
70m long extension over HDBase-T technology
6 level Daisy Chain for multi-place installation
IR backward and forward
70m Extension for HDMI
10.2Gbps transport capacity over HDBase-T
3D support
HKHB0100AW-US… ……… ……… ………Dimension:115X114mm
HDMI Wallplate Extender over Single Cat5e/6, US type
100m long extension over HDBase-T technology
Built-in Lanswitch to distribute Internet to each room
6 level Daisy Chain for multi-place installation
IR backward and forward
100m Extension for HDMI,100Base-T
10.2Gbps transport capacity over HDBase-T
3D support
HKHB0070AW-US… ……… ……… ………Dimension:115X114mm
HDMI Wallplate Extender over Single Cat5e/6, US type
70m long extension over HDBase-T technology
6 level Daisy Chain for multi-place installation
IR backward and forward
70m Extension for HDMI
10.2Gbps transport capacity over HDBase-T
3D support
Basic Function:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE:
1.Do not expose this apparatus to rain, moisture, dripping or
splashing and make sure that no objects filled with liquids, such
as vases, are placed on the apparatus.
2.Do not install or place this unit in a bookcase, built-in cabinet
or in another confined space. Ensure the unit is well ventilated.
3.To prevent risk of electric shock or fire hazard due to
overheating, do not obstruct the unit's ventilation openings with
newspapers, tableclothes, curtains and similar items.
4.Do not install near any heat sources such as radiators, heat
registers, Stoves or other apparatus.
5.Do not place sources of naked flames, such as lighted candles
on the unit.
6.Clean this apparatus only with dry cloth.
7.Unplug this apparatus during lighting storms or when unused
for long time.
8.Protect the power cord from being walked on or pinched,
particularly at plugs.
9.Only use attachments/accessories specified by the
manufacture.
10.Refer all servicing to qualified service personnel.
Warning:
Operation:
Specification:
HDMI version High Speed with 3D
HDCP version……………………………………………………………HDCP1. 2
Support HDMI resolution………… 1080P /108 0i/7 20P/ 576P /576 i/48 0P/4 80i
Support video color bit ………………………………… dee p colo r 24bi t/36 bit
Support audio format………………………… LPCM/Dolby-AC3/DTS7.1/DSD
Input Video signal … … …… … …… … … …… … ……… … …… … …1 .0Vol ts P-P
Output cable distance…… … …… … … …… … …… … … …… … … …… … ≤5m
Input cable distance… … … …… … …… … … …… … …… … … …… … …… ≤5m
Data transfer speed……………………………………… 6.75Gbps-10.2Gbps
Operating Humidity range…………………… 5 t o 90%RH (No Condensation)
Operating Tem pera ture r ange……………………… -15 t o +55C ° (5 to 131°F)
Power adapter format…………………………Input AC(50Hz.60Hz) 100- 240V
Power Supply………………………………………………………………DC 5V
…… … …… … … …… … …… … … …… … …
-1- -2- -3- -4-
Application :
Package Included:
 HDMI extender Transmitter and Receiver
5V DC power supply x 2
User manual
When first unpacking your HDMI extender please check to
see if the following items are included:
1.Connect the signal source (such as HD-DVD, PS3, STB) with HDMI
input interfaces.
2.Connect the display devices (such as HD-LCD, HD-DLP) with HDMI
output interfaces.
3.Connect the EIA/TIA 568B one long CAT5e/6 cable to the sender
output socket.
4.Connect the EIA/TIA 568B one long CAT5e/6 cables to the Receiver
input socket.
5.Connect LCD with HDMI interface to Receiver output socket.
6.This device is powered by an external power supply optional.
Thank you for purchasing this product !
For optimum performance and safety,Please read these Instructions
carefully before connecting,Operating or adjusting this product.
Please keep this manual for future reference.
Dear Custo me r
NOTE :th es e are s ample m ach ine onl y
HD- DVD/P S3
Ful l HD
Displa y
HDM I CABLE
IR Re ceive r
Rem ote con trol
IR Tra nsmit ter
100 m exten sion ov er CAT5e /6sin gle
HDMI over Single Cat5e/6
HDM I Exten der Tran smitt er
HDM I Exten der Rec eiver
HDM I CABLE
HKHB0100AW-EU…………………………Dimension:145X84.5mm
HDMI Wallplate Extender over Single Cat5e/6, EU type
100m long extension over HDBase-T technology
Built-in Lanswitch to distribute Internet to each room
6 level Daisy Chain for multi-place installation
IR backward and forward
100m Extension for HDMI,100Base-T
10.2Gbps transport capacity over HDBase-T
3D support
HKHB0070AW-EU…………………………Dimension:145X84.5mm
HDMI Wallplate Extender over Single Cat5e/6, EU type
70m long extension over HDBase-T technology
6 level Daisy Chain for multi-place installation
IR backward and forward
70m Extension for HDMI
10.2Gbps transport capacity over HDBase-T
3D support
HKHB0200SC………………………………………Dimension:277x155x27mm
HDBase-T Daisy Chain Repeater
100m long extension over HDBase-T technology
Built-in Lanswitch to distribute Internet to each room
6 level Daisy Chain for multi-place installation
IR backward and forward
10.2Gbps transport capacity over HDBase-T
3D support
