Delta 28-206 User manual

14" Band Saws
(Models 28-206, 28-276)
MODEL 28-206
INSTRUCTION MANUAL
PART NO. A05739 - 06-03-05
Copyright © 2005 Delta Machinery
ESPAÑOL: PÁGINA 27
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-800-223-7278 (In Canada call 1-800-463-3582).

2
TABLE OF CONTENTS
Read and understand all warnings and operating instructions before using any tool or equipment. When
using tools or equipment, basic safety precautions should always be followed to reduce the risk of personal injury.
Improper operation, maintenance or modification of tools or equipment could result in serious injury and property
damage. There are certain applications for which tools and equipment are designed. Delta Machinery strongly
recommends that this product NOT be modified and/or used for any application other than for which it was designed.
If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery
and we have advised you.
Online contact form at www.deltamachinery.com
Postal Mail: Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 125 Mural St. Suite 300, Richmond Hill, ON, L4B 1M4)
Information regarding the safe and proper operation of this tool is available from the following sources:
Power Tool Institute
1300 Sumner Avenue, Cleveland, OH 44115-2851
www.powertoolinstitute.org
National Safety Council
1121 Spring Lake Drive, Itasca, IL 60143-3201
American National Standards Institute, 25 West 43rd Street, 4 floor, New York, NY 10036 www.ansi.org
ANSI 01.1Safety Requirements for Woodworking Machines, and
the U.S. Department of Labor regulations www.osha.gov
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ADDITIONAL SPECIFIC SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
CARTON CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
SERVICE CENTER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .back cover

3
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
It is important for you to read and understand this manual. The information it contains relates to protecting
YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this
information.
SAFETY GUIDELINES - DEFINITIONS
SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER
CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear NIOSH/OSHA
approved, properly fitting face mask or respirator when using such tools.
CALIFORNIA PROPOSITION 65

4
GENERAL SAFETY RULES
READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock,
fire, and/or serious personal injury or property damage.
IMPORTANT SAFETY INSTRUCTIONS
1. FOR YOUR OWN SAFETY, READ THE INSTRUCTION
MANUAL BEFORE OPERATING THE MACHINE. Learning
the machine’s application, limitations, and specific
hazards will greatly minimize the possibility of accidents
and injury.
2. WEAR EYE AND HEARING PROTECTION. ALWAYS
USE SAFETY GLASSES. Everyday eyeglasses are NOT
safety glasses. USE CERTIFIED SAFETY EQUIPMENT.
Eye protection equipment should comply with ANSI Z87.1
standards. Hearing equipment should comply with ANSI
S3.19 standards.
3. WEAR PROPER APPAREL. Do not wear loose clothing,
gloves, neckties, rings, bracelets, or other jewelry which
may get caught in moving parts. Nonslip footwear is
recommended. Wear protective hair covering to contain
long hair.
4. DO NOT USE THE MACHINE IN A DANGEROUS
ENVIRONMENT. The use of power tools in damp or wet
locations or in rain can cause shock or electrocution. Keep
your work area well-lit to prevent tripping or placing arms,
hands, and fingers in danger.
5. MAINTAIN ALL TOOLS AND MACHINES IN PEAK
CONDITION. Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing
accessories. Poorly maintained tools and machines can further
damage the tool or machine and/or cause injury.
6. CHECK FOR DAMAGED PARTS. Before using the machine,
check for any damaged parts. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
and any other conditions that may affect its operation. A
guard or any other part that is damaged should be
properly repaired or replaced. Damaged parts can cause
further damage to the machine and/or injury.
7. KEEP THE WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
8. KEEP CHILDREN AND VISITORS AWAY. Your shop is a
potentially dangerous environment. Children and visitors can be
injured.
9. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make
sure that the switch is in the “OFF” position before
plugging in the power cord. In the event of a power failure,
move the switch to the “OFF” position. An accidental
start-up can cause injury.
10. USE THE GUARDS. Check to see that all guards are in
place, secured, and working correctly to reduce the risk of
injury.
11. REMOVE ADJUSTING KEYS AND WRENCHES
BEFORE STARTING THE MACHINE. Tools, scrap pieces,
and other debris can be thrown at high speed, causing
injury.
12. USE THE RIGHT MACHINE. Don’t force a machine or an
attachment to do a job for which it was not designed.
Damage to the machine and/or injury may result.
13. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by Delta
may cause damage to the machine or injury to the user.
14. USE THE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized cord will
cause a drop in line voltage, resulting in loss of power and
overheating. See the Extension Cord Chart for the correct
size depending on the cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord.
15. SECURE THE WORKPIECE. Use clamps or a vise to hold
the workpiece when practical. Loss of control of a
workpiece can cause injury.
16. FEED THE WORKPIECE AGAINST THE DIRECTION OF THE
ROTATION OF THE BLADE, CUTTER, OR ABRASIVE
SURFACE. Feeding it from the other direction will cause
the workpiece to be thrown out at high speed.
17. DON’T FORCE THE WORKPIECE ON THE MACHINE.
Damage to the machine and/or injury may result.
18. DON’T OVERREACH. Loss of balance can make you fall
into a working machine, causing injury.
19. NEVER STAND ON THE MACHINE. Injury could occur if the tool
tips, or if you accidentally contact the cutting tool.
20. NEVER LEAVE THE MACHINE RUNNING UNATTENDED.
TURN THE POWER OFF. Don’t leave the machine until it comes
to a complete stop. A child or visitor could be injured.
21. TURN THE MACHINE “OFF”, AND DISCONNECT THE
MACHINE FROM THE POWER SOURCE before installing or
removing accessories, before adjusting or changing set-
ups, or when making repairs. An accidental start-up can
cause injury.
22. MAKE YOUR WORKSHOP CHILDPROOF WITH
PADLOCKS, MASTER SWITCHES, OR BY REMOVING
STARTER KEYS. The accidental start-up of a machine by
a child or visitor could cause injury.
23. STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE. DO NOT USE THE MACHINE
WHEN YOU ARE TIRED OR UNDER THE INFLUENCE
OF DRUGS, ALCOHOL, OR MEDICATION. A moment of
inattention while operating power tools may result in injury.
24. USE OF THIS TOOL CAN GENERATE AND
DISBURSE DUST OR OTHER AIRBORNE PARTICLES,
INCLUDING WOOD DUST, CRYSTALLINE SILICA DUST
AND ASBESTOS DUST. Direct particles away from face and
body. Always operate tool in well ventilated area and provide
for proper dust removal. Use dust collection system wherever
possible. Exposure to the dust may cause serious and
permanent respiratory or other injury, including silicosis (a
serious lung disease), cancer, and death. Avoid breathing the
dust, and avoid prolonged contact with dust. Allowing dust to
get into your mouth or eyes, or lay on your skin may promote
absorption of harmful material. Always use properly fitting
NIOSH/OSHA approved respiratory protection appropriate for
the dust exposure, and wash exposed areas with soap and
water.

5
1. DO NOT OPERATE THIS MACHINE UNTIL it is
assembled and installed according to the instructions.
2. OBTAIN ADVICE from your supervisor, instructor, or
another qualified person if you are not familiar with the
operation of this tool.
3. FOLLOW ALL WIRING CODES and recommended
electrical connections.
4. USE THE GUARDS WHENEVER POSSIBLE. Check to see
that they are in place, properly adjusted, secured, and
working correctly.
5. USE PROPER BLADE SIZE and type.
6. ADJUST THE UPPER BLADE GUIDE so that it is about
1/8" above the workpiece.
7. PROPERLY ADJUST the blade tension, tracking, blade
guides, and blade support bearings.
8. KEEP ARMS, HANDS, AND FINGERS away from the
blade.
9. AVOID AWKWARD OPERATIONS and hand positions
where a sudden slip could cause a hand to move into the
blade.
10. NEVER START THE MACHINE before clearing the table
of all objects (tools, scrap pieces, etc.).
11. NEVER START THE MACHINE with the workpiece
against the blade.
12. HOLD WORKPIECE FIRMLY against the table. DO NOT
attempt to saw a workpiece that does not have a flat
surface against the table.
13. HOLD WORKPIECE FIRMLY and feed into blade at a
moderate speed.
14. NEVER REACH UNDER THE TABLE while the machine
is running.
15. TURN THE MACHINE “OFF” to back out of an
uncompleted or jammed cut.
16. MAKE “RELIEF” CUTS prior to cutting long curves.
17. TURN THE MACHINE “OFF” and wait for the blade to
stop prior to cleaning the blade area, removing debris
near the blade, removing or securing workpiece, or
changing the angle of the table. A coasting blade can be
dangerous.
18. NEVER PERFORM LAYOUT, ASSEMBLY, or set-up work
on the table/work area when the machine is running.
19. TURN THE MACHINE “OFF” AND DISCONNECT THE
MACHINE from the power source before installing or
removing accessories, before adjusting or changing set-
ups, or when making repairs.
20. TURN THE MACHINE “OFF”, disconnect the machine
from the power source, and clean the table/work area
before leaving the machine. LOCK THE SWITCH IN THE
“OFF” POSITION to prevent unauthorized use.
21. ADDITIONAL INFORMATION regarding the safe and
proper operation of power tools (i.e. a safety video) is
available from the Power Tool Institute, 1300 Sumner
Avenue, Cleveland, OH 44115-2851
(www.powertoolinstitute.com). Information is also
available from the National Safety Council, 1121 Spring
Lake Drive, Itasca, IL 60143-3201. Please refer to the
American National Standards Institute ANSI 01.1 Safety
Requirements for Woodworking Machines and the U.S.
Department of Labor OSHA 1910.213 Regulations.
SAVE THESE INSTRUCTIONS.
Refer to them often
and use them to instruct others.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
ADDITIONAL SPECIFIC SAFETY RULES

6
Fig. A Fig. B
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
GROUNDING
MEANS
ADAPTER
2. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating less
than 150 volts:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. A,the machine
will have a grounding plug that looks like the plug illustrated
in Fig. A. A temporary adapter, which looks like the adapter
illustrated in Fig. B, may be used to connect this plug to a
matching 2-conductor receptacle as shown in Fig. B if a
properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet
can be installed by a qualified electrician. The green-colored
rigid ear, lug, and the like, extending from the adapter must
be connected to a permanent ground such as a properly
grounded outlet box. Whenever the adapter is used, it must
be held in place with a metal screw.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.
IN ALL CASES, MAKE CERTAIN THAT THE
RECEPTACLE IN QUESTION IS
PROPERLY GROUNDED. IF YOU ARE NOT
SURE, HAVE A QUALIFIED ELECTRICIAN
CHECK THE RECEPTACLE.
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This machine is equipped
with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into a matching outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conduc-
tor can result in risk of electric shock. The conductor with
insulation having an outer surface that is green with or
without yellow stripes is the equipment-grounding
conductor. If repair or replacement of the electric cord or
plug is necessary, do not connect the equipment-grounding
conductor to a live terminal.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the machine is properly grounded.
Use only 3-wire extension cords that have 3-prong grounding
type plugs and matching 3-conductor receptacles that
accept the machine’s plug, as shown in Fig. A.
Repair or replace damaged or worn cord immediately.
POWER CONNECTIONS
MOTOR SPECIFICATIONS
GROUNDING INSTRUCTIONS
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be
protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-prong
grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the machine to the
power line, make sure the switch (s) is in the “OFF” position and be sure that the electric current is of the same characteristics
as indicated on the machine. All line connections should make good contact. Running on low voltage will damage the
machine.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
Your machine is wired for 120 VOLT, 60 HZ alternating current. Before connecting the machine to the power source,
make sure the switch is in the “OFF” position.
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.

7
3. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating
between 150 - 250 volts, inclusive:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. C, the
machine will have a grounding plug that looks like the plug
illustrated in Fig. C. Make sure the machine is connected to
an outlet having the same configuration as the plug. No
adapter is available or should be used with this machine. If
the machine must be re-connected for use on a different
type of electric circuit, the re-connection should be made
by qualified service personnel; and after re-connection, the
machine should comply with the National Electric Code and
all local codes and ordinances.
Fig. C
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
EXTENSION CORDS
Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire
extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the machine’s
plug. When using an extension cord, be sure to use one heavy enough to carry the current of the machine. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. D-1 or D-2, shows
the correct gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge
number, the heavier the cord.
Fig. D-1 Fig. D-2
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120 up to 25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to 25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to 25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to 25 14 AWG
12-16 120 25-50 12 AWG
12-16 120 GREATER THAN 50 FEET NOT RECOMMENDED
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 240 up to 50 18 AWG
0-6 240 50-100 16 AWG
0-6 240 100-200 16 AWG
0-6 240 200-300 14 AWG
6-10 240
up to 50 18 AWG
6-10 240 50-100 16 AWG
6-10 240 100-200 14 AWG
6-10 240 200-300 12 AWG
10-12 240
up to 50 16 AWG
10-12 240 50-100 16 AWG
10-12 240 100-200 14 AWG
10-12 240 200-300 12 AWG
12-16 240
up to 50 14 AWG
12-16 240 50-100 12 AWG
12-16 240
GREATER THAN 100 FEET NOT RECOMMENDED

8
FOREWORD
Model 28-206 is a 1 Hp, 120/240 volt, 2-speed unit with a quick blade-tensioning device and an enclosed stand.
Model 28-276 is a 3/4 Hp, 120/240 volt, 1-speed unit with a quick blade-tensioning device and an open stand.
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
1
2
3
4
5
6
78910
11 12
CARTON CONTENTS
1. Band Saw
2. Motor
3. Table
4. Table Insert
5. Belt
6. Motor Mounting Plate
7. M8x1.25x80mm (4) (for assembling saw to stand)
8. M8 Lockwasher (4) (for assembling saw to stand)
9. M8 Flat Washer (4) (for assembling saw to stand)
10. M8x1.25 Hex nut (4) (for assembling saw to stand)
11. Table Knob (2)
12. M13 Flat Washer (2)
FUNCTIONAL DESCRIPTION
NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in
the manual are representative only and may not depict the actual labeling or accessories included. These are are
intended to illustrate technique only.

9
MODEL 28-206 ENCLOSED STAND PARTS
1. Base (2)
2. Side (2)
3. Stand Top
4. Door (2)
5. Pulley Guard
6. M8x1.25x100mm Hex Head Screw
7. M8x1.25x16mm Hex Head Flange Screw (26)
8. M8x1.25x16mm Round Head Flange Screw (4)
9. M5x0.8x10mm Pan Head Screw (2)
10. Shaft (for attaching motor plate to top of stand)
11. M8x1.25 Hex nut
12. Dampening Cap
13. M8x1.25 Hex Flange Nut (30)
14. 5mm Flat Washer (2)
15. M5x0.8 Hex Nut (2)
16. 9mm C ring (2)
1
2
3
4
6
7
8
9
10
11 12
13
14
15
16
5
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE
INSTRUCTION MANUAL.

10

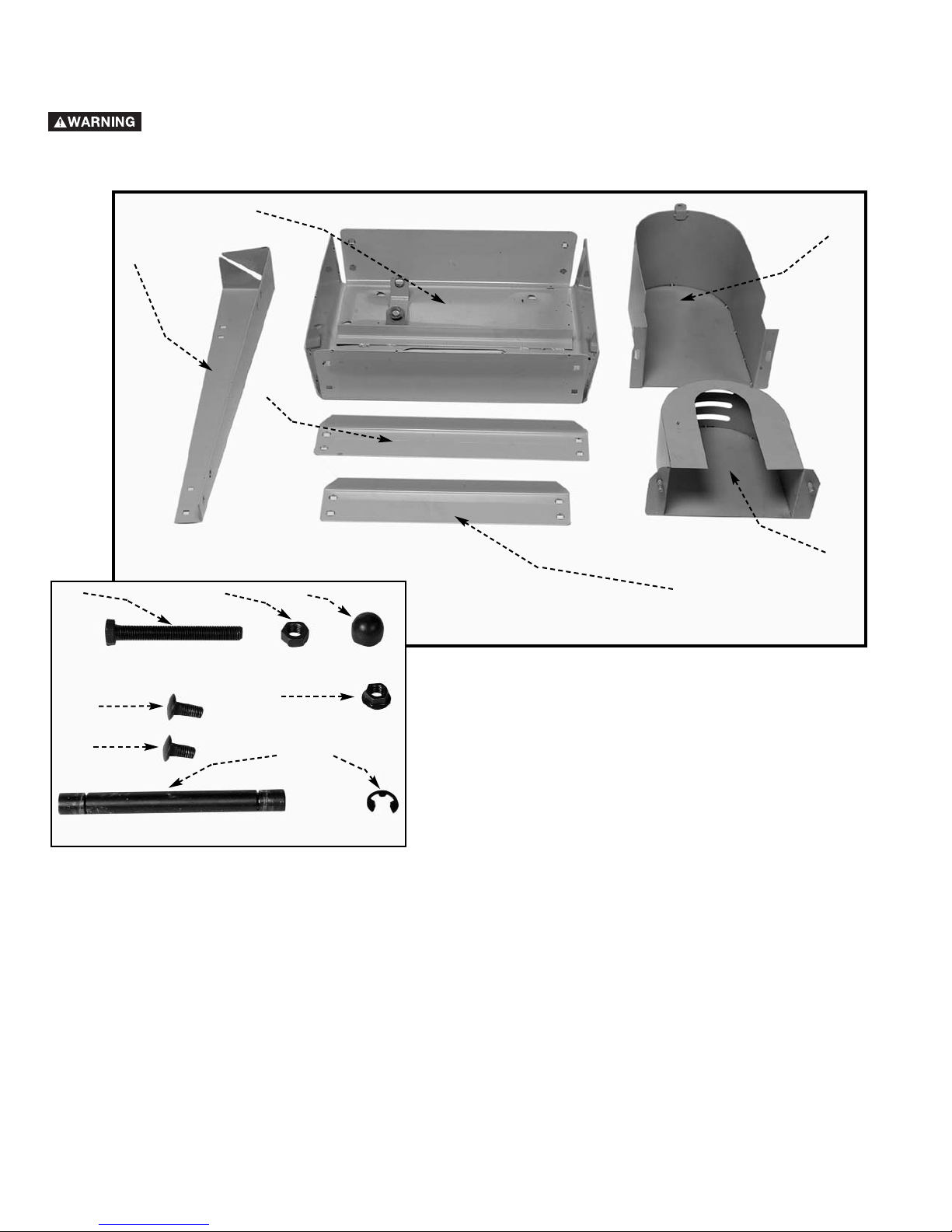

MODEL 28-276 OPEN STAND PARTS
1. Legs (4)
2. Stand Top
3. Long Brace (2)
4. Short Brace (2)
5. Upper Pulley Guard
6. Lower Pulley Guard
7. M8x1.25x80mm Hex Head Screw
8. M8x1.25 Hex Nut
9. Dampening Cap
10. M8x1.25x16mm Round Head Flange Screw (4)
11. M8x1.25x16mm Carriage Head Screw (32)
12. M8x1.25 Hex Flange Nut (38)
13. Shaft (for attaching motor plate to top of stand)
14. 9mm C ring (2)
1
2
3
4
5
6
7 8 9
10
11
12
13 14
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE
INSTRUCTION MANUAL.

11

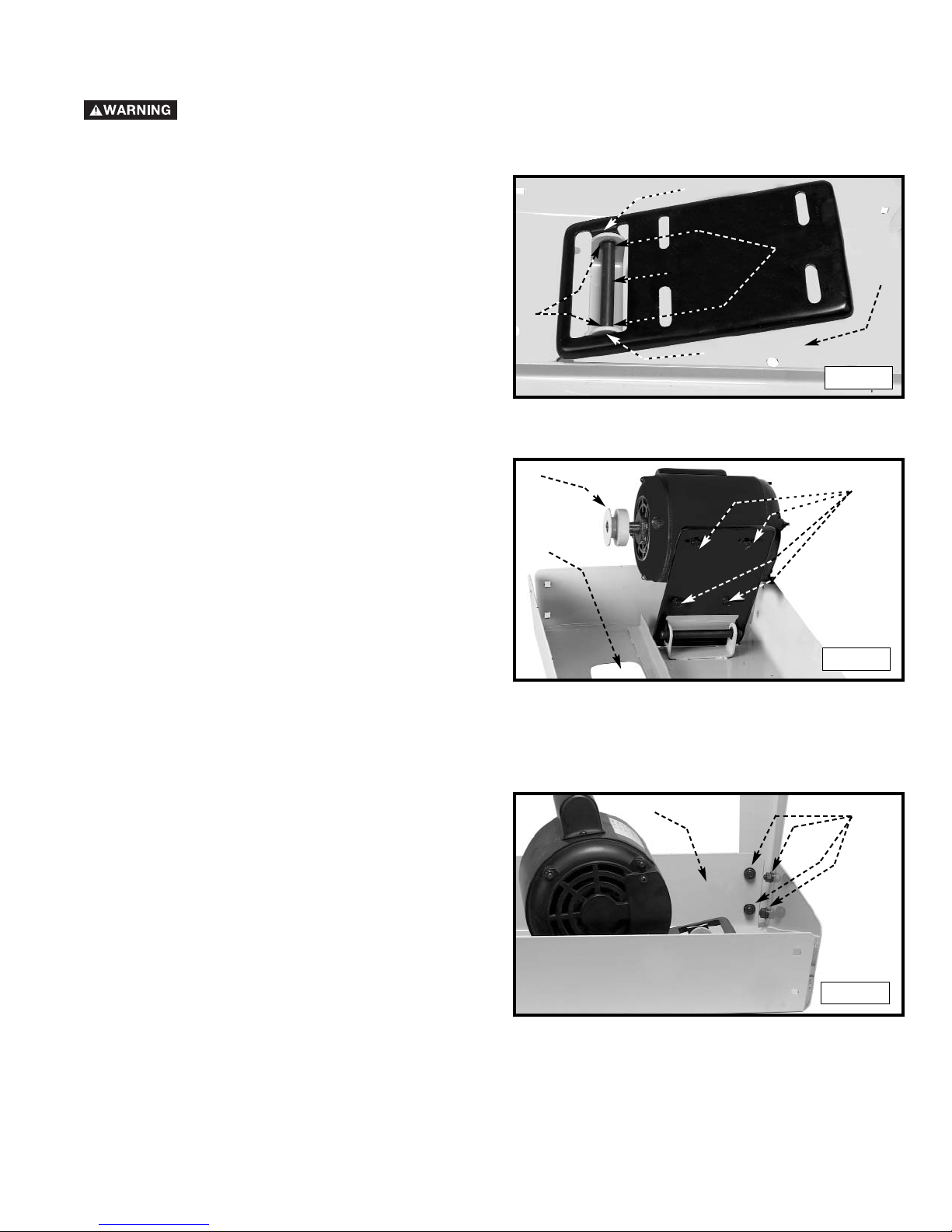

1. Place the stand top (A) Fig. 5 on a flat surface.
2. Align the two holes in the motor mounting plate (E)
Fig. 5 with the two holes (B) in the stand top (A).
3. Insert the shaft (D) through the holes in the motor
mounting plate and the holes in the stand top.
4. Attach the two “C” rings (C) Fig. 5 on the shaft.
A
B
E
D
C
C
5. Align the four holes on the motor bracket with the
four holes (C) Fig. 6 on the motor mounting plate.
NOTE: Confirm that the motor pulley (A) Fig. 6 is
mounted on the same side as the belt opening hole
(B).
6. Insert a round head flange screw (M8 x 1.25 x
16mm) through the hole in the motor bracket and
the hole in the motor mounting plate.
7. Thread a hex flange nut (M8x1.25) on the screw.
8. Repeat this process for the three remaining holes.
A
B
C
9. Align the holes in the side (A) Fig. 7 with the holes in
the stand top (B).
NOTE: Confirm that the hinge catches (C) Fig. 7 are
pointed toward the stand top.
10. Insert a hex head flange screw (M8x1.25x16mm)
through the hole in the side of the stand and the hole
in the top of the stand.
11. Thread a flange nut (M8x1.25)on the screw.
NOTE: Loosely tighten the hardware for further
adjustment.
12. Repeat this process for the five remaining holes.
13. Attach the other stand side in the same manner.
A
B
C
Fig. 5
Fig. 6
Fig. 7
MODEL 28-206 ENCLOSED STAND ASSEMBLY
For your own safety, do not connect the machine to the power source until the machine is
completely assembled and you read and understand the entire instruction manual.
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
Assembly for this machine takes 2 hours or less.
13mm Open- End Wrench - 8mm Open-End Wrench - Adjustable Wrench

12
14. Align the holes in the base (A) Fig. 8, with the holes
in the two sides (B).
15. Insert a hex head flange screw (M8x1.25x16mm)
through the hole in the side of the stand (B) Fig. 8,
and through the hole in the base (A).
16. Thread a hex flange nut (M8x1.25) on the screw.
NOTE: Loosely tighten the hardware for further
adjustment.
17. Repeat this process for the five remaining holes.
18. Attach the other side of the base in the same
manner.
19. Attach the two bases together by inserting a hex
head flange screw (M8x1.25x16mm) through the
hole (C) Fig. 8 in each base, and thread a hex flange
nut (M8x1.25) on the screw.
20. Turn the stand over so that it is resting on the base.
21. Slide the two hinges of the door (A) Fig. 9 over the
hinge catches (B) on the stand.
22. Close the door until the door latch (C) Fig. 9,
engages with the side (D).
23. Attach the other door in the same manner.
A
B
24. Thread a hex nut (M8x1.25) on a hex head screw
(M8x1.25x100mm) approximately 1/4".
25. Thread the hex head screw (C) into the hole (A) Fig.
10 in the top of the stand.
26. Place the damping cap (A) Fig. 10A on the threaded
end of the screw (C).
27. Align the holes (D) Fig. 10 on the hinges attached to
the pulley guard with the two holes (B) in the top of
the stand.
28. Insert a pan head screw (M5x0.8x10mm) through
the hole (D) Fig. 10 in the hinge, and the hole (B) in
the top of the stand.
29. Place a flat washer (5mm) on the screw.
30. Thread a hex nut (M5x0.8) on the screw and tighten
securely.
31. Repeat this process for the remaining hole in the
hinge and the top of the stand.
32. Confirm that the stand is level.
33. Tighten all hardware securely.
C
AB
CD
A
C
DB
A
C
Fig. 8
Fig. 9
Fig. 10
Fig. 10A

13
MODEL 28-276 OPEN STAND ASSEMBLY
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE
INSTRUCTION MANUAL.
1. Place the stand top (A) Fig. 11 on a flat surface.
2. Align the two holes in the motor mounting plate (E)
Fig. 11 with the two holes (B) in the stand top (A).
3. Insert the shaft (D) through the holes in the motor
mounting plate and the holes in the stand top.
4. Attach the two “C” rings (C) Fig. 11 to the shaft.
5. Align the four holes on the motor bracket with the
four holes (C) Fig. 12, on the motor mounting plate.
NOTE: Confirm that the motor pulley (A) Fig. 12 is
mounted on the same side and the belt-opening
hole (B).
6. Insert a round head flange screw (M8x1.25x16mm)
through the hole in the motor bracket and the hole in
the motor mounting plate.
7. Thread a hex flange nut (M8x1.25) on the screw.
8. Repeat this process for the three remaining holes.
9. Align the four holes (A) Fig. 13 in the leg with the four
holes in the side of the stand top (B).
10. Insert a hex head flange screw (M8x1.25x16mm)
through the hole in the leg and through the hole in
the top of stand.
11. Thread a flange nut (M8x1.25) on the screw.
NOTE: Loosely tighten the hardware for further
adjustment.
12. Repeat this process for the three remaining holes.
13. Attach the other three stand legs in the same
manner.
A
E
B
D
C
C
A
B
A
B
E
Fig. 11
Fig. 12
Fig. 13

14

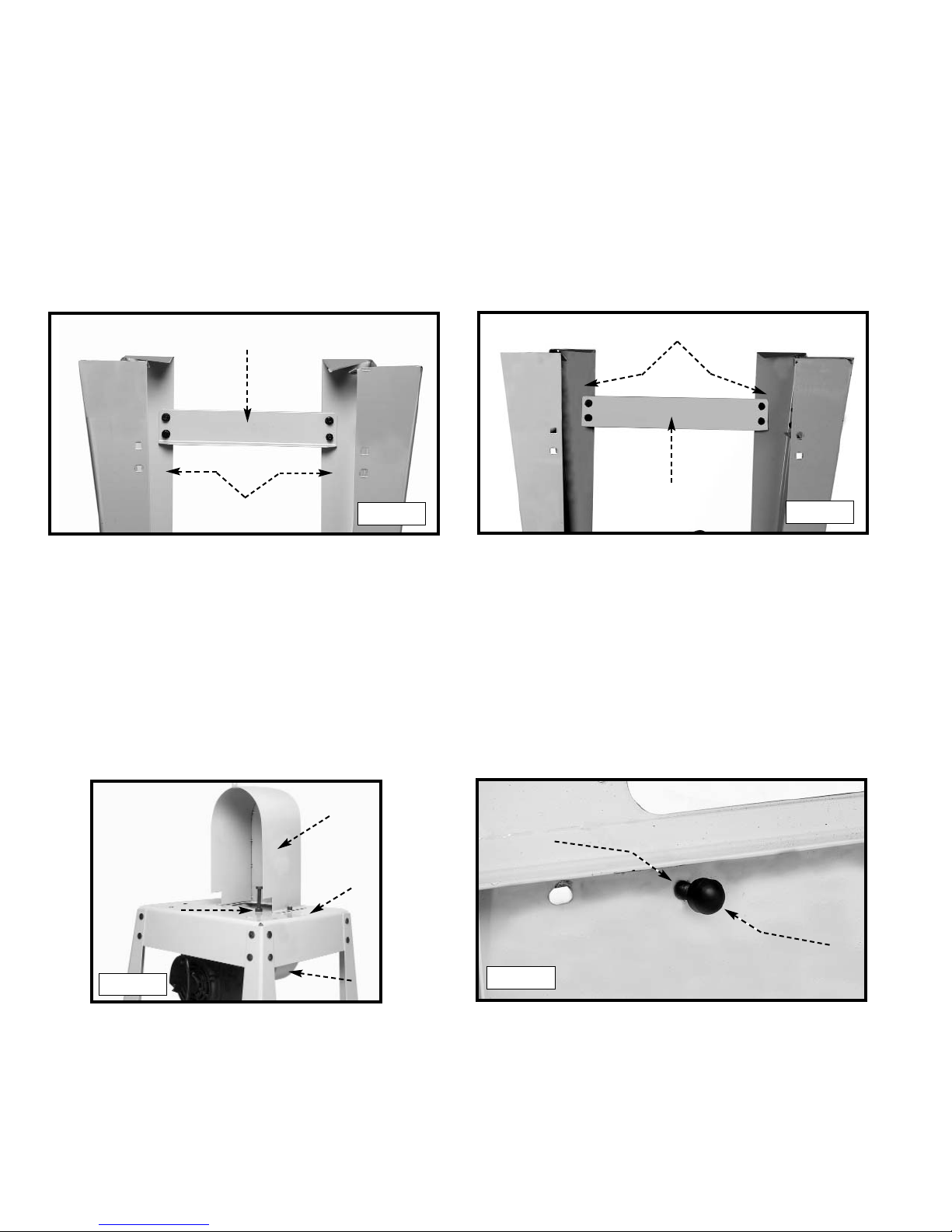

14. Align the four holes in the short brace (A) Fig. 14 with the four holes in the two legs (B).
15. Insert a carriage head bolt (M8x1.25x16mm) through the hole in the stand and the hole the short brace.
16. Thread a flange nut (M8x1.25) on the screw.
NOTE: Loosely tighten the hardware for further adjustment.
17. Repeat this process for the three remaining holes.
18. Attach the remaining short brace to the opposite side of the stand in the same manner.
19. Align the four holes in the long brace (A) Fig. 15 with the four holes in the two legs (B).
20. Insert a carriage head bolt (M8x1.25x16mm) through the hole in the stand and the hole in the long brace.
21. Thread a flange nut (M8x1.25) on the screw.
NOTE: Loosely tighten the hardware for further adjustment.
22. Repeat this process for the three remaining holes.
23. Attach the remaining long brace to the opposite side of the stand in the same manner.
24. Turn the stand right side up.
25. Thread a hex nut (M8x1.25) on a hex head screw (M8x1.25x80mm) approximately 1/4".
26. Thread the hex head screw into the hole (A) Fig. 16 in the top of the stand. Place the damping cap (A) Fig. 16A on
the threaded end of the screw (C).
27. Confirm that the stand is level.
28. Securely tighten all hardware.
NOTE: Pulley guards (D) and (C) will be attached after the belt has been installed.
A
B
A
C
B
D
A
B
A
C
Fig. 14 Fig. 15
Fig. 16 Fig. 16A

15
THE BAND SAW IS VERY HEAVY. Use a helper when you attach the saw to the stand.
1. Place the band saw on top of the stand as shown in
Fig. 17.
NOTE: Confirm that the pulley is on the same side
of the stand as the pulley guard.
2. Align the four holes in the saw with the four holes in
the top of the stand.
3. Place an M8 lockwasher and a M8 flat washer on a
hex head screw (M8x1.25x80mm). Insert the screw
through one of the holes (A) in the saw and the
stand.
4. Thread a hex nut (M8x1.25) on the screw and tighten
securely.
5. Repeat this process for the other hole (A).
6. Attach the belt to the saw and motor pulley. See the section “ATTACHING BELT TO SAW AND MOTOR
PULLEY”.
7. Repeat STEPS 3 AND 4 for the two remaining holes (B) Fig. 17 (one of which is shown).
ATTACHING THE SAW TO THE STAND
ATTACHING THE BELT TO THE SAW AND MOTOR PULLEY
1. Place the belt over the saw pulley (A) Fig. 18.
NOTE: The model 28-276 has a one-step pulley. The
model 28-206 has a two-step pulley (Fig. 18).
2. Lift the motor and place the other end of the belt
around the motor pulley (B) Fig. 18. The weight of
the motor will provide the correct belt tension.
Operate the machine ONLY with all
the guards in place and secure.
3. Check the alignment of the motor and saw pulley.
4. Loosen the four bolts (C) Fig. 12 that hold the motor
bracket to the motor mounting plate, and adjust the
position of the motor until the motor pulley and saw
pulley are aligned.
5. Tighten the four bolts that were loosened in STEP 4.
6. Turn bolt (C) Fig. 18, clockwise, until the dampening cap contacts the motor.
7. Back the bolt (C) Fig. 18 out approximately 1/4" and tighten the nut (D) against the top of the stand to hold bolt
(C) in place.
NOTE: Do not use the bolt and dampening washer to tension the belt. These two parts prevent the motor from
rising excessively when the motor starts.
A
B
C
D
A
B
Fig. 17
Fig. 18
1. Insert the two threaded studs on the lower pulley
guard (C) Fig 18A through the two holes in the top of
the stand (B).
2. Align the two holes in the upper pulley guard (D)
Fig. 18A with the two threaded studs on the lower
pulley guard (C). Place the upper pulley guard on the
studs of the lower pulley guard.
3. Thread a hex flange nut (M8x1.25) on each of the
studs and tighten securely.
A
C
B
D
Fig. 18A
ATTACHING THE PULLEY GUARDS
NOTE: The illustration in Fig. 18A shows the stand
without the band saw for clarity.

16
ATTACHING THE TABLE TO THE SAW
1. Remove the band saw blade.
2. Align the two table studs (A) Fig. 19 in the bottom of the
table with the two holes in the trunnion assemblies (B).
NOTE: Confirm that the slot (C) Fig. 19 is facing toward the
front.
3. Place an M13 flat washer on the table stud and thread the
table knob on the table stud.
4. Repeat this process for the remaining table stud.
ATTACHING BLADE TO THE SAW
NOTE: The 14" band saw uses 93-1/2" length blades.
1. Remove the table pin (A) Fig. 20 from the table.
2. Open the two wheel guard doors (B) Fig. 20 and the blade
guard door (C).
3. Confirm that the quick tension lever (D) Fig. 20 is
positioned to the left of the machine.
NOTE: Install the blade with the teeth pointing down, toward
the table.
4. Slide the band saw blade, (teeth facing out), through the
slot (E) Fig. 20 in the band saw table.
5. Place the blade around the two wheel assemblies (A) Fig.
21.
6. Replace the table pin (A) Fig. 20.
7. Close the two wheel-guard doors (B) Fig. 20 and the blade
guard door (C).
8. Move the quick tension lever (D) Fig. 20 to the right .
9. See the section “OPERATING CONTROLS AND
ADJUSTMENTS” to adjust the blade tension and
tracking.
AA
BB
A
C
B
B
A
E
C
D
A
B
C
TABLE INSERT
Place the table insert (A) Fig. 22 in opening of table.
NOTE: A tab (B) on the insert fits into the notch (C) in
table opening.
Insert the motor plug (A) Fig. 18B into the receptacle (B) of the
switch-to-motor cord.
Fig. 18B A
B
CONNECTING MOTOR CORD TO SWITCH ASSEMBLY
DISCONNECT MACHINE FROM POWER SOURCE!
Fig. 19 Fig. 20
Fig. 21
Fig. 22
DISCONNECT MACHINE FROM POWER SOURCE!

17
STARTING AND STOPPING THE SAW
The power switch is located on the left side of the
machine. To turn the machine “ON”, push the green
start button (A) Fig. 23. To turn the machine “OFF”, push
the red stop button (B).
LOCKING THE SWITCH IN THE “OFF” POSITION
IMPORTANT: When the tool is not in use, the switch
should be locked in the “OFF” position to prevent
unauthorized use, using a padlock (Fig. 24) with a 3/16"
diameter shackle.
TILTING THE TABLE
You can tilt the band saw table 45 degrees to the right
and 10 degrees to the left.
1. To tilt the table to the right, loosen the two locking
knobs (A) Fig. 25, tilt the table to the desired angle
as shown on the scale (D) Figs. 25 and 26, and
tighten two locking knobs (A).
2. To tilt the table (C) Fig. 26 to the left, loosen the two
locking knobs (A) Fig. 25 and tilt the table to the right
until you have access to the table stop (A) Fig. 26.
Remove the table stop (A) Fig. 26, and tilt the table
to the left 10 degrees. Tighten the two locking knobs
(A) Fig. 25.
A
A
D
C
A
B
D
E
F
A
B
OPERATION
OPERATIONAL CONTROLS AND ADJUSTMENTS
Fig. 23
Fig. 24
Fig. 25
Fig. 26

18
ADJUSTING THE TABLE STOP
This machine is equipped with an adjustable table stop
(A) Fig. 26 that allows the table to be set at 90 degrees
to the blade.
Tilt the table (C) Fig. 26 to the left until the table stop (A)
Fig. 26 contacts the table. Place a square on the table
against the blade (Fig. 27). If the blade is not 90 degrees
to the table surface:
1. Tilt the table slightly to the right and tighten the table
lock knobs.
2. Loosen the locknut (B) Fig. 26 to free the adjusting
screw (A) Fig. 26. Turn the adjusting screw (A) right
or left to raise or lower the table stop, then tighten
the locknut (B).
3. Lower the table. Check the angle with the square.
4. When the table is 90 degrees to the blade, confirm
that the pointer (E) Fig. 26 is set to 0°. If not, loosen
the screw (F) Fig. 26 and move the pointer to 0°.
Tighten the screw.
ADJUSTING BLADE TENSION
The machine is equipped with a tension handle (A) Fig.
28. To apply tension, move the tension handle (A) Fig. 28
toward the back. To release the blade tension, move the
tension handle (A) Fig. 29 toward the front.
To adjust the blade tension, move the blade tension
handle toward the back (Fig. 29). A scale is located on
the back of the upper wheel slide bracket. The
graduations on the scale indicate the proper tension for
various widths of blades. With the blade on the wheels,
turn the knob (A) Fig. 30 to raise or lower the wheel until
the red fiber washer (B) Fig. 30 is in line with the proper
graduation for the size of the blade used.
This scale is correct for average work and will not be
affected by rebrazing of the saw blade. Use these
graduations until you become familiar enough with the
operation of the band saw to vary the tension for
different kinds of blades or work.
Over-straining the blade is a common
cause of breakage and/or poor performance. Release
the tension when the machine is not in use.
A
B
A
A
Fig. 27
Fig. 28
Fig. 29
Fig. 30
DISCONNECT MACHINE FROM POWER SOURCE!

19
TRACKING THE BLADE
IMPORTANT: Before tracking the blade, confirm that
the blade guides and blade support bearings are clear of
the blade.
After applying tension to the blade, rotate the wheels
slowly forward by hand and observe the blade’s
movement. The blade (A) Fig. 31 should travel in the
center of the upper tire. If the blade creeps toward the
front edge, loosen the wing nut (B) Fig. 32 and turn the
thumb screw (C) clockwise. This action draws the blade
toward the center of the tire. If the blade creeps toward
the back edge, turn the thumb screw in the opposite
direction. Adjust the thumb screw (C) Fig. 32 only a
fraction of a turn each time.
Never track the blade while the
machine is running.
After the blade is tracking in the center of the tires,
tighten the wing nut (B) Fig. 32.
VERTICAL ADJUSTMENT OF THE UPPER BLADE GUIDE ASSEMBLY
To adjust the blade guides and bearings:
Set the upper blade guide assembly (A) Fig. 33 as close
as possible to the top surface of the workpiece. Loosen
the lock knob (B) and move the guide assembly (A) to
the desired position.
A
BC
B
A
DISCONNECT MACHINE FROM POWER SOURCE!
Fig. 31
Fig. 32
Fig. 33
DISCONNECT MACHINE FROM POWER SOURCE!

20
1. Confirm that the bottom blade guides and support bearings are not touching the blade.
2. Observe the upper blade guide assembly. The blade guides (A) Fig. 34 should be parallel to the blade. To adjust, loosen
the screw (B) and rotate the complete guide assembly (C). When the blade guides are parallel with the blade, tighten the
screw (B).
3. Adjust the guides (A) Fig. 35 so that the front edge of the guides are just behind the “gullets” of the saw teeth. You can
move the complete guide block bracket in or out by loosening the thumb screw (C) and turning the knurled knob (D) Fig.
35. When the guides (A) are set properly, tighten the thumb screw (C).
5. Two set screws (B) Fig. 35 hold the upper blade guides (A) in place. Loosen the set screws (B) to move the guides (A).
Place them as close as possible to the side of the blade. (Do not pinch the blade). Tighten the screws (B).
6. The upper blade support bearing (E) Fig. 35 prevents damage to the set in the saw teeth by keeping the blade held
forward. Set the support bearing (E) 1/64" behind the blade. Loosen the thumb screw (F) and turn the knurled knob (G)
to move the support bearing (E) in or out.
7. Adjust the blade support bearing (E) so that the back edge of the blade overlaps the outside diameter of the ball bearing
by about 1/16". The bearing (E) is set on an eccentric. To change the position, remove the screw (H) and bearing (E) Fig.
35. Loosen the thumb screw (F), and back out the knurled knob from the set screw. Remove the hex shaft from the hole,
and rotate it to move the eccentric for the bearing.
8. When the blade guide wears so that it cannot be adjusted close to the blade, loosen the screw (B) Fig. 35 and reverse
the blade guides (A) Fig. 35.
ADJUSTING LOWER BLADE GUIDES AND BLADE SUPPORT BEARING
1. Turn the knurled knob (C) Fig. 36 to adjust the front
edge of the guide blocks (B) Fig. 36 so that they are
just behind the “gullets” of the saw teeth.
NOTE: The support bearing (D) Fig. 36 should not be
touching the back of the blade.
2. Loosen the two screws (A) Fig. 36. Move the guides (B)
as close as possible to the side of the blade, being
careful not to pinch the blade. Tighten the screws (A).
3. Turn the other knurled knob (E) to adjust the lower
blade support bearing (D) Fig. 36 so that it is about
1/64" behind the back of the blade.
A
CBG
E
D
AB
C
H
F
A
E
C
D
B
ADJUSTING THE UPPER BLADE GUIDES AND BLADE SUPPORT BEARING
Adjust the upper blade guides and blade support bearings ONLY AFTER the blade has the correct tension and is tracking
properly. To adjust:
DISCONNECT MACHINE FROM POWER SOURCE!
Fig. 34 Fig. 35
Adjust the lower blade guides and blade support bearing after the the upper guides and bearing have been adjusted.
DISCONNECT MACHINE FROM POWER SOURCE!
Fig. 36
