Delta 36-725 T2 User manual

36-725 T2 Quick Assembly Guide
36-725 T2 Saw Body
Left Leg (B)
Right Leg (A)
Rip Fence
Blade Guard
Miter Gauge
Push Stick
Throat Plate
Blade Wrench
Extension Wings (2)
Anti-Kickback Pawls
Adjustable Feet (2)
Fixed Wheels (2)
Hand Wheel Handle (2)
Rip Fence Handle
10 inch Blade (Pre-Installed)
Rail Spreader Bar
Rear Fence Rails (2)
Front Fence Rails (2)
Fence Guides (2)

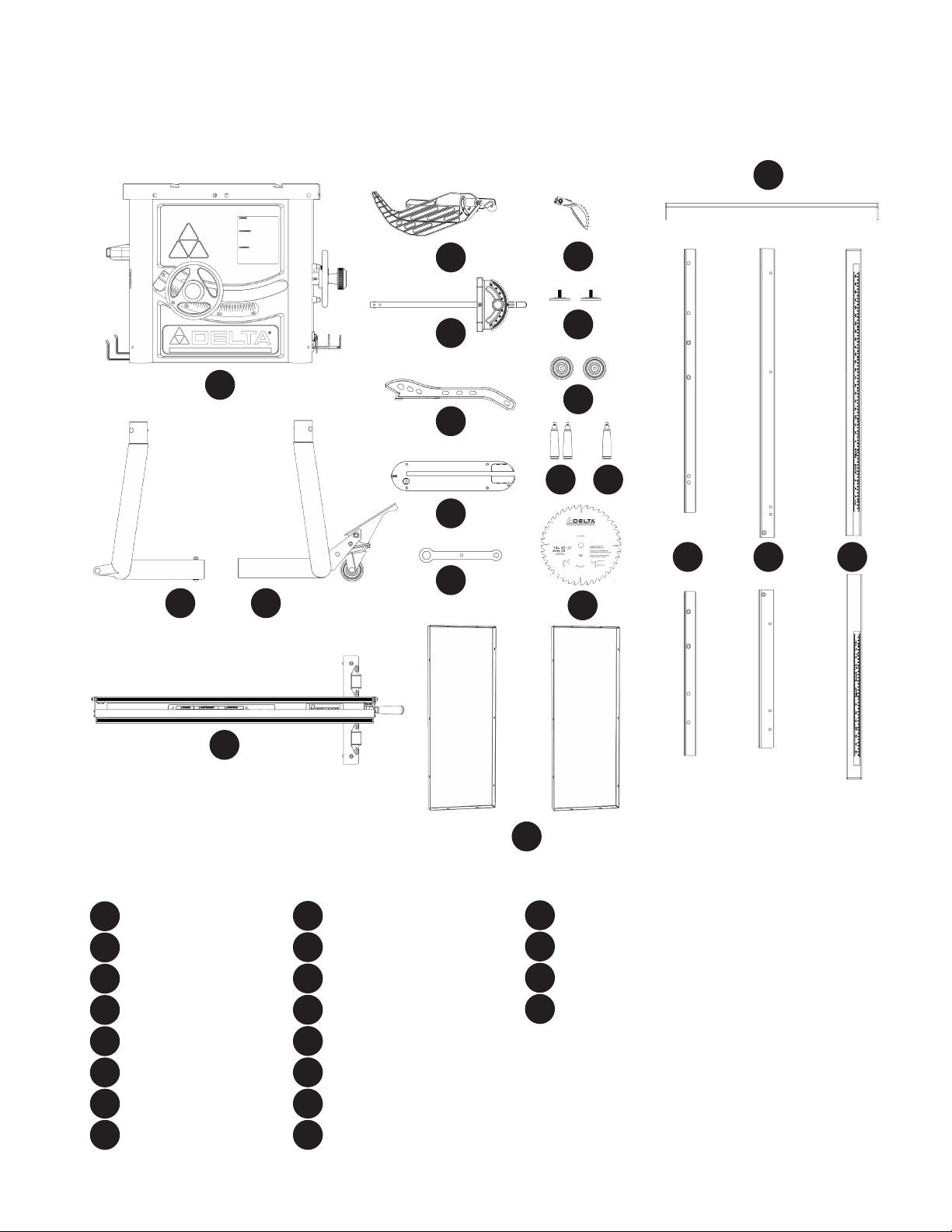

PACKAGE CONTENTS
PC1
PC1
PC2
PC2
PC3
PC3
PC17
PC17
PC4
PC4
PC5
PC5
PC6
PC6
PC7
PC7
PC8
PC8
PC9
PC9
PC10
PC10
PC11
PC11
PC12
PC12
PC13
PC13
PC14
PC14
PC16
PC16
PC18
PC18
PC19
PC19
PC20
PC20
PC15
PC15

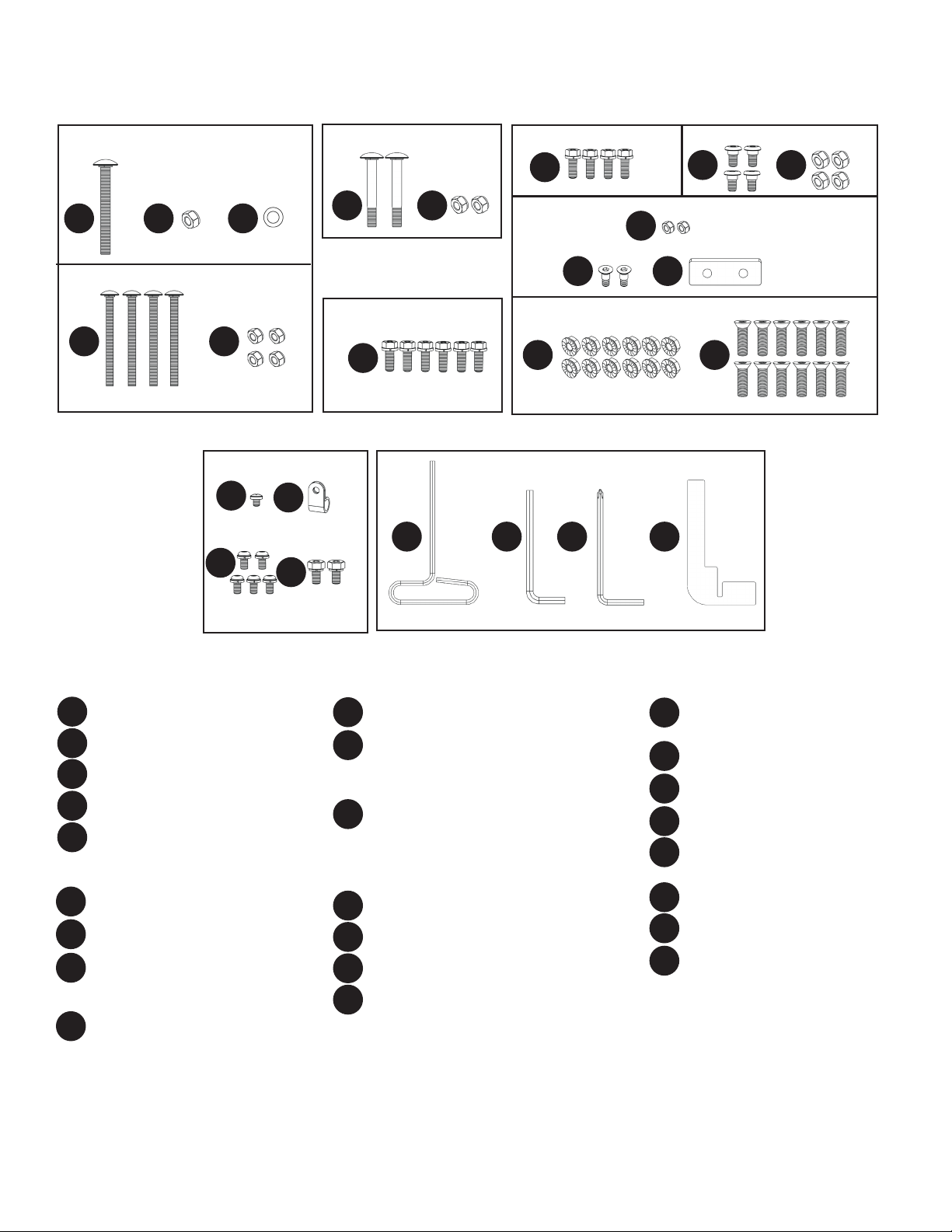

HARDWARE PACKAGE
HP1
HP2HP6
HP2 HP3
HP4 HP5
HP7
HP7 HP8 HP9
Hardware Bag “A” Hardware Bag “B” Hardware Bag “D”
Hardware Bag “E ” Hardware Bag “F”
Hardware Bag “C”
004623
006134 006291
006108
006111
007080
006110
005733
006054
007083
005679
003331
006113
006109
006109
005733
005733 003059
006293 006292
007081
006122
007082
HP20HP21 HP22 HP23
HP16 HP17
HP18
HP19
HP15
HP10
HP11 HP12
HP13
003578
HP1
HP3
HP2 HP2
HP4
HP5
HP12
HP11
Hardware Bag “A”
M8 x 75mm Carriage Bolt (1)
M8 Nylock Nut (1)
M8 Flat Washer (1)
M6 x 72mm Carriage Bolt (4)
M6 Nylock Nut (4)
Hardware Bag “B”
M8 x 53mm Carriage Bolt (2)
M8 Nylock Nut (2)
Hardware Bag “C”
5/16-18 x 7/8 Hex Screw
w/Split Lock Washer (6)
Hardware Bag “D”
5/16-18 x 7/8 Hex Screw
w/Split Lock Washer (4)
M8 x16 Hex Shoulder Screw (4)
M8 Nylock Nut (4)
M5 Nylock Nut (2)
M5 x 16mm Flat Countersunk Hex
Shoulder Screw (2)
Front Rail Union Plate (1)
5/16-18 Hex Flange Nut (12)
5/16-18 x 1-1/8 inch Flat
Countersunk Hex Screw (12)
Hardware Bag “E”
M5 x 6mm Phillips Head Screw (1)
Wire Clip (1)
1/4-20 x 1/2 inch Button
Head Hex Screw w/ Split Lock
Washer (5)
1/4-20 x 1/2 inch Hex Screw
w/ Split Lock Washer (2)
Hardware Bag "F"
Rail Alignment Gauge (1)
3/16 inch T-Handle Allen Wrench (1)
6mm Allen Wrench (1)
3/16 inch Two-Way Allen Wrench L Shape (1)
HP20
HP16
HP17
HP8
HP18
HP19
HP21
HP22
HP23
HP6
HP15
HP9
HP10
HP7
HP7
HP13

• DO NOT lift Saw without help. Hold it close to your body
while lifting. KEEP knees bent and lift with your legs, not your
back.
• Fully assemble Saw with Leg assembly prior to use. Leg
assembly is an integral and necessary part of the Support
Structure for this Saw.
• DO NOT modify Saw, or create accessories not recommended
for use with this Saw.
• Make sure Power Switch is in “OFF” position before connecting
to Power Supply.
• DO NOT connect to Power Supply until assembly is complete.
STAND
Hardware Bag “A”
Avoid contact with Blade Teeth. KEEP
Blade stored or lowered when possible.

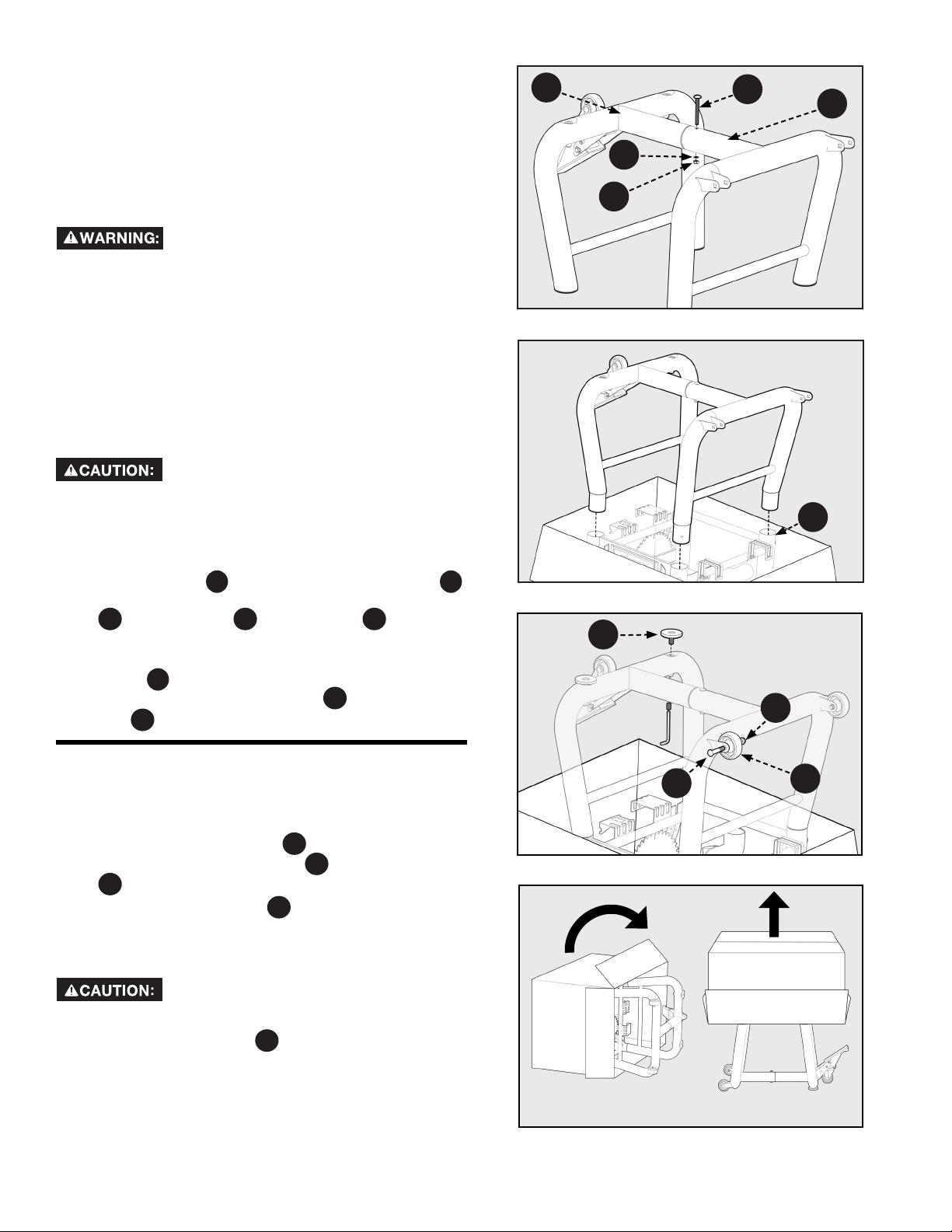

1. Connect the two Tube Legs together by inserting the end
of the Left Leg PC2 into the end of the Right Leg PC3 .
Secure them together with (4) M8 x 75mm Carriage Bolt
HP4 , M8 Flat Washer HP3 , M8 Nylock Nut HP2 and tighten.
See Figure 1.
2. Insert the four open ends of the Tube Legs into the Leg
Collars Aas shown. Secure each Leg to the Saw Body
with (4) M6 x 72mm Carriage Bolts HP4 and (4) M6 Nylock
Nuts HP5 and tighten. See Figure 2.
TOOLS REQUIRED FOR ASSEMBLY (NOT
INCLUDED):
• Flat Head Screwdriver
• Phillips Head Screwdriver
• 8mm Wrench
• 10mm Wrench
• 12mm Open-Ended Wrench
• 13mm Wrench
Figure 1
• 9/16 inch Wrench
• 5/32 inch Allen Wrench
• Framing (Carpenter's) Square
• Combination Square
• Straight Edge
Figure 2
Figure 3
Figure 4
FIXED WHEELS AND STATIONARY
FEET
Hardware Bag “B”
1. Attach the two Fixed Wheels PC13 to the Left Leg using the
(2) M8 x 53mm Carriage Bolts HP6 and M8 Nylock Nuts
HP2 . One for each wheel as shown in Figure 3.
2. Screw the Adjustable Feet PC12 into the threaded inserts in
the Right Leg.
3. Carefully stand the box right side up and remove packaging
once the machine has been lifted from the ground.
The machine is heavy, two people may
be required to stand the machine up.
4. The two Adjustable Feet PC12 can be raised and lowered by
rotating them clockwise or counterclockwise. The Feet
may be adjusted to level the Saw and can be locked in
place with the pre-assembled Set Screws using the
provided 6mm Allen Wrench. See Figure 3.
PC3 HP1
HP3
HP2
HP2
PC2
A
PC13
HP6
PC12

Step 3: FRONT AND REAR RAILS
Hardware Bag “D”

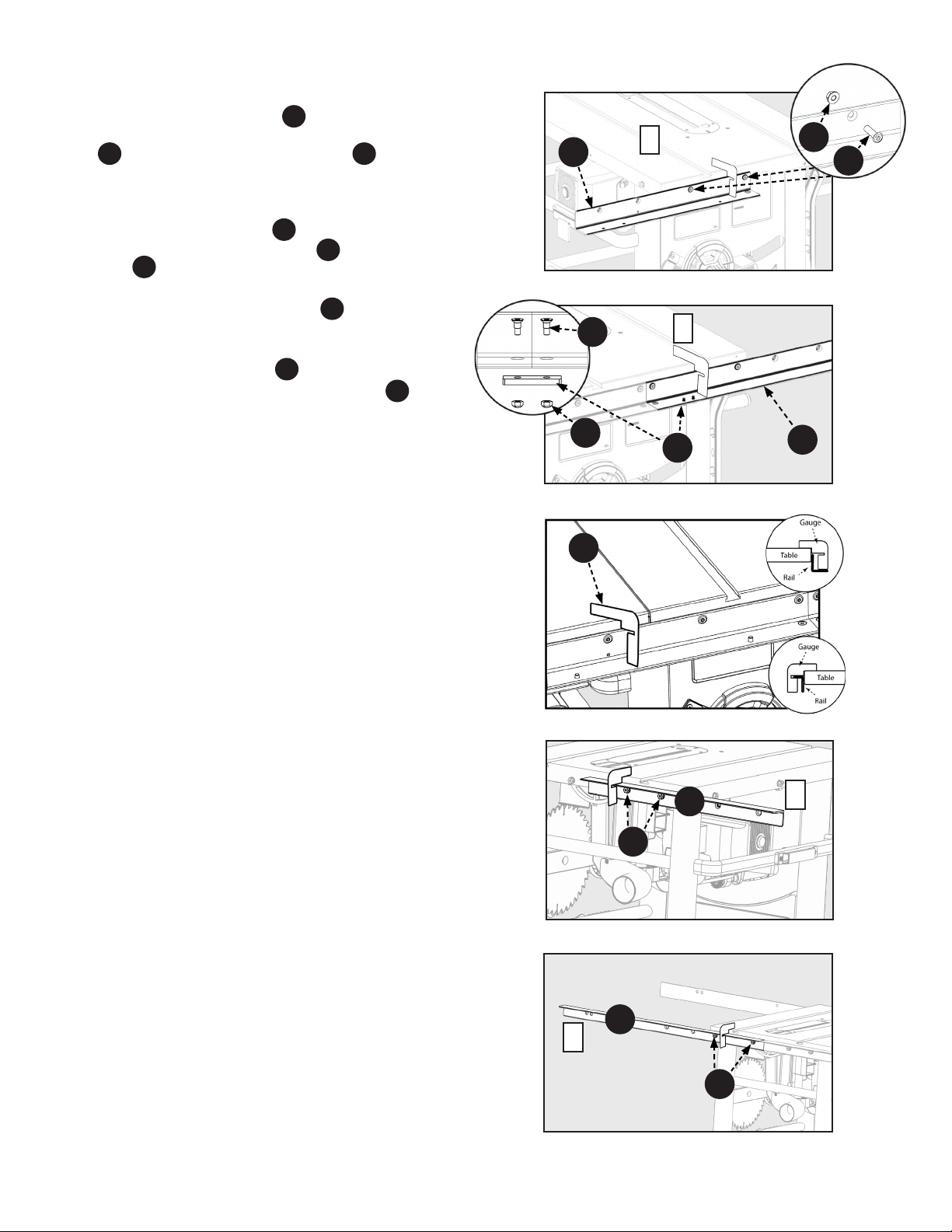

1. Attach the Front Fence Rails PC19 (1&2) to the Table Front
using (4) 5/16-18 x 1-1/8 inch Flat Countersunk Hex Screw
HP15 , and (4) 5/16-18 Hex Flange Nuts HP13 , see Figure 5
and 6.
NOTE: The Front Rails have holes on both surfaces of the rail for
attachment to both the Table and the Fence Guide.
2. Attach the Rail Union Plate HP12 using (2) M5 x 16mm Flat
Countersunk Hex Shoulder Screw HP11 and (2) M5 Nylock
Nuts HP10 in the two holes where the Rail Sections meet.
see Figure 6.
3. Use supplied Rail Alignment Gauge HP20 to ensure the Rails
are the proper distance from the top of the Table. See
Figure 7.
4. Attach the Rear Fence Rails PC18 to the Table with (4) 5/16
-18 x 7/8 Hex Screw with Split Lock Washers H P7 . Use the
slot in the supplied Gauge to ensure the Rail is the proper
distance from the top of the Table. See Figures 7-9. PC19
PC18
PC18
REAR RIGHT RAILREAR RIGHT RAIL
FRONT RIGHT
RAIL (LONG)
2
Figure 5
Figure 6
Figure 7
Figure 8
REAR LEFT RAIL
Figure 9
HP7
HP7
HP12
HP11
HP10
PC19
PC20
1
3
4
FRONT LEFT RAILFRONT LEFT RAIL
(SHORT)(SHORT)
HP15
HP13

Step 4: EXTENSION
WINGS
Hardware Bag “C,D”
Figure 12
Figure 10 Figure 10A
Figure 11
EXTENSIONEXTENSION
WINGWING
UNDERSIDE OF WINGUNDERSIDE OF WING
HP7
HP15
HP13
PC10
HP8
HP9
PC17

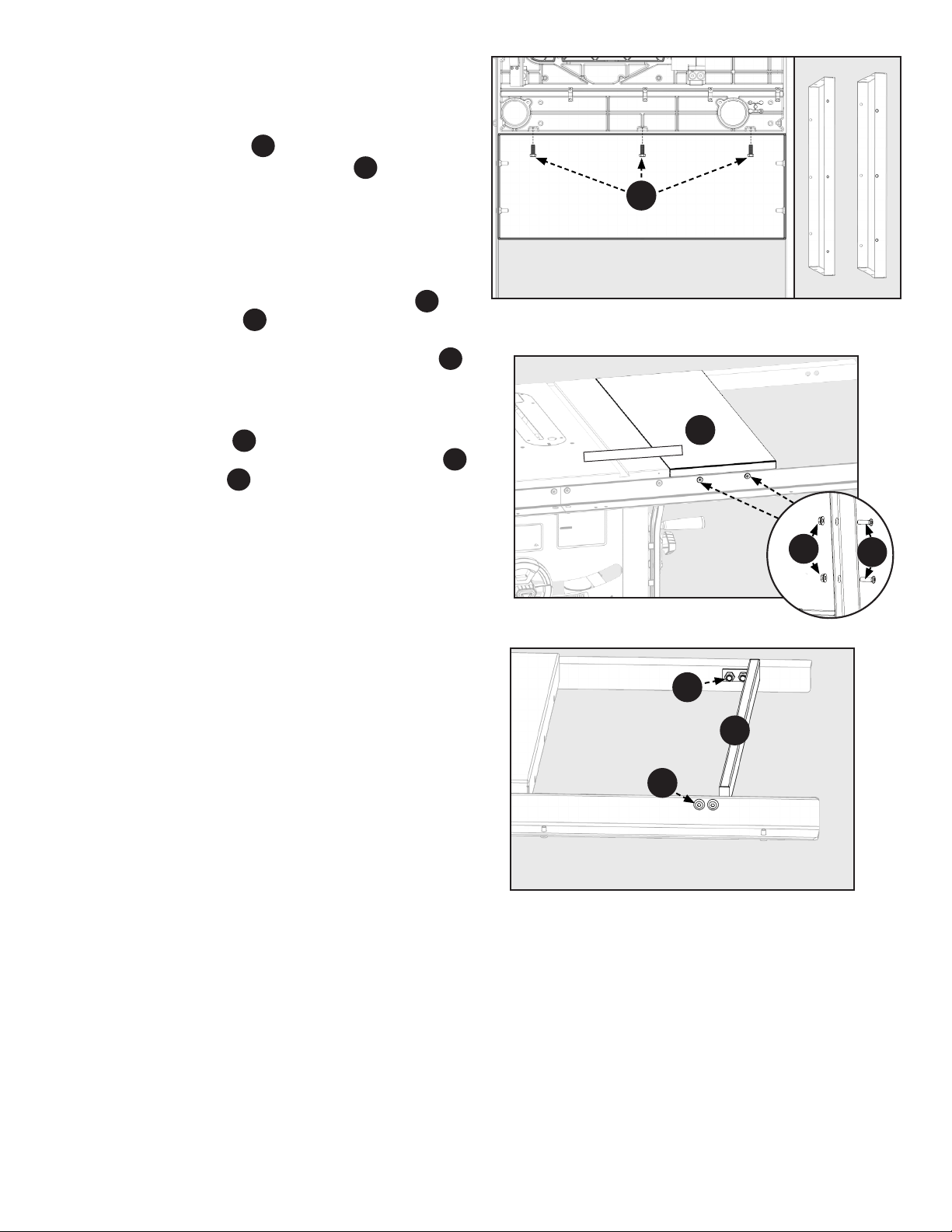

1. Attach the Extension Wings PC10 to the Table using (6) 5/16-18
x 7/8 Hex Screw with Split Lock Washers HP7 , (3) for each
Wing. The Wings attach from underneath as shown in Figure
10. Be sure to use a Level or Combination Square to keep the
Extension Wings level with the Table. NOTE: Hole patterns on
the two long edges of the extensions are dierent. See Figure
10A.
2. Attach the Extension Wings to the Front and Rear rails using
(8) 5/16-18 x 1-1/8 inch Flat Countersunk Hex Screw HP15 and
5/16-18 Hex Flange Nuts HP13 , (4) for each wing. See Figure
11. Be sure to conrm the Front and Rear Rails are level with
the Extension Wings by using the Rail Alignment Gauge HP20 .
See Figure 5-9.
3. Repeat this process on Front and Rear Rails for both Extension
Wings.
4. Attach the Spreader Bar PC17 to the outboard end of the Front
and Rear Rails using (4) M8 x 16 Hex Shoulder Screws HP8
and (4) M8 Nylock Nuts HP9 . See Figure 12.

Step 5: FENCE GUIDE AND
POWER CONTROL BOX
Hardware Bag “E”
PC20
HP18
HP19
HP18
LEFT FENCELEFT FENCE
GUIDE (SHORT)GUIDE (SHORT)
CONTROL BOXCONTROL BOX
STRAIGHT EDGESTRAIGHT EDGE
BACKBACK
1. Attach the Right Fence Guide PC20 using (3) 1/4-20 x 1/2
inch Button Head Hex Screw with Split Lock Washers HP18
through the holes on the bottom side of the Front Rail. See
Figure 13.
2. Attach the Left Fence Guide to the Front Rail PC20 using (2)
1/4-20 x 1/2 inch Button Head Hex Screw with Split Lock
Washers HP18 through the right two holes on the bottom
side of the left half Front Rail PC19 . NOTE:Leave these
screws loose until the control box screws are started.
3. Align the two holes in the Switch Box Bracket with the
holes underneath the Front Rail PC19 , see Figure 14, located
on the left side of the saw. Secure the Power Control Box
to the Front Rail PC19 using (2) 1/4-20 x 1/2 inch Hex Screw
with Split Lock Washers HP19 . Use a ruler to check that both
Left and Right Fence Guides are parallel. See Figure 15.
NOTE: To tighten the bolts that fasten the switch, you may need
to use a 12mm open-ended wrench.
4. Fix the hanging Power Cord at rear side of Front Rail by
Wire Clip HP17 and M5 x 6mm Phillips Head Screw HP16 . See
Figure 16.
Figure 13
Figure 14
Figure 15
RIGHT FENCE
GUIDE (LONG)
Figure 16
PC20
HP16
HP17
HP19

Step 8: THROAT PLATE
Step 6: INSTALLING THE HANDLES
Elevation and Bevel Hand Wheels
The Rip Fence Handle is packaged individually and labeled
accordingly, please install as follows:
1. Screw the Labeled Handle PC15 to the Rip Fence with the
supplied Hex Wrench. See in Figure 18.
Step 7: INSTALLING THE RIP
FENCE HANDLE
NOTE: Refer to Operator's Manual for storage locations - Wrenches,
Blade Guard, Anti-kick back pawls, and Push-stick.
NOTE: Refer to Operator's Manual page 19 for throat plate
instillation instructions.
IMPORTANT: Before raising Blade you must release Bevel Lock
and tilt Blade 45° and remove styrofoam block under Motor
Housing. See Figure 19.
To reduce the risk of serious personal
injury, the Riving Knife MUST be installed and properly
positioned for every possible through and non-through cut.
1. Your Saw is shipped with the Blade and Riving Knife
installed and properly aligned. The Riving Knife comes
installed in the low, non-through cutting position. Prior to
operating your Saw, check to make sure the alignment
of the Blade to the Miter Slot and the Riving Knife to the
Blade was not aected by shipping. To check alignment of
the Blade and Riving Knife, see page 23 in the Alignment
section of the Operator’s Manual.
2. The Riving Knife comes installed in the low, non-through
cutting position. To attach the Anti-Kickback Pawls and
Blade Guard Assemblies, the Riving Knife MUST be in
the raised position as shown in Figure 40, page 28 of the
Operator’s Manunal. To raise and lower the Riving Knife,
see Riving Knife Height Settings on page 28.
3. When installing Riving Knife, Anti-Kickback Pawls and Blade
Guard, Blade MUST be at 90° setting and raised to the
maximum height. See “RAISING AND LOWERING BLADE”
section on page 26 of the Operator’s Manual.
Step 9: BLADE AND RIVING KNIFE
The elevation and Bevel Handles are packaged together in the box,
please install as follows:
1. Insert one Handle PC14 to the Elevation Hand Wheel located
in the front of the Saw, as seen in Figure 17.
2. Insert one Handle PC14 to the Bevel Hand Wheel located on
the right side of the Saw, as seen in Figure 18.
Figure 17
Figure 18
PC14
PC14
PC15
Figure 19
(REMOVE)(REMOVE)

Step 11: BLADE GUARD
If the metal portion of the Blade Guard
Assembly is not parallel to the table, the Riving Knife is not
in the raised position. Remove Blade Guard Assembly and
Anti-Kickback Pawls and raise Riving Knife, then reinstall
the Anti-Kickback Pawls and the Blade Guard Assembly.
NOTE: Also reference Figure 40, page 28 of the Operator’s Manual.
To Remove the Blade Guard Assembly:
1. Lift the Blade Guard Assembly Lock Lever Dto the
unlocked position.
2. Rotate the Guard back and slide the Pin Bfrom the
Riving Knife Slot.
NOTE: Check the Blade Guard for clearances and free movement.
Step 10: ANTI-KICKBACK PAWLS
To reduce the risk of serious personal
injury, Anti-Kickback Pawls MUST be in place when making
a through cut.
Figure 23
Figure 22
PC5
A
PC11
A
B
B
C
D
1. See Figure 22 and locate the Anti-Kickback Pawls Mounting
Slot Ain the middle of the top edge of the Riving Knife.
2. Slide Slot in the middle of the Anti-Kickback Pawls
Assembly along the top of the Riving Knife until the stem
Blocates the center slot Aon the Riving Knife.
3. Depress the stem on the Anti-Kickback Pawls Assembly PC11
to allow the Assembly to drop into the slot. Push down on
the Anti-Kickback Pawls Assembly until it snaps into place
and locks. Release stem. NOTE: Pull up on the Anti-
Kickback Pawls to make sure it is locked in place.
To remove the Anti-Kickback Pawls, depress the stem Band pull
the Anti-Kickback Assembly o the Riving Knife.
To reduce the risk of serious personal
injury, the Blade Guard MUST be in place when making a
through cut.
1. Before intalling the Blade Guard Assembly PC5 , make sure
the riving knife is raised to the through-cut position.
2. While holding the Blade Guard Assembly PC5 in a vertical
position, hook the Locating Pin Bat the back end of the
Blade Guard Assembly into the slot at the back edge of the
Riving Knife.
3. Rotate the Blade Guard Assembly toward the front of the
Saw until the metal portion Cof the Blade Guard
Assembly is parallel to the Table as shown in Figure 23.
4. While holding down on the front of the metal portion of the
Guard Cpress the Blade Guard Lock Lever Ddown
until it snaps into the locked position. Check to make sure
the Guard is locked onto the Riving Knife by pulling on the
Guard. If the Guard is not locked, the Blade Guard Lock
Lever will ip up to the unlocked position.
