Delta (Model TS220LS) User manual

INSTRUCTION MANUAL
10" Table Saw
(Model TS220LS)
PART NO. 905579 - 03-24-04
Copyright © 2004 Delta Machinery
ESPAÑOL: PÁGINA 29
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-800-223-7278 (In Canada call 1-800-463-3582).

2
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
This manual contains information that is important for you to know and understand. This information relates to protect-
ing YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols to the right. Please read the manual and pay attention to these sections.
SAFETY GUIDELINES - DEFINITIONS
SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER
CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear MSHA/NIOSH
approved, properly fitting face mask or respirator when using such tools.
GENERAL SAFETY RULES
READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock,
fire, and/or serious personal injury or property damage.
IMPORTANT SAFETY INSTRUCTIONS
Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there
are certain hazards involved with the operation of the product. Using the machine with respect and caution will
considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored,
personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards,
goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won’t make
up for poor judgment, carelessness or inattention. Always use common sense and exercise caution in the workshop.
If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your
personal safety is your responsibility. For additional information please visit our website www.deltamachinery.com.
This machine was designed for certain applications only. Delta Machinery strongly recommends that this
machine not be modified and/or used for any application other than that for which it was designed. If you have any
questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine
if it can or should be performed on the product.
Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)

3
GENERAL SAFETY RULES
1. FOR YOUR OWN SAFETY, READ THE INSTRUCTION
MANUAL BEFORE OPERATING THE MACHINE.
Learning the machine’s application, limitations, and
specific hazards will greatly minimize the possibility of
accidents and injury.
2. WEAR EYE PROTECTION. ALWAYS USE SAFETY
GLASSES. Also use face or dust mask if cutting
operation is dusty. Everyday eyeglasses are NOT safety
glasses. USE CERTIFIED SAFETY EQUIPMENT. Eye
protection equipment should comply with ANSI Z87.1
standards, hearing equipment should comply with
ANSI S3.19 standards, and dust mask protection
should comply with MSHA/NIOSH certified respirator
standards. Splinters, air-borne debris, and dust can
cause irritation, injury, and/or illness.
3. WEAR PROPER APPAREL. Do not wear loose
clothing, gloves, neckties, rings, bracelets, or other
jewelry which may get caught in moving parts. Nonslip
footwear is recommended. Wear protective hair
covering to contain long hair.
4. DO NOT USE THE MACHINE IN A DANGEROUS
ENVIRONMENT. The use of power tools in damp or
wet locations or in rain can cause shock or
electrocution. Keep your work area well-lit to prevent
tripping or placing arms, hands, and fingers in danger.
5. MAINTAIN ALL TOOLS AND MACHINES IN PEAK
CONDITION. Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing
accessories. Poorly maintained tools and machines can further
damage the tool or machine and/or cause injury.
6. CHECK FOR DAMAGED PARTS. Before using the
machine, check for any damaged parts. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, and any other conditions that may
affect its operation. A guard or any other part that is
damaged should be properly repaired or replaced.
Damaged parts can cause further damage to the
machine and/or injury.
7. KEEP THE WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
8. KEEP CHILDREN AND VISITORS AWAY. Your shop is a
potentially dangerous environment. Children and visitors can
be injured.
9. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure that the switch is in the “OFF” position
before plugging in the power cord. In the event of a
power failure, move the switch to the “OFF” position.
An accidental start-up can cause injury.
10. USE THE GUARDS. Check to see that all guards are in
place, secured, and working correctly to prevent injury.
11. REMOVE ADJUSTING KEYS AND WRENCHES
BEFORE STARTING THE MACHINE. Tools, scrap
pieces, and other debris can be thrown at high speed,
causing injury.
12. USE THE RIGHT MACHINE. Don’t force a machine or
an attachment to do a job for which it was not
designed. Damage to the machine and/or injury may
result.
13. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by
Delta may cause damage to the machine or injury to the
user.
14. USE THE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition. When using
an extension cord, be sure to use one heavy enough to
carry the current your product will draw. An undersized
cord will cause a drop in line voltage, resulting in loss of
power and overheating. See the Extension Cord Chart
for the correct size depending on the cord length and
nameplate ampere rating. If in doubt, use the next
heavier gauge. The smaller the gauge number, the
heavier the cord.
15. SECURE THE WORKPIECE. Use clamps or a vise to hold
the workpiece when practical. Loss of control of a
workpiece can cause injury.
16. FEED THE WORKPIECE AGAINST THE DIRECTION OF
THE ROTATION OF THE BLADE, CUTTER, OR ABRASIVE
SURFACE. Feeding it from the other direction will cause
the workpiece to be thrown out at high speed.
17. DON’T FORCE THE WORKPIECE ON THE MACHINE.
Damage to the machine and/or injury may result.
18. DON’T OVERREACH. Loss of balance can make you
fall into a working machine, causing injury.
19. NEVER STAND ON THE MACHINE. Injury could occur if the
tool tips, or if you accidentally contact the cutting tool.
20. NEVER LEAVE THE MACHINE RUNNING UNATTENDED.
TURN THE POWER OFF. Don’t leave the machine until it
comes to a complete stop. A child or visitor could be injured.
21. TURN THE MACHINE “OFF”, AND DISCONNECT THE
MACHINE FROM THE POWER SOURCE before installing
or removing accessories, before adjusting or changing
set-ups, or when making repairs. An accidental start-up
can cause injury.
22. MAKE YOUR WORKSHOP CHILDPROOF WITH
PADLOCKS, MASTER SWITCHES, OR BY
REMOVING STARTER KEYS. The accidental start-up
of a machine by a child or visitor could cause injury.
23. STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE. DO NOT USE THE
MACHINE WHEN YOU ARE TIRED OR UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR MEDICA-
TION. A moment of inattention while operating power
tools may result in injury.
24. TAKE PRECAUTIONS AGAINST DUST INHALATION.
The dust generated by certain woods and wood
products can be injurious to your health. Always
operate machinery in well-ventilated areas, and provide
for proper dust removal. Use wood dust collection
systems whenever possible.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.

4
ADDITIONAL SAFETY RULES FOR
TABLE SAWS
1. DO NOT OPERATE THIS MACHINE until it is
assembled and installed according to the
instructions.
2. OBTAIN ADVICE FROM YOUR SUPERVISOR,
instructor, or another qualified person if you are not
familiar with the operation of this machine.
3. FOLLOW ALL WIRING CODES and recommended
electrical connections.
4. USE THE GUARDS WHENEVER POSSIBLE. Check
to see that they are in place, secured, and working
correctly.
5. KICKBACK IS THE NATURAL TENDENCY OF THE
WORKPIECE TO BE THROWN BACK AT THE
OPERATOR when the workpiece initially contacts the
blade or if the workpiece pinches the blade. Kickback
is dangerous and can result in serious injury.
AVOID KICKBACK by:
A. keeping blade sharp and free of rust and pitch.
B. keeping rip fence parallel to the saw blade.
C. using saw blade guard and spreader for every
possible operation, including all through sawing.
D. pushing the workpiece past the saw blade prior to
release.
E. never ripping a workpiece that is twisted or
warped, or does not have a straight edge to guide
along the fence.
F. using featherboards when the anti-kickback device
cannot be used.
G. never sawing a large workpiece that cannot be
controlled.
H. never using the fence as a guide when
crosscutting.
I. never sawing a workpiece with loose knots or other
flaws.
6. ALWAYS USE GUARDS, SPLITTER, AND ANTI-
KICKBACK FINGERS whenever possible.
7. REMOVE CUT-OFF PIECES AND SCRAPS from the
table before starting the saw. The vibration of the
machine may cause them to move into the saw blade
and be thrown out. After cutting, turn the machine off.
After the blade has come to a complete stop, remove
all debris.
8. NEVER START THE MACHINE with the workpiece
against the blade.
9. NEVER run the workpiece between the fence and a
moulding cutterhead.
10. CUTTING THE WORKPIECE WITHOUT THE USE OF
A FENCE OR MITER GAUGE IS KNOWN AS
“FREEHAND” CUTTING. NEVER perform “free-hand”
operations. Use either the fence or miter gauge to
position and guide the workpiece.
11. HOLD THE WORKPIECE FIRMLY against the miter
gauge or fence.
12. CUTTING COMPLETELY THROUGH THE WORK-
PIECE IS KNOWN AS “THROUGH-SAWING”.
Ripping and cross-cutting are through-sawing
operations. Cutting with the grain (or down the length
of the workpiece) is ripping. Cutting across the grain (or
across the workpiece) is cross-cutting. Use a fence or
fence system for ripping. DO NOT use a fence or fence
system for cross-cutting. Instead, use a miter gauge.
USE PUSH STICK(S) for ripping a narrow workpiece.
13. AVOID AWKWARD OPERATIONS AND HAND
POSITIONS where a sudden slip could cause a hand
to move into the blade.
14. KEEP ARMS, HANDS, AND FINGERS away from the
blade.
15. NEVER have any part of your body in line with the path
of the saw blade.
16. NEVER REACH AROUND or over the saw blade.
17. NEVER attempt to free a stalled saw blade without first
turning the machine “OFF”.
18. PROPERLY SUPPORT LONG OR WIDE workpieces.
19. NEVER PERFORM LAYOUT, assembly or set-up work
on the table/work area when the machine is running.
20. TURN THE MACHINE “OFF” AND DISCONNECT
THE MACHINE from the power source before
installing or removing accessories, before adjusting or
changing set-ups, or when making repairs.
21. TURN THE MACHINE “OFF”, disconnect the machine
from the power source, and clean the table/work area
before leaving the machine. LOCK THE SWITCH IN
THE “OFF” POSITION to prevent unauthorized use.
22. ADDITIONAL INFORMATION regarding the safe
and proper operation of power tools (i.e. a safety
video) is available from the Power Tool Institute,
1300 Sumner Avenue, Cleveland, OH 44115-2851
(www.powertoolinstitute.com). Information is also
available from the National Safety Council, 1121 Spring
Lake Drive, Itasca, IL 60143-3201. Please refer to the
American National Standards Institute ANSI 01.1
Safety Requirements for Woodworking Machines and
the U.S. Department of Labor OSHA 1910.213
Regulations.
SAVE THESE INSTRUCTIONS.
Refer to them often
and use them to instruct others.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.

5
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should
be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-
prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the
machine to the power line, make sure the switch is in the “OFF” position and be sure that the electric current is of the
same characteristics as indicated on the machine. All line connections should make good contact. Running on low
voltage will damage the machine.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.

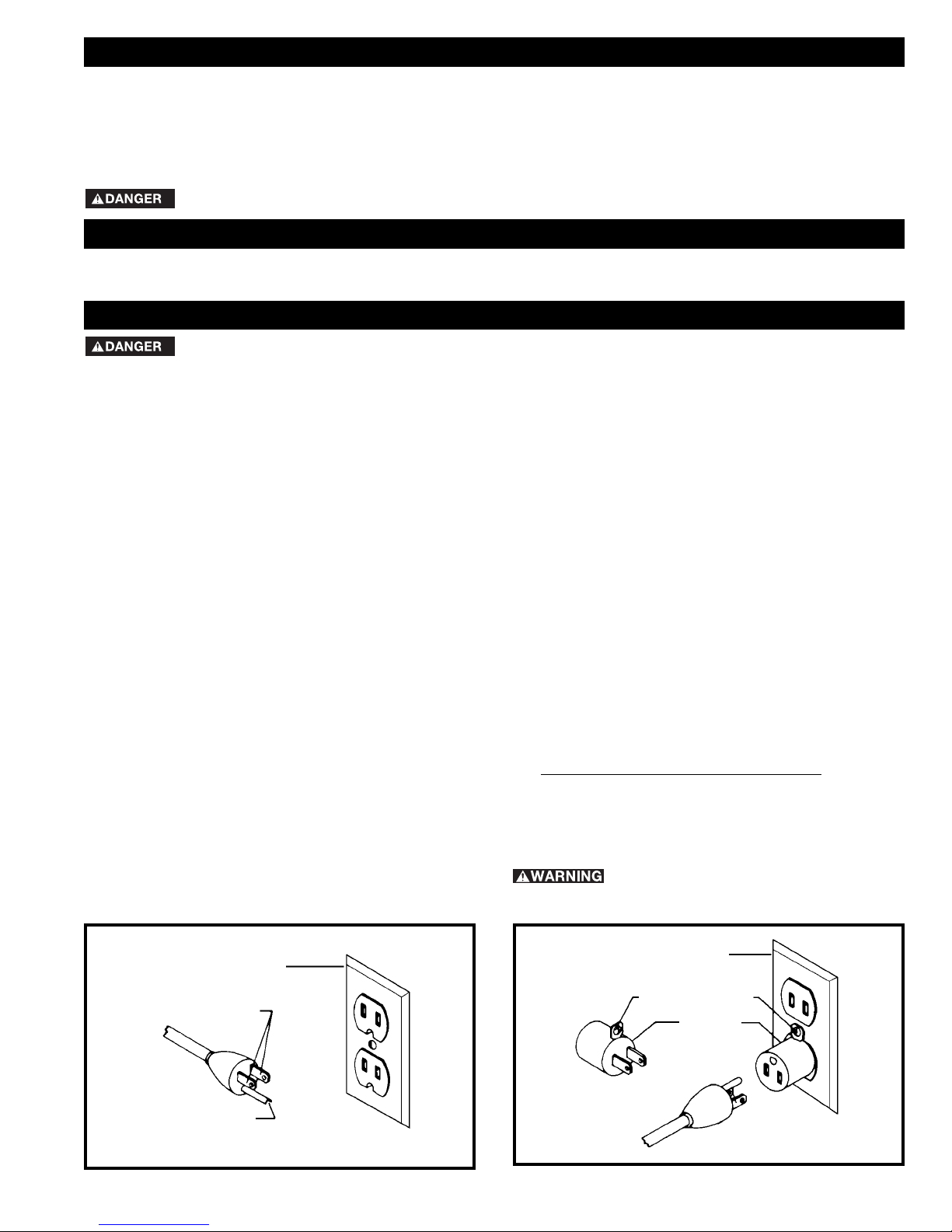

Fig. A Fig. B
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
GROUNDING
MEANS
ADAPTER
2. Grounded, cord-connected machines intended for use
on a supply circuit having a nominal rating less than 150
volts:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. A,the
machine will have a grounding plug that looks like the plug
illustrated in Fig. A. A temporary adapter, which looks like
the adapter illustrated in Fig. B, may be used to connect
this plug to a matching 2-conductor receptacle as shown
in Fig. B if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician.
The green-colored rigid ear, lug, and the like, extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box. Whenever
the adapter is used, it must be held in place with a metal
screw.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.
3. 240 VOLT SINGLE PHASE OPERATION:
The motor supplied with your saw is a dual voltage,
120/240 volt motor. If it is desired to operate your saw at
240 volts, single phase, it is necessary to reconnect the
motor leads in the motor junction box by following the in-
structions given on the motor nameplate.
MAKE SURE MOTOR IS DISCONNECTED
FROM POWER SOURCE BEFORE RECONNECTING
MOTOR LEADS.
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This machine is
equipped with an electric cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into a matching outlet that is properly installed
and grounded in accordance with all local codes and
ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. The
conductor with insulation having an outer surface that is
green with or without yellow stripes is the equipment-
grounding conductor. If repair or replacement of the
electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if
the grounding instructions are not completely
understood, or if in doubt as to whether the machine is
properly grounded.
Use only 3-wire extension cords that have 3-prong
grounding type plugs and matching 3-conductor
receptacles that accept the machine’s plug, as shown in
Fig. A.
Repair or replace damaged or worn cord immediately.
POWER CONNECTIONS
MOTOR SPECIFICATIONS
Your machine is wired for 120 volt, 60 HZ alternating current. Before connecting the machine to the power source,
make sure the switch is in the “OFF” position.
GROUNDING INSTRUCTIONS
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.

6
It is also necessary to replace the 120 volt plug, supplied
with the motor, with a UL/CSA Listed plug suitable for
240 volts and the rated current of the saw as illustrated
in Fig. C. Contact your local Authorized Delta Service
Center or qualified electrician for proper procedures to
install the plug. The saw must comply with all local and
national electrical codes after the 240 volt plug is
installed.
The saw with a 240 volt plug should only be connected
to an outlet having the same configuration as the plug
illustrated in Fig. C. No adapter is available or should be
used with the 240 Volt plug.
IN ALL CASES, MAKE CERTAIN THE
RECEPTACLE IN QUESTION IS PROPERLY
GROUNDED. IF YOU ARE NOT SURE HAVE A
QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE. Fig. C
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
EXTENSION CORDS
Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire
extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the machine’s
plug. When using an extension cord, be sure to use one heavy enough to carry the current of the machine. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. D-1 or D-2, shows
the correct gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge
number, the heavier the cord.
Fig. D-1 Fig. D-2
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120
up to 25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to 25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to 25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to 25 14 AWG
12-16 120 25-50 12 AWG
12-16 120 GREATER THAN 50 FEET NOT RECOMMENDED
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 240
up to 50 18 AWG
0-6 240 50-100 16 AWG
0-6 240 100-200 16 AWG
0-6 240 200-300 14 AWG
6-10 240
up to 50 18 AWG
6-10 240 50-100 16 AWG
6-10 240 100-200 14 AWG
6-10 240 200-300 12 AWG
10-12 240
up to 50 16 AWG
10-12 240 50-100 16 AWG
10-12 240 100-200 14 AWG
10-12 240 200-300 12 AWG
12-16 240
up to 50 14 AWG
12-16 240 50-100 12 AWG
12-16 240
GREATER THAN 100 FEET NOT RECOMMENDED

7
FOREWORD
Delta ShopMaster Model TS220LS has big saw capacity at an economical price. The Delta ShopMaster Model TS220LS
has an extra large, 17½"x34" aluminum table and is powered by a heavy-duty 15 amp. motor with a floating jackshaft
gear - the most powerful in its class. This saw is designed to give high quality performance with depth of cut capacity
up to 3" (76mm) at 90° and 2" (51mm) at 45° for clean cutting of standard stock sizes. This package includes the saw,
a metal stand, rip fence, miter gage, see-through blade guard with splitter and anti-kickback fingers, a 10” carbide-
tipped saw blade, table insert and blade wrenches.
Fig. 2
TABLE SAW PARTS
1
2
3
4 5
1- Saw
2- Extension Wing
3- 1/4"- Flat Washer for Mounting Extension Wing (3)
4- 1/4"- Lockwasher for Mounting Extension Wing (3)
5- 1/4-20 x 5/8" Hex Head Screw for Mounting
Extension Wing (3)
7
FUNCTIONAL DESCRIPTION
ASSEMBLY
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
NOTICE: THE PHOTO ON THE MANUAL COVER ILLUSTRATES THE
CURRENT PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS CONTAINED
IN THE MANUAL ARE REPRESENTATIVE ONLY AND MAY NOT DEPICT THE
ACTUAL COLOR, LABELING OR ACCESSORIES AND ARE INTENDED TO
ILLUSTRATE TECHNIQUE ONLY.

8

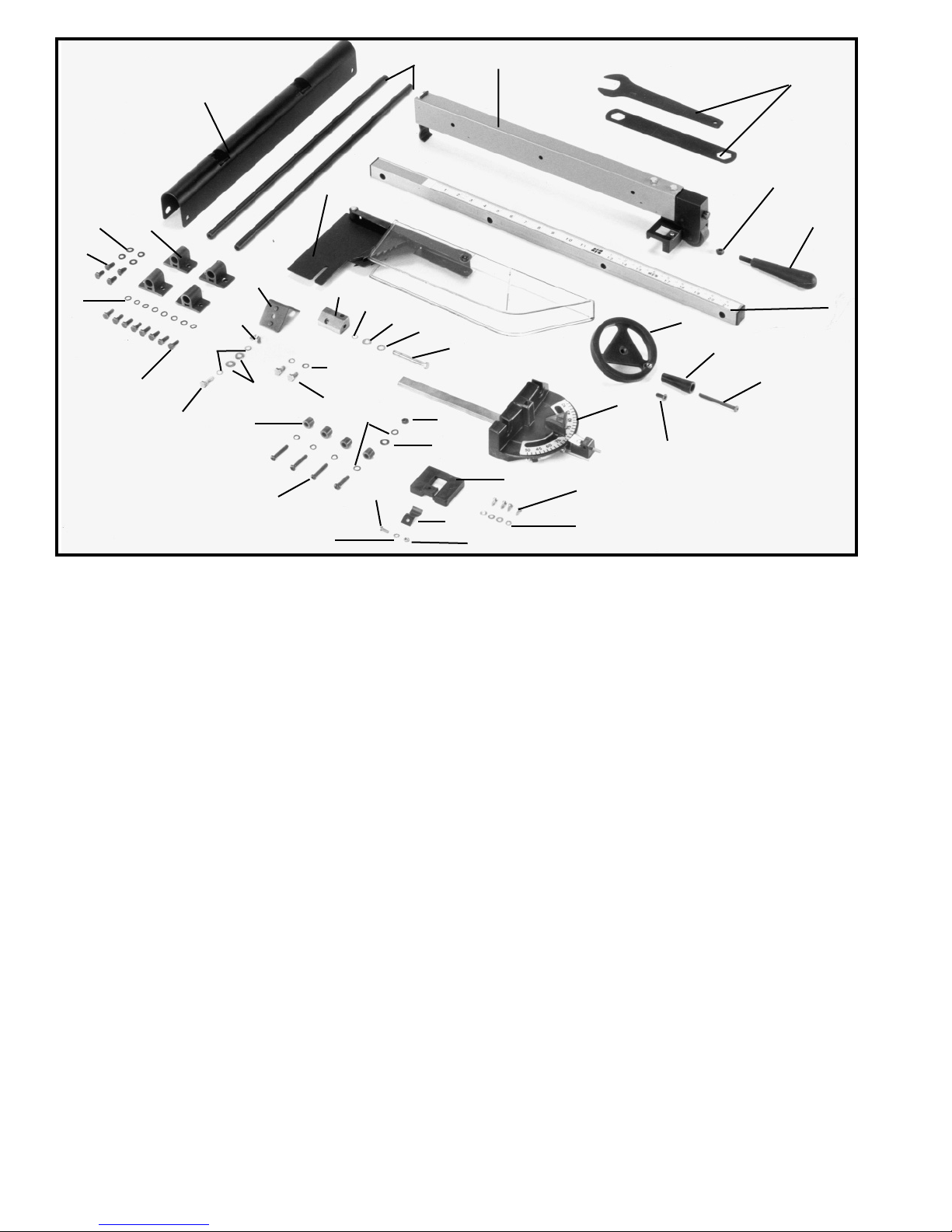

Fig. 3
6 - Rip Fence
7 - Wrenches for Blade Changing
8 - M8x1.25 Hex Nut for Rip Fence
9 - Locking Handle for Rip Fence
10 - Fence Rail
11 - Blade Raising and Lowering Handwheel
12 - M6x1x12mm Flat Head Screw for Mounting Blade
Raising and Lowering Handwheel
13 - Handle for Blade Raising and Lowering
Handwheel
14 - M6x1x55mm Cheese Head Screw for Mounting
Handwheel Handle
15 - Miter Gage
16 - M4.2x10mm Pan Head Screws for Mounting
miter Gage Holder (4)
17 - 3/16" Flat Washers for Mounting Miter Gage
Holder (4)
18 - Miter Gage Holder
19 - Spring Clip for Miter Gage Holder
20 - M4x.7 Hex Nut for Miter Gage Holder
21 - 3/16" External Tooth Lockwasher for Miter Gage
Holder
22 - M4x.7x10mm Pan Head Screw for Miter Gage
Holder
23 - 1/4-20 Hex Nut for Mounting Fence Rail to
Extension Wing
24 - 1/4" Lockwashers for Mounting Fence Rail (5)
25 - 1/4" Flat Washer for Mounting Fence Rail to
Extension Wing
26 - 1/4-20 x 1-1/4" Round Head Screws for Mounting
Fence Rail (4)
27 - Spacer for Mounting Fence Rail (4)
28 - 1/4-20 x 2-1/4" Long Hex Head Screw for
Mounting Splitter Bracket
29 - 1/4" Internal Tooth Lockwasher for Mounting
Splitter Bracket
30 - 1/4" Flat Washer for Mounting Splitter Bracket
31 - 1/4" External Tooth Lockwasher for Mounting
Splitter Bracket
32 - Splitter Bracket
33 - 1/4-20 x 1/2" Hex Head Screws for Splitter
Bracket (2)
34 - 1/4" External Tooth Lockwashers for Splitter
Bracket (2)
36 - M6x1x20mm Hex Head Screw for Mounting
Splitter Support Bracket
37 - 1/4" External Tooth Washers for Mounting Splitter
Support Bracket (2)
38 - 1/4" Flat Washers for Mounting Splitter Support
Bracket (2)
39 - Wing Nut for Mounting Splitter Support Bracket
40 - Splitter Support Bracket
41 - Splitter and Guard Assembly
42 - M6x1x15mm Hex Head Screw for Mounting
Outfeed Support Brackets (8)
43 - M6.1 Lockwasher for Mounting Outfeed Support
Brackets (8)
44 - Outfeed Support Bracket (4)
45 - 1/4-20x1/2" Hex Head Screw for Mounting Rear
Support onto Support Rods (4)
46 - 1/4" Flat Washer for Mounting Rear Support onto
Support Rods (4)
47 - Rear Support
48 - Support Rod (2)
67
8
9
10
11
12
13
14
15
16
17
18
19 20
21
22
23
24
25
26
27
33
34
28
29
30
31
32
38
36
37
39
40
41
42
43
45
46 44
47
48

9

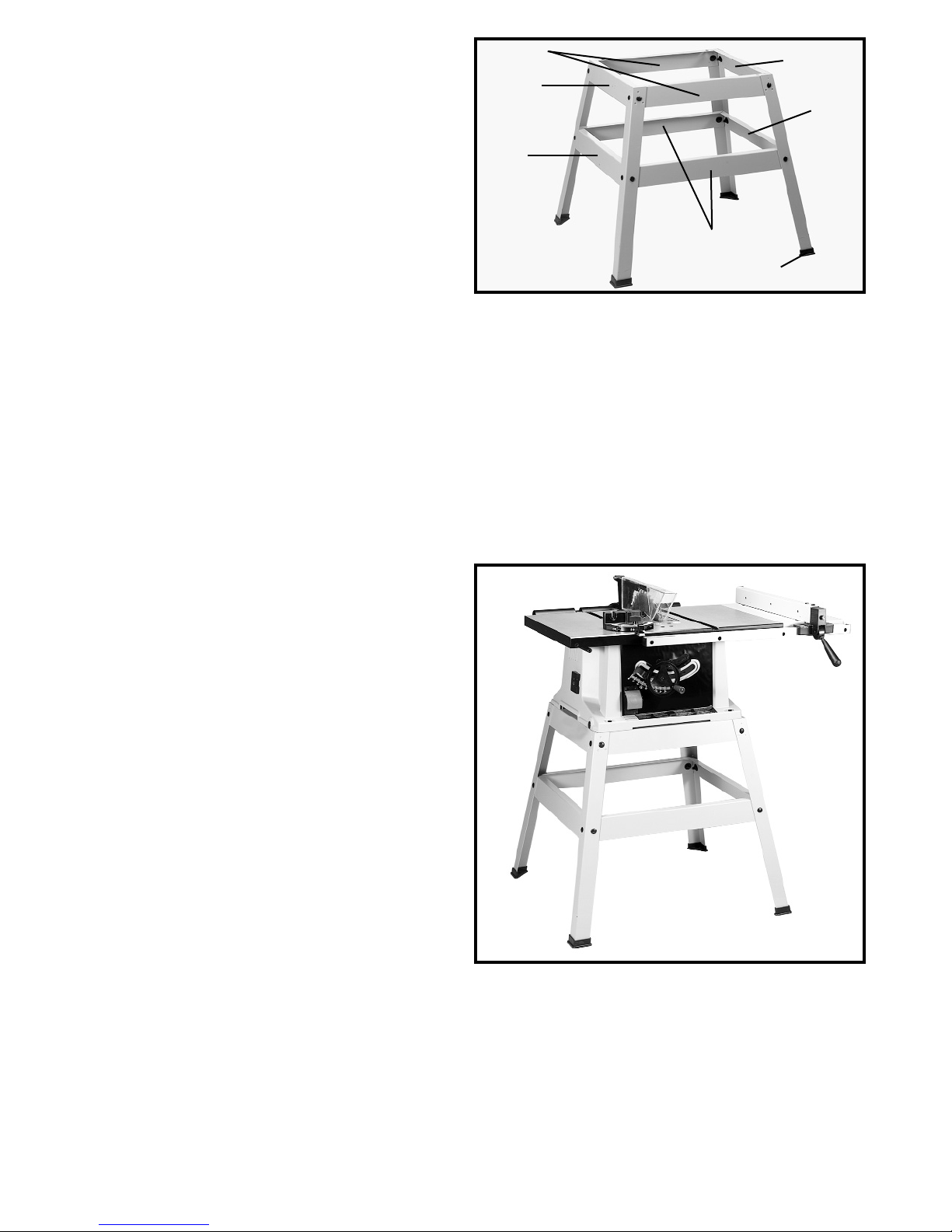

Fig. 4
STAND PARTS
49 - Leg (4)
50 - 3/8” Flat Washer for Mounting Saw to Stand & for Assembling Stand (24)
51 - Foot (4)
52 - M8x1.25 Hex Nut for Mounting Saw to Stand & for Assembling Stand (20)
53 - M8x1.25x40mm Hex Screw for Mounting Saw to Stand (4)
54 - M8x1.25x20mm Carriage Bolts for Assembling Stand (16)
55 - 18-1/2” Top Front and Rear Brackets (2)
56 - 17” Top Side Brackets (2)
57 - 22” Bottom Front and Rear Brackets (2)
58 - 20-3/8” Bottom Side Brackets (2)
49
56 57
55
58
51
54
50
52
53
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED. DO NOT OPERATE THIS MACHINE UNTIL YOU READ AND
UNDERSTAND THE ENTIRE INSTRUCTION MANUAL

10
STAND ASSEMBLY
1. Assemble the stand as shown in Fig. 4A, using 16
carriage bolts, flat washers and hex nuts. Do not
completely tighten the hardware at this time. Letters are
stamped on the stand brackets for ease in assembly.
A - Top front and rear brackets
B - Top side brackets
C - Bottom side brackets
D - Bottom front and rear brackets
IMPORTANT: THE TOP FRONT AND REAR
BRACKETS (A) FIG. 4A, ARE LONGER THAN THE
TOP SIDE BRACKETS (B) FIG. 4A. THE BOTTOM
FRONT AND REAR BRACKETS (D) FIG. 4A, ARE
LONGER THAN THE BOTTOM SIDE BRACKETS (C).
2. Assemble the rubber feet (E) Fig. 4A, to the bottom of
each leg (F) as shown. NOTE: Each rubber foot is
provided with holes for mounting the stand to the floor
surface if required.
SAW TO STAND
1. Turn saw table face down on a piece of cardboard to
protect the table surface. Place stand upside down onto
saw and align the four holes in the stand with the
mounting holes in the saw.
2. Place a 3/8" flat washer on a M8x1.25x40mm hex
head screw. Insert the hex head screw through the
mounting hole in the saw and the mounting hole in the
stand. Place another 3/8" flat washer on the hex head
screw and thread a M8x1.25 hex nut on the screw and
loosely tighten. Complete this process for the other
three holes.
3. Then, turn saw table face up, as shown in Fig. 4B
(Saw is shown fully assembled here).
3. Push down on top of the saw so the legs of the stand
adjust to the surface of the floor and tighten all stand
hardware and hardware which secures saw to stand.
Fig. 4A
Fig. 4B
A
B
B
C
C
D
E

11
ASSEMBLING BLADE
RAISING AND LOWERING
HANDWHEEL
1. Insert M6x1x55mm cheese head screw (14) Fig. 3,
through handle (E) Fig. 5 and assemble handle (E) to
handwheel (A) by threading screw (D) Fig. 5 clockwise
into handwheel.
2. Fig. 6, illustrates the handle (E) assembled to
handwheel (A).
3. Assemble handwheel (A) Fig. 7, to shaft (B) making
sure the flat on inside of handwheel lines up with flat on
shaft.
4. Fasten handwheel (A) Fig. 8, to shaft (B) Fig. 7, using
a M6x1x12mm flat head screw (C) Fig. 8.
Fig. 5
Fig. 6
Fig. 7
Fig. 8
A
B
A
C

12
BLADE GUARD AND
SPLITTER ASSEMBLY
DISCONNECT MACHINE FROM
POWER SOURCE.
1. IMPORTANT: THE BLADE GUARD AND SPLITTER
ASSEMBLY MUST BE PROPERLY ALIGNED TO THE
SAW BLADE IN ORDER TO PREVENT KICKBACK.
2. Position the blade 90 degrees to the table and lock in
place.
3. Fasten the splitter support bracket (A) Fig. 9, to
splitter bracket (B) using two 1/4-20 x 1/2" Hex Head
Screws (C), and two 1/4" external tooth lockwashers as
shown. NOTE: Do not completely tighten screws (C)
at this time.
4. Locate the 1/4-20 x 2-1/4" hex head screw (G) Fig. 10,
and assemble the 1/4" internal tooth lockwasher (O),
1/4" flat washer (P) and 1/4" external tooth lockwasher
(R) onto screw (G).
5. Position recessed end (E) Fig. 11, of splitter bracket
(B) against end of pivot rod (F) and fasten in place using
assembly from STEP 4. NOTE: Do not completely
tighten screw (G) at this time.
6. Position the splitter (H) Fig. 13, on the splitter support
bracket as shown, making certain the two protrusions
(K) on the splitter support bracket are inside the slot of
splitter (H).
Fig. 9
Fig. 10
Fig. 11
Fig. 13Fig. 12
K
H
G
FEB
R
P
O
G
A
B
C

13
7. Assemble splitter (H) Fig. 14, to splitter support
bracket (B) as shown using M6x1x20mm hex head
screw (L), 1/4" external tooth washer, and 1/4" flat
washer.
8. Fasten splitter (H) Fig. 15, to splitter support bracket
using 1/4" flat washer, 1/4" external tooth lockwasher
and M6 wing nut (M). NOTE: Before tightening wing nut
(M) make certain there is at least a 1/8" gap between the
bottom edge of splitter (N) and top surface of table (P)
and that protrusion “pins” (K) Fig. 15, are inside the slot
of splitter assembly (H).
9. Using a straight edge, check to see if the splitter (H)
Fig. 16, is aligned with the saw blade (R). If an
adjustment is necessary, the splitter (H) can be moved
left or right and rotated.
10. When you are certain the splitter is properly aligned
with the saw blade, tighten the two screws (C) Fig. 17,
that fasten the splitter support bracket to the splitter
bracket and tighten screw (G) that fastens the splitter
bracket to the pivot rod.
Fig. 14
Fig. 15
Fig. 16
Fig. 17
C
G
RH
P
MK
H
N
H
LB

14
EXTENSION WING
1. Assemble extension wing (A) Fig. 18, to the saw table using three 1/4-20 x 5/8” hex head screws (B), 1/4"
lockwashers (C), and 1/4" flat washers (D).
2. With a straight edge (E) Fig. 19, make certain the top, front and rear edges of the extension wing (A) are level with
the saw table before tightening three screws which secure extension wing to saw table.
Fig. 18 Fig. 19
GUIDE RAIL TO SAW
1. Loosely fasten guide rail (A) Fig. 20, to three threaded
holes (B) in saw table (C) using three 1/4-20 x 1-1/4"
long screws (D), 1/4" lockwashers (E), and spacers (F).
IMPORTANT: Spacers (F) Fig. 20, are positioned
between guide rail (A) and saw table (C).
2. Fasten guide rail (A) Fig. 20, to extension wing (G)
through hole (K) using the 1/4-20 x 1-1/4” long screw
(D), 1/4" lockwasher (E), spacer (F), 1/4" flat washer (H),
1/4" lockwasher (E), and 1/4-20 hex nut (J). Then tighten
all guide rail mounting hardware.
IMPORTANT: Spacer (F) Fig. 20, is positioned
between guide rail (A) and extension wing (G).
3. Fig. 21, illustrates the guide rail properly assembled to
saw table and extension wing.
Fig. 20
Fig. 21
E
A
A
B
C
D
F
ED
CA
GJE
H
DE
K
F
B

15

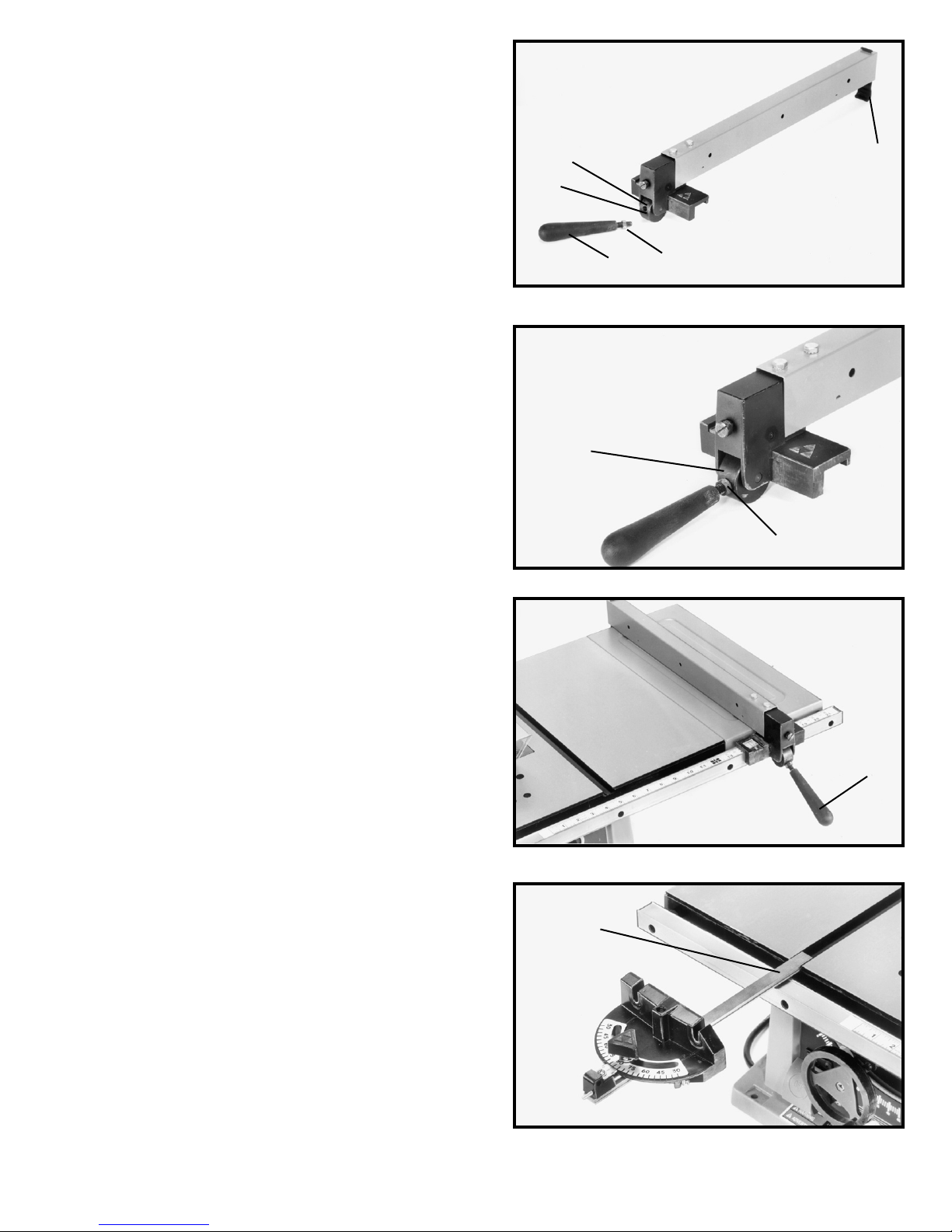

RIP FENCE
1. Thread an M8 hex nut (A) Fig. 22, approximately
halfway onto stud of handle (B).
2. Thread handle (B) Fig. 22, into tapped hole (C) in fence
cam (D). Tighten hex nut (A) Fig. 23, against cam (D).
3. Lower rip fence onto table as shown in Fig. 24,
making certain rear clamp (E) Fig. 22, hooks over back
edge of table.
4. The rip fence is usually operated on the right hand
side of the saw table. Lift lock handle (B) Fig. 24, and
position fence on table as shown. Push downward on
handle (B) Fig. 24, to lock fence in place on saw table.
MITER GAGE
The miter gage is shipped completely assembled and is
supplied with a T-slot miter gage bar (A) Fig. 25, that is
inserted into either one of the two T-slotted miter gage
grooves located in the table top, as shown. The T-slot
miter gage prevents the miter gage from falling when it
is extended out beyond the front of the table when
cross-cutting extra wide workpieces.
Fig. 22
Fig. 23
Fig. 24
Fig. 25
E
BA
C
D
A
D
B
A

16
MITER GAGE HOLDER
DISCONNECT MACHINE FROM
POWER SOURCE.
1. Assemble spring clip (E) Fig. 26, to the miter gage
holder (A) as shown using a M4x.7x10mm pan head
screw (F), 3/16" lockwasher and M4x.7 hex nut. NOTE:
Hex nut (G) Fig. 27, will fit into the recess at the back of
the miter gage holder (A) to keep spring clip (E) Fig. 26,
secured to the miter gage holder.
2. Assemble the miter gage holder (A) Fig. 28, to the left
side of the saw cabinet using the four M4.2x10mm pan
head screws (B) Fig. 29, and 3/16" washers (C) from
inside saw cabinet.
3. Fig. 30, illustrates the miter gage (D) inserted into the
miter gage holder when not in use.
Fig. 29
Fig. 26
Fig. 27
Fig. 28
Fig. 30
E
A
F
A
G
A
C
B
D

17
OUTFEED SUPPORT
1. Loosely fasten both brackets (A) Fig. 31, to the
bottom left side of the saw table as shown, using two
M6x1x15mm hex head screws (B) and M6.1
lockwashers (C). Assemble two remaining brackets to
the bottom right side of saw table in the same manner.
2. Insert rod (D) Fig. 32, through holes in brackets (A) as
shown. Then thread and tighten one 1/4-20x1/2" hex
head screw (E) and 1/4" flat washer (F) into the front end
of rod (D) as shown at (G). Assemble remaining rod to
the opposite side of saw in the same manner.
3. Insert rods (D) Fig. 33, into larger holes (H) in outfeed
support (J) as shown.
4. Secure outfeed support (J) Fig. 34, to rods (D) using
two 1/4-20x1/2" hex head screws and 1/4" flat washers
(K) as shown.
5. Push entire outfeed support assembly (J) Fig. 35, in
until it contacts splitter/guard assembly (L) as shown.
Then tighten all outfeed support mounting hardware.
Fig. 34
Fig. 31
Fig. 32
Fig. 33
Fig. 35
A
B
C
FE
DG
A
J
H
H
D
D
K
J
K
L
J

1818

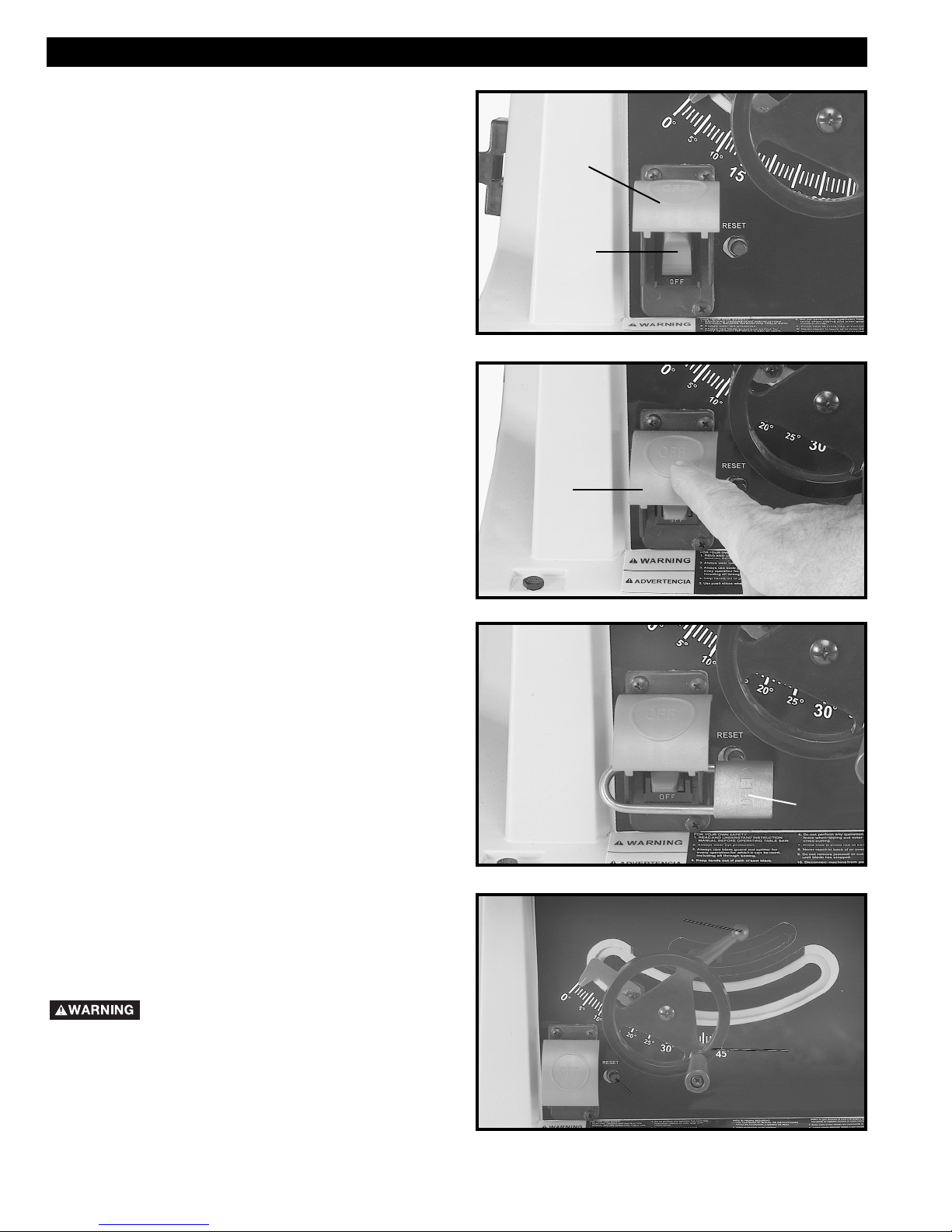

STARTING AND STOPPING SAW
1. The on/off switch is located underneath the switch
shield (A) Fig. 36. To turn the saw “ON”, move switch
trigger (B) up to the “ON” position.
2. To turn the saw “OFF”, push down on switch shield
(A) Fig. 37.
LOCKING SWITCH IN
THE “OFF” POSITION
IMPORTANT: WHEN THE TOOL IS NOT IN USE, THE
SWITCH SHOULD BE LOCKED IN THE OFF
POSITION USING A PADLOCK (C) FIG. 38, WITH A
3/16" DIAMETER SHACKLE TO PREVENT
UNAUTHORIZED USE.
OVERLOAD PROTECTION
Your saw is equipped with a reset overload relay button
(C) Fig. 39. If the motor shuts off or fails to start due to
over loading (cutting stock too fast, using a dull blade,
using the saw beyond its capacity, etc.) or low voltage,
turn the switch to the “OFF” position. Let the motor cool
three to five minutes and push the reset button (C),
which will reset the overload device. The motor can then
be turned on again in the usual manner.
BLADE RAISING AND
LOWERING CONTROL
To raise or lower the saw blade, turn handwheel (A) Fig.
39. Turning the handwheel clockwise lowers the blade
and turning the handwheel counterclockwise raises the
blade.
THE BLADE TILTING LOCK HANDLE
(B) FIG. 39, MUST BE LOCKED DURING ALL
CUTTING OPERATIONS.
Fig. 36
Fig. 37
Fig. 38
Fig. 39
A
B
B
A
B
C
C
OPERATING CONTROLS AND ADJUSTMENTS

19
BLADE TILTING CONTROL
To tilt the saw blade, loosen blade tilting lock handle (A)
Fig. 40, move handwheel (B) until the blade is at the
desired angle and tighten lock handle (A). NOTE: The
lock handle (A) is spring-loaded and can be repositioned
by pulling out on the handle (A) and repositioning it on
the serrated stud located underneath the handle.
THE BLADE TILTING LOCK HANDLE
(A) MUST BE LOCKED DURING ALL
CUTTING OPERATIONS.
Fig. 40
ADJUSTING 90 AND 45 DEGREE POSITIVE STOPS
Your saw is equipped with positive stops for rapid and accurate positioning of the saw blade at 90 and 45 degrees to
the table. To adjust the positive stops, proceed as follows:
DISCONNECT MACHINE FROM POWER SOURCE.
1. Raise the saw blade to its maximum height.
Fig. 41
Fig. 42
TO ADJUST POSITIVE STOP AT 90
DEGREES
2. Loosen the blade tilting lock handle, move the blade
tilting mechanism as far as possible to the left and
tighten the blade tilting lock handle.
3. Place a square (A) Fig. 41, on the table with one end
of the square against the blade, as shown, and check to
see if the blade is at 90 degrees to the table. If it is not,
loosen screw (B) a few turns and move the blade tilting
mechanism until the blade is at 90 degrees to the table.
Then tighten blade tilting lock handle and tighten screw
(B) until it bottoms.
TO ADJUST POSITIVE STOP AT 45
DEGREES
4. Loosen the blade tilting lock handle, move the blade
tilting mechanism as far as possible to the right and
tighten the blade tilting lock handle.
5. Place a square (A) Fig. 42, on the table with one end
of the square against the blade as shown, and check to
see if the blade is at 45 degrees to the table. If it is not,
loosen screw (C) a few turns and move the blade tilting
mechanism until the blade is at 45 degrees to the table.
Then tighten blade tilting lock handle and tighten screw
(C) until it bottoms.
AB
A
C
A
B

2020
RIP FENCE OPERATION
AND ADJUSTMENTS
1. To move the rip fence (A) Fig. 43, along the table, lift
up fence locking lever (B), slide the fence to the desired
location on the table and push down fence locking lever
(B) to lock the fence in position.
2. A pointer is supplied to indicate the distance the
fence is positioned away from the saw blade. If an
adjustment to the pointer is required, loosen the screw
(C) Fig. 43, that fastens the pointer to the fence bracket
and adjust the pointer accordingly. Then, tighten screw
(C).
3. IMPORTANT: THE RIP FENCE MUST BE
PROPERLY ALIGNED TO THE MITER GAGE SLOT IN
ORDER TO HELP PREVENT KICKBACK WHEN
RIPPING.
4. The saw blade is set parallel to the miter gage slot at
the factory and the fence must be parallel to the miter
gage slot in order to do accurate work and prevent
kickback when ripping. To check the alignment:
5. Position the fence at one end of the miter gage slot,
as shown in Fig. 48. Clamp the fence to the table by
pushing down the locking lever (B). The edge of the
fence should then line up parallel with the miter gage
slot.
6. If an adjustment is necessary, proceed as follows:
Fig. 43
MITER GAGE OPERATION AND ADJUSTMENTS
When straight cross-cutting (blade set 90 degrees to the table) the miter gage can be used in either table slot. When
bevel cross-cutting (blade tilted) only use the miter gage in the right table slot where the blade is tilted away from the
miter gage and your hands.
This miter gage is equipped with individually adjustable index stops at 90 degrees and 45 degrees right and left.
Adjustment to the index stops can be made by loosening lock nuts (B) Fig. 49, and tightening or loosening the three
adjusting screws (C) until they contact the other end of stop pin (D) when the miter gage is at 90 and 45 degrees to the
saw blade. Then, tighten lock nuts (B).
To operate the miter gage, simply loosen lock knob (E) Fig. 44, and move the body of the miter gage to
the desired angle. When the stop pin (D) is pushed in, the miter gage body will stop at 90 degrees and
45 degrees right and left. To rotate the miter gage body past these points, pull out stop pin (D).
Fig. 44
7. Loosen the two screws (D) Fig. 43, and lift up locking
lever (B). Then while holding the fence bracket (F) firmly
toward the front of the saw, move the rear end of the
fence (A) until it is parallel with the miter gage slot. Then
tighten two screws (D) and push down locking lever (B).
8. The clamping action of the fence (A) Fig. 43, can be
adjusted by lifting up locking lever (B) and turning screw
(E) clockwise to increase or counterclockwise to
decrease the clamping action of the fence.
CBCB
C
B
D
E
C
B
A
D
E
F
