Introduction
C-200Air V16 Page 1
Introductions
Congratulations on your purchase of the DEN-SIN High Pressure Cleaner.
Model: C-200AIR
Read this user manual before you start up your High Pressure Cleaner the first time.
This document or part of it may not be photocopied, or in any other way reproduced, or
translated to other languages without the prior written consent of DEN-SIN.
This machine is a High Pressure Cleaner producing water jet under high-pressure, which is
why severe injuries can occur if the safety precautions are not observed.
Therefore a full understanding of the contents of this instruction manual is required, in order
to prevent injuries to you, objects and persons near-by.
Safety
The following symbols are used in this manual to indicate procedures that if not followed,
may results in personal injuries or damage to equipment.
Version 16: March 2015
Revision History
Revision Rev.No.
Manual updating 14
Manual Updating / Repair Kit Updating 15
Updating of Manual with new configuration components 16
WARNING is used to alert the reader of procedures or
practice which if not followed correctly could result in personal
injuries.
WARNING
CAUTION
CAUTION is used to alert the reader of procedures or
practice which if not followed correctly could result in damage
to machine or other equipment.
NOTE is used to highlight important information that may
assist the reader carrying out the procedure or understanding the
text.
NOTE

Table of Contents
C-200Air V16 Page 2
Table of contents
Introductions .............................................................................................................................1
Table of contents .......................................................................................................................2
1. Getting acquainted with your High Pressure Cleaner ......................................................3
Fast and efficient cleaning ......................................................................................................3
Specifications..........................................................................................................................3
Applications ............................................................................................................................3
Unpacking ...............................................................................................................................4
Machine Installation / Setup ...................................................................................................4
Machine Shut Down Procedure ..............................................................................................7
Operations...............................................................................................................................8
2. Safety and protection information ......................................................................................9
General safety & application guidelines.................................................................................9
Safety devices .........................................................................................................................9
Safety precautions.................................................................................................................10
WARNING ..............................................................................................................................10
3. Maintenance and troubleshooting .....................................................................................12
Service instructions...............................................................................................................14
4. Available accessories...........................................................................................................17
Accessories ...........................................................................................................................17
ID-plate .................................................................................................................................17
Chassis assembly .....................................................................................................................18
Chassis assembly spare-parts list ..........................................................................................19
Air-motor assembly ..............................................................................................................20
Pump assembly .....................................................................................................................21
Pump assembly spare-parts list.............................................................................................22
Un-loader valve assembly.....................................................................................................24
Unloader valve assembly spare-parts list..............................................................................25
Repair kit Unloader valve .....................................................................................................26
Lance assembly.....................................................................................................................27
Lance assembly spare-parts list ............................................................................................27
Complete HP hose assembly.................................................................................................28
Complete HP hose w/ Trigger gun........................................................................................28
Trigger gun assembly............................................................................................................29
Trigger gun assembly spare-parts list ...................................................................................29
5. Declaration and Warranty.................................................................................................31
EU declaration of conformity ...............................................................................................31
Warranty ...............................................................................................................................31
6. Spare Parts Request Form .................................................................................................32
7. Maintenance Log Book.......................................................................................................33
The information contained in this user guide is subject to change without
notice.
NOTE

1. Getting acquainted with your High Pressure Cleaner
C-200Air V16 Page 3
1. Getting acquainted with your High Pressure Cleaner
Fast and efficient cleaning
The DEN-SIN High Pressure Cleaner C-200AIR enables you to get more cleaning done in
less time, fully independent of power supply.
This DEN-SIN High Pressure Cleaner offers you high performance yet a compact design.
The compact design enables the machines to be agile within inconvenient places even at
staircases, and the high performance gives you the opportunity to solve an array of cleaning
tasks. This High Pressure Cleaner is designed for heavy industrial use as well as for cleaning
contractors. All pump parts, fittings and pipes in contact with water are made of non-
corrosive materials. Together with the ceramic pistons, long life seals and stainless steel
valves, it ensures long life and high durability.
Specifications
Model
Motor
Motor
Speed
Working
Pressure
Flow
Capacity
Air
Consumption
Dimensions
LxWxH
Weight
Hp
kW rpm
psi
Bar
gpm
l/min
mm kg
C-200AIR
96.6 1500 290
0 200 3.3 15
7 Bar/100 psi
330cfm/150m
3
/hr 850x550x900
95
Applications
These heavy-duty High Pressure Cleaners are capable of removing any kind of dirt:
Algae off concrete constructions
Paint and graffiti off walls
Dust, dirt, soil & mud off floors
Oil & grease off engines and other mechanical parts
Dirt and salt deposits off ship decks
And with the option for use of accessories even many more jobs are to be dealt with:
Sand-blasting
Drain-cleaning
Dispensing of soaps and chemicals
Sludge pumping
Extra long lances for hard to reach places
Floor cleaning equipment
Rotary brushes
This machine is only to be used for the purposes it is designed for. Any other
use shall be considered improper and therefore potentially dangerous. The
manufacturer is not to be held responsible for any damages caused by
improper use.
CAUTION

1. Getting acquainted with your High Pressure Cleaner
C-200Air V16 Page 4
Unpacking
Remove the High Pressure Cleaner and its accessories from the packing material. For
transport and packing reasons some accessories may be supplied disassembled.
Make sure all components are present:
•High-pressure machine itself
•Handle bar (partly attached)
•Wing nuts for the handle bar
•Electrical cord (attached)
•High pressure hose with Spray-gun trigger
•Double barrel lance (disassembled)
•Water inlet male hose coupling
Machine Installation / Setup

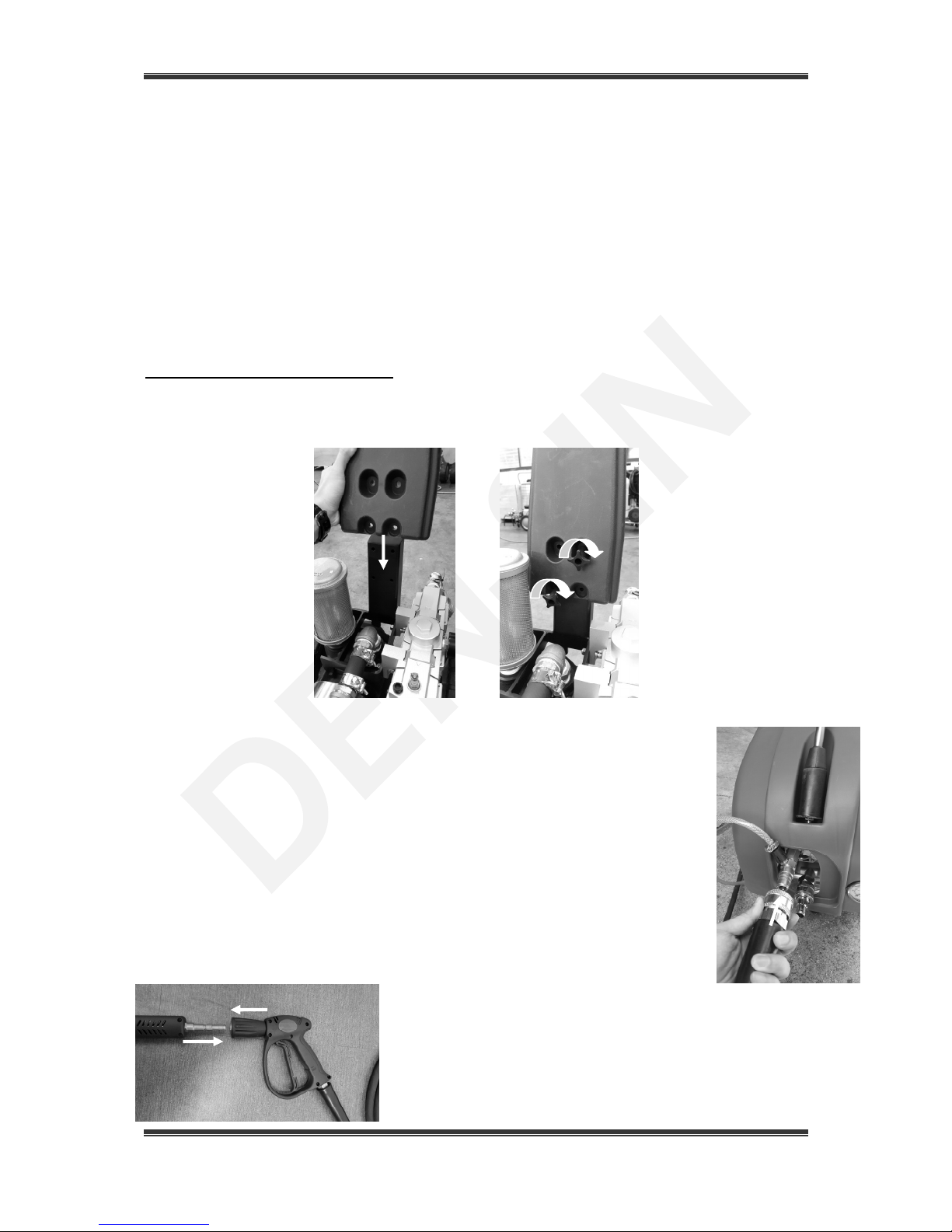

Attach the handle bar to the machine using the wing nuts and bolts supplied and align the
handle bar according to the cabinet moulding.
Mount the high-pressure hose on to the High Pressure Cleaner by pulling back
the retainer on the high-pressure hose coupling, while sliding it onto the male
outlet of the unloader till a click sound could be heard.
Assemble the double barrel spray-lance. To mount the
assembled spray-lance on to the Spray-gun trigger, pull
forward the front of the Spray-gun trigger (A) while
sliding in the male swivel coupling part of the spray-lance.
(B)
(A)
(B)

1. Getting acquainted with your High Pressure Cleaner
C-200Air V16 Page 5

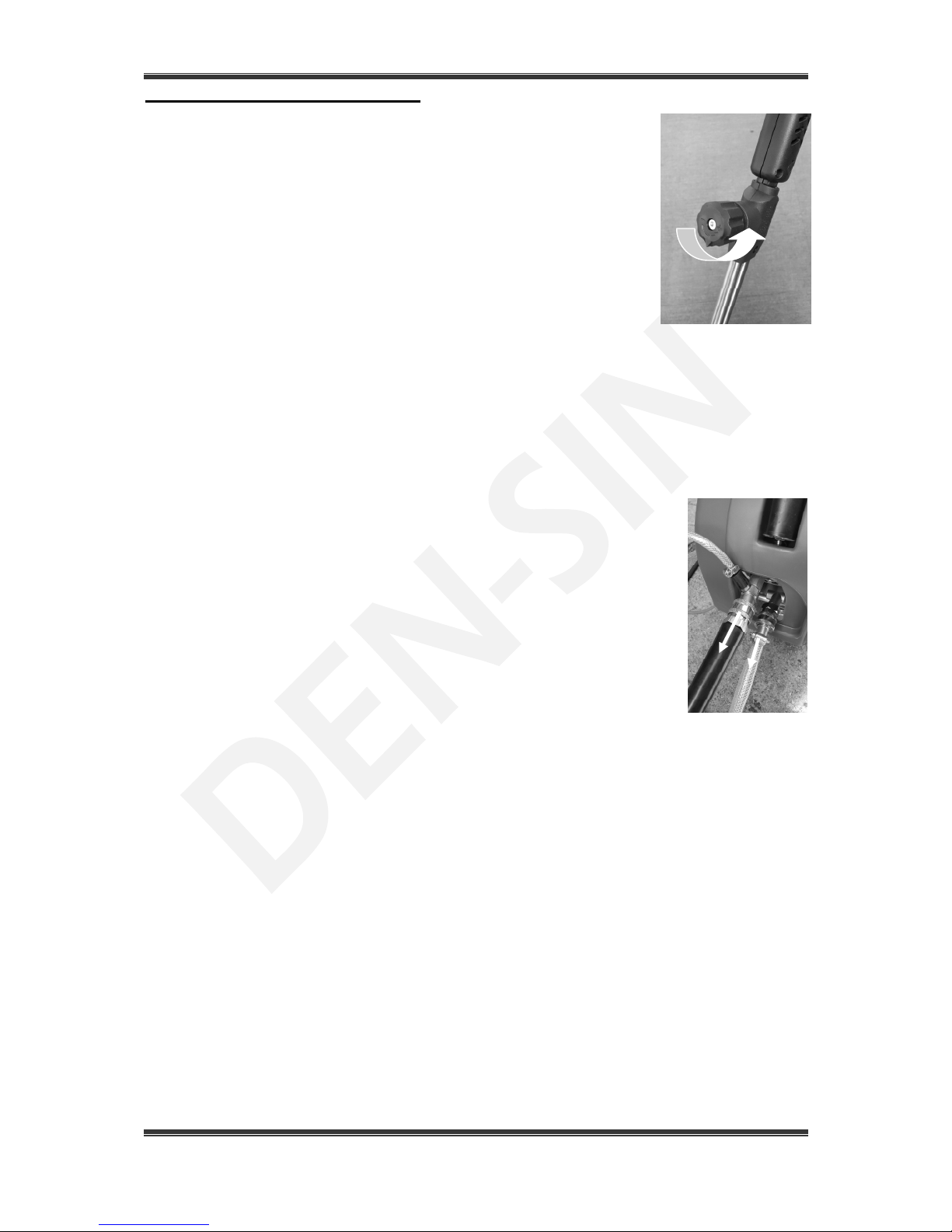

Prepare the water supply for the High Pressure Cleaner by attaching a hose
to the supplied low pressure inlet male-coupling. Connect the other end of
the water supply hose to a potable water tap. Turn on tap.
Connect to the public mains water supply in accordance to
regulations.
Before starting the machine, bleed out air by pulling the trigger-gun handle until any air has
escaped the inlet hose. Release trigger once water flow is smooth at the outlet.
Connect the air supply hose into the coupling provided and attached the
coupling to the machine once supply line is secured. Secure the coupling
onto the machine by depressing the 2 locking lever downwards. Power up
machine by turning on the air supply
Adjust the air pressure of the FRL unit by turning the
pressure regulator knob as shown until water pressure
is achieved.
The high pressure cleaner is now ready for
operation. The spray-gun lance is affected by a
recoil force during operation – therefore keep a
firm grip with both hands on the Spray-gun
handle and the lance. Press the trigger and tighten
pressure regulating knob to achieve maximum
pressure for effective cleaning.
Notice
Depress Trigger
Knob fully tighten
Pressure Regulator

1. Getting acquainted with your High Pressure Cleaner
C-200Air V16 Page 6
The pressure can be regulated by turning the knob on the spray-gun
lance. Tighten knob for maximum pressure and loosen for low pressure
washing. When using chemical injector, pressure must be adjusted to
low.
Make sure your local power supply specifications are in accordance with the
motors requirement. Refer to the ID-plate on the machine. Do NOT run the
High Pressure Cleaner without sufficient potable water supply as it can cause
cavitation and serious damage to internal pump parts. Do not let the machine
recycle the water (running with Spray-gun trigger not activated) for more than
a minute. This can cause serious damage to the seals.
Pressure Regulating Knob
CAUTION

1. Getting acquainted with your High Pressure Cleaner
C-200Air V16 Page 7
Machine Shut Down Procedure
Release trigger and lower down the pressure by loosening the knob on
the lance.
Turn off the High Pressure Cleaner by turning off the main air supply.
Once machine stop, depress trigger to release trap pressure in the pump and hose line. Make
sure lance is pointing downwards when doing this as pressure could cause injury.
Once pressure is release, turn off water supply and disconnect inlet and
outlet hose from machine. Disconnect air supply inlet. Dry the machine
and store it.

1. Getting acquainted with your High Pressure Cleaner
C-200Air V16 Page 8
Operations

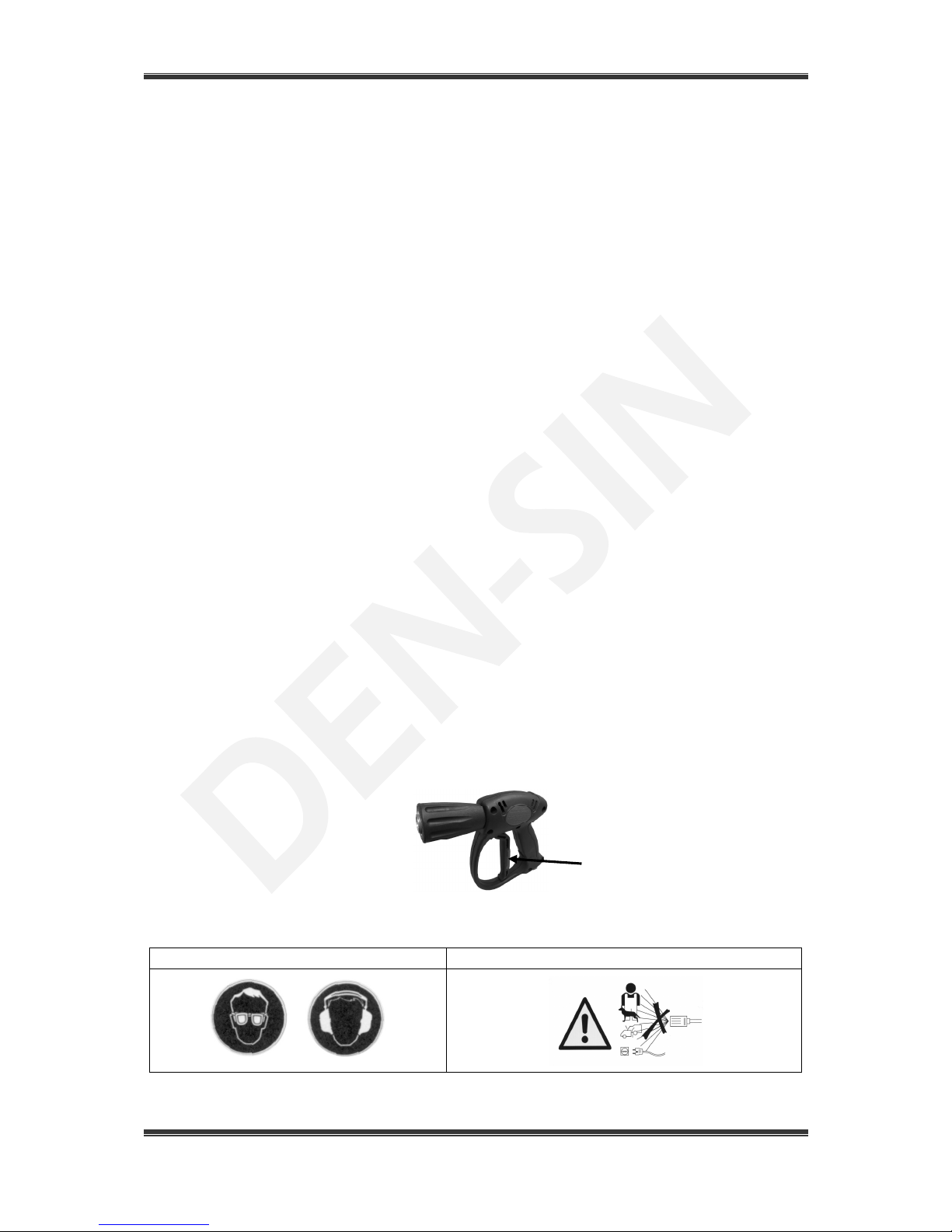

To prevent accidents from happening, ensure the safety of the person(s) who
uses the equipment and to protect bystanders and nearby placed inventory or
machinery, a few safety precautions needs attention.
1) Treat the machine as a high-speed cutting tool.
2) Anyone under the age of 18 is NOT allowed to use the machine.
3) Always keep the High Pressure Cleaner and its accessories in good working condition.
Check the machine for defects. Do NOT start up the machine if there is any defect.
Have the machine serviced.

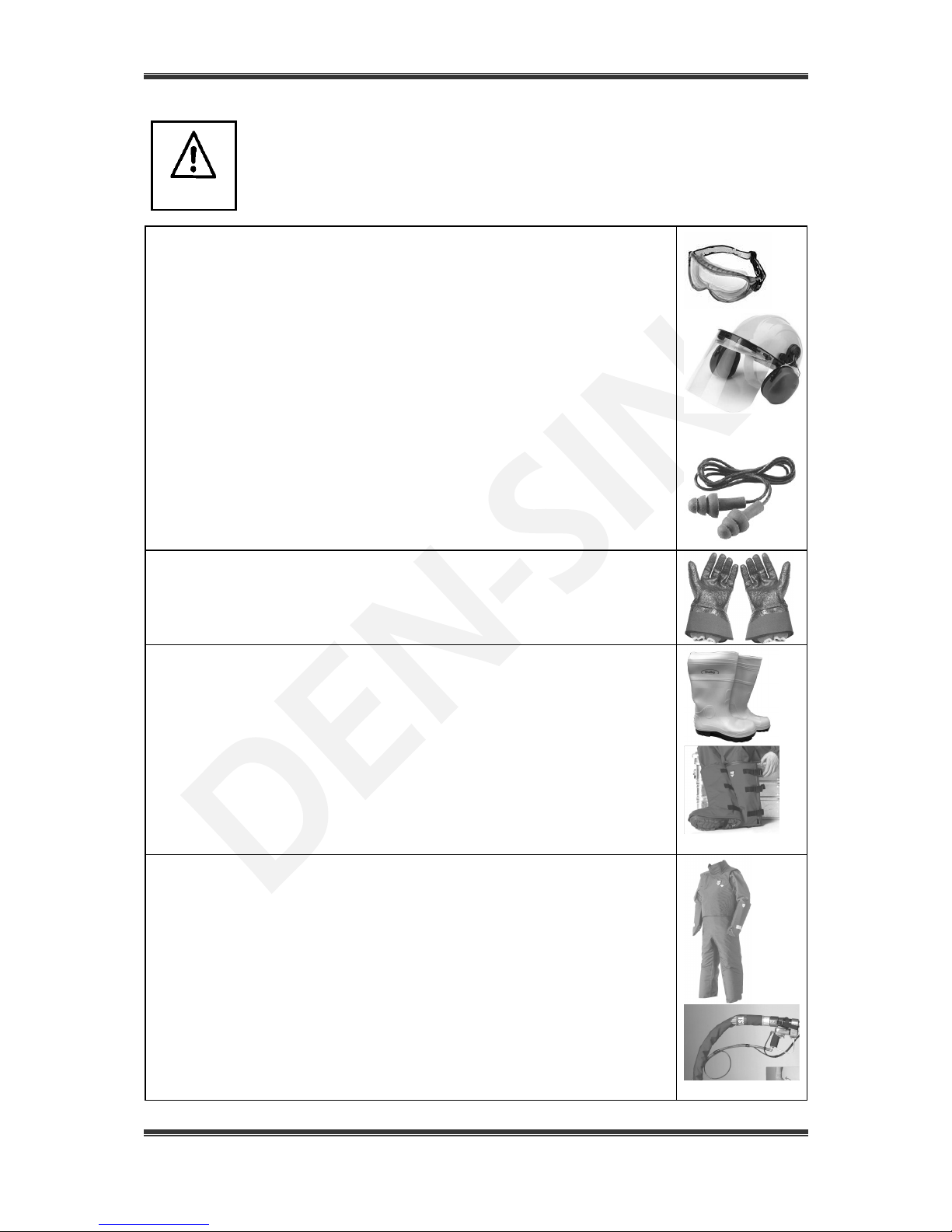

4) When using the High Pressure Cleaner and its accessories, eye protection must be worn
to protect against repelling or ricocheting matters causing eye damage.
5) Suitable clothing and footwear must be worn while using the equipment to protect the
operator. Do not try to clean clothes or footwear with the machine.
6) Precautions must be made to keep bystanders away from the working range.
7) Do NOT spray-clean on yourself, others or live animals.
The high-pressure beams are capable of making severe
injuries.
8) Do NOT spray at electrical equipment OR the machine itself.
9) While repairing or servicing the equipment and its accessories always make sure the
machine is turned off and disconnected from the main power supply.
10) Only allow instructed personnel to operate the machine.
11) Activating the trigger/gun can cause backward force therefore always hold spray lance
with both hands.
12) When pausing during operation turned off the main switch of the machine and ensures
that the trigger/gun is locked.
13) Only use high-pressure hoses, connections and nozzles specified by DEN-SIN.
14) IMPORTANT – Do not use the machine in a possible explosive environment in
accordance with EN-50014.
WARNING

2. Safety and Protection information
C-200Air V16 Page 9
2. Safety and protection information
General safety & application guidelines
1) It is not allowed to clean asbestos containing surfaces with high-pressure, unless using
special equipment.
2) Persons under the influence of alcohol, drugs or medicine should not operate the
machine.
3) This machine has been constructed for use with Nilfisk-ALTO detergents. The use of
other detergents or chemicals may cause problems as to the operation and the safety.
4) When using detergents the instructions should always be strictly observed.
5) Always flush the machine with clean water after use of chemical/detergents.
6) Do not use the machine if important parts are damaged – i.e. safety devices, high-pressure
hoses, spray handle.
7) The user is obliged to observe all national working environment and working safety
regulations concerning “operation of high-pressure washers”.
8) It is not allowed to connect this machine directly to a potable water supply.
9) If the machine is to be connected to potable water supply it is strictly necessary to fit the
machine with a water break tank, in accordance with EN1717.
Safety devices
The machine is equipped with the following safety devices:
1) Stop button. Please refer to the separately supplied manual covering the proper use of the
engine.
2) Un-loader and safety valve protect against overpressure.
3) Locking device on spray-gun handle. The locking device prevents the trigger from being
activated when pulled out.
*Spray gun may change without notice
Do Don’t
Locking

2. Safety and Protection information
C-200Air V16 Page 10
Important medical information
Immediate hospital attention should be given personnel who sustain equipment related
injuries while operating the system. In such cases, it is vital that medical personnel be
apprised of all facts relevant to such injuries. Therefore, all operating personnel should be
provided with waterproof emergency medical alert tags or cards, describing the nature of
their work and the possibility of injury inherent in the use of water jetting equipment. The
below example of a standard card can be photo copied, laminated and used as medical alert
tag.
IMPORTANT
MEDICAL INFORMATION
MEDICAL ALERT
NOTE TO PHYSICIAN
This patient may be suffering from a water jet
injury. Evaluation and management should
parallel that of a gunshot injury. The external
manifestations of the injury cannot be used to
predict the extent of internal damage. Initial
management should include stabilization and
a thorough neurovascular examination.
X-rays can be used to access subcutaneous air
and foreign bodies distant from the site of
injury. Injuries to the extremities can involve
extensive nerve, muscle, vessel damage, as
well as cause a distal compartment syndrome.
Injuries to the torso can involve internal
organ damage. Surgical consultation should
be obtained. Aggressive irrigation and
debridement is recommended.
Surgical decompression and exploration may
also be necessary. Angiographic irrigation
studies are recommended pre-operatively if
arterial injury is suspected. Bandages with a
hygroscopic solution (MgSO
4
) and
hyperbaric oxygen treatment have been used
as adjunctive therapy to decrease pain, edema
and subcutaneous emphysema.
Unusual infections with uncommon
organisms in immune competent patients
have been seen; the source of the water is
important in deciding on initial, empiric
antibiotic treatment, and broad spectrum
intravenous antibiotics should be
administered.
Cultures should be obtained
WARNING
DEN-SIN - a division of Nilfisk Pte Ltd.
5 Tuas Ave 2, Singapore 639445
Tel: [phone] Fax: [phone]
Obtain medical treatment
immediately for ANY high-pressure
water-jet injuries.
Inform the doctor of the cause of the
injury.
Show this card to the doctor.
This card is to be carried by
personnel working with high-
pressure water jetting equipment.
DEN-SIN - a division of Nilfisk Pte Ltd.
5 Tuas Ave 2, Singapore 639445
Tel: [phone] Fax: [phone]

2. Safety and Protection information
C-200Air V16 Page 11
Safety precautions
The following protective clothing and devices should be worn both by
personnel operating the water blaster system and equipment and by those
working nearby:
Eye protection
-
Operators must wear visors and goggles to guard
against spray and flying debris. A combination of both goggles and visor
is advisable. And will protect the eyes and the face during both water-
blasting as well as abrasive water-blasting
Head protection- Helmets must be worn at all time by personnel within
the work area.
Helmet material must be able to withstand mechanical shock without
fracturing.
Hearing protection- Operators and other personnel exposed to noise
levels of more than 90-dBa for more than 1 hour must wear suitable ear
protection. Ear plugs or ear muffs are usually sufficient.
Hand protection
-
Shear proof gloves must be worn by the operator at
all times. A glove combination of a cloth inner lining and a water tight
outer layer is preferred.
Foot protection
-
Safety footwear with steel toecaps must be worn. Basic
safety footwear must also be equipped with metatarsal guards to protect
the instep. Safety boots are available in other designs than the
illustration.
Gaiters- This is an additional layer of protection to the user foot that are
not protected by the steel top cap. It is intended to be worn outside of the
user’s regular protective boots. Five clips ensure that gaiters securely
stay in place. The entire area is protected. Very comfortable and light to
wear.
Body
protection
-
Waterproof garments protect the operator only from
spray and flying debris. They do NOT deflect direct jet impact.
Therefore, an operator must take care never to point a water-jet either at
themselves or other personnel.
Hose protection- Protect user from high pressure water injuries incase
hose connection is loose.
WARNING

3. Maintenance and Troubleshooting
C-200Air V16 Page 12
3. Maintenance and troubleshooting
Maintenance Schedule
Regular Service
Period as
indicated
Each
use
1
st
50hrs
Every
month /
Every
500hrs
When
needed
Procedure / Remarks
Check pump oil
level
•
Top up if necessary.
Change pump oil
Recommended Oil :
SAE 15W40
Usage :
Approx. 0.4kg of
oil
Renewal of oil:
•Turn off High Pressure Cleaner.
•Loosen bolt (Hex) at bottom of pump housing.
•Drain oil into a waste oil-tray.
•Tighten bolt (Hex)
•Add oil through pump inlet on top of the pump
until the red point of the oil control glass has
been reached.
Notice: Do not dispose of used oil in drain.
Cleaning of
machine
•
Use damp cloth to wipe the cabinet and handle
bar.
Notice:
Do not use detergent cleaning chemicals
Cleaning of
motor fan
( to ensure sufficient
airflow )
•
Clean the motor fan cover.
•Clean the motor fan blade.
Do NOT operate the machine with damaged or
removed fan cover.
Machine Prevention
Do Don’t Action Cause
Spray directly onto the machine with high
pressure water
Electrical shock may occurs
O
perate the machine with damaged or removed
fan cover
Motor will be overheated and malfunction
Operate/keep machine with frost built up
Flush pump with antifreeze fluids before use.
Check hose and cord are not vehicle run over
by heavy or squeezed in door opening
May cause machine not function properly.
Check electrical cord and high pressure hose
for wear and cracks
To prevent electrical shock and safety to the user
Ensure coupling parts free of dirt to ensure
long life of O-ring seals preventing water leaks.
Extend life span of the pump seals and
maintaining correct pressure.

3. Maintenance and Troubleshooting
C-200Air V16 Page 13
Troubleshooting
Symptom Rectification
Main switch is turned on the High Pressure
Cleaner will not run.
•
Check power supply connection for faulty components.
•Make sure the socket is inserted correctly
•Check if fuse is blown, replace if necessary.
Motor is humming & Pump does not give
pressure or low pressure
•
Voltage is too low as compare to specification. (Check main voltage)
•Motor phase is missing (For 3 phase application).
Check the connection box voltage with a meter
•High-pressure pump is blocked
Pump pressure drops and the High Pressure
Cleaner works irregularly
•
Strain filter is clogged.
•Water supply from the tap is insufficient.
•Clean the strain water filter
Pump continuously stops and starts, when the
spray-gun trigger is activated.
•
The high pressure nozzle is partly clogged.
Turn off the High Pressure Cleaner, dismantle the high-pressure nozzle
and remove the extraneous matter. Replace if damaged
High pressure cleaner does not reach the proper
working pressure when the spray-gun handle is
activated
•
The high-pressure nozzle is clogged.
•Dirt in the by-pass valve.
•The pump sucks air.
•Turn off the High Pressure Cleaner. Clean the nozzle.
•Inspect the low pressure supply, while spray-gun trigger is activated,
ON the machine on again.
•Repeat the procedure again; now with the trigger released. If the
problem still occurs, by-pass valve should be dismantled and the
extraneous matter removed.
High Pressure Cleaner only works with
approximately 2/3 of the maximum pressure,
and the high-pressure hose is vibrating.
•
Valves are dirty
•Remove the dirt and check to ensure the valve flaps are movable and
fit tightly.
Noisiness
•
The pump sucks air.
•One or more valve springs are broken or down.
•Extraneous matter in the valves.
•Crankcase or motor bearings worn out.
•Inspect the low-pressure supply. Replace springs.
•Clean the valves. Replace the bearings.
Water in the oil
•
The O-ring casing is worn out.
•High moisture in the air (condensing inside the crankcase)
•The seals are completely worn out.
•Check or replace the O-ring.
•Renewal of the crankcase oil more often.
•Replace the seals.
The High Pressure Cleaner does not suck
chemicals
•
The chemical container is empty.
•The High Pressure Cleaner has not been set to low-pressure (on the
double barrel lance cock).
•The low-pressure nozzle is clogged, or partly clogged.
•The non-return valve of the chemical injector is stuck.
•Ensure the chemical container contains sufficient fluid for proper
suction.
•Set the spray-lance to low pressure by turning the cock on the lance
counterclockwise.
•Clean or replace the low-pressure nozzle.
•Clean, correct or replace the non-return valve of the chemical injector.
For any further inconveniences, not mentioned in this user guide or any damages
of the machine, we strongly suggest you to make contact with your dealer for the
repair or possible replacement of any original spare-parts.
NOTE

3. Maintenance and Troubleshooting
C-200Air V16 Page 14
Service instructions
Detach the high pressure hose, dump back hose, inlet hose, safety valve, and parts on the
pump head before serving the pump.
(Please refer to Pump assembly (Page 17) unless otherwise stated.)
Servicing the valves:
1. Remove the valve cap (Pos: 2).
2. Inspect the valve cap O-Ring (Pos: 1) for any damage, replace if necessary.
3. Use the needle nose pliers to remove the valve (Pos: 3).
4. Use a small probe to move the poppet up and down to assure that the valve is
functioning properly and that no debris is stuck in the valve (Pos: 3).
5. To reassemble the valves proceed the other way round and tighten the cover screws
with a torque wrench. (Referring to torque specification)
Servicing the Packing/Seals:
1. Remove the bolts (Pos: 38) on the head (Pos: 36) of the pump.
2. Place the screwdrivers between the head (Pos: 36) and crankcase (Pos: 9) of the
pump, lifting one up and the other down. The head should start to lift off of the
plungers (Pos: 23).
3. When you remove the head, some of the water seals have stayed on the plungers (Pos:
23) and some in the head (Pos: 36). To remove the seals from the plungers (Pos: 23),
simple turn the assemblies and pull off.

3. Maintenance and Troubleshooting
C-200Air V16 Page 15
4. If the seal assemblies (Pos: 30~33) are in the head (Pos: 36) use the reversible pliers
to grab the seal retainer on the outside ring, twist the retainer in either direction and
lift out.
5. Pull out the guide ring (Pos: 31) with your finger.
6. Pull the high-pressure seal (Pos: 30) and support ring (Pos: 7) out of the head with
your finger.
7. The low-pressure seal (Pos: 33) is located in the brass seal retainer. Using the
mechanics pick, go in between the seal and retainer and pull the seal straight out.
8. Remove the seal retainer O-Ring (Pos: 32) with mechanics pick.
9. To reassemble the packing and seals proceed the other way round and tighten the
cover screws with a torque wrench. (Referring to torque specification)
Servicing the Plungers (Pos: 23):
Recommend to replace Piston kits, Support Rings kits, and Water Seals kits whenever
servicing the plungers.
1. Remove the plunger retainer nut (Pos: 25).
2. Insert the gasket scraper between the copper washer (Pos: 24) and plunger (pos: 23) to
remove the washer (Pos: 22).
3. Twist and pull the plunger off the plunger rod.
4. Remove the plunger rod O-Ring (Pos: 21) with the mechanics pick.
5. Remove the washer (Pos: 22). And clean any thread locker that is left on the plunger
rod and retaining nut threads.
6. To reassemble the plungers, proceed the other way round and tighten the cover screws
with a torque wrench. (Referring to torque specification)

3. Maintenance and Troubleshooting
C-200Air V16 Page 16
Pump head (Pos: 36) to drive end (Pos: 9) Installation:
1. Turn the crankshaft to align the plungers as shown.
2. Place the head evenly onto the plungers and push it until it makes contact with the
drive end of the pump.
3. Torque the head bolts (Pos: 38) as shown in the tightening sequence diagram.
Torque Specification:
Descriptions Head (Pos: 38) Piston Nut (Pos: 25) Valve Cap (Pos: 2)
In .lbs 133 106 442
Kg.m/N.m 15 12 50

4. Spare Part List
C-200Air V16 Page 17
4. Available accessories
Accessories
Accessories
Part No.:
Chemical injector.
700550021
Rotary brush. 700550462
Foam injector 700550156
Foam lance. 700550464
Foam sprayer. 700550463
Extension hose with quick couplings. from 10 - 50 m Please inquire
Industrial drain cleaner (1 front, 3 rear jets). 700550508
Container for sandblasting grid, including regulator. Please inquire
Retractable hose reel. 700550208
**Double Barrel Lance
700551473
*Single Barrel Lance
700550449
**Short Double Barrel Lance
700551502
Single Barrel Lance with Multi-speed Nozzle
700550890
Industrial Sandblaster Kit with boron Carbide Nozzle
700550479
* With Straight Jet Nozzle **With Fan Jet Nozzle
Notice: Always state type of High Pressure Cleaner along with the part no.: when
ordering accessories or spare-parts.
ID-plate
Refer to the identification plate on the machine:

4. Spare Part List
C-200Air V16 Page 18
Chassis assembly

4. Spare Part List
C-200Air V16 Page 19
Chassis assembly spare-parts list
Pos: Part no.: Qty.: Description:
1 700540305 1 Coupling, Evertight 1” (Hose)
2 700540304 1 Coupling, Evertight 1” (Adaptor)
3
700540243
1
Nipple 1” NPT brass
4 700540891 1 Gauge 1/4” (BACK CONNECTION)
5
700520133
1
FRL Unit
6 700540255 3 Elbow 1” brass
7 700540437 1 Adaptor 1” brass
8 700540132 1 Hose nipple 1” brass
9
700540201
2
Hose clip 1”
10 700520362 1 Air connection hose 1”
11
700540367
1
Bushing 1.1/4”
–
1”
12 700520471 1 Air motor “Gast 16AM”
13 700520519 1 Bracket rear C-200AIR
14 700510011 4 Bolt M8 X 30 Allen Zn
15 700510004 4 Locknut M8 Zn
16 700520511 2 Wheel Ø250mm
17 700520007 2 Star-lock Ø20mm
18 700520096 1 Adaptor Air-motor/pump
19 700520300 1 Coupling complete
20 700243107 1 Bell housing
21 700510034 8 Spring washer M8 Zn
22 700510104 4 Bolt M8 X 25 Allen Zn
23 700510011 4 Bolt M8 X 30 Allen Zn
24 700560003 1 Pump (see sub assembly page 20)
25 700510008 1 Locknut M10 Zn
26 700510006 1 Washer M10 Zn
27 700520521 1 Bracket for castor wheel
28 700520456 1 Castor wheel
29 700510005 4 Washer M8 Zn
30 700510009 4 Bolt M8 x 16 Allen Zn
31 700540158 1 Hose nipple 5/8”
32
700550004
2
Dowty seal 3/8"
33 700540113 1 Nipple 3/8”
34
700540048
1
Safety relief valve
35 700520128 1 Cabinet
36 700510010 2 Knob
37 700520636 1 Exhaust Muffler with Silencer
38
700520150
1
Bracket for Air
-
motor
39 700510050 4 Knob screw handle
40
700530108
1
Switch knob
41 700520057 1 Handle
42 700510023 4 Washer M6 Zn
43 700510066 4 Bolt M6 X 80 S.S
44
700530107
1
Gasket
45 700530109 1 Cover
46
700510040
4
Bolt M4 X 12 Phillip S.S
47 700510123 4 Bolt 7/16" x 2" Allen
* 700520325 10m Water Inlet Hose + Hose Nipple (Optional)
