We would like to congratulate you on your new high pressure cleaner and
to thank you for the purchase.
To easy your introduction to the use of the cleaner, we have provided the
following pages of explanations, tips and hints.
The equipement will assist you professionally in all cleaning tasks, e.q.:
Dear Customer
Permissible tolenance for figures ±5 % in accordance with
VDMAuniformsheet24411
Description
- facades
- flagstones
- terraces
- vehicles of all
types
- sheds
- channels
Technical
specifications
operating pressure
permissible
overpressure
water output
hot water input
electrical ratings
connected input:
wattage output:
fuse protection
weight
dimensions
sound level accord. to
DIN 45 635
with dirtkiller
recoil at lance
torque
Kränzle 105
105 bar
120 bar
10 l/min at 2800 rpm
max. 60 °C
230 V ; 50 Hz ; 10 A
2,3 kW
1,65 kW
16 A (slow fuse)
17,5 kg packing excluded
20 kg packing included
lenght 550 mm
width 230 mm
height 380 mm
87 dB
88 dB
approx. 19 Nm
20 Nm (assumed length at lance: 0,9 m)
- barrels and
containers
- machines etc.

3
Description
Construction
TheKränzle 105 high pressurecleaner is a portablemachine.
The design can be seen from the diagram.
Water
230 V
Pipe air-release
valve with reflux
valve
Item
1. Water inlet connection with filter
2. Suction hose with filter
(special accessory)
3. High pressure pump
4. Pressure gauge
5. Overflow safety valve
6. High pressure hose for washing agents
7. High pressure hose
8. Spray gun
9. Interchangeable lance
10. Regulator nozzle
11. Tube ventilator with check valve
11
27
8
9
1
3
4
5
6
10
3

4
Description
Water and Cleaning System
Water can be connected at mains pressure to the high pressure pump or it
can be sucked dirctly from a storage tank. The water is then forced under
pressure by the high pressure pump to the lance.
The high pressure jet is formed by the nozzle at the end of the lance.
Environmental, refuse disposal and water protection
regulations must be observed !
Unloader valve - safety valve
The unloder valve - safety valve protects the machine from a build-up of
excess-pressure, and is designed not to permit an excess pressure to be
selected for operation. The limit nut of the unloader valve is sealed with a
spray coating.
The operating pressure and spray rate can be steplessly adjusted by
adjusting the turn handle.
Replacements, repairs, new adjustments and sealing
should only be performed by qualified persons !
Lance with trigger gun
The machine can be operated when the safety trigger is squeezed.
When the lever is squeezed, the spry gun opens. The liquid is then pumped
to the nozzle. The spray pressure increases and quickly reaches the
selected operating pressure.
When the trigger is released, the trigger gun closes and any further spraying
of liquid from the lance is stopped.
The increase in pressure when the trigger gun is closed causes the unloader
valve - safety valve closes and the pump ressumes pressure spraying from
the lance.
The trigger gun is a safety device. Repairs should only be
performed by qualified persons. Should replacement parts be
required, use only components authorized by the manufacturer.

5
Description
Motor protection switch
The motor is protected from overload by a motor protection switch, which
automatically cuts out the motor in the event of overload.
However, should the switch trip frequently, the cause of the malfunction
should be located and rectified (see page 6).
Replacements and inspection work should only be performed ba
qualified persons when the machine is disconnected from
the power supply, i.e. pull the plug from the electrical
socket before such work is carried out.
Setting up
Location
Neither set up and operate the machine in rooms where there is a
risk of fire or explosion nor put it into puddles.
Do not use the machine under water.
CAUTION !
Never use liquid containing solvents such as paint thinners, patrol,
oil or similar liquid matter.
Pay attention to the instructions of the manufacturer of
the cleaning agents. The seals in the machine are not resistant
to solvents. The spray of solvents is inflammable, explosive and
poisonous.
CAUTION !
When running your high pressure cleaner with hot water of 60 °C
raised temperatures occur.
Do not touch the machine without safety gloves.

6
Description
Electrical connection
The machine is suplied with an electrical power cord with plug.
The mains plug must be fitted to a standard grounded socket with
a
30 mA residual current operated device. The socket must be
protected with a 16 A slow fuse on the mains inside.
KRÄNZLE 105 - 230 Volt 50 Hz
When using an extension cable, this must have an earthed lead
which is properly connected to the socket. The conductors in the
extension cable must have a minimum cross section of 1,5 mm 2.
Plug connections must be of a spray proof design, and may not
be located an a wet floor.
(With extension cables of more than 10 m the conductor must
have cross section of at least 2,5 mm2.)
CAUTION !
The use of extention cables which are too long may lead to malfunctions and
start-up difficulty.
When using a cable drum, always keep the cable wound as far as possible.
R

7
Description
Brief operating instrucions
are fittet to the machine (numbers 1 - 6)
1. Connect the hogh pressure hose with spray gun and machine.
2. Connect the suitable water supply.
3. Flush the air from the pump (open and close the spray gun
several times).
4. Make the electrical connection ( 230 Volt AC).
5. Switch on the machine while the spray gun is open and
commence cleaning.
6. After completing the work, completely empty the pump. (switch
the motor on for approx. 20 sec. without the suction and
pressure hoses).
- Only use clean water ! Protect from frost !
CAUTION !
Please pay attention to the regulations of your waterworks company.
In accordance with DIN 1988, the machine may not be directly connected to
the public drinking water supply lines.
A brief connection however is permissible according to DVGW (German
Associatin for Gas and Water Affairs) if a tube ventilator with reflux valve
(Kränzle Order-No. 41.016 4) is built into the water supply.
Also indirect connection to the public drinking water supply lines is
permissible by way of free emission in accordance with DIN 1988, part 4;
e.g. by using a reservoir with a float valve.
Direct connection to a non-drinking water supply line is permissible.
High pressure hose and spray device
The high pressure hose and spraying device suplied with the machine are
made of high grade material, they are also optimized for the machine and
marked as required by appropriate regulations.
If replacement parts are required, only such parts that are authorized by the
manufacturer and which bear the markings required by
appropriate regulations may be used. The high pressure hose
and spray device must be connected in a pressure-tight manner.
The high pressure hose may not be driven over, pulled
excessively, or twisted. The hose may under no cicumstances be
pulled over sharp edges, since otherwise the guarantee is
automatically void.

8
The recoil is less
than 20 Nm.
Savety notes
Apply the safety catch
on the spray gun
after each use,
in order to prevent
unintentional spraying.
Always aim the
underbody lance.
Note, when using an
angled underbody
lance,
like for example lance
No. 41.075, that there
is a certain amount of
torque (twisting
motion) in the recoil.
(See also notice on
page 2).

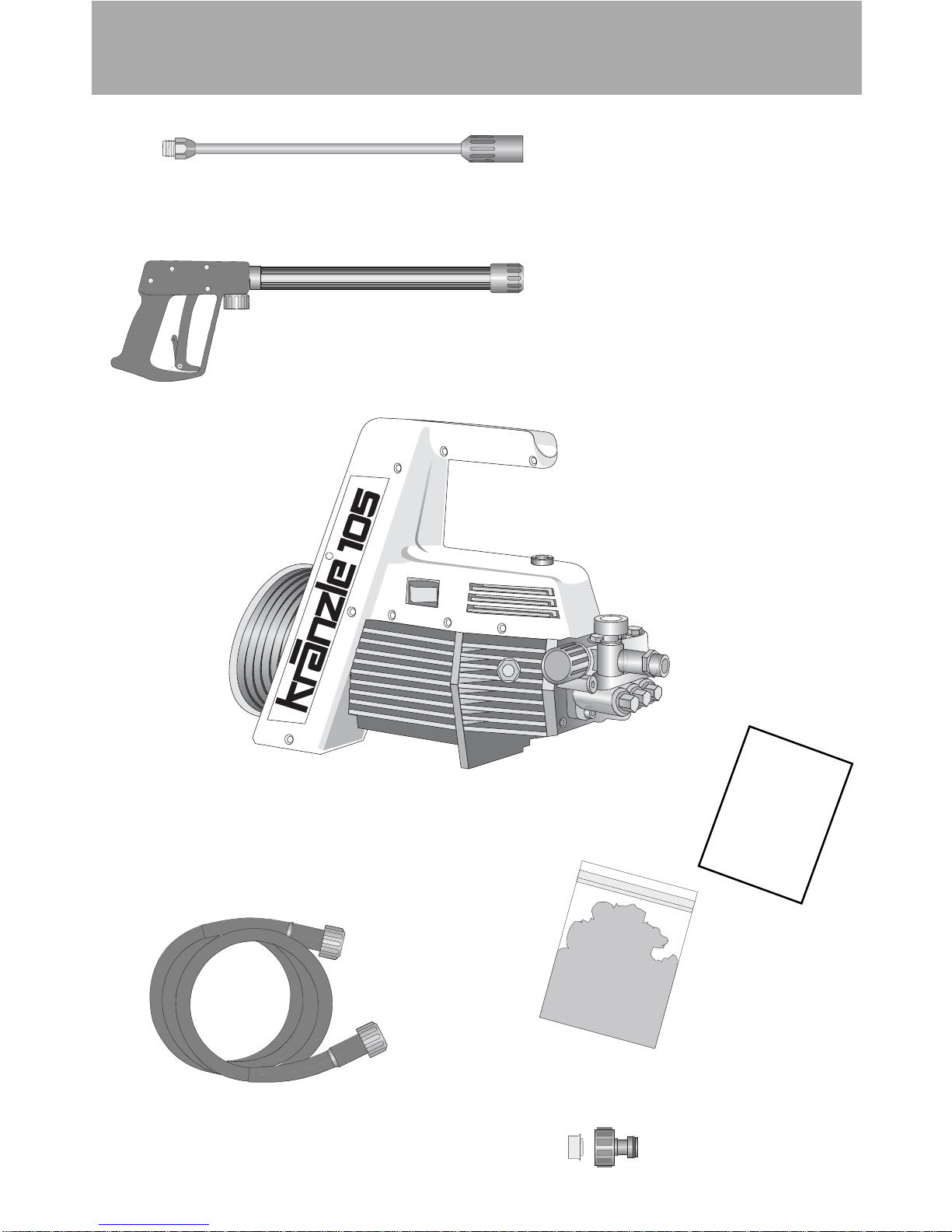

This is what you've purchased:
Spray gun with insulated pistol
grip and screw connection
High pressure hose, 8 m
Water inlet components
(filter already installed)
Operating instructions
Spray lance with regulator and high pressure
nozzle, flat spray 25045
KRÄNZLE - high pressure
cleaner K 105
R
Washing
powder
specimen
9

Preparation for use
Connect the high pressure
lance to the spray gun.
Unwind the high pressure hose
without leaving kinks or "nooses"
and connect it to the spray gun
and pump.
When using extention hoses, use
max. 20 m high pressure hose, or
2x 8 m with hose connectors.
The high pressure hose
connected from the
machine to the lance.
10

Preparation for use
Tehe machine can be connected
to a pressurised water line with
cold or 60 °C hot water. Ensure
that the water supply is clean
when sucking from external
sources. The hose cross section
must be at least
1/2" = 12.7 mm (free
passage).

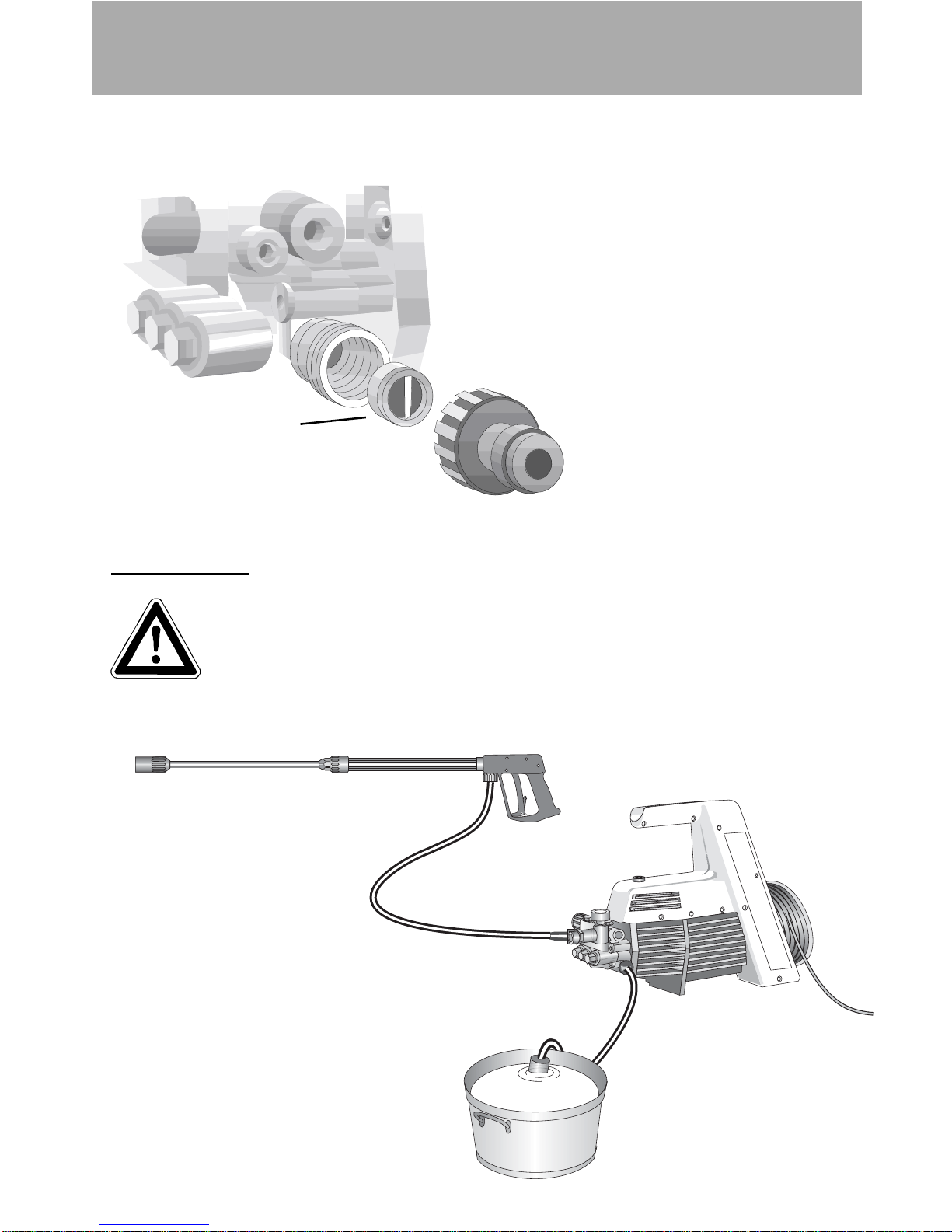

Filter 1 must always
be clean.
Water
CAUTION !
When running your high pressure cleaner with hot water of 60 °C
raised temperatures occur.
Do not touch the machine without safety gloves.
Maximum suction hight 1
m.
Please make
sure that the filter is
clean before using your
high pressure cleaner.
11

12
Preparation for use
When using
cleansing agents:
Place chemical filter no. 2 in
the reservoir with the cleansing
agent. Open the regulator
nozzle no. 3 to enable th injector
to induct the cleansing agent.
When the regulator nozzle is
closed by turning, the supply of
chemical is automatically cut
off. Allow the
cleansing agent to
take effect and then
remove with high
pressures pray.
To shut down the pump:
1. Switch off the machine.
2. Cut off the water supply.
3. Open the spray gun briefly until the pressure is released.
4. Apply the safety catch on the spray gun.
5. Remove the water hose and high pressure hose.
6. Drain the pump: switch on the motor for approx 20 sec. .
7. Pull the plug from the socket.
8. Winter: store the pump in rooms above 0 °C.
9. Clean the water filter.
Note that you must always
comply with the instuctions
provided by the manu-
facturer of the cleansing
agent (e.g. instructions
concerning safety clothing)
and the water protection
regulations.
3
2
Adjusting the pressure
This is accomplished by turning the
handwheel. The default setting is
maximum presure.
3
P max.
Chem.
Turn the regulator nozzle to
obtain low pressure!

13
This is prohibited !
Never allow children
to use the
high pressure cleaner !
Never direct
the water jet at the
machine itself !
Never direct the
water jet at a
power socket !

This is prohibited !
Never direct the
water jet at
people or animals !
Do not damage
the power cord
or repair it
incorrectly !
Never pull the high
pressure hose if it has
formed kinks or "nooses"
!Never pull the hose
over sharp edges !
Never direct the
water jet at
people or animals !
Do not damage
the power cord
or repair it
incorrectly !
Never pull the high
pressure hose if it has
formed kinks or "nooses"
!Never pull the hose
over sharp edges !
Never direct the
water jet at
people or animals !
Do not damage
the power cord
or repair it
incorrectly !
Never pull the high
pressure hose if it has
formed kinks or "nooses"
!Never pull the hose
over sharp edges !
14

General rules
Inspections:
The machine must be inspected according to the "Guidelines for Liquid
Spray Devices" at least once every 12 months by a qualified person, to
ensure that continued safe operation is guaranteed. The results of the
inspection are to be recorded in writing. This may be done in any form.
Accident prevention
The machine is designed for accidents to be impossible if used correctly.
The operator is to be notified of the risk of injury from hot machine parts and
the high pressure water jet. The "Guidelines for Liquid Spray Devices" must
be complied with. (See page 13 + 14)
Please pay attentions to the regulations of your waterworks company.
(Reflux valve with tube ventilation according to DIN 1988)
Check the oil level at the oil sight glass prior to each use.
(Ensure horizontal position !)
Oil change:
No oil change is required during the working life of the machine. We would
suggest though to change the oil after having used the high pressure
cleaner for a longer period of time to ensure its longevity. Should it be
necessary to change the oil the oil sight glass is to be opened over a
reservoir and the machine to be emptied. The oil is to be caught in the
reservoir and disposed of in the approved manner.
New oil: 0,25 l - Motor oil W 15/40
Guarantee
The guarantee period is 24 months accarding to VDMA. (except for wearing
parts.)
The guarantee is void if changes are made to the safety devices or if the
machine is used at excess temperatures or speeds. The guarantee is also
void if the machine is used with a voltage below the required rating, with less
than the required amount of water, with dirty water and external damage to
the pressure gauge, nozzle, pressure hose and spray device.
Vearing parts are: hoses, spraying devices, nozzles, pressure gauges,
packings, valves and gaskets.
Our operating instructions must be complied with. 15

16

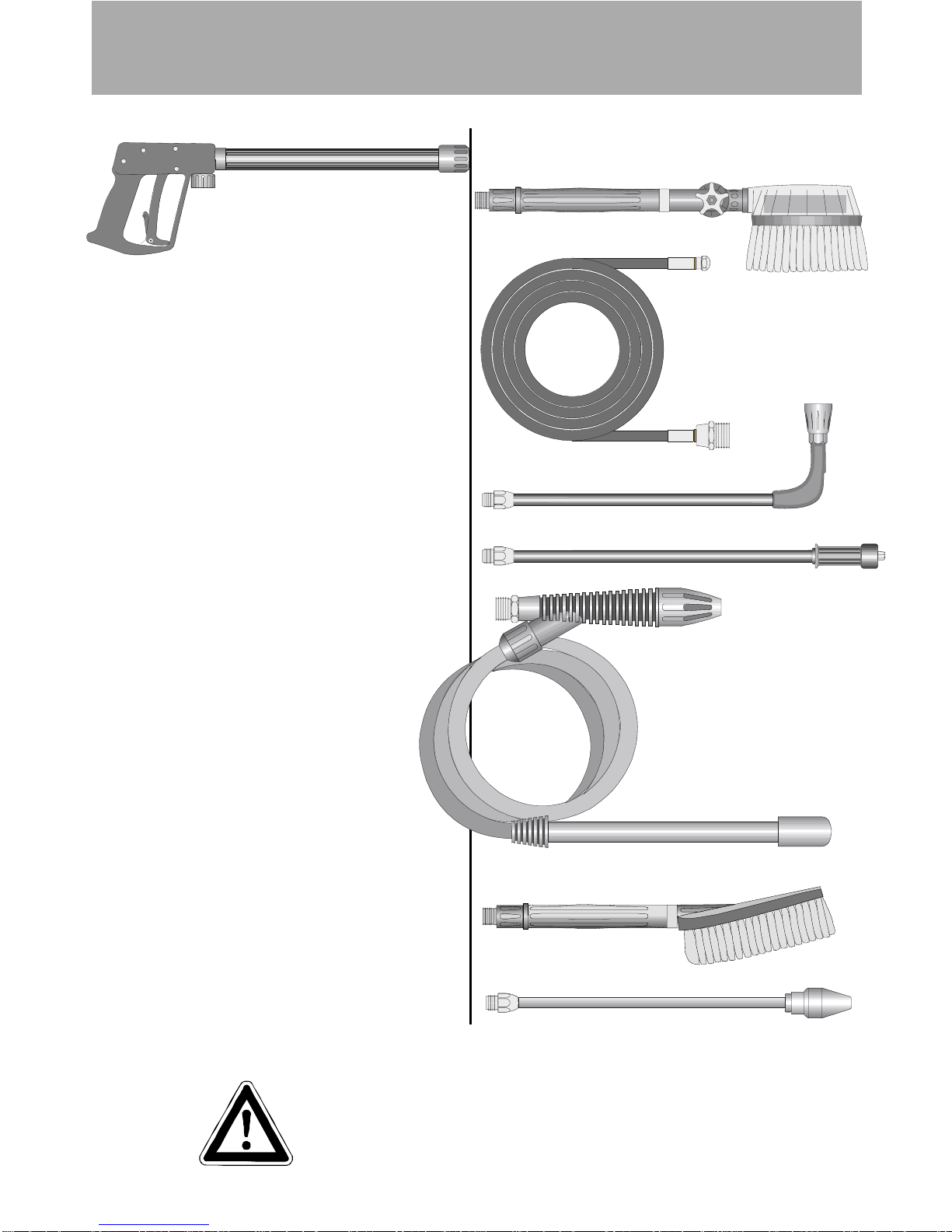

Additional KRÄNZLE-accessories
Environmental, refuse disposal water
protection regulations must be observed
when using the accessories.
Rotary scrubbing
brush
Order No. 41.050 1
Underfloor lance
Order No. 41.075
Flat brushes
Order No. 41.073
Dirt killer
Order No. 41.072 5
Sandblaster
Order No. 41.068 1
Pipe cleaning hose
10 m - Order No. 41.058 1
15 m - Order No. 41.058

17
Car cleaning, glass, caravan, boat etc.:
rotary washing brush with 40 cm extension
and
ST 30 nipple M 22
Underbody cleaning of cars, trailers and
equipment: lance 90 cm with high pressure
nozzle and ST 30 nipple. The lance must be
aimed when spraying.
Cleaning cars and all smooth surfaces:
brush with ST 30 nipple M 22.
Rotary point sprayer for extreme soiling: dirt
killer with 40 cm extension and
ST 30 nipple M 22.
for further combination possibilities
Cleaning pipes, channels and drains: pipe
cleaning hose with KN nozzle and ST 30
nipple M 22 x 1,5
Blasting old paint, rust and facades:
sandblasting injector with suction lance and
3 m PVC-hose and ST 30 nipple M 22 x 1,5
When sandblasting you must
wear protection clothes! Pay
attention to the instructions of
the manufacturer of the
abrasive.

18
Small repairs -
The pressure gauge shows a 10% higher pressure than the
working pressure.
Theinjectormaybedirty
andyou
shouldfirst
remove
thehose.
Nowturn onthe water
andyou shouldgeta
powerfulstreamofwater,
but if you
only get a weak
flowofwater
thenstraighten
apaper clip,
andrelease the
injectorwith an
open-ended
spanner.
Checkthat it
isclean.
Reconnectthe hose, andyouare
readyto continue
yourwork.
You only get a weak flow of water or no water at all
!
Removetheinjector
togetherwiththe
springand return
valve.
Cleaningtheinjectorthrough
fromboth sidesand replace
thereturn valve.

19
The nozzle is blocked !
No water but the gauge shows full pressure.
Rinsethe hose
throughfirst. Youshouldnowhave
apowerfulstreamof
water,
removethe lanceand
clean thenozzle. Usingthe flatspraylance
youonlyhavetoclean the
frontnozzle.
Straightenapaperclip
andclean thenozzle.
Insertpointedopject
intothehole
andpull thecapback!
Checkvisuallywhether the
nozzleisclean. Now it works as well
asbefore.
butifyouonly
getafewdrops
ofwaterfrom
thelance,
- do it yourself !

20
Small repairs - do it yourself !
A Valve dirty or sticky !
Pressure gauge does not show full pressure.
Water comes out in spurts.
If you do not use the high pressure cleaner for some time the valves can
stick.
Straightena
paperclip...
thegauge
showslittle
pressureor
nopressure
atall.
orthehigh
pressure
hosevibrates!
Openthe
valveswitha
socketwrench...
removethe
valvescrew,the
valveand the
O-ring.
Rplacethe rubber
O-ring.
andremovethedirt
fromthevalve-the
insidemust be
closed.
Retightenthe
valve screw,
and repeat an
all 6 valves.
Now it works as
well as before.
Whenavalve isblocked.
The high-pressure hose
vibrates.
