Denali Audio S1008 User manual

1
S1008
STEREO BLUETOOTH SPEAKER SET

2
INSTRUCTION MANUAL
PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR
FUTURE USE
Getting Started
Remove the unit from the box.
Remove any packaging from the product.
Please retain all packaging until you have checked and counted all the parts and the contents
against the package contents.
Package Contents
A pair of Stereo Bluetooth Speakers
USB rechargeable cable x 2
3.5mm AUX cable x 2
Instruction Manual
Key Features
Bluetooth® 2.1+EDR
Wirelessly connect both speakers for true left & right stereo play back
Stream music wirelessly and enjoy music from both left & right speakers
Works independently or together as paired true wireless speaker
Built-in Mic supports handsfree chat
Compatible with all Bluetooth enabled devices such as Smart Phones, Tablets, etc
3.5mm AUX wired Connection for MP3/MP4 Players, iPods, computers, netbooks, laptops, etc
Wireless Range –26 to 33 Feet
SAFETY INSTRUCTIONS
Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids.
Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent
against electric shock, explosion and/or injury to yourself and damage to the unit.
Do not use the unit if it has been dropped or damaged in any way.
Repairs to electrical equipment should only be performed by a qualified electrician. Improper
repairs may place the user at serious risk.
Do not use the unit with wet hands.
Do not put objects into any of the openings.
Keep the unit free from dust, lint etc.
Do not use this unit for anything other than its intended use.
Keep the unit out of reach of children.
This appliance is not a toy.

3
Do not use the handset at excessive levels as damage to hearing may occur.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such
as sunshine, fire or the like.

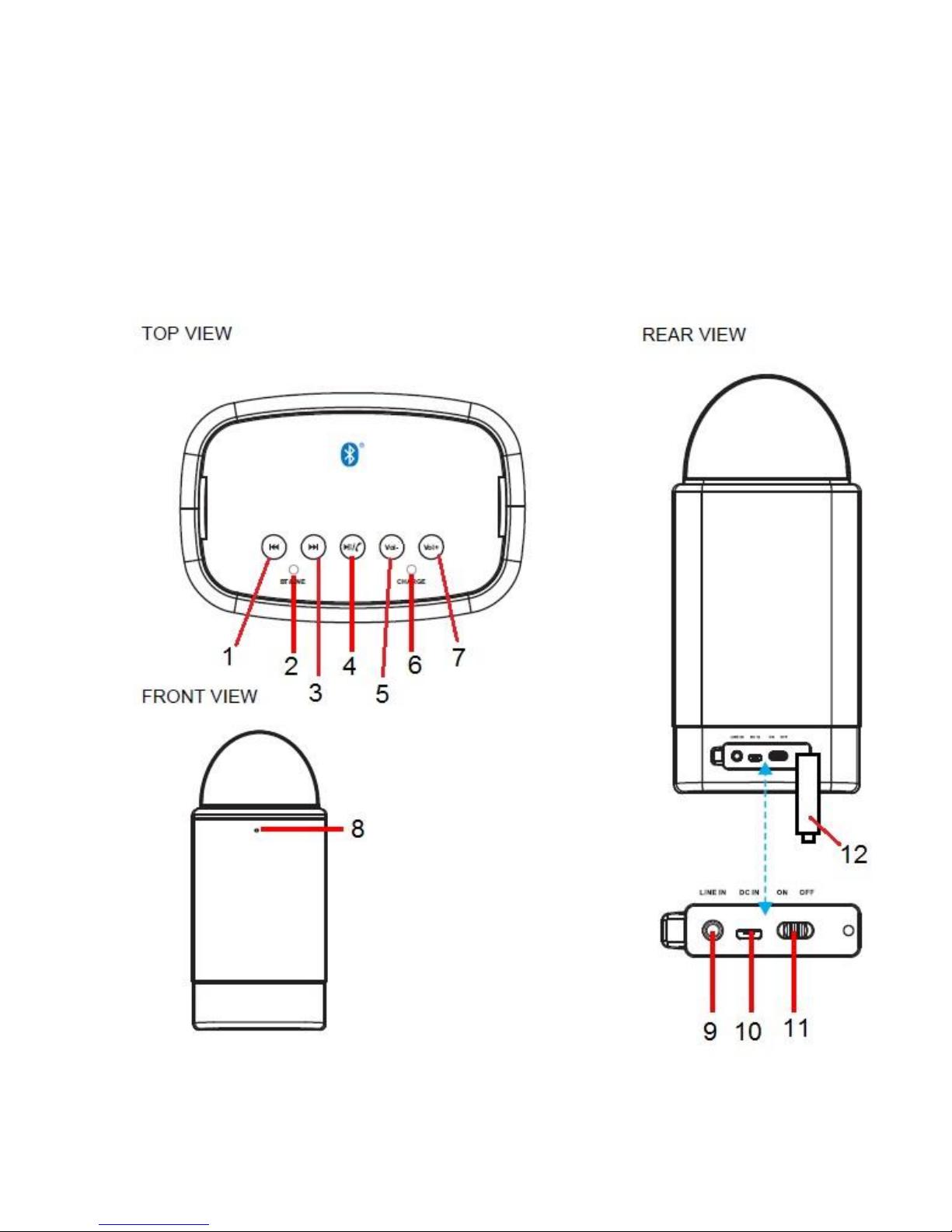

Description of Parts

4
1
Skip Backward
2
BT/LINE Indicator
3
Skip Forward
4
Play / Pause / Phone Button
5
Volume Decrease
6
Charge Indicator
7
Volume Increase
8
Microphone
9
LINE IN Port (Auxiliary-in)
10
DC IN Charging Port
11
Power ON/OFF Switch
12
Rubberized Protection Cover
INSTRUCTIONS FOR USE
Charging the speaker
The device has built-in rechargeable battery. When the battery is drained, device would turn OFF
automatically. You would have to recharge the battery.
Plug the Micro USB end of the included USB cable into the charging port. Plug the other end into a USB
port on your computer or other devices made for USB charging. The Red LED Light illuminates indicating
that the device is being charged.
It takes 4 to 5 hours to fully charge the device. Once the device is fully charged, LED Light would turn
OFF.
Turning ON/OFF the Speaker –
Slide the Power ON/OFF switch to turn ON or OFF the speaker with indication tone.
Connect using Bluetooth Technology manually
Turn On the speaker. You would hear a beep tone indicating that you are now in Bluetooth Pairing Mode
and Blue LED Light flashes slowly.
Activate the Bluetooth function on your Bluetooth Device (Mobile Phone or Tablet). Please refer to
manufacturer’s instructions for instructions on enabling Bluetooth on your device.
Once you have activated Bluetooth on your device, select the device “Denali Audio S1008”from the list
of available Bluetooth devices.
If required, enter the password ‘0000’ to confirm to finalize pairing. (Password is required only during
pairing devices for the first time)
Once paired successfully, the LED light is on.
Choose music from your Bluetooth® device and play music wireless through the speaker.

5
Once you have paired the Bluetooth speaker with a device, the speaker will remember this device and
will pair automatically when the device’s Bluetooth is activated and in range. You do not need to re-pair
any previously connected devices.
The Bluetooth speaker will attempt to automatically connect to the last device it was paired with when
switched on. If you want to pair it with a new device, please follow the steps outlined above.
Once the Bluetooth speaker is paired with your device the music will transmit through the Bluetooth
speaker. Please refer to your device’s user manual for further information.
Talking using the Bluetooth Speaker
Please ensure that you are paired with the Bluetooth Speaker to use the below functions.
Function
Operation
Button
Answer Incoming
Call
Incoming Call
Short touch the button once to answer an incoming call.
Reject Incoming Call
Incoming Call
Touch the button for 3 seconds.
End Call
Incoming Call
After your phone conversation, short touch the button
Increase Volume
During a call
Touch the Vol+ button will increase the volume.
Decrease Volume
During a call
Touch the Vol- button will decrease the volume.
Redial last number
Standby mode
and connected
to a device
Short touch the button twice.
Please Note
Not all mobile phones support all the functions listed above. Please refer to your cell phone’s user’s
manual for further information.
Certain functions and indication tone maybe vary depending on your mobile phone.
Listening to Music Wirelessly
Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the
Bluetooth Speaker to stream music wirelessly. Once it is paired, play music from your device.
Function
Operation
Button
Increase Volume
Playing music
Touch the Vol+button will increase the volume
Decrease Volume
Playing music
Touch the Vol-button will decrease the volume
Pause
Playing music
Short touch the button will pause the music
Play
Pausing
Short touch the button will resume the music

6
Next Track
While playing
music
Short touch the button will take you to the next track
Previous Track
While playing
music
Short touch the button will return you to the previous track
Note:
The above functions only can be used in Bluetooth mode only. In Aux mode, you may need to control
through your source device.
An indication tone will alert you when the volume is adjusted to the minimum or maximum level.
Play music using “Aux-In” Jack
1. Turn ON the device.
2. Insert the 3.5 mm Aux in cable (provided) to the Line-in jack of the speaker. And, the other end
of the cable connects to the audio device (such as computer / tablet etc.).
3. The Red LED will light up without flashing.
4. Select your favourite song at the source device
(Note: When you insert 3.5 mm Aux in cable into the Line-in jack of the speaker, the Bluetooth of the
speaker will Turn Off at once. Functions can be only controlled through source devices, while playing
music in Auxiliary mode.)
Connecting two speakers and a Bluetooth device for Stereo pairing function
Activate the stereo pairing function:
1. Turn on both speakers.
2. Touch and hold button on one of the two units, then touch and hold button on another
unit at the same time, the two units will search and pair with each other. The unit from which the
button is being touched will be the main unit (Host Speaker).
3. After successful pairing and connecting, a chime tone will be heard and the BT/LINE indicator on
the main unit will flash. [The BT/LINE indicator on deputy unit (Subordinate Speaker) will stay lit.]
4. At this point, activate the Bluetooth function on your mobile device, and search for Bluetooth
devices near you. Your mobile device should show one of “Denali Audio S1008”instead of two in
list, (This is the host speaker. The reason you don’t see subordinate speaker in the list of available
devices is that it is already paired with the host speaker). Choose it to start the stereo pairing
function.
Note: Both speakers will be separated into 2 separate devices when they are turned off. You can
follow the above steps 1 to 4 to activate the stereo pairing function again.
Specifications –
Bluetooth® Version: 2.1+EDR
Wireless Distance: 26 to 33 Feet
Speaker power: 2x3 Watts

7
Dimension: 4.5”(L) x 3.0”(D) x 7.5”(H) per speaker
Weight: 1.4 lbs each speaker
Power Input: DC 5V
Charging time: 4 to 5 hours
Play time: 4 to 5 hours (50% volume)
Built-In Rechargeable Battery: 3.7V 1000mAh
(Note: Battery life & charging time may vary based on usage & types of devices used.)
Troubleshooting
Problem
Possible Cause
Solution
Low sound level
Source (Tablet, Mobile Phone,
Laptop, etc.) volume too low.
Battery dead
Adjust source volume.
Charge Battery.
Sound distorted
Battery nearly dead
Charge Battery.
No sound at all.
Source (Tablet, Mobile Phone,
Laptop.) turned off.
Speaker turned off.
Volume turned down source.
Media paused on source.
Turn the source on.
Turn the speaker on.
Adjust volume source.
Play media from source.
Care and maintenance
Read the following recommendations before using the Bluetooth speakers. Following these you will be
able to enjoy the product for many years.
Do not expose the unit to liquid, moisture or humidity to avoid the product’s internal circuit being
affected.
Don’t use abrasive cleaning solvents to clean the unit.
Do not expose the unit to extremely high or low temperature as this will shorten the life of
electronic devices, destroy the battery or distort certain plastic parts.
Don’t dispose of the unit in fire as it will result in an explosion.
Don’t expose the unit to contact with sharp objects as this will cause scratches and damage.
Don’t let the unit fall down onto the floor. The internal circuit might get damaged.
Don’t attempt to disassemble the unit as it may get damaged if you are not professional.
In case the unit does not function properly, please contact the number shown on the Warranty Page for
help.
FCC Instructions
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the product.

8
NOTE: This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This product generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If the product does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures :
-Reorient or relocate the receiving antenna.
-Increase the separation between the product and receiver.
-Connect the product into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Limited Warranty
This manufacturer's product warranty extends to the original consumer purchaser of the product. Neither the
retailer nor any other company involved in the sale or promotion of this product is a co-warrantor of this
manufacturer warranty.
WARRANTY DURATION: All materials and workmanship are warranted to the original consumer purchaser
for a period of ninety (90) days from the original purchase date.
WARRANTY COVERAGE: This product is warranted against defective materials or workmanship. This warranty
is void if the product has been damaged by accident, in shipment, unreasonable use, misuse, neglect,
improper service, commercial use, repairs by unauthorized personnel or other causes not arising out of
defects in materials or workmanship. This warranty doesn’t cover the following which may be supplied
with this product, including but not limited to; LCD Screens, glass parts, lenses, bulbs etc. This warranty is
effective only if the product is purchased and operated in USA and Canada, and does not extend to any
units which have been used in violation of written instructions furnished by manufacturer or to units which have
been altered or modified or, to damaged products or parts thereof which have had the serial number removed,
altered, defaced or rendered illegible.
WARRANTY DISCLAIMERS: This warranty is in lieu of all warranties expressed or implied and no representative or
person is authorized to assume for manufacturer any other liability in connection with the sale of our products.
There shall be no claims for defects or failure under any theory of tort, contractor commercial law including but
not limited to, negligence, gross negligence, strict liability, breach of warranty and breach of contract. Under no
circumstances will Manufacturer’s / Distributor’s maximum liability exceed the retail value of the product.
WARRANTY PERFORMANCE: During the above 90 day warranty period, a product with a defect will be either
repaired or replaced with a reconditioned comparable model (at manufacturer's option). The repaired or
replacement product will be in warranty for the balance of the 90 day warranty period and an additional
one-month period. No charge will be applicable for such repair or replacement.
SERVICE AND REPAIR: If service is required for this product, you should first contact Midwest Trading Group
Customer Service at [e-mail] or by calling 1 [phone], Monday to Friday 10am to 6pm
EST.

9
NOTE: Manufacturer cannot assume responsibility for loss or damage during incoming shipment. As a
precautionary measure, carefully package the product for shipment, and insure it with the carrier. Be sure to
enclose the following details with the product: your full name, return address and daytime phone number, a
note describing the problem you experienced, a copy of your sales receipt or other proof of purchase to
determine warranty status. C.O.D. shipments cannot be accepted.
