Scansonic S5 User manual

USER MANUAL
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
INSTRUCTIEHANDLEIDING
BETJENINGSVEJLEDNING
BRUKSANVISNING
KÄYTTÖOHJE
ISTRUZIONI PER L’USO
MANUAL DEL USUARIO
MANUAL DO UTILIZADOR
S5
active

S5
HIFI LOUDSPEAKERS
2
Contents
02CONTENTS
03SAFETY
04INFORMATION
05FRONT- AND REARPANEL
06REMOTE CONTROL
07CONNECTING YOUR SPEAKERS
08USE WITH IPOD / MP3 PLAYER
09USE WITH DOCKINGSTATION
10USE WITH TV, DVD, CONSOLE, PC
11LIMITED WARRANTY

HIFI LOUDSPEAKERS S5
3
Safety
Safety Instructions
Please store this instruction manual for
future reference.
Do not use this product near water or
moisture. Clean only with a dry cloth.
Unplug this product from the wall outlet
before cleaning.
Place the unit on a solid surface. Do not
block any ventilation openings.
Do not put it in a closed bookcase or a
cabinet that may keep air from flowing
through its ventilation openings.
Do not install near any heat sources,
such as radiators, heat registers, stoves
or other appliances that produce heat.
Protect the power cord from being
walked on or pinched, particularly at
plugs and the point where they exit from
the product.
Servicing is required when the product
has been damaged. Do not attempt to
service this product yourself. Opening
or removing covers may expose you to
dangerous voltages or other hazards.
Please contact the manufacturer to be
referred to an authorized service center
near you.
To prevent risk of fire or electric
shock, avoid over loading wall outlets,
extension cords, or integral convenience
receptacles .
Do not let objects or liquids enter the
product.
Use proper power sources. Plug the
product into a proper power source, as
described in the operating instructions or
as marked on the product.
Congratulations on your new S5 Active speakers.
Please take a moment to read this manual.
Enjoy
•
•
•
•
•
•
•
•
•
•
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN !

S5
HIFI LOUDSPEAKERS
4
Information
Unpacking
These Scansonic speakers were carefully tested and inspected during production and
before packaging and shipping. After unpacking please check for any damage. It is rare that
a unit is damaged during shipping, but if this does happen contact your retailer immediately.
We recommend that you keep the original carton and packing material for future shipping.
Recommended Speaker Setup
Correct speaker placement has a huge impact on sound quality. There are many different
theories, but all rooms and tastes are different so it’s impossible to specify a correct
placement. We do suggest you experiment with a few different locations to see what is best
for you.
For the best bass response on Scansonic, we recommend that you keep a minimum
distance of 20-25 cm between the speakers and the rear wall. For height, position the
speakers with the tweeters at eye level of your most common listening position.
Speaker Conditioning and Break-in
Although a break-in period is not required, we recommend that you play between 24 to 48
hours of music through the speakers before doing any critical listening or speaker placement.
Speaker Cleaning
We don’t recommend using any solvents or cleaners on cabinets or speaker driveunits. Just
wipe down with a soft, dry cloth.

HIFI LOUDSPEAKERS S5
5
01BASS REFLEX PORT TUBE
02POWER ON / OFF
03LED INDICATOR LIGHT
It will show blue in normal working status.
It will turn off when no signal comes for
approx. 10 minutes (auto standby).
04REMOTE RECEIVER
05AUDIO INPUT
For 35mm minijack plug, from iPod, PC etc.
06STEREO INPUT
For right / left RCA stereo plugs, from CD /
DVD player.
07RIGHT CHANNEL OUTPUT
Signal output, for connecting the passive S5
speaker.
08SUB OUTPUT
For connecting active subwoofer
09POWER SUPPLY INPUT
10IPOD CHARGE SOCKET
5v DC for charge of iPod
11VOLUME KNOB
3 4
11
2
1
5
6 7 8 9 10
Front- and rearpanel

S5
HIFI LOUDSPEAKERS
6
01STANDBY BUTTON
Press to enter standby mode.
02BALANCE BUTTON
Press“L”button, then right channel will switch
off gradually. Press “R” button, then the left
channel will switch off gradually. Press ”L/R”
button, stereo balance will reset.
03TREBLE BUTTON
Press ”-”, then treble will be decreased;
Press ”+”, then treble will be increased.
04BASS BUTTON
Press ”-”, then bass will be decreased.
Press ”+”, then bass will be increased.
05VOLUME BUTTON
Press ”-”, then volume will be decreased;
Press ”+”, then volume will be increased.
06INPUT SELECT BUTTON
By pressing this button, input signal can be
selected between Audio Input (3.5 minijack)
or Stereo Input (RCA stereo plugs).

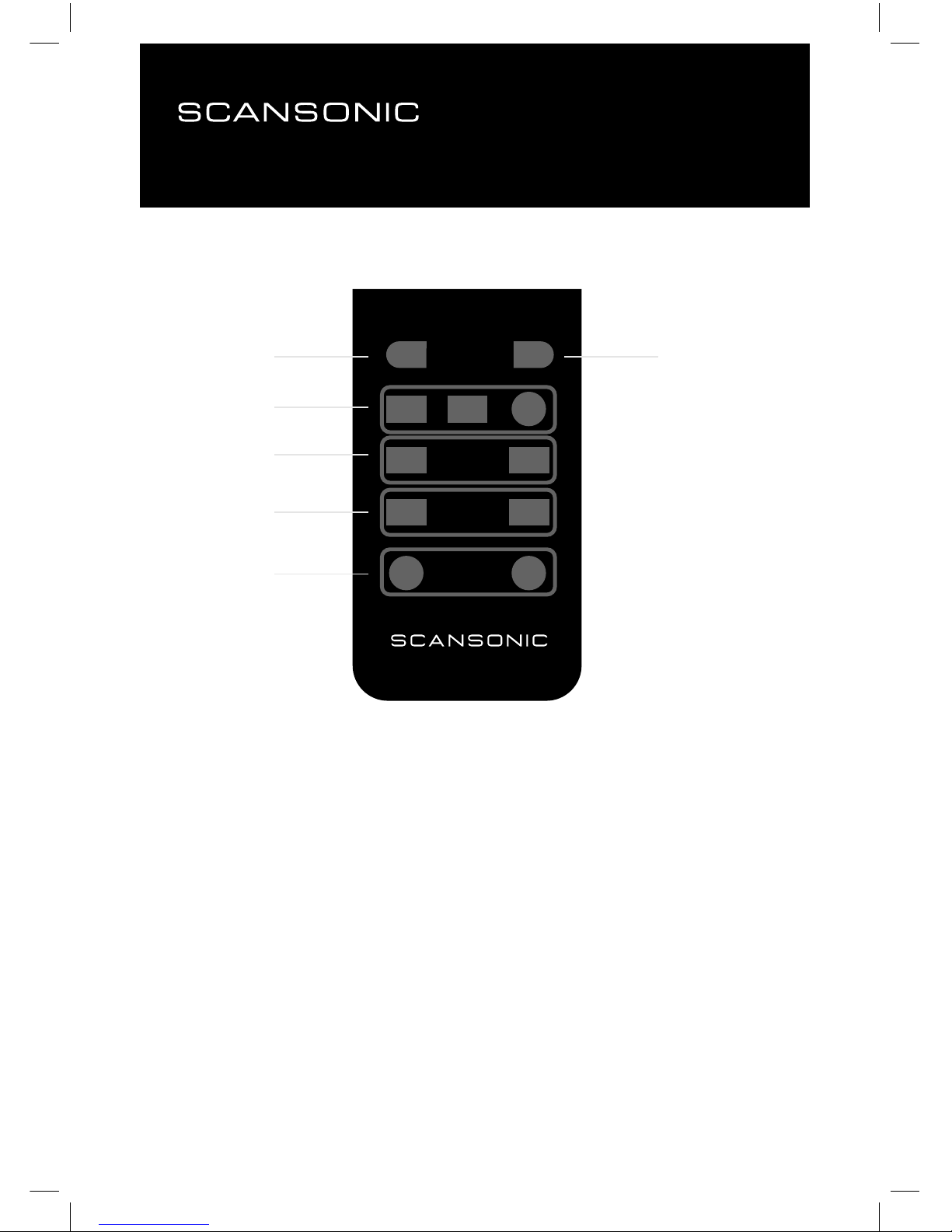

Remote control
STANDBY
BALANCE
TREBLE
BASS
VOLUME
SELECT
+
L R L/R
+
+
_
_
_
1
2
3
4
5
6

HIFI LOUDSPEAKERS S5
7

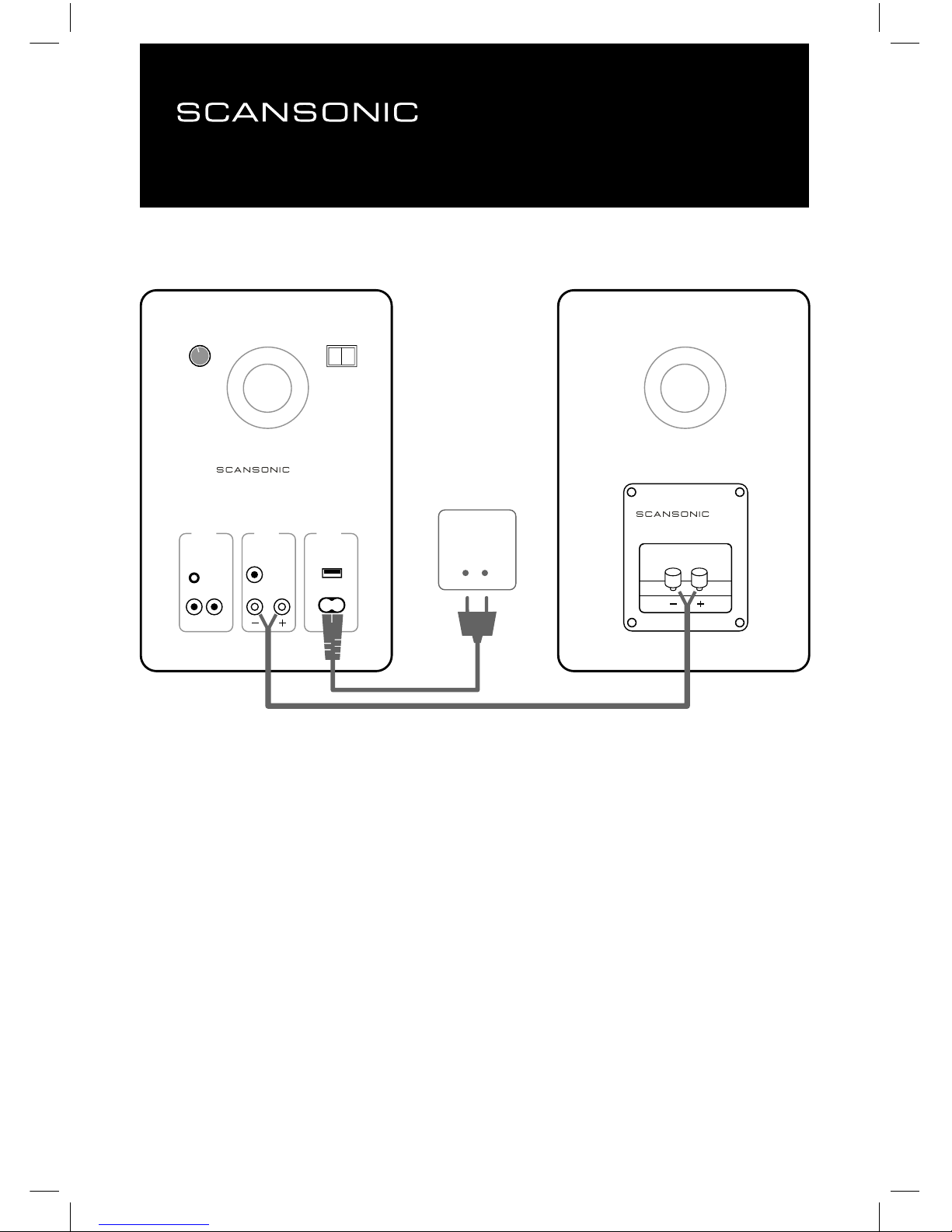

Connecting your speakers
STEP 1
Connect the RED (+) and BLACK (-) terminals from the left speaker to the corresponding
terminals on the right speaker using the included speaker cable. Insulation on cable must be
stripped on all ends.
Note: Because this Scansonic system is self-powered, do not connect the speaker terminals
to the speaker outputs of a stereo receiver.
STEP 2
Connect the power cord into the left speaker and the other end into the wall outlet.
S5
ACTIVES5
INPUT
O
UTPU
T
P
O
WE
R

S5
HIFI LOUDSPEAKERS
8

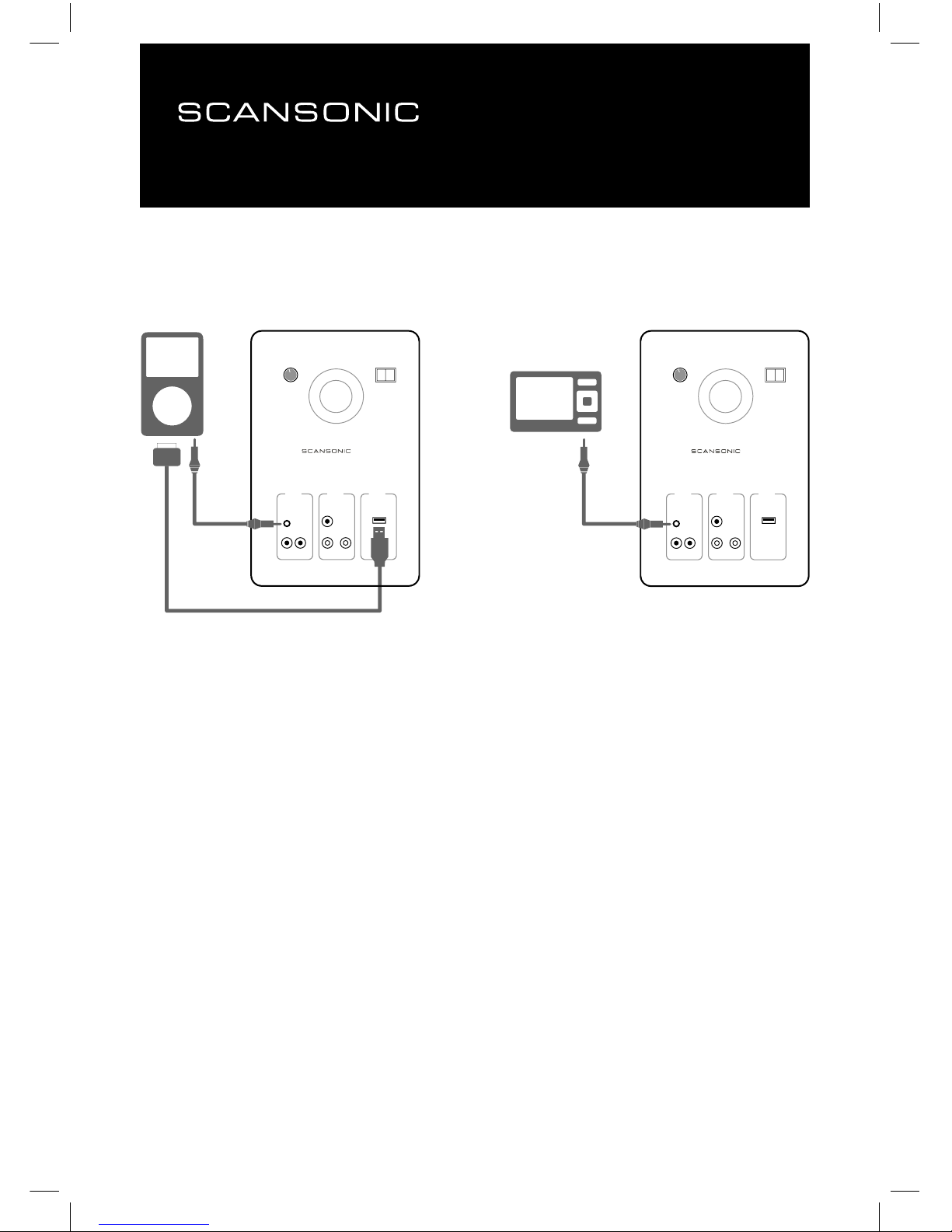

CONFIGURATION A (for use with iPod):
For charging your iPod while playing, connect the 30 -pin cable from the iPod to USB jack on
the rear panel.
Connect the 35mm mini-jack audio cable from iPod headphone jack to the AUDIO IN jack
on the rear panel of S5 Active.
CONFIGURATION B (all products with 35mm minijack outputs):
Connect the STEREO INPUT L/R from any audio source with RCA L/R audio outputs.
Connect the 35mm mini-jack audio cable from 35 minijack output to the AUDIO IN jack on
the rear panel.
Attention: When connecting audio cables the power switch must be turned OFF. After con-
necting alle cables the power can be turned ON and the system is now ready to use.
Use with iPod / MP3 player
ACTIVES5
INPUT
OUTPU
T
POWE
R
A
ACTIVES5
INPUT
OUTPU
T
P
OWE
R
B

HIFI LOUDSPEAKERS S5
9
ACTIVES5
INPUT
OUTPU
T
POWE
R
Use with dockingstation
CONFIGURATION A (For use with iPod Universal Dockingstation):
Place the dockingstation next to your Scansonic S5 speakers. Connect the Apple 30-pin
cable from the dock to USB jack on the rear panel.
Connect the included 35mm minijack audio cable from the dock to AUDIO IN jack on rear
panel.
Insert you iPod in dock, set the volume and enjoy.
CONFIGURATION B (For use with Scansonic Dockingstation):
Place the dockingstation next to your Scansonic S5 speakers.
Connect the included 35mm minijack audio cable from the dock to AUDIO IN jack on rear
panel.
Make sure that your Scansonic dock is powered (netadapter).
Insert your iPod in dock, set the volume and enjoy.
Attention: When connecting audio cables the power switch must be turned OFF. After con-
necting alle cables the power can be turned ON and the system is now ready to use.
A B
ACTIVES5
INPUT
O
UTPU
T
P
OWE
R

S5
HIFI LOUDSPEAKERS
10
Connect TV, DVD, console, PC
CONFIGURATION A (TV, DVD, CD - RCA stereo plugs) :
Connect the RCA L/R to your TV, DVD etc. and the RCA L/R to the Stereo Input on rear
panel of the Scansonic S5 Active
Note that most newer TV remotes can control the Scansonic S5 active speaker volume if
connected to variable TV audio out.
CONFIGURATION B (PC) :
Connect the minijack to your PC and the RCA L/R to the Stereo Input on rear panel of the
Scansonic S5 Active.
A B
PC AUDI
O
O
UT
IN
ACTIVES5
INP
UT
OU
TP
UT
P
O
WE
R
ACTIVES5
INP
UT
AUDI
O
R
L
OU
TP
UT
PO
WE
R

HIFI LOUDSPEAKERS S5
11
Dear Customer,
This product has been designed and manufactured
to the highest quality standards, however if something
goes wrong with this product, Scansonic and the
country distributor warrants free replacement parts or
repair by the official Scansonic distributor.
This limited warranty is valid for the original owner for a
period of two years from the date of purchase, it is not
transferable.
What is covered by the limited warranty:
The limited warranty covers all production and material
defects of the product, except for the damages stated
below.
What is not covered by the limited warranty:
Damages caused by packing and transport
Defects caused by accidents, misuse, normal wear
and tear, mis-maintenance, voltage variation and
overloading.
Damages caused by incorrect installation or operation
Damages caused by modification or repair by a
nonauthorised service centre and use of non-original
spare parts
Other damages due to conditions beyond the supplier’s
control such as fire, rain, stroke of lightning, war and
other force majeure events
How to claim parts or repair under warranty:
To have your product serviced under warranty, you
must contact the dealer from where you bought the
product.
You will need to produce this warranty booklet
completed and stamped by your dealer on the date
of purchase. Alternatively, you will need the original
sales invoice or other proof of ownership and date of
purchase.
The supplier is liable only to repair or replace defective
parts or products and the supplier is not responsible for
indirect losses or damages arising from the use of the
product.
Transportation costs for servicing are not covered by
the warranty.
A service repair or replacement cannot exceed the
value of the product under warranty,in no event shall the
supplier be responsible or liable for special, incidential,
consequential or indirect damages.
Dealer name and stamp: Date of purchase:
www.scansonic.dk
Limited Warranty

www.scansonic.dk
enjoy
