COOKER HOODS
Instruction Manual
Thank you for selecting this cooker hoods !
Please read this instruction manual carefully before installation and
usage.Keep this instruction manual in a safe place for future reference.

Product are imported and distributer by VINA STAR JSC
Hotline: [phone]
3
1. SAFETY PRECAUTION
1.1 Technical characteristics
1.2 Body size: 700 x 600mm
1.3 Model No.: D - H888L
1.4 Total Power: 180W
1.5 Lights: 2 x 1W LED Lamps
1.6 Voltage: 220V ~ 240V
1.7 Frequency: 50Hz
1.8 Filter: Aluminum Filter
1.9 Control: Soft Touch Control

Product are imported and distributer by VINA STAR JSC
Hotline: [phone]
4
2. MAIN PARTS NAME
CAUTION:
LAMP UNIT MAY BE HOT! WAIT UNTIL THE UNIT IS COOL. AND USE
THE SAME TYPE LIGHT BULB!

Product are imported and distributer by VINA STAR JSC
Hotline: [phone]
5
REMARK: EXHAUST PIPE IS AN ADDITIONAL PART FOR
3. INSTALLATION REQUIREMENT
3.1.Do not install the cooker hoods where there are many doors or windows
in order to avoid to effecting the exhaust efficiency of the hoods caused
by air convection.
3.2. Install the cooker hoods right above the hob. The recommended
distance between the hob and the lower edge of the cooker hoods is
minimum 300mm and maximum 350mm.
3.3. In order to get the optimum performance, do not elongate the exhaust
pipe too long, and try to make the bend of exhaust pipe less and
biggest, ensure the connection is airproof.

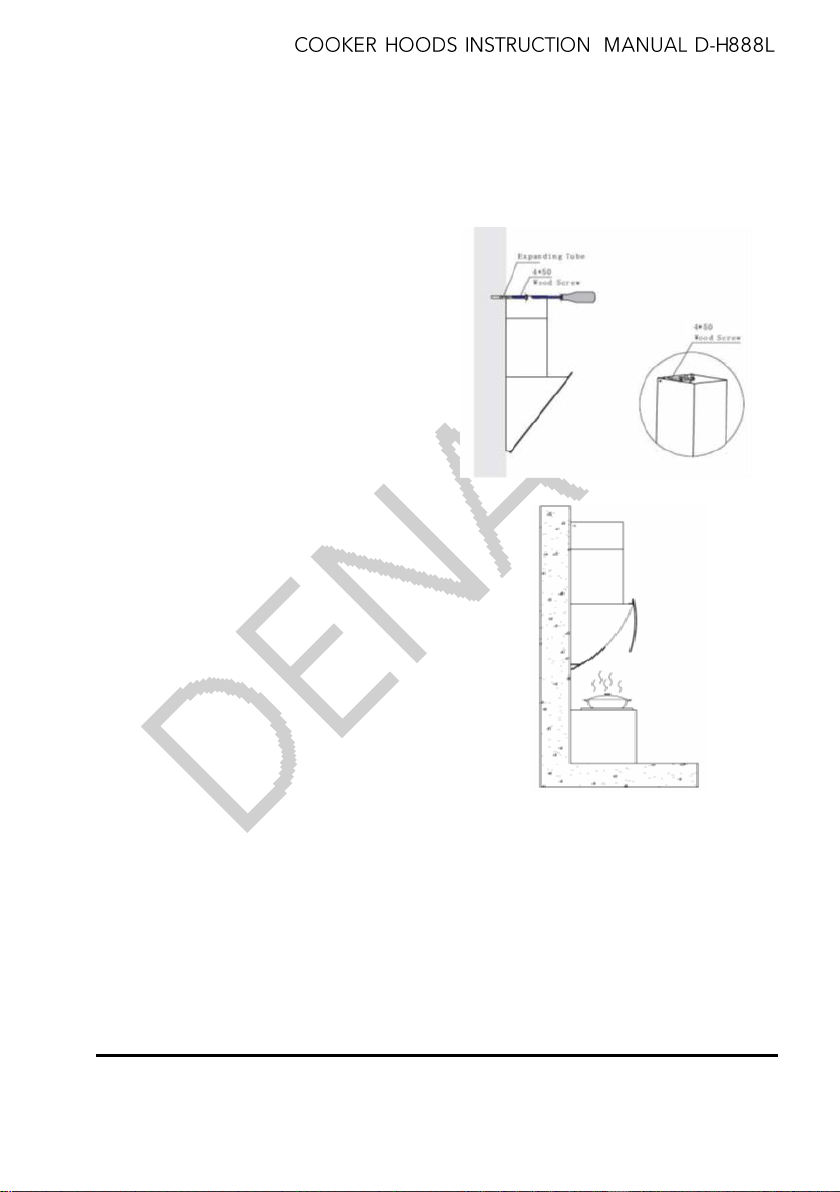

3.4.After hanging the unit on the wall, ensure the hoods I level and vertical.
(Fig. 4)
3.5.The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected to
ventilation ducts for room in which fuel-burning appliances are installed

Product are imported and distributer by VINA STAR JSC
Hotline: [phone]
6
4. INSTALLATION PROCEDURES
SAFETY WARNING
HOODS MAY HAVE VERY SHARP EDGES, PLEASE WEAR
PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS
FOR INSTALLING, CLEANING OR SERVICING.

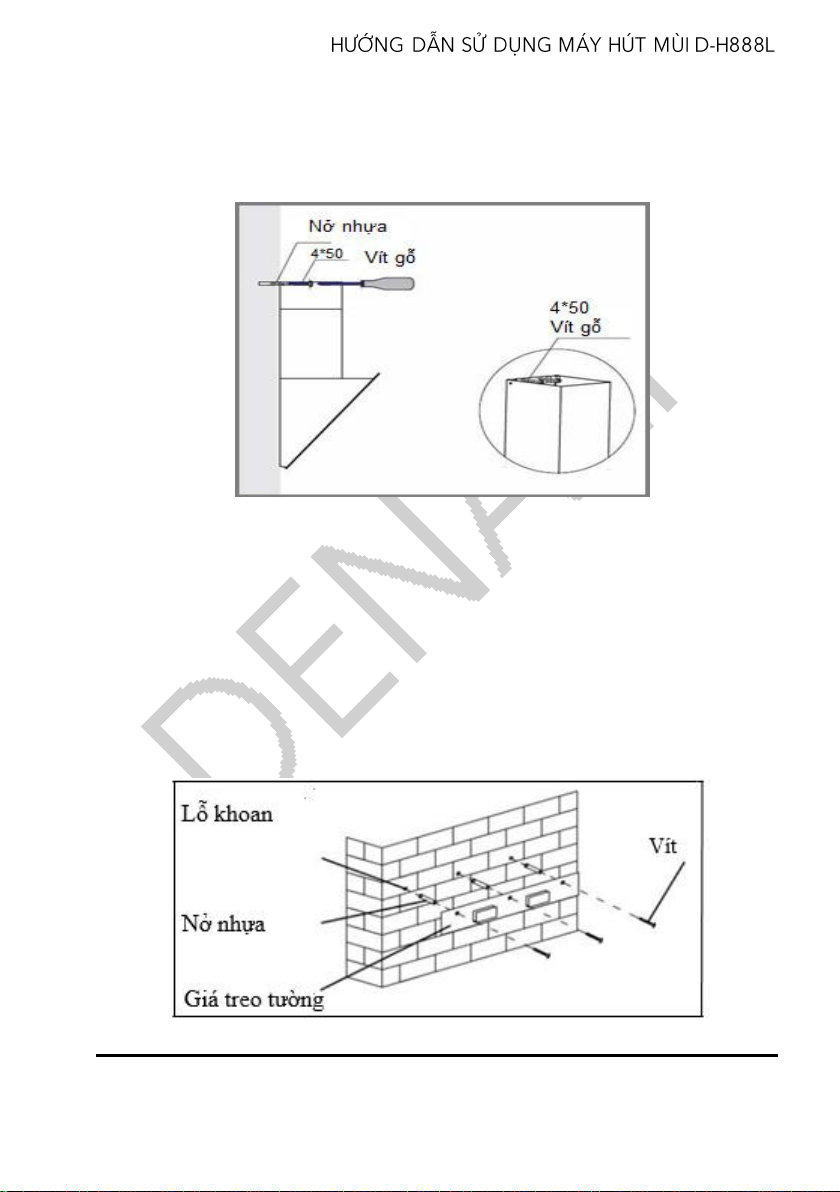

Step 1:
According to the size of the holes.
Drill A.B. 2 holes in level in the wall with
8mm in diameter and 75-85mm
in depth. Press the 2 expanding tube
provided into the holes. Tighten the
2 metal screws of 5x50mm which supply
together with hoods to the expanding
tube, make sure it is fixed enough and
can not move.
Step 2:
Take out of the cooker hoods
from the carton and put it on a
horizontal work table gently. Fix
the reducer pipe into the tope of
reducer, make sure is connect
the reducer tightly

Product are imported and distributer by VINA STAR JSC
Hotline: [phone]
7
Step 3:

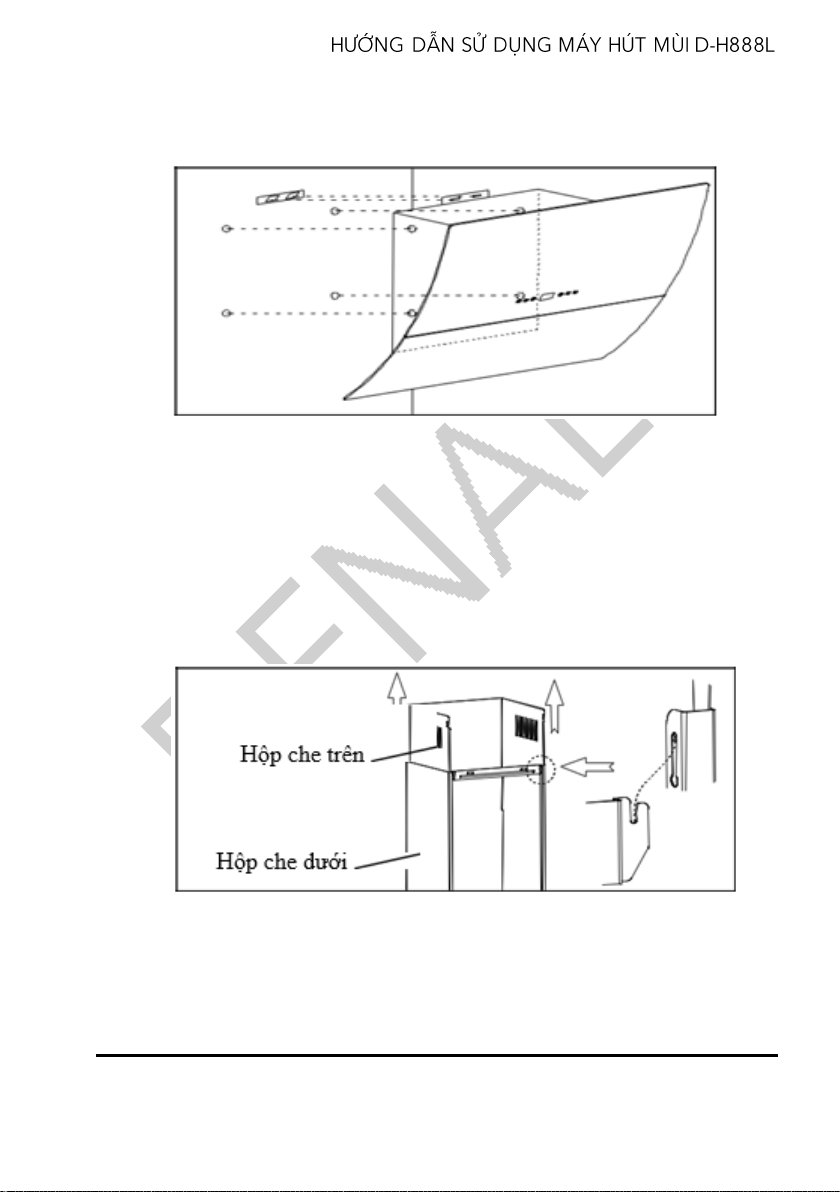

Matching the bracket to the holes of the
inner duct cover and fix it well
with M4 screws.
Matching the bracket to the holes of the
outer duct cover and fix it well
with M4 screws.
Step 4:
Insert the inner duct cover into the outer duct cover.
Step 5:
Matching the holes of outer duct cover and
blower box, fix the outer duct cover to the
blower box using 8pcs M4 x 10 screw
provided with fixing tool. As the direction of
illustrated

Product are imported and distributer by VINA STAR JSC
Hotline: [phone]
8
Step 6:
- Draw the inner duct cover up to the suitable high, mark on
the wall two keyhole of the outer duct cover bracket with pen.
- Put down the inner duct cover gently, drill the keyholes in 75-
85mm depth on the horizontal level
using 8mm drill.
- Press the expanding tube
provided into the holes.
- Matching the inner duct cover
with the holes, tighten the
inner duct cover with two 5x50
metal screw provided
Step 7:
Extend the air outlet of the exhaust pipe outof-
door. Try to make the bend of the exhaust
pipe is more than 120 degree
Step 8:
If you want to open the glass filter, you can open it in the bottom of the filter.
It can fix itself after opening
Qty Installation Components
8 Screws M4x10
2 Metal Screws 5x50

Product are imported and distributer by VINA STAR JSC
Hotline: [phone]
9

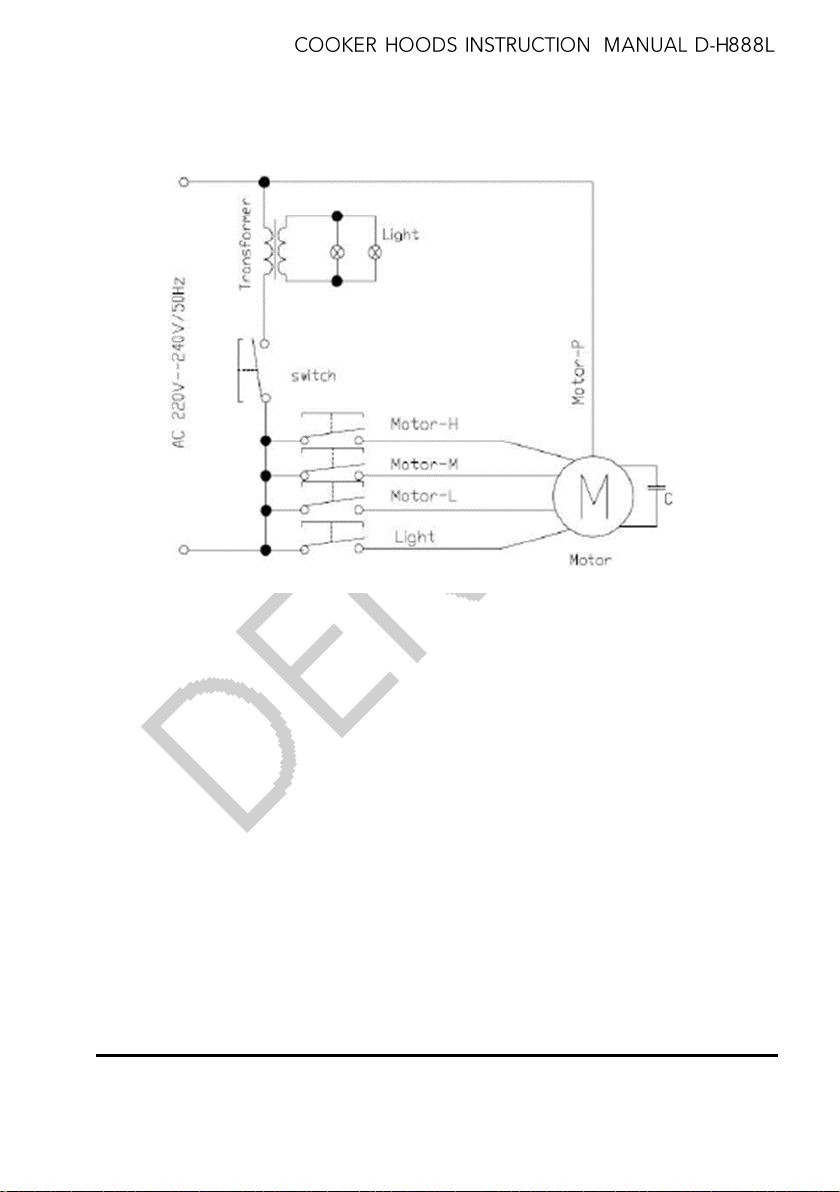

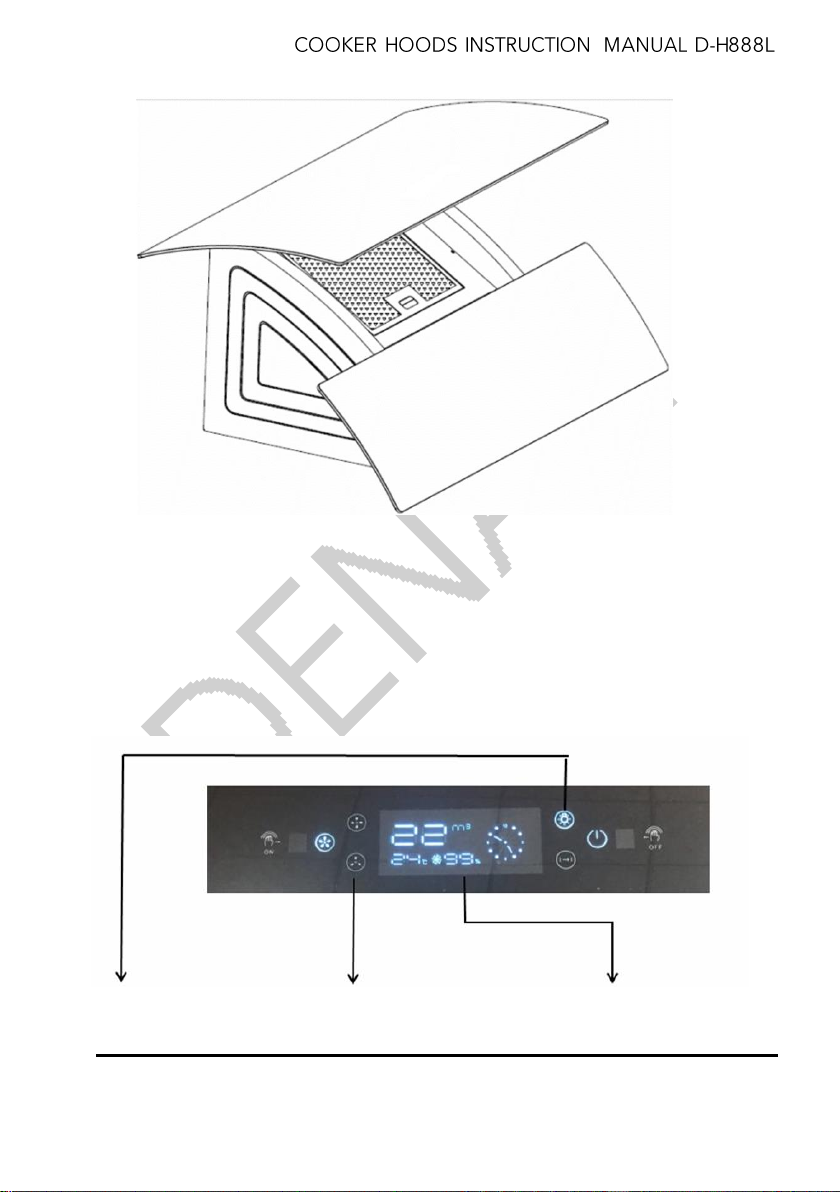

5. OPERATION INSTRUCTION
This switch is highly-sensitive touch control, use your figure touch the
keypress slightly to operate it

Product are imported and distributer by VINA STAR JSC
Hotline: [phone]
10
CLEANING & MAINTENANCE
CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING THE
FAN WHILE THE FAN IS OPERATING. FOR THE OPTIMAL LEVEL OF
OPERATION, CLEAN THE RANGE HOODS SURFACE, AND ALUMINUM
FILTER REGULARLY.
a. Use only mild soap or detergent solutions to clean the cooker hoods
surface. Dry surfaces using soft cloth.
b. Using a stainless steel cleaner to bring the glow back into a stainless
steel finish.
c. Clean the Aluminum filter once a week or according to use status. Press
the buckle of the Aluminum filter slightly, take off the Aluminum filter, wash
them by Dishwasher or you can put it into warm soapy water using mild
detergent, wipe the Aluminum filter with soft brush. Replace the filter after it
is dray.
d. Clean the motor fan and other inside parts once half year or according to
use by QUALIFIED PERSON.
e. DO NOT cleaning motor with water or other liquid
