Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

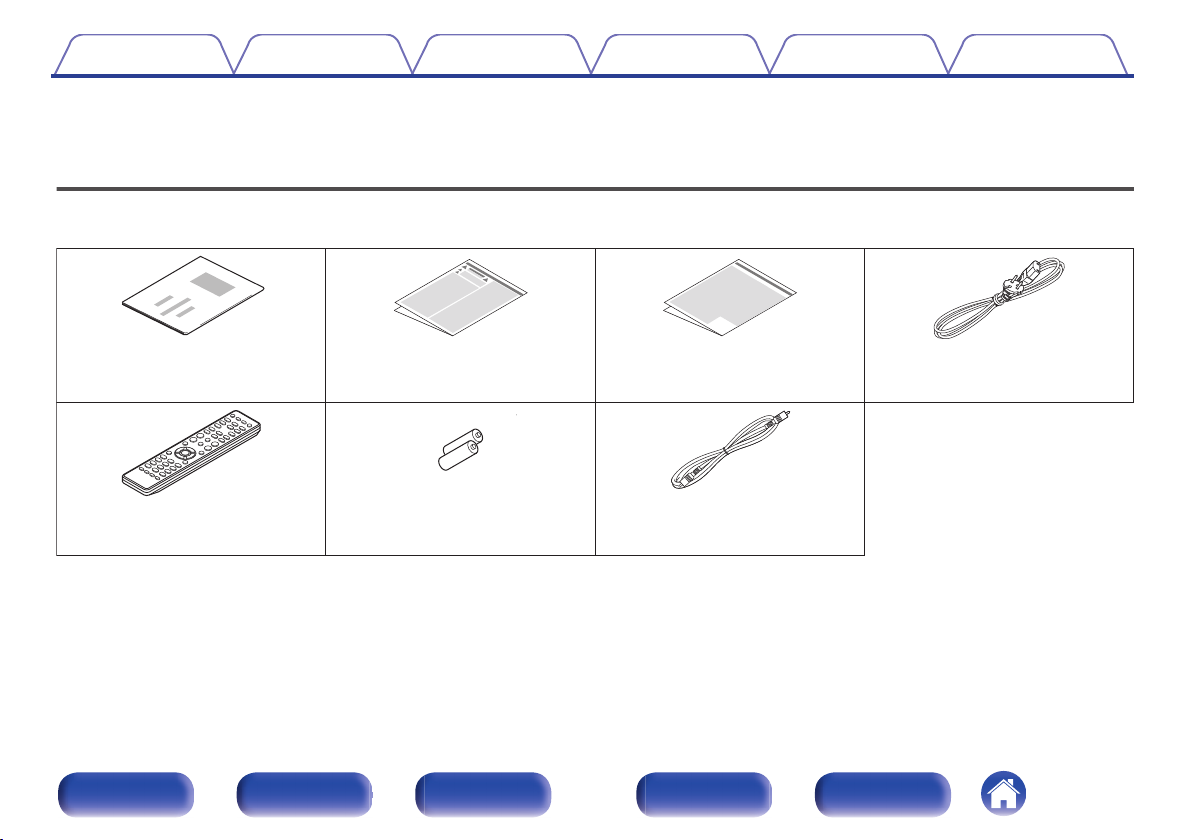

Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Cautions on Using Batteries Power cord
Remote control unit
(RC-1215)
R03/AAA batteries Coaxial digital cable
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

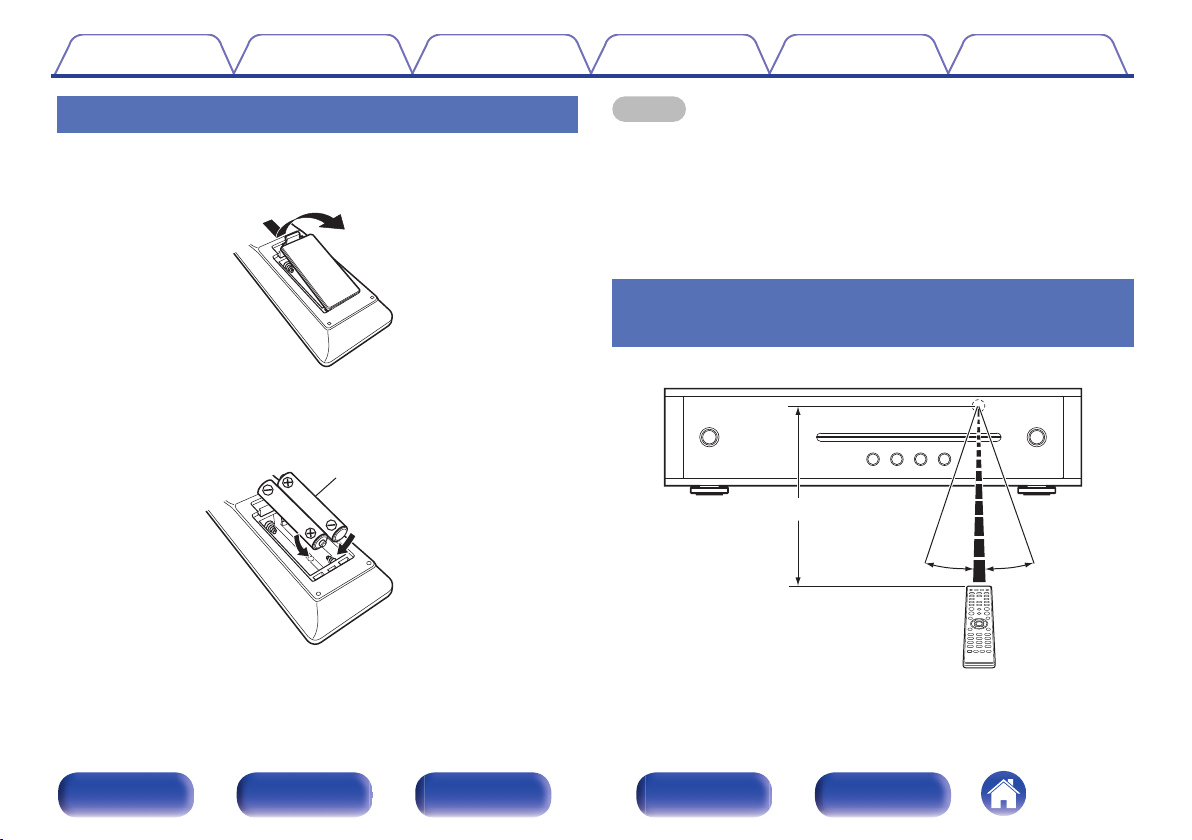

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 7 m
30° 30°
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Features
High quality
0A new style of CD player with Denon's trademark quality,
containing a high-precision 32-bit D/A converter
The D/A converter is a key element of sound quality, so this product
contains our 32 bit/384 kHz D/A converter, renowned for its high degree
of precision, to bring you the best sound quality possible.
0This unit can be combined with the DRA-100, a network receiver
with a high-quality class-D amplifier, to achieve high-quality
reproduction of even the finest signals.
In addition to a high-quality class-D amplifier, the DRA-100 network
receiver contains Advanced AL32 Processing, a unique analog
waveform recreation technology from Denon. Combine it with this unit to
enjoy sound with an intricacy and power far greater than you’d expect
from a device of its size.
High performance
0This new design is the optimal match for our DRA-100 network
receiver
0Slot-in CD mechanism with smooth and steady operation.
0Supports MP3 and WMA file playback
This unit can play back MP3 and WMA files recorded on CD-R and CD-
RW discs.
The high-visibility organic EL display can show information such as the
track name and artist name when playing back MP3s and WMAs.
0The auto standby function reduces power consumption
0This unit comes with a system remote control that can also
operate the DRA-100
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Part names and functions

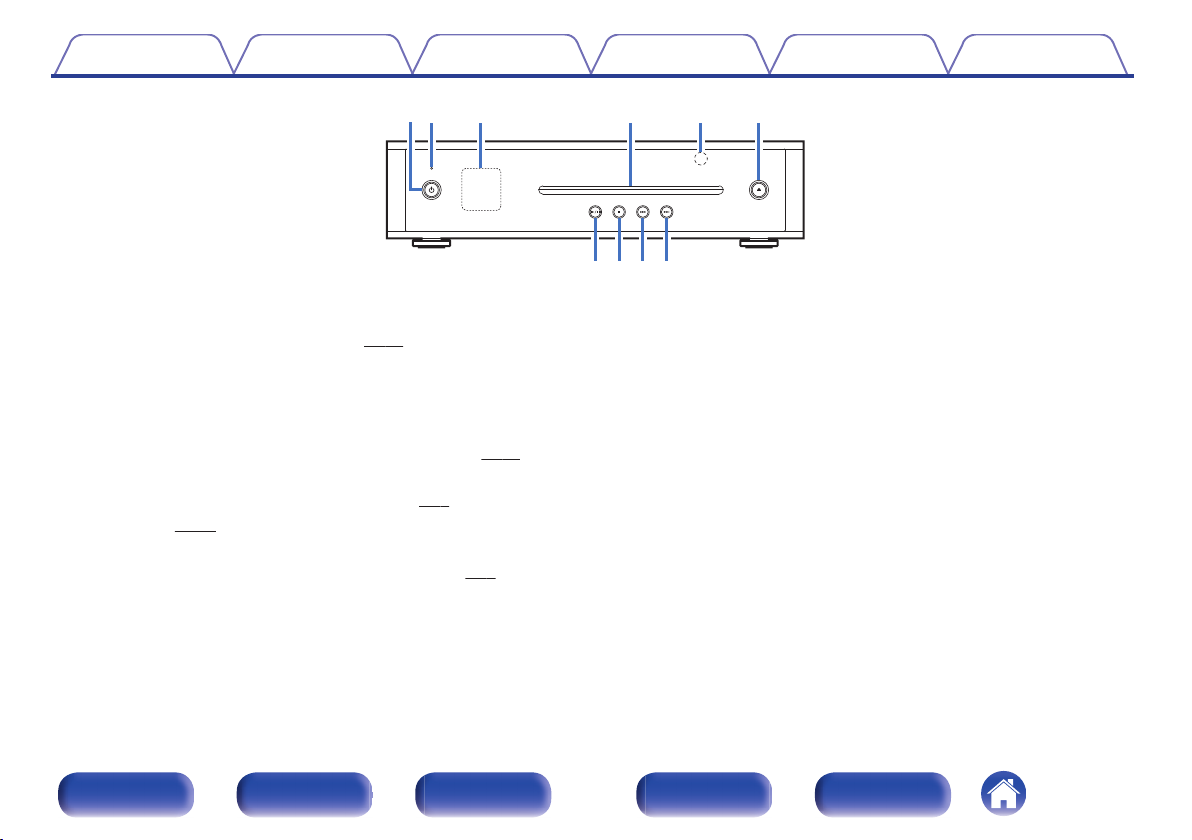

Front panel
.
qry
e tw
uioQ
0
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

.
qrt y
ew
uioQ
0
APower operation button (X)
This turns the power on/to standby. (v p. 20)
The power status is indicated as follows.
0Power on: Display lit
0Standby: Display off
BProtection circuit indicator
This blinks when the protection circuit has operated. (v p. 32)
CDisplay
This displays various pieces of information. (v p. 9)
DCD slot (v p. 39)
ERemote control sensor
This receives signals from the remote control unit. (v p. 5)
FCD Eject button (5)
Ejects the disc.
GPlay/pause button (1 / 3)
Plays the track/Pauses the track.
HStop button (2)
Stops playback.
IReverse-skip button (8)
Returns to the start of the currently playing track.
JForward-skip button (9)
Plays the next track.
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Display
Display sample
.
Track 05
Track
02:15
song tle
10/12
01:53
12 tracks
Total
52:34
Description of icon
P: random
z: repeat all
u: repeat 1
v: track
t: folder
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

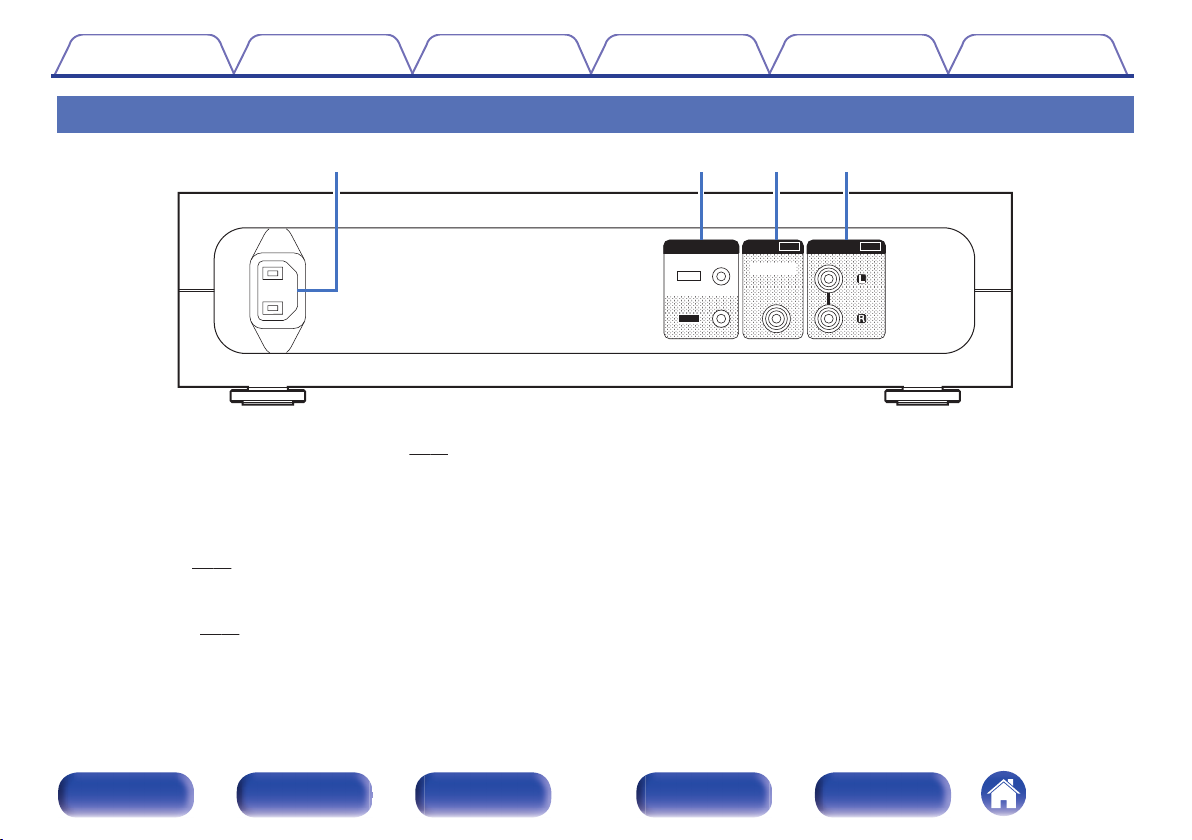

Rear panel
.
OUT
IN
AC
IN
COAXIAL
IR CONTROL ANALOG
OUTOUT
DIGITAL
q w e r
AAC inlet (AC IN)
Used to connect the supplied power cord. (v p. 18)
BIR CONTROL connectors
Used to connect Denon network audio players with an IR controller.
CDIGITAL OUT connector (COAXIAL)
Used to connect an amplifier equipped with digital audio input
connector. (v p. 16)
DANALOG OUT connectors
Used to connect an amplifier equipped with analog audio input
connectors. (v p. 17)
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

Remote control unit

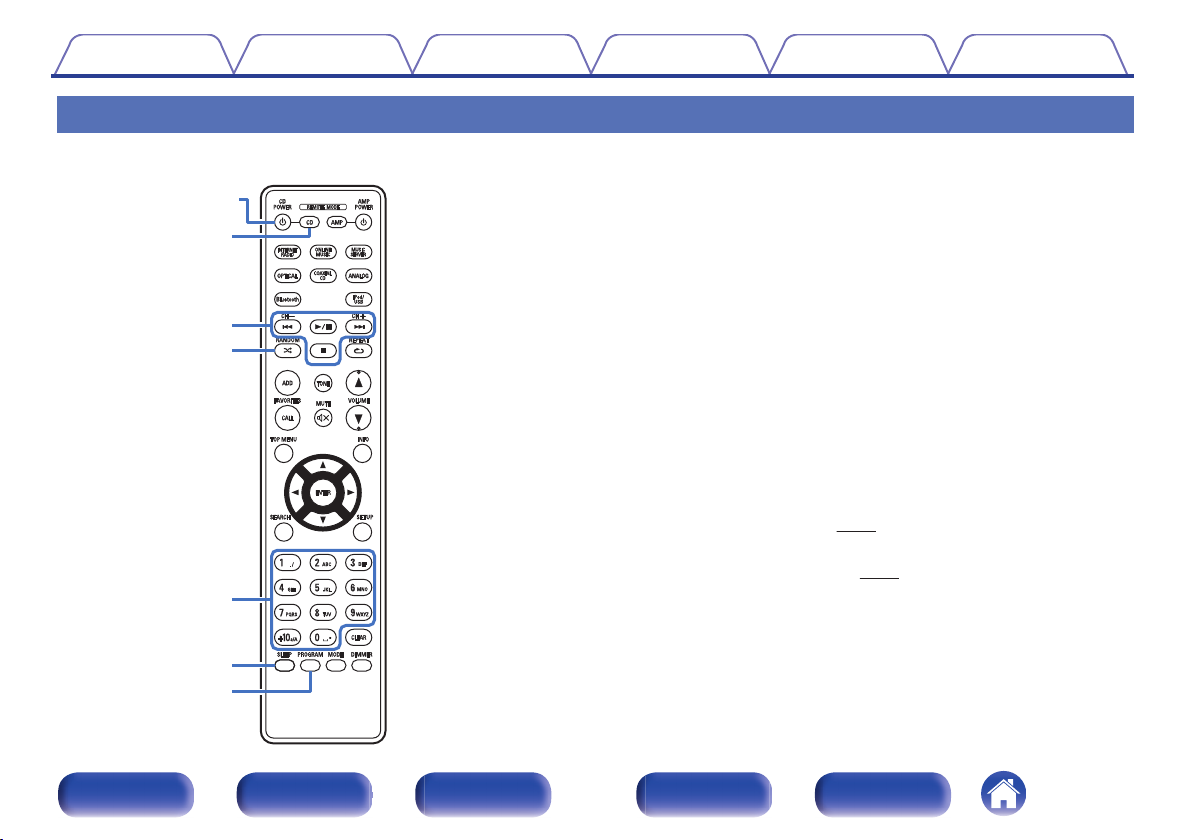

oOperating this unit
To operate CD player, press REMOTE MODE CD button to switch the
remote control to the CD operation mode.
0REMOTE MODE CD button lights for approximately two seconds.
APower operation button (CD POWER X)
This turns the power on/to standby.
BRemote mode select button (REMOTE MODE CD)
This switches the remote control operating mode to CD.
CSystem buttons
These perform playback related operations.
DRANDOM button (P)
Switches the random playback.
ENumber buttons (0 – 9, +10)
These enter numbers into the unit.
FSLEEP button
This sets the sleep timer. (v p. 29)
GPROGRAM button
This sets program playback. (v p. 24)
q
w
e
r
t
y
u
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

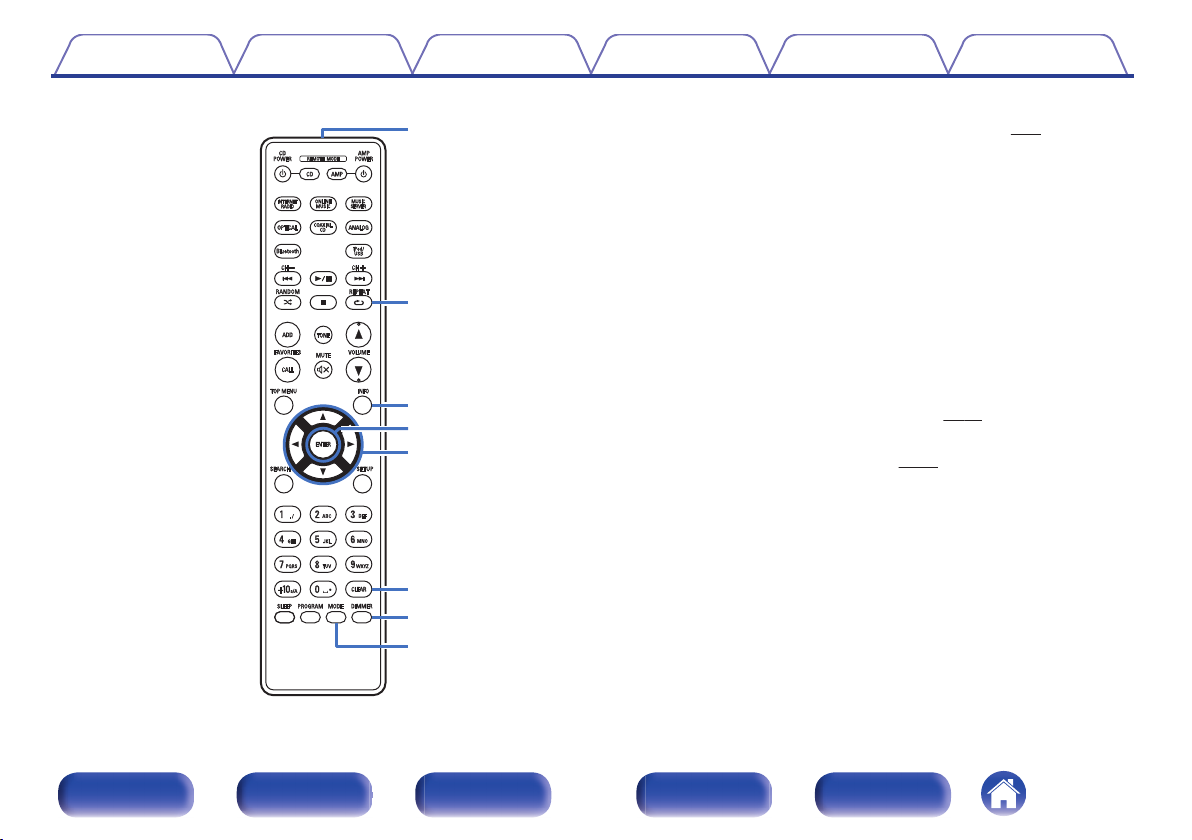

HSignal transmitter
This transmits signals from the remote control unit. (v p. 5)
IREPEAT button (L)
Switches the repeat playback.
JINFO button
This switches the track information shown in the display during playback.
KENTER button
This determines the selection.
LCursor buttons (uio p)
These select folders or files on a data CD.
MCLEAR button
This clears the program registration.
NDIMMER button
Adjust the display brightness of this unit. (v p. 21)
OMODE button
This switches the playback mode. (v p. 25)
i
o
Q2
Q1
Q3
Q4
Q5
Q0
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

oNetwork receiver operations
To operate a Denon network receiver, press the REMOTE MODE AMP
button to switch the remote control to the network receiver operation mode.
0REMOTE MODE AMP button lights for approximately two seconds.
AInput source select buttons
BSystem buttons
Channel buttons (CH +, –)
CRANDOM button (P)
DTONE button
EFAVORITES ADD / CALL buttons
FTOP MENU button
GENTER button
HCursor buttons (uio p)
ISEARCH button
JNumber buttons (0 – 9, +10)
KSLEEP button
w
q
e
r
t
y
i
o
u
Q0
Q1
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

LPower operation button (AMP POWER X)
MRemote mode select button (REMOTE MODE AMP)
NREPEAT button (L)
OVOLUME buttons (df)
PINFO button
QMUTE button (:)
RSETUP button
SCLEAR button
TDIMMER button
UMODE button
0The remote control may not operate some products.
Q2
Q3
W0
W1
Q6
Q9
Q8
Q7
Q4
Q5
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

oContents
Connecting a digital device 16
Connecting an analog device 17
Connecting the power cord 18
NOTE
0Do not plug in the power cord until all connections have been completed.
0Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.

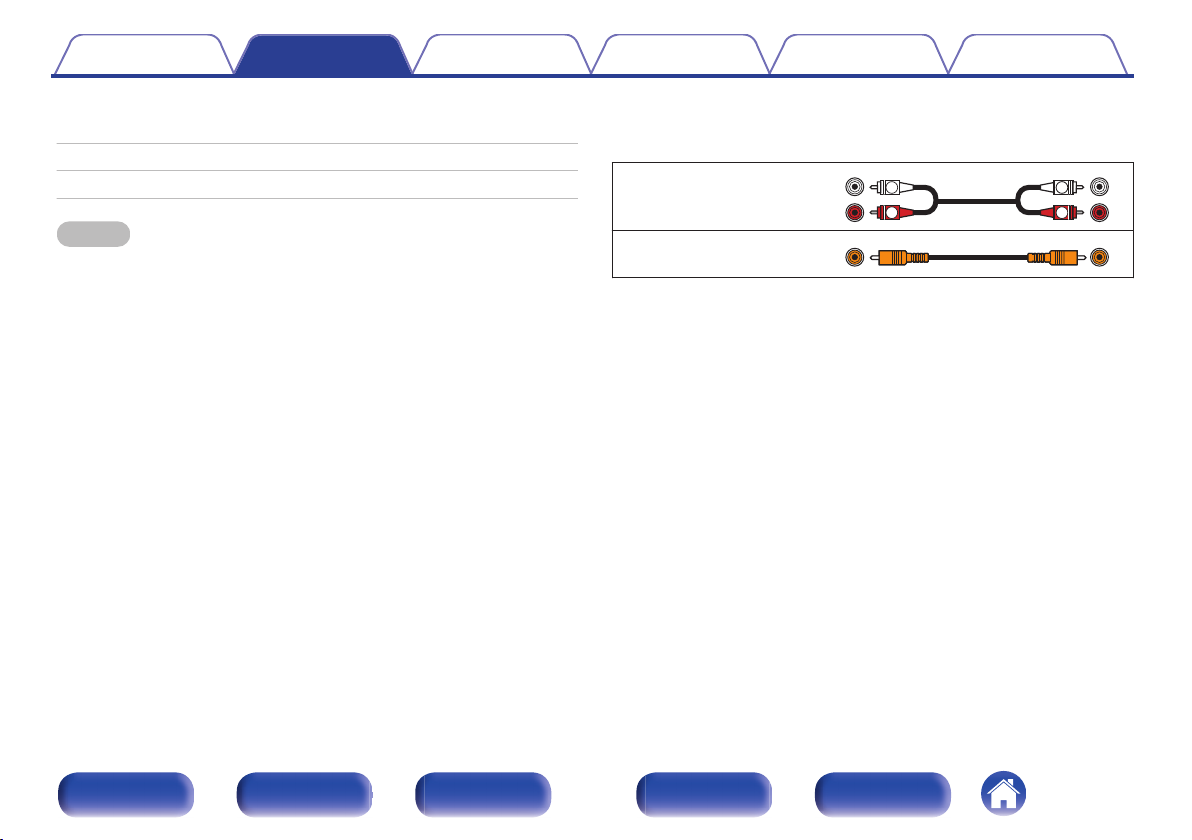

oCables used for connections
Provide necessary cables according to the devices you want to
connect.
Audio cable
.
R
L
R
L
Coaxial digital cable
(supplied) .
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Connecting a digital device
This unit can be connected to an amplifier with digital audio (coaxial) input connector.
.
OUT
IN
AC
IN
IR CONTROL ANALOG
OUT
COAXIAL
OUT
DIGITAL
COAXIAL
IN
Amplifier
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

Connecting an analog device
This unit can be connected to an amplifier with analog audio input connectors.
.
OUT
IN
AC
IN
COAXIAL
IR CONTROL
OUT
DIGITAL
ANALOG
OUT
AUDIO
IN
LR
L
L
R
R
Amplifier
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

Connecting the power cord
After completing all the connections, insert the power plug into the power outlet.
.
AC
IN
Power cord (supplied)
To household power outlet
(230V, 50/60 Hz)
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

oContents
Basic operation 20
Playing CDs 22
Playing DATA CDs (MP3 and WMA files) 25
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

Basic operation
.

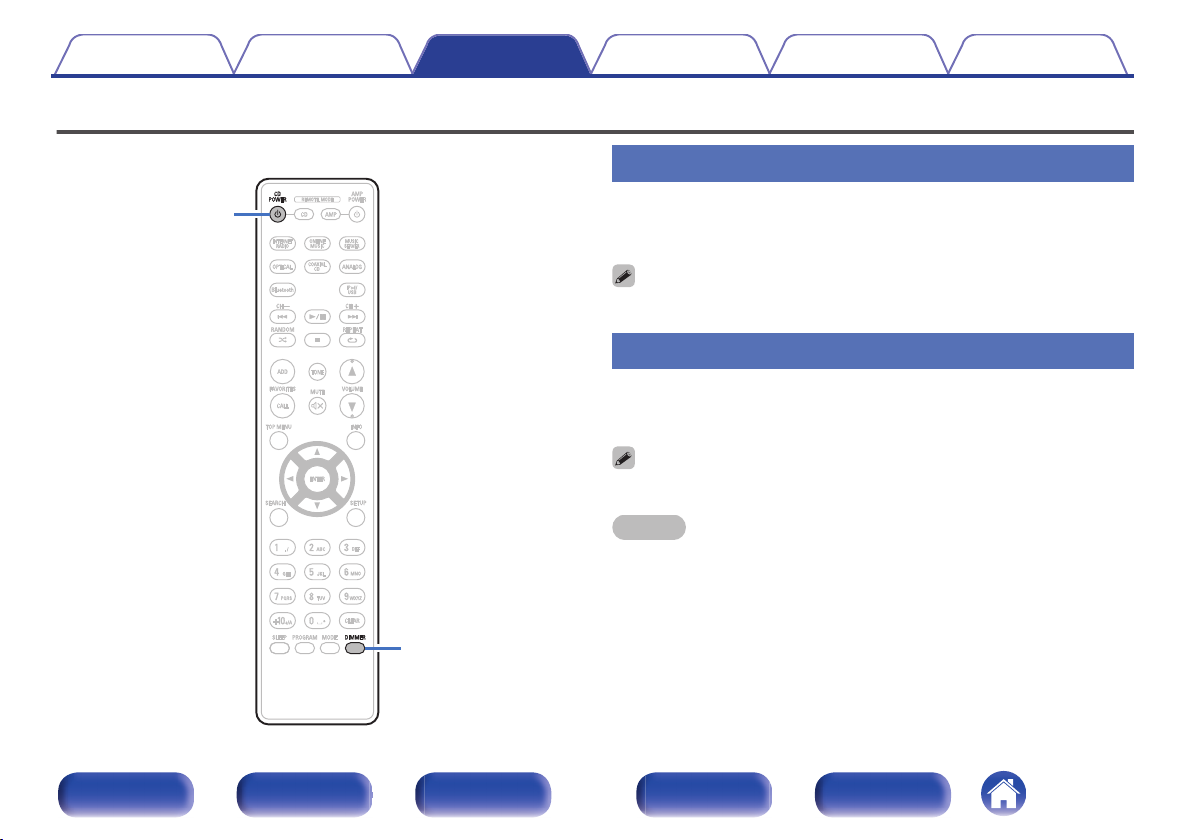

CD POWER
X
DIMMER
Turning the power on
1Press CD POWER X to turn on power to the unit.
Turns the display on.
0You can also press X on the main unit to turn on power from standby mode.
Switching the power to standby
1Press CD POWER X.
Turns the display off.
0You can also switch the power to standby by pressing X on the main unit.
NOTE
0Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, unplug the power cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
20
