Denon RBD-X1000 User manual

D&M Holdings Inc.
SERVICE MANUAL
e
e
Copyright 2011 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
MODEL JP E3 E2 EK K2A E1C E1K EUT
RBD-X1000
P
BLU-RAY DISC/DVD SURROUND RECEIVER
Ver. 7
•Some illustrations using in this service manual are slightly different from the actual set.
•Please use this service manual with referring to the operating instructions without fail.
•For purposes of improvement, specications and design are subject to change without notice.
S0419-0V07DM/DG1112
Please refer to the
MODIFICATION NOTICE.

2
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. if the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
Be sure to test for leakage current with the AC plug in both polarities, in addition, in each power ON, OFF and STANDBY
mode, if applicable.
CAUTION Please heed the points listed below during servicing and inspection.
◎Heed the cautions!
Spots requiring particular attention when servicing, such
as the cabinet, parts, chassis,etc., have cautions indicated
on labels. be sure to heed these causions and the
cautions indicated in the handling instructions.
◎Caution concerning electric shock!
(1) An AC voltage is impressed on this set, so touching
internal metal parts when the set is energized could
cause electric shock. Take care to avoid electric
shock, by for example using an isolating transformer
and gloves when servicing while the set is energized,
unplugging the power cord when replacing parts, etc.
(2) Tere are high voltage parts inside. Handle with extra
care when the set is energized.
◎ Caution concerning disassembly and
assembly!
Through great care is taken when manufacturing parts
from sheet metal, there may in some rare cases be burrs
on the edges of parts which could cause injury if ngers
are moved across them. Use gloves to protect your hands.
◎Only use designated parts!
The set's parts have specific safety properties (fire
resistance, voltage resistance, etc.). For replacement
parts, be sure to use parts which have the same
poroperties. In particular, for the important safety parts
that are marked z on wiring diagrams and parts lists, be
sure to use the designated parts.
◎ Be sure to mount parts and arrange the wires
as they were originally!
For safety seasons, some parts use tape, tubes or other
insulating materials, and some parts are mounted away
from the surface of printed circuit boards. Care is also
taken with the positions of the wores omsode amd clamps
are used to keep wires away from heating and high
voltage parts, so be sure to set everything back as it was
originally.
◎Inspect for safety after servicing!
Check that all screws, parts and wires removed or
disconnected for servicing have been put back in their
original positions, inspect that no parts around the area
that has been serviced have been negatively affected,
conduct an inslation check on the external metal
connectors and between the blades of the power plug,
and otherwise check that safety is ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect
the antenna, plugs, etc., and turn the power switch on.
Using a 500V insulation resistance tester, check that the
inplug and the externally exposed metal parts (antenna
terminal, headphones terminal, input terminal, etc.) is
1MΩ or greater. If it is less, the set must be inspected and
repaired.
Many of the electric and structural parts used in the set
have special safety properties. In most cases these
properties are difficult to distinguish by sight, and using
replacement parts with higher ratings (rated power and
withstand voltage) does not necessarily guarantee that
safety performance will be poreserved. Parts with safety
properties are indicated as shown below on the wiring
diagrams and parts lists is this service manual. Be sure to
replace them with parts with the designated part number.
(1) Schematic diagrams ......Indicated by the z mark.
(2) Parts lists ......Indicated by the z mark.
Using parts other than the designated
parts could result in electric shock, res
or other dangerous situations.
CAUTION Concerning important safety
parts

3
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Parts marked with this symbol z have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the
leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and corrected.
NOTICE:
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM / M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASURED AT NO SIGNAL
INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
NOTE FOR PARTS LIST
Parts for which "nsp" is indicated on this table cannot be supplied.
When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-supplying.
Ordering part without stating its part number can not be supplied.
Not including General-purpose Carbon Chip Resistor in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
Parts marked with this symbol z have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.
Not including General-purpose Carbon Film Resistor in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
Part indicated with the mark "★" is not illustrated in the exploded view.
WARNING:
1.
2.
3.
4.
5.
6.
●Resistors
RD : Carbon
RC : Composition
RS : Metal oxide film
RW: winding
RN : Metal film
RK : Metal mixture
P : Pulse-resistant type
NL : Low noise type
NB : Non-burning type
FR : Fuse-resistor
F : Lead wire forming
2B : 1/8 W
2E : 1/4 W
2H : 1/2 W
3A : 1 W
3D : 2 W
3F : 3 W
3H : 5 W
F : ±1%
G:±2%
J : ±5%
K : ±10%
M : ±20%
Ex.: RN
Type
14K
Shape
and per-
formance
2E
Power
182
Resist-
ance
G
Allowable
error
FR
Others
*Resistance
1800ohm=1.8kohm1 8 2
Indicates number of zeros after effective number.
2-digit effective number.
1.2ohm1 R 2
2-digit effective number, decimal point indicated by R.
1-digit effective number.
: Units: ohm
●Capacitors
CE : Aluminum foil
electrolytic
CA : Aluminium solid
electrolytic
CS : Tantalum electrolytic
CQ: Film
CK : Ceramic
CC : Ceramic
CP : Oil
CM: Mica
CF : Metallized
CH : Metallized
HS : High stability type
BP : Non-polar type
HR : Ripple-resistant type
DL : For change and discharge
HF : For assuring high requency
U : UL part
C : CSA part
W : UL-CSA part
F : Lead wire forming
0J : 6.3 V
1A : 10 V
1C : 16 V
1E : 25 V
1V : 35 V
1H : 50 V
2A : 100 V
2B : 125 V
2C : 160 V
2D : 200 V
2E : 250 V
2H : 500 V
2J : 630 V
F : ±1%
G:±2%
J : ±5%
K : ±10%
M : ±20%
Z : ±80%
: - 20%
P : +100%
C : ±0.25pF
D : ±0.5pF
= : Others
Ex.: CE
Type
04W
Shape
and per-
formance
1H
Dielectric
strength
3R2
Capacity
M
Allowable
error
BP
Others
･ Units:μF.
2200μF2 2 2
Indicates number of zeros after effective number.
2-digit effective number. ･ Units:μF.
2.2μF2 R 2
2-digit effective number, decimal point indicated by R
1-digit effective number.
*Capacity (electrolyte only)
･When the dielectric strength is indicated in AC,"AC" is included after the dieelectric strength value.
*Capacity (except electrolyte)
･ Units:pF
2200pF=0.0022μF2 2 2
Indicates number of zeros after efective number. (More than 2)
2-digit effective number. ･ Units:pF
220pF2 2 1
2-digit effective number.
Indicates number of zeros after effective numver. (0 or 1)
NOTE FOR PARTS LIST

4
WARNING AND LASER SAFETY INSTRUCTIONS
F ATTENTION DWARNUNG
WAARSCHUWING
AVVERTIMENTO
WARNING
Safety regulations require that the set be restored to its original condition
and that parts which are identical with those specified be used.
Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke
toestand wordt terug gebracht en dat onderdelen, identiek aan de
gespecifieerde worden toegepast.
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten.
Der Originalzustand des Gerats darf nicht verandert werden.
Fur Reparaturen sind Original-Ersatzteile zu verwenden.
Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle
condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli
specificati.
Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et
que soient utilisées les pièces de rechange identiques à celles spécifiées.
“Pour votre sécurité, ces documents
doivent être utilisés par des
spécialistes agrées, seuls habilités à
réparer votre appareil en panne.”
GB NL
I
D
I
F
GB
NL
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are connected
with the same potential as the mass of the set via a
wrist wrap with resistance.
Keep components and tools also at this potential.
Tous les IC et beaucoup d’autres semiconducteurs
sont sensibles aux décharges statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution n’est prise
a leur manipulation.
Lors de réparations, s’assurer de bien être relié au
même potentiel que la masse de l’appareil et enfiler
le bracelet serti d’une résistance de sécurité.
Veiller a ce que les composants ainsi que les outils
que l’on utilise soient également a ce potentiel.
Alle IC und viele andere Halbleiter sind
empfindlich gegen elektrostatische
Entladungen (ESD).
Unsorgfältige Behandlung bei der Reparatur
kann die Lebensdauer drastisch vermindern.
Sorgen sie dafür, das Sie im Reparaturfall
dem Massepotential des Gerätes verbunden
sind.
Halten Sie Bauteile und Hilfsmittel ebenfalls
über ein Pulsarmband mit Widerstand mit auf
diesem Potential.
Alle IC’s en vele andere halfgeleiders zijn gevoelig
voor elektrostatische ontladingen (ESD).
Onzorgvuldig behandelen tijdens reparatie kan de
levensduur drastisch doen verminderen.
Zorg ervoor dat u tijdens reparatie via een polsband
met weerstand verbonden bent met apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
Tutti IC e parecchi semi-conduttori sono sensibili
alle scariche statiche (ESD).
La loro longevita potrebbe essere fortemente ridatta
in caso di non osservazione della piu grande
cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello della
massa dell’apparecchio tramite un braccialetto a
resistenza.
Assicurarsi che i componenti e anche gli utensili
con quali si lavora siano anche a questo potenziale.
LASER SAFETY
CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDS
Æ TTELSE FOR STRÅLING
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL Å PNES UNNGÅ EKSPONERING FOR STRÅLEN
VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN
VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN
VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN
DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM
ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURE OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
AVOID DIRECT EXPOSURE TO BEAM
WARNING
The use of optical instruments with this product will
increase eye hazard.
Repair handling should take place as much as possible with
a disc loaded inside the player
WARNING LOCATION: INSIDE ON LASER COVERSHIELD
This unit employs a laser. Only a qualified service person should
remove the cover or attempt to service this device, due to
possible eye injury.
100301DM

5
TECHNICAL SPECIFICATIONS
DIMENSION
nAudio Section
• Power amplifier
Rated output : 70 W + 70 W (20 kHz, 6 Ω T.H.D. 10 %)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
nVideo Section
• Standard video connectors
output level and impedance : 1 Vp-p, 75 Ω
nTuner section
Reception frequency range :
[FM]87.50 MHz – 108.00 MHz [AM]522 kHz – 1611 kHz
Sensitivity (T.H.D. 3%, IHF) :
[FM]6 dBμV [AM] -
(S/N 30 dB) :
[FM] - [AM]60 dBμV/m
FM stereo separation :
[FM]35 dB (1 kHz)
nApplicable Discs
BD-VIdeo discs : 12 cm 1 side 1 layer, 12 cm 1 side 2 layers
DVD-VIdeo discs : 12 cm 1 side 1 layer, 12 cm 1 side 2 layers/
12 cm 2 sides 2 layers (1 side 1 layer)
8 cm 1 side 1 layer, 8 cm 1 side 2 layers/
8 cm 2 side 2 layers (1 side 1 layer)
Compact Discs (CD-DA) : 12 cm / 8 cm discs
nGeneral
Power supply : AC 230 V, 50 Hz
Power consumption : 67 W
0.5 W (Normal Standby)
Maximum external dimensions : 280 (W) x 313 (D) x 112 (H) mm
Weight : 4.6 kg
nRemote Control Unit (RC1153)
Batteries : R6/AA two batteries
Maximum external dimensions : 53 (W) x 28 (D) x 224 (H) mm
Weight : 165 g
d

6
CAUTION IN SERVICING
Firmware upgrade
When B/E units are exchanged, it is necessary to execute the upgrade of B/E Firmware and S/P Setting(TSP le).
When F/E units are exchanged, it is necessary to execute the upgrade of F/E Firmware .
1. Initializing for system
1. Press ON/STANDBY button while simultaneously pressing 8/- and +/9 buttons.
2. Check that "Initializing" is displayed in the FL tube upper row, and release your ngers from the 2 buttons and the
microprocessor will be initialized.
2. Initializing for BD
*The following operations must use remote control.
2.1 Reset
1. Turn on the power on DISC Function and display the HOME MENU.
2. Select the Setting on OSD screen, then press the Cursol 1 button.
3. Press the Cursol d button 3 times. Select the System.
4. Press the Cursol 1 button, then press the Cursol f button several times. Select the Reset Settings in lowest.
5. Press the ENTER button, then select OK. Press the ENTER button again.
2.2 Set Parental
1. Turn on the power on DISC Function and display the HOME MENU.
2. Select the Setting on OSD screen, then press the Cursol 1 button.
3. Press the Cursol f button 3 times, then select the Parental.
4. Press the Cursol 1 button, then select the Parental Control.
5. If password is demanded, input "0000". Then press the OK button.
6. Parental Control is set to Off.
Service tools
Measuring Disc: CD/TCD-784
DVD/VT502 or TDV-520A
BD/ABD-520 or BLX-108
8/ - +/ 9
d1f
ENTER
Note: • All user settings will be lost and this factory setting will be recovered when this initialization mode.
So make sure to m+emorize your setting for restoring after the initialization.
s
d

7
DISASSEMBLY
• Disassembleinorderofthearrowofthegureoffollowingow.
• Inthecaseofthere-assembling,assembleitinorderofthereverseofthefollowingow.
• Inthecaseofthere-assembling,observe"attentionofassembling"it.
• Ifwirebundlesareuntiedormovedtoperformadjustmentorpartsreplacementetc.,besuretorearrangethemneatly
astheywereoriginallybundledorplacedafterward.
Otherwise,incorrectarrangementcanbeacauseofnoisegeneration.
COVER TRAY
Referto "DISASSEMBLY
1. COVER TRAY"
and"EXPLODED VIEW"
CBINET TOP
Referto "DISASSEMBLY
2. CBINET TOP"
and"EXPLODED VIEW"
BD MECHANISM
Referto "DISASSEMBLY
4. BD MECHANISM"
and"EXPLODED VIEW"
PANEL FRONT ASSY
Referto "DISASSEMBLY
3. PANEL FRONT ASSY"
and"EXPLODED VIEW"
PCBFRONTUNIT
(Ref.No.ofEXPLODEDVIEW:16)
PCBUSB-JACKUNIT
(Ref.No.ofEXPLODEDVIEW:18)
PCB USB UNIT
Referto "DISASSEMBLY
5. PCB USB UNIT"
and"EXPLODED VIEW"
PCB INPUT UNIT
Referto "DISASSEMBLY
6. PCB INPUT UNIT"
and"EXPLODED VIEW"
PCB SMPS UNIT
Referto "DISASSEMBLY
7. PCB SMPS UNIT"
and"EXPLODED VIEW"
CHASSIS MECHA
Referto "DISASSEMBLY
8. CHASSIS MECHA"
and"EXPLODED VIEW"
CHASSIS BACK ASSY
Referto "DISASSEMBLY
9. CHASSIS BACK ASSY"
and"EXPLODED VIEW"
PCB MAIN UNIT
Referto "DISASSEMBLY
10. PCB MAIN UNIT"
and"EXPLODED VIEW"
PCB MPEG UNIT
Referto "DISASSEMBLY
11. PCB MPEG UNIT"
and"EXPLODED VIEW"

8
About the photos used for descriptions in the DISASSEMBLY" section.
• Thedirectionfromwhichthephotographsusedhereinwerephotographedisindicatedat"Directionofphotograph:***"
attheleftoftherespectivephotographs.
• Refertothetablebelowforadescriptionofthedirectioninwhichthephotosweretaken.
• Photographsforwhichnodirectionisindicatedweretakenfromabovetheproduct.
The viewpoint of each photograph
(Photografy direction)
［View from above］
Front side
Direction of photograph: B
Direction of
photograph: D
Direction of
photograph: C
Direction of photograph: A

9
1. COVER TRAY
(1) Powerturnon,thenTrayopen.DetachtheCoverTray
(2) Whenthepowerofamainpartisnotturnedon,fromtheslotatthebottomofachassis,athinstickisinsertedand
SliderCamismovedtotheright.Trayopens.
Proceeding : COVER TRAY
Direction of photograph: B
View from bottom
Slider Cam

10
2. CABINET TOP
(1) Removethescrews.
(2) Removethescrews.
COVER TRAYProceeding : CABINET TOP
→
Direction of
photograph: A

11
3. PANEL FRONT ASSY
(1) Removethescrews.
(2) Removethescrews,thendisconnecttheconnectorwiresandFFCcable.
(3) Removethescrews,thendisconnecttheconnectorwire.
Aleverisopenedoutside.
COVER TRAY CABINET TOP
→
Proceeding : →FRONT PANEL ASSY
View from bottom
Direction of photograph: D
FFC cable
CP1012
CP1
Direction of photograph: C
CN281

12
4. BD MECHANISM
(1) Removethescrews,thendisconnectthewires.
5. PCB USB UNIT
(1) Removethescrews,thendisconnecttheBoard-to-Boardconnector.
COVER TRAY CABINET TOP
→→BD MECHANISM
Proceeding :
4P wireSATA cable
COVER TRAY CABINET TOP
→→BD MECHANISM
Proceeding : →PCB USB UNIT
Direction of photograph: C
CP106

13
6. PCB INPUT UNIT
(1) Removethescrews.
(2) Disconnecttheconnectorwires.

Proceeding : COVER TRAY CABINET TOP
→→PCB INPUT UNIT
Direction of
photograph: A
Direction of photograph: C
CN403 CN400
CN401

14

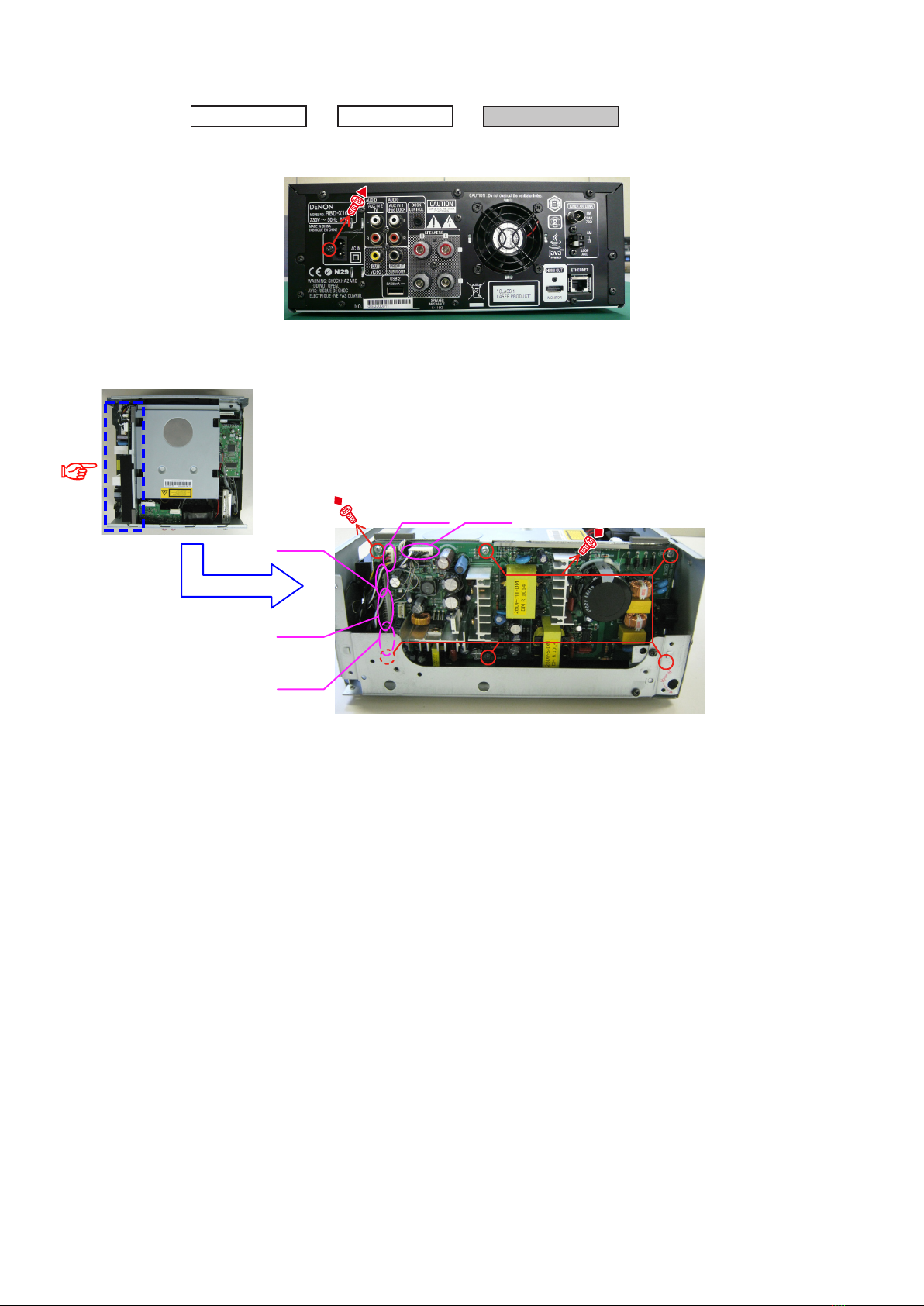

7. PCB SMPS UNIT
(1) Removethescrews
(2) Removethescrews,thendisconnecttheconnectorwires..
COVER TRAY CABINET TOP
→→PCB SMPS UNIT
Proceeding :
Direction of
photograph: A
Direction of photograph: C
CN243
CN241
CN244
CN221CN242

15
8. CHASSIS MECHA
(1) Removethescrews.ThentakeaxedPCBoff.(Ref.No.ofEXPLODEDVIEW:30)
(2) Removethescrews.
Proceeding : COVER TRAY CABINET TOP
→→BD MECHANISM →PCB USB UNIT
CHASSIS MECHA
→
fixed PCB
Direction of photograph: D

16
9. CHASSIS BACK ASSY
(1) Removethescrews(exceptscrewxedFanandTuner).
10. PCB MAIN UNIT
(1) Removethescrews,thendisconnecttheconnectorwiresandFFCcable.
Proceeding : COVER TRAY CABINET TOP
→→BD MECHANISM →PCB USB UNIT
CHASSIS MECHA
→CHASSIS BACK ASSY →
Direction of
photograph: A
→
Proceeding :
PCB MAIN UNIT
COVER TRAY CABINET TOP
→→BD MECHANISM →PCB USB UNIT
CHASSIS MECHA
→CHASSIS BACK ASSY →
PANNEL connector
USB connector
A/V connector
POWER CON. connector

17
11. PCB MPEG UNIT
(1) Removethescrews,thendisconnecttheconnectorwiresandFFCcable.
.
Proceeding : COVER TRAY CABINET TOP
→→BD MECHANISM →PCB USB UNIT
CHASSIS MECHA
→PCB MPEG UNIT →
PANNEL connector
USB connector
A/V connector
POWER CON. connector
Direction of photograph: C
Insert a wire in the arrow side.
16P connector base
12P connector base

18
DIAGNOSTICS OF FE DRIVE
The exchange of FE Drive is judged by using TEST DISC in order of the following ow chart.
Please exchange FE Drive when the defect is conrmed to it.
Check that the FE B'D can play below reference Discs.
CD : TCD-784
DVD : TDV-520A
BD-ABD-520
With reference Discs, Check a time from closing the tray
completely to watching picture (or listening sound).
Is it less than a below time?
CD : 17 sec
DVD : 16 sec
BD : 34 sec
The FE B'D is defective.
The FE B'D is defective.
NO
NO
YES

19
SPECIAL MODE
Special mode setting
To enter special mode, plug the AC cord while pressing button A and B.
CAUTION
Before enter special mode by AC cord, please wait at least 10sec after AC off.
No.1,2,3,5
There are 2 ways to enter special mode.
q Plug the AC cord while pressing button A and B.
w Press ON/STANDBY button in standby mode while pressing button A and B.
No.8,9,10,11
Enter the modes from setup menu of disc function.
No. Mode Button A Button B Contents
1Version display mode
(System & USB ucom)
REVERSE-
SKIP STOP Displaying system and USB ucom version.
2VFD check mode SDB/ TONE FORWARD-
SKIP Checking display VFD and LED
3Initialization mode
( System ucom)
REVERSE-
SKIP
FORWARD-
SKIP Initializing. (System ucom)
4"Displaying the protection
history mode"
OPEN/
CLOSE STOP Protection history.
5Tray lock mode(ON-OFF) SDB/ TONE STOP Tray lock mode. (for dealers)
6System ucom update mode REVERSE-
SKIP PLAY/ PAUSE Updating the system ucom.
7USB ucom update mode SDB/ TONE PLAY/ PAUSE Updating the USB ucom.
8BD update mode - - Updating the BD system.
9Version display mode (BD) - - Displaying BD system version.
10 Region code display mode - - Displaying Region code.
11 Initialization mode (BD) - - Initializing. (BD sysetm)
8/ - +/ 9 ON/STANDBY
SDB/TONE
52
1
/
3

20
1. Version display (System & USB ucom)
Display changes each time 9 button is pressed.
Model name → System ucom Version → System ucom Boot Loader Version → USB ucom Version →
iPod Dock Version ( only when Dock is connected) → model name → repeat
* Press 8 button : Displayed in reverse order described above.
Buttons except 9, 8 and ON/STANDBY button are not available.
To exit the mode, unplug AC cord or press ON/STANDBY button.
Display
qModel name :
wSystem ucom Version :
(##.## : System u-com Version number)
eSystem ucom Boot Loader Version :
(##.## : System ucom restricted area Version number)
rUSB ucom Version :
(##.## : USB u-com version number )
tiPod Dock Version :
1) ASD-1R/11R
2) ASD-3N/W, 51N/W (Version is not displayed)
3) Dock is not connected (or connection has not been established)
# # # #.
# # # #.
###
# # # #.
