Denon AVR-S540BT User manual

START::|ado5OThcFCVVM/p3xSvHkA==|U/SvMai+Td7DF9wrY9Nbs1DWQS1pxz1BZTzlFBII3zY=|oJOSC+M8+l41+RRr1SffDw==|::END
.
AVR-S540BT
AV SURROUND RECEIVER
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Accessories 5
Inserting the batteries 6
Operating range of the remote control unit 6
Features 7
High quality sound 7
High performance 7
Easy operation 9
Part names and functions 10
Front panel 10
Display 13
Rear panel 14
Remote control unit 16
Connections
Connecting speakers 20
Speaker installation 20
Speaker connection 22
Standard speaker configuration and connection 24
Connecting a TV 25
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 26
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 27
Connection 3 : TV equipped without an HDMI connector 28
Connecting a playback device 29
Connecting a set-top box (Satellite tuner/cable TV) 30
Connecting a DVD player or Blu-ray Disc player 31
Connecting a game console or video camcorder 32
Connecting a USB memory device to the USB port 33
Connecting an FM/AM antenna 34
Connecting the power cord 36
Playback
Basic operation 38
Turning the power on 38
Selecting the input source 38
Adjusting the volume 39
Turning off the sound temporarily (Muting) 39
Playback a DVD player/Blu-ray Disc player 39
Playing a USB memory device 40
Playing files stored on USB memory devices 41
Listening to music on a Bluetooth device 42
Playing music from Bluetooth device 43
Pairing with other Bluetooth devices 45
Reconnecting to this unit from a Bluetooth device 46
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index

Listening to FM/AM broadcasts 47
Listening to FM/AM broadcasts 48
Tuning in to stations and presetting them automatically (Auto
Preset) 49
Presetting the current broadcast station (Preset Memory) 50
Listening to preset stations 50
Skipping preset broadcast stations (Preset Skip) 51
Cancelling Preset Skip 51
Convenience functions 52
Performing repeat playback (Repeat) 53
Performing random playback (Random) 53
Adjusting the tone (Tone) 54
Optimizing the night time listening volume (Night Mode) 55
Displaying your desired video during audio playback (Video
Select) 56
Selecting a sound mode 57
Selecting a sound mode 57
HDMI control function 61
Setting procedure 61
Adjusting the volume of each channel to match the input source
(Ch Level Adjust) 62
Sleep timer function 63
Using the sleep timer 64
Quick select plus function 65
Calling up the settings 66
Changing the settings 66
Settings
Menu map 67
Menu operations 70
Audio 71
Surr.Parameter 71
Restorer 74
Audio Delay 75
Volume 75
Room EQ 76
Video 77
HDMI Audio Out 77
HDMI PassThrough 77
Pass Source 78
HDMI Control 78
ARC 79
TV Audio Switching 79
Pow.Off Control 80
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Inputs 81
Input Assign 81
Source Level 81
Input Select 82
Speakers 83
Auto Setup 83
Procedure for speaker settings (Auto Setup) 85
Error messages 87
Manual Setup 88
Speaker Config. 88
Distances 89
Levels 90
Crossovers 90
Bass 91
General 92
Language 92
ECO 92
Bluetooth 94
Front Display 95
Firmware 95
Setup Lock 96
Reset 96
Checking the information 97
Tips
Tips 99
Troubleshooting 100
Resetting factory settings 112
Appendix
About HDMI 113
Playing back a USB memory devices 116
Playing back a Bluetooth device 117
Personal memory plus function 118
Last function memory 118
Sound modes and channel output 119
Sound modes and surround parameters 120
Types of input signals, and corresponding sound modes 121
Explanation of terms 122
Trademark information 127
Specifications 129
Index 133
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

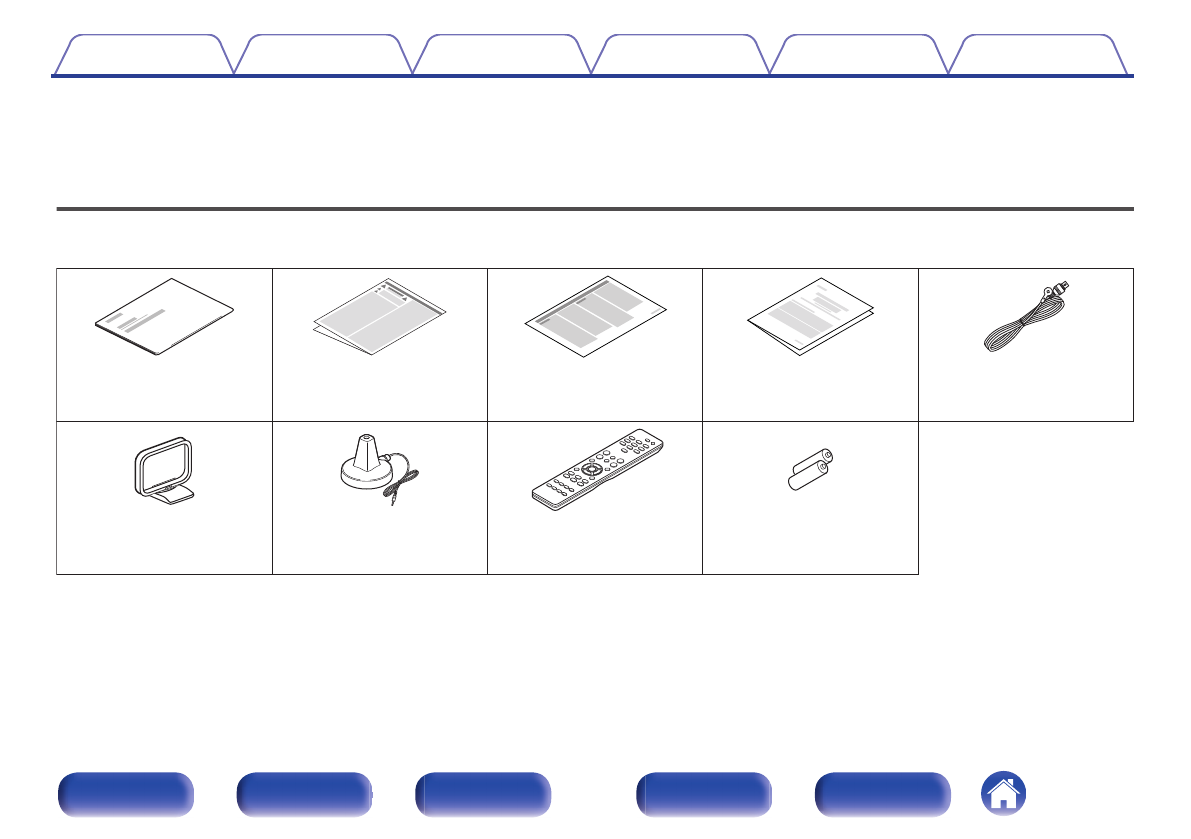

Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Notes on radio Warranty
(for North America
model only)
FM indoor antenna
AM loop antenna Sound calibration
microphone
Remote control unit
(RC-1216)
R03/AAA batteries
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

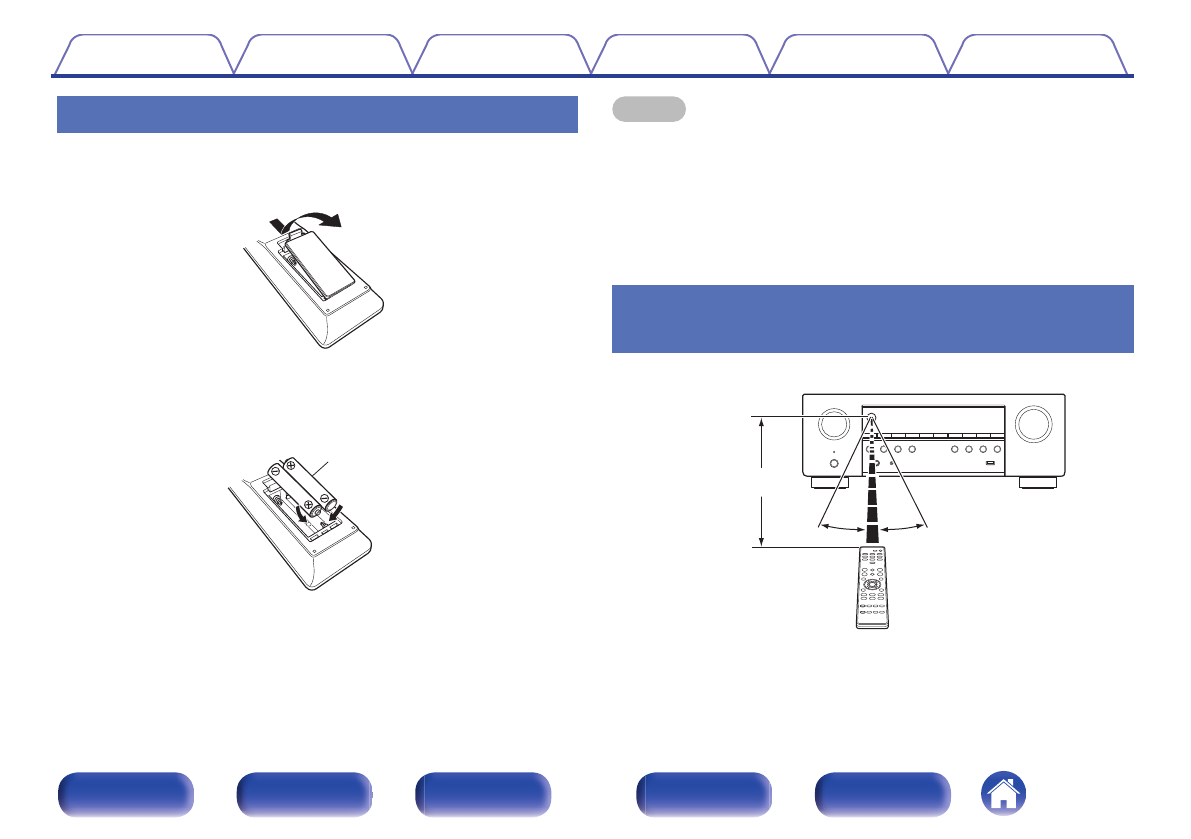

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 23 ft/7 m
30° 30°
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Features
High quality sound
0With discrete circuit technology, the power amplifier provides
identical quality for all 5-channels (90 Watts x 5-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.

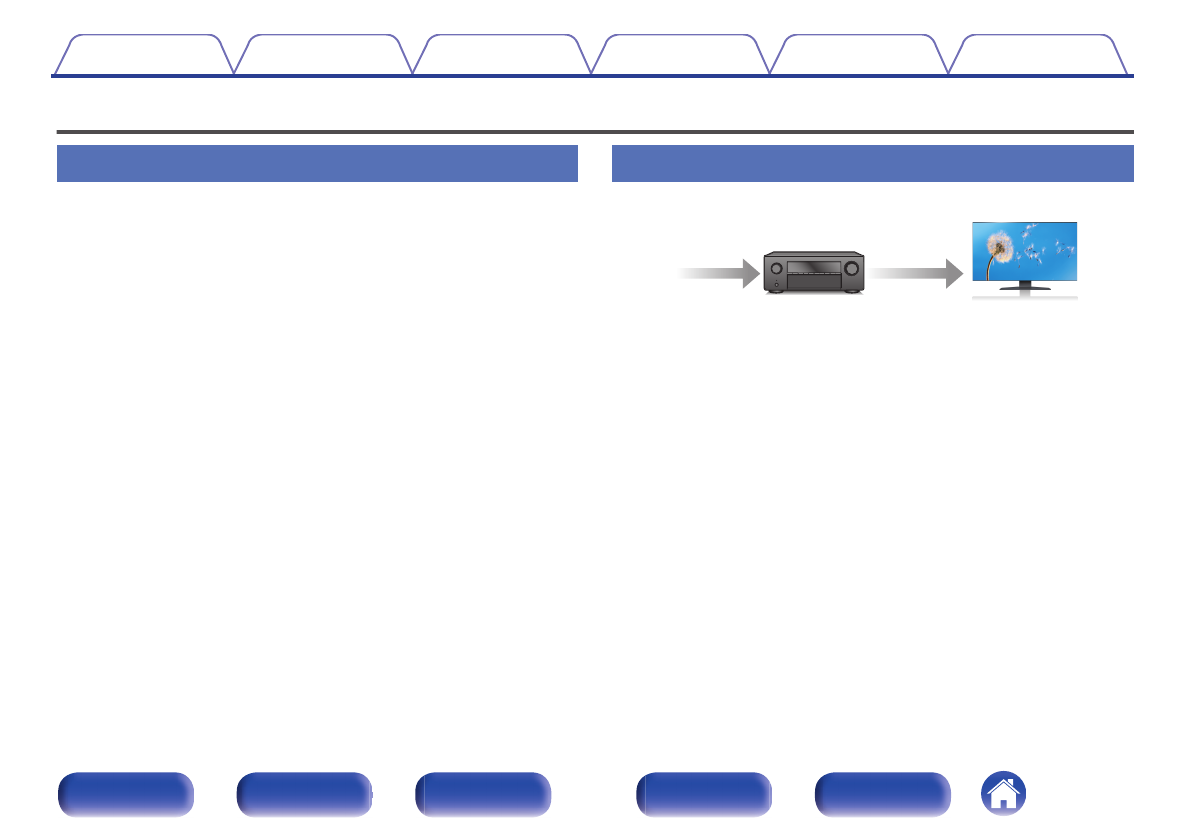

High performance
04K 60Hz input/output supported
.
4K 60p
4:4:4
4K 60p
4:4:4
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
This unit also supports HDR (High Dynamic Range) and BT.2020 wide
color gamut.
0HDCP 2.2
This unit is compatible with HDCP 2.2 copyright protection standard.
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

0HDMI connections enable connection to various digital AV
devices (5 inputs, 1 output)
.
51
Out
In
This unit is equipped with 5 HDMI inputs and 1 HDMI output enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 42)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
0Compatible with the “Denon 500 Series Remote” app performing
basic operations of the unit with an iPad, iPhone or Android™
devices (Google, Amazon Kindle Fire)
The “Denon 500 Series Remote”z application allows you to wireless
control this unit from an iPhone, iPad, Android smartphone or tablet
when paired and connected via Bluetooth. Basic functions include:
Power ON/OFF, volume, mute, and source selection.
zDownload the appropriate “Denon 500 Series Remote” for your iOS or Android
devices. In order to use “Denon 500 Series Remote”, your iOS or Android device
needs to be paired with this unit in advance.
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
MASTER VOLUME
re
Q2Q1Q0uQ3oi
tqw y
Q
9
Q
6
Q
7
Q
8
W
0
Q
5
Q
4
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index
