INTEGRATED NETWORK AV RECEIVER

AVR-X4400H Click here!

On-line service parts list

http://dmedia.dmglobal.com/Document/DocumentDetails/23507

Online Parts List (P5 to P7)

WEB owner’s manual (Release schedule)

http://manuals.denon.com/AVRX4400H/NA/EN/index.php (July 2017)

http://manuals.denon.com/AVRX4400H/EU/EN/index.php (July 2017)

http://manuals.denon.com/AVRX4400H/AP/ZH/index.php (September 2017)

CAUTION IN SERVICING

ELECTRICAL

MECHANICAL

REPAIR INFORMATION

UPDATING

Service Manual Ver. 1

•Forpurposesofimprovement,specicationsanddesignaresubjecttochangewithoutnotice.

•Pleaseusethisservicemanualwithreferringtotheoperatinginstructionswithoutfail.

•Someillustrationsusinginthisservicemanualareslightlydifferentfromtheactualset.

CAUTION IN SERVICING

SAFETY PRECAUTIONS

NOTE FOR SCHEMATIC DIAGRAM

NOTE FOR PARTS LIST

INSTRUCTIONS FOR HANDLING SEMICONDUCTORS AND OPTICAL UNIT

Online Parts List

Accessing the Parts List

Logging in to New SDI and Accessing the Parts List

Accessing the Part List from the Model Asset Screen

PRINTED CIRCUIT BOARDS Parts Table

Downloading the Parts List as an Excel File

Revision History

Searching Part Numbers or Ref. Numbers

CAUTION IN SERVICING.

Initializing This Unit

JIG FOR SERVICING

Caution in

servicing Electrical Mechanical Repair Information Updating

The following items should be checked for continued protection of the customer and the service

technician.

Leakage current check

Before returning the set to the customer, be sure to carry out either (1) a leakage current check or

(2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance

from chassis to either side of the power cord is less than 460 kohms, the set is defective.

Be sure to test for leakage current with the AC plug in both polarities, in addition, when the set's

power is in each state (on, off and standby mode), if applicable.

CAUTION Please heed the following cautions and instructions during servic-

ing and inspection.

◎ Heed the cautions!

Cautions which are delicate in particular for servicing are labeled on the cabinets, the parts and the

chassis, etc. Be sure to heed these cautions and the cautions described in the handling instructions.

◎ Cautions concerning electric shock!

(1) An AC voltage is impressed on this set, so if you touch internal metal parts when the set is energized,

you may get an electric shock. Avoid getting an electric shock, by using an isolating transformer and

wearing gloves when servicing while the set is energized, or by unplugging the power cord when

replacing parts, for example.

(2) There are high voltage parts inside. Handle with extra care when the set is energized.

◎ Caution concerning disassembly and assembly!

Through great care is taken when parts were manufactured from sheet metal, there may be burrs on the

edges of parts. The burrs could cause injury if ngers are moved across them in some rare cases. Wear

gloves to protect your hands.

◎ Use only designated parts!

The set's parts have specic safety properties (re resistance, voltage resistance, etc.). Be sure to use

parts which have the same properties for replacement. The burrs have the same properties. In particular,

for the important safety parts that are indicated by the z mark on schematic diagrams and parts lists,

be sure to use the designated parts.

◎ Be sure to mount parts and arrange the wires as they were originally placed!

For safety seasons, some parts use tapes, tubes or other insulating materials, and some parts are mount-

ed away from the surface of printed circuit boards. Care is also taken with the positions of the wires by

arranging them and using clamps to keep them away from heating and high voltage parts, so be sure to

set everything back as it was originally placed.

◎ Make a safety check after servicing!

Check that all screws, parts and wires removed or disconnected when servicing have been put back

in their original positions, check that no serviced parts have deteriorate the area around. Then make

an insulation check on the external metal connectors and between the blades of the power plug, and

otherwise check that safety is ensured.

(Insulation check procedure)

Unplug the power cord from the power outlet, disconnect the antenna, plugs, etc., and on the power.

Using a 500V insulation resistance tester, check that the insulation resistance value between the inplug

and the externally exposed metal parts (antenna terminal, headphones terminal, input terminal, etc.) is

1M Ω or greater. If it is less, the set must be inspected and repaired.

Many of the electric and the structural parts used in the set have special safety properties. In most cases

these properties are difcult to distinguish by sight, and the use of replacement parts with higher rat-

ings (rated power and withstand voltage) does not necessarily guarantee that safety performance will

be preserved. Parts with safety properties are indicated as shown below on the wiring diagrams and the

parts list in this service manual. Be sure to replace them with the parts which have the designated part

number.

(1) Schematic diagrams Indicated by the z mark.

(2) Parts lists Indicated by the z mark.

The use of parts other than the designated parts could cause electric shocks, res or other dangerous

situations.

CAUTION Concerning important safety parts

SAFETY PRECAUTIONS

Caution in

servicing Electrical Mechanical Repair Information Updating

WARNING:

Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended

by the manufacturer.

CAUTION:

Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2)

a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from

chassis to either side of the power cord is less than 460 kohms, the set is defective.

WARNING:

DO NOT return the set to the customer unless the problem is identied and remedied.

NOTICE:

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM / M=1,000,000 OHM

ALL CAPACITANCE VALUES ARE EXPRESSED IN MICRO FARAD, UNLESS OTHERWISE INDICATED. P

INDICATES MICRO-MICRO FARAD. N INDICATES NANO FARAD. EACH VOLTAGE AND CURRENT ARE

MEASURED AT NO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT

PRIOR NOTICE.

1. Parts indicated by "nsp" on this table cannot be supplied.

2. When ordering a part, make a clear distinction between "1" and "I" (i) to avoid mis-supplying.

3. A part ordered without specifying its part number can not be supplied.

4. Part indicated by "@" mark is not illustrated in the exploded view.

WARNING: Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts

recommended by the manufacturer.

Electrostatic breakdown of the semi-conductors or optical pickup may occur due to a potential differ-

ence caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 M ohm) that is properly grounded to remove any static electricity

that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 M ohm) on the work-

bench or other surface, where the semi-conductors are to be placed. Because the static electricity

charge on clothing will not escape through the body grounding band, be careful to avoid contacting

semi-conductors with your clothing

CBA

Grounding Band

Conductive Sheet or

Copper Plate

1MΩ

CBA

NOTE FOR SCHEMATIC DIAGRAM

NOTE FOR PARTS LIST

INSTRUCTIONS FOR HANDLING SEMICONDUCTORS AND

OPTICAL UNIT

Caution in

servicing Electrical Mechanical Repair Information Updating

Online Parts List

Accessing the Parts List Logging in to New SDI and Accessing the Parts List

(1) Click the URL link on the cover of the service manual.

Examples of display

NOTE : If the web browser does not open automatically, copy the URL and paste it into the address bar

of the web browser and then press Enter.

(2) When the login screen is displayed, enter your username and password.

(3) Enter the 5 letters shown as the blue CAPTCHA code as single-byte characters.

If the text is unclear, click "Refresh" to change the CAPTCHA code, and enter it again.

(4) Press the "Login" button.

(1) Access New SDI from the URL below.

<http://dmedia.dmglobal.com>

(2) When the login screen is displayed, enter your username and password.

(3) Enter the 5 letters shown as the blue CAPTCHA code as single-byte characters.

If the text is unclear, click "Refresh" to change the CAPTCHA code, and enter it again.

(4) Press the "Login" button.

(5) When the Home screen is displayed, click "Advanced Search".

(6) Enter the following search conditions and click "Search".

Keyword : Model name Brand : brand name Asset Type : Part list

(7) Click the model name when the search results are displayed.

Caution in

servicing Electrical Mechanical Repair Information Updating

Downloading the Parts List as an Excel File

Revision History

(1) Displays the Parts List. Click the Download icon.

(1) Click "Revision history" in the blue bar.

The following details are displayed.

Sheet : Name of the changed sheet

Description : Description of the changes

Remarks : Destination, color information

Factories : Factory number

Ver : Version number after revision if changes were made to the parts list

Date : Date of changes

Accessing the Part List from the Model Asset Screen

PRINTED CIRCUIT BOARDS Parts Table

(1) Display Model Asset from New SDI.

(2) Click the section displayed as ▼ Link to Part Lists under the model name.

NOTE : If the ▼ Link to Parts List section is not displayed, download the parts table from the Asset list.

(1) Display the Parts List. Click the PCB name in the blue bar to display the parts list for the board.

Left and right arrow icons are displayed if the circuit board name does not t in the blue bar.

Click these icons to display a different part of the name when necessary.

← Icons to move the circuit board name

left and right in the blue bar

Caution in

servicing Electrical Mechanical Repair Information Updating

Searching Part Numbers or Ref. Numbers

You can search a Parts List for part numbers or Ref. numbers.

(1) Enter the part number or Ref. number in the search window of the Parts List, and press the search

button.

(2) The search results are displayed.

The name of the sheet in which the search part is used and the part’s line are displayed.

(3) Next, click the "Sheet" section of the search results.

(4) The Board Part Table opens and the line on which the searched part number appears is highlighted.

Caution in

servicing Electrical Mechanical Repair Information Updating

Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the

digital PCB.

1. Press the power button to turn off the power.

2. While holding down buttons "CURSOR d" and "CURSOR f" simultaneously, press the power button to

turn on the power.

3. Release the buttons after conrming that the display ashes at 1-second intervals.

＊ The unit is initialized.

Use network initialization mode to initialize the network related settings.

NOTE： • If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.

• Initializing the device restores the customized settings to the factory settings. Write down

your settings in advance and recongure the settings after initialization.

Use the following jigs (extension cable kit) when repairing the PCBs.

Order with your dealer for the jigs your dealer if necessary.

8U-110084S : EXTENSION UNIT KIT : 1 Set

8U-110136S : EXTENSION UNIT KIT : 1 Set

(See JIG FOR SERVICING)

CURSOR d

CURSOR fX

JIG FOR SERVICING

Initializing This Unit

CAUTION IN SERVICING.

Caution in

servicing Electrical Mechanical Repair Information Updating

ELECTRICAL

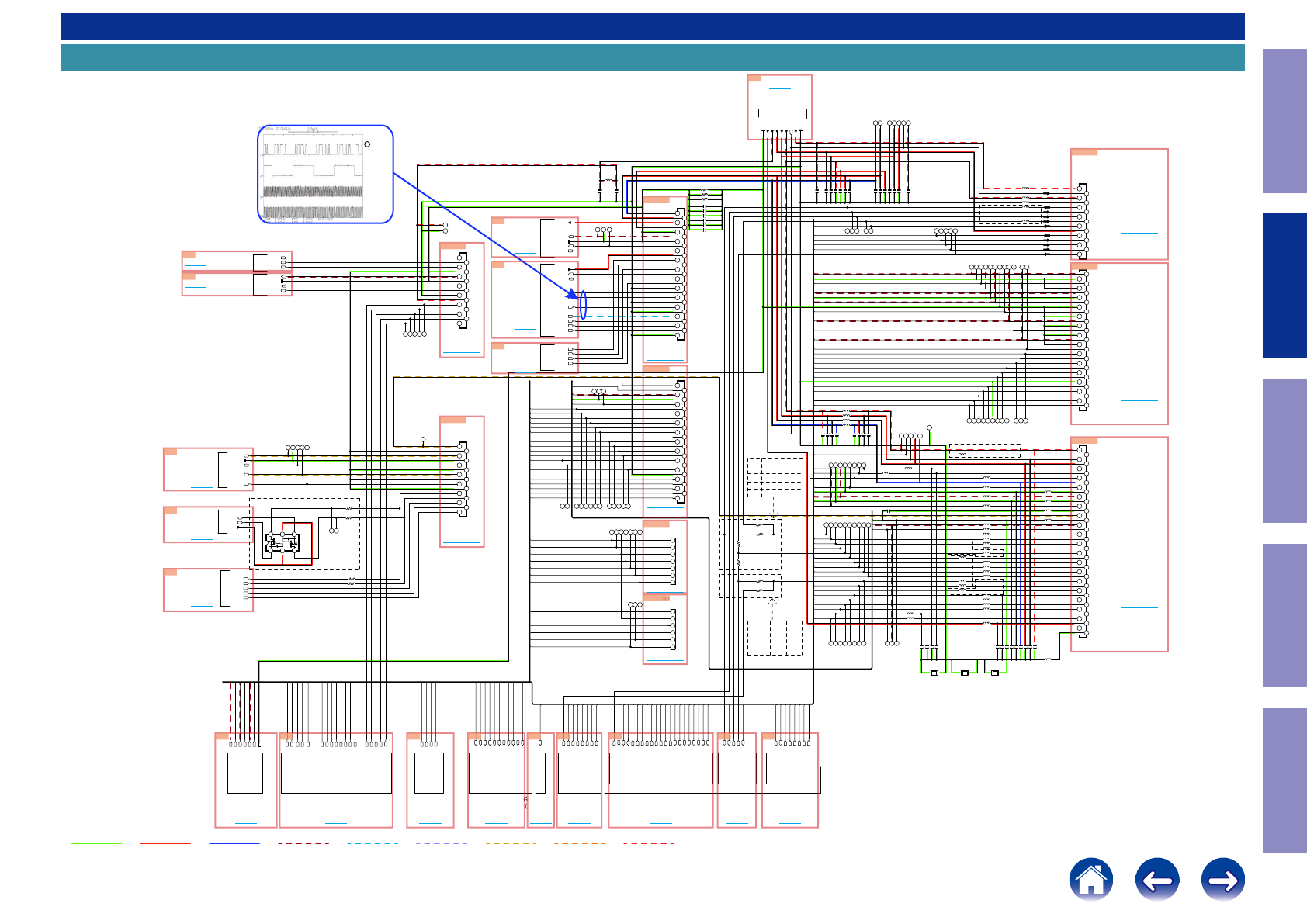

SCHEMATIC DIAGRAMS

SCH01_DIGITAL CONNECT

SCH02_DIGITAL POWER

SCH03_MAIN CPU

SCH04_EXPANDER

SCH05_CPU LEVEL CHG

SCH06_DIR

SCH07_AUDIO PLD

SCH08_DSP1

SCH09_DSP2

SCH10_DSP3

SCH11_DSP4

SCH12_ADC

SCH13_ZONE, LEGO DAC

SCH14_LEGO

SCH15_VIDEO DECODER

SCH16_HDMI SW2

SCH17_HDMI SW1

SCH18_VSP & IP & OSD

SCH19_VIDEO PLD

SCH20_HDMI TX & ARC

SCH21_INPUT

SCH22_PREOUT

SCH23_F-HDMI

SCH24_A-VIDEO

SCH25_RC-5

SCH26_RS232C_TRIGGER

SCH27_SIDE CNT

SCH28_FRT CNT

SCH29_MAIN DAC1

SCH30_MAIN DAC2

SCH31_SPK

SCH32_REGULATOR

SCH33_5CH AMP

SCH34_4CH AMP

SCH35_FRONT

SCH36_SMPS

PRINTED CIRCUIT BOARDS

DIGITAL

INPUT, USB, F-HDMI

VIDEO, GUIDE, SIDE CNT, FRONT CONT FFC

SPK, SPK H2L, GUIDE TRANS, GUIDE TOP, GUIDE SIDE

5CH AMP, 4CH AMP

FRONT, HDMI FFC TOP

FRONT CNT, TUNER, BKT, SMPS

LEVEL DIAGRAM

FRONT ch

CENTER / SURROUND ch

SUBWOOFER ch

ASSIGN1 / 2 (SURR.BACK / HEIGHT1 / HEIGHT2) ch

ZONE2 / ZONE3 ch

BLOCK DIAGRAM

ANALOG AUDIO DIAGRAM

DIGITAL AUDIO DIAGRAM

VIDEO DIAGRAM

HDMI DIAGRAM

POWER DIAGRAM

WIRING DIAGRAM

SEMICONDUCTORS

1. IC's

2. FL DISPLAY

3. Remote Code Table

Caution in

servicing Electrical Mechanical Repair Information Updating

SCHEMATIC DIAGRAMS

SCH01_DIGITAL CONNECT

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

FROM EXPANDER

TO VIDEO DEC

TO FRONT

TO DIGITAL SUPPLY

TO CPU LEVEL CHG

A+7V

A-7V

HI-B_ RLY

H/PR

MUTE_3.3 V

M3.3V

FL_CE2(70,77)

SWM3.3V

A+7V

A-7V

VAUXR

AGND

VAUXL

MICGND

MIC

VGND

VAUXV

H/PGND

H/PL

H/PR

POWERK EY

RED_LED

FL_CLK

FL_DATA

FL_CE1

NC(De)/M- DAXLED(Mz )

FLRST

WHI/GRN_ LED

NC(De)/NC(60)/DOOR_ DET(70,77)

CPUPO WER

HP/MIC _DET

NC(De)/FL_CT RL(60)/ILLU LED(70,77)

KEY1

KEY2

KEY3

ISELA

ISELB

VSELA

VSELB

SWM5V

FRONT_IRI N

B/PIRIN (De)/NC(60)/FIL_C TRL(70,77)

TU_/R ST

TU_T XMI/SDA

TU_RXM O/SCL

D5V

CPUPO WER

M3.3V

DGND

KILLIR_MZ

RC_OU T_MZ

REMOT E3.3V

232O_MI

232I_MO

TRIGGER_ 1

TRIGGER_ 2

RC_IN

FRONT_IRI N

TO CONNECT B PART

TO CONNECT A PARTTO CONNECT A PART

(AVRX4400H : PAGE 33_D3)

TO CONNECT B PART

TU_SE N

TO MAIN CPU TO MAIN CPU

NET_FA CT_RST

TO CONNECT B PART

B/PIRI N_AVR

FLASHER_IN_ MZ

ZONE_DA

D2,3 D2

ZONE_C L

DGND

LEGO_FA N_ON

AMPSIG DET_A VR/SR

A+5V

TO ZONE/LEGO DAC

DGND

TU_INT

D3,4

ZONE_ST B

MVOLC LK1

MVOLDA TA

VOL_M UTE

DAZONE3 R

DAGND

DAZONE3 L

DAGND

DAZONE2 R

DAGND

DAZONE2 L

MICGND

MIC

AGND

VAUXR

AGND

VAUXL

AVRX4400H : OP EN

DGND

AEXP_OE

AEXP_CLK

AEXP_DAT A_O UT

AEXP_ST B

TO AUDIO PLD

TO CONNECT B PART

A+5V

CURRENT _DET_A VR/SR

HPGND

H/PL

(PAGE 27_D1)

(PAGE 2_B1)

(PAGE 24_D3)

(PAGE 7_A3)

(PAGE 12_B6)

(PAGE 24_D6)

(PAGE 10_C1) (PAGE 3_D3) (PAGE 5_D3) (PAGE 3)

(PAGE 24_D5) (PAGE 24_D2)

NC(De)/DIREC TLED(M z)

DGND

TO AUDIO PLD

TO MAIN CPU

(PAGE 7_A3)

DGND

A_SEL_ CLK

A_SEL_ DATA

TO ADC

(PAGE 9_D1)

TO EXPANDER TO EXPANDER

(PAGE 4_C1~C3)

(PAGE 4_C1~3)

(PAGE 3_D4)

PRERL_Z2

PRERL_Z3

SPRL_F

SPRL_SB

SPRL_A1_H 1(SW1_RLY)

LEGOFAN _DET

SPRL_F_S B(SW2_RLY)

SPRL_A2_H 2

SPRL_A2_H 1

SPRL_S

SPRL_C

H/P_RLY

FANCON T_ON 1

FANCON T_L_O N1

TO 5CH AMP

DCDET2

DCDET1

ASODET

THERMA LDETA

TO 4CH AMP

ASODET

DCDET3

THERMA LDETB

(DE : PAGE 30_B1)

THERMA LDETE(5 CH)

THERMA LDETF(5 CH)

AGND

Z2AD_V DCOM

ADINZ2L

ADINZ2R

TO DIR

THERMA LDETF(4 CH)

AEXP_DAT A_IN

AVSDA

DGND

VIN_C

VIN_A

AVSCL

VIN_B

DEC_PR_IN

DGND

DEC_PB _IN

DGND

DEC_Y_IN

DGND

DEC_CV BS_IN

DGND

V.AUX_V_IN

TO MAIN CPU

(PAGE 3_A4)

(PAGE 4_C3)

TO LEGO

THERMA LDETB

THERMA LDETA

OPENOPEN

AVRX4400H

R1008R1007

AVRX4400 : OPE N

(PAGE 6_C5)

(PAGE 11_C6)

(PAGE 27_D2)

(DE : PAGE 31_B1)

AGND

OPTION

DALEGO_ L

DALEGO_ R

DAGND

AVRX4400H : OPEN

AVRX4400H : CB03YT YH600

AVRX4400H : OP EN

4400

R1009

R1010

R1011

R1012

OPEN

L1001

C1003

OPEN

C1002

OPEN

C1020OPEN

C1018OPEN

C1017OPEN

C1016OPEN

C1015OPEN

C1014OPEN

C1013OPEN

C10050.1

C10070.1

C10080.1

C10090.1

C10100.1

C10110.1

C10120.1

C1030OPEN

C1029OPEN

C1028OPEN

C1027OPEN

C10260.1

C10250.1

C10240.1

C10230.1

C1041OPEN

C1042OPEN

C1043OPEN

C1044OPEN

R1009

R1010

DEC_PR

T44

T45

T46

T47

T49

T50

T69

T70

T72

T73

T74

T75

T76

T77

T78

T79

T81

T82

T83

T84

T85

T86

T87

T89

T93

T94

T95

T96

T97

T98

T99

T100

T102

T103

T104

T105

T106

T107

T108

T109

T110

T111

T112

T113

T114

T115

T116

T117

T118

T119 T120

T121

T122

T124

T125

T320

T321

T322

T323

1517

1618

1925

24 22

23 21

2026

2729

3840

CN69B

10022H-40C

CJP40GA 193ZY

L1020

L1021 L1022CB03YT YH600

L1023CB03YTYH600

L1024CB03YTYH600

L1025CB03YTYH600

L1026

L1027

L1029CB03YTYH600

L1030CB03YTYH600

L1031CB03YTYH600

L1032CB03YTYH600

L1033

CB03YTYH600

L1034

CB03YTYH600

L1019CB03YTYH600

L1018CB03YTYH600

L1017CB03YTYH600

L1016BLM21PG221SN 1

L10150

L10140

L10130

L10120

L10110

L1010CB03YTYH600

L1008

CB03YTYH600

L1002BLM21PG221SN1

L1003CB03YTYH600

L1004CB03YTYH600

L1005CB03YTYH600

L1009

CB03YTYH600

C10401000P

C10391000P

C10381000P

C10371000P

C10361000P

C10351000P

C10341000P

C10331000P

C10321000P

C10311000P

L1006

CB03YTYH600

AUX_V

DEC_V

T27

DEC_Y

DEC_PB

L1028

L1007

T21

R1011R1012

T129

T130

T137

T39

T40

T41

T56

T59

T60

T61

T149

T158

T163

T164

810

911

1315

2628

BN23A

C125Z2-29

CJP29HJ 282Z

T131

T166

T167

T168

T169

T170

810

911

1214

1315

BN27A

C125Z2-15

CJP15HJ 282Z

15 13

14 12

11 9

10 8

7 5

6 4

3 1

222

BN24A

CJP27HJ 282Z

C125Z2-27

810

911

1214

1315

BN26A

CJP15HJ 282Z

C125Z2-15

T3T4T42

T62

T43

T242

T243

T244

T245

T48

T51

T317

T138

T148

T249

222

1 3

4 6

5 7

8 10

9 11

12 14

13 15

BN25A

C125Z2-25

CJP25HJ 282Z

T128

R1007

R1008

T64

T65

T66

T67

T68

7654321

CN704

CJP07GA 208ZY

654321

CN781

CJP06GA 208ZY

T230

T159

T160

1 3

4 6

5 7

8 10

9 11

12 14

13 15

BN21A

C125Z2-15

CJP15HJ 282Z

T18

AVSCL

AVSDA

654

321

Q1001

SSM6N15AFU

R10240

R10250

R1026OPEN

R1027OPEN

R10210.1uF

R10220.01uF

R10231000pF

T31

T32

1 2

BK101

CMD1A569- V1

1 2

BK102

CMD1A629

1 2

BK103

CMD1A569- V1

T13

T14

L10410

L10420

L10430

L10440

L1045

L1051600 ohm

L1052600 ohm

L1053600 ohm

L1054

L1055

C10510.1

C10520.01

C10531000P

C10540.1

C10550.01

C10561000P

CNT

RED

FIL_CTRL

RC_IN

RC_OUT _SR/AV

KILLIR_SR/A V

MVOLCLK 1

MVOLDAT A

ZONE_CL

ZONE_DA

DCDET1

DCDET2

ASODET

THERMALDE TB

THERMALDE TA

TRIGGER_1

TRIGGER_2

POWERKEY

RED_LED

FL_CLK

FL_DATA

FL_CE

FL_RST

WHI/GRN_LED

KEY1

KEY2

KEY3

ISELA

ISELB

VSELA

VSELB

ILLUMILED

ISELA

KEY3

KEY2

KEY1

FL_CLK

FL_CE

POWERKEY

VSELB

FL_DATA

VSELA

ISELB

DEC_PR_IN

DEC_PB_IN

DEC_Y_IN

DEC_CVBS _IN

FL_RST

FL_CE2

AMPSIGDET _AVR/SR

CURRENT_DET_ AVR/SR

H/PR

H/PL

H/PGND

DAZONE3R

DAZONE3L

DAZONE2R

DAZONE2L DA ZONE2L

DAZONE2R

DAZONE3L

DAZONE3R

MIC

VAUXL

VAUXR

AGND

MICGND

DCDET3

FL_CE2

WHI/GRN_LED

RED_LED

DOOR_DET

M-DAXLED_S R/AV

DIRECTLED_ SR/AV

ADINL

ADINR

H/PR

H/PGND

H/PL

MVOLCLK 1

MVOLDAT A

ZONE_CL

ZONE_DA

ZVOL_ST B

AEXP_STB

AEXP_DATA _OUT

AEXP_CLK

AEXP_OE

CPUPOWER

DCDET3

DCDET2

DCDET1

ASODET

THERMALDE TA

THERMALDE TB

AMPSIGDET _AVR/SR

HI-B_RLY

CURRENT_DET_ AVR/SR

DACMS1

DACRST1

DZF1

DACPCMSW2 RSV

DACPCMS

DACPCMC SW1

DACPCMF

DACMDI

DACMC

DZF2

DACPCMA SSIGN2

DACPCMA SSIGN1

DACLRCK

DACBCK

DACMCK

DACPCMA SSIGN3

DACPCMSW2 RSV

DACPCMS

DACPCMC SW1

DACPCMF

DACLRCK

DACBCK

DACMCK

DACRST1

DZF2

DZF1

DACMDI

DACMC

DACMS1

ADINR

ADINL

DA3.3V

DACPCMA SSIGN1

DACPCMA SSIGN2

DACPCMA SSIGN3

A_SEL_CLK

A_SEL_DAT A

CURRENT_DET_ AVR/SR

AMPSIGDET _AVR/SR

VSELB

VSELA

ISELB

ISELA

KEY3

KEY2

KEY1

POWERKEY

RED_LED

WHI/GRN_LED

FL_DATA

FL_CLK

FL_RST

FL_CE

FL_CE2

TRIGGER_1

TRIGGER_2

A_SEL_DAT A

A_SEL_CLK

HI-B_RLY

SPRL_H2

SPRL_RSV1

SPRL_RSV4

SPRL_H1

PRERL_Z2

PRERL_Z3

H/P_RLY

SPRL_C

SPRL_SB

SPRL_S

SPRL_F

HI-B_RLY

SPRL_H2

SPRL_RSV1

SPRL_RSV4

SPRL_H1

PRERL_Z2

PRERL_Z3

H/P_RLY

SPRL_C

SPRL_SB

SPRL_S

SPRL_F

H/P_RLY

SPRL_F

SPRL_C

SPRL_S

SPRL_SB

FANCONT _L_ON1

FANCONT _ON1

FANCONT _L_ON1

FANCONT _ON1

DCDET1

THERMALDE TA

DCDET3

DCDET2

ASODET

ADINZ2L

ADINZ2R

AEXP_DATA _IN

PRERL_Z3

PRERL_Z2

LEGO_FAN_ ON

LEGO_FAN_ ON LEGO_FAN _ON

HP/MIC_DE T

FANCONT _ON1

FANCONT _L_ON1

SPRL_RSV1

SPRL_RSV4

SPRL_H1

SPRL_H2

AVSCL

AVSDA

VIN_A

VIN_B

VIN_C

COMP_SW2

COMP_SW1

NET_FACT _RST

THERMALDE TF(5CH)

THERMALDE TE(5CH)

THERMALDE TF(4CH)

THERMALDE TE(4CH)

THERMALDE TB

THERMALDE TA

THERMALDE TB

AD_VDCOM

Z2AD_VDCO M

LEGOFAN_DE T

NET_FACT _RST

DALEGO_R

DALEGO_L

DALEGO_R

DALEGO_L

TU_RXMO/ SCL

TU_TXMI /SDA

TU_SEN

TU_/RST

TU_INT

ZONE_DA

ZONE_CL

ZVOL_ST B

MVOLCLK 1

MVOLDAT A

VOL_MUT E

DALEGO_R

DALEGO_L

DAZONE3R

DAZONE3L

VAUXL

AGND

VAUXR

MIC

MICGND

DAZONE2L

DAZONE2R

FLASHER_IN_SR/ AV

232O_MI

232I_MO

TRIGGER_1

TRIGGER_2

M3.3V

SWM3.3V

REMOTE3.3 V

MUTE3.3V

SWM5V

D5V

DGND

DAGND

DGND

DA3.3V

A+5V

DV3.3V

THERMALDE TF(4CH)

THERMALDE TE(4CH)

THERMALDE TF(5CH)

THERMALDE TE(5CH)

LEGOFAN_DE T

THERMALDE TE(5CH)

THERMALDE TF(5CH)

THERMALDE TE(4CH)

THERMALDE TF(4CH)

LEGOFAN_DE T

TU_/RST

DIRECTLED_ SR/AV

M-DAXLED_S R/AV

TU_/RST

M-DAXLED_S R/AV

DIRECTLED_ SR/AV

TU_TXMI /SDA

TU_INT

TU_RXMO/ SCL

TU_SEN

HP/MIC_DE T

TU_INT

TU_TXMI /SDA

TU_RXMO/ SCL

TU_SEN

HP/MIC_DE T

FLASHER_IN_SR/ AV

DOOR_DET

232I_MO

232O_MI

VOL_MUT E

232O_MI

232I_MO

VOL_MUT E

CH1: DATAF

CH2: DACLRCK

CH3: DACBCK

CH4: DACMCK

DAC input

TO 0A

TO 1A

TO 2A

TO 3A

TO 4A

TO 5A

TO 6A

TO 7A

TO 8A

TO 9A

TO 0B

TO 1B

TO 2B

TO 3B

TO 4B

TO 5B

TO 6B

TO 7B

BN26A

TO CN26A

BN24A

TO CN24A

BN25A

TO CN25A

CN704

TO BN704

CN781

TO BN781

BN21A

TO CN21A

BN27A

TO CN27A

BN23A

TO CN23A

CN69B

TO CN69A

Caution in

servicing Electrical Mechanical Repair Information Updating

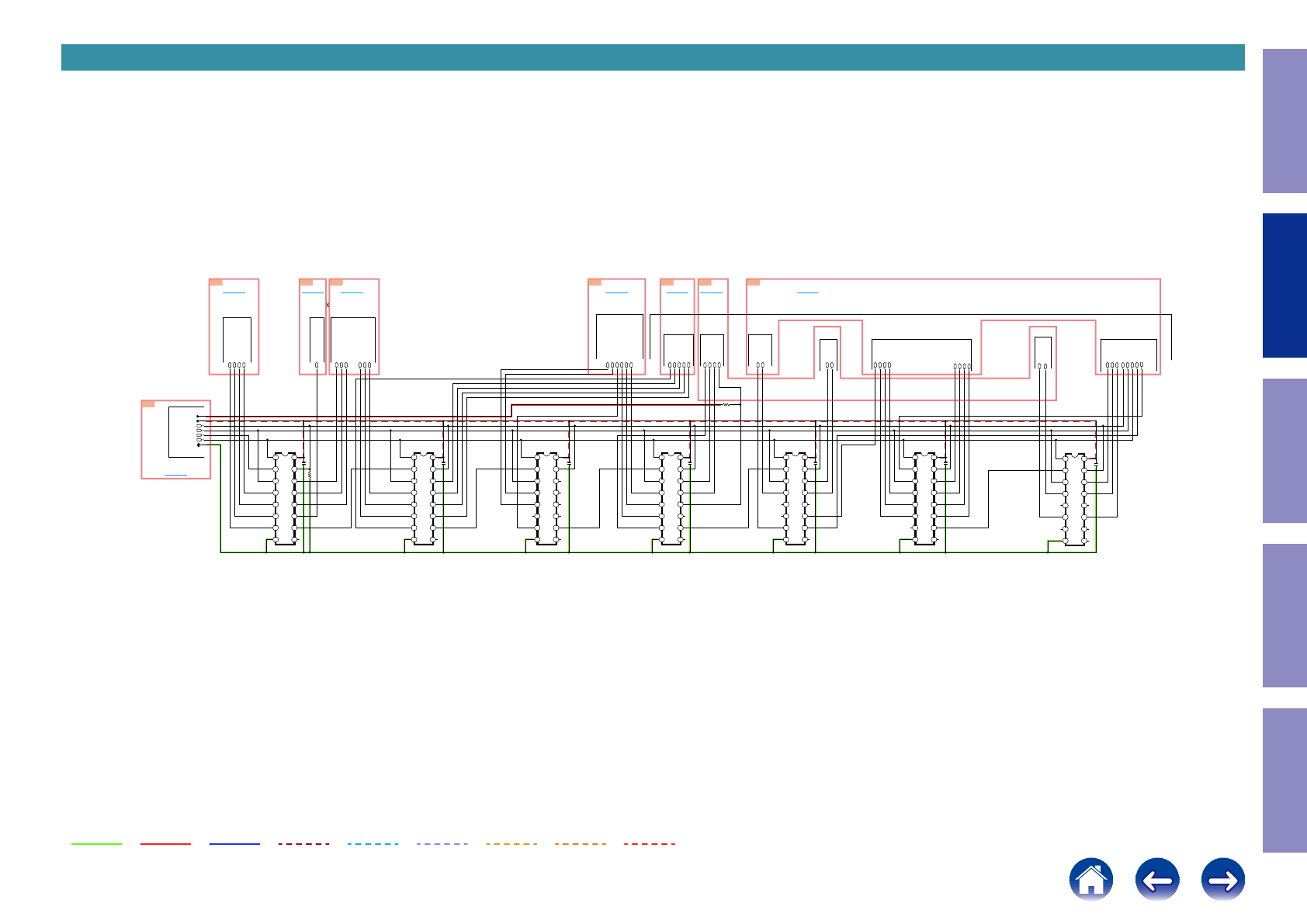

SCH02_DIGITAL POWER

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

D5V

TO LEGO

TO AUDIO PLD

TO VIDEO DEC

TO HDMI SW1

CEC STBY 3.3V

SWM3.3V

REMOTE3.3V

M3.3V

TO CPU LEVEL CHG

TO MAIN CPU

TO DIGITAL CONNECT

M3.3V

D5.2V

DGND

D5.2V

TO SMPS PART

MAINPOWER

D5V

DGND

TO HDMI SW2

1.88A

1.34A

D5V

1.62A

DV1.8V

3.3V

DA1.1V_1

CEC1.1V-1

1.85A

CEC3.3V

TO VSP+I/P

D5V

1.62A

CEC1.1V-2

1.62A

CEC1.1V-3

TO VIDEO PLD

TO HDMI TX

(PAGE 18_C1)

(PAGE 3_C1)

(PAGE 3_B6)

(PAGE 1_D3)

(PAGE 5_D1)

(PAGE 17_D6)

(PAGE 13_D1)

(PAGE 14_D1)

(PAGE 16_D5)

(PAGE 15_D3)

(PAGE 12_D6)

(PAGE 7_B1)

(PAGE 11_D6)

OPEN

BD2248G-GT R

D5V

DA1.1V_2

1.74A

M_RESET

SWM 5V

CEC STBY 5V

VIN

VFB

VBSTGND

VIN

VFB

VBSTGND

VIN

VFB

VBSTGND

VIN

VFB

VBSTGND

VIN

VFB

VBSTGND

VIN

VFB

VBSTGND

VIN

VFB

VBSTGND

VIN

VFB

VBSTGND

D5V

C1441,C1443,C1445

OPENAVRX4400H

C1435

OPENAVRX4400H

C1439

OPENAVRX4400H

C1235, C1237

OPENAVRX4400H

C1236, C1238

OPENAVRX4400H

C1333

0.1

R1333

33K

C1332

0.1

R1332

OPEN

C1343

0.1

R1343

10K

C1342

0.01

R1342

OPEN

C12311/10V

R1226

10K

R1228

10K

R1231

10K

R1233

10K

D1102

KDS160

C1252

OPEN

C1251

OPEN

C1253

1/10V

R1238

4.7K

R1241

100

R1239

47K

R1240

100K

R1237

10K

C1254

0.1

C12550.1

R1243OPEN

R1244

OPEN

C1256OPEN R1242

OPEN

C1248OPEN

C1247OPEN

C1246470/16V

C12450.1

C1244OPEN

C1241470/16V

C1242OPEN

C12430.1

C1261OPEN

C1262OPEN

C1263OPEN

C1264OPEN

C1271OPEN

C1272OPEN

C1273OPEN

C1274OPEN

C1275OPEN

C1276OPEN

C1277OPEN

C1278OPEN

C1279OPEN

C1280OPEN

C1281OPEN

C1282OPEN

C1283OPEN

C1284OPEN

C1285OPEN

C1286OPEN

C1287OPEN

C1288OPEN

C1289OPEN

C1290OPEN

C1265OPEN

C1266OPEN

C1267OPEN

C1268OPEN

C1269OPEN

C1270OPEN

C1295OPEN

C1296OPEN

C1297OPEN

C1298OPEN

C1299OPEN

C1300OPEN

C1301OPEN

C1302OPEN

C1303OPEN

C1304OPEN

L1224CB03YTYH600

L1223

BLM21PG 221SN1

L1222

BLM21PG 221SN1

L1221

BLM21PG 221SN1

T132

T135 T136

T139 T140

T143

T144

T145

T146

T147

C12324.7/10V

R1230

Q1131

2SC3052

Q1132

OPEN

1 5

OUT CD

GND

VDD

IC122OPEN

T12

R1382

R1381

10K

T22

R1171

T53T58

R1191

33 123

456

Q1105

FDC608PZ

C1353

0.1

R1353

27K

C1352

0.01

R1352

OPEN

T19 T9 2

R1101

OPEN

R1102

OPEN

C13341000P

C13351000P

C13361000P

C13371000P

C13381000P

C1354

1000P

C1140

OPEN

C14030.1/50V

C1131

0.1

C1139OPEN

C1120

OPEN

C1401

0.1/50V

C1111

0.1

C1119OPEN

C1180

OPEN

C1407

0.1/50V

C1171

0.1

C1179OPEN

C1200

OPEN

C14090.1/50V

R1192

100K

C1191

0.1

C1199OPEN

C1130

OPEN

C1402

0.1/50V

C1121

0.1

C1129OPEN

R1111

R1131

R1112

100K

R1132

100K

R1172

100K

R1122

100K

C111810/6.3V

C113810/6.3V

C117810/6.3V

C119810/6.3V C112810/6.3V

C111722/6.3V

C113722/6.3V

C117722/6.3V

C119722/6.3V C112722/6.3V

Q11512SA2166

Q11212SA2166

Q11232SA1954

Q11252SA2166

Q11272SA2166

R1236

10K

R1235

OPEN

L1111

CB03YTYH600

T218

R1201

C1210

OPEN

C14100.1/50V

R1202

100K

C1201

0.1

C1209OPEN

C120810/6.3V

C120722/6.3V

T219

R1211

C1220

OPEN

C14110.1/50V

R1212

100K

C1211

0.1

C1219OPEN

C121810/6.3V

C121722/6.3V

R1227

R1229

R1232

R1234

L1112

OPEN

L1113

CB03YTYH600

L1114

CB03YTYH600

L1121

CB03YTYH600

L1122

OPEN

L1123

OPEN

L1124

CB03YTYH600

L1131

CB03YTYH600

L1132

OPEN

L1133

OPEN

L1134

CB03YTYH600

L1171

CB03YTYH600

L1172

OPEN

L1173

OPEN

L1174

CB03YTYH600

L1191

CB03YTYH600

L1192

OPEN

L1193

OPEN

L1194

CB03YTYH600

L1201

CB03YTYH600

L1202

OPEN

L1203

OPEN

L1204

CB03YTYH600

L1211

CB03YTYH600

L1212

OPEN

L1213

OPEN

L1214

CB03YTYH600

1 5

VIN VO UT

GND

IC124

C1234

OPEN

R1127

OPEN

JIG

PJ01

JIG

PJ02

R1181

T173

C1190

OPEN

C1408

0.1/50V

C1181

0.1

C1189OPEN

R1182

100K

C118810/6.3V

C118722/6.3V

L1181

CB03YTYH600

L1182

OPEN

L1183

OPEN

L1184

CB03YTYH600

123

456

Q1107

FDC608PZ

C1373

0.1

R1373

10K

C1372

0.01

R1372

33K

T141 T142

R1121

123

456

Q1101

FDC608PZ

C13130.1

R1313

10K

C1312

0.01

R1312

10K

T28 T2 9

R1315OPEN

R1314

OPEN

R1256330

L12250

R1331

10K

R1341

10K

R1351

R1258

10K

Q11332SA1954

R1259

R111410K/F

R1115

14K/F

R1116

C1115

0.1

654

321

IC111

TPS563200DDCR

C1114

0.1

C1116OPEN

R1113

OPEN

L1115

(5040) 3.6uH

C111210/16V

C111310/16V

R112410K/F

R1125

33.2K/F

R1126

C1125

0.1

654

321

IC112

TPS563200DDCR

C1124

0.1

C1126OPEN

R1123

OPEN

L1125

(5040) 3.6uH

C112210/16V

C112310/16V

R113410K/F

R1135

33.2K/F

R1136

390/F

C1135

0.1

654

321

IC113

TPS563200DDCR

C1134

0.1

C1136OPEN

R1133

OPEN

L1135

(5040) 3.6uH

C113210/16V

C113310/16V

R117410K/F

R1175

4.7K/F

R1176

C1175

0.1

654

321

IC117

TPS563200DDCR

C1174

0.1

C1176OPEN

R1173

OPEN

C117210/16V

C117310/16V

R118410K/F

R1185

4.7K/F

R1186

C1185

0.1

654

321

IC118

TPS563200DDCR

C1184

0.1

C1186OPEN

R1183

OPEN

C118210/16V

C118310/16V

R119410K/F

R1195

4.7K/F

R1196

C1195

0.1

654

321

IC119

TPS563200DDCR

C1194

0.1

C1196OPEN

R1193

OPEN

C119210/16V

C119310/16V

R120410K/F

R1206

C1205

0.1

654

321

IC120

TPS563200DDCR

C1204

0.1

C1206OPEN

R1203

OPEN

C120210/16V

C120310/16V

R1205

4.7K/F

R121410K/F

R1216

C1215

0.1

654

321

IC121

TPS563200DDCR

C1214

0.1

C1216OPEN

R1213

OPEN

C121210/16V

C121310/16V

R1215

4.7K/F

D1101

KDS160

123

456

Q1103

FDC608PZ

123

456

Q1104

FDC608PZ

654321

CN903

CJP06GA353ZJ

B6B- EH-A

123

456

Q1102

FDC608PZ

C13230.1

R1323

27K

C1322

0.01

R1322

OPEN

T11 T1 7

R1325OPEN

R1324

OPEN

R1321

L1175

(5040) 2.2uH

L1185

(5040) 2.2uH

L1195

(5040) 2.2uH

L1205

(5040) 2.2uH

L1215

(5040) 2.2uH

Q1119

CVTI SA1530AC1

R13752.7

R13762.7

123

456

Q1106

FDC608PZ

C1363

0.1

R1363

10K

C1362

0.01

R1362

10K

T26 T3 0

Q1118

CVTI SA1530AC1

R13652.7

R13662.7

C1311

OPEN

C1321

OPEN

C1331OPEN

C1341

OPEN

C1351

OPEN

C1361OPEN

C1371OPEN

R13742.7

R13642.7

C1417

100/16V

C1427100/16V

R1377OPEN

Q1112

KRC102S

Q1115

KRC102S

Q1122

KRC102S

Q1124

KRC102S

Q1126

KRC102S

Q1128

KRC102S

Q1134

KRC102S

Q1152

KRC102S

Q1111

KRC104S

Q1113

KRC104S

Q1114

KRC104S

Q1116

KRC104S

Q1117

KRC104S

1 5

EN OUT

ADJ/NC

GND

IC123

AP7361-Y-1 3

R13831K

R1384

47K

R1385

R1386

15K

R1387

C1235

C1236

C1237

C1238

C1434OPEN

C1433OPEN

C1436OPEN

C1435

C1442OPEN

C1441

C1444OPEN

C1443

C1446OPEN

C1445

C1438OPEN

C1437OPEN

C1440

OPEN

C1439C1432OPEN

C1431OPEN

R1378

15K

C1374

22/6.3V

C1375

4.7/6.3V

CPU

LEGO5V

DA3.3V

DGND

CEC3.3V

CEC5V

CPU

REMOTEPO WER

CPUPOWER

MAINPOW ER

M_RESET

DGND

SWM3.3V

DGND

CEC_STB Y_3.3V

REMOTE3.3 V

MUTE3.3V

SWM3.3V

M3.3V

D5V

DGND

BDOWN

DGND

CEC_STB Y_5V

D5V

DGND

M3.3V

DGND

REMOTE3.3 V

DGND

SWM3.3V

CPU

CEC3.3V

CEC5V

DAGND

DV3.3V

DA1.1V_1

DGND

DV1.8V

DGND

DV3.3V

CEC5V

CEC1.1V- 1

CEC3.3V

CEC1.1V- 3

CEC1.1V- 2

DV5V

DGND

CPUPOWER

DV3.3V

DA1.8V

DV5V

DV_POWER2

CEC_POWE R

DA1.1V_2

CEC_POWE R

CEC_STB Y_5V

CEC_POWE R2

SWM5V

M3.3V

SWM3.3V

D5V_POWE R

Z2_CEC5V

DA_POWER

CEC_POWE R

NET5V_P OWER

NET3.3V_P OWER

DV_POWER1

CEC_POWE R

DV_POWER1

DA_POWER

D5V

NET3.3V

DV1.8V

D5V_POWE R

REMOTEPO WER

CPUPOWER

REMOTEPO WER

CPUPOWER

D5V_POWE R

DA_POWER DA _POWER

DV_POWER2

CEC_POWE R

DV_POWER1

CEC_POWE R2

NET3.3V_P OWER

NET5V_P OWER

NET3.3V_P OWER

DV_POWER1

DV_POWER2

CEC_POWE R

CEC_POWE R2

NET5V_P OWER

CPUPOWER

CEC3.3V

TO B4

TO 8B

TO 9B

TO 0C

TO 1C

TO 2C

TO 3C

TO 4C

TO 5C

TO 6C

TO 7C

TO 8C

CN903

TO BN901

Caution in

servicing Electrical Mechanical Repair Information Updating

SCH03_MAIN CPU

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

VERSION OPTION

TO DIGITAL SUPPLY

TO LEVEL CHG.

VERSION OPTION

TO DIGITAL CNT

3.30

2.2710k

1.6510k

ohmohm (V)

Vin

R1590

OPEN

22k

10k

VERSION

JAPA N

CHINA

USA

EUR/AP

R1589

4.TDI/RXD

2.MCU_3V3

9.TRST #

8.EMLE

10.TCK

7.MD

11.TMS

6.UB

3.TDO/TXD

5.DGND

1.RESET

E20/EMULATOR

1.00mm FFC

MP : OPEN

A3 A3A4

(PAGE 2_D1)

(PAGE 1)(PAGE 5)

AVCC0

VREFH0

P40 VREFL0

ICQ09-DS/AN 001

ICQ10-DS/AN 002

ICQ11-DS/AN 003

AN004

AN005

AN006

P47

VCC

P90

VSS

P91

P92

P93

PD0

P94

PD1

P95

PD2

VCC

P96

VSS

PD3

P97

PD4

PD5/IRQ 5

PG0

PD6

PG1

PD7

VCC

P60

VSS

P61

P62

P63

P64

PE0

PE1

PE2

VSS

PE5

VCC

P70

AN105

AN104

PG2

P65

PG3

P66

PG4

P67

VSS

PA0

VCC

PG5

PG6

PA1

PG7

PA2

PA4

PA3

PA6

PA5

VSS

PA7

VCC

PB0

P72

P71

PB2

PB1

PB4

PB3

PB6

PB5

P73

PB7

PC0

VSS

PC1/IR Q12

VCC

PE4

PE3

P20/TXD0

P17

P87/TIOC A2

P16

P86

P15

P14

P13

P12

VCC_USB

USB0_DM

USB0_DP

VSS_USB

AVCC_US BA

USBA_ PREF

AVSS_US BA

PVSS_US BA

VSS2_USBA

USBA_ DM

USBA_ DP

VSS1_USBA

VCC_USBA

P11

P10/IRQ0

P53

P52/RXD2

P51/SCK2

P50/TXD2

VSS

P83

VCC

PC6

PC5

P82/TXD10

P81/RXD10

P80/SCK1 0

PC4

PC3

P77

P76

PC2

P75

P74

P03/IRQ11

AVCC1

P02/IRQ10

AVSS1

P00/TXD6

P01/RXD6

EMLE

PF5/IRQ 4

VSS

PJ5

VCL

PJ3

VBAT T

TRST#

XCOUT

XCIN

XTAL

RES#

EXTAL

VSS

P35(IN)

VCC

P33/TIOC D0/IRQ 3-DS

P34/IRQ4

TMS

P32/TIOCC0 /IRQ2 -DS

P31/IRQ1- DS

TDI/RXD1

TCK

P30/RXD1

P27

TD0/T XD1

P25

P26/TXD1

NC(USB S EL)

VCC

P23

VSS

P05/IRQ13

AVSS0

P21/RXD0

P22

P07

HDMI CEC_PART

TO DIGITAL SUPPLY

TO AUDIO PLD

(PAGE 7_D1)

TO DSP 1

TO DIGITAL_CNT TO HDMI TX TO VIDEO_DEC TO HDMI SW2TO HDMI SW1TO VSP+I/P

(PAGE 13_A4)(PAGE 14_A3)(PAGE 12_A6)(PAGE 15_A6)

(PAGE 17_A2)

(PAGE 1_B6)

TO EXPANDER

TO DIR

(PAGE 6_D1)

TO ADC

(PAGE 9_D5)

MODE

TO LEGO

(PAGE 11_C6)

(PAGE 2_C1)

(PAGE 8-1_D1)

A3 A5D6 A3

(PAGE 4_C6)

MAIN CPU

R1573

R1572

R1571

R150110K

R1590 R1589

R1581OPEN

R150433

R150533

C15040.1

C15050.1

R1509

OPEN

R15214.7K

R15254.7K

R15244.7K

R1519

4.7K

R1520

10k

R15234.7K

R1508

100

CN152

CJP11GA 193ZY

10022H-11C

R1502OPEN

R1578OPEN

R1579OPEN

R15774.7K

R1503470K

X1501

12MHz

C150610P

C1507

10P

176

1 2 3 4 5 6 7 8 9 10 11 12 13 1 4 15 16 17 18 1 9 20 21 22 23 2 4 25 26 27 28 2 9 30 31 32 33 3 4 35 36 37 38 3 9 40 41 42 43 4 4

8990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

IC151

R5F564MJCDFC

C15020.1

R15064.7K

R15074.7K

R151433

R1528

R153433

R153533

R153633

R153733

R153833

R153933

R154033

R154333

R154433

R154533

R154633

R154733

R154833

R154933

R155033

R15520

R155333

R155133

R155533

R155633

R155733

R155833

R15991K

R160033

R160133

R160233

R160333

R160433

R160533

R160633

C15010.1

C15030.1

C15090.1

C15100.1

C15110.1

C15120.1

C15130.1

C15160.1

C15170.1

C15180.1

C15190.1

C15200.1

C15220.1

C15230.1

C15240.1

C15250.1

R1510

680

C15080.1

R151233

R151110K

R151333

R151533

R151633

R151833

R153033

R153133

R153233

R1610

10K

R1611

100K

C1530

OPEN

R1619

4.7K

R1618

47K

R16122.2M

R1617

100K

C1534

220P

R1616

220K

R1615

27K

D1501

KDS160

R1614

3.3K

C1533

0.1

R1613

1.2K

C15311000P

C15321000P

Q1501

2SC3052

Q1502

2SC3052

R16224.7K

R16214.7K

R16204.7K

R16244.7K

R16234.7K

R154133

R154233

C15210.1

C1515

0.01

R1527

OPEN

R152933

R153333

R15224.7K

R1526

10k

R1560100

R151733

R1561

4.7K

T33

R1562

R156333

D1_CS

D_MOSI

D_MISO

D_CK

D_RST

D1_FLG0

D2_FLG0

D4_FLG0

D2_CS

D3_CS

D4_CS

D2_FLG3

D3_FLG0

DR_CK

DR_CE

DR_DIN

DR_DOUT

DA_MD

DA_CK

A_DA

A_CK

HAINT

TX_HINT

S1_HINT

P_DA

P_CK

S2_HINT

IP_RST DE_ RST

S1_RST

S2_RST

TX_RST

D5V_PW

DA_PW

DV_PW1

DV_PW2

CEC_PW

CEC_PW 2

Q1503

INC2002AC1

R16254.7K

R162633

R160733

R162733

R1628OPEN

DA_MS

ARC_INT

ARC_RST

654

321

Q1505

SSM6N15AFU

R156510K

R156610K

R16294.7K

MCU

RC_OUT _SR/AV

POWERKEY

TU_RXMO/ SCL

FL_CE

FL_RST

TU_INT

FL_CLK

FL_DATA

RED_LED

VSELA

VSELB

ISELA

ISELB

KEY1

KEY2

KEY3

D5V_POWE R

MVOLCLK 1

MVOLDAT A

ZONE_CL

ZONE_DA

WHI/GRN_LED

FIL_CTRL

FL_CE2

FLASHER_IN_SR/ AV

TU_SEN

TU_TXMI /SDA

DOOR_DET

AMPSIGDET _AVR/SR

CURRENT_DET_ AVR/SR

MVOLDAT A

MVOLCLK 1

VSELB

VSELA

ISELB

ISELA

KEY3

KEY2

KEY1

POWERKEY

FL_DATA

FL_CLK

FL_RST

FL_CE

TU_RXMO/ SCL

TU_TXMI /SDA

TU_INT

FL_CE2

WHI/GRN_LED

RED_LED

TU_SEN

ZONE_CL

ZONE_DA

ZVOL_ST B

NET3.3V_P OWER

POWERKEY

RED_LED

WHI/GRN_LED

VSELA

VSELB

DOOR_DET

BDOWN

RC_IN

RC_OUT _SR/AV

A_SEL_DAT A

AEXP_STB

AEXP_OE

AEXP_CLK

ADV8003_SPI_CS

ADV8003_SPI_MI

ADV8003_SPI_CLK

ADV8003_SPI_MO

IP_RST

AVSDA

AVSCL

DSP_MOSI

DSP_MISO

CEC_POWE R2

PLDAERR1

HSDA

HSCL

Z2PLDAERR

Z3PLDAERR

ISELA

ISELB

ZONE_DA

ZONE_CL

ZVOL_ST B

H5VDET

FL_RST

FL_CE

FL_CLK

FL_DATA

FIL_CTRL

FL_CE2

MAINPOW ER

CPUPOWER

D5V_POWE R

CEC_POWE R

DV_POWER1

DV_POWER2

DIRDIN

DIRCE

DIRDOUT

DIRCLK

DIRRST

RXINT0

DE_RST

THER_PROT A

THER_PROT E

THER_PROT F

CURRENT_DET_ AVR/SR

AMPSIGDET _AVR/SR

KEY3

KEY2

KEY1

FLASHER_IN_SR/ AV

TU_INT

TU_TXMI /SDA

TU_SEN

TU_RXMO/ SCL

CEC_COM

CEC_OUT

CEC_IN

CEC_OUT

CEC_IN

DACMS1

DACRST1

A_SEL_CLK

AEXP_DATA IN

DSP_ICS

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP_RST

DSP_FLAG0

DSP_ICS

DSP_MOSI

DSP_MISO

DSP_RST

DSP_FLAG0

IP_RST

AVSCL

AVSDA

HSDA

788_1_HINT

HSCL

788_1_RST

HSDA

H5VDET

HSDA

HSCL

787_HINT

RXINT0

787_RST

CEC_COM

DE_RST

HSDA

HSCL

RXINT0

CEC_POWE R

DV_POWER2

DV_POWER1

DA_POWER

DV_POWER1

DV_POWER2

CEC_POWE R

ADV8003_SPI_CS

ADV8003_SPI_MO

ADV8003_SPI_MI

ADV8003_SPI_CLK

DACMC

DACMDI

AEXP_OE

AEXP_CLK

AEXP_DATA IN

AEXP_STB

232O_MI

232I_MO

DIRRST

DIRDOUT

DIRDIN

DIRCE

DIRCLK

ADCRST

DIRRST

DIRDOUT

DIRDIN

DIRCE

DIRCLK

ADCRST

AEXP_OE

AEXP_CLK

AEXP_DATA IN

AEXP_STB

DC/ASO_P ROT

ADCRST

HP/MIC_DE T

JTAG_T MS/APLD_ CS

DACMC

DACMDI

DACMC

DACMDI

JTAG_T DI/APLD_ DATA

JTAG_T CK/APL D_CLK

JTAG_T MS/APLD_ CS

JTAG_T DI/APLD_ DATA

JTAG_T CK/APL D_CLK

JTAG_T MS/APLD_ CS

JTAG_T DI/APLD_D ATA

JTAG_T CK/APL D_CLK

CEC_POWE R2

787_RST

787_HINT

RC_OUT_ SR/AV

FIL_CTRL

DOOR_DET

MCU

FLASHER_IN_SR/ AV

ZVOL_ST B

CURRENT_DET_ AVR/SR

AMPSIGDET _AVR/SR

M_RESET

DA_POWER

788_2_HINT

788_2_RST

788_1_HINT

788_1_RST

788_2_HINT

788_2_RST

DSPI_CLK

DSP2_FLAG0

DSP3_FLAG0

DSP4_FLAG0

DSP_RST

DSP_ICS

DSP2_ICS

DSP3_ICS

DSP4_ICS

DSP2_FLAG3

DSP_FLAG0

DSP2_FLAG0

DSP3_FLAG0

DSP4_FLAG0

DSP2_FLAG0

DSP3_FLAG0

DSP4_FLAG0

DSP2_ICS

DSP3_ICS

DSP2_ICS

DSP3_ICS

DSP4_ICS

DSP2_FLAG3

CEC_POWE R2

MVOLDAT A

NET_FACT _RST

NET5V_P OWER

A_SEL_DAT A

MVOLCLK 1

REMOTEPO WER

AIOS4_WAK EUP

AIOS4_STB Y_STATU S

NET3.3V_P OWER

A_SEL_CLK

AIOS4_STB Y_STATU S

NET5V_P OWER

NET3.3V_P OWER

GUI_WRITE

E_RXD_MIEO

E_RTS_MO EI

HP/MIC_DE T

D5V_POWE R

KILLIR_SR/A V

KILLIR_SR/A V KILLIR_SR/ AV

VOL_MUT E

MCU_VL_ MUTE

VOL_MUT E

MCU_VL_ MUTE

VOL_MUT E

E_CTS_M IEO

E_TXD_MO EI

E_RXD_MIEO

E_CTS_M IEO

E_TXD_MO EI

E_RTS_MO EI

AIOS4_WAK EUP

NET_FACT _RST

AVSCL

AVSDA

COMP_DET

VOL_MUT E

COMP_DET

EHARC_RST

A_SEL_CLK

EHARC_INT

DGND

SWM3.3V

M3.3V

CEC_STB Y_3.3V

CEC_STB Y_5V

DV3.3V

M3.3V

SWM3.3V

HSCL

CEC_STB Y_5V

THER_PROT A THER_PRO TA

THER_PROT E

THER_PROT F THER_PRO TF

THER_PROT E

DC/ASO_P ROT DC/ASO _PROT

DACRST1

DACMS1

DACRST1

DACMS1

232I_MO

232O_MI

232I_MO

232O_MI

RC_INRC_IN

M_RESET

REMOTEPO WER

CPUPOWER

MAINPOW ER

BDOWN

M_RESET

BDOWN

REMOTEPO WER

CPUPOWER

MAINPOW ER

PLDAERR1

Z2PLDAERR

Z3PLDAERR

PLDAERR1

Z2PLDAERR

Z3PLDAERR

EHARC_RST

EHARC_INT

EHARC_RST

CEC3.3V

AVSCL

AVSDA

788_2_HINT

HSCL

HSDA

788_2_RST

ADI_AVSDA

ADI_AVSCL

ADI_AVSDA

ADI_AVSCL

IP_RST

ADV8003_SPI_CLK

ADV8003_SPI_MO

ADV8003_SPI_MI

ADV8003_SPI_CS

COMP_DET

DE_RST

CEC_COM

788_1_RST

HSDA

HSCL

788_1_HINT

H5VDET

E_RXD_MIEO

E_CTS_M IEO

E_TXD_MO EI

E_RTS_MO EI

AIOS4_WAK EUP

AIOS4_STB Y_STATU S

NET_FACT _RST

GUI_WRITE

TO A3

TO A7

TO B1

TO B2

TO B3

TO B7

TO C6

TO C7

TO 9C

TO 0D

TO 1D

TO 2D

TO 3D

TO 4D

TO 5D

TO 6D

TO 7D

TO 8D

TO 9D

TO 0E

TO 1E

Caution in

servicing Electrical Mechanical Repair Information Updating

SCH04_EXPANDER

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

STR

QP0

QP1

GND

VCC

QP4

QP5

QP6

QP7

QS2

QS1

QP2

QP3

STR

QP0

QP1

GND

VCC

QP4

QP5

QP6

QP7

QS2

QS1

QP2

QP3

STR

QP0

QP1

GND

VCC

QP4

QP5

QP6

QP7

QS2

QS1

QP2

QP3

STR

QP0

QP1

GND

VCC

QP4

QP5

QP6

QP7

QS2

QS1

QP2

QP3

STR

QP0

QP1

GND

VCC

QP4

QP5

QP6

QP7

QS2

QS1

QP2

QP3

TO MAIN CPU

TO HDMI SW2TO HDMI SW1TO VIDEO PLD TO DIGITAL CNT

TO HDMI TX

A4 A5 A5

A4 A5

PAGE 1

(PAGE 3 _D6)

(PAGE 13_A4) (PAGE 17_D6)

(PAGE 14_A3) (PAGE 16_C6)

STR

QP0

QP1

GND

VCC

QP4

QP5

QP6

QP7

QS2

QS1

QP2

QP3

STR

QP0

QP1

GND

VCC

QP4

QP5

QP6

QP7

QS2

QS1

QP2

QP3

161514131211109

87654321

IC171

MC74HC4094ADR2G

161514131211109

87654321

IC172

MC74HC4094ADR2G

C1701

0.1

C1702

0.1

161514131211109

87654321

IC174

MC74HC4094ADR2G

161514131211109

87654321

IC175

MC74HC4094ADR2G

C1704

0.1

C1705

0.1

16151413

11109

87654321

IC176

MC74HC4094ADR2G

C1706

0.1

R1701

4.7K

161514131211109

87654321

IC173

MC74HC4094ADR2G

C1703

0.1

R1702

4.7K

16151413121110

87654321

IC177

MC74HC4094ADR2G

C1707

0.1

AEXP_OE

AEXP_CLK

AEXP_DATA IN

AEXP_STB

HPD1

HPD2

HPD3

HPD4

HPD5

HPD6

HPD7

HPD8

HINSELA

HINSELB

HINSELC

VPLD_TRA NS0

VPLD_TRA NS1

VPLD_TRA NS2

DIRECTLED_ SR/AV

M-DAXLED_S R/AV

ILLUMILED

SPRL_RSV1

SPRL_RSV4

PRERL_Z2

H/P_RLY

TRIGGER_1

TRIGGER_2

AEXP_OE

AEXP_CLK

AEXP_STB

TTL_SEL_A

TTL_SEL_B

SD/HD

TU_/RST

SPRL_C

SPRL_SB

SPRL_F

AEXP_DATA _OUT

PRERL_Z3

SPRL_S

FANCONT _ON1

FANCONT _L_ON1

SPRL_H2

SPRL_H1

HI-B_RLY

AEXP_DATA _IN

LEGO_FAN_ ON

VIN_A

VIN_B

VIN_C

COMP_SW1

COMP_SW2

DGND

SWM3.3V

M3.3V

TO A4

TO A6

TO B0

TO C9

TO 2E

TO 3E

TO 4E

TO 5E

Caution in

servicing Electrical Mechanical Repair Information Updating

SCH05_CPU LEVEL CHG

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

TO MAIN CPU

TO DIGITAL SUPPLY POWER

TO DIGITAL CONNECT

(PAGE 1_A4)

(PAGE 2_B1)

(PAGE 3_D5)

DC_DET /ASO

TO MAIN CPU

TO AUDIO PLD

(PAGE 7_D1)

(PAGE 3_D5)

R1939

22K

R1941OPEN

C19120.01

R1938

470K

R1937

100

R19364.7K

C19110.01

R1931

100K

C1908

0.01

R1944

22K

R1946OPEN

C19130.01

R1943

470K

R1942

100

R1935

100K

C1910

0.01

R19323.3K

C19090.01

R1934

22K

T185

T186

T187 T188

Q1909

ISA1530AC 1

Q1910

2SC3052

Q1911

2SC3052

Q1913

2SC3052

Q1912

ISA1530AC 1

Q1914

2SC3052

Q1915

2SC3052

Q1916

2SC3052

R1933

100

R1930

100

R1906

22K

C19020.01 R1905

100

R1907

T246Q1902

2SC3052

R1911

22K

C19030.01 R1910

100

R1912

T247Q1903

2SC3052

R1909OPEN

R1914OPEN

R1928

100K

C1906

0.01

R19295.6K

C19070.01

T206

Q1906

ISA1530AC 1

Q1907

2SC3052

Q1908

2SC3052

R1927

100

R1908

10K

R1913

10K

R1951

10K

R1952

10K

D1904

KDS160

D1903

KDS160

D1902

KDS160

D1901

KDS160

C1916

0.01

R1969

100

Q1922

2SC3052

R1967

3.3K

R1966

10K

R1968

3.9K

R196033

R195933

R195833

Q1923

OPEN

C1917

OPEN

R1971

OPEN

R1970

OPEN

DCDET2

DCDET1

ASODET

THERMALDE TB

THERMALDE TA

PROTECT

DCDET3

THER_PROT A

THERMALDE TF(5CH)

THERMALDE TE(5CH)

THERMALDE TE(4CH)

THERMALDE TF(4CH)

THER_PROT E

THER_PROT F

DCDET3

DCDET2

DCDET1

THERMALDE TB

THERMALDE TA

DC/ASO_P ROT

THER_PROT A THER_PRO TA

APLD_CS

APLD_DI

APLD_CK

JTAG_T MS/APLD_ CS

JTAG_T DI/APLD_ DATA

JTAG_T CK/APL D_CLK

LEGOFAN_DE T

DGND

SWM3.3V

THER_PROT E

THER_PROT F

THER_PROT E

THER_PROT F

TO A8

TO C8

TO D2

TO D3

TO 6E

Caution in

servicing Electrical Mechanical Repair Information Updating

SCH06_DIR

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

TO MAIN CPU

TO AUDIO PLD

COAX1

COAX2

OPT1

OPT2

COAX OUT

(DENON LINK HD)

ZONE2

ZONE3

SCL

SDA

ERR

GPO

RXIN

MPIO

LPF

GND

VDD

SDIN

XOUT

XIN

DATAO

LRCKO

BCKO

MCKO

SCL

SDA

ERR

GPO

RXIN

MPIO

LPF

GND

VDD

SDIN

XOUT

XIN

DATAO

LRCKO

BCKO

MCKO

ZONE1

(PAGE 7_B6)

(PAGE 3_C6)

DE : RCA- 215A-11(CJJ4N068Y)

TO HDMI SW1

(PAGE 14_C1)

TO A.PLD

(PAGE 7_C6) DIR1/ADC

VINR

VINL

VCCAD

AGNDAD

VCOM

FILT

VCC

AGND

XTO

XTI

GNDRX

RXIN0

ERROR/INT 0

NPCM

MPIO_ A0

MPIO_ A1

MPIO_ A2

MPIO_ A3

MPIO_ C0

MPIO_ C1

MPIO_ C2

MPIO_ C3

MPIO_ B0

MPIO_ B1

MPIO_ B2

MPIO_ B3

MPO0

MPO1

DOUT

LRCK

BCK

SCKO

DGND

DVDD

DMO

MDI

MODE

RXIN7

RXIN6

RXIN5

RXIN4

RXIN3

RXIN2

RST

RXIN1

VDDRX

C2023 :

C2024 :

R2053 :

CERAM IC / ¡ ¾5%

CARBO N / ¡ ¾5%

TO CNT

(PAGE 1_C6)

AVRX4400HCCUS1 H103KCS

C2003, C2004

C2018

CCUC0J 106KCSAVRX4400H

C2022

OPENAVRX4400H

1 2 3

OUT

GND

VCC

JK202

JSR1124

12 3

OUT

GND

VCC

JK203

JSR1124

R2001

150

C2001

OPEN

R2003

150

R2002

150

C2002

OPEN

R2004

150

C2003

0.01

C2004

0.01

R2005

470

R2006

470

C2007

0.1

C2008

0.1

1234567

891011121314

IC201

TC74VHC U04FT

R2012

47KR2020

R2019

R2013

47K

R2014

330K

R2011

330K

R2008

OPEN

R2007

OPEN

R2009

OPEN

R2010

OPEN

C20060.1

C2009

33P

R2021

R2022

R2015

OPEN

R2016

OPEN

R2017

OPEN

R2018

OPEN

C2005

0.1

T190

T191

T192

T193

JK201

Q2001

2SC4617EB

R2025

1.8K

R2023

100K

R2026

220

R2028

2.2K

R2027

3.9K

C2011

1/10V

R2024

C2013

OPEN

C2012

OPEN

JK204

CJJ4M073ZY

RJ-0111R- 29T

R2039

100

C2031

0.1

C2032

0.022

2345678

9 10 11 1 2 13 14 15 16

IC203

LC89091JA- H

R2036

R2038

10K

C2030

0.1

R2043

100

C2034

0.1

C2035

0.022

12345678

9 10 11 1 2 13 14 15 16

IC204

LC89091JA- H

R2040

R2042

10K

C2033

0.1

R2037

R2041

C20140.1

C201915P

C202012P

R2052

820

R203133

C2021

0.1

R204733

R20463.3K

C20160.1

R2049

100

1 2 3 4 5 6 7 8 9 10 11 12

252627282930313233343536

IC202

PCM9211PTR

R2053

680

C201510/6.3V

C2018

C20170.1

R2048

4.7K

R205047K

C2022

R2051

X2001

24.576MHz

R20324.7K

R2044100

C202350V/4700pF

C2024

50V/0.068uF

R2034OPEN

R203333

R2035OPEN

R2045100

R203033

R202933

8765

4321

RN20133x4

C2010

33P

R2054

R2055

R2058OPEN

R2059OPEN

R2056OPEN

C202610/6.3V

C20250.1

C202810/6.3V

C20270.1

R2057OPEN

R20600

R20610

R20620

R206333

R206433

R2065OPEN

R2066

150

8765

4321

RN205

33x4

876

4321

RN204

33x4

D2001

OPEN

D2002

OPEN

Q2002

KRC107S

Q2003

KRC107S

C2038

OPEN

C2039OPEN

C2037

OPEN

C2036

OPEN

R2071OPEN

DEMZ2

DEMZ3

DIRDATA

Z2DIRDATA

Z3DIRDATA

DIRLRCK

Z2DIRLRCK

Z3DIRLRCK

DIRBCK

Z2DIRBCK

Z3DIRBCK

DIRMCK

Z2DIRMCK

Z3DIRMCK

DATAAD

Z3DIRPERR

Z2DIRPERR

DIRPERR

DIRNPCM

Z2DIRNPCM

Z3DIRNPCM

DENONLINK HD

COAX0

DENONLINK HD

COAX1

OPT0

OPT1

DEMZ2

Z2DIRNPCM

DEMZ3

Z3DIRNPCM

DIR3

DIRDATA

Z2DIRDATA

Z3DIRDATA

DIRLRCK

Z2DIRLRCK

Z3DIRLRCK

DIRBCK

Z2DIRBCK

Z3DIRBCK

DIRMCK

Z2DIRMCK

Z3DIRMCK

DIRRST

DIRDOUT

DIRCE

DIRCLK

DIRDIN

DIRCE

DIRDIN

DIRDOUT

DIRRST

DIRXMCK

Z3DIRPERR

Z2DIRPERR

Z2HDMISPDI F

SPDIF_OUT

COAX0

COAX1

DIRRST

OPT0

OPT1

HDMISPDIF

DIRCE

DIRCLK

DIRDIN

DIRDOUT

DIRNPCM

DIRPERR

DIRXMCK

DIRMCK

DIRBCK

DIRLRCK

DIRDATA

Z2DIRSPDIF

Z3DIRSPDIF

Z3DIRPERR

Z3DIRNPCM

DEMZ2

DEMZ3

Z2DIRPERR

Z2DIRNPCM

DIRXMCK

Z3DIRDATA

Z3DIRLRCK

Z3DIRBCK

Z3DIRMCK

DIRXMCK

Z2DIRDATA

Z2DIRLRCK

Z2DIRBCK

Z2DIRMCK

DENONLINK HD

DATAAD

DIRADMCK

DIRAUXMCK

DIRAUXBCK

DIRAUXLRCK

DIRAUXDATA

DIRSLRCK

DIRSBCK

DIRADMCK

DIRAUXDATA

DIRPERR

DIRNPCM

DIRXMCK

ADINZ2L

ADINZ2R

DIRSBCK

DIRSLRCK

DIRADBCK

DIRADLRCK

DIRADBCK

DIRADLRCK

DIRADMCK

DIRADBCK

DIRADLRCK

DATAAD

DIRAUXLRCK

DIRAUXBCK

DIRAUXMCK

DIRSLRCK

DIRSBCK

Z3DIRSPDIF

Z2DIRSPDIF

Z2AD_VDCO M

DAGND

DGND

DIRAUXDATA

DIRAUXLRCK

DIRAUXBCK

DIRAUXMCK

A+5V

DA3.3V

HDMISPDIF

CH1:RXIN0

DIR input

CH1: DIRDATA

CH2: LRCK

CH3: DIRBCK

DIR output

TO A1

TO D0

TO 7E

TO 8E

TO 9E

Caution in

servicing Electrical Mechanical Repair Information Updating

SCH07_AUDIO PLD

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

GND

XTO

XTI/

REF_CLK

CLK_O UT

AUX_OU T

CLK_IN

AD0/CS

SCL/

CCLK

SDA/

CDIN

TO LEV EL CHG

TO HDMI TX

TO DIR

EMULATOR

TO DIGITAL SUPPLY POWER

MP:open

TO LEGO

TO ZONE/LEGO DAC

TO DIGITAL CONNECT

TO DSP1

TO VIDEO PLD

TO DSP4

TO DSP2

TO ADC

(PAGE 2_C3)

(PAGE 16_D4 )

(PAGE 5_A6)

(PAGE 11_C6)

(PAGE 17_C6)

(PAGE 6_B1,C1)

(PAGE 8-1_D3)

(PAGE 8-1_D5)

(PAGE 8-2_D2) (PAGE 8-4_D3)

(PAGE 9_D6) (PAGE 1_C4,D6) (PAGE 10_D5)

TO HDMI SW1

(PAGE 14_C1)

TO DSP3

(PAGE 8-3_D3)

TO DSP3

( PAGE 8-3_D5)

TO MAIN CPU

(PAGE 3_C1)

TO LEGO

(PAGE 11_A4)

C2203

OPENAVRX4400H

AUDIO PLD

ELNA PVX

1234

78 9 10

IC223

CS210010-CZZR

C22270.1

C2226OPEN

R220410k

R2207OPEN

R2208

100

8 7 6 5

4 3 2 1

RN221

100x4

C2225

100P

R220110K

R220210K

R220310K

CN221

CJP07GA 193ZY

10022H-07C

R2209

100

T194

T195

T196

T197

T198

T199

T200

L2201

CB05YTYH221

R220510k

R220610k

GND-01

A2 IO-001

VCCIO2- 1

A4 IO-002

A5 IO-003

A6 IO-004

A7 IO-005

A8 IO-006

A9 IO-007

A10 IO-008

A11 IO-009

A12 IO-010

A13 IO-011

A14

VCCIO2- 2

A15 IO-012

A16

GND-02

B1 IO-013

GND-03

B3 IO-014

B4 IO-015

B5 IO-016

B6 IO-017

GND-04

B8 IO-018

B9 IO-019

B10 IO-020

B11 IO-021

B12 IO-022

B13 IO-023

B14 IO-024

B15

GND-05

B16 IO-025

VCCIO1- 1

C2 IO-026

C3 IO-027

C4 IO-028

C5 IO-029

C6 IO-030

C7 IO-031

C8 IO-032

C9 IO-033

C10 IO-034

C11 IO-035

C12 IO-036

C13 IO-037

C14 IO-038

C15 IO-039

C16

VCCIO2- 3

D1 IO-040

D2 IO-041

D3 IO-042

D4 IO-043

D5 IO-044

D6 NC-01

D7 NC-02

D8 NC-03

D9 NC-04

D10 NC-0 5

D11 IO-045

D12 IO-046

D13 IO-047

D14 IO-048

D15 IO-049

D16 IO-050

E1 IO-051

E2 IO-052

E3 IO-053

E4 IO-054

E5 NC-06

E6 NC-07

E7 NC-08

E8 NC-09

E9 NC-10

E10 NC-1 1

E11 NC-1 2

E12 NC-1 3

E13 IO-055

E14 IO-056

E15 IO-057

E16 IO-058

F1 IO-059

F2 IO-060

F3 IO-061

F4 NC-14

F5 NC-15

F6 NC-16

F7 NC-17

VCCIO2- 4 F9

VCCIO2- 5

F10 NC-1 8

F11 NC-1 9

F12 NC-2 0

F13 IO-062

F14 IO-063

F15 IO-064

F16 IO-065

G1 IO-066

G2 IO-067

G3 IO-068

G4 NC-2 1

G5 NC-2 2

G6 NC-2 3

GND-06 G8

GND-07 G9

GND-08 G10

GND-09

G11 NC- 24

G12 NC- 25

G13 NC- 26

G14 IO-069

G15 IO-070

G16 IO-071

H1 IO-072

H2 IO-073

H3 IO-074

H4 NC-27

H5 IO-075

VCCIO1- 2

GND-10

VCCINT- 1

GND-11

H10

VCCINT- 2

H11

VCCIO2- 6

H12 IO-076

H13 NC-2 8

H14 IO-077

H15 IO-078

H16 IO-079

J1 IO-080

IO-081

IO-082

J4 NC-3 0

IO-083

VCCIO1- 3

VCCINT- 3

GND-12

VCCINT- 4

J10

GND-13

J11

VCCIO2- 7

J12

IO-084

J13 NC- 29

J14

IO-085

J15

IO-086

J16

IO-087

IO-088

IO-089

IO-090

K4 NC- 31

K5 NC- 32

K6 NC- 33

GND-14 K8

GND-15 K9

GND-16 K1 0

GND-17

K11 NC- 34

K12 NC- 35

K13 NC- 36

K14

IO-091

K15

IO-092

K16

IO-093

IO-094

IO-095

IO-096

IO-097

L5 NC-3 7

TDI

L7 NC-3 8

VCCIO1- 4 L9

VCCIO1- 5

L10 NC- 39

L11 NC- 40

L12 NC- 41

L13

IO-098

L14

IO-099

L15

IO-100

L16

IO-101

IO-102

IO-103

IO-104

IO-105

TDO

M6 NC-4 2

M7 NC-4 3

IO-106

IO-107

M10 NC- 44

M11 NC- 45

M12 NC- 46

M13

IO-108

M14

IO-109

M15

IO-110

M16

IO-111

IO-112

IO-113

IO-114

TMS

IO-115

N6 NC-4 7

N7 NC-4 8

N8 NC-4 9

N9 NC-5 0

N10 NC- 51

N11 NC- 52

N12

IO-116

N13

IO-117

N14

IO-118

N15

IO-119

N16

IO-120

VCCIO1- 8

IO-121

TCK

IO-122

IO-123

IO-124

IO-125

IO-126

IO-127

P10

IO-128

P11

IO-129

P12

IO-130

P13

IO-131

P14

IO-132

P15

IO-133

P16

VCCIO2- 8

IO-134

GND-18

IO-135

IO-136

IO-137

IO-138

IO-139

IO-140

IO-141

R10

IO-142

R11

IO-143

R12

IO-144

R13

IO-145

R14

IO-146

R15

GND-19

R16

IO-147

GND-20

IO-148

VCCIO1- 6

IO-149

IO-150

IO-151

IO-152

IO-153

IO-154

T10

IO-155

T11

IO-156

T12

IO-157

T13

IO-158

T14

VCCIO1- 7

T15

IO-159

T16

GND-21

IC221

5M570ZF256C5N

R2249

100

R2250100

T248

R2264100

R2263100

C22220.1

C22230.1

C22210.1

C22110.1

C22120.1

C22100.1

C22130.1

C22140.1

C22150.1

C22160.1

C22170.1

C22180.1

C22190.1

C22200.1

C22050.1

C22060.1

C22070.1

C22080.1

C22090.1

C22240.1

R2212100

R2213100

R2210100

R2215100

R2216100

R2214100

R2217100

R2219100

R2228100

R2229100

R2230100

R2231100

R2232100

R2233100

R2234100

R2235100

R2236100

R2237100

R2238100

R2239100

R2240100

R2241100

R2242100

R2243100

R2244100

R2245100

R2246100

R2247100

R2248100

R2260100

R2261100

R2262100

R2266100

R2267100

R2268100

R2269100

C2204OPEN

GND

OUT

1 3

IC222

OPEN

C2203

C2202OPEN

C2201OPEN

R2211100

R225133

R225233

R225333

C2228220/6.3V

R2270100

R2273100

R2274100

R2272100

R2271100

R2255100

R2254100

R2256100

R2257100

R2275100

R2276100

R2277100

R2279220

R2278220

R2280100

R2281100

MCK

64FS

I2S0

I2S1

I2S2

I2S3

SPDIF

R228333

R2282

OPEN

X2281

22.5792MHz

C2281

0.1

J_TDO 1

J_TC K

J_TDI

J_TM S

J_TDO

AP_CK

AP_DA

AP_CS

D1I_S/SL

D1I_-/SW

D1I_BCK

D1I_-/FR

D1I_CSW/C

D1I_MCK

D1I_LRCK

D1I_SB/SR

D1I_F/FL D2I_MCK

D3I_MCK

D4I_FW

D4I_FH

D4I_BCK

D4I_SB

D4I_CSW

D4I_S

D4I_F

D4I_RSV

D4I_MCK

D4I_LRCK

R2285OPEN

R228733

R2288

R228933

R22860

R2290

4.7K

R22910

R22920

C2230OPEN

C222950V/270pF

R22940

R2293100

DIRDATA

DIRLRCK

DIRBCK

DIRMCK

PLDADCDAT A

DACPCMF

DACPCMCSW1

DACPCMS

DACPCMSW2R SV

DZF1

DIRPERR

APLD_CK

APLD_DI

APLD_CS

PLDAERR1

DIRNPCM

DEMZ3

DEMZ2

Z2DACBCK

Z2DACDAT A

Z2DACLRCK

Z2DACMCK

Z3DACBCK

Z3DACDAT A

Z3DACLRCK

Z3DACMCK

Z2DIRDATA

Z3DIRDATA

Z2DIRLRCK

Z3DIRLRCK

Z2DIRBCK

Z3DIRBCK

Z2DIRMCK

Z3DIRMCK

DEMZ2

DEMZ3

DACMCK

DACBCK

DACLRCK

DACPCMASSIGN1

DACPCMASSIGN2

DZF2

Z2DIRPERR

Z3DIRPERR

Z3DACMUT E

Z2DACMUT E

DENONLINK HD

Z2DIRNPCM

Z3DIRNPCM

DATAAD

DIRDATA

Z2DIRDATA

Z3DIRDATA

DIRLRCK

Z2DIRLRCK

Z3DIRLRCK

DIRBCK

Z2DIRBCK

Z3DIRBCK

DIRMCK

Z2DIRMCK

Z3DIRMCK

PLD3

RXINT0

PLD7

DACPCMASSIGN3

PLD8

CSCKOU T

CSLOCK

CSCKIN

CSREFIN

DIRXMCK

JTAG_T DO

TDO1_TDI2

Z2PLDAERR

Z3PLDAERR

PLD11

DSP1INS_SL

DSP1INBCK

DSP1INRSV_FR

DSP1INSWC_C

DSP1INLRCK

DSP1INF_FL

DSP1INRSV_SW

DSP1INMCK

DSP2INMCK

DSP3OUT S

DSP3OUT F

DSP3OUT SB

DSP3OUT CSW1

DSP3OUT FH

DSP3OUT FW

DSP3OUT LRCK

DSP3OUT BCK

DSP3INMCK

Z3DACMCK

Z3DACLRCK

Z3DACDAT A

Z3DACBCK

Z2DACMCK

Z2DACLRCK

Z2DACDAT A

Z2DACBCK

Z3DACMUT E

Z2DACMUT E

DSP1INF_FL

DSP1INSB_SR

DSP1INLR

DSP_FLAG3

DSP2_FLAG3

DSP3_FLAG3

DSP1INLR

DSP1INSB_SR

PLDADCLRCK

PLDADCBC K

PLDADCMCK

DIRSLRCK

DIRSBCK

DIRNPCM

DIRPERR

DIRAUXDATA

DIRAUXBCK

DIRAUXLRCK

DIRAUXMCK

DIRAUXDATA

DIRAUXLRCK

DIRAUXBCK

DIRAUXMCK

Z3DIRNPCM

Z3DIRPERR

Z2DIRNPCM

Z2DIRPERR

HDMISPDIF

Z2_HAINT

DSP3OUT RSV1

DSP1INLRCK

DSP1INSWC_C

DSP1INMCK

DSP1INRSV_FR

DSP1INBCK

DSP1INS_SL

DSP1INRSV_SW

DSP_FLAG3

DSP2INMCK

DSP3OUT F

DSP3OUT S

DSP3OUT LRCK

DSP3OUT BCK

DSP3OUT FW

DSP3OUT RSV1

DSP3OUT SB

DSP3INMCK

DSP3OUT CSW1

DSP3OUT FH

DSP4OUT SW2RSV

DSP4OUT F

DSP4OUT S

DSP4OUT LRCK

DSP4OUT BCK

DSP4INLRCK

DSP4OUT RSV1

DSP4OUT FW

DSP4OUT SB

DSP4INMCK

DSP4OUT CSW1

DSP4OUT FH

DSP4INS

DSP4INCSW

DSP4INSB

DSP4INF

DSP4INFH

DSP4INFW

DSP4INBCK

DSP4INRSV1

DSP4_FLAG3

DACPCMF

DACPCMC SW1

DACPCMS

DACPCMSW2 RSV

DZF1

DACMCK

DACBCK

DACLRCK

DACPCMA SSIGN1

DACPCMA SSIGN2

DACPCMA SSIGN3

DZF2

RXINT0

Z2_HAINT

Z3DIRBCK

Z3DIRMCK

Z3DIRDATA

Z3DIRLRCK

DIRNPCM

DACPCMA SSIGN2

DACPCMA SSIGN3

DSP4INRSV1

Z3DACDAT A

Z2DACMUTE

DIRXMCK

DENONLINK HD

DSP_FLAG3

DSP2_FLAG3

DSP3OUT F

Z3DIRNPCM

Z3DIRPERR

Z2DIRMCK

Z2DIRBCK

Z2DIRLRCK

Z2DIRDATA

Z2DIRNPCM

Z2DIRPERR

DSP1INRSV_SW

DSP1INSB_SR

DSP1INF_FL

DSP1INSWC_C

DSP1INRSV_FR

DSP1INBCK

DSP1INS_SL

DIRAUXDATA

DIRAUXLRCK

DIRAUXMCK

HDMISPDIF

DIRXMCK

DIRPERR

DIRDATA

DIRLRCK

DIRBCK

DIRMCK

CSCKIN

CSREFIN

Z2DACDAT A

Z2DACMCK

Z3DACMCK

Z3DACMUTE

Z2DACBCK

Z3DACLRCK

Z2DACLRCK

DSP4OUT S

DSP4OUT SW2RSV

DSP4OUT F

DSP4INCSW

DSP4OUT FH

DSP4INFH

DSP4OUT CSW1

DSP4INBCK

DSP4INFW

DSP4INMCK

DSP4INS

DSP4INSB

DSP4INF

DSP4INLRCK

DACMCK

DACPCMC SW1

DACBCK

DACLRCK

DACPCMF

DACPCMS

DACPCMA SSIGN1

DSP4OUT LRCK

DSP4OUT BCK

DSP4OUT FW

DSP4OUT SB

DIRAUXBCK

APLD_CK

APLD_DI

APLD_CS

DSP2INMCK

DSP3OUT RSV1

DSP3OUT SB

DSP3OUT BCK

DSP3OUT FW

DSP3OUT S

DSP3OUT FH

DSP3INMCK

DSP3_FLAG3

DSP3OUT CSW1

DSP3OUT LRCK

Z3DACBCK

DACPCMSW2 RSV

CSCKOU T

CSLOCK

DSP4_FLAG3

DSP4OUT RSV1

DSP1INLRCK

DSP1INMCK

JTAG_T CK

JTAG_T DI

JTAG_T MS

PLDAERR1

Z2PLDAERR

Z3PLDAERR

DIRADMCK

DIRADBCK

DIRADLRCK

DIRSLRCK

DIRSBCK

LRCK_I2S_1

SCLK_I2S_1

GPIO_0

GPIO_1

GPIO_2

MCLK_I2S_0

LRCK_I2S_0

SCLK_I2S_0

SDOUT_I2S_ 0

SDOUT_I2S_ 1

SPDIF_OUT S PDIF_OUT

SPDIF_OUT

DSP2_FLAG3

GPIO_0

GPIO_1

GPIO_2

PWM_3

SDIN_I2S_0

LRCK_I2S_1

SDIN_I2S_1

SCLK_I2S_1

LRCK_I2S_2

SDIN_I2S_2

SCLK_I2S_2

SDOUT_I2S_ 2

TXBCK

TXLRCK

TXI2S0

TXBCK

TXLRCK

TXI2S0

RXI2S1/DSD2

RXMCK/DSDM CK

RXBCK/DSDS CK

RXLRCK/DSD5

RXI2S0/DSD1

RXI2S1/DSD2

RXI2S2/DSD3

RXI2S3/DSD4

RXSPDIF/DSD0

JTAG_T MS

JTAG_T DI

JTAG_T CK

TDO1_TDI2

L_JTAG _TCK

JTAG_T DO

L_JTAG _TMS

L_JTAG _TDI

Z3PLDAERR

Z2PLDAERR

PLDAERR1

RXMCK/DSDM CK

RXI2S0/DSD1

RXI2S2/DSD3

RXI2S3/DSD4

RXINT0

TXBCK

TXLRCK

TXI2S0

MCLK_I2S_0

LRCK_I2S_0

SDIN_I2S_0

SCLK_I2S_0

SDOUT_I2S_ 0

LRCK_I2S_1

SDIN_I2S_1

SCLK_I2S_1

SDOUT_I2S_ 1

LRCK_I2S_2

SDIN_I2S_2

SCLK_I2S_2

SDOUT_I2S_ 2

PWM_3

GPIO_0

GPIO_1

GPIO_2

APLD_CS

APLD_DI

RXBCK/DSDS CK

RXLRCK/DSD5

APLD_CK

RXSPDIF/DSD0

RXI2S1/DSD2

DSP3_FLAG3

VOL_MUT E

MCU_VL_ MUTE

VOL_MUT E

MCU_VL_ MUTE

VOL_MUT E

DEMZ2

DEMZ3

DEMZ2

DEMZ3

DATAAD

DIRADMCK

DIRADBCK

DIRADLRCK

DIRADMCK

DIRADBCK

PLDADCMCK

PLDADCBC K

PLDADCLRCK

PLDADCDAT A

DIRADLRCK

DATAAD

DIRSBCK

DIRSLRCK

PLDADCMC K

DZF1

DZF2

PLDADCDAT A

PLDADCLRCK

PLDADCBC K

DSP4OUT F

DSP4OUT SW2RSV

DSP4OUT S

DSP4OUT LRCK

DSP4OUT BCK

DSP4INLRCK

DSP4OUT FW

DSP4OUT RSV1

DSP4OUT SB

DSP4INMCK

DSP4OUT CSW1

DSP4OUT FH

DSP4INF

DSP4INCSW

DSP4INS

DSP4INSB

DSP4INBCK

DSP4INFW

DSP4INFH

DSP4INRSV1

DSP4_FLAG3

LEGODACM UTE

LEGODACDA TA

LEGODACLRC K

LEGODACM CK

LEGODACB CK

LEGODACLR CK

LEGODACDA TA

LEGODACM UTE

LEGODACB CK

LEGODACM CK

EHARC_MU TE

EHARC_SPDI F

EHARC_SD3

EHARC_SD2

EHARC_SD1

EHARC_SD0

EHARC_LRCK

EHARC_BC K

EHARC_MC K

EHARC_SPDI F

EHARC_SD3

EHARC_SD2

EHARC_SD1

EHARC_SD0

EHARC_LRCK

EHARC_BC K

EHARC_MC K

LEGODACDA TA

LEGODACM UTE

LEGODACM CK

LEGODACB CK

LEGODACLR CK

RXMCK/DSDM CK

RXBCK/DSDS CK

RXLRCK/DSD5

RXI2S0/DSD1

RXI2S2/DSD3

RXI2S3/DSD4

RXSPDIF/DSD0

EHARC_SD0

EHARC_SD1

EHARC_SD2

EHARC_SD3

EHARC_MC K

EHARC_BC K

EHARC_LRCK

DSP1INLR

DENONLINK HD

EHARC_MU TE

EHARC_SPDI F

Z2_HAINT

DGND

A+5V

DA3.3V

DA1.8V

DA3.3V

DA1.1V_2

DA1.1V_1

MCLK_I2S_0

LRCK_I2S_0

SCLK_I2S_0

LRCK_I2S_2

SCLK_I2S_2

SDIN_I2S_0

SDIN_I2S_1

SDIN_I2S_2

SDOUT_I2S_ 0

SDOUT_I2S_ 1

SDOUT_I2S_ 2

PWM_3

DA3.3V

DA1.1V_1

DA1.1V_2

EHARC_MU TE

JTAG_T MS

JTAG_T CK

PLD_WRITE

TO A0

TO B6

TO B9

TO D5

TO E6

TO E8

TO E9

TO 0F

TO 1F

TO 2F

TO 3F

TO 4F

TO 5F

TO 6F

TO 7F

TO 8F

TO 9F

TO 0G

TO 1G

TO 2G

Caution in

servicing Electrical Mechanical Repair Information Updating

SCH08_DSP1

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

SDDQM

MS0

VDD_INT

CLK_C FG1

ADDR0

BOOT_CFG0

VDD_EXT

ADDR1

ADDR2

ADDR3

ADDR4

ADDR5

BOOT_CFG1

GND

ADDR6

ADDR7

ADDR8

ADDR9

CLK_C FG0

VDD_EXT

SDCKE

CLKIN

XTAL

ADDR10

SDA10

ADDR11

ADDR12

ADDR17

ADDR13

ADDR18

RESETOU T/RU NRSTIN

DPI_P01

DPI_P02

DPI_P03

DPI_P05

DPI_P04

DPI_P06

DPI_P08

DPI_P07

DPI_P09

DPI_P10

DPI_P11

DPI_P12

DPI_P13

DPI_P14

DAI_P03

WDTRST O

DAI_P07

DAI_P13

DAI_P19

DAI_P01

DAI_P02

DAI_P06

DAI_P05

DAI_P09

DAI_P10

DAI_P20

DAI_P08

DAI_P14

DAI_P04

DAI_P18

DAI_P17

DAI_P16

DAI_P12

DAI_P15

DAI_P11

BOOT_CFG2

AMI_ACK

GND

THD_M

THD_P

VDD_EXT

MS1

WDT_CL KO

WDT_CL KIN

ADDR23

ADDR22

ADDR21

ADDR20

ADDR19

ADDR16

ADDR15

ADDR14

AMI_WR

AMI_RD

FLAG0

FLAG1

FLAG2

MLBCL K

FLAG3

MLBDA T

MLBDO

MLBSI G

TRST

MLBSO

EMU

DATA0

DATA1

DATA2

DATA3

TDO

DATA4

DATA5

DATA6

DATA7

TDI

SDCLK

DATA8

DATA9

DATA1 0

TCK

DATA1 1

DATA1 2

DATA1 4

DATA1 3

DATA1 5

SDWE

SDRAS

RESET

TMS

SDCAS

BA1

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDD

LDQM

CAS

RAS

BA0

A10/AP

VDD VSS

A11

A12

CKE

CLK

UDQM

VSS

DQ8

VDDQ

DQ9

DQ10

VSSQ

DQ12

DQ11

VDDQ

DQ13

DQ14

VSSQ

DQ15

VSS

TDI

EMU

TRST

TMS

TDO

TCK

GND

VCC

EMULATOR

TO MAIN CPU PART

TO DSP2 PART

TO A.PLD PART

GND

MP:open

177

DGND

256M BIT SDRAM

TO DSP2 PART

GND SI

SCK

HOLD

VCC

SCK

GND

MOSI

VCC

MISO

GND

MP:open

TO DSP3 PART

TOAUDIO PLD

(PAGE 7_A5) (PAGE 8-2_D5) (PAGE 7_A5) (PAGE 8-3_D2) (PAGE 8-2_D2) (PAGE 3_D1)

MP:open

10022H-07C

TO DSP2 PART

(PAGE 8-2_D3)

TO DSP4 PART

(PAGE 8-4_D2)

TO LEGO

(PAGE 11_A3)

DSP1

123456789101112131415161718192021222324252627

28 29 30 31 3 2 33 34 35 36 3 7 38 39 40 41 4 2 43 44 45 46 4 7 48 49 50 51 5 2 53 54

IC252

A3V56S40GT P-60

R2576

8765

4321

RN25133x4

R25014.7K

R2502OPEN

R2503OPEN

8765

4321

RN25233x4

8765

4321

RN25333x4

R25254.7K 8 7 6 5

4 3 2 1

RN256

10Kx4

8765

4321

RN257

10Kx4

R25404.7K

R254210K

R2549100

8 7 6 5

4 3 2 1

RN26210x4

8 7 6 5

4 3 2 1

RN26310x4

C2501

0.01

R255810

R2557OPEN

R255910K

R256010

CN252

10022H-11C

CJP11GA 193ZY

R2554

OPEN

R25504.7K

176

1 2 3 4 5 6 7 8 9 10 11 12 13 1 4 15 16 17 18 1 9 20 21 22 23 2 4 25 26 27 28 2 9 30 31 32 33 3 4 35 36 37 38 3 9 40 41 42 43 4 4

8990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

IC251

CVIADSP21487KSWZ-4B

R2547

10K

R253082

R253482

R253282

R253682

R252310K

R2526OPEN

R25444.7K

TP41

TP42

TP43

TP44

R2553

R2556

R2555

R2552

R2551

OPEN

R2543100

C25281000P

C25271000P

C25261000P

C25251000P

C25241000P

C25231000P

C25221000P

C25211000P

C25201000P

C25191000P

C25181000P

C25171000P

C25161000P

C25151000P

C25141000P

C25131000P

C25121000P

C25111000P

C25101000P

C25091000P

C25481000P

C25471000P

C25461000P

C25451000P

C25441000P

C24431000P

C25421000P

C25411000P

C25401000P

C25391000P

C25381000P

C25371000P

C25361000P

C25351000P

C25341000P

C25331000P

C25321000P

C25311000P

C25301000P

C25291000P

R25454.7K

R2505

R2506

1.8K

R2504

C25491000P

R253582

R253782

1234

5678

IC254

MX25L1606EM2I-12G

R250733

R250833

R250933

R2512

R251410K

R2513

OPEN

R2515OPEN

R251810K

R251010K

C25050.1

R2516

10K

R251110K

R251710K

R252410K

R2529

CN251

CJP07GA 193ZY

R2519150

R25200

R25210

R25220

T171

T202

T204

T205

C2504

OPEN

C2550OPEN

C2551OPEN

C2552OPEN

C2553OPEN

X2501

25MHz

R253382

R2546100

R253982

R253882

C25540.1

C25550.1

C25560.1

C25570.1

C25580.1

C25590.1

C25600.1

C25610.1

C25620.1

C25630.1

C2564

0.1

C2565

0.1

C2566

0.1

C2567

0.1

C2568

0.1

C2569

0.1

C25700.1

C25710.1

C25720.1

C25730.1

C25740.1

C25750.1

C25920.1

C25760.1

C25770.1

C25780.1

C25790.1

C25800.1

C25810.1

C25820.1

C25830.1

C25840.1

C25850.1

C25860.1

C25870.1

C25880.1

C25890.1

C25900.1

C25910.1

R2577

10K

CN253

10022H-09C

CJP09GA 193ZY

C25931000P

C25940.1

C25950.1

C25970.1

C25990.1

C25961000P

C25981000P

C28011000P

C28070.1

C28050.1

C28041000P

C28061000P

C28030.1

C28021000P

R25784.7K

R25794.7K

R2531

C2502

18P

C2503

18P

8765

4321

RN25433x4

R2581

8765

4321

RN26433x4

8765

4321

RN26110x4

8765

4321

RN26010x4

D1_FLG3

D1O_FS

D1O_64FS

D1O_FW

D1O_CS W

D1O_SB

D1O_RSV 1

D1O_F

D1O_FH

DSP

DSP1INSWC_C

DSP1INLRCK

DSP1INSB_SR

DSP1INF_FL

DSPD0

DSPD1

DSPD2

DSPD3

DSPD4

DSPD5

DSPD6

DSPD7

SDCLK

DSPD8

DSPD9

DSPD10

DSPD11

DSPD12

DSPD15

RAS

CAS

DSP

DSPD0

DSPD1

DSPD2

DSPD3

DSPD4

DSPD5

DSPD6

DSPD7

DQM

RAS

CAS

DSPA17

DSPA18

SDA10

DSPA0

DSPA1

DSPA2

DSPA3

DSPD8

DSPD9

DSPD10

DSPD11

DSPD12

DSPD13

DSPD14

DSPD15

DQM

SDCLK

SDCKE

DSPA4

DSPA5

DSPA6

DSPA7

DSPA8

DSPA9

DSPA11

DSPD13

DSPD14

DSP_RST

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP_RST

DSP_ICS

DSP1OUT S

DSP1OUT F

DSP1OUT SB

DSP1OUT CSW

DQM

SDCKE

DSPA0

DSPA1

DSPA2

DSPA3

DSPA4

DSPA5

DSPA6

DSPA7

DSPA8

DSPA9

DSPA12

DSP1INLR

TCK1TCK1

TDO1

TMS1TMS1

TRST1TRST1

EMU1 EMU1

TDI1 TDI1

DSP1OUT FH

DSP1OUT FW

DSP2_ICS

DSPI_CLK

DSP_MISO

DSP_MOSI

CE0

DSP_ICS

DSP_MOSI

DSPI_CLK

DSP_MISO

TDO1

DSP_FLAG0

DSP1OUT RSV1

DSP3_ICS

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP3_ICS

DSP_FLAG3

DSP_FLAG0

DSP2_FLAG0

DSP3_FLAG0

SDA10

DSPA11

DSPA12

DSP1OUT LRCK

DSP1OUT BCK

DSP1INMCK

DSP3_FLAG0

DSP2_FLAG3

DSP_FLAG3

DSP1OUT RSV2

DSP1INRSV_FR

DSP1INBCK

DSP1INS_SL

DSP1INRSV_SW

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP_RST

DSP_FLAG0

DSP_ICS

DSP_FLAG3

DSP4_ICS

DSP4_FLAG0

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP4_FLAG0

DSP4_ICS

DSP_RST

DSP1_SPI_SS

DSP1_SPI_MOSI

DSP1_SPI_CLK

DSPA17

DSPA18

DGND

DSP2_FLAG0

DA1.1V_1

DA3.3V

DA1.1V_1

DA3.3V

DSP1_SPI_MISO

TO D4

TO F6

TO F7

TO 3G

TO 4G

TO 5G

TO 6G

TO 7G

TO 8G

Caution in

servicing Electrical Mechanical Repair Information Updating

SCH09_DSP2

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

SDDQM

MS0

VDD_INT

CLK_C FG1

ADDR0

BOOT_CFG0

VDD_EXT

ADDR1

ADDR2

ADDR3

ADDR4

ADDR5

BOOT_CFG1

GND

ADDR6

ADDR7

ADDR8

ADDR9

CLK_C FG0

VDD_EXT

SDCKE

CLKIN

XTAL

ADDR10

SDA10

ADDR11

ADDR12

ADDR17

ADDR13

ADDR18

RESETOU T/RU NRSTIN

DPI_P01

DPI_P02

DPI_P03

DPI_P05

DPI_P04

DPI_P06

DPI_P08

DPI_P07

DPI_P09

DPI_P10

DPI_P11

DPI_P12

DPI_P13

DPI_P14

DAI_P03

WDTRST O

DAI_P07

DAI_P13

DAI_P19

DAI_P01

DAI_P02

DAI_P06

DAI_P05

DAI_P09

DAI_P10

DAI_P20

DAI_P08

DAI_P14

DAI_P04

DAI_P18

DAI_P17

DAI_P16

DAI_P12

DAI_P15

DAI_P11

BOOT_CFG2

AMI_ACK

GND

THD_M

THD_P

VDD_EXT

MS1

WDT_CL KO

WDT_CL KIN

ADDR23

ADDR22

ADDR21

ADDR20

ADDR19

ADDR16

ADDR15

ADDR14

AMI_WR

AMI_RD

FLAG0

FLAG1

FLAG2

MLBCL K

FLAG3

MLBDA T

MLBDO

MLBSI G

TRST

MLBSO

EMU

DATA0

DATA1

DATA2

DATA3

TDO

DATA4

DATA5

DATA6

DATA7

TDI

SDCLK

DATA8

DATA9

DATA1 0

TCK

DATA1 1

DATA1 2

DATA1 4

DATA1 3

DATA1 5

SDWE

SDRAS

RESET

TMS

SDCAS

TO DSP1 PART TO DSP1 PART

TO DSP1 PART

177

DGND

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDD

LDQM

CAS

RAS

BA0

BA1

A10/AP

VDD

VSS

DQ15

VSSQ

DQ14

DQ13

VDDQ

DQ12

DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

VSS

N.C

MDQM

CLK

CKE

A12

A11

VSS

GND SI

SCK

HOLD

VCC

256M BIT SDRAM

TDI

EMU

TRST

TMS

TDO

TCK

GND

VCC

EMULATOR

GND

MP:open

SCK

GND

MOSI

VCC

MISO

GND

MP:open

(PAGE 8-1_D4) (PAGE 8-1_D3) (PAGE 8-1_D2)

TO DSP3 PART TO A.PLD

TO LEGO

(PAGE 11_A2)

(PAGE 8-3_D3) (PAGE 7_A4)

DSP2

R2605

8765

4321

RN26633x4

C26020.1

C26030.1

C26040.1

C26050.1

C26060.1

C26070.1

C26080.1

C26090.1

C26140.1

C26150.1

C2616

0.1

C2617

0.1

C2618

0.1

C2619

0.1

C2620

0.1

C26210.1

C26440.1

C26430.1

C26420.1

C26410.1

C26400.1

C26390.1

C26380.1

C26370.1

C26360.1

C26340.1

C26320.1

C26310.1

C26300.1

C26280.1

C26270.1

C26250.1

C26260.1

C26290.1

C26240.1

C26330.1

C26350.1

R26014.7K

R26024.7K

R26034.7K

8765

4321

RN26733x4

C2646

0.1

C26470.1

C26490.1

C26510.1

C26540.1

C26580.1

C26560.1

8765

4321

RN26833x4

R26274.7K 8765

4321

RN270

10Kx4

8765

4321

RN271OPEN

R26414.7K

R264210K

R2649100

8 7 6 5

4 3 2 1

RN27410x4

8 7 6 5

4 3 2 1

RN27510x4

C2601

0.01

R265810

R2657OPEN

R2659

10K

R2660

C26230.1

C26220.1

R2647

10K

R263733

R262510K

R2628OPEN

R26444.7K

TP5

TP6

TP7

TP8

R2643100

C26781000P

C26771000P

C26761000P

C26751000P

C26741000P

C26731000P

C26721000P

C26711000P

C26701000P

C26691000P

C26681000P

C26671000P

C26661000P

C26651000P

C26641000P

C26631000P

C26621000P

C26611000P

C26601000P

C26591000P

C26981000P

C26971000P

C26961000P

C26951000P

C26941000P

C26931000P

C26921000P

C26911000P

C26901000P

C26891000P

C26881000P

C26871000P

C26861000P

C26851000P

C26841000P

C26831000P

C26821000P

C26811000P

C26801000P

C26791000P

R26454.7K

C2645

1000P

C26481000P

C26501000P

C26521000P

C26531000P

C26551000P

C26571000P

R2606

X2601

25MHz

R2607

1.8K

R26040

C26991000P

R263833

123456789101112131415161718192021222324252627

28 29 30 31 3 2 33 34 35 36 3 7 38 39 40 41 4 2 43 44 45 46 4 7 48 49 50 51 5 2 53 54

IC262

A3V56S40GT P-60

R263633

1234

5678

IC264

MX25L1606EM2I-12G

R2614

R261610K

R2615

OPEN

R2617OPEN

R261810K

R261210K

C26120.1

R260933

R261033

R261133

R261310K

R262610K

R2620

10K

R261910K

CN262

10022H-11C

CJP11GA 193ZY

R2650

OPEN

R26514.7K

R2654

R2656

R2655

R2653

R2652

OPEN

R2629

CN261

10022H-07C

CJP07GA 193ZY

R2621150

R26220

R26230

R26240

T208

T226

T228

T229

R263010K

C2613

OPEN

R2646100

R264033

R263933

R263533

R263333

R263133

R2661

10K

R2664OPEN

R2665OPEN

176

1 2 3 4 5 6 7 8 9 10 11 12 13 1 4 15 16 17 18 1 9 20 21 22 23 2 4 25 26 27 28 2 9 30 31 32 33 3 4 35 36 37 38 3 9 40 41 42 43 4 4

8990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

IC261

CVIADSP21487KSWZ-4B

R263433

C2610

18PC2611

18P

R2681

8765

4321

RN29033x4

8765

4321

RN27633x4

8765

4321

RN27310x4

8765

4321

RN27210x4

D3I_FW

D3I_CSW

D3I_FH

D3I_SB

D3I_RSV

D3I_F

D3I_S

DSP2

DSP2D0

DSP2D1

DSP2D2

DSP2D3

DSP2D4

DSP2D5

DSP2D6

DSP2D7

2SDCLK

DSP2D8

DSP2D9

DSP2D10

DSP2D11

DSP2D12

DSP2D15

2WE

2RAS

2CAS

DSP2

DSP2D0

DSP2D1

DSP2D2

DSP2D3

DSP2D4

DSP2D5

DSP2D6

DSP2D7

2CE0

2RAS

2CAS

2WE

DSP2A17

DSP2A18

2SDA10

DSP2A0

DSP2A1

DSP2A2

DSP2A3

DSP2D8

DSP2D9

DSP2D10

DSP2D11

DSP2D12

DSP2D13

DSP2D14

DSP2D15

2SDCLK

2SDCKE

DSP2A4

DSP2A5

DSP2A6

DSP2A7

DSP2A8

DSP2A9

DSP2A11

DSP2D13

DSP2D14

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP_RST

DSP2_ICS

DSP1OUT RSV1

DSP2OUT CSW

DSP2OUT FH

2DQM

2CE0

2SDCKE

DSP2A0

DSP2A1

DSP2A2

DSP2A3

DSP2A4

DSP2A5

DSP2A6

DSP2A7

DSP2A8

DSP2A9

2SDA10

DSP2A11

DSP2A12

TCK2

TRST2

EMU2

TDI2

DSP2OUT SB

DSP2OUT FW

2DQM

DSP1OUT LRCK

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP_RST

DSP_MOSI

DSP2_ICS

DSPI_CLK

DSP_MISO

TCK2

TMS2 TMS 2

TRST2

EMU2

TDI2

TDO2TDO2

DSP2_FLAG3

DSP2_FLAG0

DSP2OUT LRCK

DSP2OUT BCK

DSP2INMCK

DSP1OUT F

DSP1OUT CSW

DSP1OUT SB

DSP2OUT F

DSP2OUT S

DSP2_FLAG0

DSP2_FLAG3

DSP2_FLAG0

DSP2_ICS

DSP2OUT RSV1

DSP1OUT FH

DSP1OUT BCK

DSP1OUT S

DSP1OUT FW

DSP1OUT RSV2

DSP_RST

DSP2_SPI_SS

DSP2_SPI_MOSI

DSP2_SPI_CLK

DSP2A17

DSP2A18

DGND

DA1.1V_1

DA3.3V

DSP2_SPI_MISO

DSP2_FLAG3

TO F8

TO G3

TO G4

TO G7

TO 9G

TO 0H

Caution in

servicing Electrical Mechanical Repair Information Updating

SCH10_DSP3

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

SDDQM

MS0

VDD_INT

CLK_C FG1

ADDR0

BOOT_CFG0

VDD_EXT

ADDR1

ADDR2

ADDR3

ADDR4

ADDR5

BOOT_CFG1

GND

ADDR6

ADDR7

ADDR8

ADDR9

CLK_C FG0

VDD_EXT

SDCKE

CLKIN

XTAL

ADDR10

SDA10

ADDR11

ADDR12

ADDR17

ADDR13

ADDR18

RESETOU T/RU NRSTIN

DPI_P01

DPI_P02

DPI_P03

DPI_P05

DPI_P04

DPI_P06

DPI_P08

DPI_P07

DPI_P09

DPI_P10

DPI_P11

DPI_P12

DPI_P13

DPI_P14

DAI_P03

WDTRST O

DAI_P07

DAI_P13

DAI_P19

DAI_P01

DAI_P02

DAI_P06

DAI_P05

DAI_P09

DAI_P10

DAI_P20

DAI_P08

DAI_P14

DAI_P04

DAI_P18

DAI_P17

DAI_P16

DAI_P12

DAI_P15

DAI_P11

BOOT_CFG2

AMI_ACK

GND

THD_M

THD_P

VDD_EXT

MS1

WDT_CL KO

WDT_CL KIN

ADDR23

ADDR22

ADDR21

ADDR20

ADDR19

ADDR16

ADDR15

ADDR14

AMI_WR

AMI_RD

FLAG0

FLAG1

FLAG2

MLBCL K

FLAG3

MLBDA T

MLBDO

MLBSI G

TRST

MLBSO

EMU

DATA0

DATA1

DATA2

DATA3

TDO

DATA4

DATA5

DATA6

DATA7

TDI

SDCLK

DATA8

DATA9

DATA1 0

TCK

DATA1 1

DATA1 2

DATA1 4

DATA1 3

DATA1 5

SDWE

SDRAS

RESET

TMS

SDCAS

TO ADUDIO PLD PART TO DSP1 PART

177

DGND

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDD

LDQM

CAS

RAS

BA0

BA1

A10/AP

VDD

VSS

DQ15

VSSQ

DQ14

DQ13

VDDQ

DQ12

DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

VSS

N.C

MDQM

CLK

CKE

A12

A11

VSS

GND SI

SCK

HOLD

VCC

256M BIT SDRAM

TDI

EMU

TRST

TMS

TDO

TCK

GND

VCC

EMULATOR

GND

MP:open

SCK

GND

MOSI

VCC

MISO

GND

MP:open

(PAGE 7_A4) (PAGE 8-1_D2)

TO AUDIO PLD

(PAGE 7_A5)

TO DSP4 PART

(PAGE 8-4_D5)

TO DSP2 PART

(PAGE 8-2_D3)

TO LEGO

(PAGE 11_A1)

DSP3

R2705

8765

4321

RN27733x4

C27020.1

C27030.1

C27040.1

C27050.1

C27060.1

C27070.1

C27080.1

C27090.1

C27140.1

C27150.1

C27160.1

C27170.1

C27180.1

C27190.1

C27200.1

C27210.1

C27440.1

C27430.1

C27420.1

C27410.1

C27400.1

C27390.1

C27380.1

C27370.1

C2736

0.1

C2734

0.1

C27320.1

C27310.1

C27300.1

C27280.1

C27270.1

C27250.1

C27260.1

C27290.1

C27240.1

C27330.1

C2735

0.1

R27024.7K

R27034.7K

R27044.7K

8765

4321

RN27833x4

C27460.1

C27470.1

C27490.1

C27510.1

C27540.1

C27580.1

C27560.1

8765

4321

RN27933x4

R27154.7K

8765

4321

RN28033x4

8765

4321

RN28110Kx4

8765

4321

RN282OPEN

R27434.7K

R274410K

R2750100

8 7 6 5

4 3 2 1

RN28510x4

8 7 6 5

4 3 2 1

RN28610x4

C2701

0.01

R275910

R2758OPEN

R2760

10K

R276110

176

1 2 3 4 5 6 7 8 9 10 11 12 13 1 4 15 16 17 18 1 9 20 21 22 23 2 4 25 26 27 28 2 9 30 31 32 33 3 4 35 36 37 38 3 9 40 41 42 43 4 4

8990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

IC271

CVIADSP21487KSWZ-4B

C27230.1

C27220.1

R2749

10K

R273533

R271310K

R2716OPEN

R27464.7K

TP10

TP14

TP15

TP16

R2745100

C27781000P

C27771000P

C27761000P

C27751000P

C27741000P

C27731000P

C27721000P

C27711000P

C27701000P

C27691000P

C27681000P

C27671000P

C27661000P

C27651000P

C27641000P

C27631000P

C27621000P

C27611000P

C27601000P

C27591000P

C27981000P

C27971000P

C27961000P

C27951000P

C27941000P

C27931000P

C27921000P

C27911000P

C27901000P

C27891000P

C27881000P

C27871000P

C27861000P

C27851000P

C27841000P

C27831000P

C27821000P

C27811000P

C27801000P

C27791000P

R27474.7K

C27451000P

C27481000P

C27501000P

C27521000P

C27531000P

C27551000P

C27571000P

R2707

X2701

25MHz

R2708

1.8K

R2701

C27991000P

R273733

123456789101112131415161718192021222324252627

28 29 30 31 3 2 33 34 35 36 3 7 38 39 40 41 4 2 43 44 45 46 4 7 48 49 50 51 5 2 53 54

IC272

A3V56S40GT P-60

R273433

R274233

1234

5678

IC273

MX25L1606EM2I-12G

R2719

R272110K

R2720

OPEN

R2722OPEN

R272510K

R271710K

C27120.1

R271033

R271133

R271233

R2781

R271810K

R271410K

R272310K

R272410K

CN272

10022H-11C

CJP11GA 193ZY

R2751OPEN

R27524.7K

R2755

R2757

R2756

R2754

R2753

OPEN

8765

4321

RN28310x4

8765

4321

RN28410x4

R273033

CN271

10022H-07C

CJP07GA 193ZY

R2726150

R27270

R27280

R27290

8765

4321

RN28733x4

R2732

10K

C2713

OPEN

R2748100

R273933

R273833

R273333

R274033

R274110K

R2706

10K

R273633

C2710

18PC2711

18P

DSP3

DSP2OUT CSW

DSP2OUT F

DSP3

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP_RST

DSP3_ICS

DSP3OUT S

DSP3OUT F

DSP3OUT SB

DSP3OUT CSW1

DSP3OUT FW

DSP2OUT LRCK

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP_MOSI

DSPI_CLK

DSP_MISO

DSP3_ICS

DSP3_FLAG0

DSP_RST

TRST3TRST3

EMU3 EMU3

TDO3 TDO 3

TDI3 TDI3

TCK3TCK3

TMS3 TMS 3

DSP3A18

DSP3A17

DSP3A12

DSP3A11

3SDA10

DSP3A9

DSP3A8

DSP3A7

DSP3A6

DSP3A5

DSP3A4

DSP3A3

DSP3A2

DSP3A1

DSP3A0

3SDCKE

3CAS

3RAS

3WE

DSP3D15

DSP3D13

DSP3D14

DSP3D12

DSP3D11

DSP3D10

DSP3D9

DSP3D8

3SDCLK

DSP3D7

DSP3D6

DSP3D5

DSP3D4

DSP3D3

DSP3D2

DSP3D1

DSP3D0

DSP3D1

DSP3D2

DSP3D3

DSP3D4

DSP3D5

DSP3D6

DSP3D7

DSP3D15

DSP3D14

DSP3D13

DSP3D12

DSP3D11

DSP3D10

DSP3D9

DSP3D8

3WE

3CAS

3RAS

DSP3A17

DSP3A18

3SDA10

DSP3A0

DSP3A1

DSP3A2

DSP3A3 DSP3A 4

DSP3A5

DSP3A6

DSP3A7

DSP3A8

DSP3A9

DSP3A11

DSP3A12

3SDCKE

3SDCLK

DSP3_FLAG3

DSP3_FLAG0

DSP3OUT LRCK

DSP3OUT BCK

DSP3INMCK

DSP3_FLAG3

DSP3OUT RSV1

DSP3OUT FH

DSP2OUT S

DSP2OUT SB

DSP2OUT BCK

DSP2OUT FW

DSP2OUT FH

DSP2OUT RSV1

DSP3_ICS

3DQM

3CE0

3DQM

3CE0

DSP_RST

DSP3_SPI_SS

DSP3_SPI_MOSI

DSP3_SPI_CLK

DSP3_FLAG3

DGND

DSP3_FLAG0

DA1.1V_2

DA3.3V

DA1.1V_2

DA3.3V

DSP3_SPI_MISO

TO F5

TO F9

TO G6

TO G9

TO 1H

TO 2H

Caution in

servicing Electrical Mechanical Repair Information Updating

SCH11_DSP4

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

ANALOG VIDEO

DIGITAL VIDEO

GND LINE

POWER- LINE

POWER+ LINE

SDDQM

MS0

VDD_INT

CLK_C FG1

ADDR0

BOOT_CFG0

VDD_EXT

ADDR1

ADDR2

ADDR3

ADDR4

ADDR5

BOOT_CFG1

GND

ADDR6

ADDR7

ADDR8

ADDR9

CLK_C FG0

VDD_EXT

SDCKE

CLKIN

XTAL

ADDR10

SDA10

ADDR11

ADDR12

ADDR17

ADDR13

ADDR18

RESETOU T/RU NRSTIN

DPI_P01

DPI_P02

DPI_P03

DPI_P05

DPI_P04

DPI_P06

DPI_P08

DPI_P07

DPI_P09

DPI_P10

DPI_P11

DPI_P12

DPI_P13

DPI_P14

DAI_P03

WDTRST O

DAI_P07

DAI_P13

DAI_P19

DAI_P01

DAI_P02

DAI_P06

DAI_P05

DAI_P09

DAI_P10

DAI_P20

DAI_P08

DAI_P14

DAI_P04

DAI_P18

DAI_P17

DAI_P16

DAI_P12

DAI_P15

DAI_P11

BOOT_CFG2

AMI_ACK

GND

THD_M

THD_P

VDD_EXT

MS1

WDT_CL KO

WDT_CL KIN

ADDR23

ADDR22

ADDR21

ADDR20

ADDR19

ADDR16

ADDR15

ADDR14

AMI_WR

AMI_RD

FLAG0

FLAG1

FLAG2

MLBCL K

FLAG3

MLBDA T

MLBDO

MLBSI G

TRST

MLBSO

EMU

DATA0

DATA1

DATA2

DATA3

TDO

DATA4

DATA5

DATA6

DATA7

TDI

SDCLK

DATA8

DATA9

DATA1 0

TCK

DATA1 1

DATA1 2

DATA1 4

DATA1 3

DATA1 5

SDWE

SDRAS

RESET

TMS

SDCAS

TO ADUDIO PLD PART TO DSP1 PARTTO DSP3 PART

177

DGND

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDD

LDQM

CAS

RAS

BA0

BA1

A10/AP

VDD

VSS

DQ15

VSSQ

DQ14

DQ13

VDDQ

DQ12

DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

VSS

N.C

MDQM

CLK

CKE

A12

A11

VSS

GND SI

SCK

HOLD

VCC

256M BIT SDRAM

TDI

EMU

TRST

TMS

TDO

TCK

GND

VCC

EMULATOR

GND

MP:open

SCK

GND

MOSI

VCC

MISO

GND

MP:open

(PAGE 8-3_D4) (PAGE 7_A3) (PAGE 8-1_D2)

TO LEGO

(PAGE 11_A1)

DSP4

R2805

8765

4321

RN29233x4

C28120.1

C28130.1

C28140.1

C28150.1

C28160.1

C28170.1

C28180.1

C28190.1

C28240.1

C28250.1

C28260.1

C28270.1

C28280.1

C28290.1

C28300.1

C28310.1

C28540.1

C28530.1

C28520.1

C28510.1

C28500.1

C28490.1

C28480.1

C28470.1

C28460.1

C28440.1

C28420.1

C28410.1

C28400.1

C28380.1

C28370.1

C28350.1

C28360.1

C28390.1

C28340.1

C28430.1

C28450.1

R28024.7K

R28034.7K

R28044.7K

8765

4321

RN29333x4

C28560.1

C28570.1

C28590.1

C28610.1

C28640.1

C28680.1

C28660.1

8765

4321

RN29433x4

R28154.7K

8765

4321

RN29533x4

8765

4321

RN29610Kx4

8765

4321

RN297OPEN

R28434.7K

R284410K

R2858100

8 7 6 5

4 3 2 1

RN30010x4

8 7 6 5

4 3 2 1

RN30110x4

C2811

0.01

R286010

R2859OPEN

R2861

10K

R286210

176

1 2 3 4 5 6 7 8 9 10 11 12 13 1 4 15 16 17 18 1 9 20 21 22 23 2 4 25 26 27 28 2 9 30 31 32 33 3 4 35 36 37 38 3 9 40 41 42 43 4 4

8990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

IC281

CVIADSP21487KSWZ-4B

C28330.1

C28320.1

R2849

10K

R283533

R281310K

R2816OPEN

R28464.7K

TP59

TP60

TP61

TP63

R2845100

C28881000P

C28871000P

C28861000P

C28851000P

C28841000P

C28831000P

C28821000P

C28811000P

C28801000P

C28791000P

C28781000P

C28771000P

C28761000P

C28751000P

C28741000P

C28731000P

C28721000P

C28711000P

C28701000P

C28691000P

C29081000P

C29071000P

C29061000P

C29051000P

C29041000P

C29031000P

C29021000P

C29011000P

C29001000P

C28991000P

C28981000P

C28971000P

C28961000P

C28951000P

C28941000P

C28931000P

C28921000P

C28911000P

C28901000P

C28891000P

R28474.7K

C28551000P

C28581000P

C28601000P

C28621000P

C28631000P

C28651000P

C28671000P

R2807

X2801

25MHz

R2808

1.8K

R2801

C29091000P

R283733

123456789101112131415161718192021222324252627

28 29 30 31 3 2 33 34 35 36 3 7 38 39 40 41 4 2 43 44 45 46 4 7 48 49 50 51 5 2 53 54

IC282

A3V56S40GT P-60

R283433

R284233

1234

5678

IC283

MX25L1606EM2I-12G

R2819

R282110K

R2820

OPEN

R2822OPEN

R282510K

R281710K

C28220.1

R281033

R281133

R281233

R2881

R281810K

R281410K

R2823

10K

R282410K

CN282

10022H-11C

CJP11GA 193ZY

R2851

OPEN

R28524.7K

R2855

R2857

R2856

R2854

R2853

OPEN

8765

4321

RN29810x4

8765

4321

RN29910x4

R283033

CN281

10022H-07C

CJP07GA 193ZY

R2826150

R28270

R28280

R28290

T71

T80

T165

T172

8765

4321

RN30233x4

R283210K

C2823

OPEN

R2848100

R283933

R283833

R283333

R284033

R284133

R2850

10K

R283633

C2820

18PC2821

18P

DSP4

DSP4INCSW

DSP4INF

DSP4

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP_RST

DSP4_ICS

DSP4OUT S

DSP4OUT F

DSP4OUT SB

DSP4OUT CSW1

DSP4OUT FW

DSP4INLRCK

DSP_MOSI

DSP_MISO

DSPI_CLK

DSP_MOSI

DSPI_CLK

DSP_MISO

DSP4_ICS

DSP4_FLAG0

DSP_RST

TRST4TRST4

EMU4 EMU4

TDO4 TDO 4

TDI4 TDI4

TCK4TCK4

TMS4 TMS 4

DSP4A18

DSP4A17

DSP4A12

DSP4A11

4SDA10

DSP4A9

DSP4A8

DSP4A7

DSP4A6

DSP4A5

DSP4A4

DSP4A3

DSP4A2

DSP4A1

DSP4A0

4SDCKE

4DQM

4CAS

4RAS

4WE

DSP4D15

DSP4D13

DSP4D14

DSP4D12

DSP4D11

DSP4D10

DSP4D9

DSP4D8

4SDCLK

DSP4D7

DSP4D6

DSP4D5

DSP4D4

DSP4D3

DSP4D2

DSP4D1

DSP4D0

DSP4D1

DSP4D2

DSP4D3

DSP4D4

DSP4D5

DSP4D6

DSP4D7

DSP4D15

DSP4D14

DSP4D13

DSP4D12

DSP4D11

DSP4D10

DSP4D9

DSP4D8

4WE

4CAS

4RAS

DSP4A17

DSP4A18

4SDA10

DSP4A0

DSP4A1

DSP4A2

DSP4A3 DSP4A 4

DSP4A5

DSP4A6

DSP4A7

DSP4A8

DSP4A9

DSP4A11

DSP4A12

4SDCKE

4SDCLK

4DQM

DSP4OUT LRCK

DSP4OUT BCK

DSP4INMCK

DSP4_FLAG3

DSP4OUT RSV1

DSP4OUT FH

DSP4INS

DSP4INSB

DSP4INBCK

DSP4INFW

DSP4INFH

DSP4INRSV1

DSP4_FLAG0

DSP4_FLAG3

DSP4OUT SW2RSV

4CE0

DSP_RST

DSP4_FLAG3

DSP4_SPI_SS

DSP4_SPI_MOSI

DSP4_SPI_CLK

DGND

DSP4_FLAG0

DA1.1V_2

DA3.3V

DSP4_SPI_MISO

TO G0

TO G5

TO H1

TO 3H

Caution in

servicing Electrical Mechanical Repair Information Updating

Other manuals for AVR-X4400H

Table of contents

Popular Stereo Receiver manuals by other brands

Sony

Sony STR-DG1200 Quick setup guide

Marantz

Marantz SR5011OM owner's manual

Pioneer

Pioneer AVH-G110DVD Operation manual

Niles

Niles ZR-6 installation guide

Sony

Sony STR-D760Z Service manual

Yamaha

Yamaha R-1000 owner's manual

Magnadyne

Magnadyne LS4000B Linear Series owner's manual

Sangean

Sangean PR-D5CL brochure

Philips

Philips US2-PH61153 user manual

Marantz

Marantz SR6005 user guide

Onkyo

Onkyo TX-8050 instruction manual

Sony

Sony STR-WX7 Service manual

Philips

Philips FR-963 user manual

Yamaha

Yamaha AVENTAGE RX-A680 owner's manual

PULSE+

PULSE+ SRA-160USB user manual

Sony

Sony STR-DE825 Service manual

Sansui

Sansui G-5000 manual

Yamaha

Yamaha R-2000 Service manual

Denon AVR-X4400H User manual

Popular Stereo Receiver manuals by other brands
