Deprag ME5000 User manual

012805en
Operating Instruction Booklet
Electronic Torquemeter
ME5000 385484 A

2
Dear Customer,
You have selected this Torque Measuring Instrument from the extensive product line
manufactured by DEPRAG- SCHULZ GMBH u. Co.
In addition, we offer you a complete line of air-operated machines, such as Drills, Tappers,
Polishing-Machines, Screwdrivers, Impact- and Pulse-Tools, Sheet Metal-Machines and
Hammers. As your competent partner, we offer solutions for all jobs in the area of Screw-
driving technology, from the simple Hand-Tool up to the complete Screwdriving-Robot.
Please read this operating instruction booklet carefully, so that you can work safely with
the Electronic Torquemeter for a long time to come.
For further information please contact your local service station or
directly the DEPRAG SCHULZ GMBH u. CO.
During our business hours our Service-Hotline
0700 00 371-371 is available.
Attention: Out of regular business hours hotline-calls will be charged at
the usual rates!

3
CONTENT PAGE
1GENERAL INFORMATION ...........................................................................................4
1.1 General Safety-Related Information............................................................................4
1.2 Intended Use...............................................................................................................4
1.3 Technical Measuring Information ................................................................................5
1.4 Machine Capability Testing.........................................................................................6
1.4.1 Machine Capability Study (Cmk)..............................................................................7
1.5 Functionality of the Measuring Instrument...................................................................7
1.5.1 Piezo Electric Effect .................................................................................................7
1.5.2 Function of Piezo Measuring Transducer.................................................................8
1.5.3 Drift (Piezo Measuring Transducers)........................................................................8
1.5.4 DMS-Bridge..............................................................................................................8
2FRONT-, REAR- AND CONNECTION STRIP...............................................................9
2.1 Front view of the ME5000 incl. Docking Station..........................................................9
2.2 Rear View of the ME5000 .........................................................................................10
2.3 Connection Strip on ME5000 ....................................................................................11
2.4 Bottom of the ME5000...............................................................................................12
2.5 View of Connection Strip at Docking Station.............................................................13
3REQUIRED ACCESSORIES .......................................................................................14
3.1 Additional Power Supply in Connection with External Rotary-Type Transducers......14
4OPTIONAL ACCESSORIES........................................................................................14
5INSTALLATION AND CONNECTION.........................................................................15
5.1 Power Cable..............................................................................................................15
5.2 RS232 Port................................................................................................................15
6SOFTWARE-UPDATE.................................................................................................15
7INPUT PARAMETER...................................................................................................16
7.1 Keypad Description...................................................................................................16
7.2 Menu Operation.........................................................................................................17
7.3 Menu Layout .............................................................................................................19
8OPERATION................................................................................................................21
8.1 Peak Value – Measurement......................................................................................21
8.1.1 Automatic Signal-Recognition ................................................................................21
8.1.2 START/STOP Signal-Recognition..........................................................................21
8.2 Measuring Series ......................................................................................................21
9TESTING OF THE BUILT-IN BATTERY-PACK/AKKU...............................................22
10 MEASURING RANGES.............................................................................................23
11 DISPOSAL.................................................................................................................23
12 TECHNICAL DATA....................................................................................................24
13 TROUBLE SHOOTING..............................................................................................25
14 CE-CONFORMITY DECLARATION..........................................................................26
15 SERVICE LOCATIONS AND AUTHORIZED PARTNERS........................................26

4
1 General Information
1.1 General Safety-Related Information
Carefully read the provided Operating Instructions and adhere to all Safety
Guidelines, prior to the use of this device.
All items which directly relate to the safety of the Operator and the error-free
operation of the electronic torquemeter, are marked in the Operating Instruc-
tions with the symbol shown left.
1.2 Intended Use
This electronic torquemeter has been designed and constructed for the sole purpose of
monitoring Piezo-Transducers-, Strain Gauge Transducers or external Rotary Type Trans-
ducers.
The use of this instrument in any other way is not acceptable. Furthermore DEPRAG is not
liable for damages, resulting from the misuse of the instrument; the user alone is liable.
The correct use of the instrument includes compliance with all Operating-, Maintenance-,
and Repair Instructions, which are considered an integral part.
The instrument can only be operated, maintained, and repaired by personnel familiar with
the device and who have been instructed about its dangers.
All relevant instructions in regards to accident-prevention, as well as general acknowl-
edged safety-rules and workers -protection regulations must be adhered to.
Arbitrary changes made to the device by the user will void the liability of the manufacturer
for resulting damages.

5
1.3 Technical Measuring Information
The Transducer (measuring platform/Dynamometer) has to be positioned on a solid base,
without allowing any movement.
At that time, the transducer should be free of external forces or vibrations (such as the dis-
tortion of the measuring platform resulting from incorrect installation).
After each start-signal, the charge amplifier will reset and perform a zero calibration. Ex-
ternal forces, momentum, or vibration can distort the torque measurement.
IMPORTANT
For quality assurance and to keep accurate documentation for an audit, we
recommend to have your measuring instruments factory-calibrated every 12-
months.
We offer those types of calibration services for all our torque measuring in-
struments and transducers. We can also calibrate and certify your complete
measuring chain. Please contact us for additional information.
Terminology
Measuring Value Submitted torque from transducer
Calibration Value Sensitivity of transducer
Measuring Series A pre-programmed amount of measuring values are stored. At the
end of a measuring series, the average torque, the standard devia-
tion and the Cmk-value will be calculated.
Average Average mean torque value is calculated from a specific number of
stored measuring values XNX
i
i
N
_
=
=
∑
1
1
Standard Deviation Standard deviation is calculated from a specific number of previ-
ously stored values when compared to the average torque
sX X
N
i
i
N
=−
−
=
∑
( )
_
1
2
1

6
1.4 Machine Capability Testing
Prior to machine installation, this analysis can examine whether the applied production ma-
chine is even capable to accurately handle the production requirement.
The goal of a machine capability test is the confirmation, that
a) the machine to be tested operates using a clearly recognizable conformity. If not con-
formity is recognized, then the machine does not have a defined capability. It is then
not possible to assign a statistical capability-index to the machine.
b) the machine is capable to produce parts within predetermined tolerances. The neces-
sary evidence can only be generated using the conformity capability as shown under
item a).
The machine capability test is a short-term test, which sole goal it is to recognize machine
influences on the production process.
NOTICE
During sampling, no adjustments or errors may occur.
For this type of test, DEPRAG uses the Gaussian distribution curve.

7
1.4.1 Machine Capability Study (Cmk)
Cmk is defined as the minimum of:
1.
sAverageUpperLimit
Cmk *3
−
=
or
2.
s
LowerLimitAverage
Cmk *3
−
=
This index informs about the settling, as well as the expanded scale of the torque values.
The C
mk
- value shown below is 1.33 for a Screwdriver (this corresponds to a calculation of
the C
mk
limit values of 4 Sigma (s)).
C C
m mk
/Limit Values within the
Limit Values Errors
0,30 ± s 68,3 > 30%
0,70 ± 2s 95,4 ~ 5%
1,00 ± 3s 99,7 3 ‰
1,33 ±4s 99,994 60 ppm
1,63 ±4,891s 99,9999 1 ppm
1,66 ±5s 99,99994 0,6 ppm
2,00 ± 6s 99,9999998
2
10
9
*
−
IMPORTANT
The average torque should not deviate from the set value by more than 3%.
Otherwise a correct determination of the tool function index is not possible
anymore.
1.5 Functionality of the Measuring Instrument
This electronic torquemeter has been designed and constructed for the sole purpose of
monitoring Piezo-Transducers-, Strain Gauge Transducers or external Rotary Type Trans-
ducers in an industrial environment.
1.5.1 Piezo Electric Effect
The positive and negative loads of the piezo-electric effective dielectric materials are dis-
tributed unsymmetrical. Because of the molecules respectively the crystals, the center of
gravity of the positive loads does not subsidence with the negative loads. The piezo elec-
tric materials are electronically polarized.
When those materials are deformed, the dipole moment changes. On account of those
polarization changes, loads are being set free on the surface. Therefore, the piezo electric
effect can be used to obtain the load size from the measurement, which causes the defor-
mation. The freed load depends only on the deformation of the crystal and not on the
speed or the acceleration of the deformation.

8
1.5.2 Function of Piezo Measuring Transducer
The measuring transducers (MP25 / MP200 / MS25 / MS10) have piezo-quartz measuring
cells integrated. Because of the preloading of the cell during manufacturing, the emitting
electrical load (Coulomb) is determined. Since different cell sizes are available, the emit-
ting electrical loads of the transducers are different.
The engraved calibration values on the transducer define the emitted load (Coulomb) per
Newton - Meter (Nm).
i.e. if a force of 1 Nm is put to the measuring cell, a load is emitted, which is defined by the
calibration value.
Example for the calibration value: 172 pC / Nm
1 pico Coulomb = 0.000 000 000 001 C
The measuring electronic has a charge amplifier integrated, which transforms the emitted
electrical load from the transducer into an electronic voltage. The voltage depends on the
integrated capacitor, which is on the measuring input. i.e. at a range capacitor of 1000 pC,
a load of 2000 pC is converted into 2 V. Each measuring range is rated to +/- 5V.
1.5.3 Drift (Piezo Measuring Transducers)
A characteristic of the charge amplifier is the drift. This drift is caused by the input-
resistance of the input-transistor. Through this input-voltage, the charge amplifier drifts into
a positive or negative direction. Therefore, it is important, to start the measurement imme-
diately prior to the screw driving.
1.5.4 DMS-Bridge
The electrical resistance of each strain changes when deformed. The cause of this defor-
mation may be power, pressure, torque, deflection, angle, etc. The resistance of the de-
formed DMS (strain gauge) consists of its basic resistance R (no load) and the consequen-
tial occurring resistance-change R.

9
2 Front-, Rear- and Connection Strip
2.1 Front view of the ME5000 incl. Docking Station
connection to
electronic torquemeter
ME5000
docking station

10
2.2 Rear View of the ME5000
connection to
docking station

11
2.3 Connection Strip on ME5000
IMPORTANT
If an external rotary-type transducer is used, an external power supply has to
be connected to the measuring instrument (see next page).
Piezo-Transducer Strain Gauge- and/or
exte
r
nal Rotar
y Transducer

12
2.4 Bottom of the ME5000
NOTICE
DO NOT use the supplied Battery-Pack-Charger (ACS 110 traveller) as addi-
tional power supply for rotary-torque transducer.
Required accessories –> chapter 10.1
additional power supply for
rotary
-
type transducer
ON-/OFF-switch

13

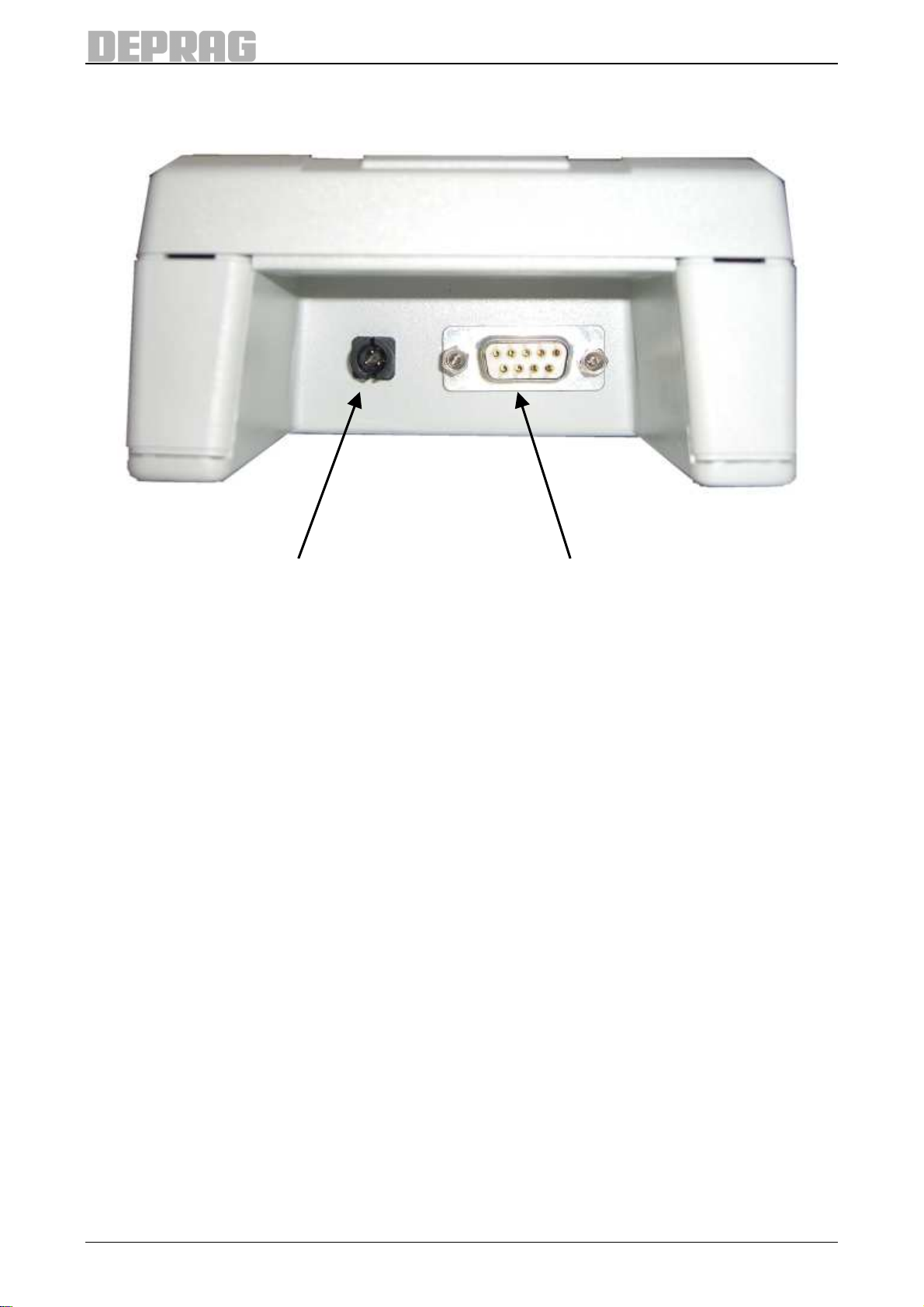

2.5 View of Connection Strip at Docking Station
power supply
(battery-pack-charger
ACS 110 traveller)
serial port
RS232

14
3 Required Accessories
DESCRIPTION MODEL NO. MEASURING RANGE PART NO.
V002-E6,3/F6,3 0,2 - 2 N m 385481 B
V005-E6,3/F6,3 0,5 - 5 N m 385481 C
V010-E6,3/F6,3 1 - 10 N m 385481D
External Rotary-Type
Transducer
(strain-gauge, non-contact
signal transfer) V020-E6,3/F6,3 2 – 20 N m 385481 E
MP 25 PE ± 25 N m 360850 A
Piezo Electric (PE)
Transducer
(Measuring Platform) MP 200 PE ± 200 N m 373205 A
MP 2 DMS ± 0,1 to ± 2 N m 385200 B
MP 7 DMS ± 1 to ± 7 N m 385200 A
MP 25 DMS ± 4 to ± 25 N m 385200 C
Strain-Gauge
(DMS) Transducer
(Measuring Platform) MP 160 DMS ± 20 to ± 160 N m 385200 D
Piezo Electric (PE) Trans-
ducer (Torque Wrench) MS 25 PE-W ± 25 N m 346217 A
MS 2 DMS ± 0,1 to ± 2 N m 387798 B
MS 7 DMS ± 1 to ± 7 N m 387798 A
MS 7 DMS-W ± 1 to ± 7 N m 388050 A
Strain-Gauge (DMS)
Transducer (Torque
Wrench) MS 25 DMS-W ± 4 to ± 25 N m 388050 C
Connector Cable for Ex-
ternal Rotary-Type Trans-
ducer 2 m / 4 m / 6 m 385486 A / B / C
Connector Cable
(for MPXXXPE) 5 m 810675
Connector Cable
(for MPXXXDMS) 1 m / 2 m / 3 m 385410 A / B / C
Software 832612
3.1 Additional Power Supply in Connection with External Rotary-Type
Transducers
Name Order No.
Power supply 800827
Power supply cable EU 220 V (length 1.8 m) 812587
Power supply cable US 110 V (length 1.8 m) 812295
4 Optional Accessories
See catalog D3022

15
5 Installation and Connection
5.1 Power Cable
• Connect power cable to charger.
• Place measuring instrument ME5000 into charger, so that the batteries in the measur-
ing instrument may be charged.
• Once the green LED „Ready“ appears on the charger, the batteries are fully charged.
• When charging batteries for the first time, the charging process may take up to 2 hours.
IMPORATANT
When charging the battery-pack for the first time the green light starts
blinking after approx. 15 minutes (impulse trickle charging). If this happens
remove the unit from the charging point and then place it again into the
charging point.
Make sure, that the red light "Charge" (2) is on while charging the unit.
5.2 RS232 Port
If the measuring values need to be displayed on a PC or printed on a serial printer, then
the RS232 connection cable (standard) needs to be connected to the RS232 port on the
docking station and the PC or printer. Thereafter, all values can be output either in print
format or in csv-format (with customized DEPRAG software) on a PC or printer.
6 Software-Update
Software updates and PC-Software with connection-cable are available upon request.

16
7 Input Parameter
7.1 Keypad Description
START Start measurement
STOP Stop measurement
SET Select Menu
Use arrow up to select the next menu item or to increase the calibration
value
Use arrow down to select the previous menu item or to decrease the cali-
bration value
Use the START / STOP- key to always return to the previous menu item. The values in the
selected menu item will not be changed.
Tastatur

17
7.2 Menu Operation
1. The measuring instrument is basically in Standby-mode if not used.
The display shows:
"STANDBY"
Press any key to activate the measuring instrument.
2. If the measuring instrument is ready, the display shows:
"DEPRAG MEASURING TECHNOLOGY ME5000"
3. Press the SET - Key
The display shows the first menu item
•"MEASURING TRANSDUCER"
Select a new measuring transducer.
Press the SET-key and use the UP or DOWN arrows to select the new transducer
(keep buttons pressed for a faster selection process). If a new transducer is selected,
make sure to also input the appropriate calibration value. Use the START / STOP-key
to return to the menu.
•"MEASURING RANGE"
Select a new measuring range.
Press the SET-key and use the UP or DOWN arrows to select the new measuring
range. Confirm your selection with the SET-key. Use the START / STOP-key to return
to the menu.
The measuring ranges are dynamically matched to the calibration values. The ex-
pected measuring value should be within the upper third of the measuring range.
•"CALIBRATION VALUE"
Input a new calibration value.
Press the SET-key and use the UP or DOWN arrows to select the new calibration
value. Use the START / STOP-key to return to the menu.
•"MEASURING SERIES"
Use this area to select already stored measuring series for printing and to adjust the
number of measurements per each series.
Press the SET-key and use the UP or DOWN arrows to make a selection and to input
a value (for measurements per series). Use the START / STOP-key to return to the
menu.
•"SIGNAL RECOGNITION"
Select between automatic signal-recognition and START/STOP signal-recognition.
Press the SET-key and use the UP or DOWN arrows to select between signal-
recognition options. Confirm selection with SET-key. Use the START / STOP-key to
return to the menu.

18
•"MEASURING METHOD"
Select a new measuring method.
Press the SET-key and select between individual measurements and measuring se-
ries. Use the START / STOP-key to return to the menu.
•"MEASURING UNIT"
Select a measuring unit.
Press the SET-key and use the UP or DOWN arrows to select a new measuring unit.
Confirm selection with SET-key. Use the START / STOP-key to return to the menu.
•"LANGUAGE"
Select a language.
Press the SET-key and use the UP or DOWN arrows to select a new language. Con-
firm selection with SET-key. Use the START / STOP-key to return to the menu.
4. If the measuring instrument is not used for 5 minutes, the system goes back into
standby-mode.
5. Use the Reset-key at any time to restart the measuring instrument.
This is necessary when the ME5000 does not react after pushing a button.

19
7.3 Menu Layout
See next Page
STANDBY
DEPRAG
MEASURING
TECHNOLOGY
ME5000 V1.0
TRANSDUCER
TRANSDUCER
->* PIEZO
STRAIN GAUGE
ROTARY STYLE
RANGE (N*cm)
->* 8.0- 48.0
40.0- 240.0
80.0
-
480.0
CALIBRATION
VALUE
K: 0200 pC/N*m
STRAIN GAUGE
TYPE
->*MP2DMS
MP7DMS
MM12DMS
CALIBRATION
VALUE
K: 0500
RANGE
->* 200 N·cm
500 N·cm
1000 N
·
cm
MEASURING
RANGE
RANGE
->* 200 N·cm
500 N·cm
1000 N·cm
2000 N·cm
10000 N·cm
50000 N·cm
CALIBRATION
VALUE
CALIBRATION VALUE
K: 0200 pC/N*m
STRAIN GAUGE
TYPE
STRAIN GAUGE
TYPE
-> MP2DMS
MP7DMS
MV12DMS
MP/MS25DMS
MP160DMS
MP500DMS

20
See previous Page
MEASURING
SERIES
MEASURING SERIES
-> PRINT
DISPLAY
NUMBER OF
MEASUREMENTS
CMK-LIMIT
VALUES
DELETE
SELECT
MEASURING
SERIES
SELECT
MEASURING
SERIES
NUMBER OF
MEASUREMENTS
PER SERIES
010
CMK LIMIT VALUES
15.0% VON x
SELECT
MEASURING
SERIES
SIGNAL
RECOGNITION
SIGNAL
RECOGNITION
->* AUTOMATIC
START/STOP
MEASURING
METHOD
MEASURING METHOD
->* INDIVIDUAL
SERIES
MEASURING UNIT
MEASURING UNIT
->* N·cm
N·m
kg·cm
k·gm
oz·in
lb·in
lb·t
LANGUAGE
LANGUAGE
->* GERMAN
ENGLISH
